ILVM-6380-3 Landtek Multi Channel Vibration Meter, Piezoelectric Sensor Transducer 10Hz~10kHz Frequency, Digital Velocity Acceleration Displacement Measurement Gauge

Sku: ILVM-6380-3
$670.90 USD
Translation missing: en.products.product.shipping_policy_html
Quantity:
Add to Wishlist Remove From Wishlist
Visa Mastercard PayPal American Express Google Pay Apple Pay Shop Pay

This 3-channel (Acceleration, displacement & velocity) Vibration Meter was specifically designed for measuring various mechanical vibration. It is used for measuring periodic motion, to check the imbalance and deflecting of moving machinery. Specifically designed for present measuring various mechanical vibration. So as to provide the data for the quality control, run time and equipment upkeep. Vibration is a reliable indicator of the mechanical health or condition of a particular machine or product.

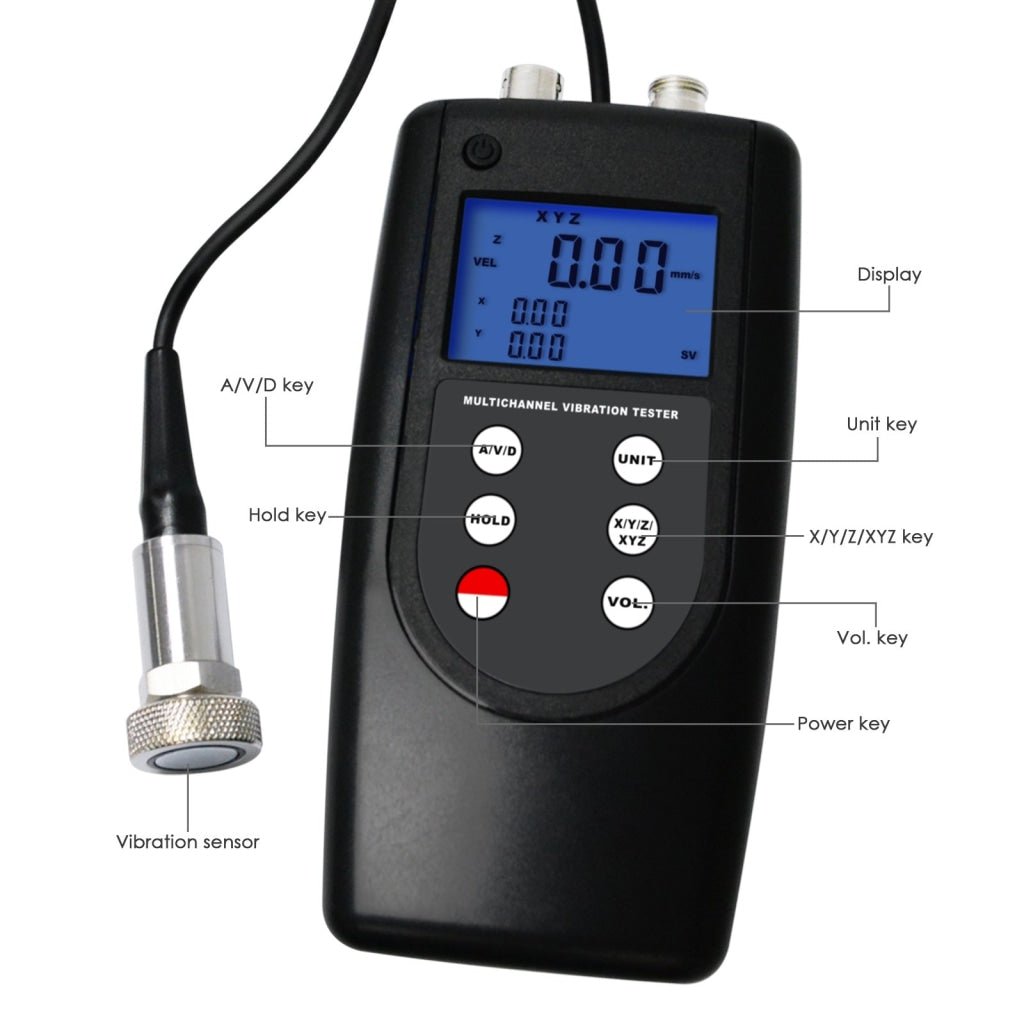

Features:

  • Uses piezoelectric acceleration transducer to convert vibration signal

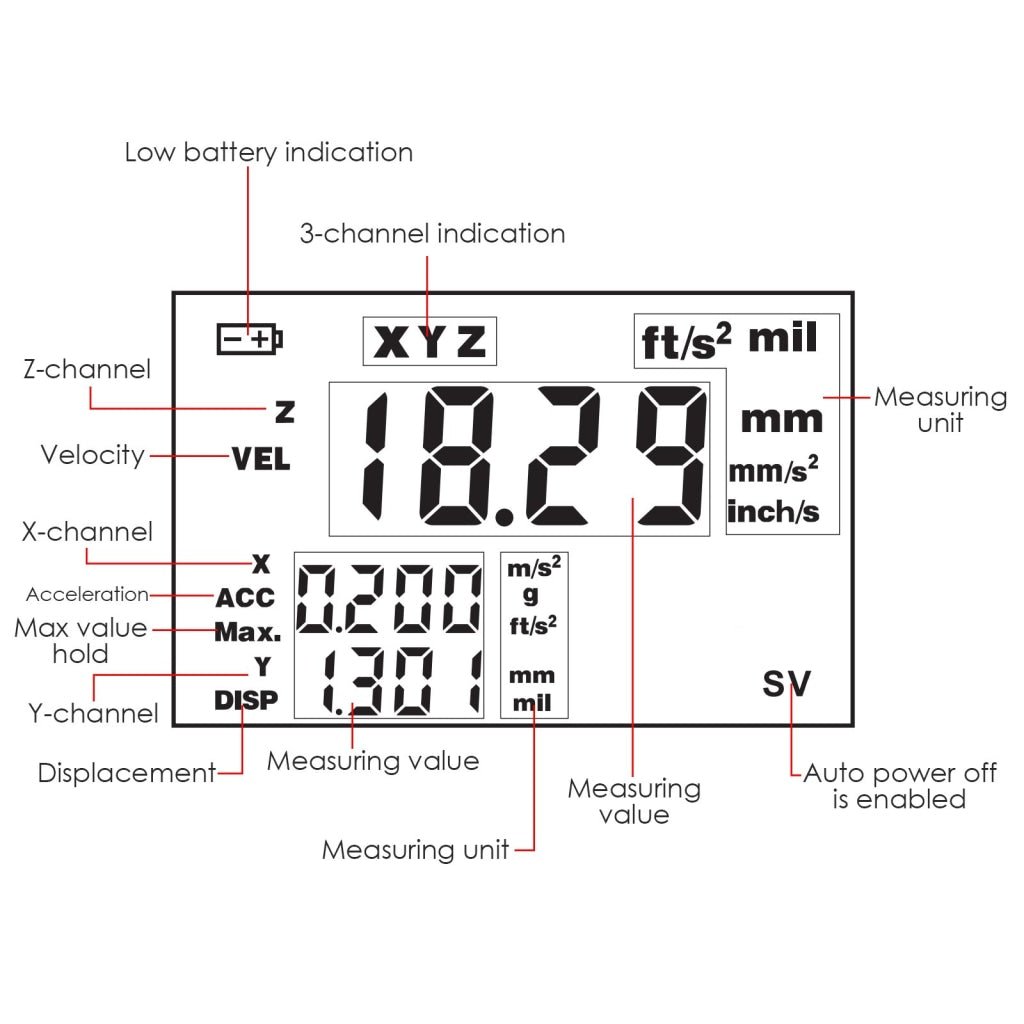

  • 3 same parameters in one display for 3 position measurement or 1 position measurement specified, showing 3 different parameters of velocity, acceleration and displacement in 1 display.
  • Wide Frequency range ( 10Hz~10kHz) in acceleration mode

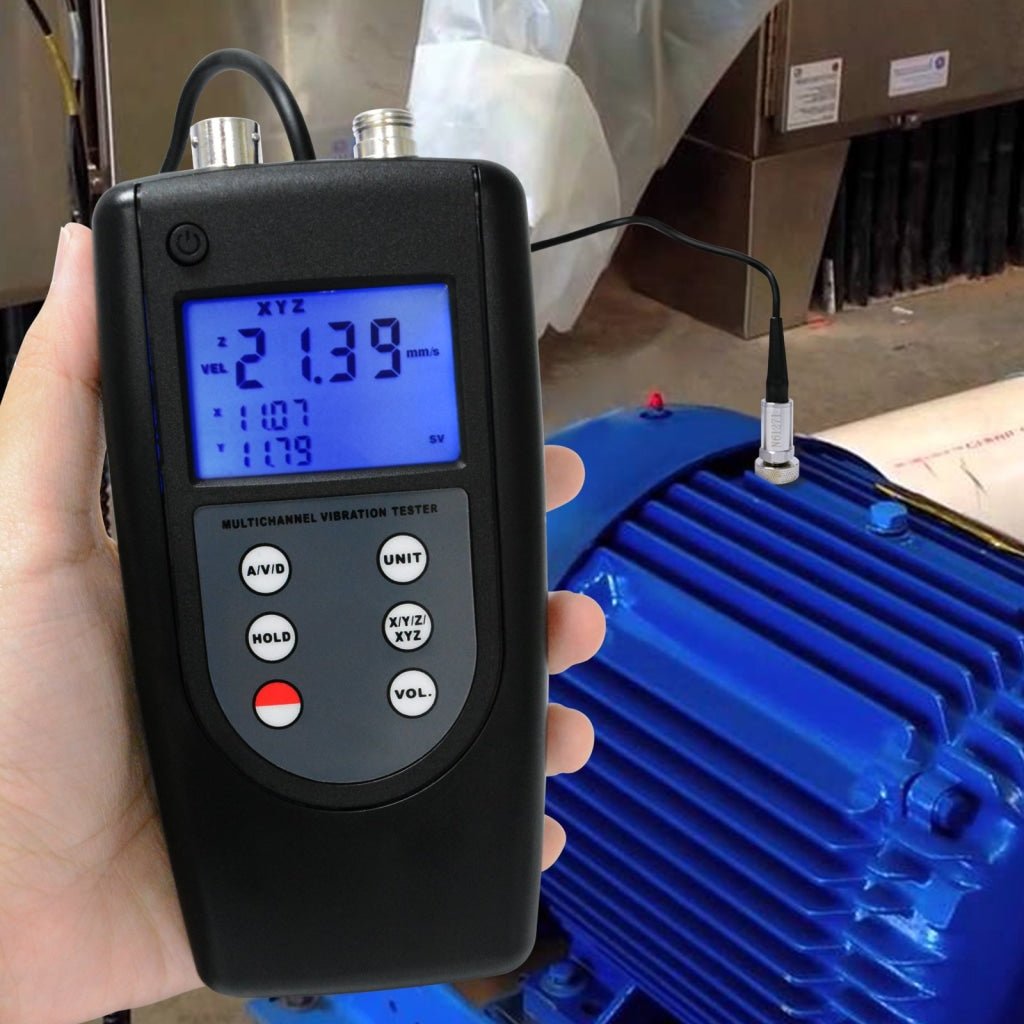

  • Designed for easy on-site vibration measurement of all rotating machinery for quality control, commissioning, and predictive maintenance purposes
  • LCD digital display with backlight
  • Lightweight and easy to use
  • High-Quality accelerometer for accurate and repeatable measurements

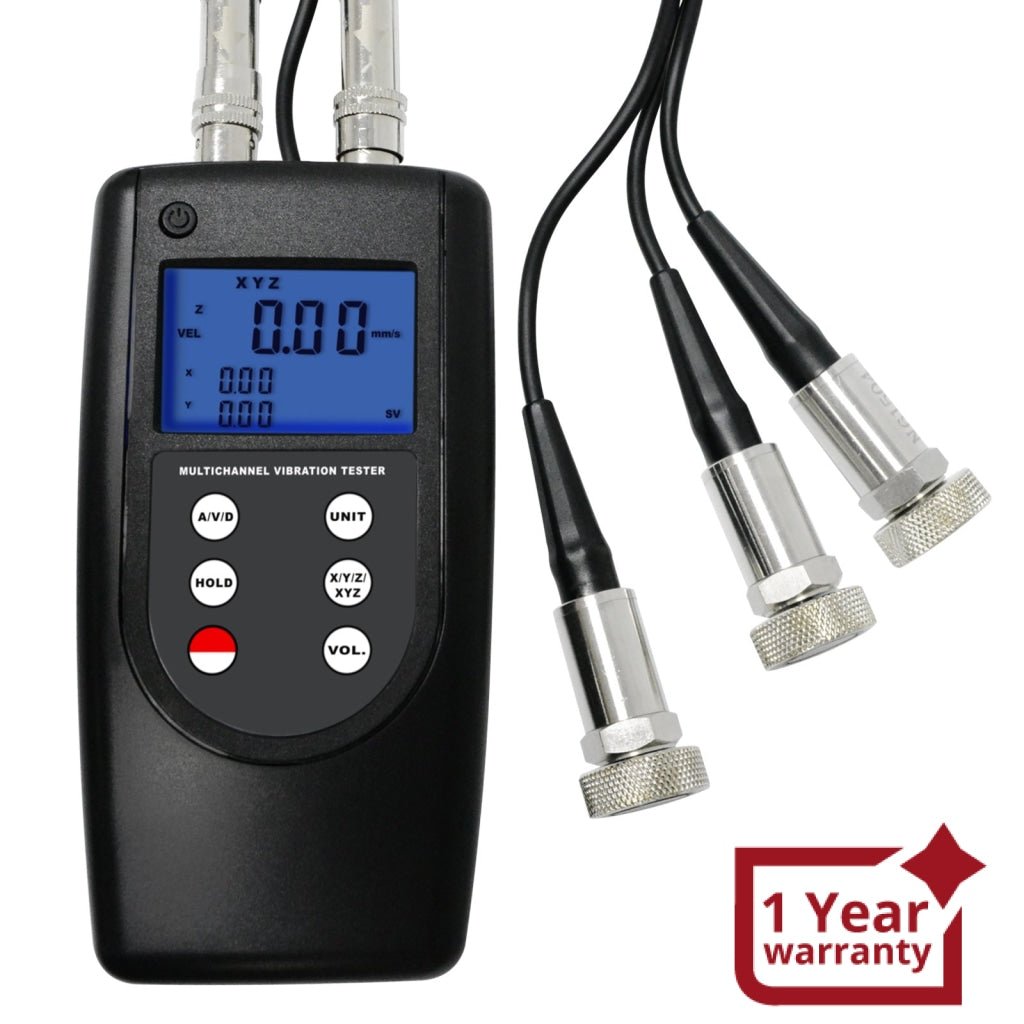

  • 3 accelerators for 3-channel vibration measurement
  • Bearing condition monitoring function
  • Manual or Automatic power shut off to conserve power
  • With MAX value HOLD function
  • With low battery indication

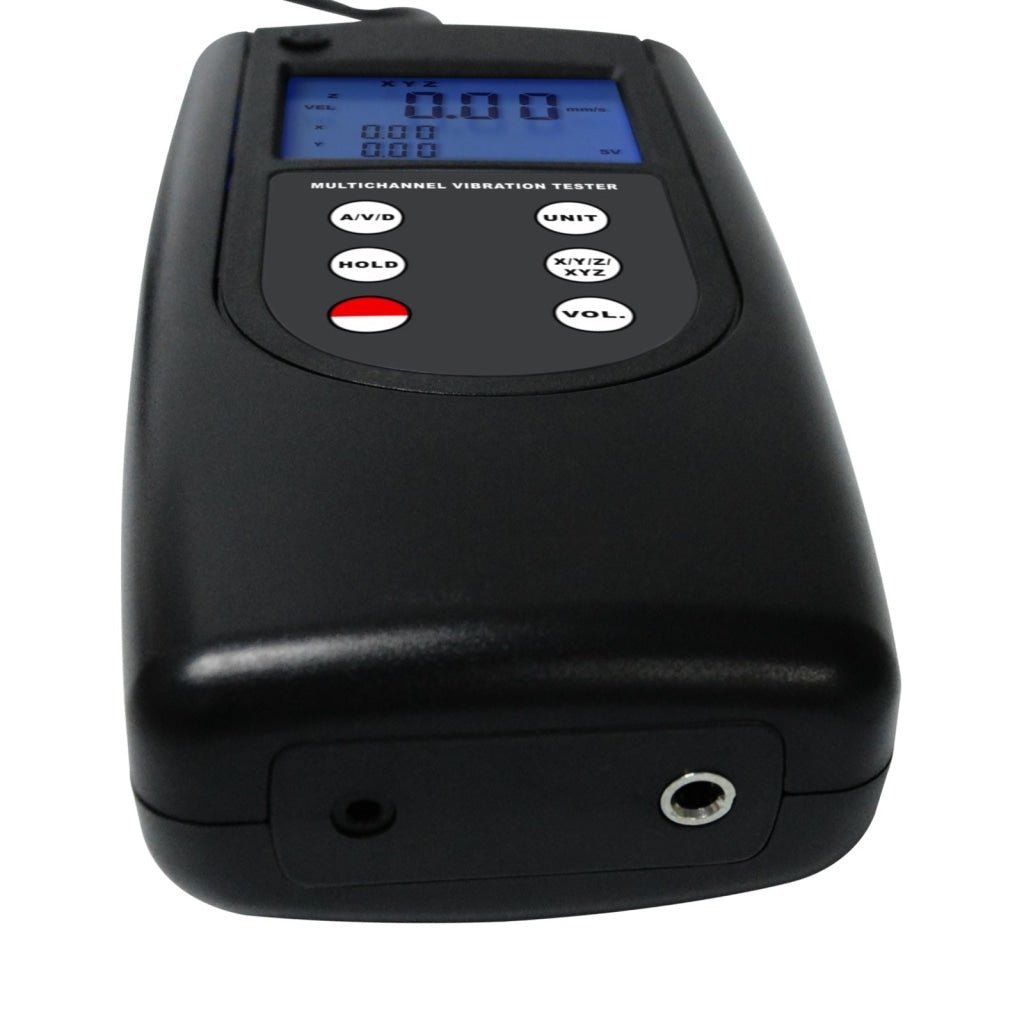

  • AC output socket for headphones and recording
  • In accordance with ISO 2954, GB13823.3, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines
  • USB data output to connect with PC (Cable & Software is not included in the set)
  • Bluetooth data output choice (adapter and software is not included in the set)



Specifications:

  • Display: 4 digit LCD backlit
  • Vibration Sensor: Piezoelectric accelerometer
  • Vibration: any one channel of X , Y, Z or 3 channel of XYZ
  • Measurement Range:
    • Displacement: 0.001~4.000mm Equivalent Peak-Peak; 0.04~160.0 mil
    • Acceleration: 0.1~400.0 m/s² Equivalent Peak; 0.3~1312 ft/s²; 0.0~40g
    • Velocity: 0.01~400.0 mm/s True RMS; 0.004~16.00 inch/s
  • Frequency Range:
    • Displacement: 10Hz. ~ 1kHz.
    • Acceleration: 10Hz. ~ 10kHz
    • Velocity: 10Hz. ~1kHz.
  • Accuracy: ±(5%n+2) digits
  • Metric/ Imperial conversion
  • Analogue Output: AC output 0~2.0V peak full scale (load resistance: above 10k)
  • PC interface: RS232C (Cable and software is not included)
  • Operating conditions:
    • Temperature: 0~50°C
    • Humidity: below 95% RH

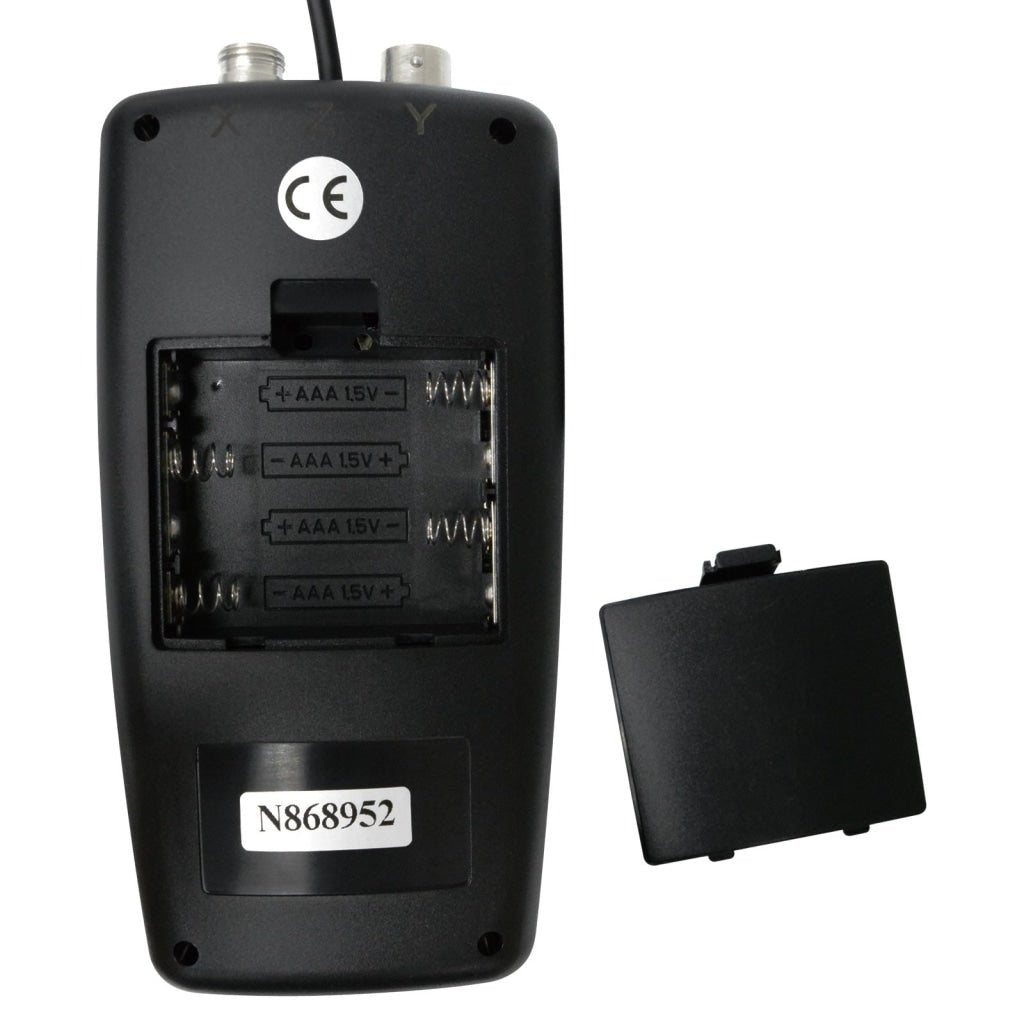

  • Power supply: 4 x 1.5vAAA (UM-4)Battery

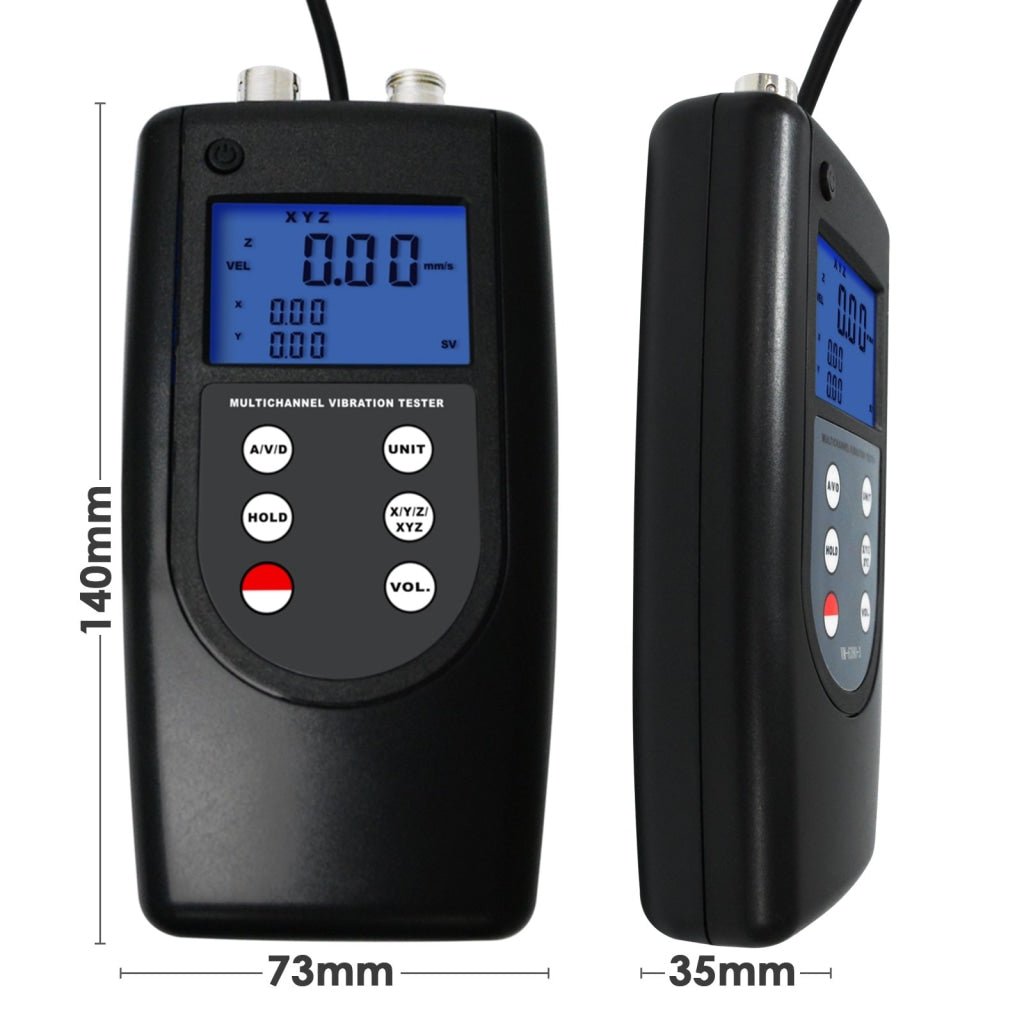

  • Size:140 x 73 x 35mm
  • Weight: 415g (Not including Batteries)

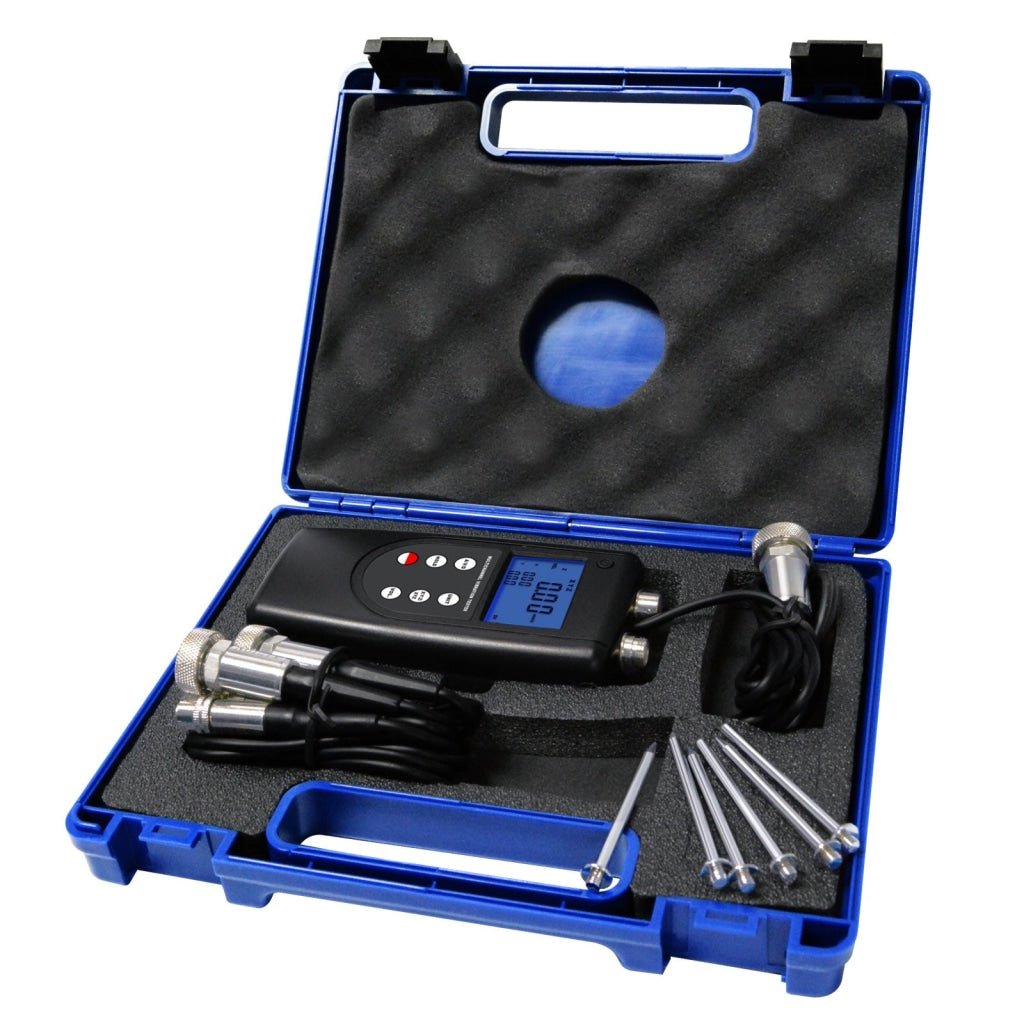

Set Includes:

  • 1 x Vibration Meter (Main Unit)

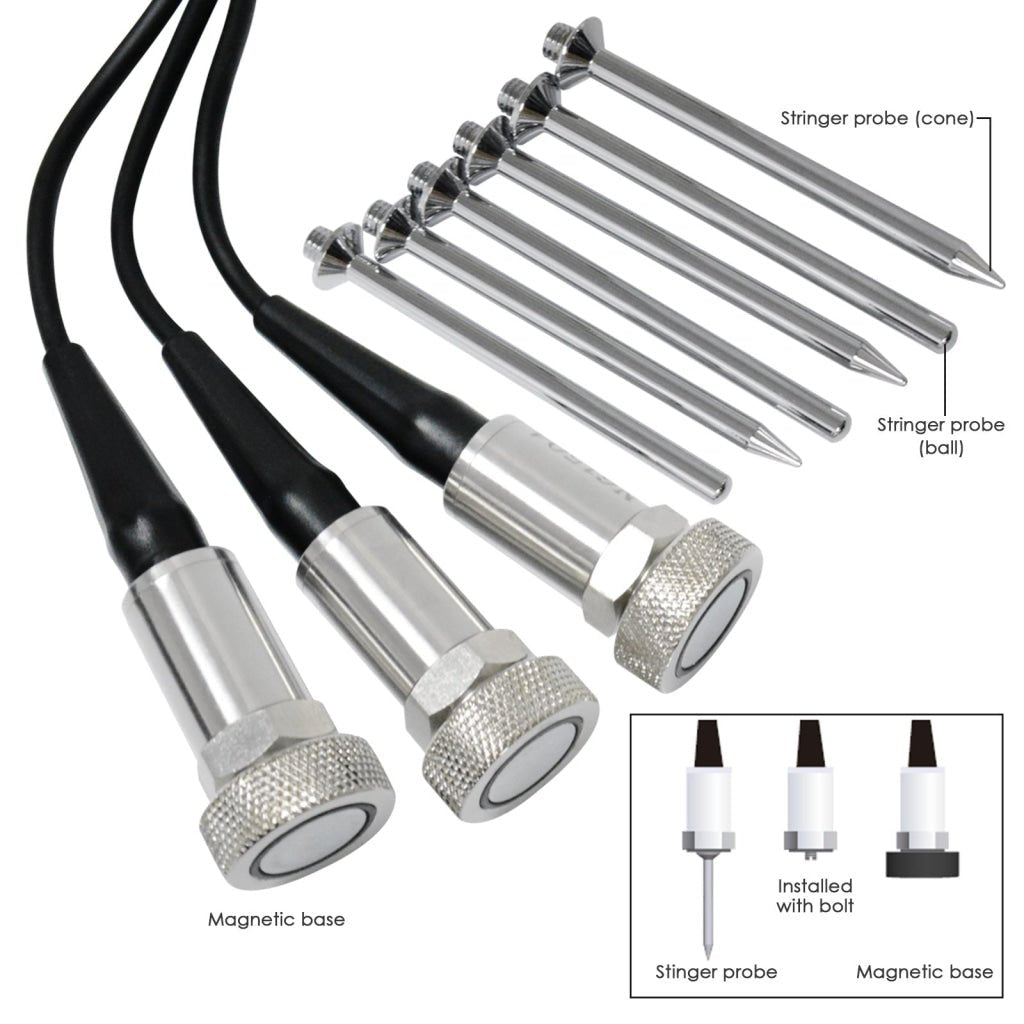

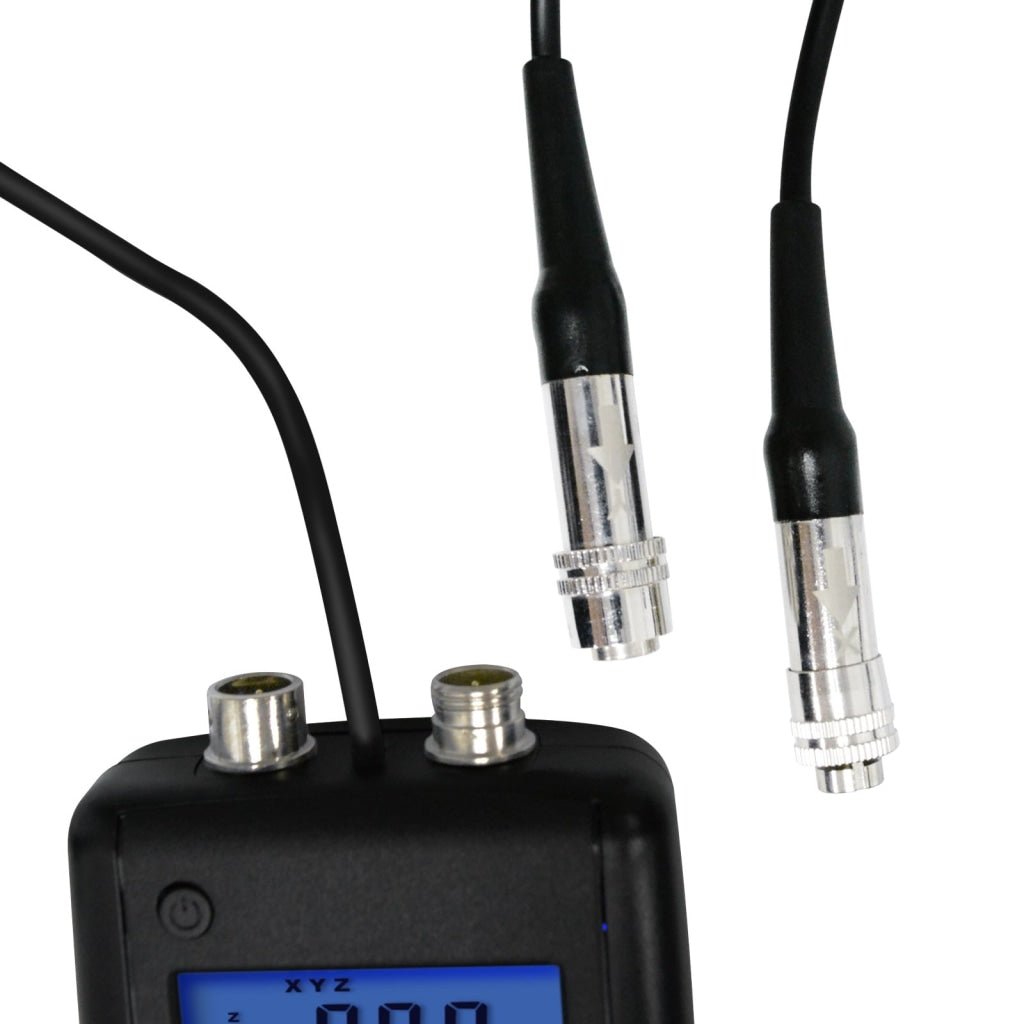

  • 3 x Piezoelectric Transducers Sensor
  • 3 x Powerful Rare Earth Magnet
  • 3 x Stinger Probe (Cone)
  • 3 x Stinger Probe (Ball)
  • 1 x Carrying Case
  • 1 x English Instruction Manual

    A printed user manual is already included with this item. No digital user manual or software is available.
