ILVM-6370T Vibration Tachometer Meter Piezoelectric Sensor Contact Photo Rotation Rate Tester Vibrometer, RPM (r/min) Frequency Hz Rotating Machinery Imbalance Velocity Acceleration Displacement

Sku: ILVM-6370T
$372.90 USD
Translation missing: en.products.product.shipping_policy_html
Quantity:
Add to Wishlist Remove From Wishlist
Visa Mastercard PayPal American Express Google Pay Apple Pay Shop Pay

Used for measuring periodic motion, to check the imbalance and deflecting of moving machinery. Also can be used as contact tachometer and photo tachometer. Measures Velocity, Acceleration, and displacement.

Features:

  • In accordance with ISO 2954, used for periodic measurements
  • Detect out-of-balance, misalignment and other mechanical faults in rotating machines
  • Specially designed for easy on site vibration measurement of all rotating machinery for quality control, commissioning, and predictive maintenance purposes

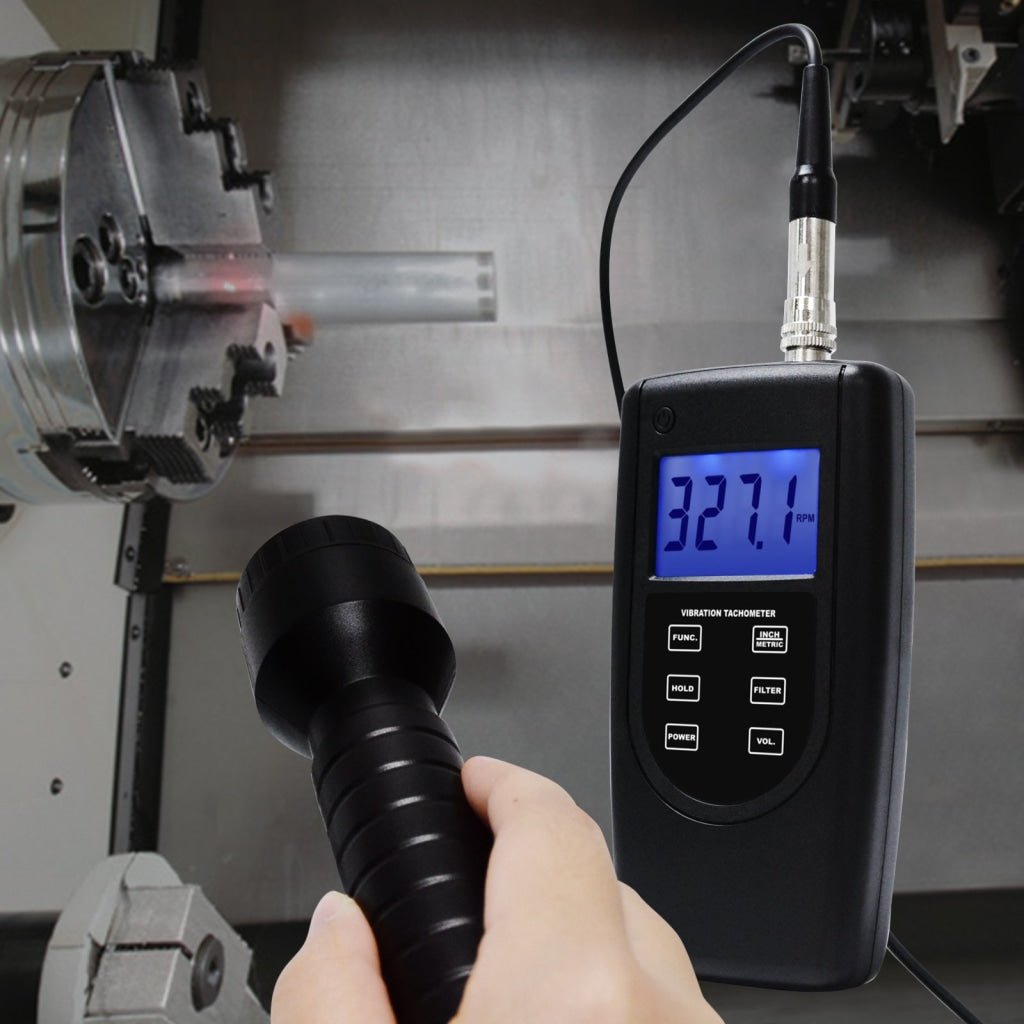

  • Multi functional one instrument combines Photo Tachometer & Contact Tachometer
  • Measure rotation rate RPM(r/min) & Frequency Hz
  • Individual high quality accelerometer for accurate and repeatable measurements
  • Bearing condition monitoring function
  • Wide frequency range in acceleration mode
  • Use USB data output to connect with PC (Cable & Software is not included in the set), analyzed and print
  • Provide Bluetooth data output choice (Adapter and software is not included in the set)

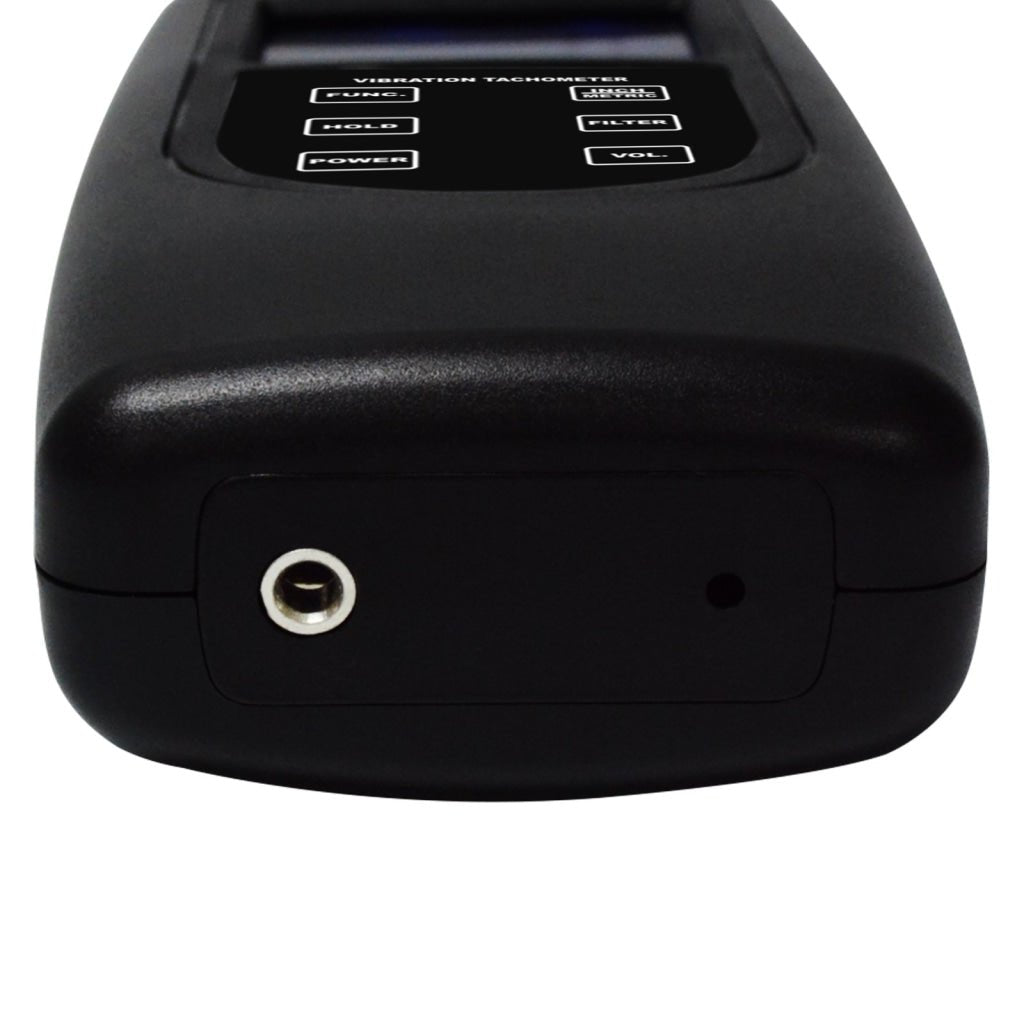

  • Provides AC Output socket for headphones and recording
  • User friendly, lightweight easy to carry anywhere


Specifications:

  • Sensor: Piezoelectric Transducer/accelerometer
  • Display: 4 digits, 18mm LCD

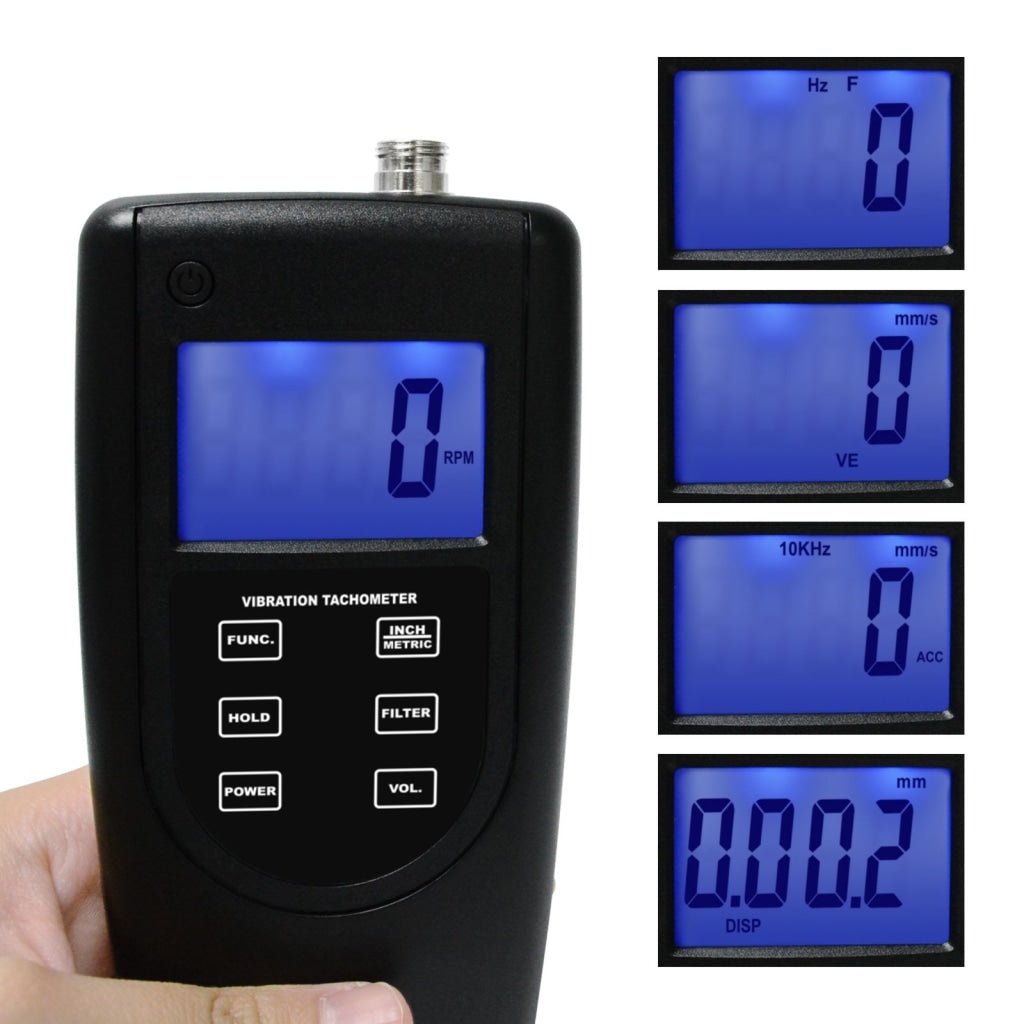

  • Parameters: Velocity, Acceleration, and displacement
  • Measuring Range
    • Acceleration: 0.1~400 m/s²  Equivalent Peak
    • Velocity: 0.01~400 mm/s  True RMS
    • Displacement: 0.001~4.000  Equivalent Peak-peak
  • Frequency Range
    • Acceleration: 10Hz~10kHz
    • Velocity: 10Hz~1kHz
    • Displacement: 10Hz~1kHz
  • Rotation Rate Range: 60~99,990RPM(r/min) (Reading should be multiplied by 10 if the display shows ‘10’)
  • Frequency Range: 1~20,000Hz (Reading should be multiplied by 10 if the display shows ‘10’)
  • Accuracy: 5% of Reading + 2 digits
  • Output: AC output 2.0V peak full scale (load resistance above 10k)
  • Operating Conditions
    • Temperature: 0~50 °C
    • Humidity: <90 %RH

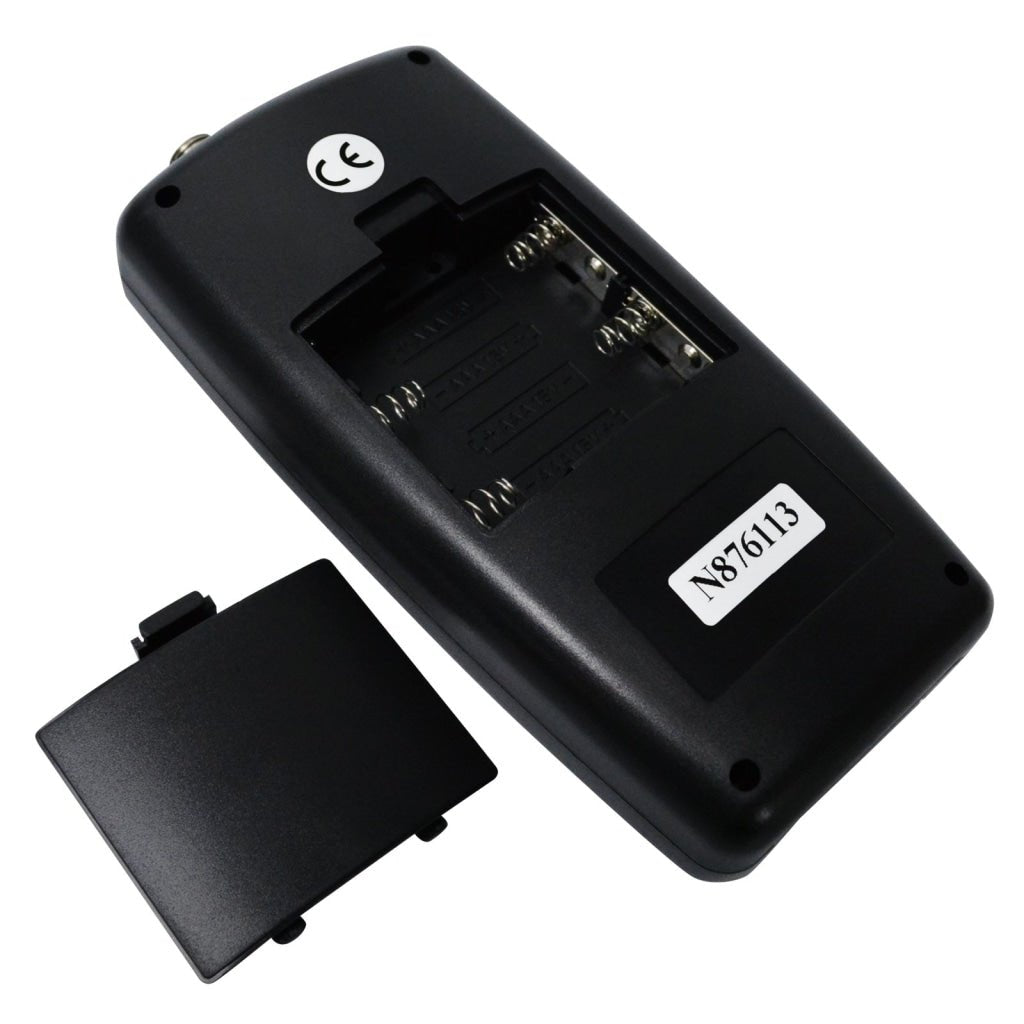

  • Power Supply: 4 x 1.5V AAA Battery

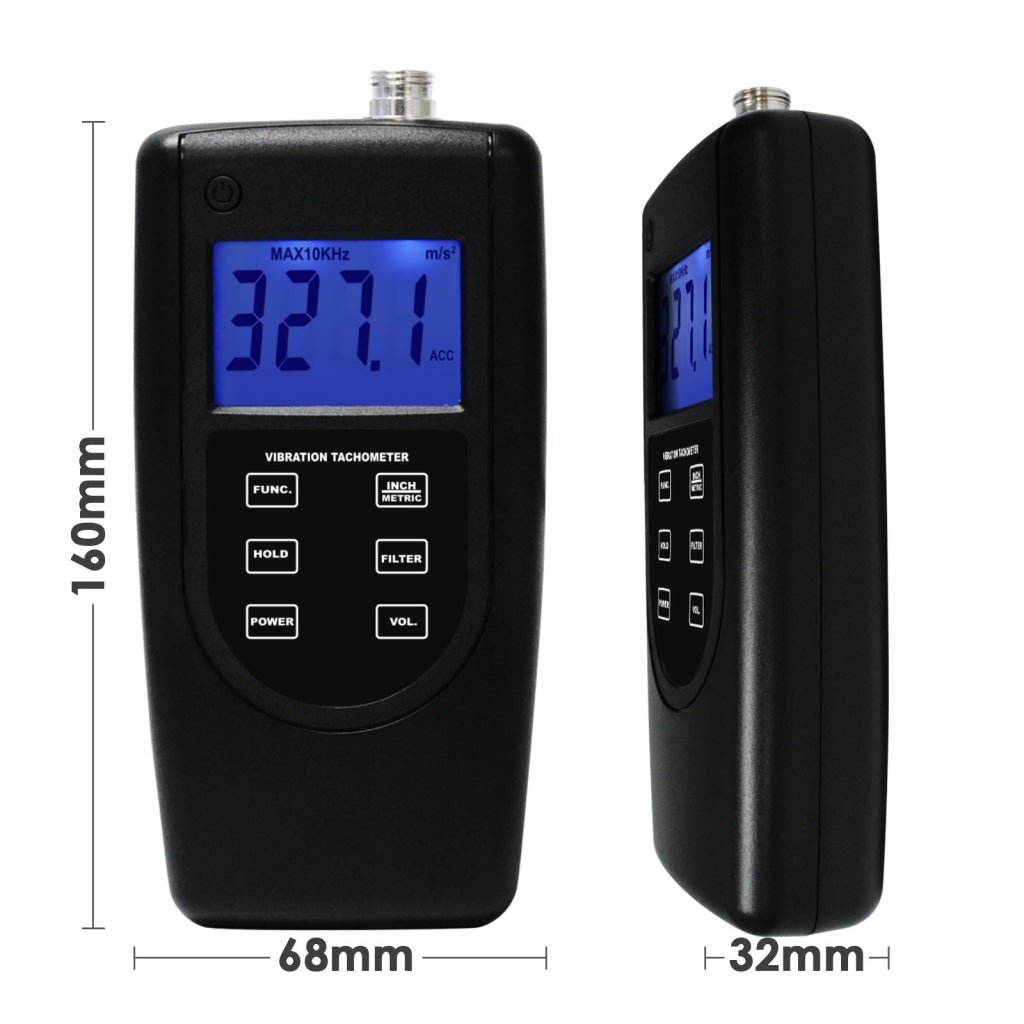

  • Dimensions: 160 x 68 x 32mm
  • Weight: 181g (Not Including Batteries)

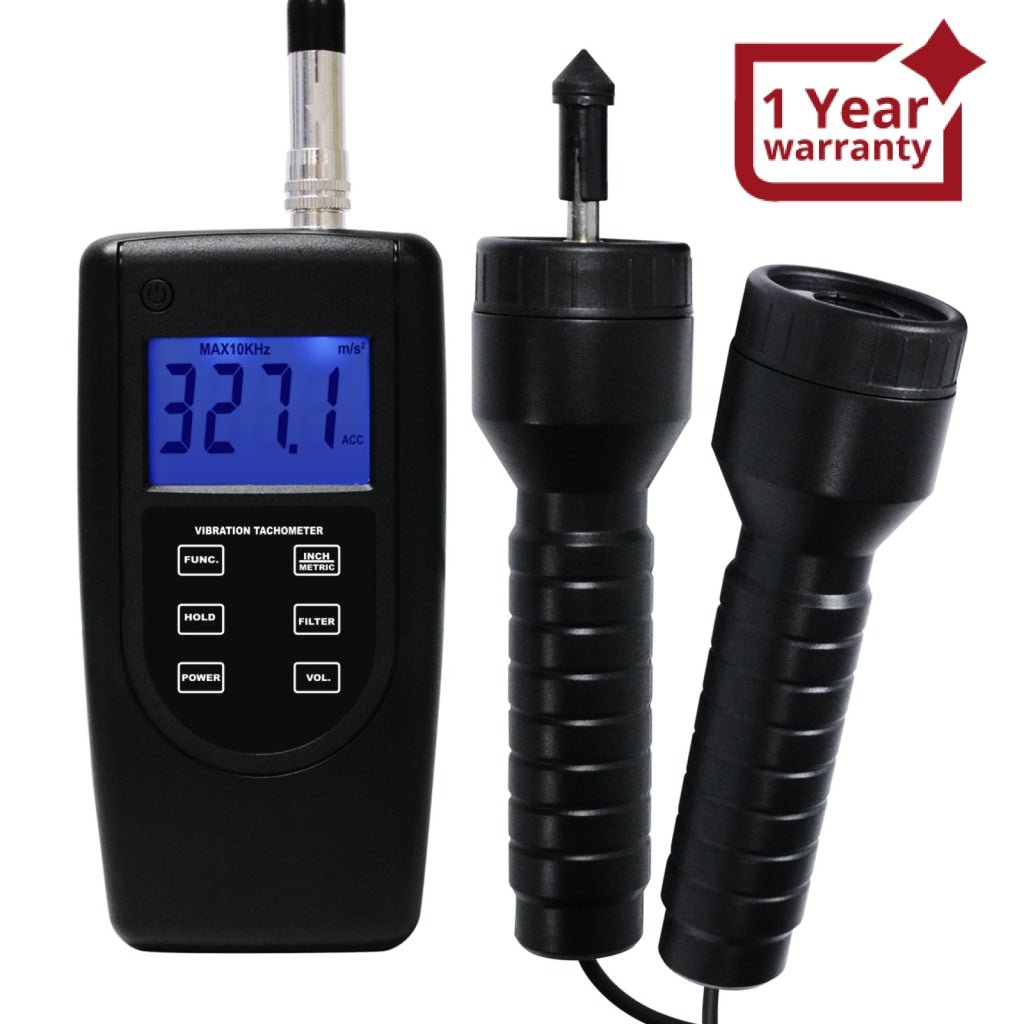

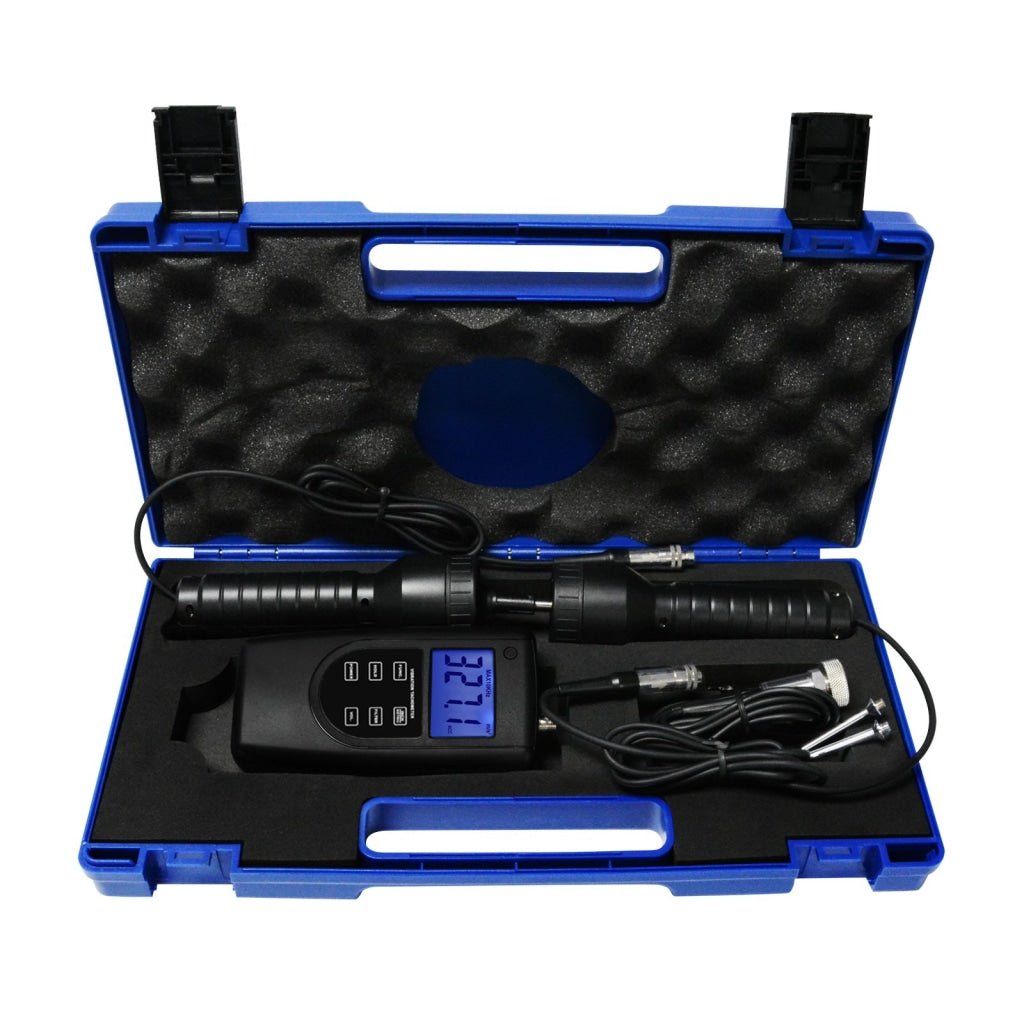

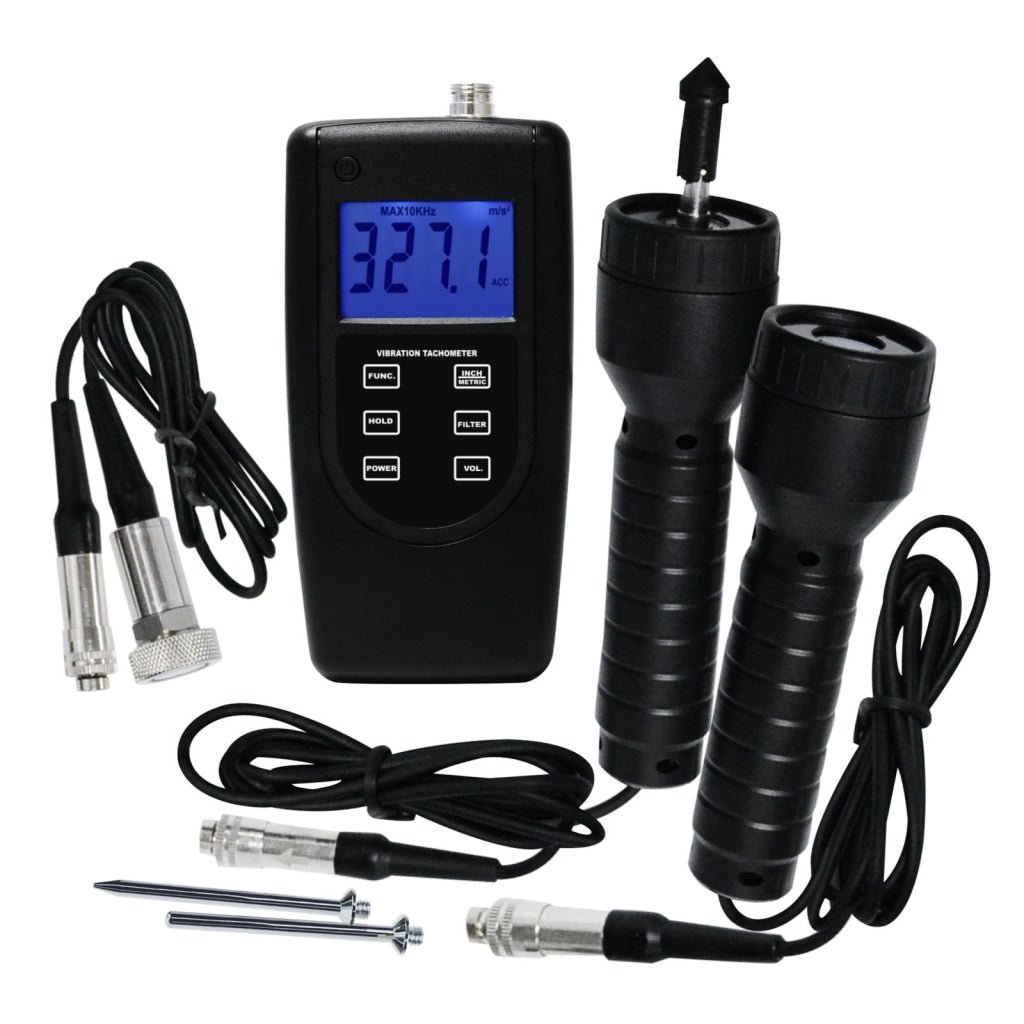

Set Includes:

  • 1 x Vibration Tachometer (Main unit)

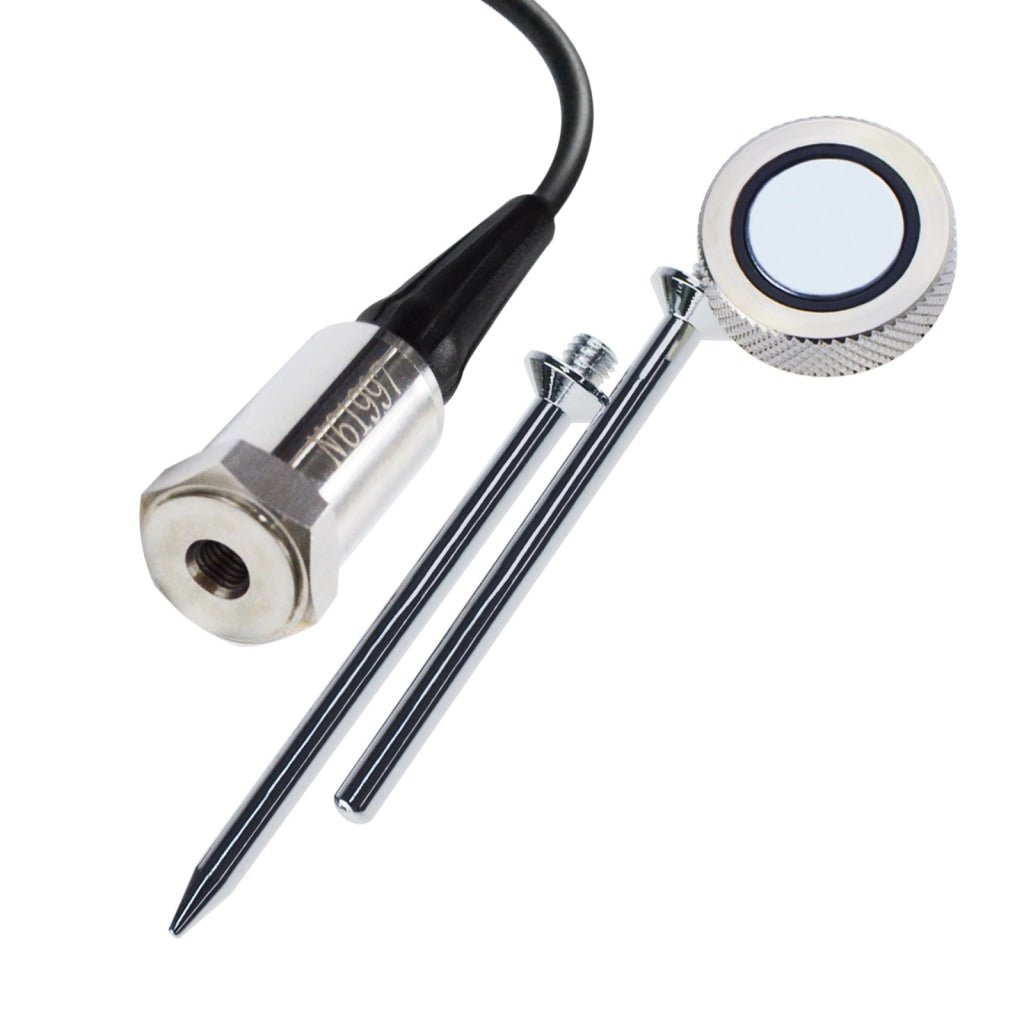

  • 1 x Piezoelectric Transducer
  • 1 x Powerful rare earth magnet
  • 1 x Stinger Probe (Cone)
  • 1 x Stinger Probe (Spherical/Ball)

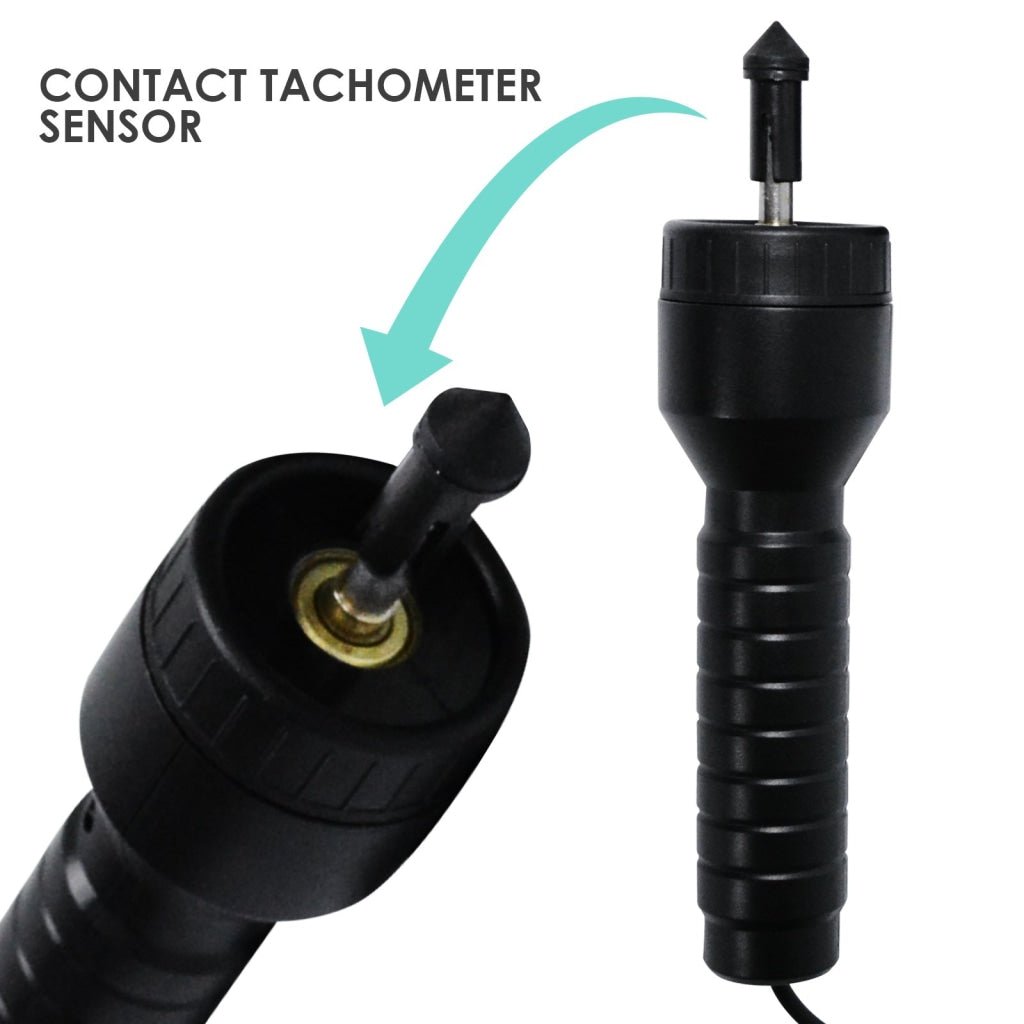

  • 1 x Contact Tachometer Sensor

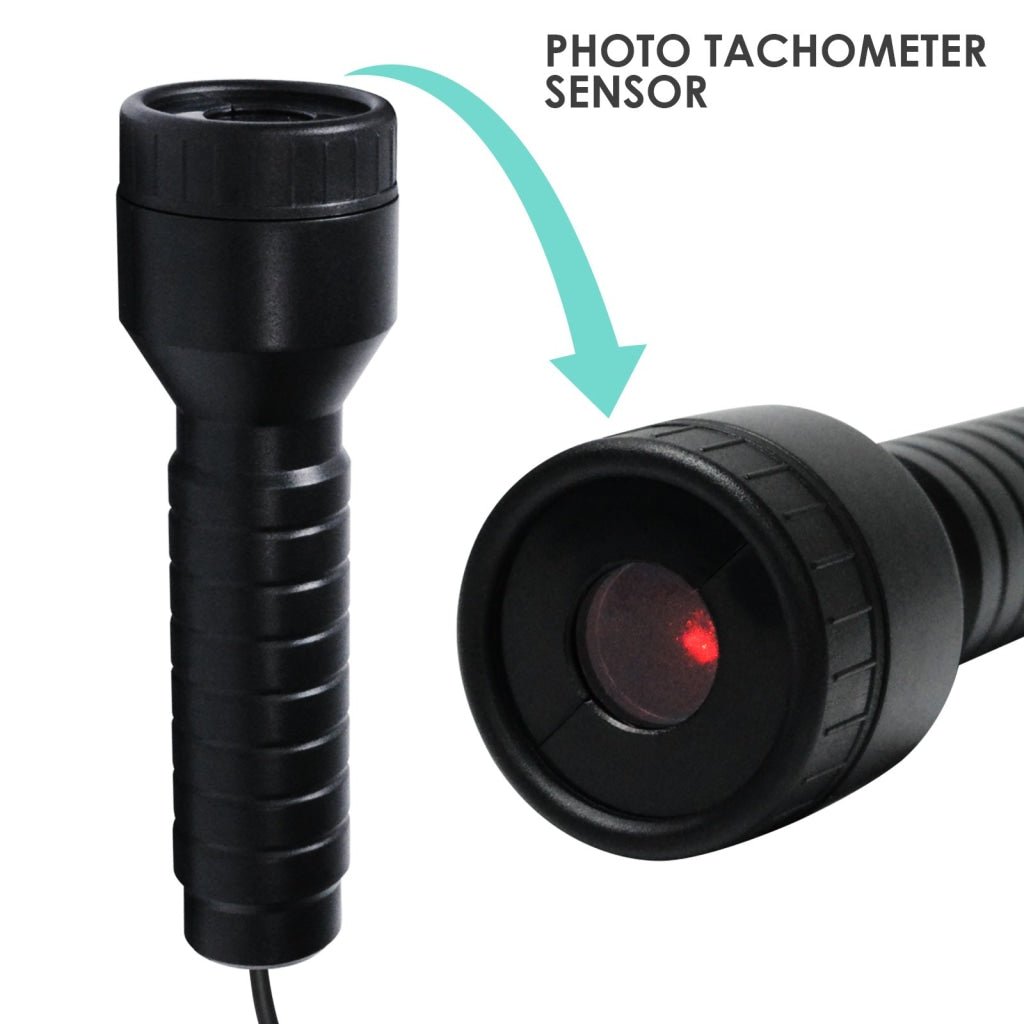

  • 1 x Photo Tachometer Sensor
  • 1 x Reflective Tape Marks (350mm)
  • 1 x English Instruction Manual
  • Carrying Case

A printed user manual is already included with this item. No digital user manual or software is available.
