ILTT-2880 Digital Belt Tension Meter Gauge, 0~77 kg / 0~120 lb / 0~750 Newtons / 0~144 Seems, Tape Cable Wire Replacement Adjustment Maintenance, Automotive Motorcycle Manufacturing Industry

Sku: ILTT-2880
$256.90 USD
Translation missing: en.products.product.shipping_policy_html
Quantity:
Add to Wishlist Remove From Wishlist
Visa Mastercard PayPal American Express Google Pay Apple Pay Shop Pay

This Belt Tension Tester mainly used in belt tension measurement, can also be applied to measure the tension of objects such as tapes, wires. Widely applied in industries of automobile, textile, cables, wires, plastic films, paper, printing

Complex and advanced, it is convenient to use and operate. Light in weight, easy to carry anywhere. Its ruggedness will allow many years of use if proper operating techniques are followed.

Features:

  • Used the exclusive Micro-computer LSI circuit and crystal time base to offer high accuracy measurement

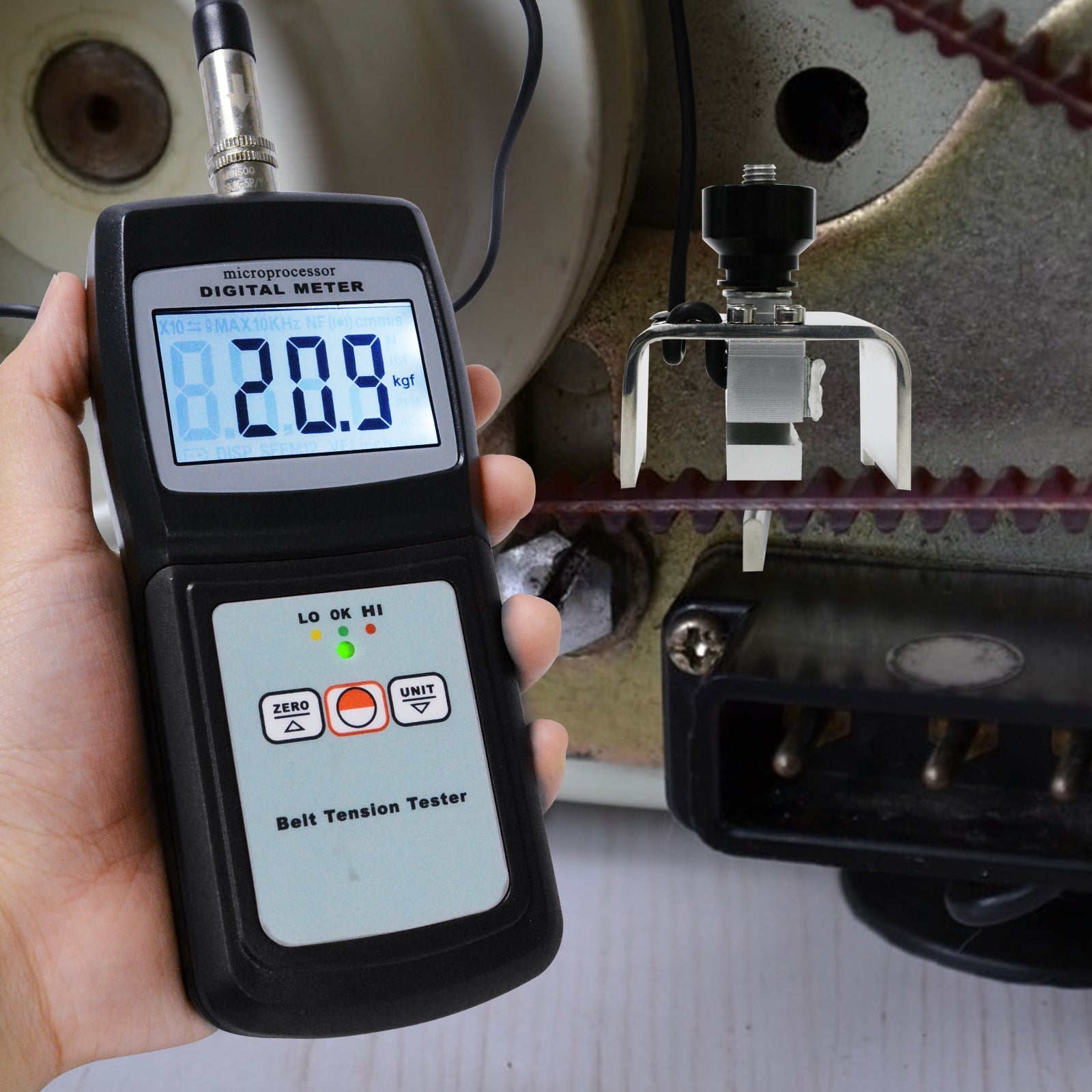

  • Used to measure and adjust the tension of timing and auxiliary belts fitted to motor vehicles and other machines

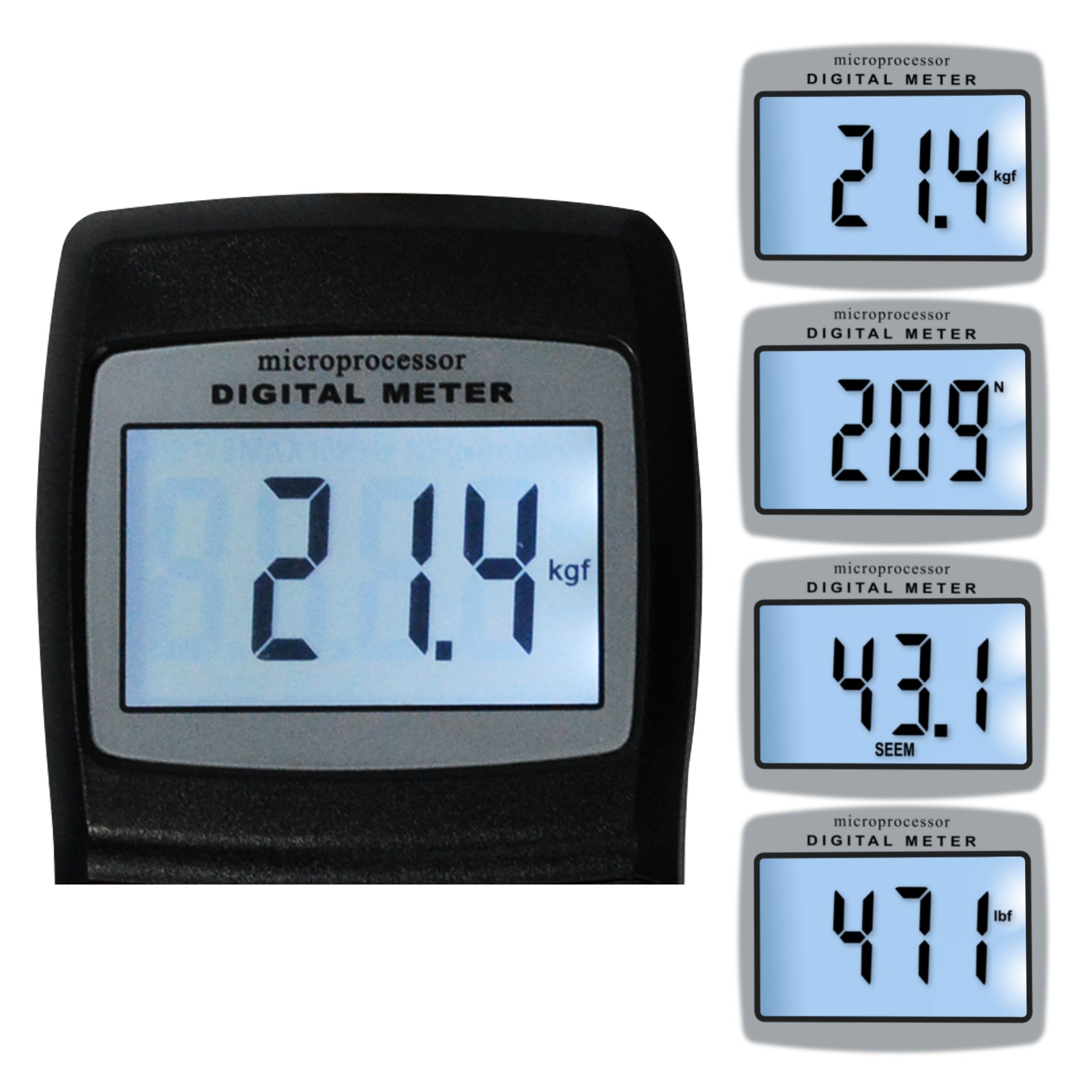

  • Tension can be displayed in a variety of standard and manufacturers' units
  • Tension limits can be set into the instrument, either manually or automatically
  • The selected tension limits, measurement units and calibration parameters are stored in the memory of the tester even the instrument is switched off
  • Use USB data output to connect with PC (Cable & Software is not included in the set), analyzed and print
  • Provide Bluetooth data output choice (Adapter and software is not included in the set)
  • Auto power off when not in use for 10min
  • Low battery indication



Specifications:

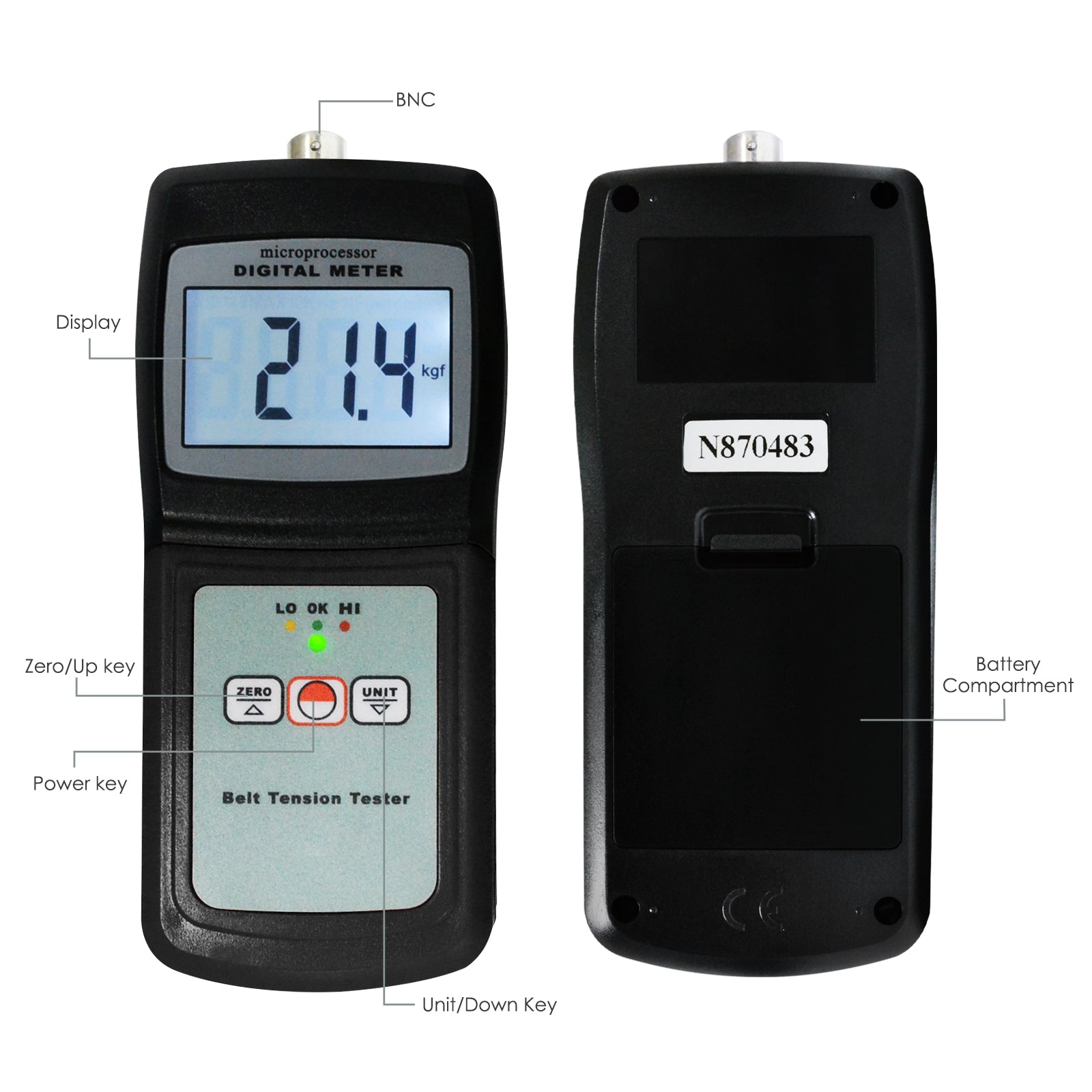

  • Display: 4 digits, 10mm LCD
  • Tension Indicator: Colored LED Indication of High, Low and OK
  • Measurement Range:
    • 0~750 N (Newtons)
    • 0~120 lb (Pounds)
    • 0~77 kg (Kilograms)
    • 0~114 Seems
  • Belt Width: Up to 36 mm
  • Overload Alarm: 750N (Adjustable)
  • Maximum Load: 850N
  • Resolution: ±1(Least Significant Digit of Units)
  • Accuracy: ±5% of full-scale
  • Data Output: USB, RS-232, Bluetooth (Software, cable and adapter are not included in the set)
  • Audible Warning: Piezoelectric Sounder

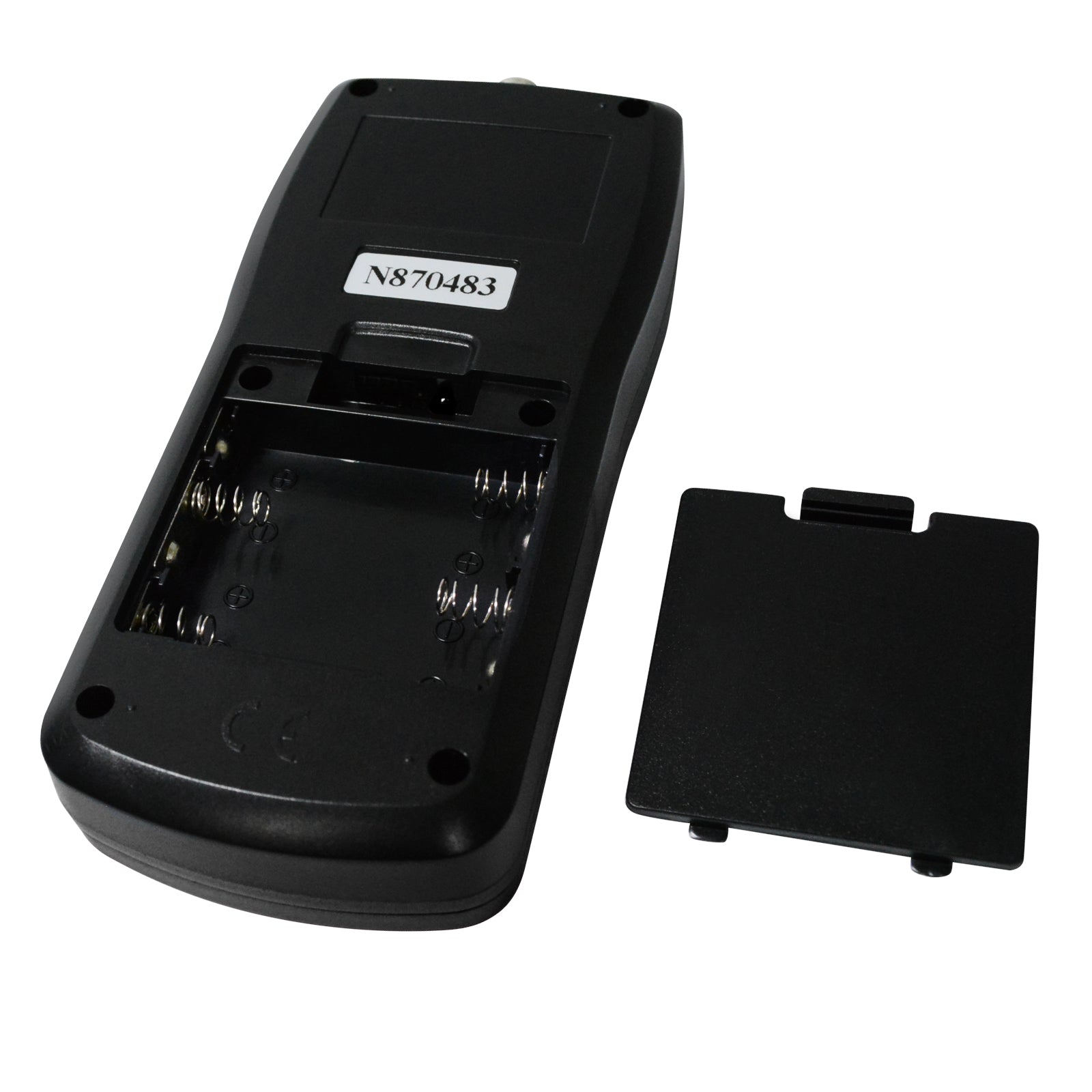

  • Power Supply: 4 x 1.5V AAA(UM-4) Battery
  • Battery life Approximately 100 hours continuous operation

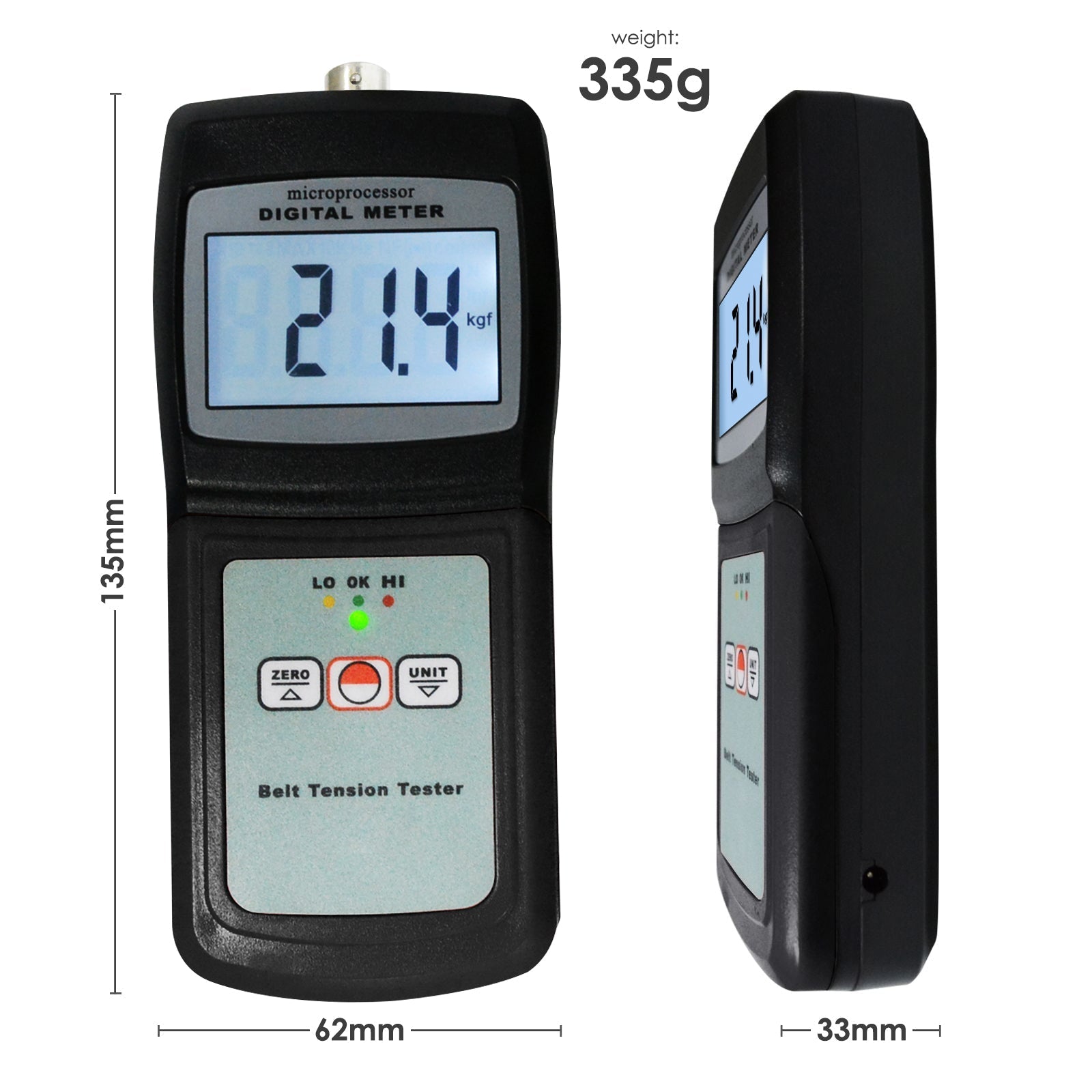

  • Dimensions: 135 x 62 x 33mm
  • Weight: 335g (not including batteries)

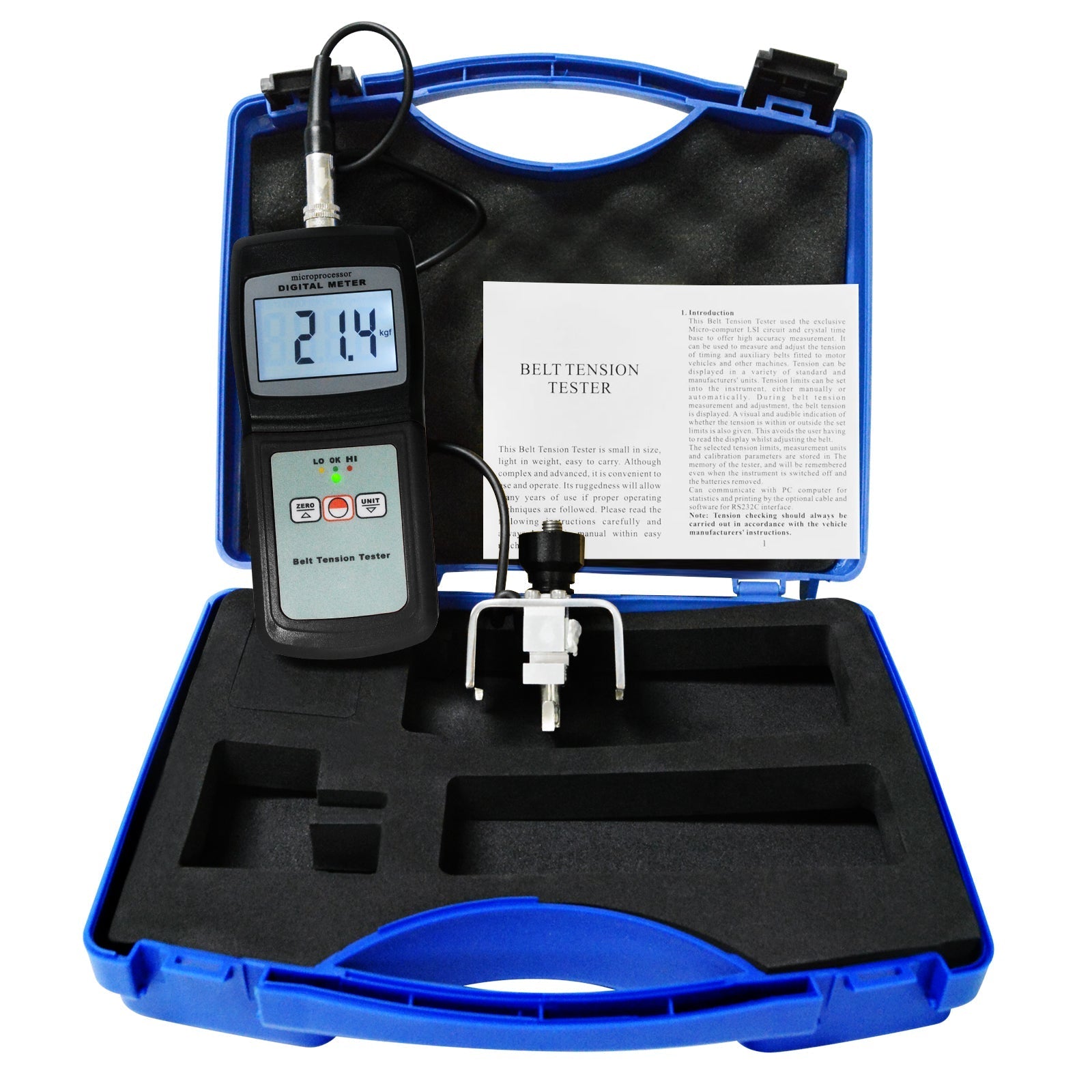

Set Includes:

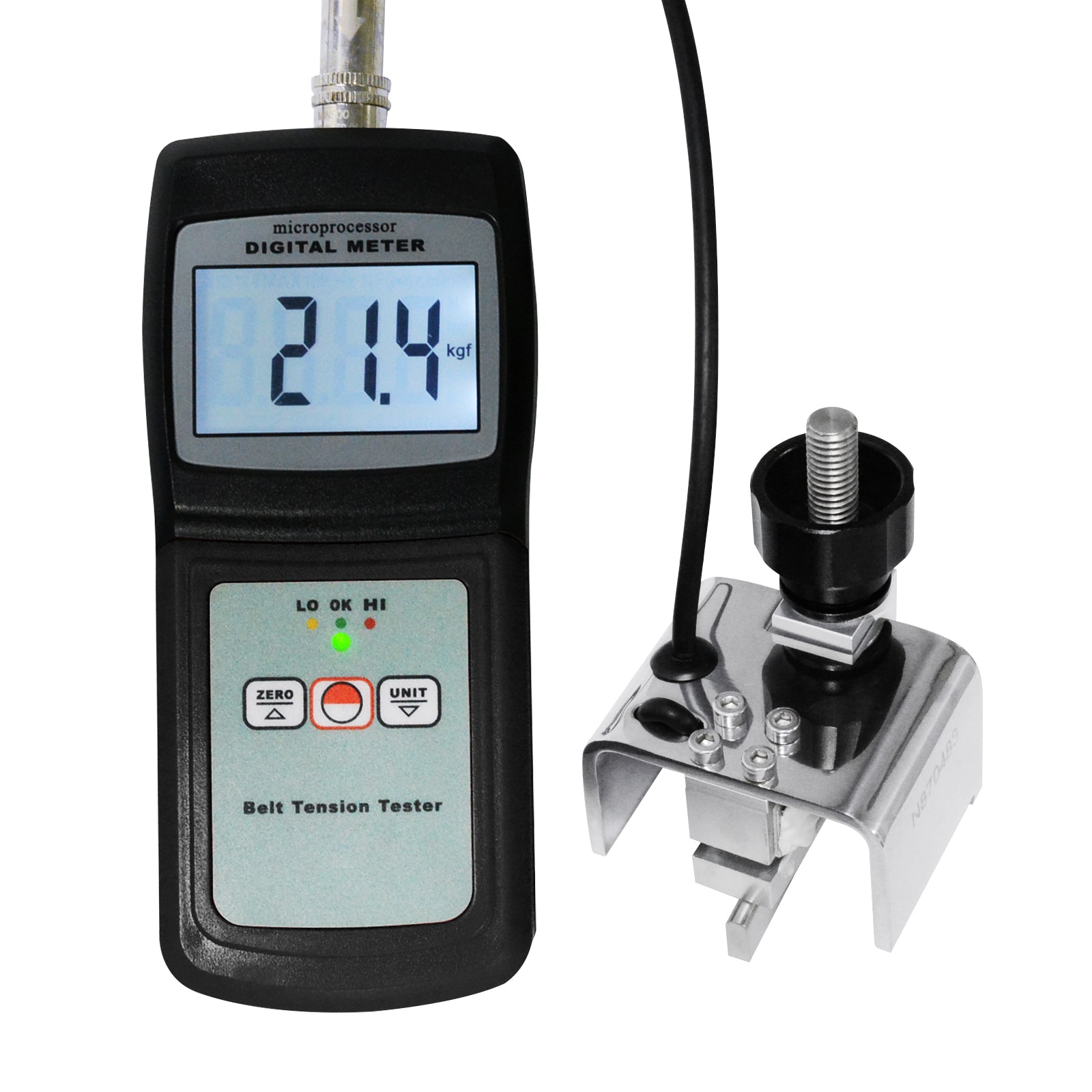

  • 1 x Belt Tension Tester (Main Unit)

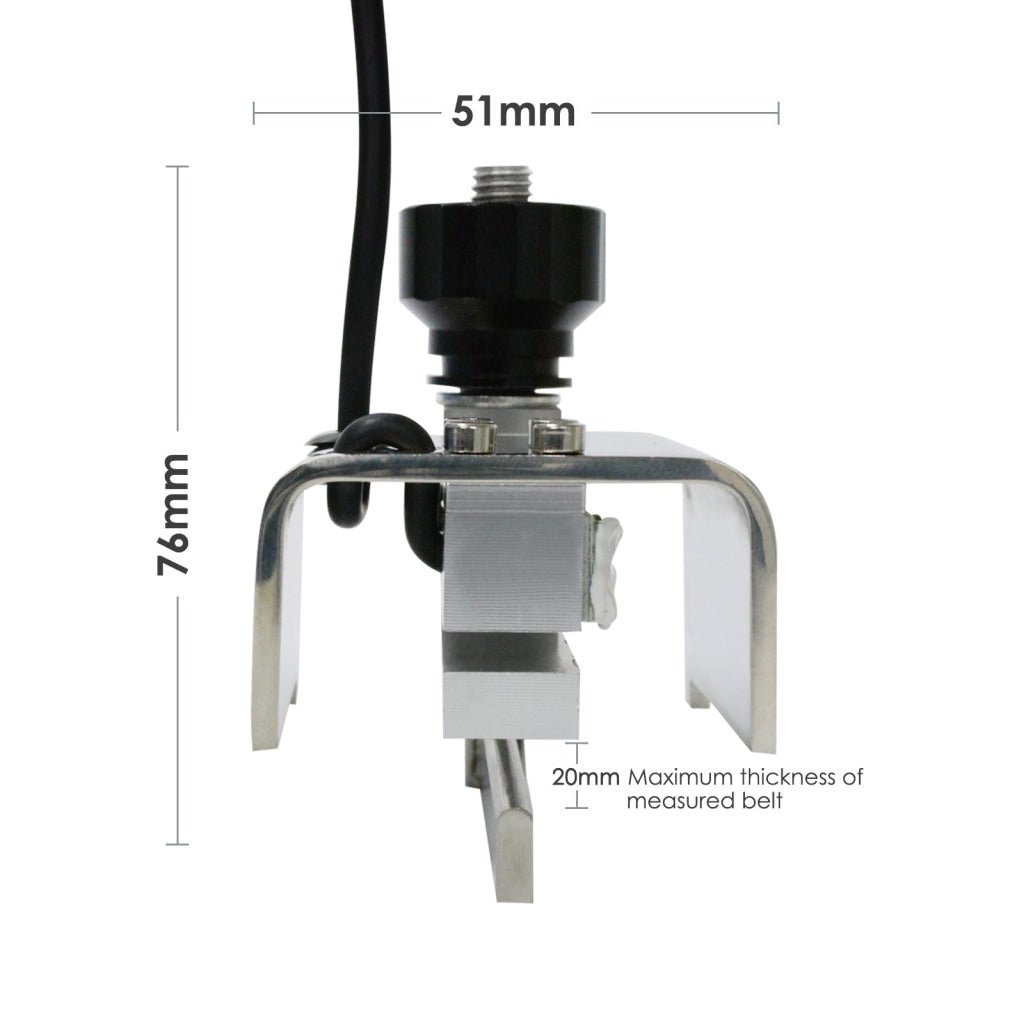

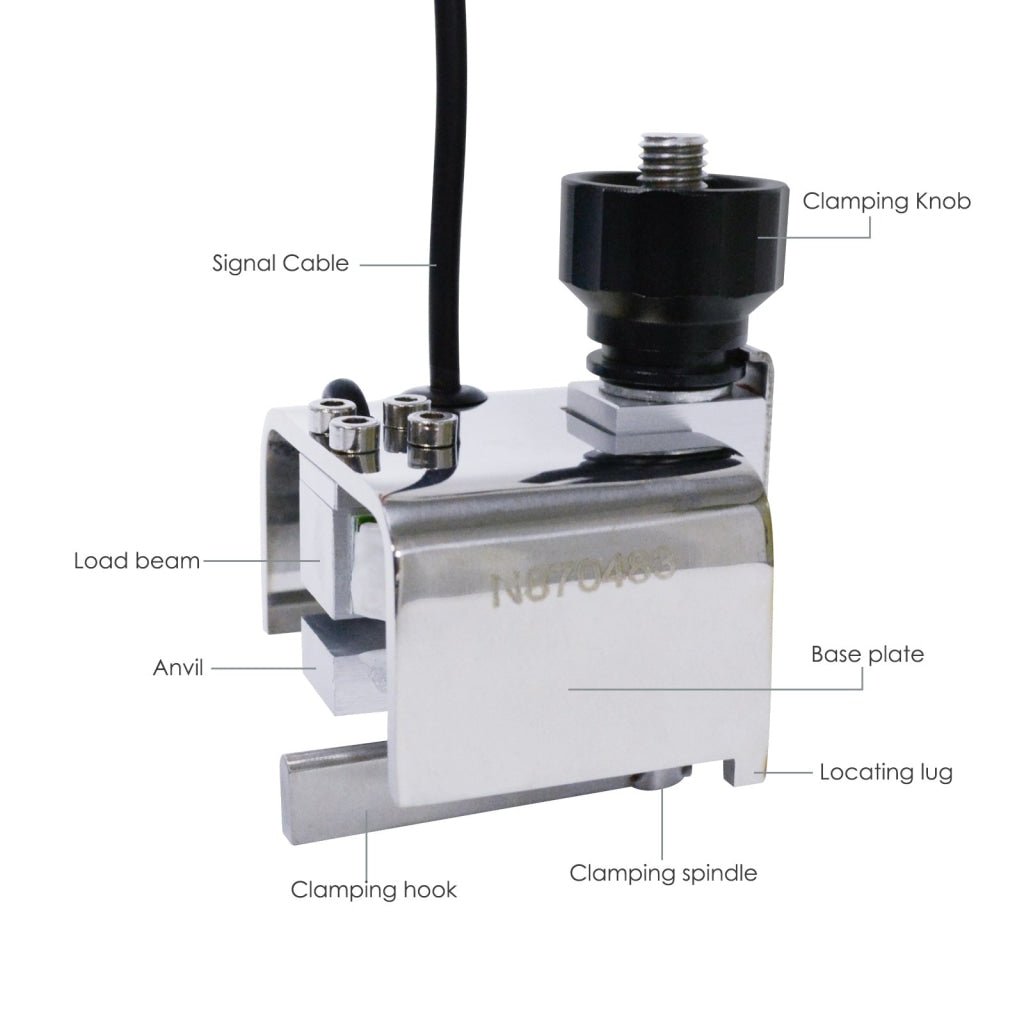

  • 1 x Measuring Head
  • English Operation Manual
  • Carrying Case

A printed user manual is already included with this item. No digital user manual or software is available.
