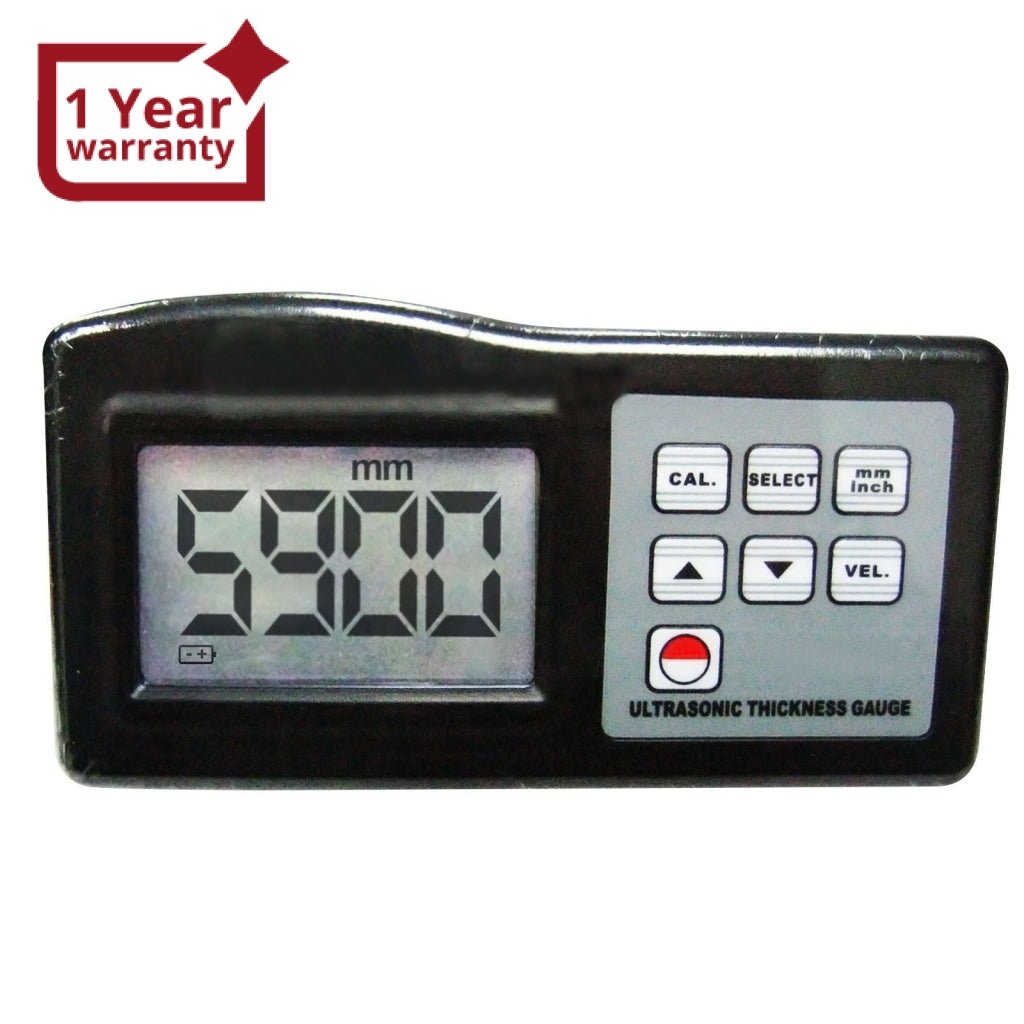

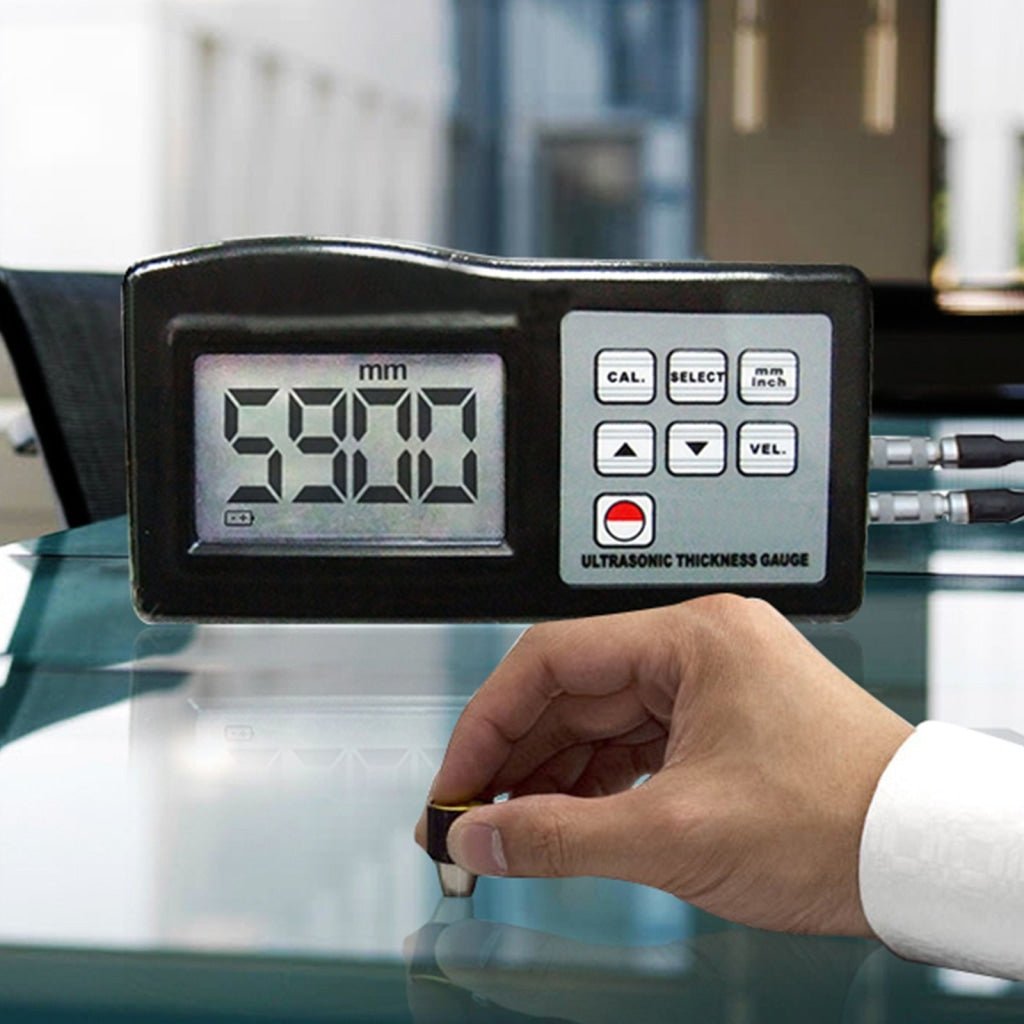

ILTM-897 Ultrasonic Digital 1.00-200.00mm Thickness Meter Metal / Non-Metal

Sku: ILTM-897
$231.90 USD
Translation missing: en.products.product.shipping_policy_html
Quantity:
Add to Wishlist Remove From Wishlist
Visa Mastercard PayPal American Express Google Pay Apple Pay Shop Pay

This handheld microprocessor-controlled ultrasonic thickness gauge is used in almost all industries as it can perform precise measurements on various types of raw materials, components, parts, and assembled machinery. A must-have device in monitoring all types of pipes and pressure vessels for loss of thickness due to corrosion or erosion, chemical equipment, boilers, oil storage tanks, and even in petroleum, shipbuilding, power stations, and machine manufacturing. It can measure any hard materials, including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, nodular cast iron, acrylic, water glass, and other materials.

Features:

  • Standard: CE Approved by European Directives for health and safety
  • Measure ultra-thin materials from 1 mm thickness
  • Used the exclusive Microcomputer LSI circuit and crystal time base to offer high-accuracy measurement
  • Capable of measuring the thickness of a metal pipe
  • With high power emission and broad receiving sensitivity, the gauge can match probes of different frequencies. That makes it easy to measure the rough surface, even cast iron. It is widely used in almost all kinds of industries.
  • Measure the thickness of many materials such as Steel, Cast Iron, Aluminum, Red copper, Brass, Zinc, Quartz glass, Polyethylene, PVC, Gray cast iron, Nodular cast iron
  • Widely used in almost all types of industries to measure rough surfaces, and even cast iron
  • Automatic power off to conserve power

Specification:

  • Operating Principle: ULTRASONIC

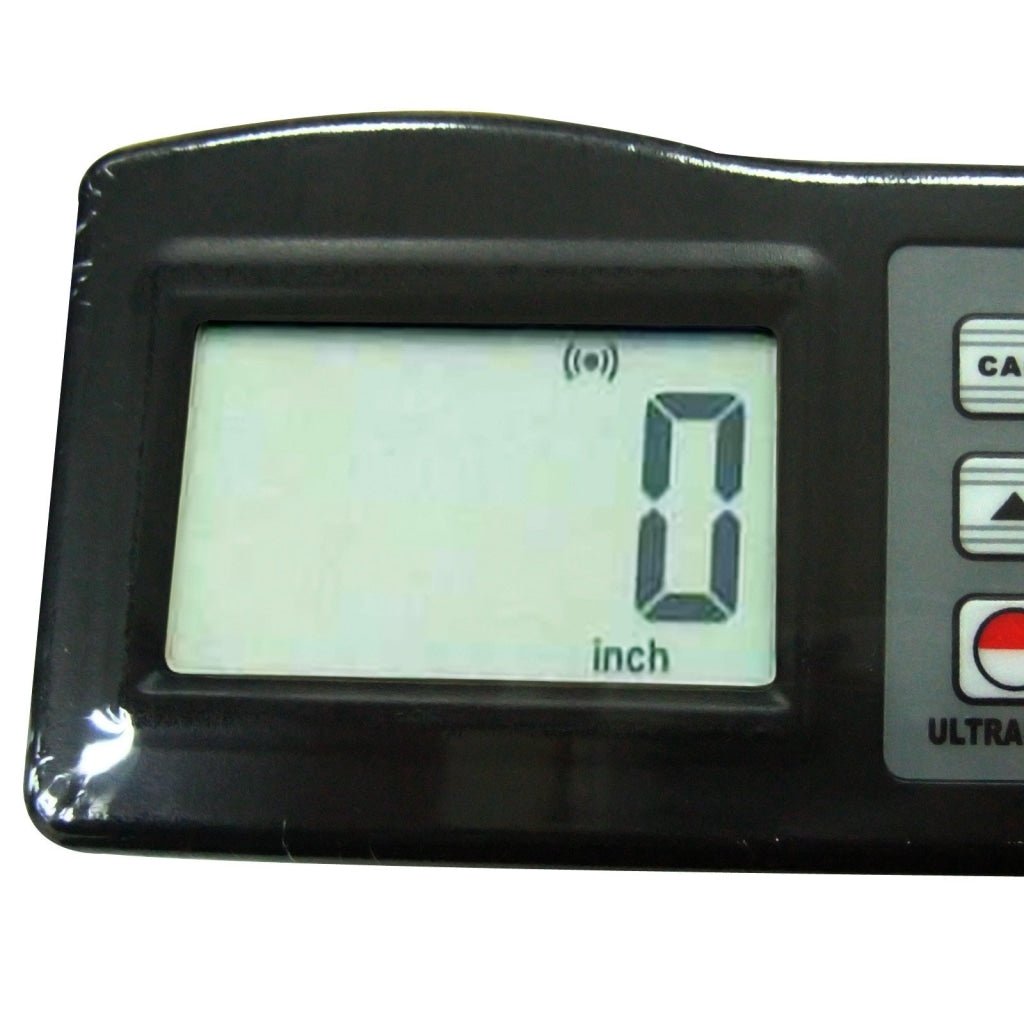

  • LCD: 4 digits, 10 mm LCD
  • Measuring method: Ultrasonic pulse echo

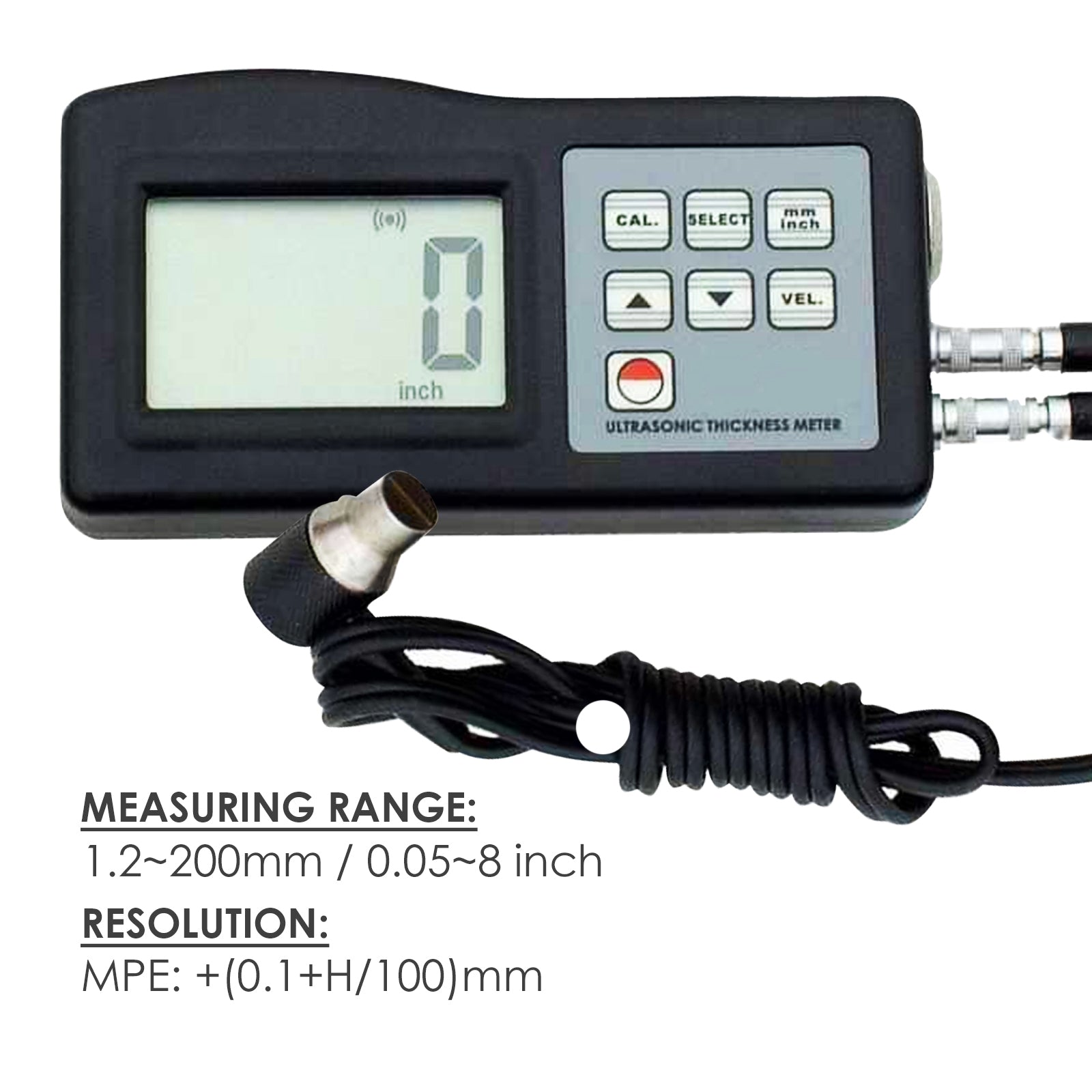

  • Measuring range (metric/imperial): 1.2~200.00mm, 0.05~8inch (45# steel)
  • Resolution: MPE +(0.1+H/100)mm
  • Accuracy: ±(0.5%n+0.1)
  • Sound velocity: 500 ~ 9.990m/s
  • Metric / Imperial conversion (mm &inches)

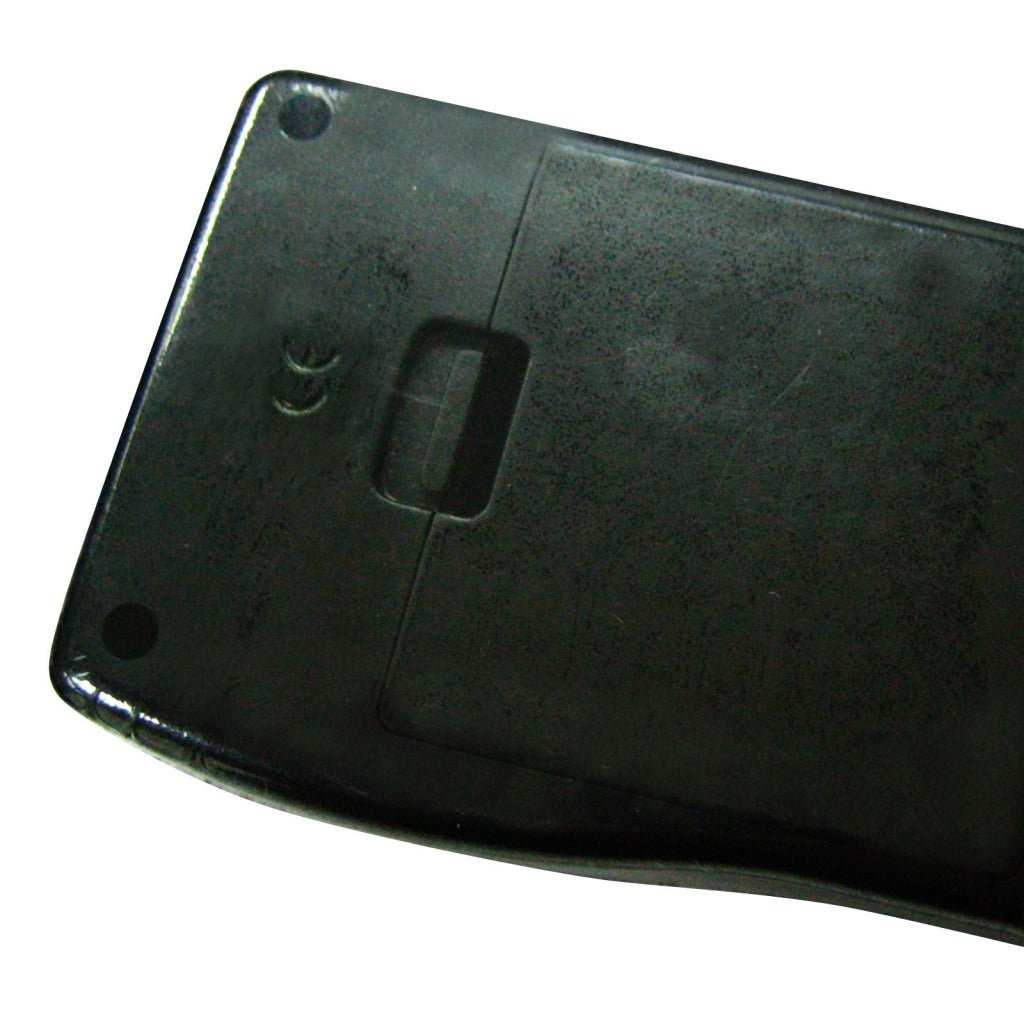

  • Power supply : 4 x 1.5V AAA (UM-4)batteries (not included)
  • Operation Temperature : 0 ~ 40°C(32 ~ 104°F)
  • Diameter of sensor: 8 mm (0.31 inch)
  • Length of sensor: 500 cm (196.85 inches)
  • Weight of sensor: approx. 40g

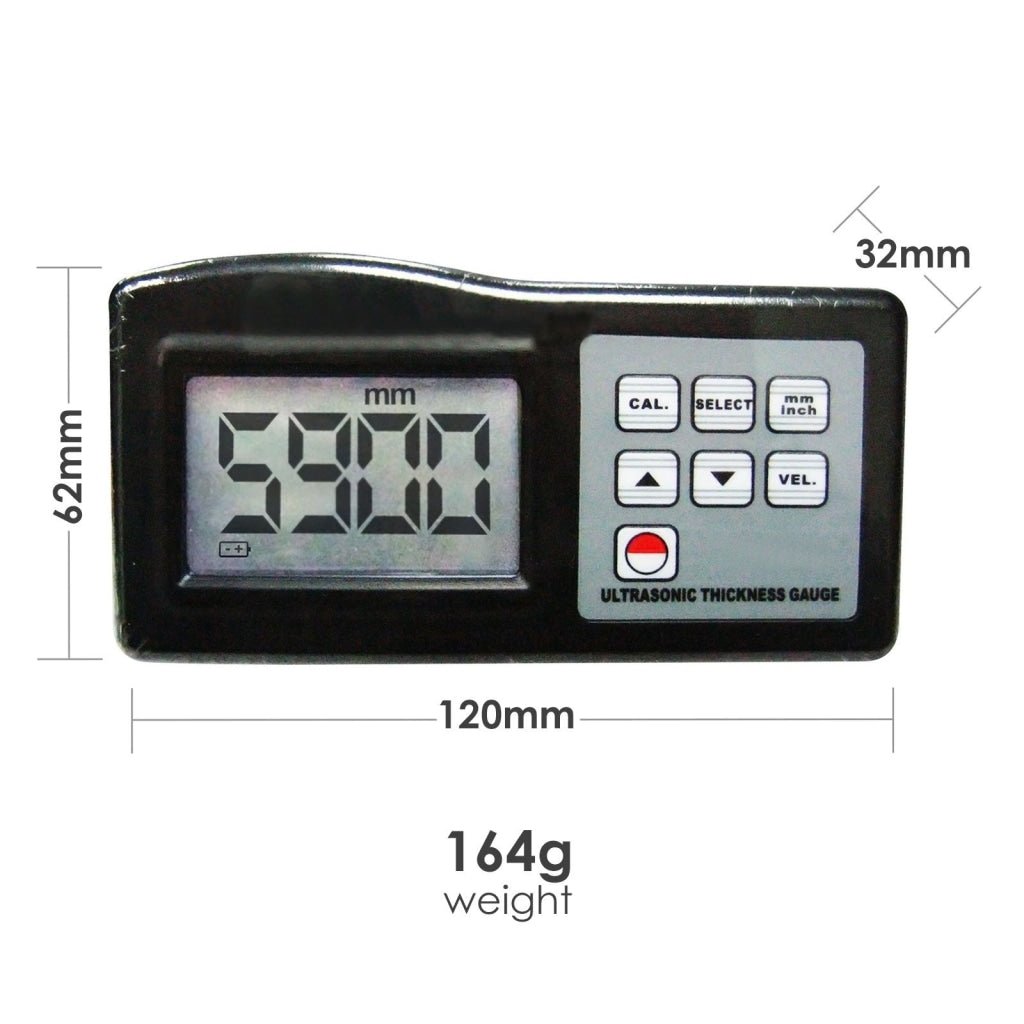

  • Unit size : 120 x 62 x 30 mm (4.7'x 2.4' x 1.2' inch)
  • Unit weight: approx. 164g (not including batteries

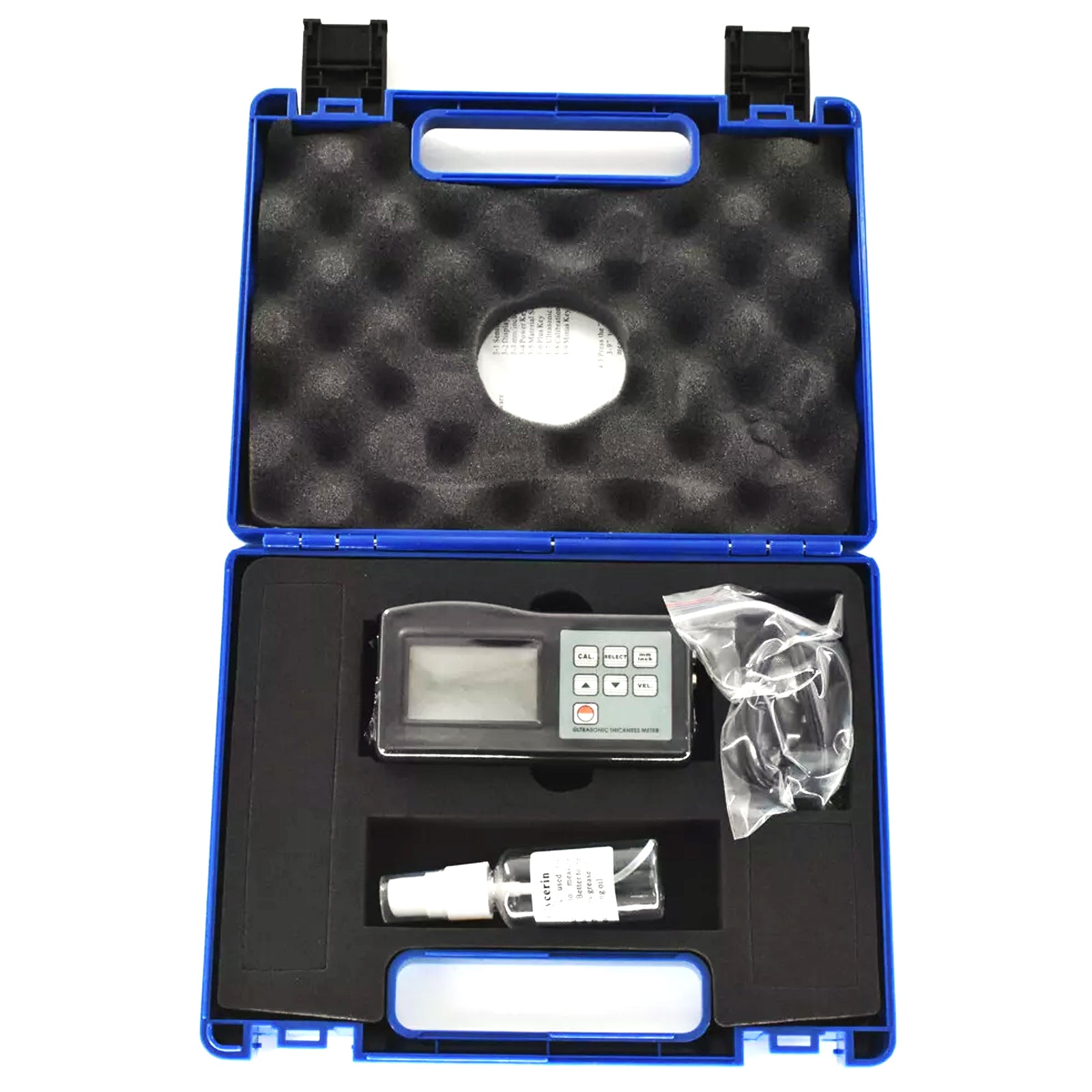

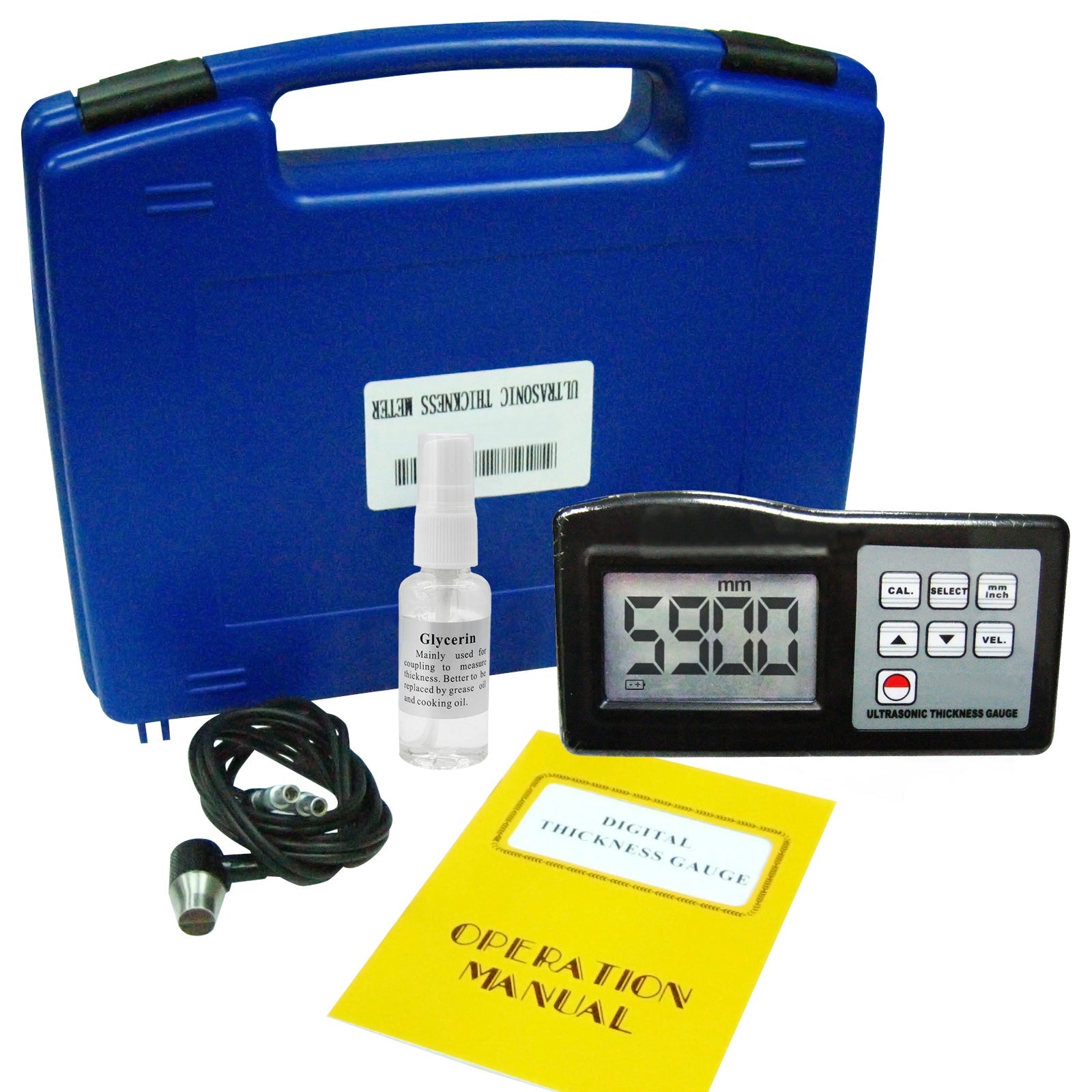

Set Includes:

  • 1 x Ultrasonic Thickness Gauge (main unit)
  • 1 x bottle of Glycerin FREE
  • 1 x Ultrasonic sensor
  • 1 x English Instruction Manual
  • 1 x Protective Carrying Case with contoured rubber compartments



Optional Item (not included in set)
 Please click here to buy this optional item, CD (software), and cable in extra

Or you may contact us at info@instrulife.com if you want an optional item to be included in your order

A printed user manual is already included with this item. No digital user manual or software is available.
