ILTM-896 Digital Ultrasonic Thickness Gauge Meter 1.5 - 200mm

Sku: ILTM-896
$212.90 USD
Translation missing: en.products.product.shipping_policy_html
Quantity:
Add to Wishlist Remove From Wishlist
Visa Mastercard PayPal American Express Google Pay Apple Pay Shop Pay

Fully equipped to measure thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, and even in the industries of petroleum, shipbuilding, power station and machine manufacturing. It can measure any hard materials, including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, nodular cast iron and other materials.

Features:

  • Uses Microcomputer LSI circuit and crystal time base to offer high accuracy measurement & fast measuring time
  • With wide measuring range of 1.5mm ~ 200mm, high resolution with Low Battery Indicator

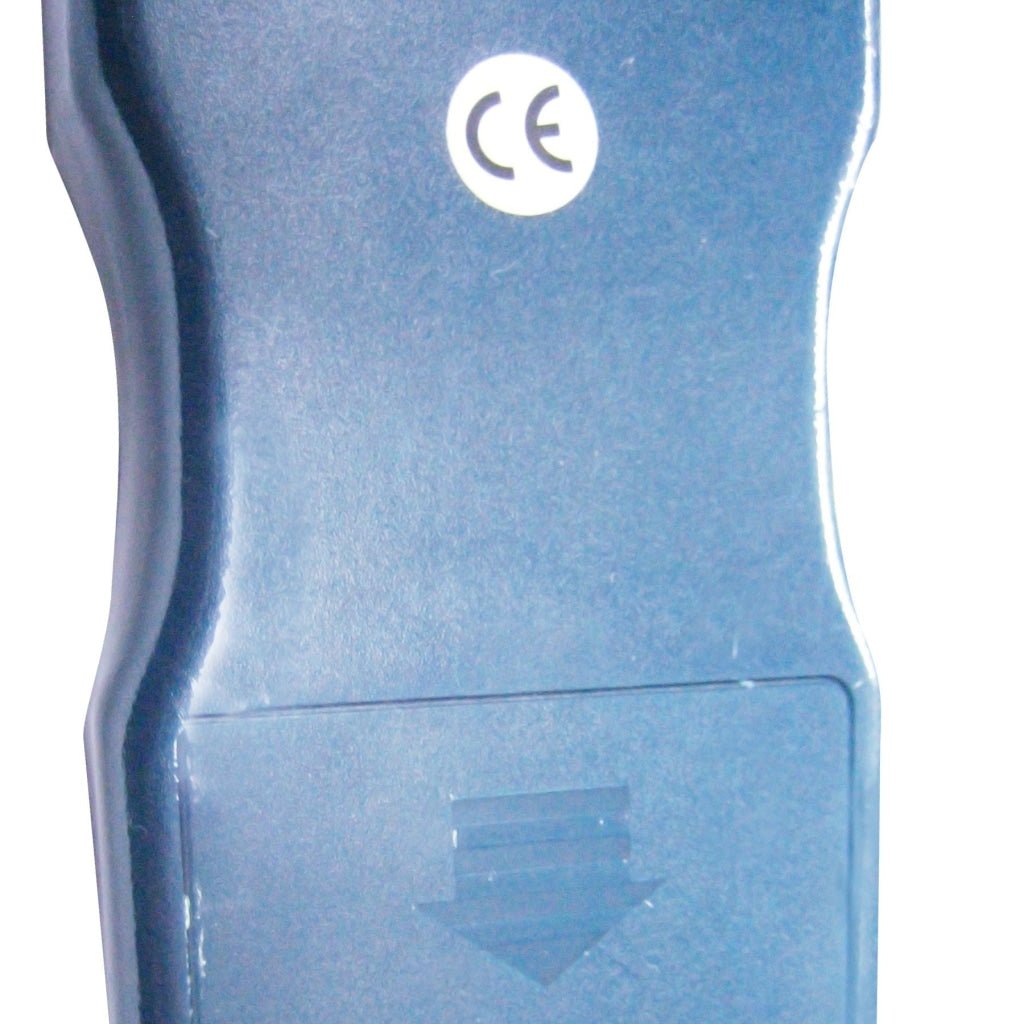

  • Has CE marking, conforms with the essential health and safety requirements set out by the European Directives
  • With high power emission and broad band of receiving sensitivity, the gauge can match probes of different frequencies. It is widely used in almost all types of industries to measure rough surfaces and even cast iron with ease
  • Capable to give measurements of many of materials including Steel, Cast iron, Aluminum, Red copper, Brass, Zinc, Quartz glass, Polyethylene, PVC, Gray cast iron, Nodular cast iron
  • Automatically switch off after about 2 minutes from the last key operation
  • Features instant results that's clearly & legibly shown on an easy-to-read LCD screen and gives exact reading with no guessing or errors
  • With FREE Protective & sturdy carrying case with contoured rubber compartments that fits the device perfectly. When closed, it then sandwiched between rubber foam to achieve optimum shock absorption.
  • Approved by strict quality and safety standards
  • Made from quality materials

Specifications:

  • Operating principle: ULTRASONIC

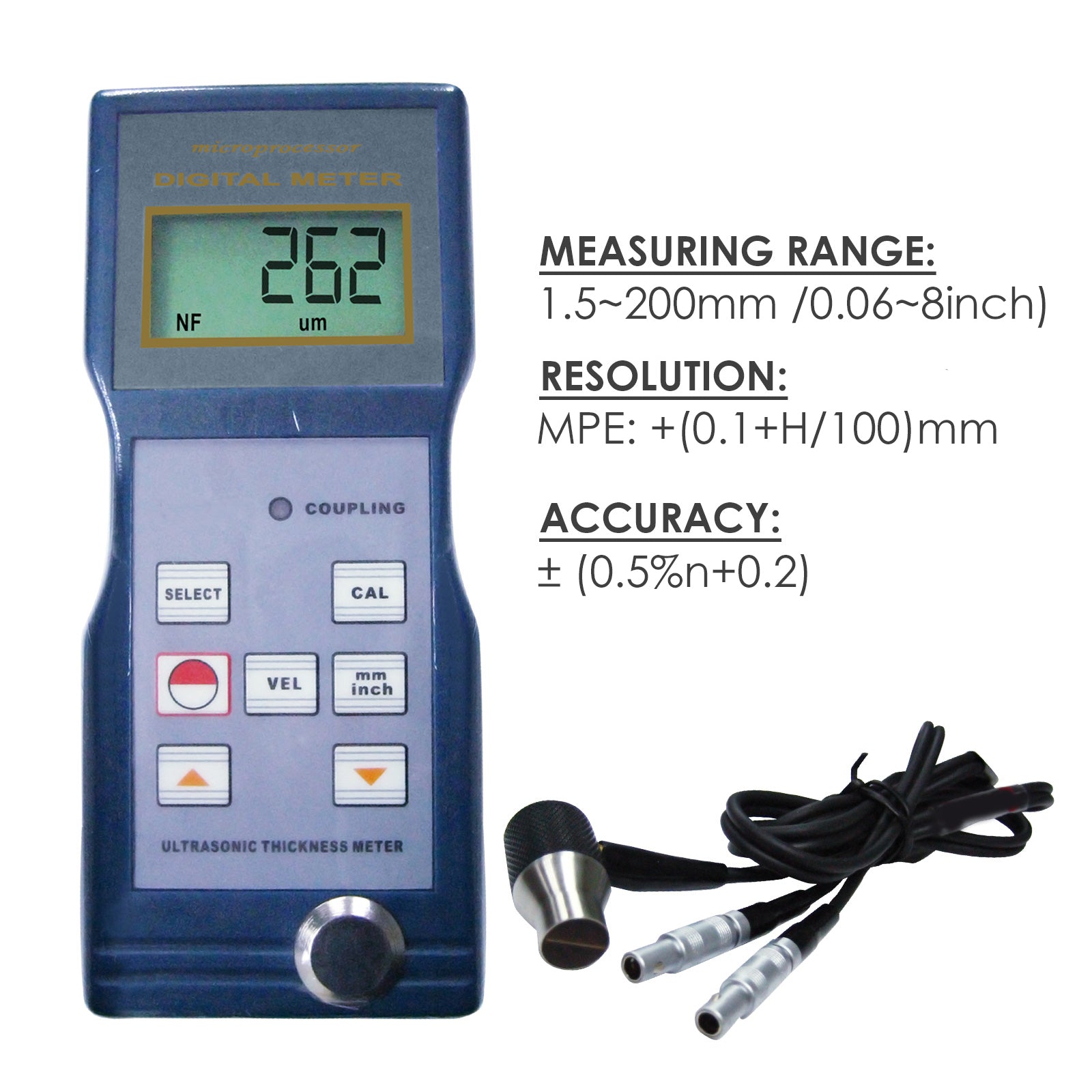

  • Measuring range: (metric/imperial)1.5~200mm, 0.06-8inch (45# steel)
  • Resolution: MPE +(0.1+H/100)mm
  • Accuracy: ± (0.5%n+0.2)
  • Sound velocity: 1000 - 9000 m/s
  • Operating Temperature: 0°C-40°C (32°F-104°F)
  • Operating Humidity: <85% RH

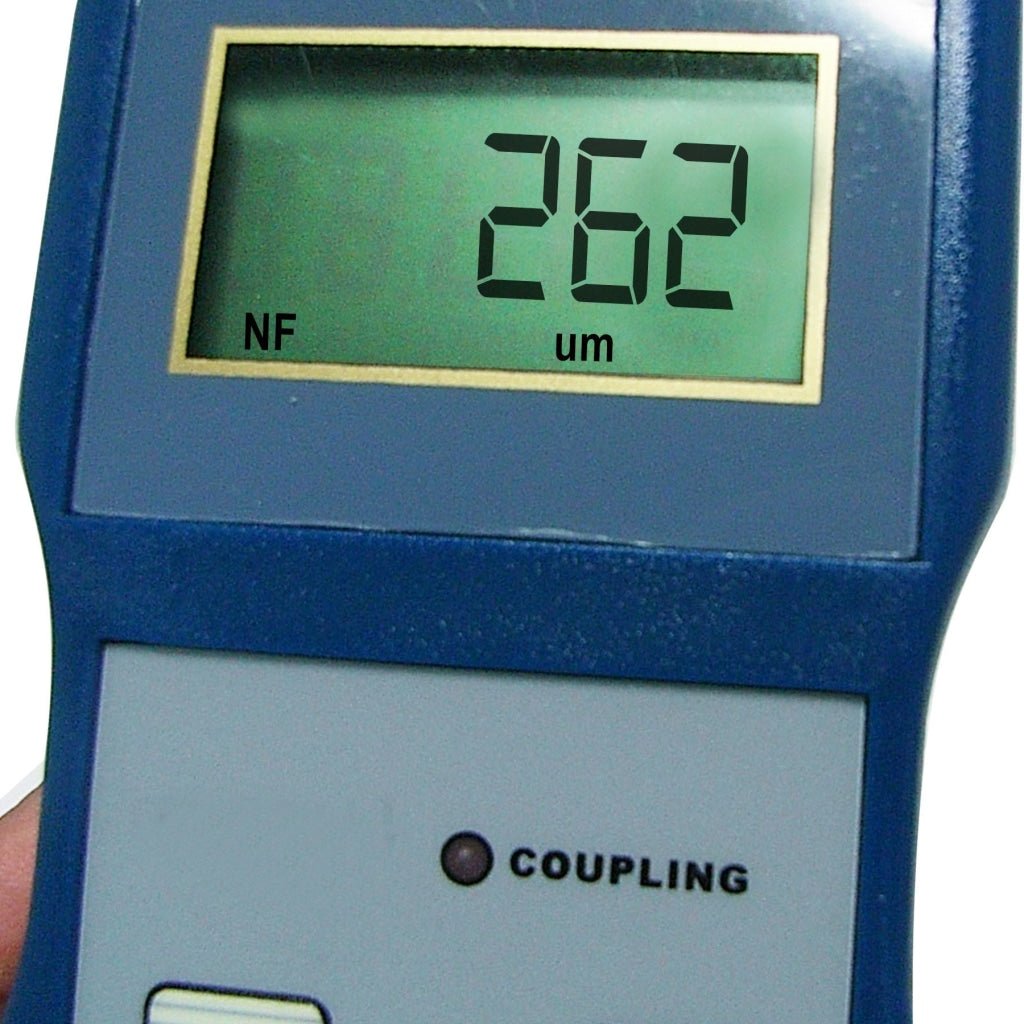

  • Display: 4 digits, 10mm LCD
  • Power supply: 4 x 1.5V AA battery (not Included)

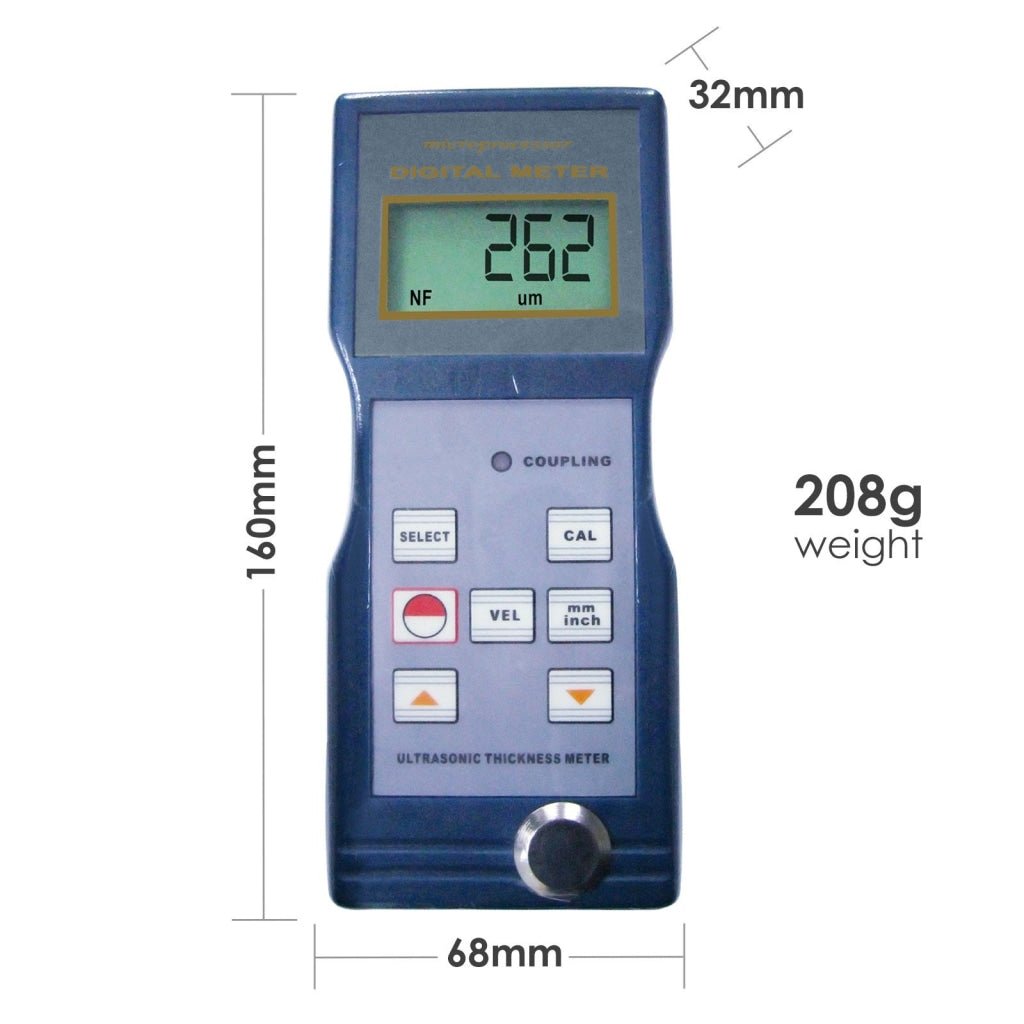

  • Size: 160 x 68 x 32mm (6.3 x 2.68 x 1.26in)
  • Weight: About 208g

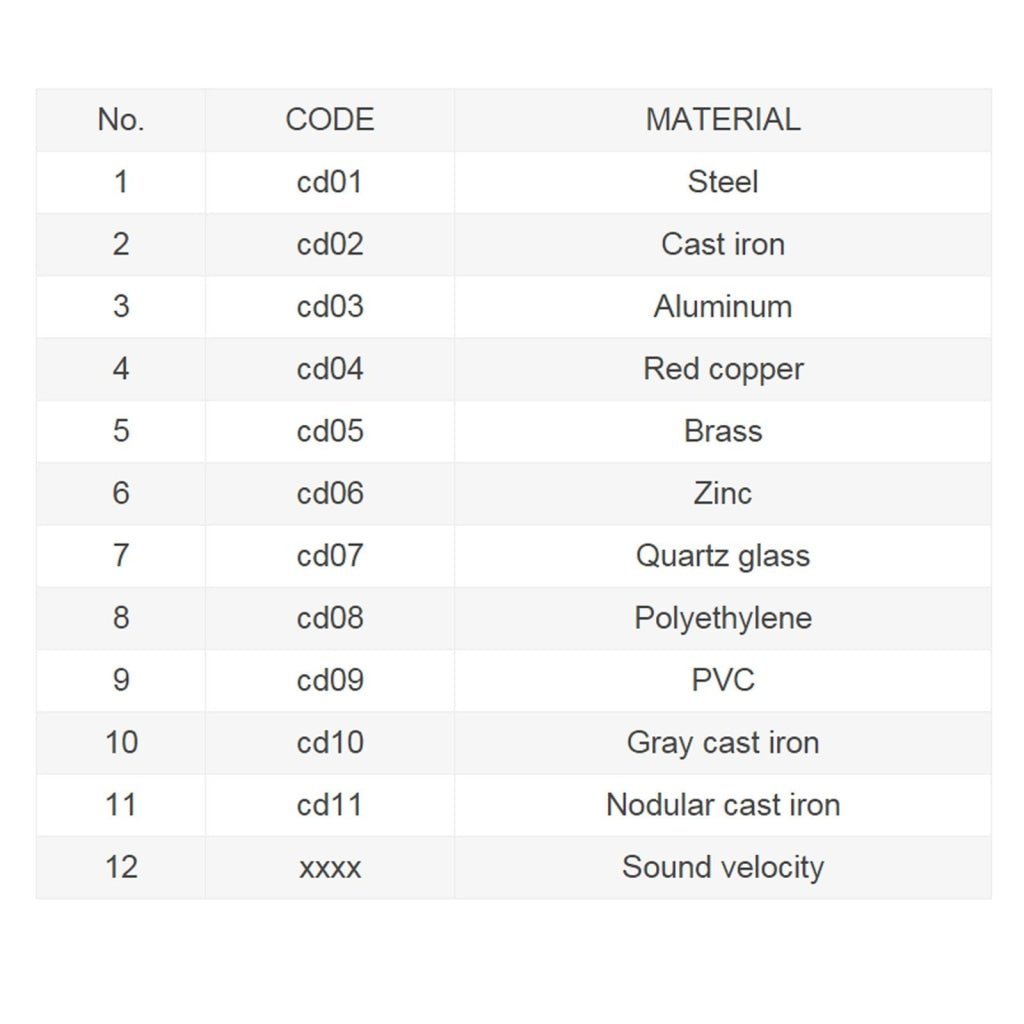

Material Selection

No.
CODE
MATERIAL
1 cd01 Steel
2 cd02 Cast iron
3 cd03 Aluminum
4 cd04 Red copper
5 cd05 Brass
6 cd06 Zinc
7 cd07 Quartz glass
8 cd08 Polyethylene
9 cd09 PVC
10 cd10 Gray cast iron
11 cd11 Nodular cast iron
12 xxxx Sound velocity

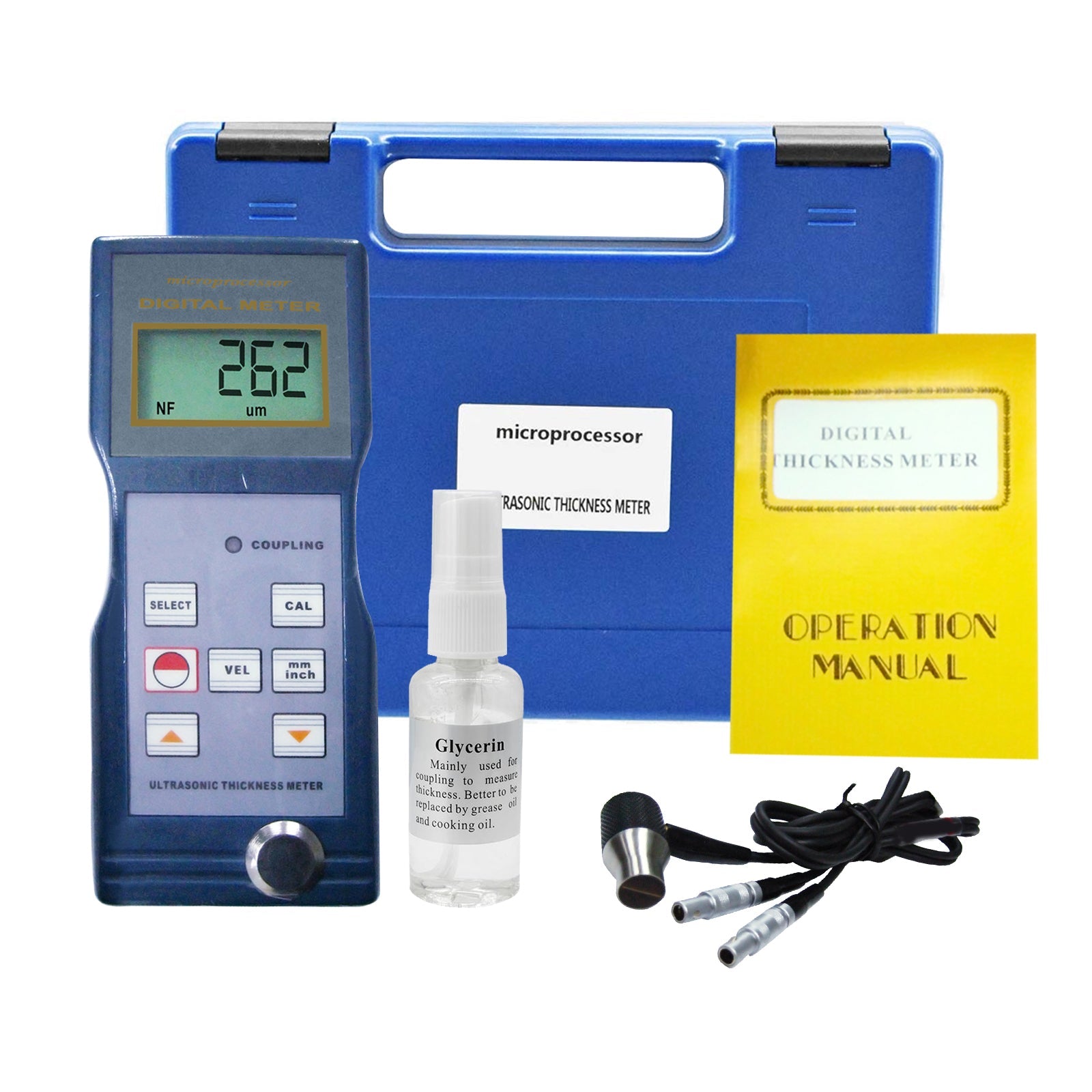

Set Includes:

  • 1 x  Ultrasonic Glass Thickness Meter
  • 1 x FREE bottle of Glycerin

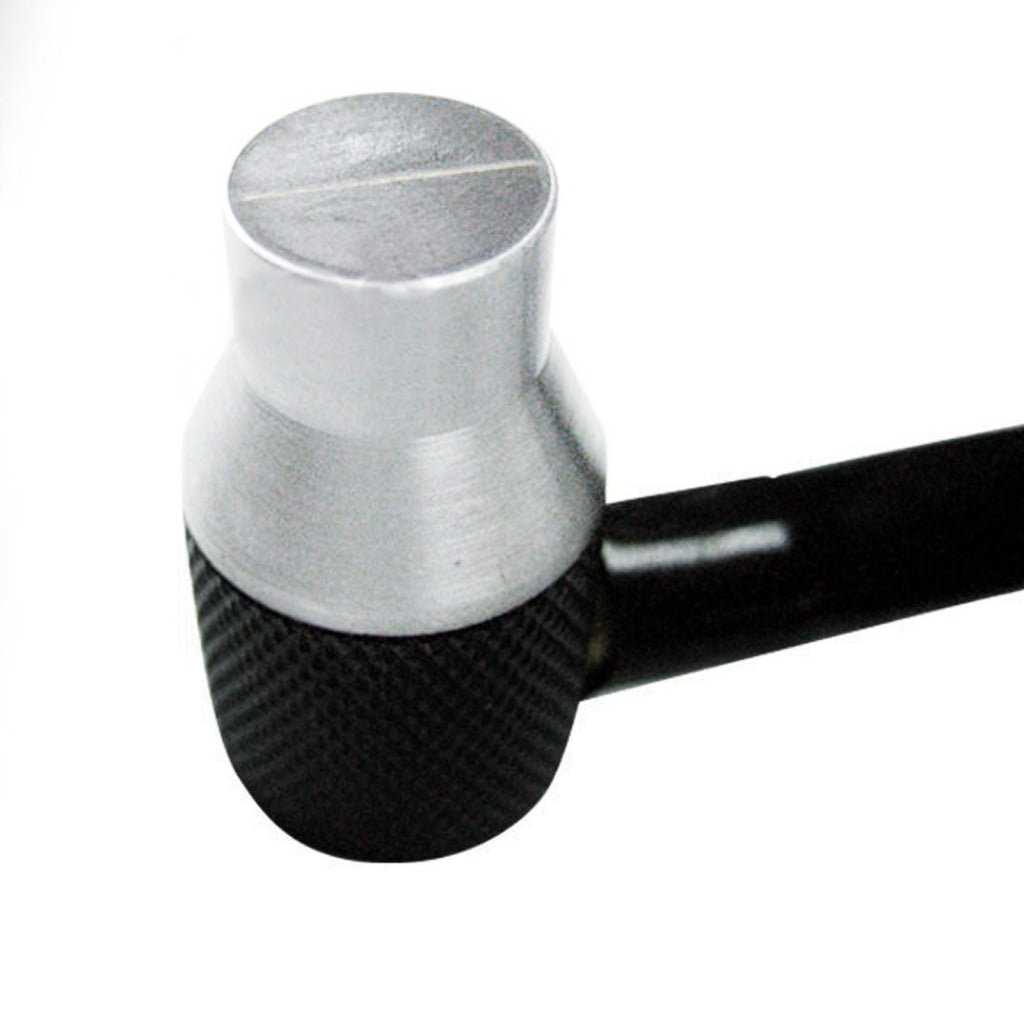

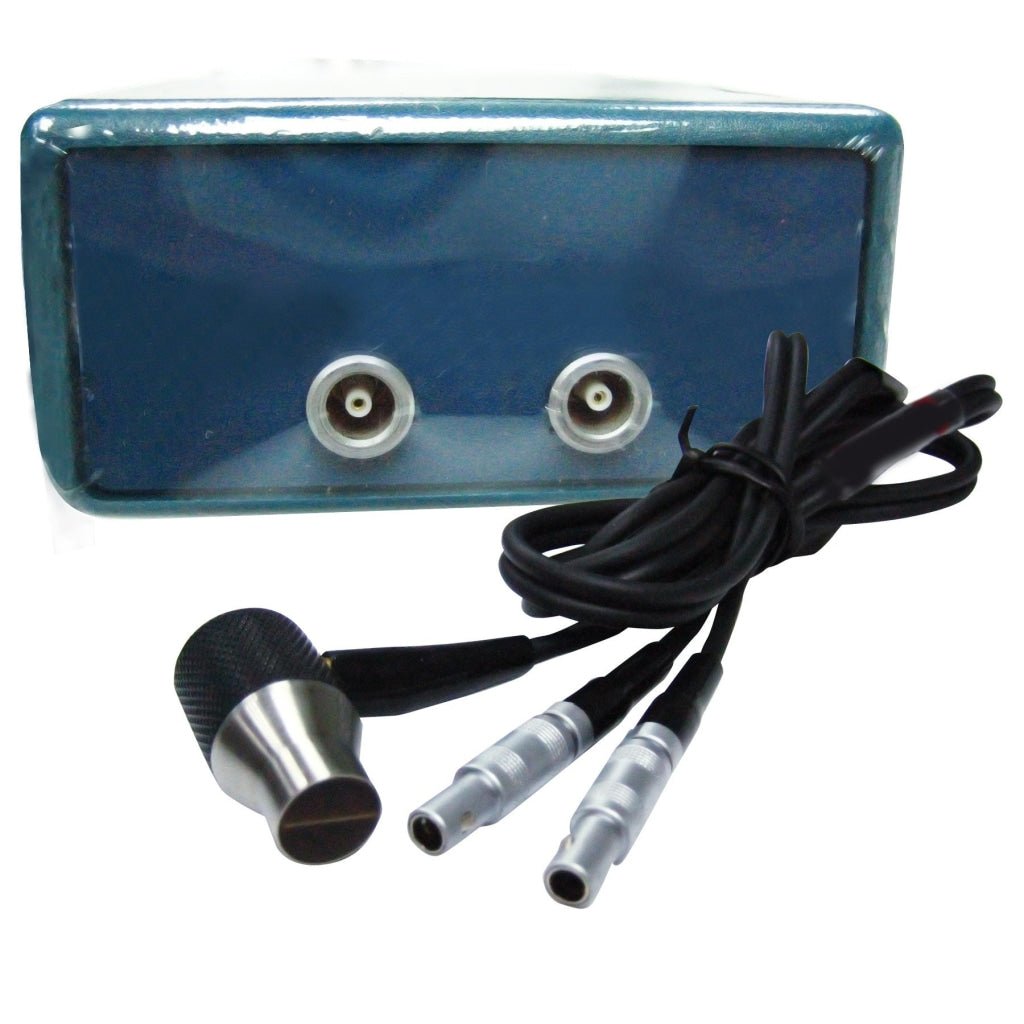

  • 1 x Ultrasonic sensor
  • 1 x English Operating Manual
  • 1 x Protective Carrying Case with contoured rubber compartment

A printed user manual is already included with this item. No digital user manual or software is available.
