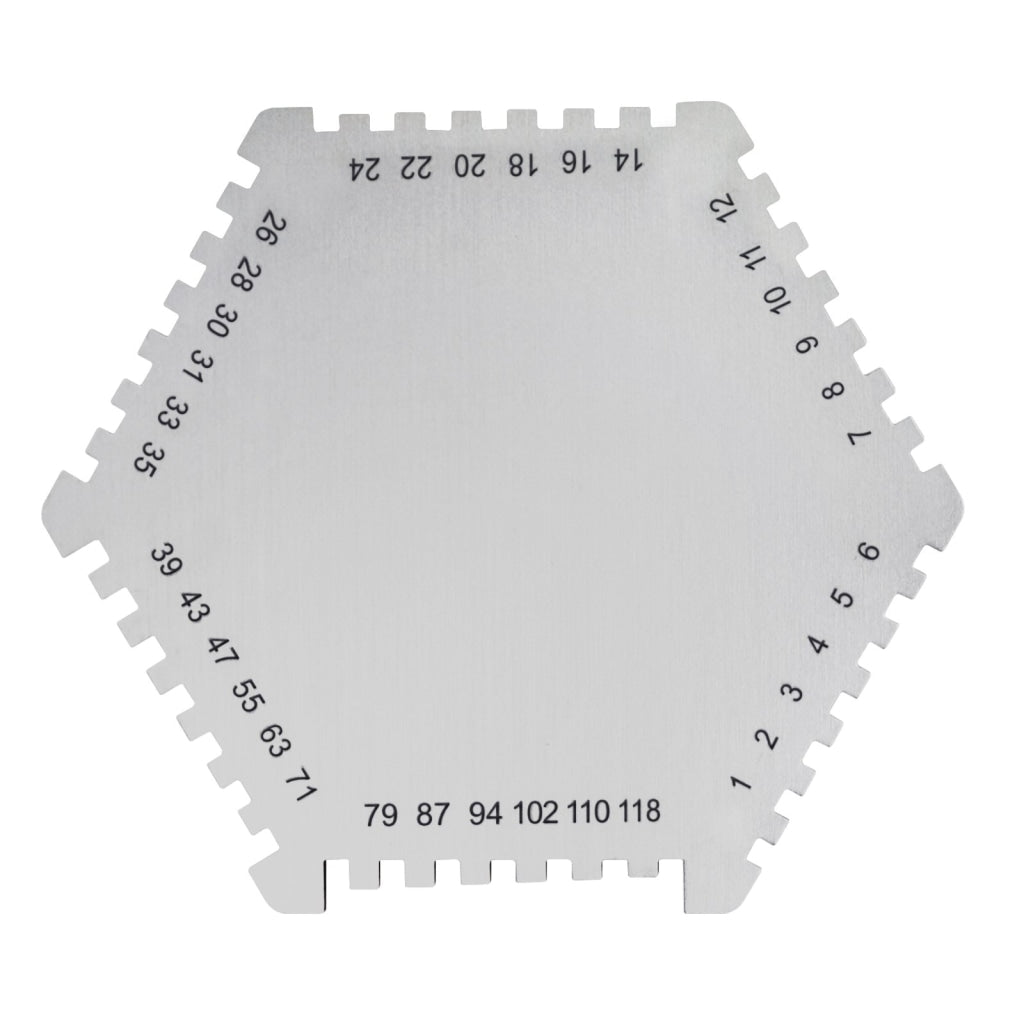

ILTM-8000 Wet Film Combs 25~3000µm Microns Micrometer / 1~118 Mil Dual Scale, Wet Paint Coating Thickness Step Notched Gauge, Hexagonal Style

Sku: ILTM-8000
$23.90 USD
Translation missing: en.products.product.shipping_policy_html
Quantity:
Add to Wishlist Remove From Wishlist
Visa Mastercard PayPal American Express Google Pay Apple Pay Shop Pay

Used for checking the thickness coating of wet paint, enamel lacquer,adhesive, architectural coating, color coating, varnish, chemical industry, or other coating that has been applied to a smooth surface

  • Standards: GB/T1764-79 GB/T134522-92 ISO2808-74
  • Measuring Range: 25~3000μm / 1~118mil
  • Values:
    • 25, 50, 75, 100, 125, 150, 175, 200, 225, 250, 275, 300, 350, 400, 450, 500, 550, 600, 650, 700, 750, 800, 850, 900, 1000, 1100, 1200, 1400, 1600, 1800, 2000, 2200, 2400, 2600, 2800, 3000µm
    • 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 14 ,16, 18, 20, 22, 24, 26, 28, 30, 31, 33, 35, 39, 43, 47, 55, 63, 71, 79, 87, 94, 102, 110, 118mil

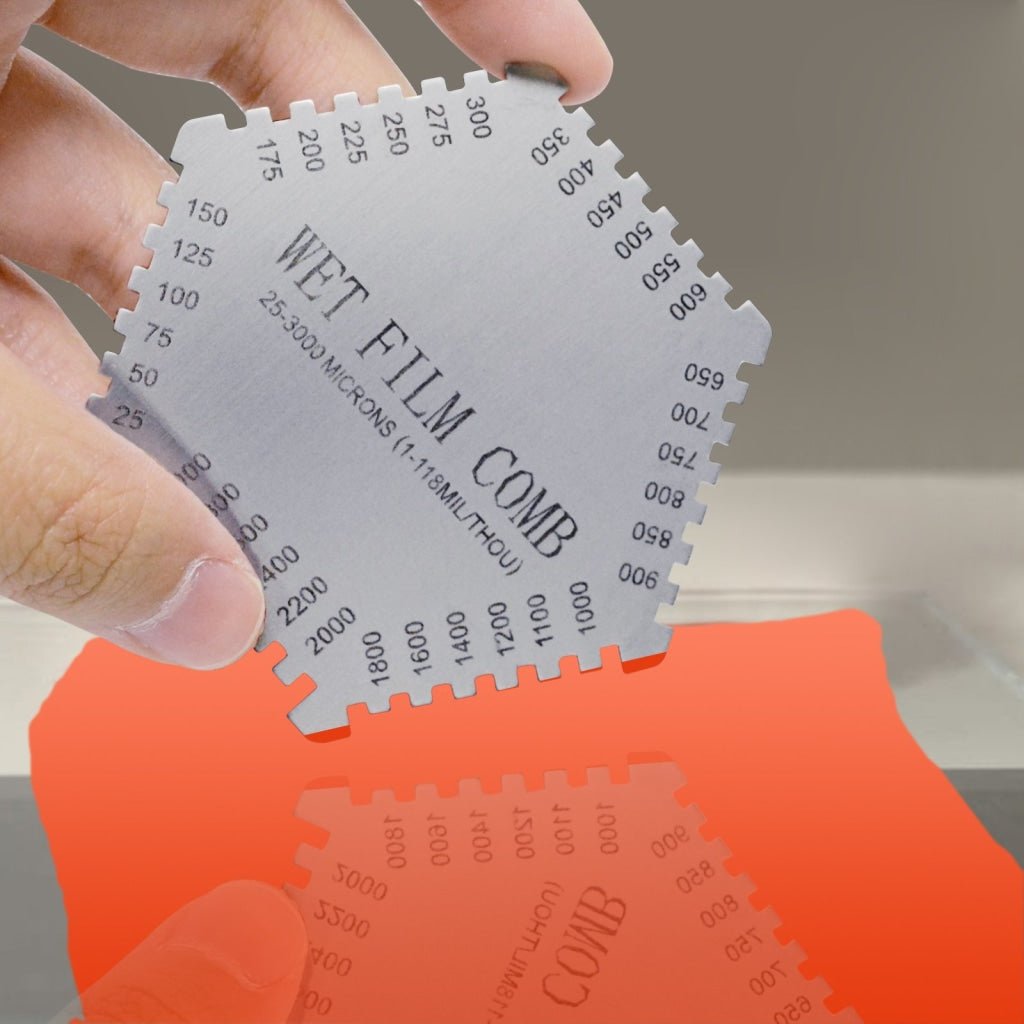

Measuring Procedure :

  1. Select appropriate comb according to approximate known thickness.
  2. Hold comb perpendicular to surface coating to be measured.
  3. Press into coating until the comb stands square on substrate.
  4. Wet film thickness is between the highest step which is coated and the next (higher) step which remains uncoated.

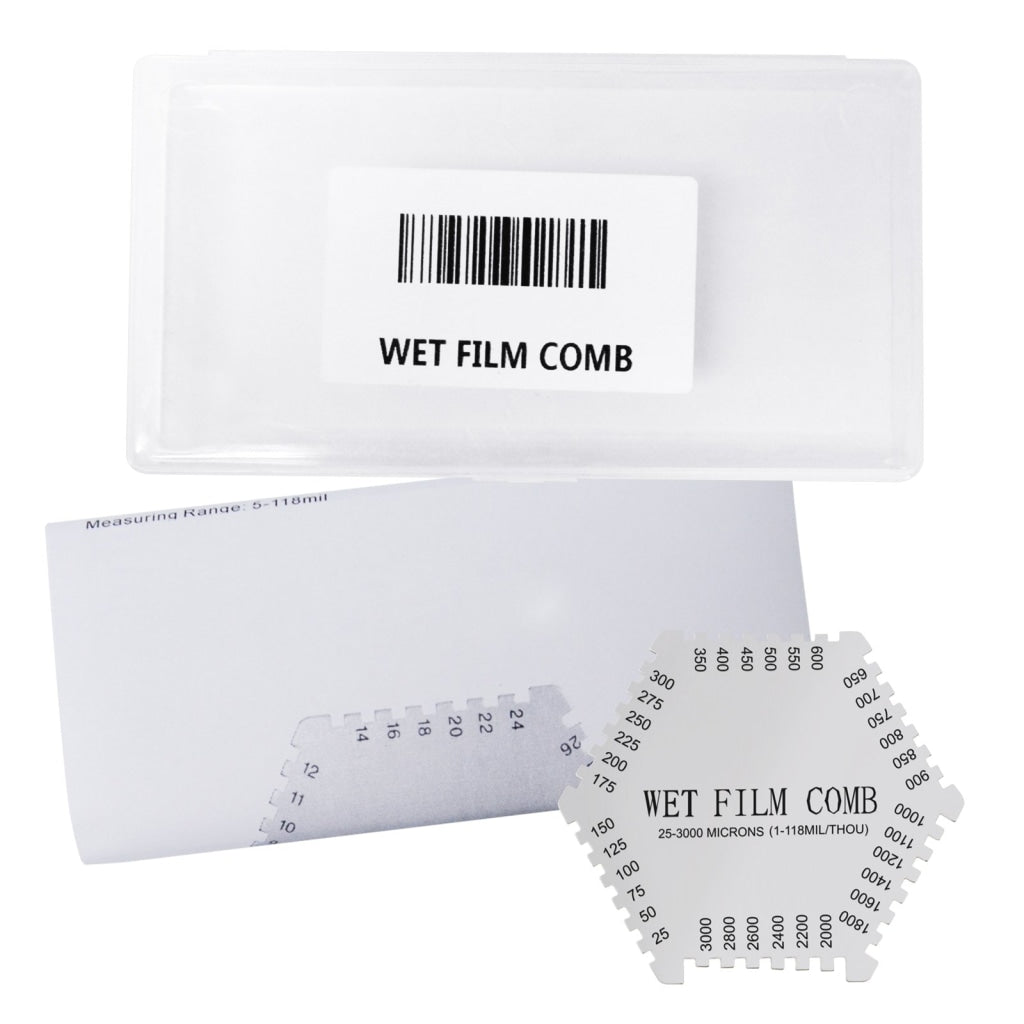

Set Includes:

  • 1 x Wet Film Comb
  • 1 x English Instruction Manual
  • Standard Packaging

A printed user manual is already included with this item. No digital user manual or software is available.
