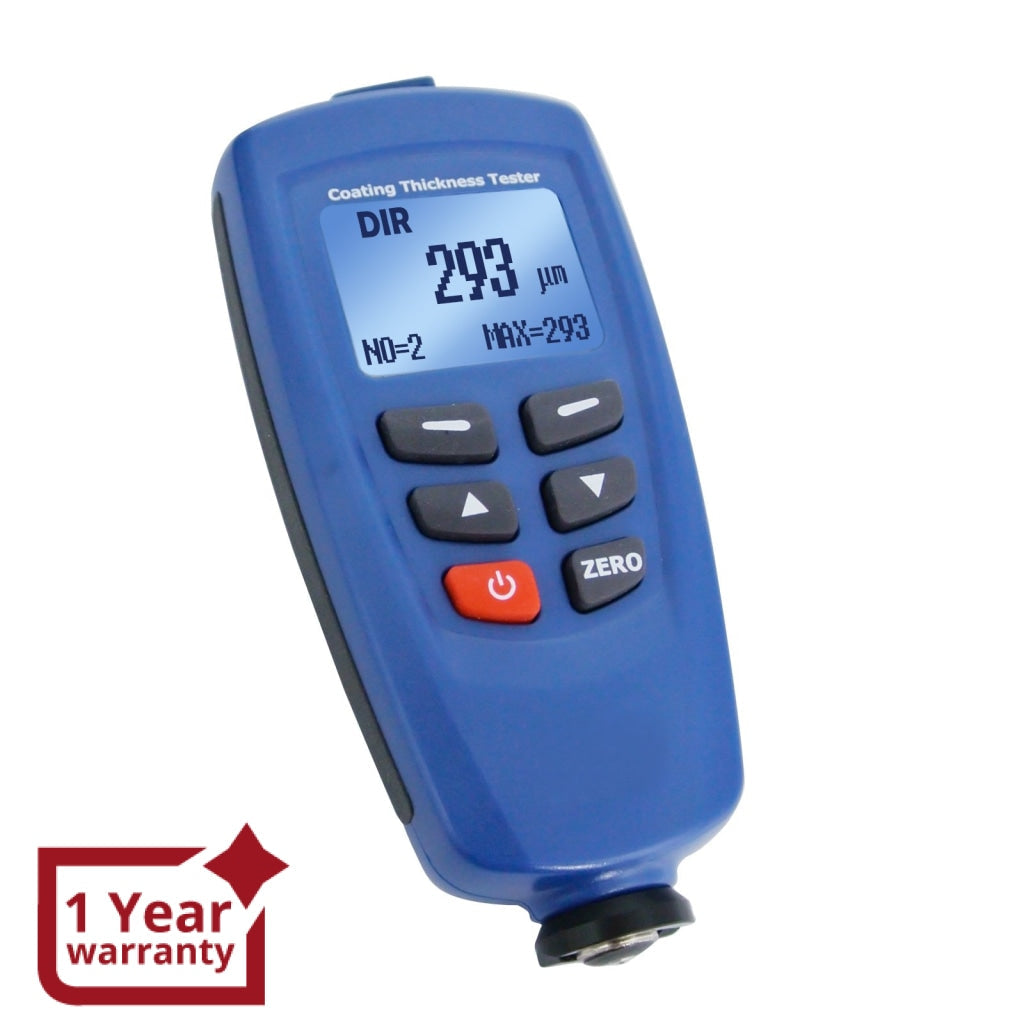

ILTM-746 Digital CEM Paint Coating Thickness Meter Gauge 1250um (49.2mils) with USB & CD Software, F/ NF Probe Sensor, 400 Memory

Sku: ILTM-746
$154.90 USD
Translation missing: en.products.product.shipping_policy_html
Quantity:
Add to Wishlist Remove From Wishlist
Visa Mastercard PayPal American Express Google Pay Apple Pay Shop Pay

This compact & handy Professional Gauge is designed for non-destructive, fast and highly accurate/precise coating thickness measurement.

It stores 400 memory values and displays 5 statistics ( AVG, MAX, MIN, S.DEV and Number of reading in work mode). It comes with software CD and USB cable for transferring collected data to computer for later analysis or data printing.

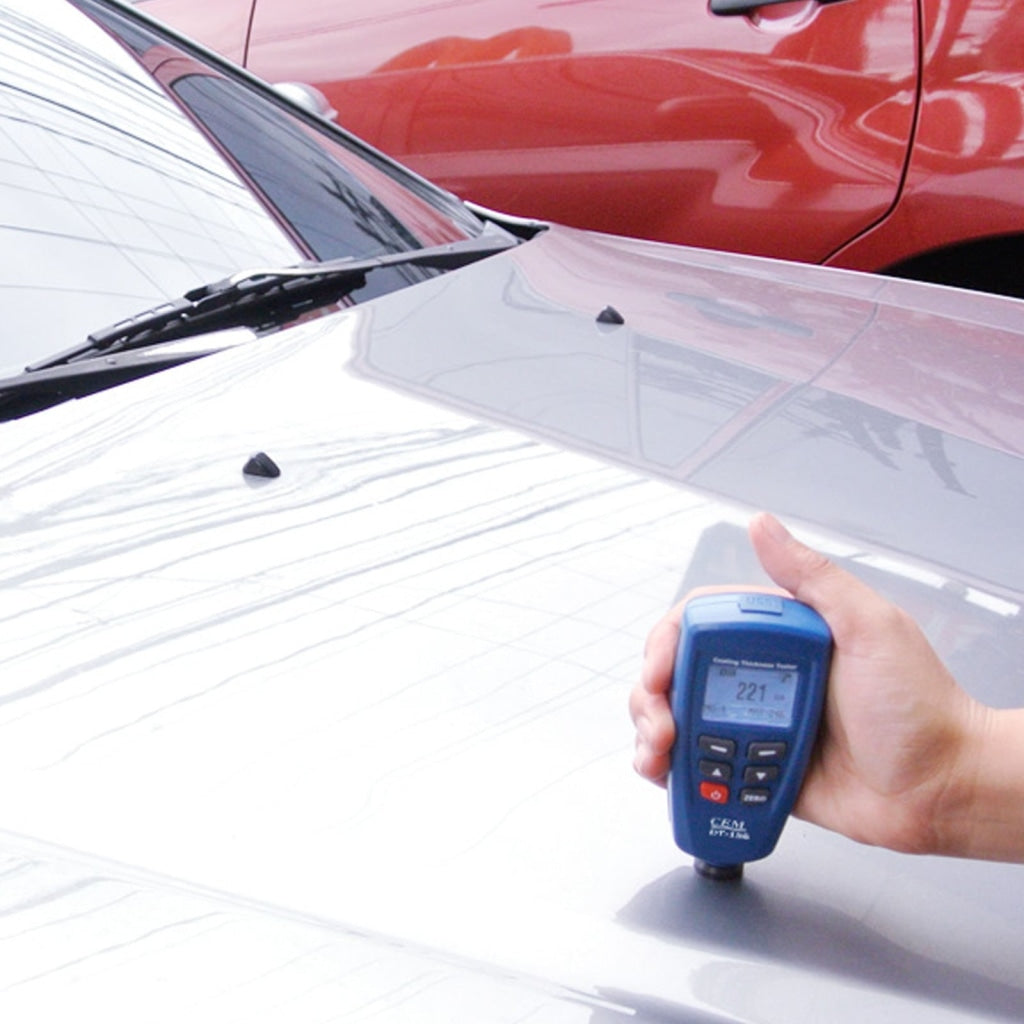

DT-156 is ideal for manufacturer, offices & specialist advisers, paint shops & electroplaters, chemical, automobile, shipbuilding and aircraft industries including light & heavy engineering.


Features:

  • Non-magnetic coatings (e.g. paint, zinc) on steel
  • Insulating coatings (e.g. paint, anodizing coatings) on no-ferrous metals
  • No-ferrous metals coatings on insulating substrates

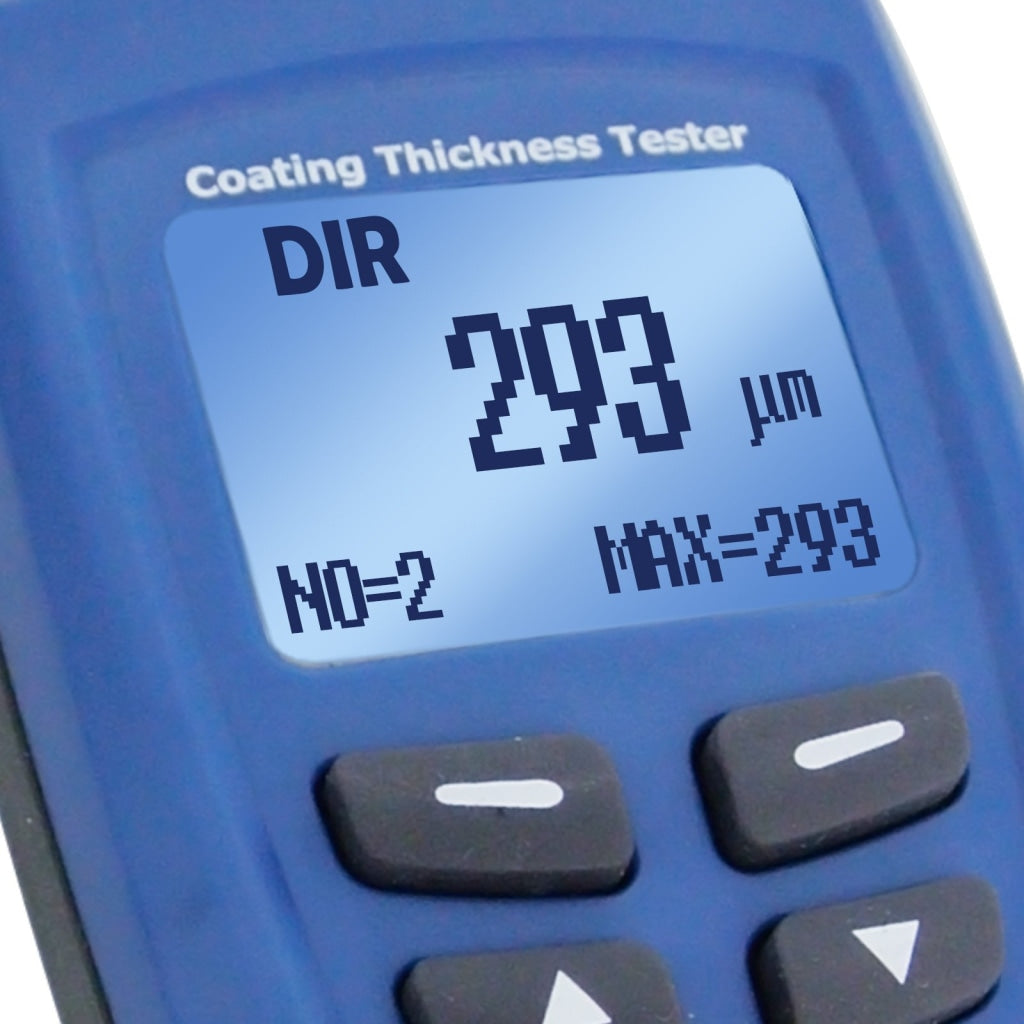

  • Blue backlight display
  • One-point calibrating and two-point calibrating independently for each working mode
  • Zero calibration
  • 400 Memory readings
  • Delete functions
  • High alarm and Error indication
  • V-Groove on probe for small cylindrical parts
  • Disable Auto-Power-Off function

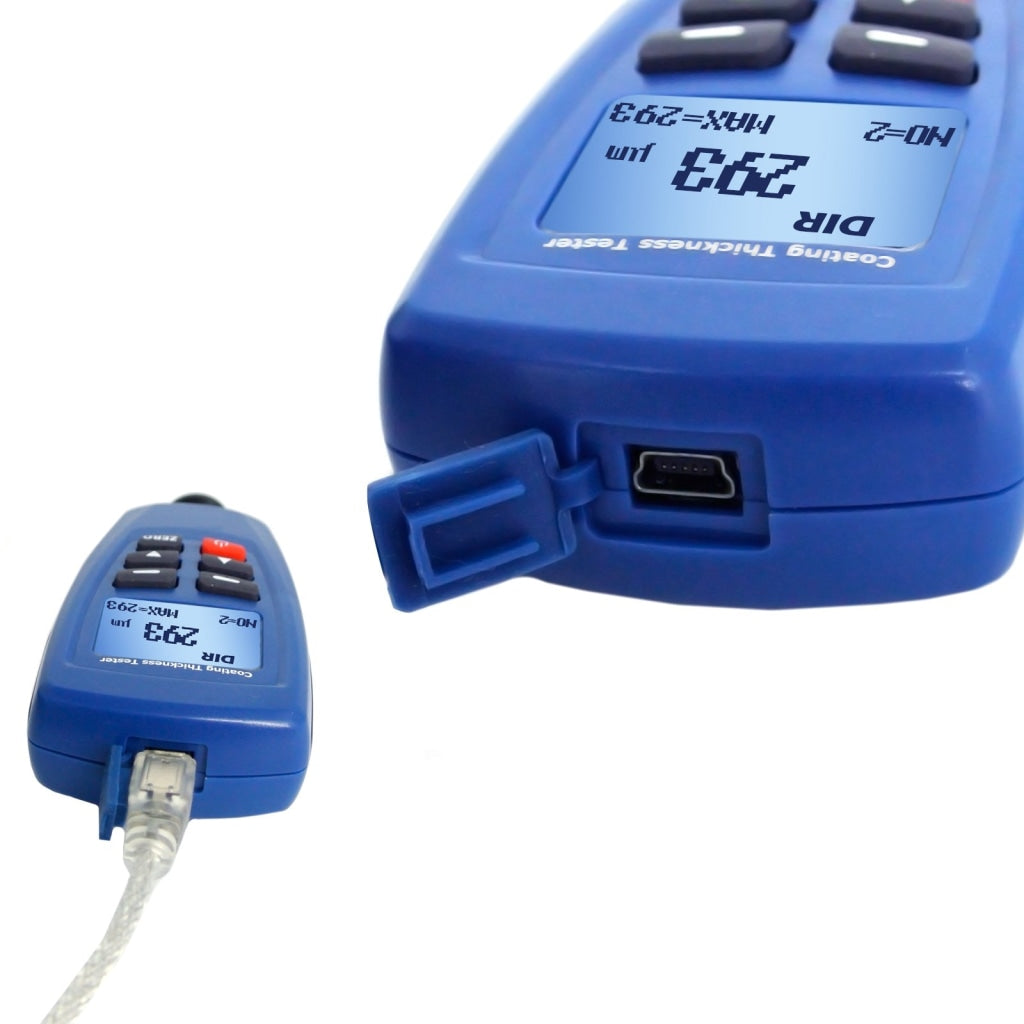

  • USB interface for PC software
  • Conforms to the following industrial standards:
    • GB/T 4956-1985
    • GB/T 4957-1985
    • JB/T 8393-1996
    • JJG 889-95
    • JJG 818-9


Specifications :

  • Sensor Probe: F & NF
  • Working Principle: Magnetic Induction / Eddy Current Principle
  • Range: 0~1250µm / 0~49.2mils

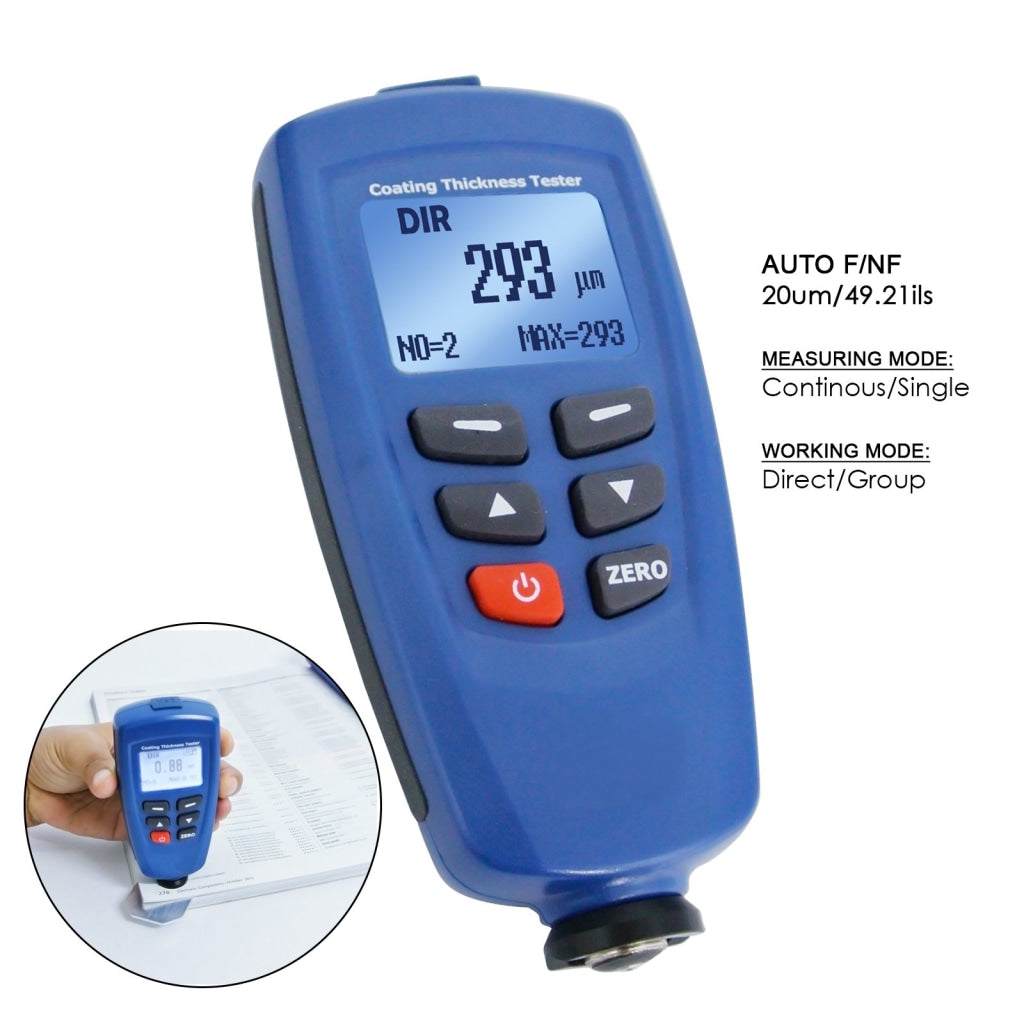

  • Two measuring mode : CONTINUOUS and SINGLE mode
  • Two Operating/working mode: DIRECT and GROUP mode
  • Guaranteed Tolerance :
    • 0~850 µm (±3% + 1µm) ; 850 ~ 1250µm (±5%)
    • 0 ~ 33.46 mils (±3% + 0.039mils) 33.46~49.21mils (±5%)
  • Accuracy :
    • 0.50um(0.1µm) 50~850µm(1µm) 850~1250µm(0.01mm)
    • 0~1.968mils(0.001mils) 1.968~33.46mils(0.01mils) 33.46~49.21mils (0.1mils)
  •  Min. Curvature Radius: 1.5mm / 3mm
  • Diameter of Min. Area: 7mm / 5mm
  • Min. Thickness of Substrate: 0.5mm / 0.3mm
  • Low range Precision: 0.1µm / 0.1µm
  • Statistics Display : AVG, MAX, MIN, S.DEV and Number of readings in work mode
  • Memory readings: 80 DIRECT and 320 GROUP readings
  • Software Compatibility: windows 98/2000/xp/Vista/Win7, 8, 10
  • Working Temperature: 0~40°C (32~104°F)
  • Working Relative Humidity: 20~90% RH
  • Size: 110 x 50 x 23mm
  • Weight: 100g


Set Includes:

  • 1 x Paint Coating Thickness Tester
  • 5 x Calibration Foil
  • 1 x Iron Substrate
  • 1 x Aluminum Substrate
  • 1 x Protective Carrying Case
  • 1 x USB cable
  • 1 x CD Software
  • 2 x 1.5V AAA Battery
  • English Instruction Manual
