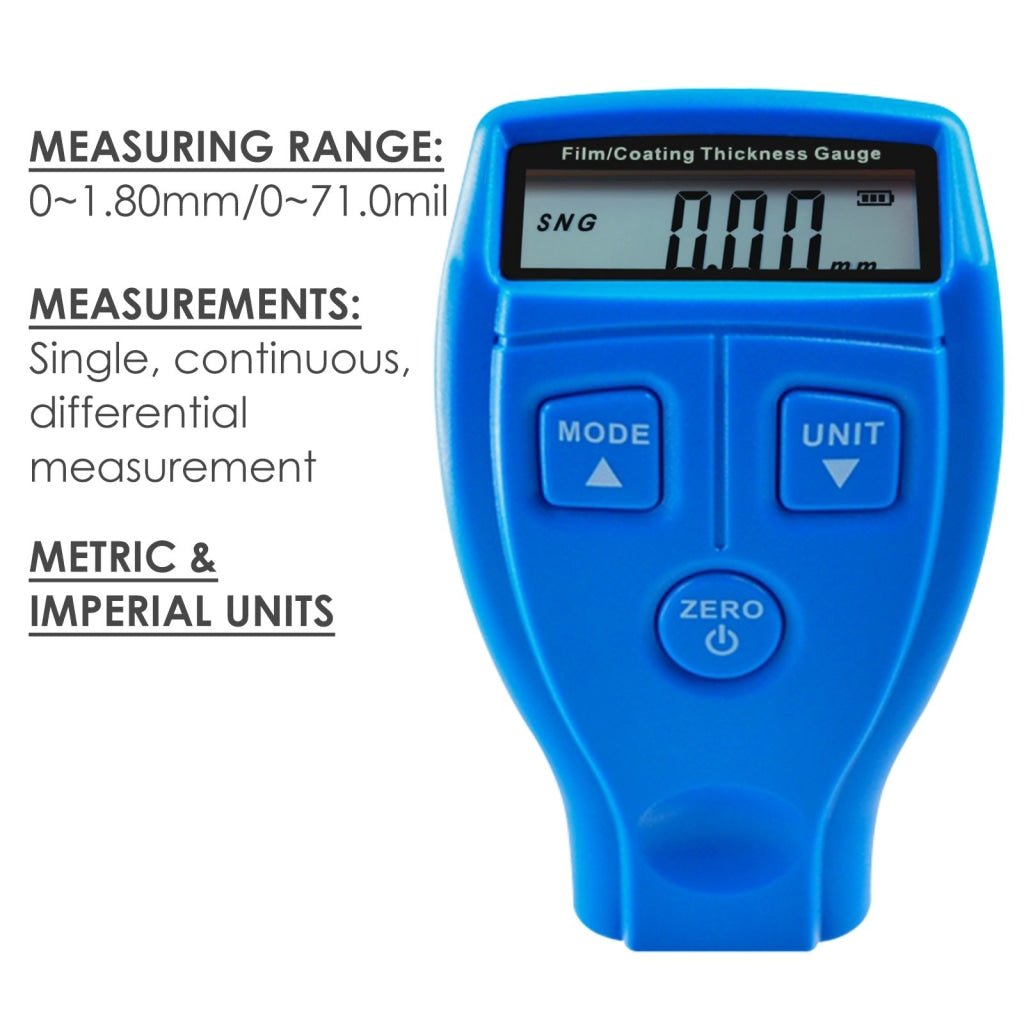

ILTM-50 Portable Film Coating Thickness Gauge Tester Meter, Automotive Car Nondestructive, Non-magnetic Coating on Metal for Manufacturing, Car Trading, Inspection

Sku: ILTM-50
$48.90 USD
Translation missing: en.products.product.shipping_policy_html
Quantity:
Add to Wishlist Remove From Wishlist
Visa Mastercard PayPal American Express Google Pay Apple Pay Shop Pay

Portable coating thickness gauge for instant, precise and non-corrosive measurement of the thickness of non-magnetic coatings (such as paint and film) on metal substrates. The perfect tool for the manufacturing company, metal machinery industry, chemical industry, commodity inspection especially in automotive trading.

Comes with 2 modes: CAR and USER Mode.

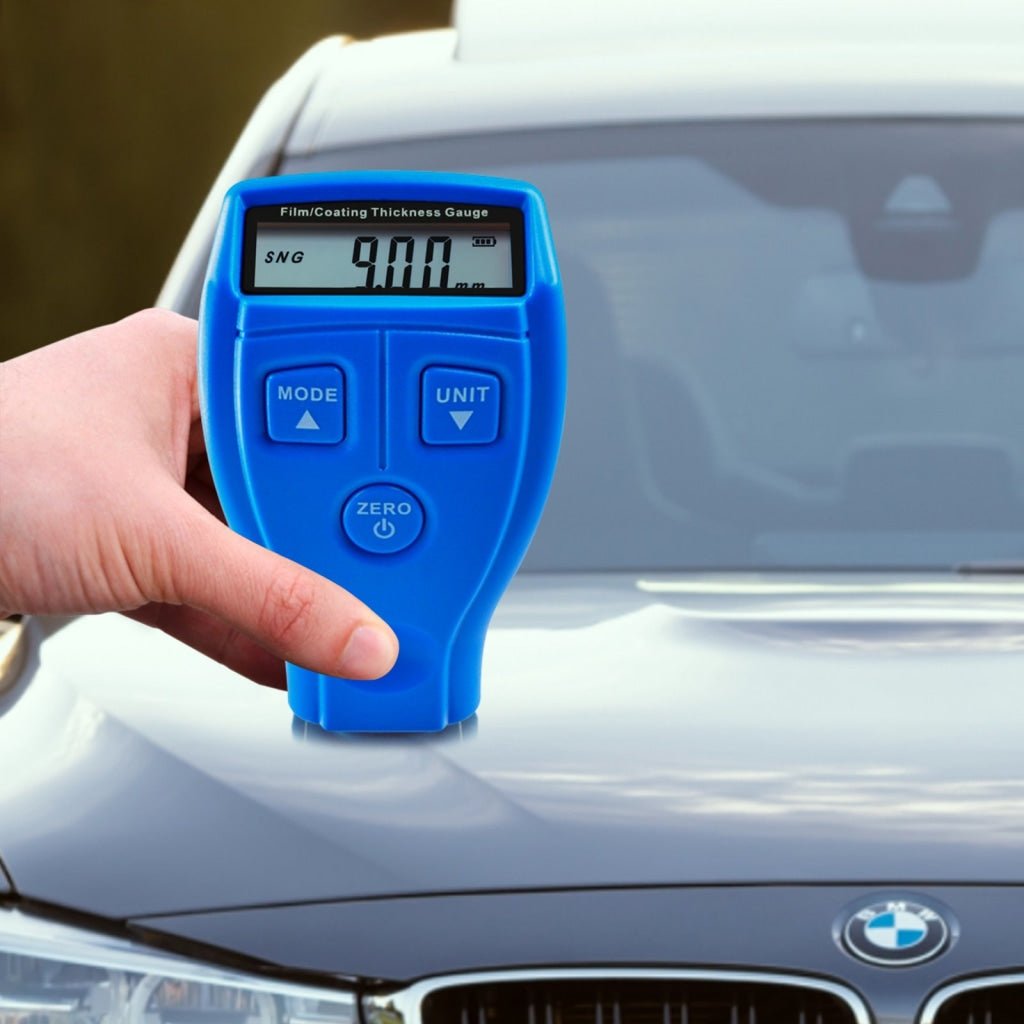

Car Mode can be used without calibration, which can measure coating thickness of 3 substrate materials- Iron, Aluminium and Zinc. Car Mode is also suitable for measuring the coating thickness of cars.
User Mode requires calibration before use, which can measure coating thickness of substrate material, which conducted calibration.

Has 3 different modes of measurement: Single, continuous and difference measurement mode with metric/imperial conversion and auto power off when inactive to conserve battery life plus its lightweight and has a compact design.

FEATURES:

  • Able to measure the thickness of surface coatings on metal substrates
  • 2 modes- CAR Mode & USER Mode. CAR mode can be used WITHOUT calibration to measure the coating thickness of cars and 3 substrate materials- iron, aluminium and zinc.
  • 3 measurement ways- Single measurement, continuous measurement and differential measurement; and 3 calibration functions-  Zero-point calibration, 2-point calibration and basic calibration available.
  • Interchangeable Metric and imperial display unit of measurement

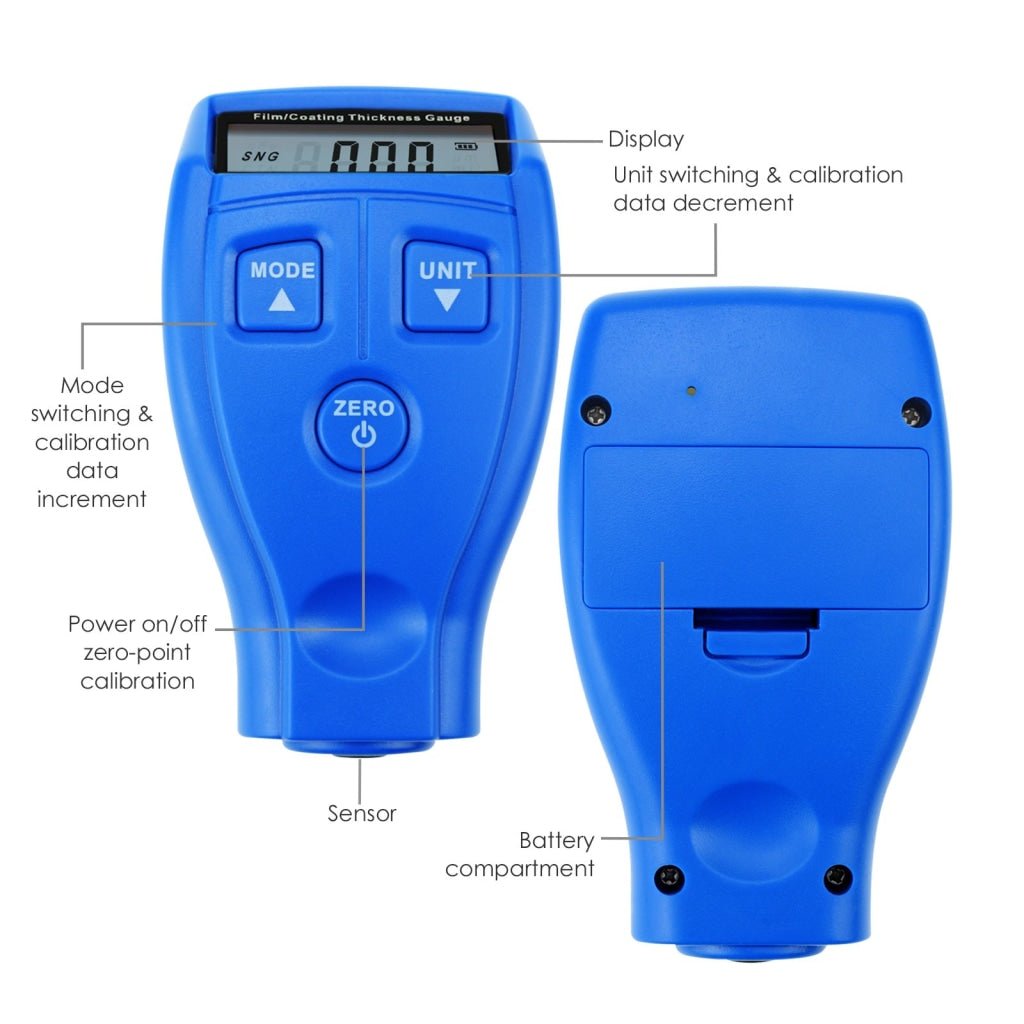

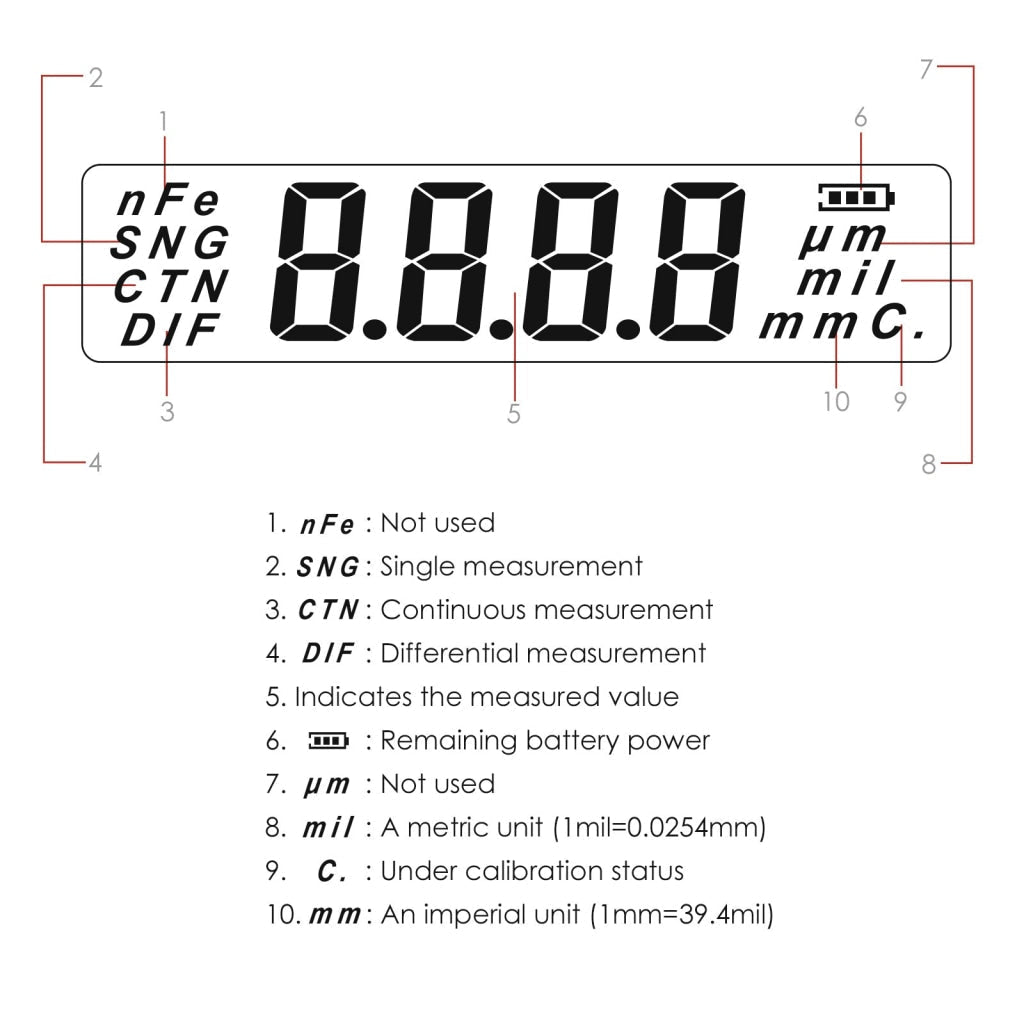

  • Displays measurement information on its Digital LCD screen


SPECIFICATIONS:

  • Measurement range: 0~1.80mm/0-~71.0 mil
  • Car Mode Resolution: 0.05mm/ 2 mil
  • User Mode Resolution: 0.01mm/1 mil
  • Measurement error: ±0.1mm
  • Minimum diameter of substrate: 50mm
  • Minimum thickness of substrate: 0.5mm

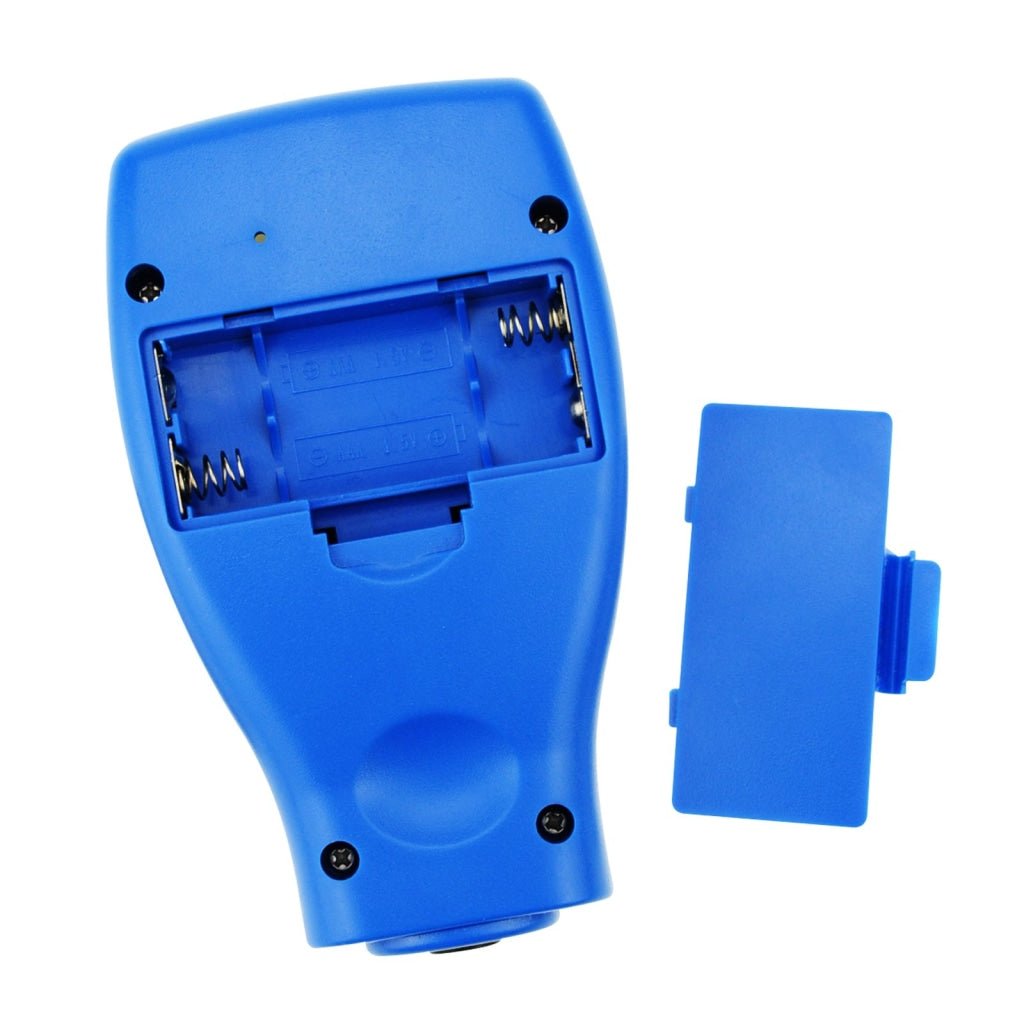

  • Power supply: 2 x 1.5V AAA batteries
  • Operating temperature range: 18~30°C
  • Operating humidity range: 10~80%RH
  • Item Weight: 70.8 grams

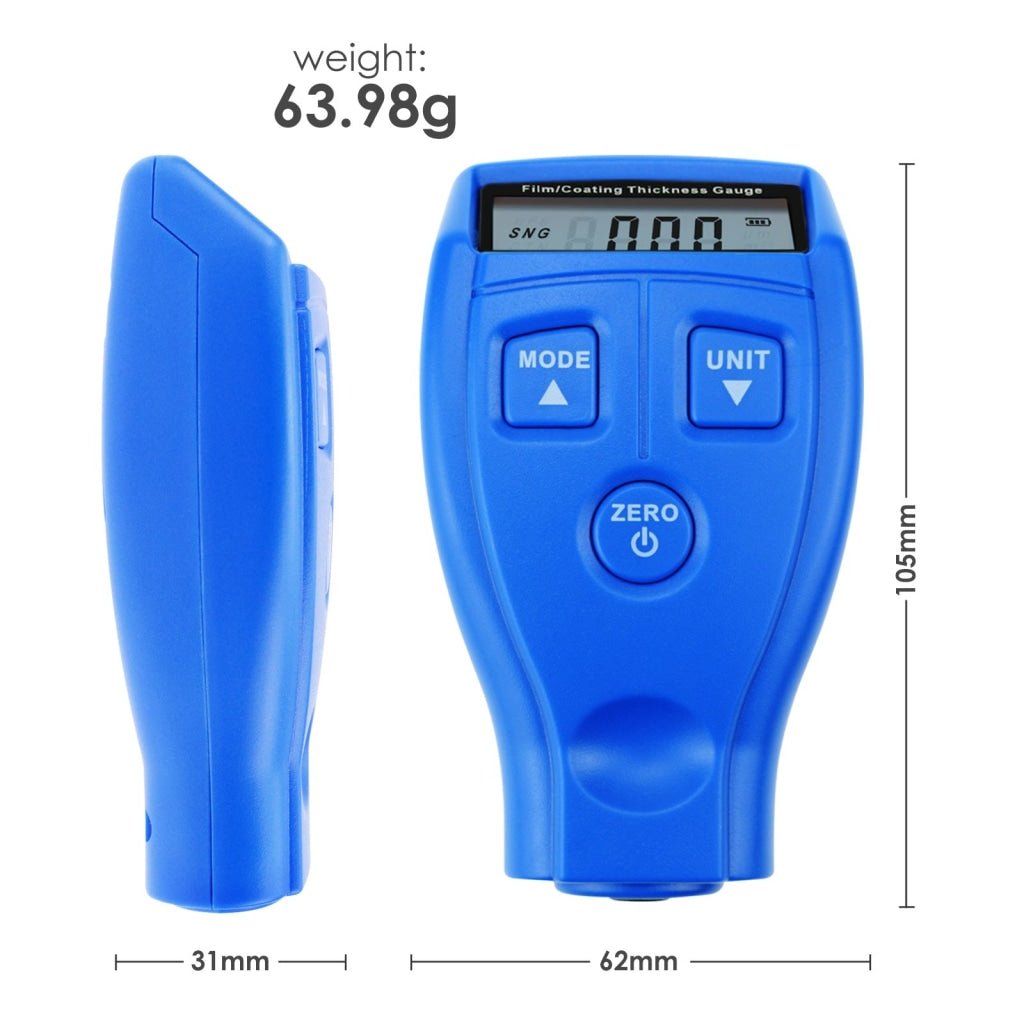

  • Product Dimensions: 4.1 x 2.4 x 1 inches
  • Shipping Weight: 141 grams
  • Shipping Dimensions: 7.9 x 5.9 x 2.7 inches

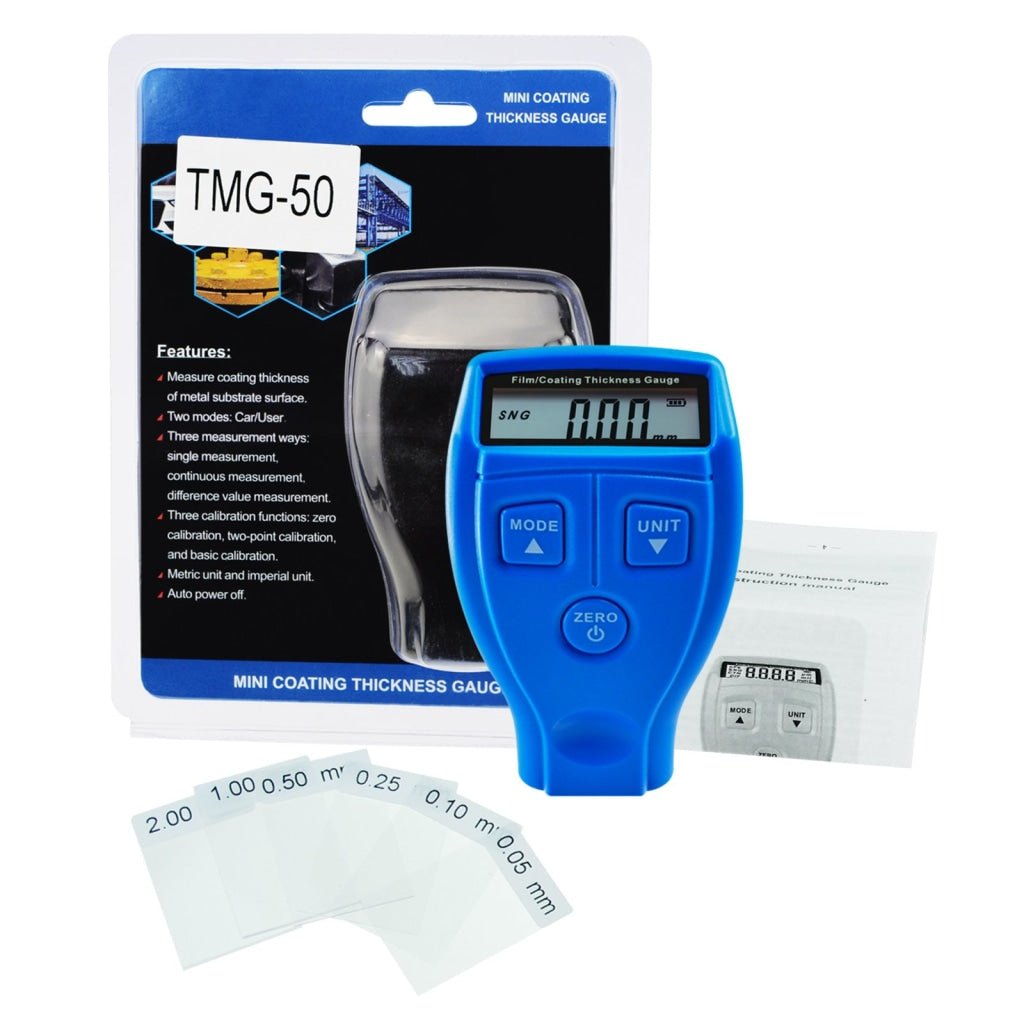

SET INCLUDES:

  • 1 x Coating Thickness Gauge

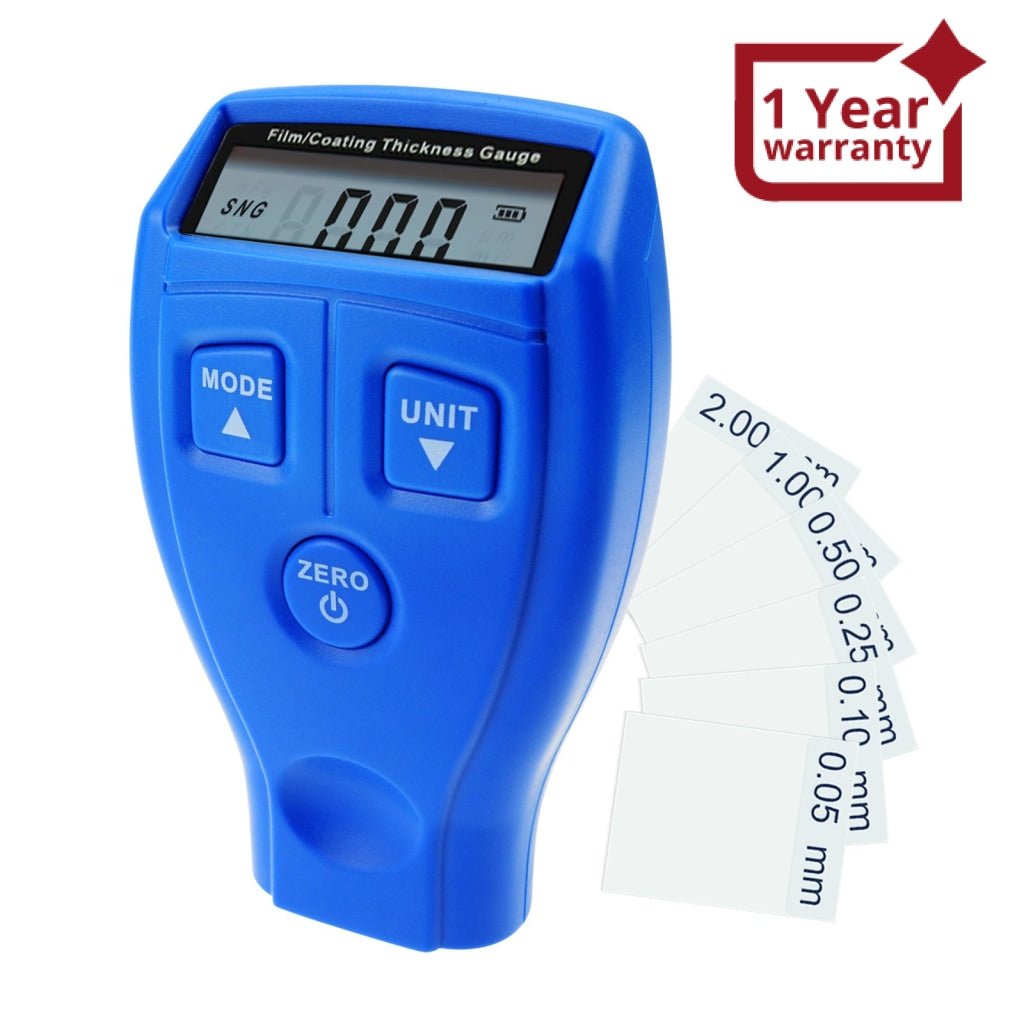

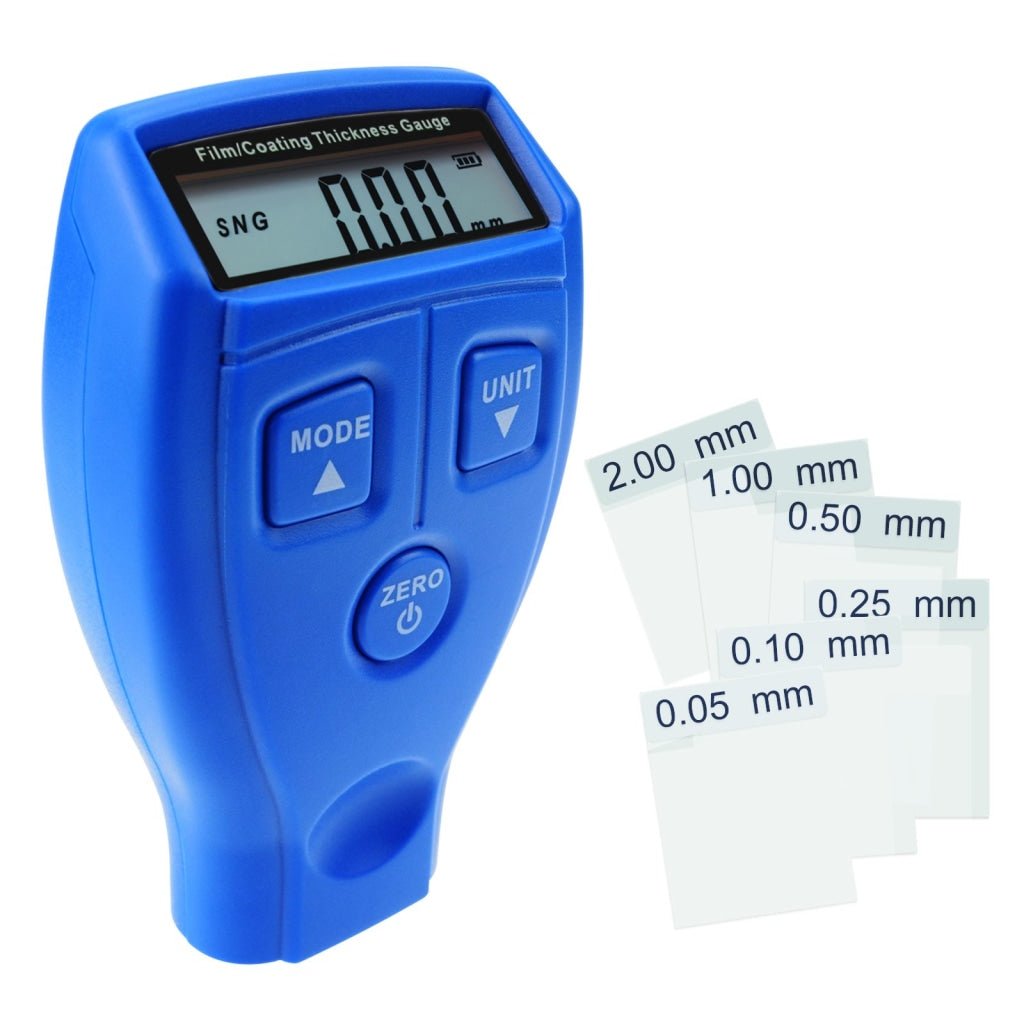

  • 6 x Calibration Films
  • 2 x 1.5V AAA Batteries
  • English User manual

A printed user manual is already included with this item. No digital user manual or software is available.
