ILTM-48 Paint Coating Thickness Meter Tester Digital Gauge Car Automotive Tool

Sku: ILTM-48
$37.90 USD
Translation missing: en.products.product.shipping_policy_html
Quantity:
Visa Mastercard PayPal American Express Google Pay Apple Pay Shop Pay

This Coating Thickness gauge adapts Electromagnetic Induction principle and magnetic Induced EDD current. It can measure the thickness of non-metal coatings on metal surface.

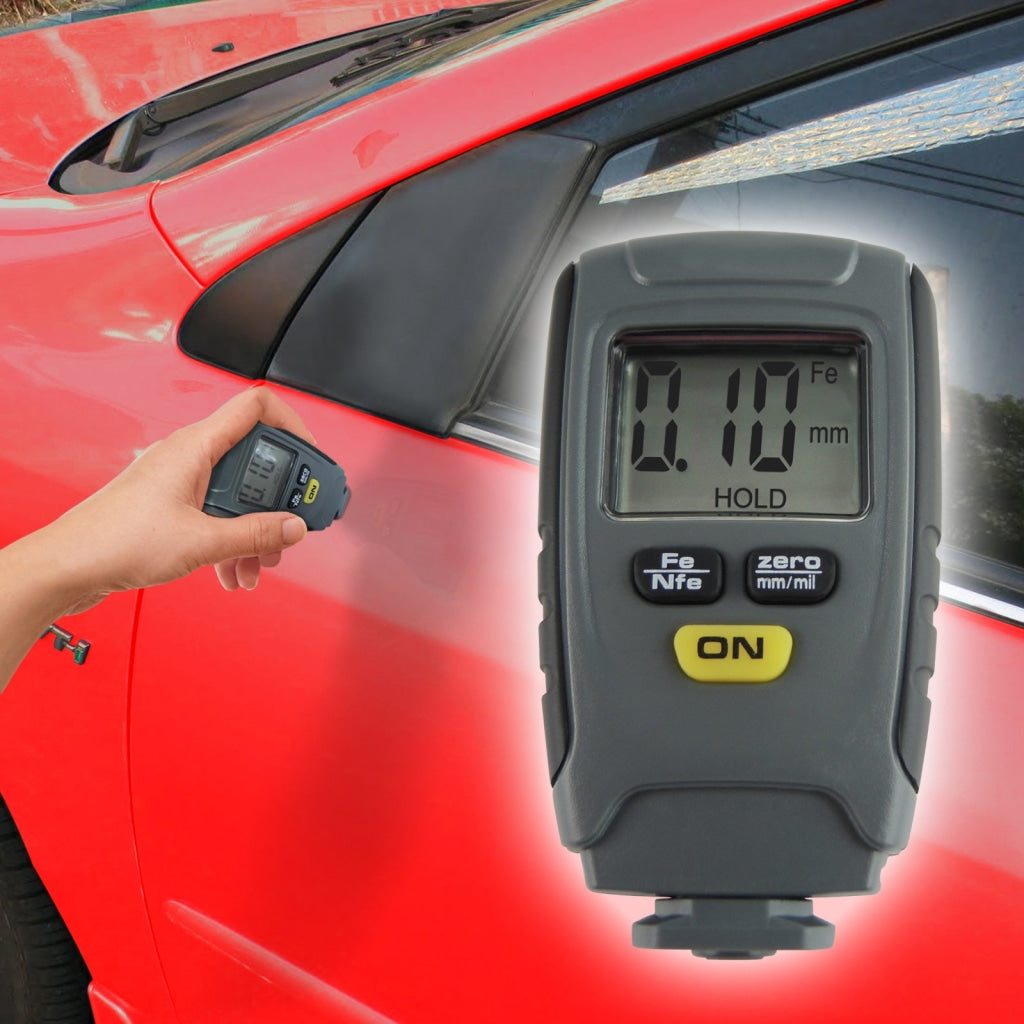

This unit is ideal for manufacturing company, metal machinery industry, chemical industry, and commodity inspection especially in automobile trading.



Features:

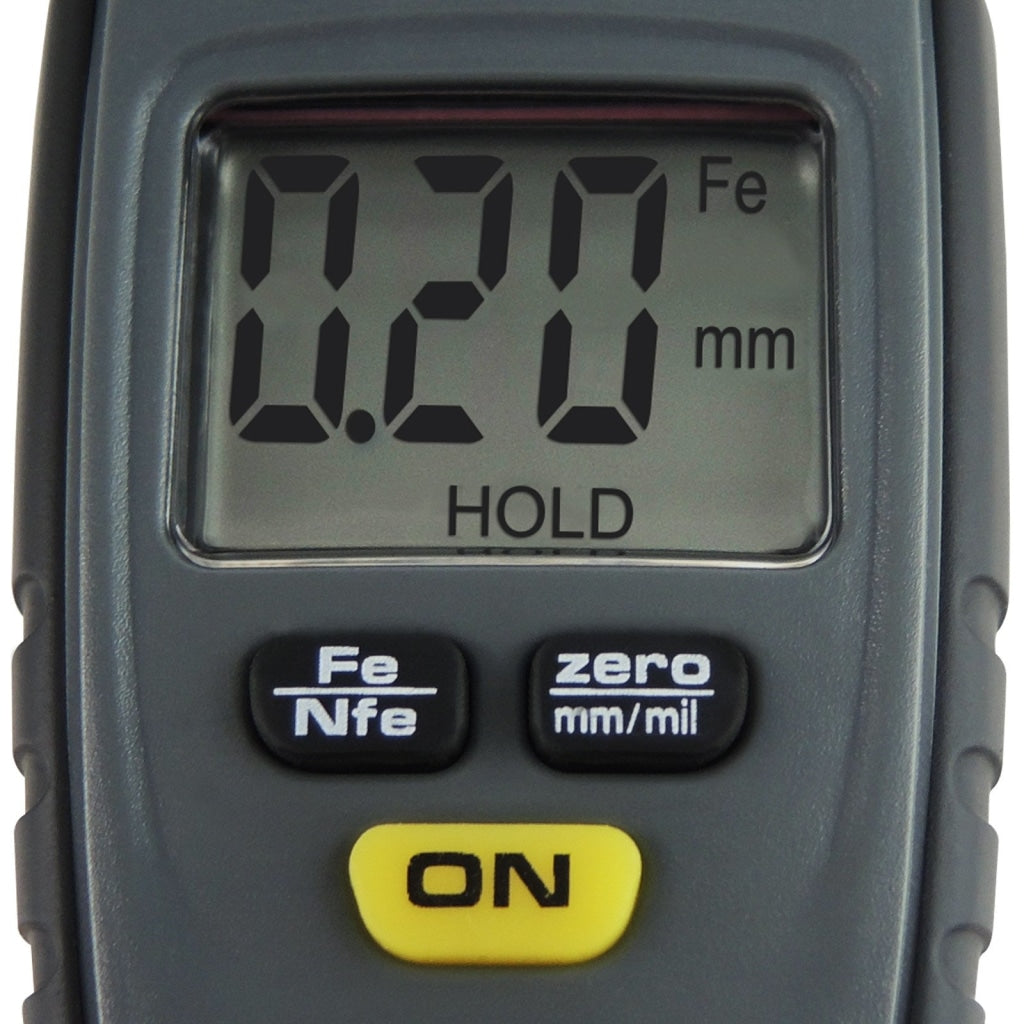

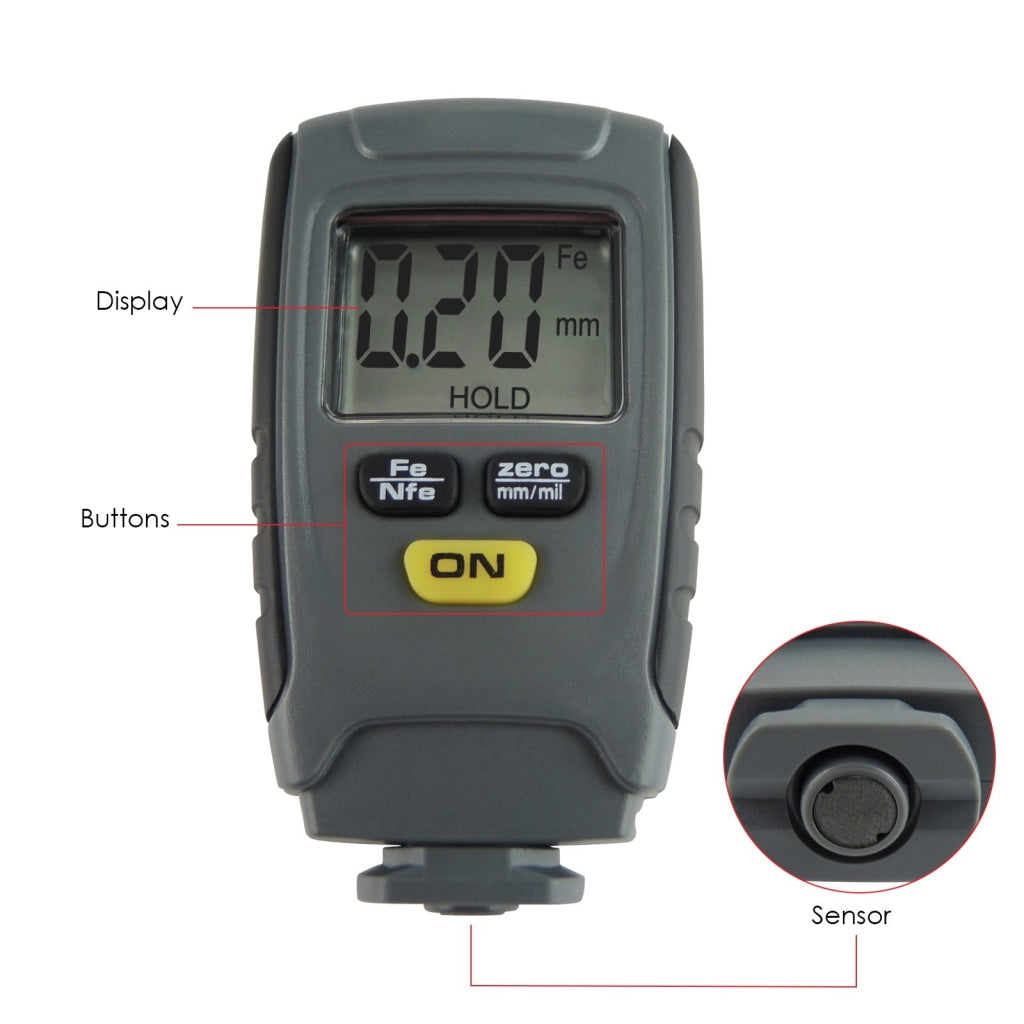

  • Digital LCD display
  • Data HOLD function

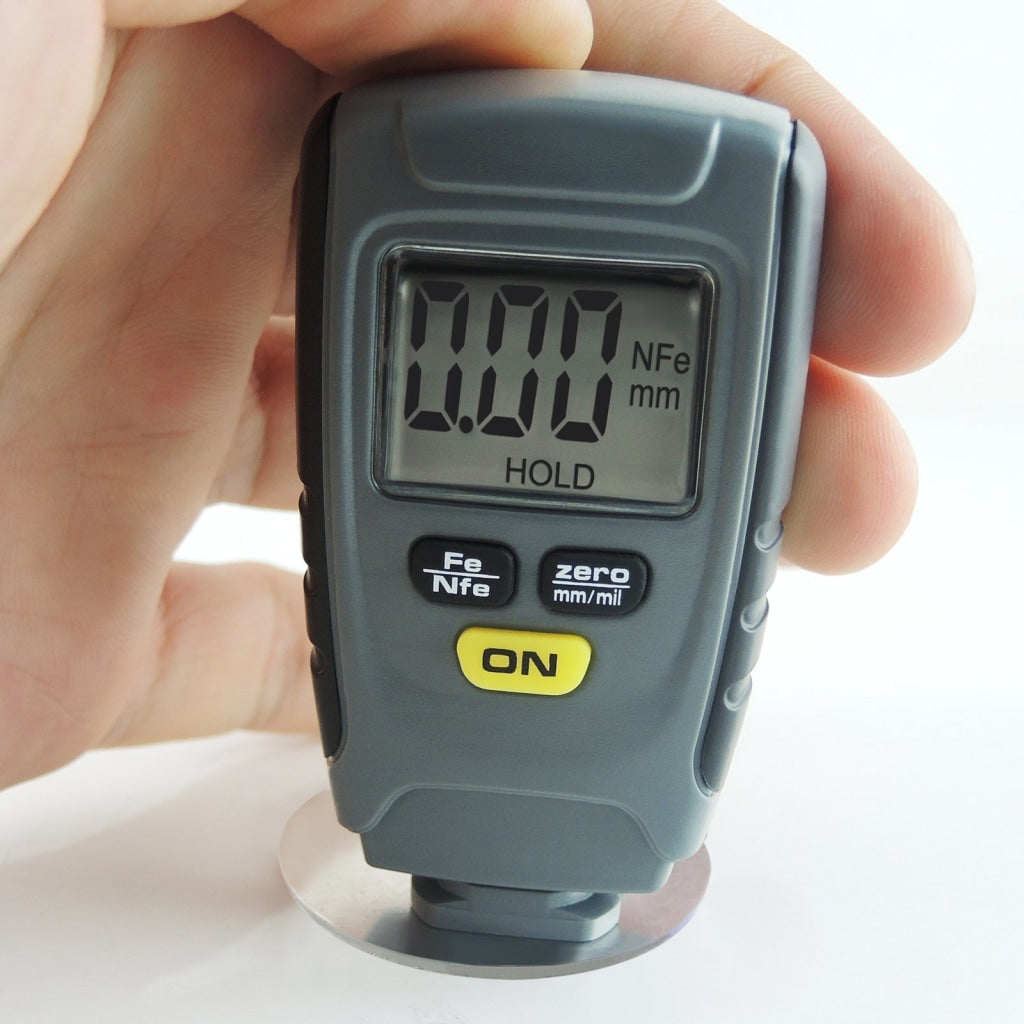

  • Zero calibration

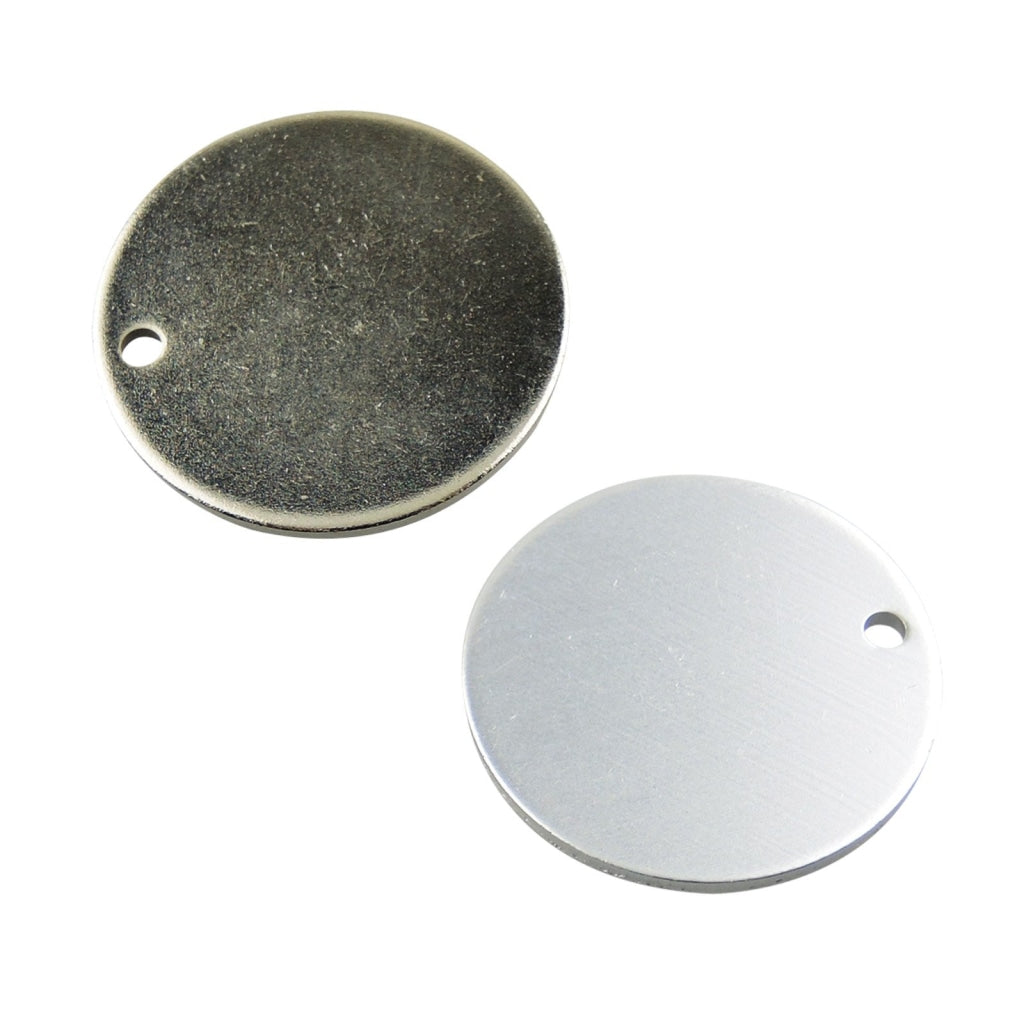

  • Comes with iron base and non-iron (aluminum) base
  • Portable, user friendly and easy to carry even in pocket
  • Low battery indication
  • Auto shut-off if no operation in 1 minute

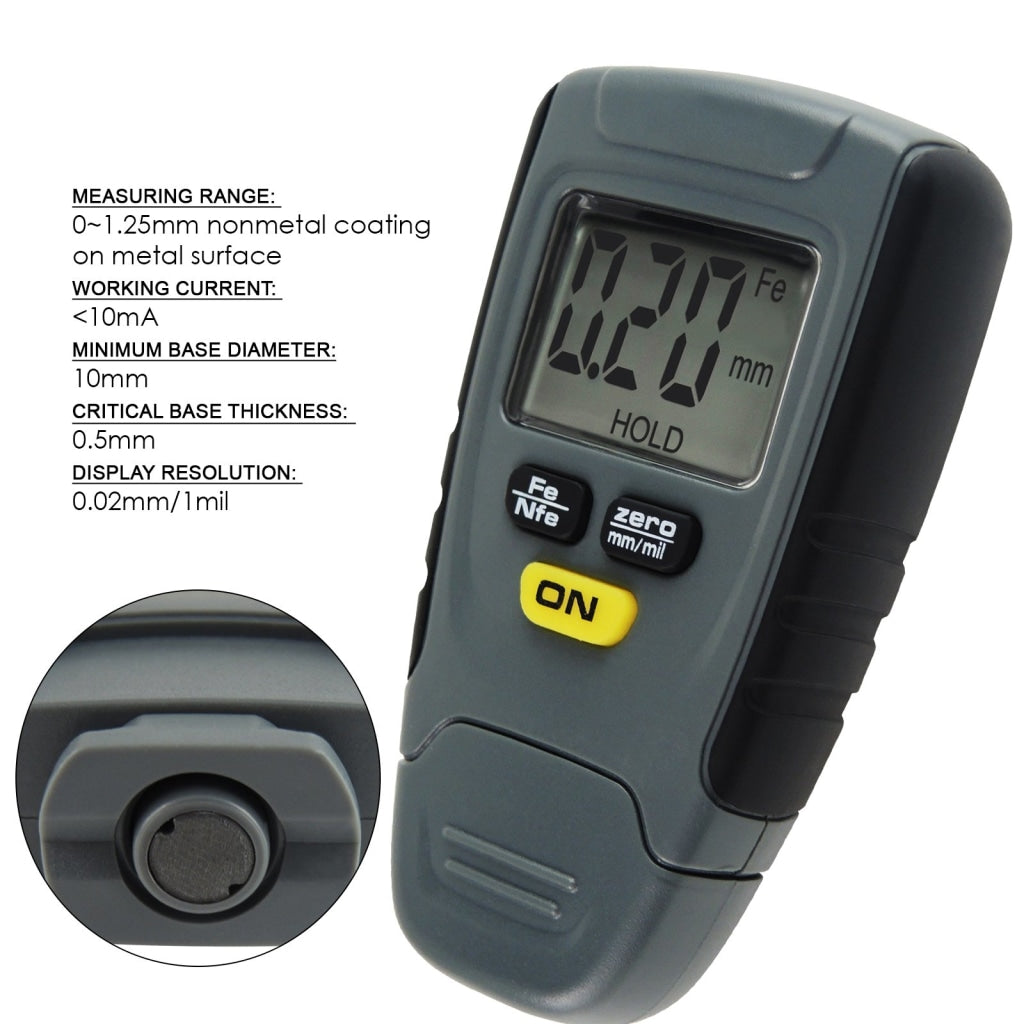

Specifications:

  • Target Measure: Non-metal coating thickness on the metal surface
  • Measuring Range: 0~1.25mm nonmetal coating on metal surface
  • Precision Measurement: 2% RDG 0.02mm [2% RDG ±1mil (steel and aluminum only)]

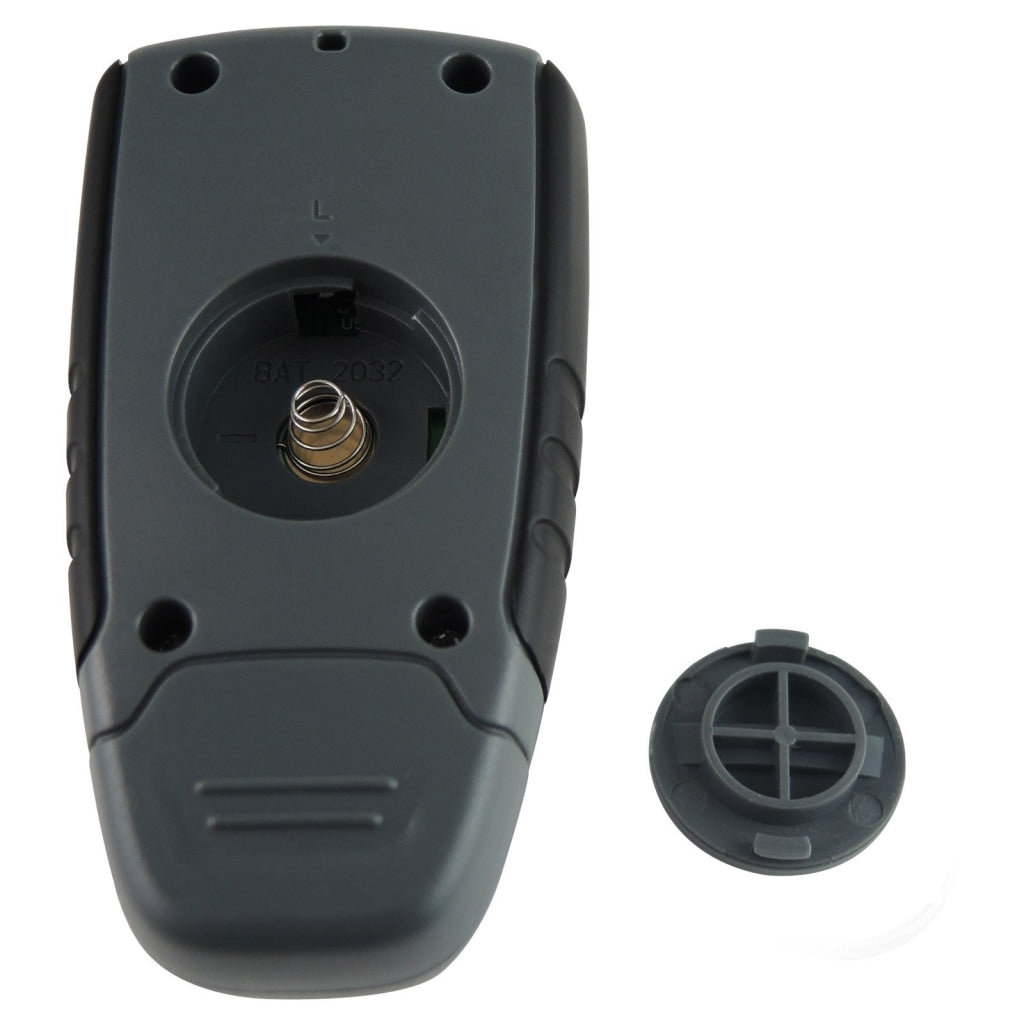

  • Power Supply: 1 x 3V CR2032 button battery
  • Working Current: <10mA
  • Auto Power off time: No actions in 1 min if leave the measured object
  • Minimum base diameter: 10mm
  • Critical base thickness: 0.5mm
  • Display resolution: 0.02mm/1mil
  • Operating Environment
    • Temperature: -5~40°C
    • Humidity: 5~95%RH non condensing
  • Storage Environment
    • Temperature: -20~60°C
    • Humidity: <85%RH (without battery)

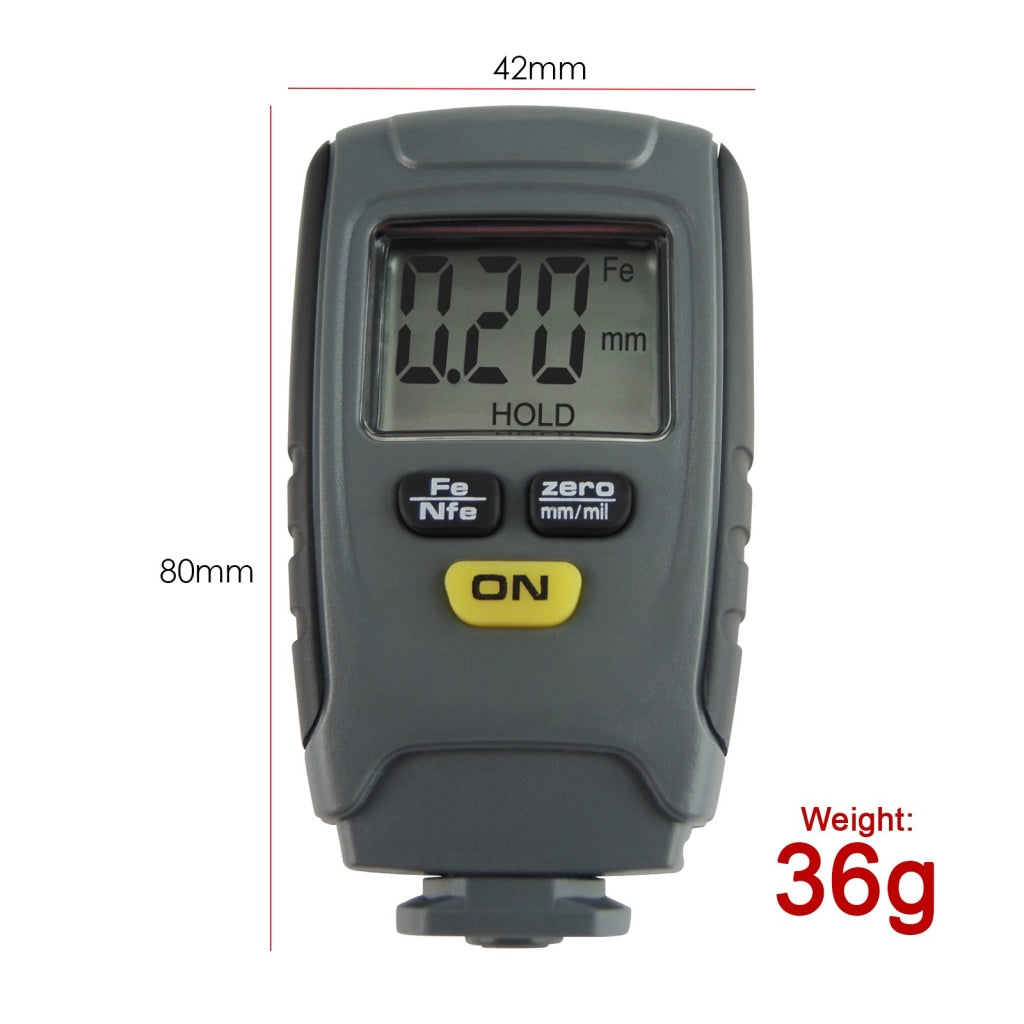

  • Dimensions: 80 x 42 x 24mm
  • Weight: approx. 36g (without battery)

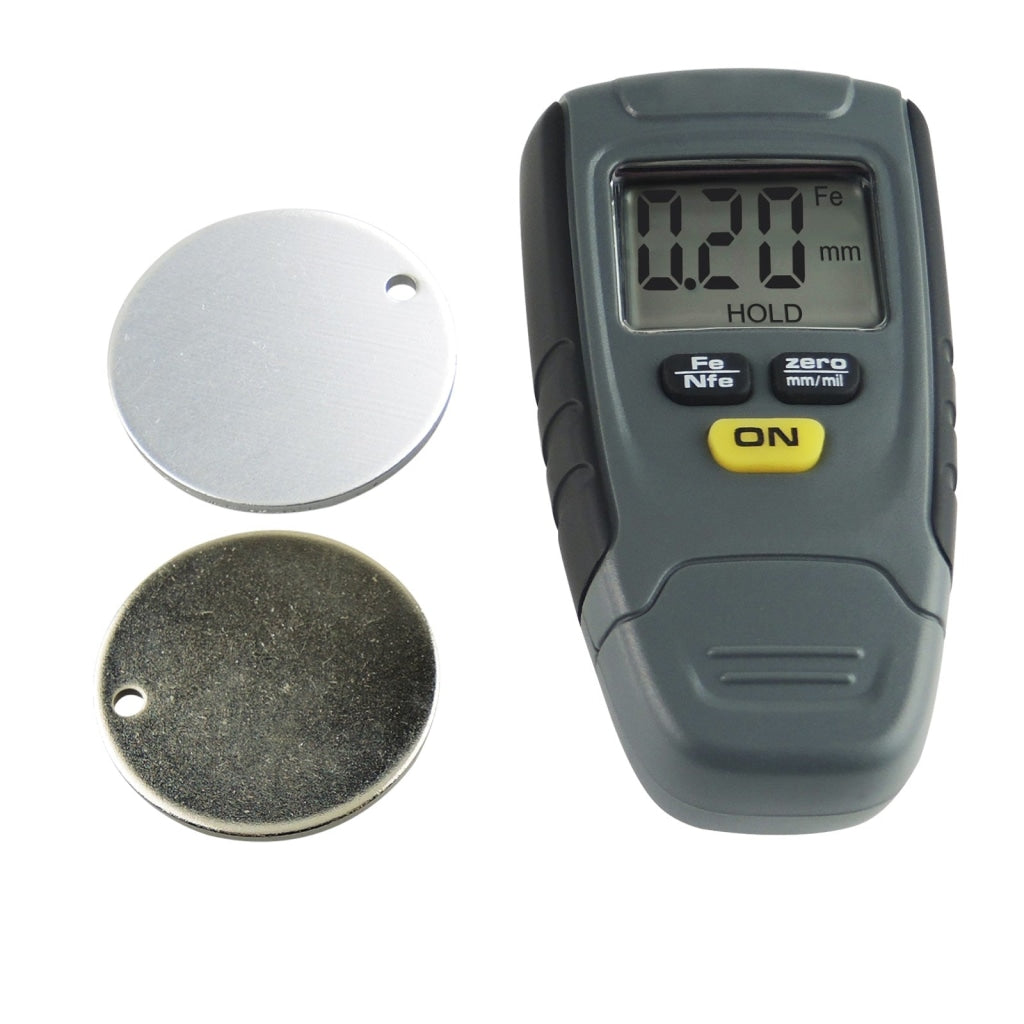

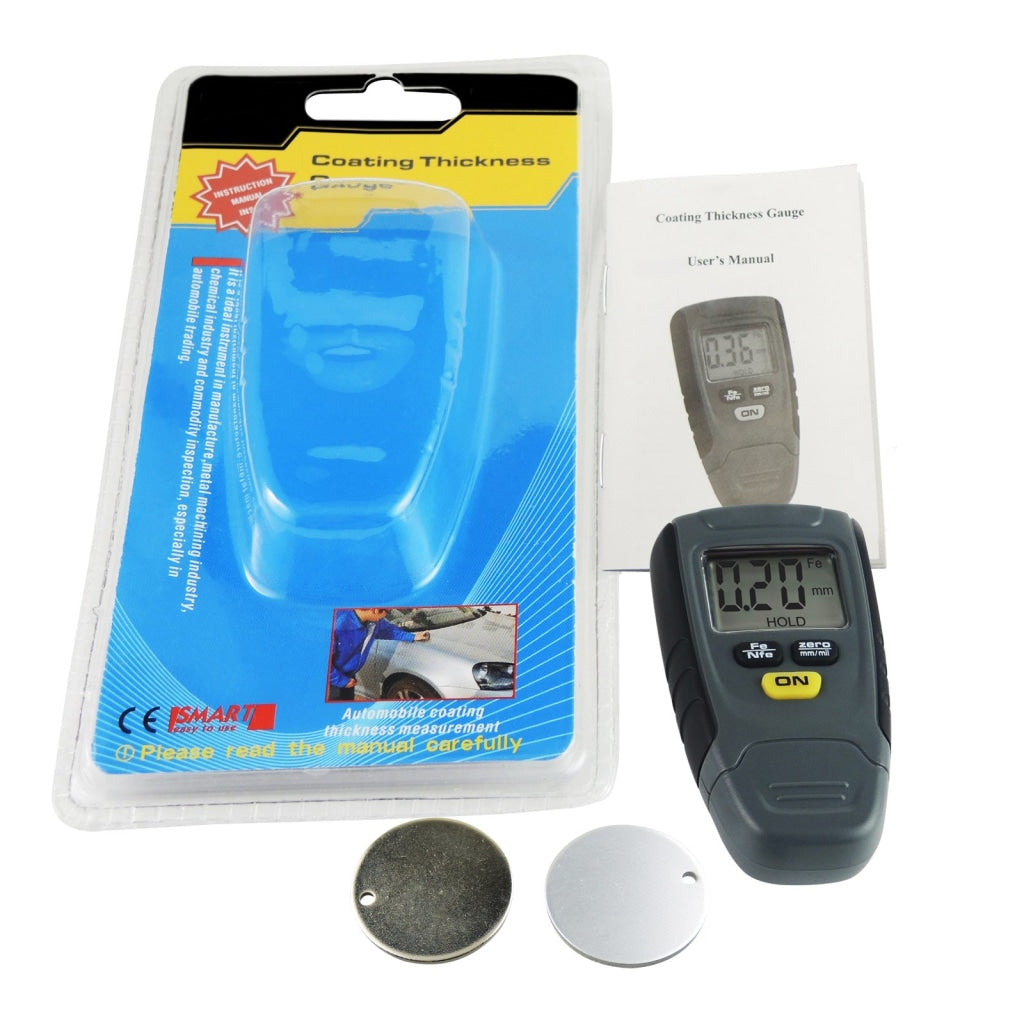

Set Includes:

  • 1 x Mini Thickness Meter
  • 1 x 3V CR2032 Battery (FREE)
  • 1 x Iron Base
  • 1 x Aluminum Base
  • English Quick Start Guide



We sell and ship this product everywhere, except USA, Canada and Australia.



A printed user manual is already included with this item. No digital user manual or software is available.
