ILTM-275 Professional Thickness Meter Gauge Digital HD Colored Display Car Paint Coating Tester Data Storage Screen Rotation Rechargeable Battery Automotive Tool 0~1300um/51mil Measurement Range

Sku: ILTM-275
$126.90 USD
Translation missing: en.products.product.shipping_policy_html
Quantity:
Visa Mastercard PayPal American Express Google Pay Apple Pay Shop Pay

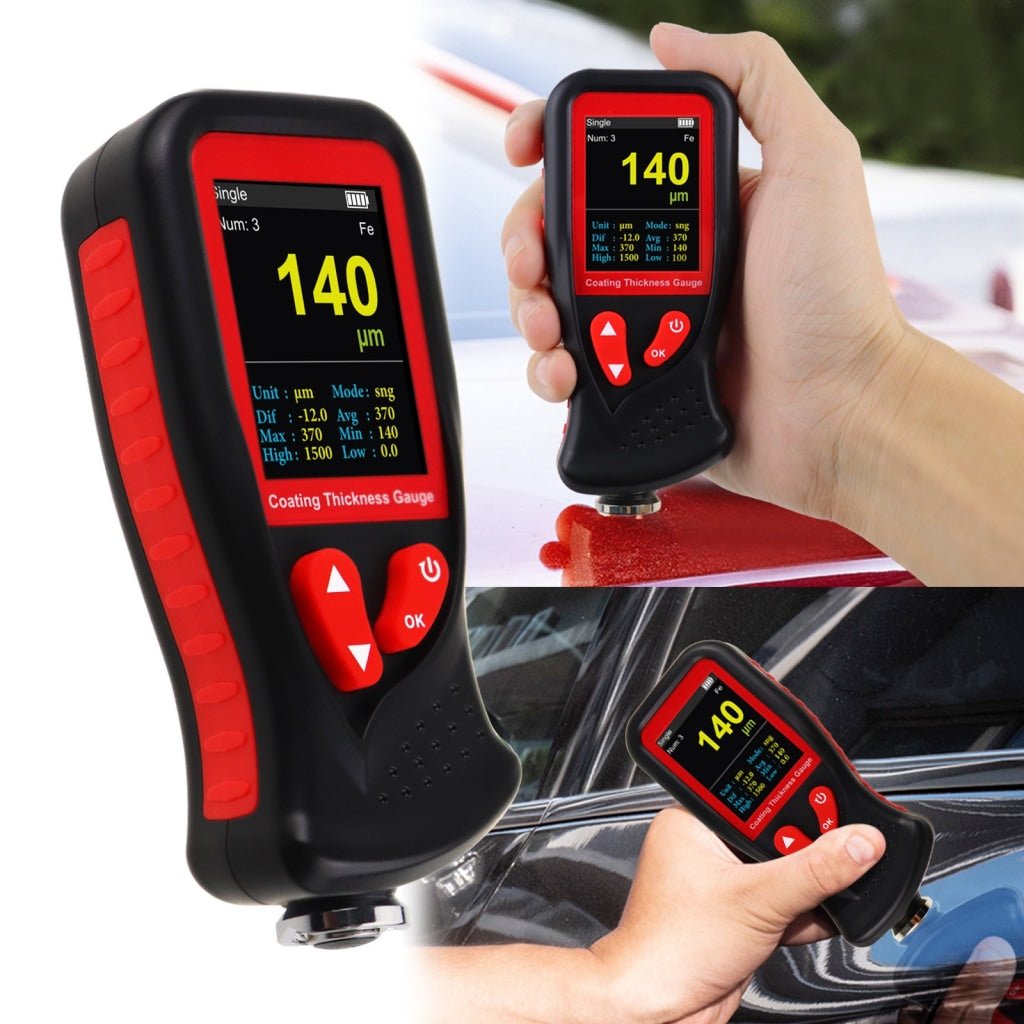

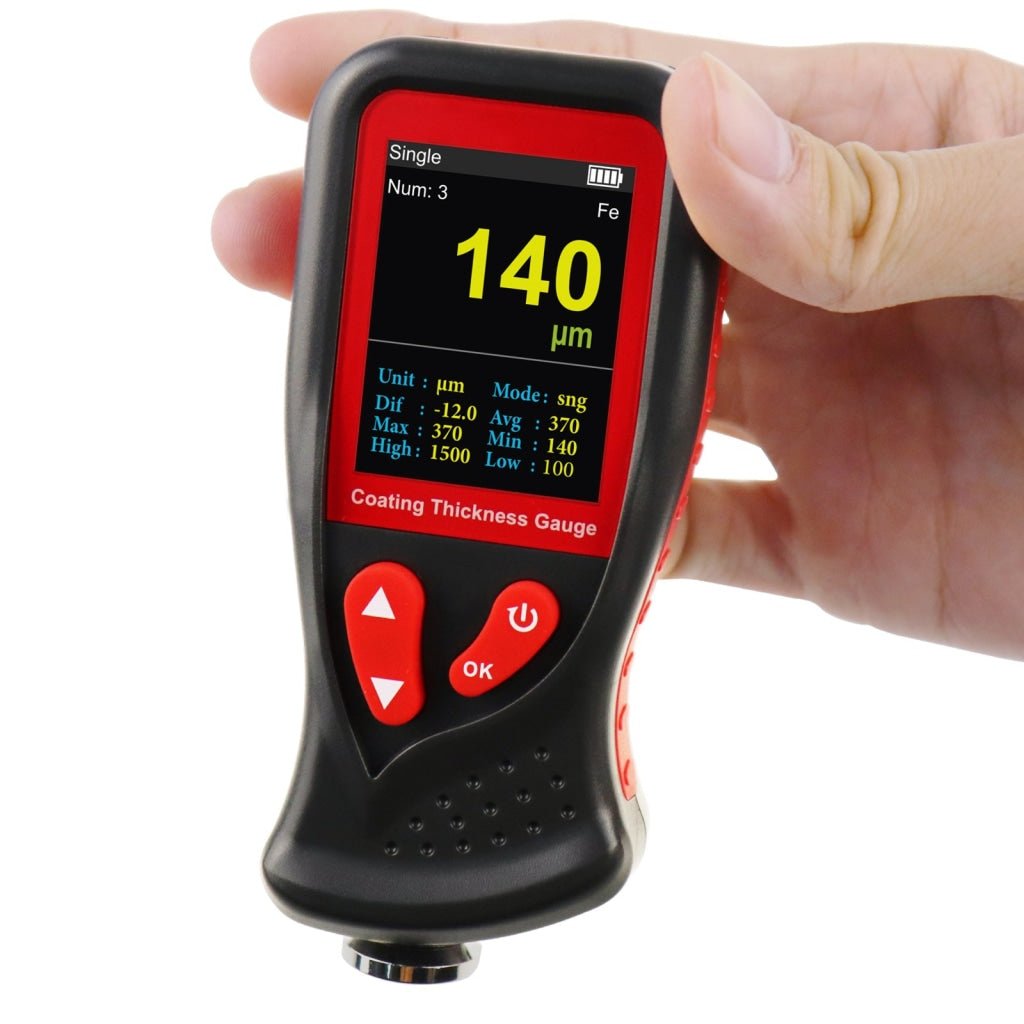

This color-screen portable coating thickness gauge with high definition display can quickly, non-destructively and accurately measure coating thickness. It is widely used in manufacturing, metal processing industry, chemical industry, commodity inspection, and other testing areas.

Features:

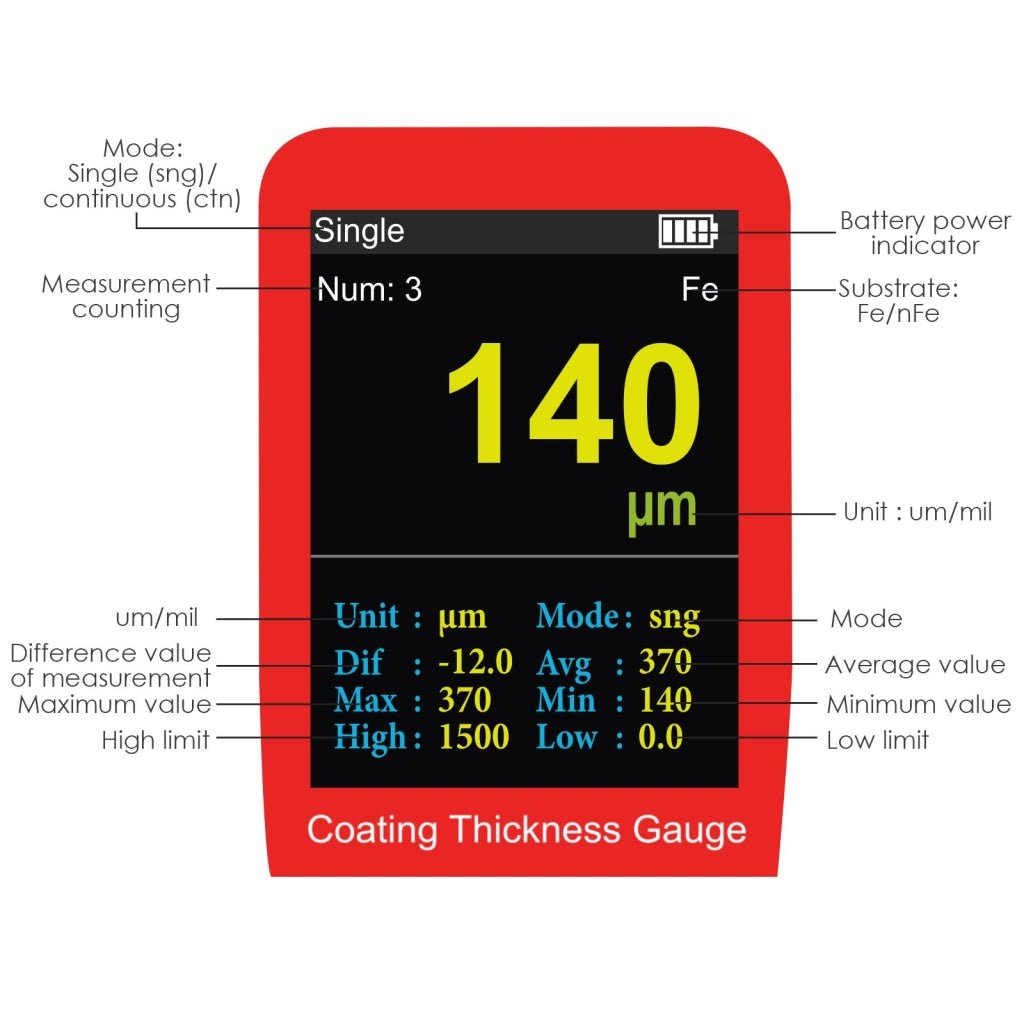

  • Color-screen HD display with menu operation available in 3 languages (English, Chinese, and Russian)

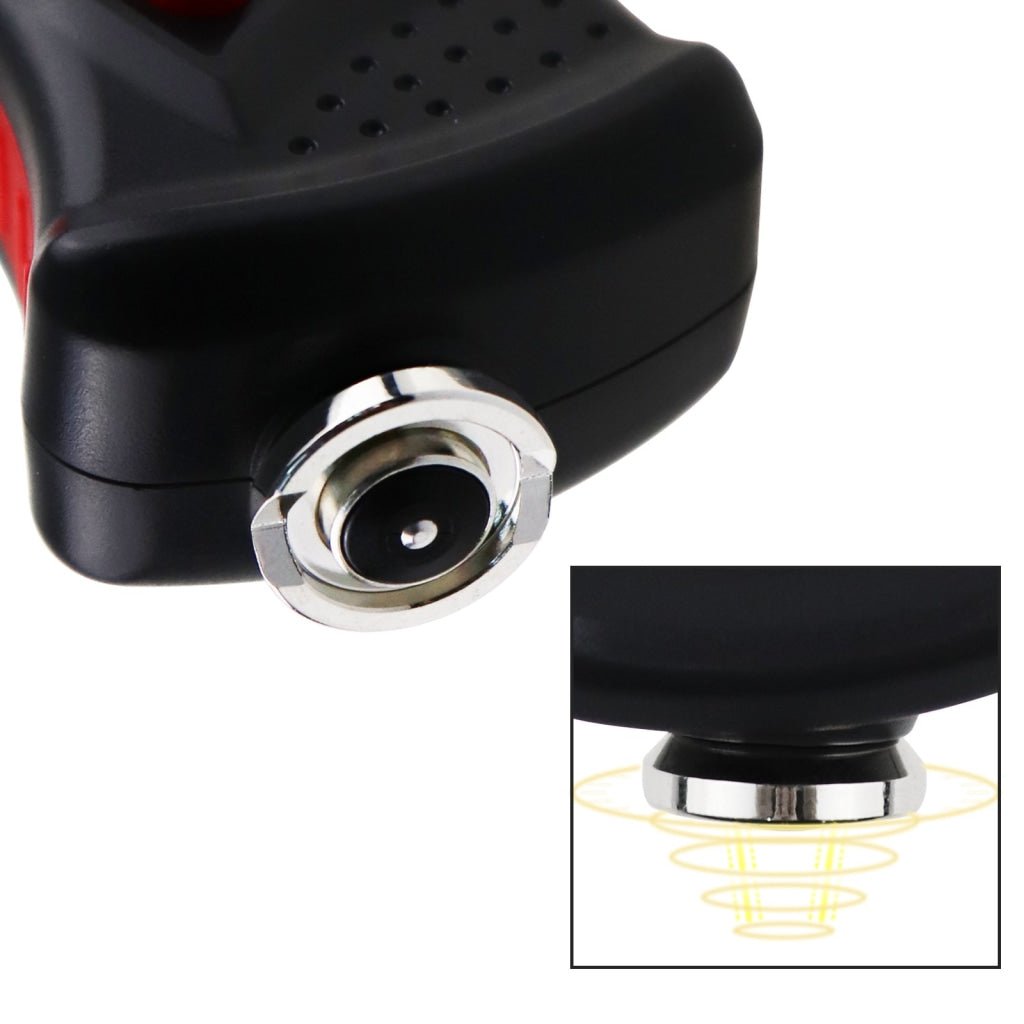

  • Thickness measurement of non-magnetic coating on a magnetic metal substrate surface and non-metallic coating on a non-magnetic metal substrate surface
  • Single measurement and continuous measurement method
  • Automatic substrate identification (magnetic metal and non-magnetic metal)
  • Basic and Zero-point calibration
  • MAX/MIN/AVG/DIFF value measurement

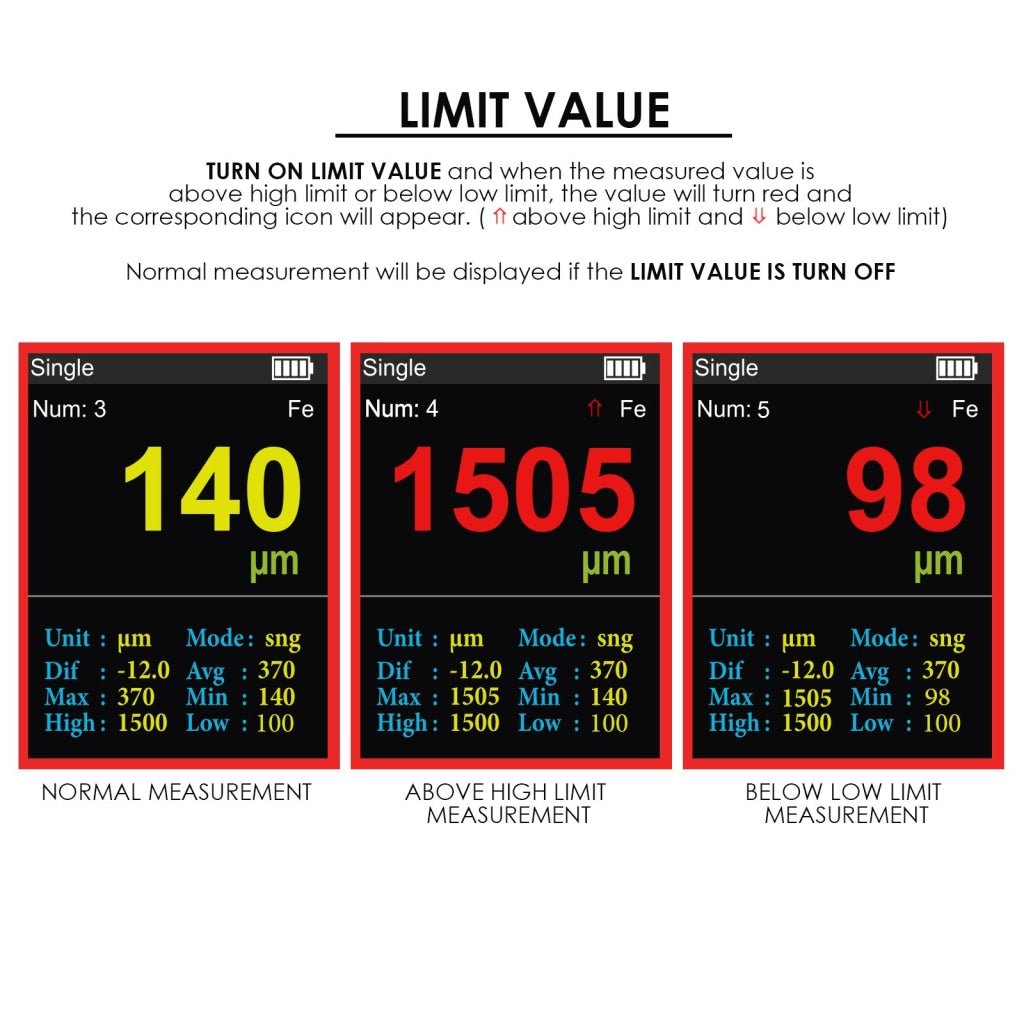

  • Alarm function for High and Low limit value

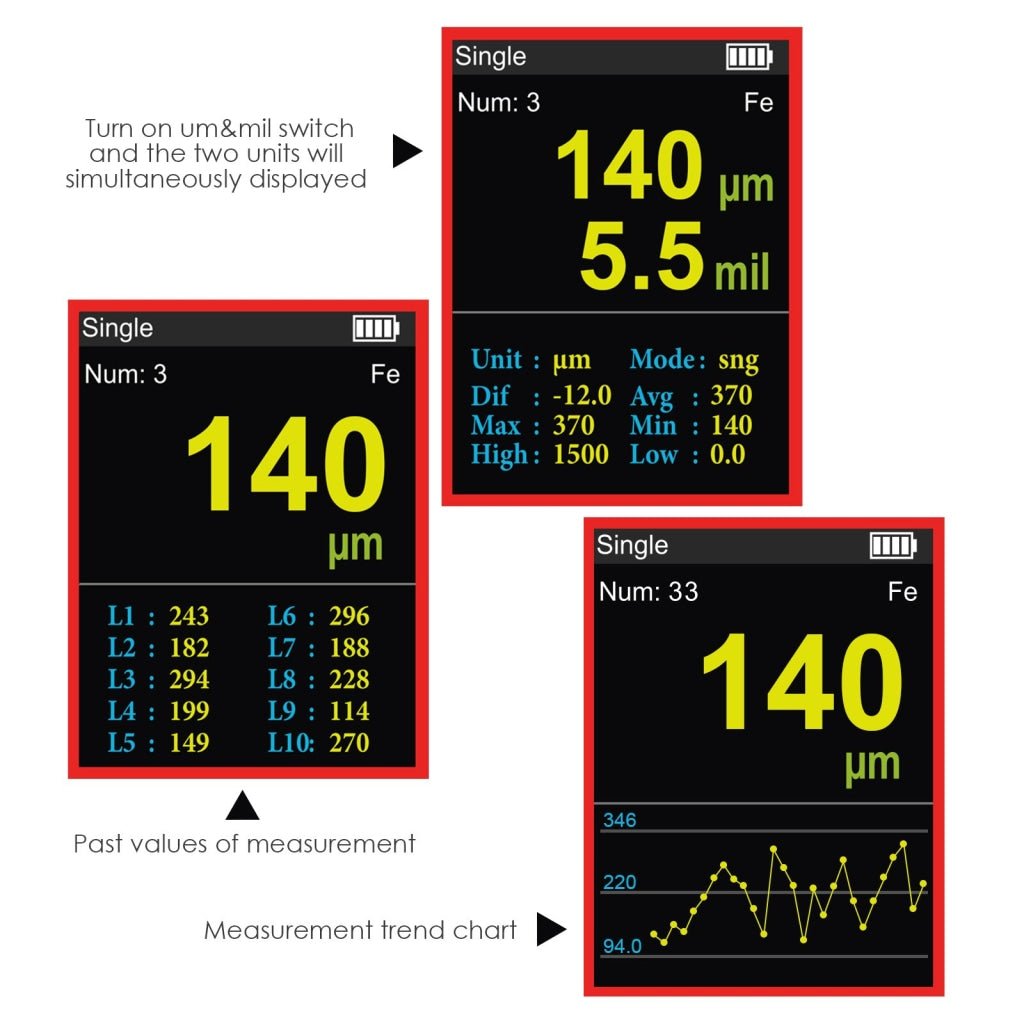

  • ON / OFF um & mil display unit
  • Metric/imperial unit
  • Data storage function 1500 items (15 items/set, max100set)

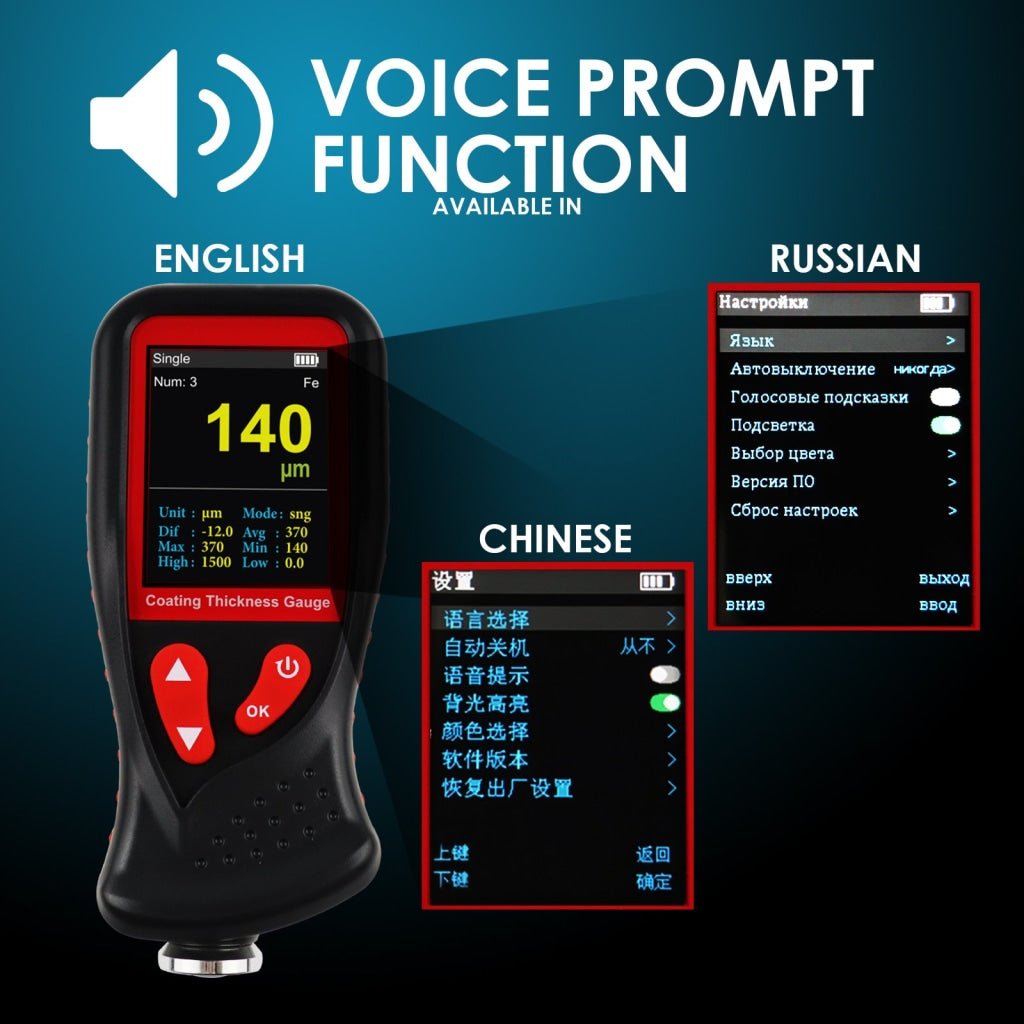

  • Voice prompts function available in English, Chinese and Russian

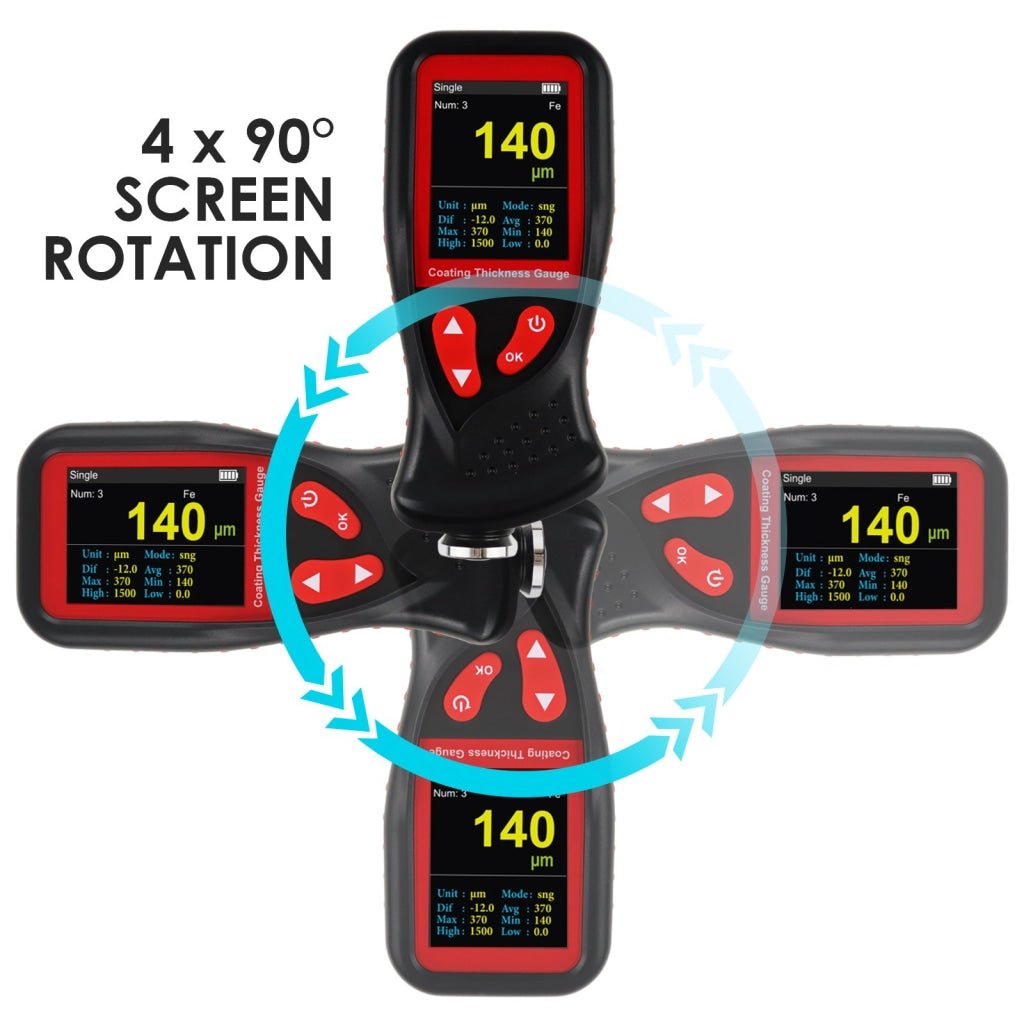

  • Screen display rotation
  • Multi-interface display
  • Screen brightness selection
  • Automatic shutdown
  • Battery power indicator

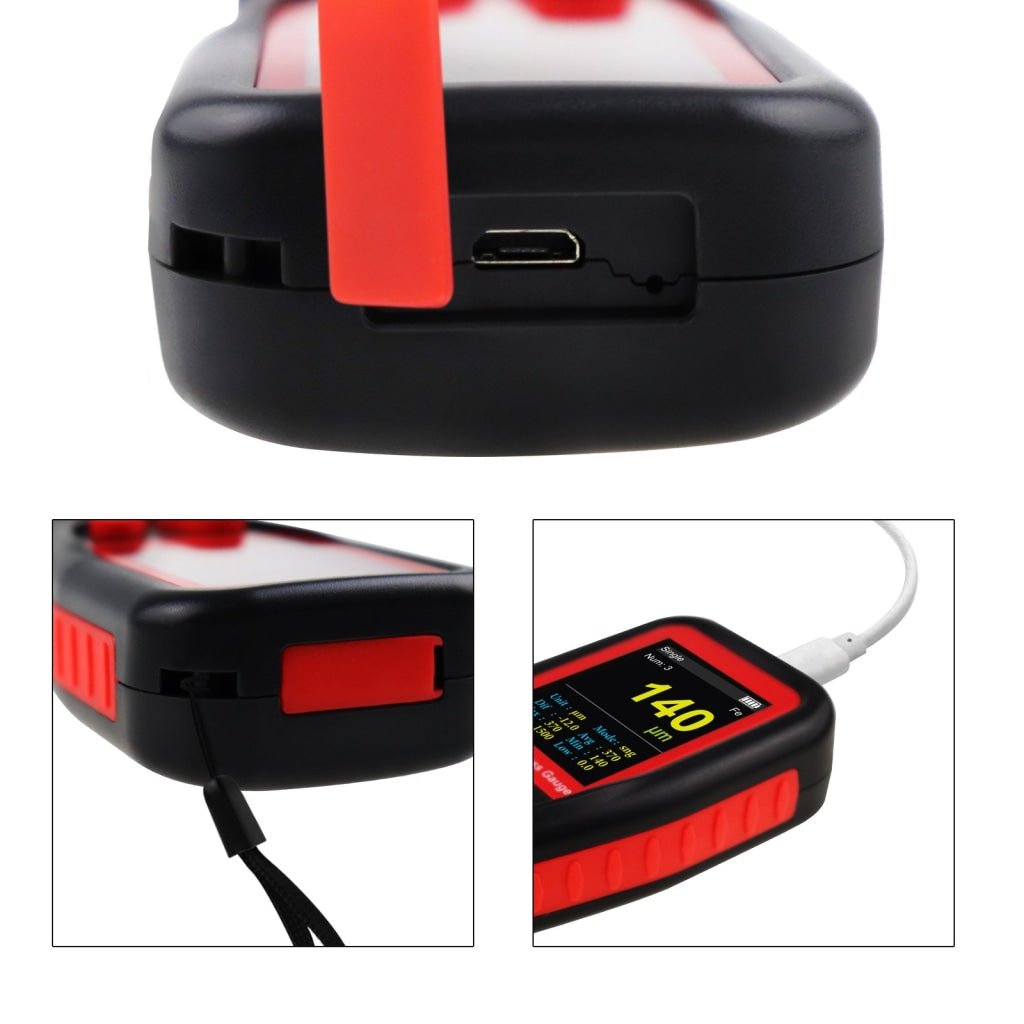

  • Rechargeable lithium battery with charge protection function

Specifications:

  • Measurement range: 0~1300um/51mil
  • Resolution: [0.1μm(<100μm), 1μm( ≥100μm)]/0.1mil
  • Measurement error: ≤150μm ±5μm / >150μm ±(3%H+1μm)
  • Magnetic metal substrate
    • Minimum diameter: 12mm
    • Minimum thickness: 0.5mm
  • Non-magnetic metal substrate
    • Minimum diameter: 50mm
    • Minimum thickness: 0.5mm
  • Minimum radius of curvature
    • Magnetic convex substrate: 2mm
    • Magnetic concave substrate: 11mm
  • Working voltage: DC 3.7V (Lithium battery capacity 1000mAh)

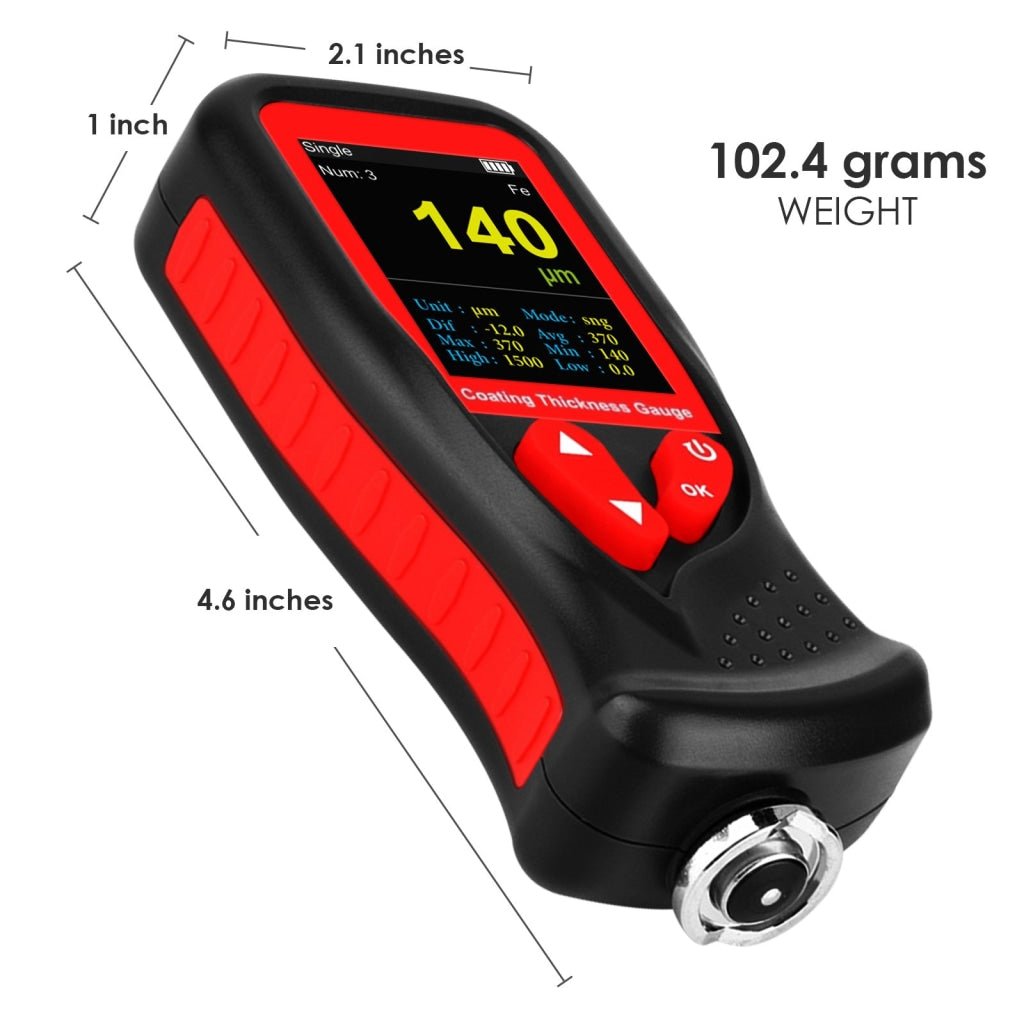

  • Size: approx. 52.9 x 26 x 117mm
  • Weight: approx. 102.4g (including battery)

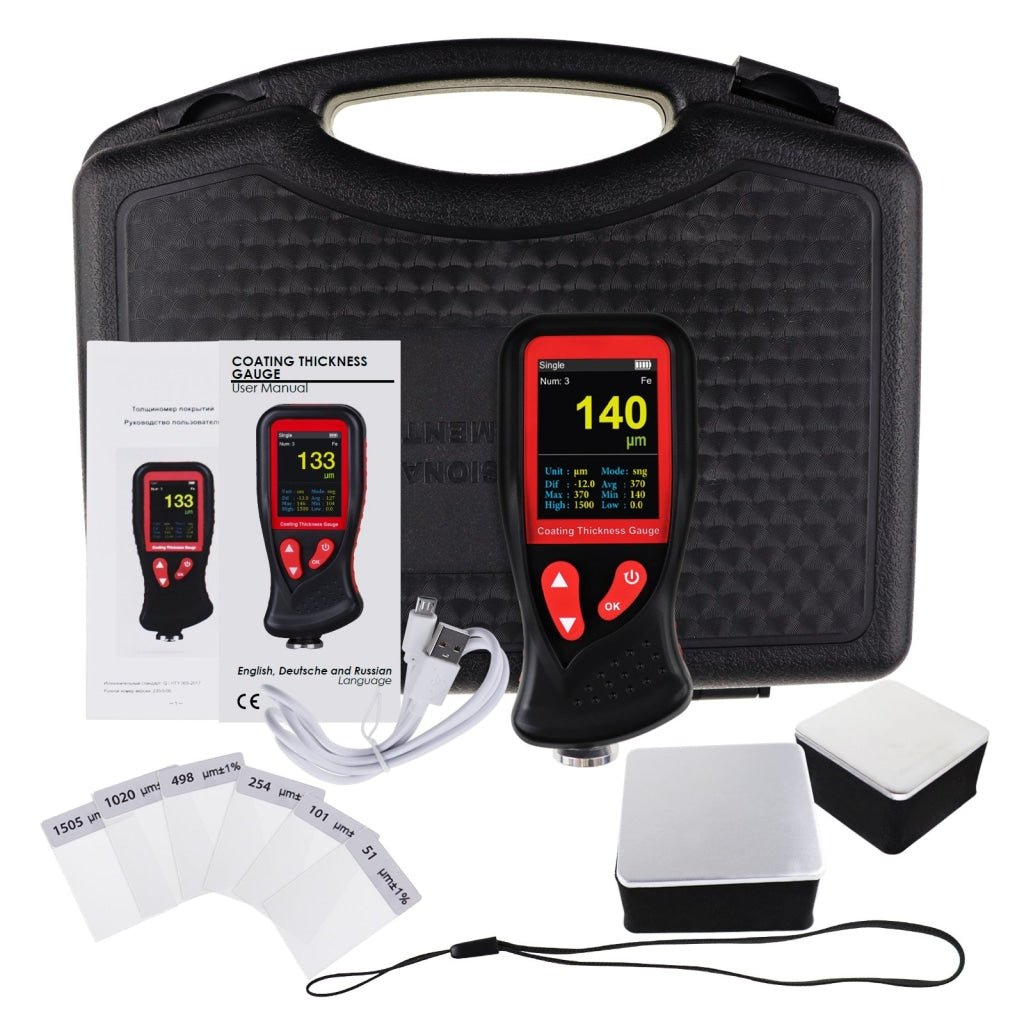

Set Includes

  • 1 x Digital Colored Thickness Meter

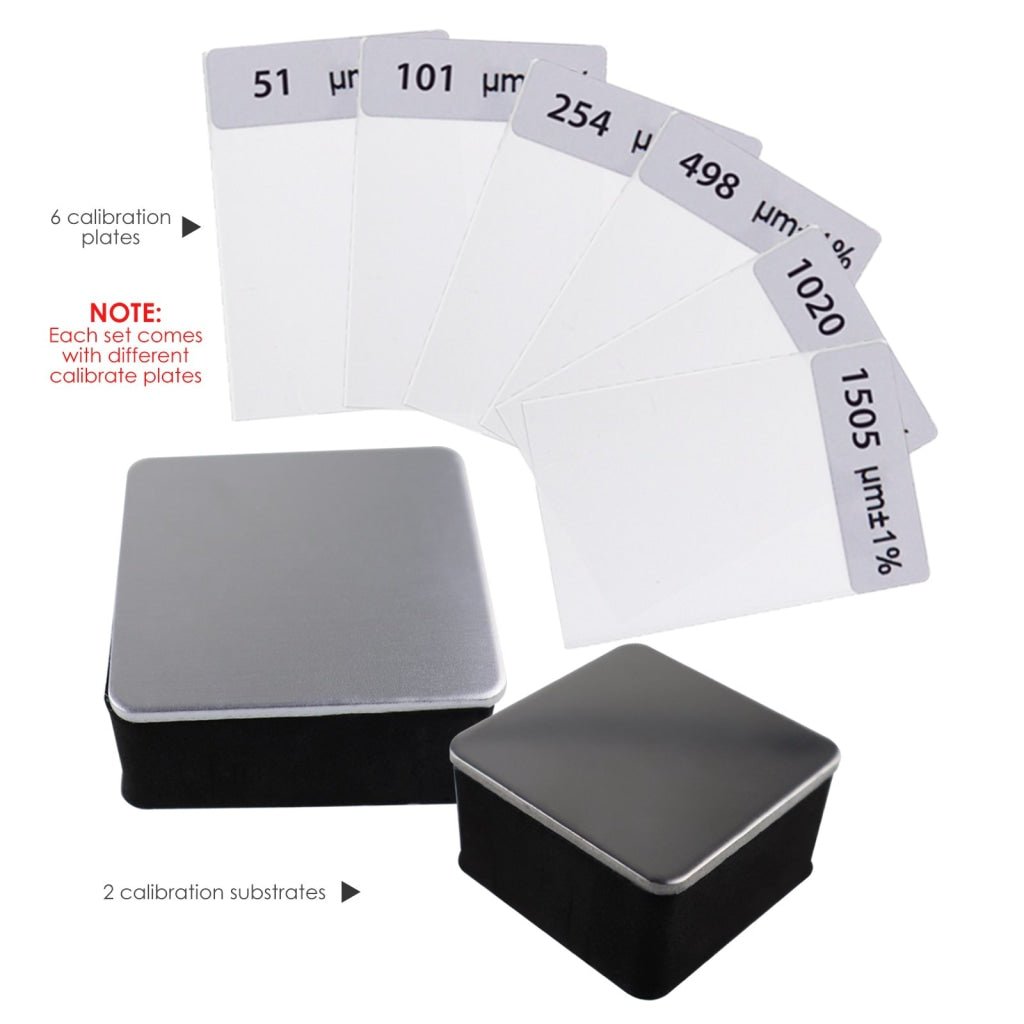

  • 1 x Iron Substrate
  • 1 x Aluminum Substrate
  • 6 x Calibration plates
  • 1 x USB cable
  • 1 x Lanyard
  • Instruction Manual (English, Deutsche and Russian)
  • Carrying Case
  • Standard factory packaging

A printed user manual is already included with this item. No digital user manual or software is available.

RETURN AND REFUND

Most new, unopened items can be returned within thirty (30) days of delivery for a full refund. If the return is due to our error—such as receiving an incorrect or defective item—we will also cover the return shipping costs.

If you request a refund, it will be issued using the original payment method within four (4) weeks after you hand the package over to the return carrier. This timeframe includes shipping transit to our facility, processing upon receipt, and the time required for the refund to be posted to your account.

WARRANTY POLICY

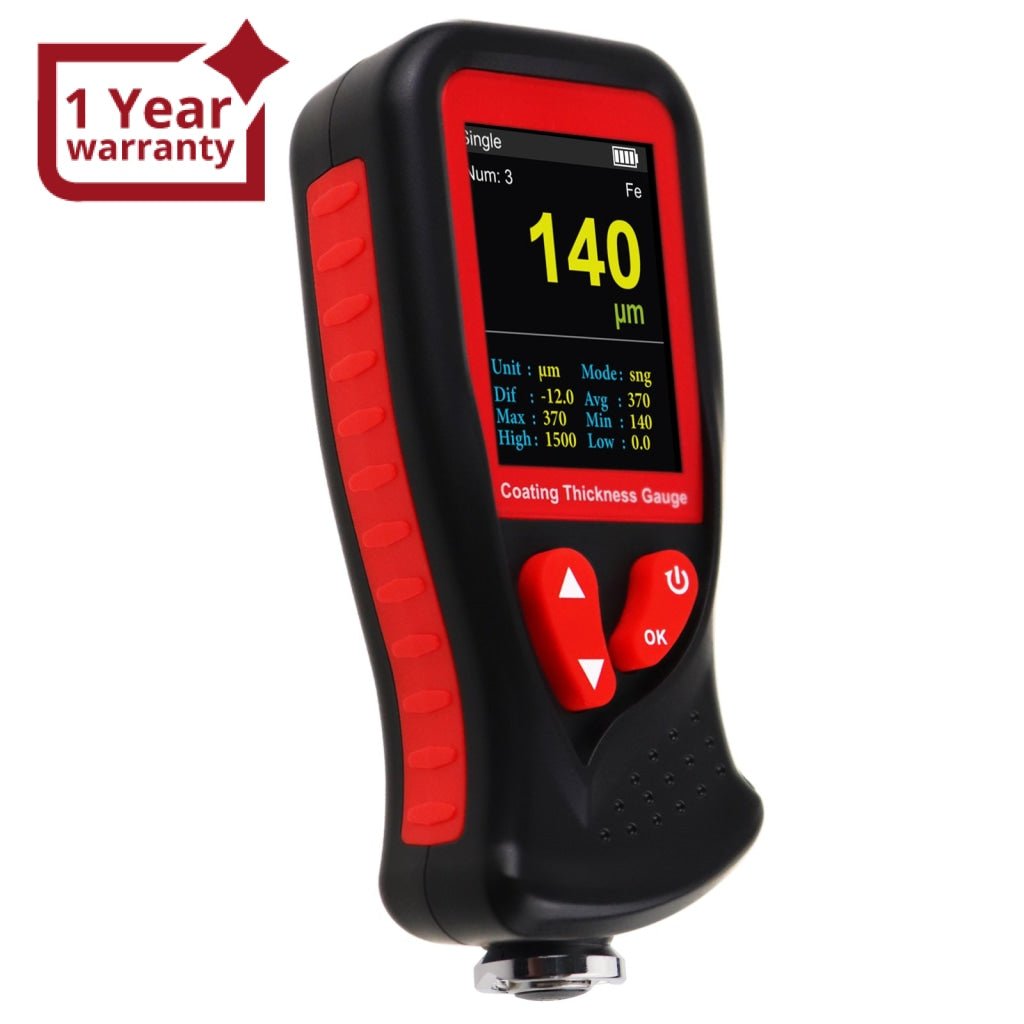

Most of our items come with one (1) year warranty for manufacturer defects. It does not include damage caused by misuse, accidents, abuse, alterations, neglect or other external causes.
