ILTM-188 Ultrasonic Thickness Meter Tester Gauge Measure 1.2~220 mm Velocity Digital LCD for metal steel aluminum copper glass iron plastics tile brass gold silver zinc

Sku: ILTM-188
$191.90 USD
Translation missing: en.products.product.shipping_policy_html
Quantity:
Visa Mastercard PayPal American Express Google Pay Apple Pay Shop Pay

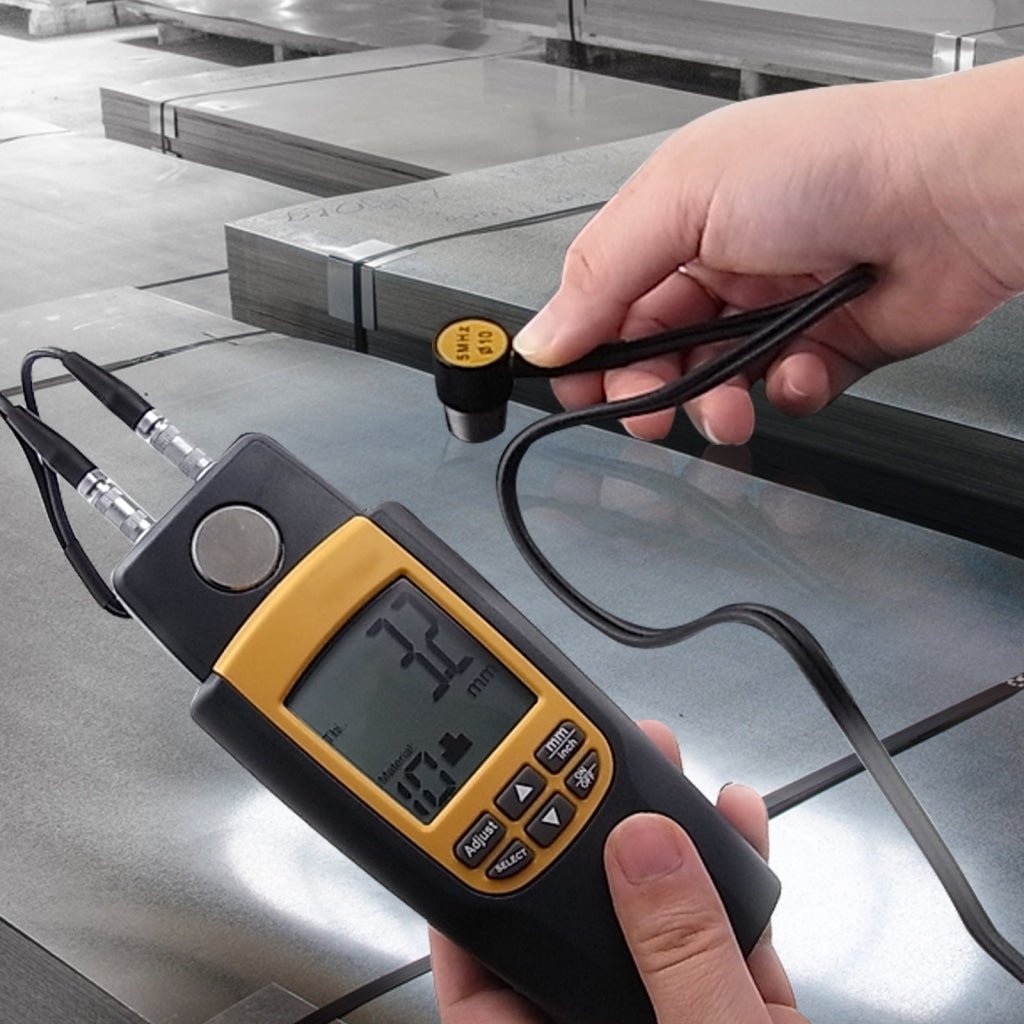

Designed to measure the material thickness that calipers can’t measure, such as boiler, pressure vessels, armor of tank, ship hulls, glass wall, tubes and so on. It measures the thickness of ultrasonic wave well-conductive material with parallel top and bottom surfaces from 1.2~220mm and has ultrasonic wave velocity measurement function from 1000~9999 m/s.


Features

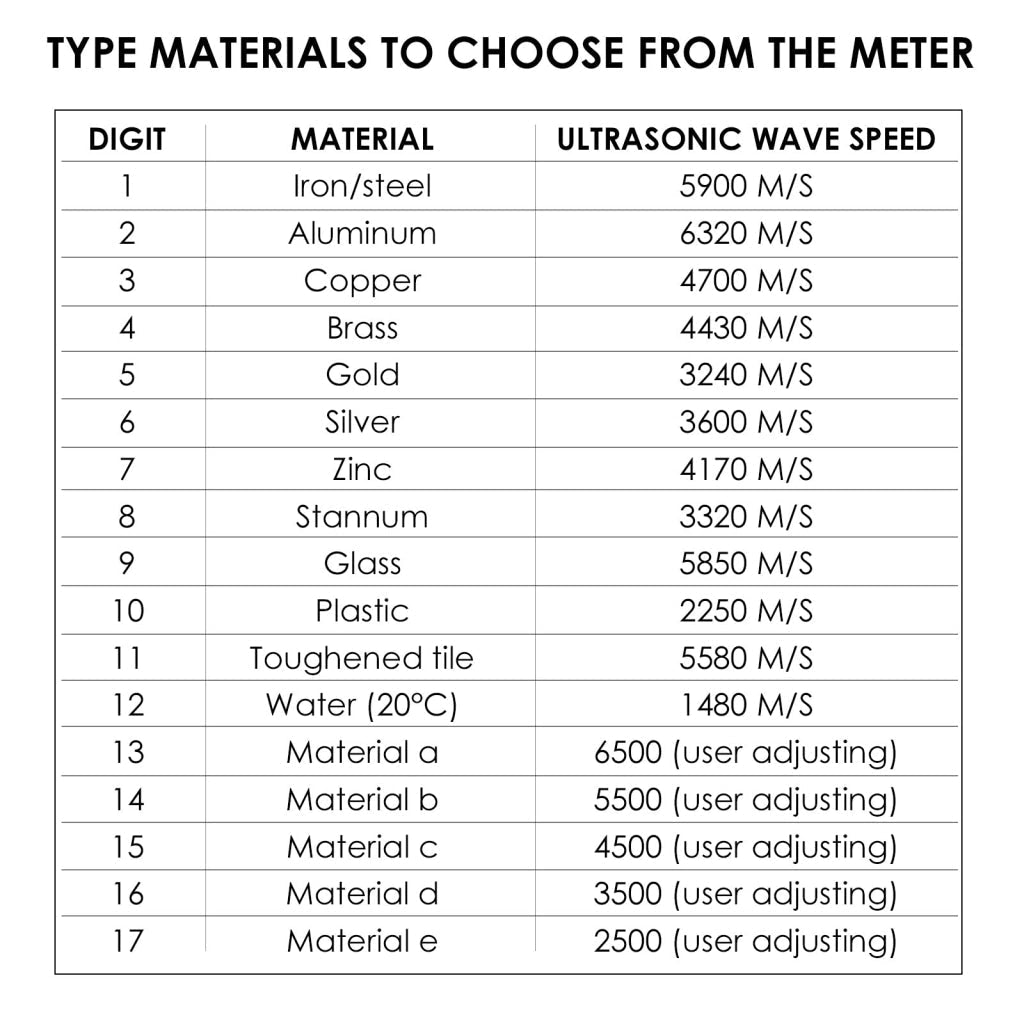

  • Measuring thickness of various good ultrasonic wave conductors such as steel, aluminum, copper, glass, including iron, plastics, toughened tile, brass, gold, silver, zinc, water (at 20°C) and other materials.

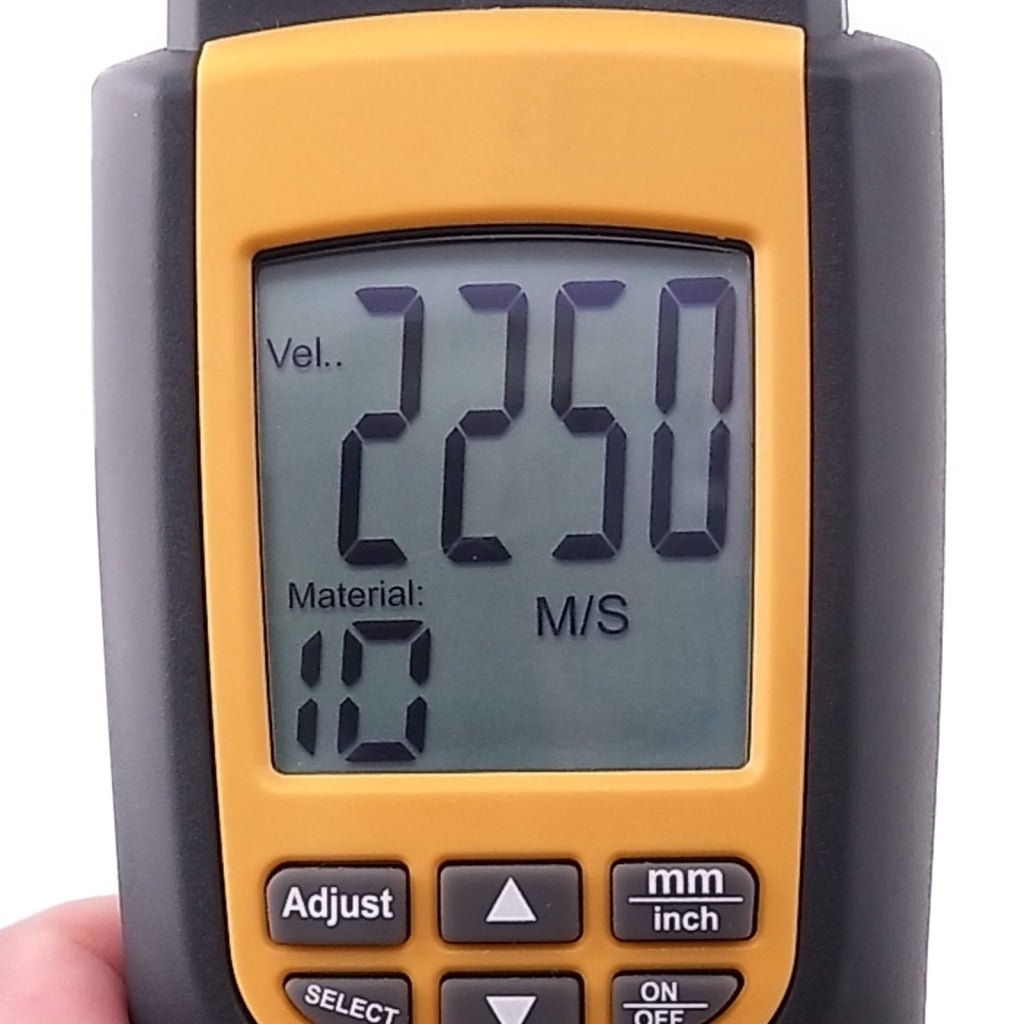

  • Ultrasonic wave velocity or thickness display
  • Manual material selection
  • Adjustable ultrasonic wave velocity
  • Selectable thickness unit, "mm" or "inch"
  • Ultrasonic wave velocity testing
  • Set & save your own materials (up to 5 memory)
  • Coupling state display
  • Instantaneous response (0.6sec)
  • Auto and Manual power off
  • Low battery voltage indication

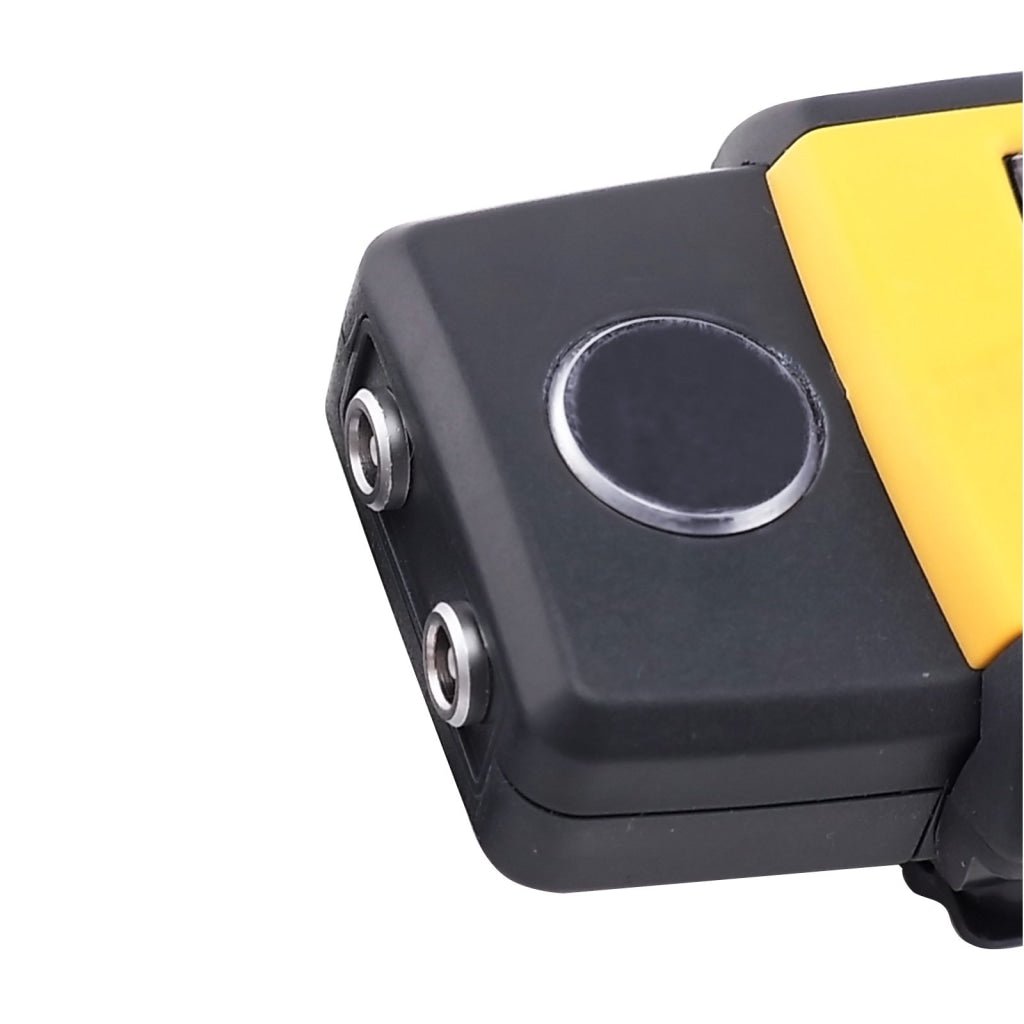

  • Built-in calibration metal block (4.0mm)
  • Software calibration to insure high reliability
  • Tested according to European international guidelines and standards (CE Marking)
  • Designed according to EMC directive: 2004/108/EC


Specifications

  • Ultrasonic wave frequency: 5 MHz
  • Digital display: 4 digits
  • Measurement Range: 1.2~220mm (steel)
  • Tubes measurement: minimum diameter 20mm x 3mm
  • Ultrasonic wave velocity: 1000~9999m/s

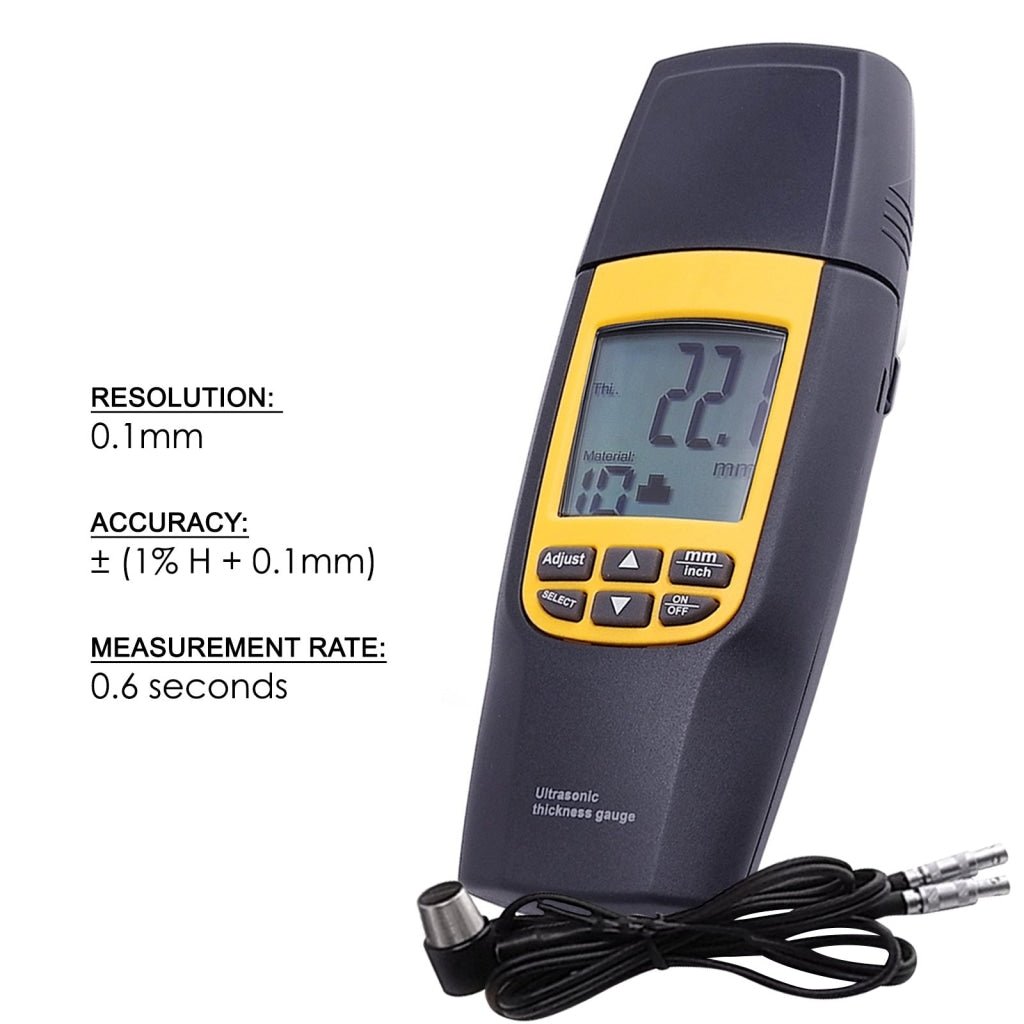

  • Resolution: 0.1mm
  • Accuracy: ± (1% H + 0.1mm)
  • Measurement Rate: 0.6 seconds

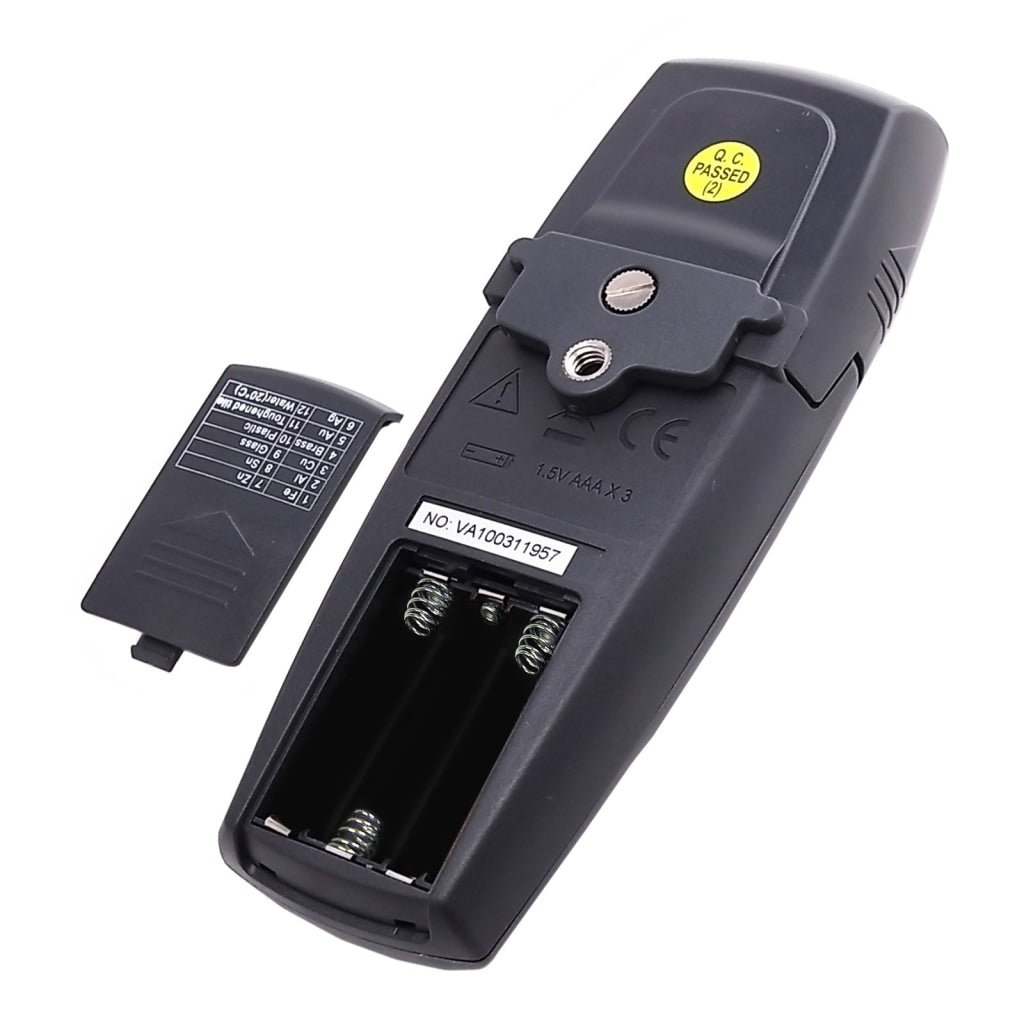

  • Power supply: 3 x 1.5V AAA Batteries (Included)
  • Operating Temperature: -10~50°C (14~122°F)
  • Storage Temperature: -40~70°C (-40~158°F)

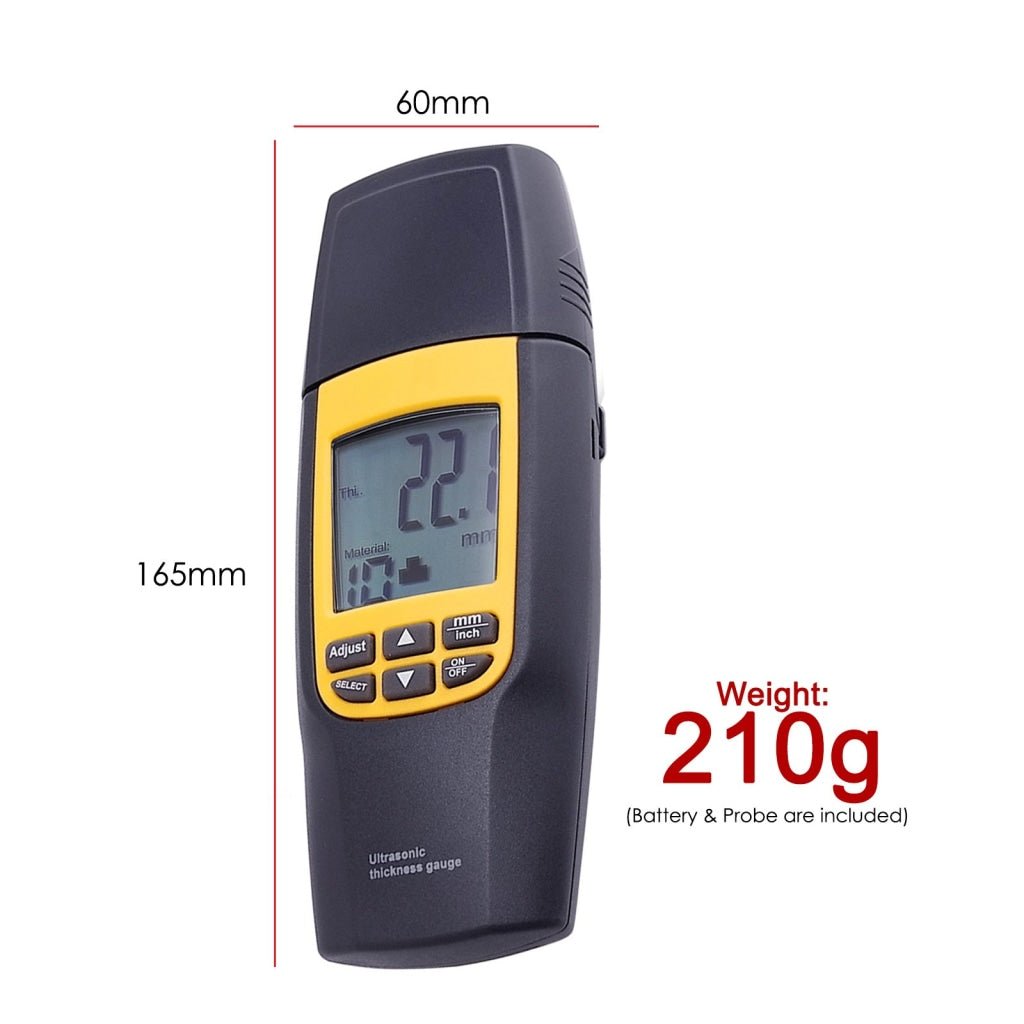

  • Size: approx. 165 x 60 x 30mm
  • Weight: approx. 210g (batteries and probe included)

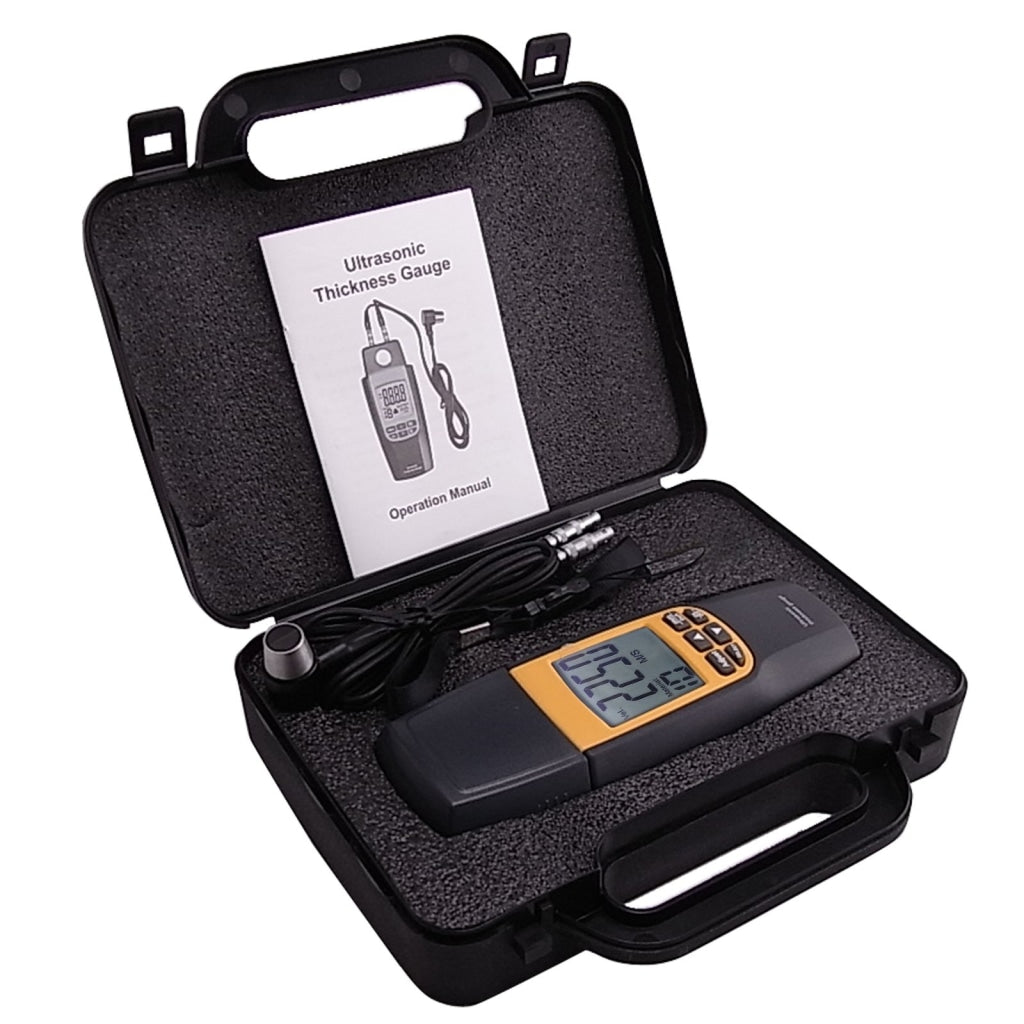

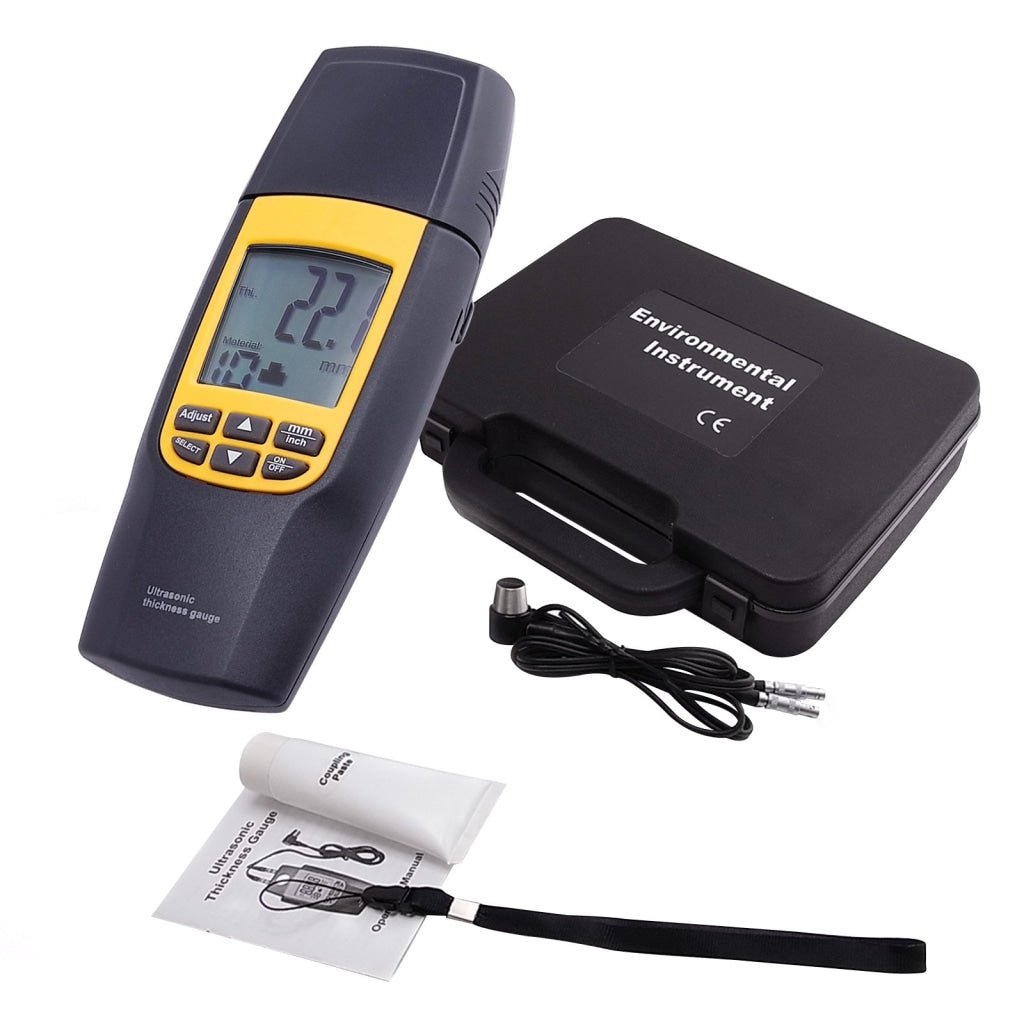

 Set Includes
  • 1 x Ultrasonic Thickness Meter
  • 1 x Ultrasonic sensor probe

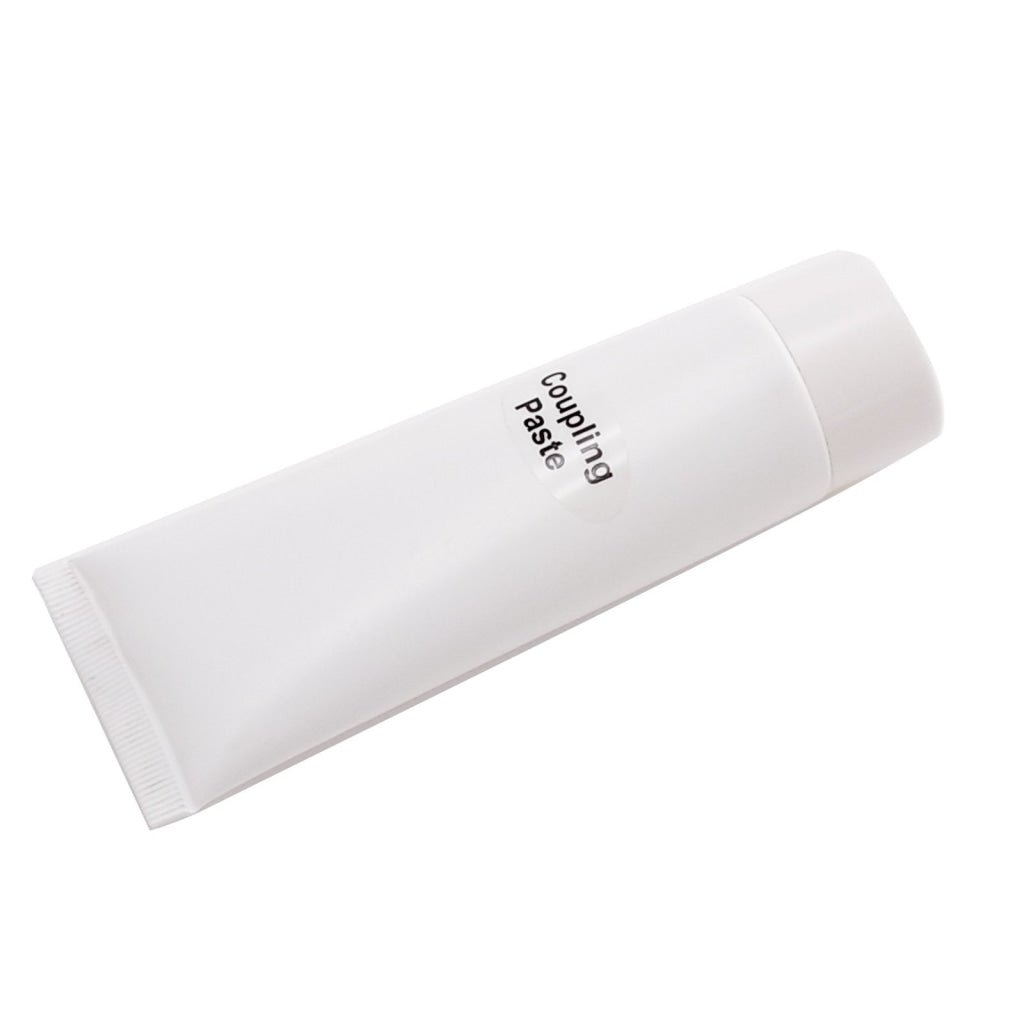

  • 1 x Coupling Paste
  • 1 x Lanyard (FREE)
  • 1 x Operating Manual
  • 3 x AAA Batteries (FREE)
  • 1 x Protective carrying case (FREE)

    A printed user manual is already included with this item. No digital user manual or software is available.
