ILTM-1210B Coating Thickness Meter Gauge F & NF 99 Memories Max Min Avg, Magnetic Induction Eddy Current 0~2000μm 0~80mil Non-Magnetic Non-conductive Material Thick Measure Tester, Substrate Auto Detection

Sku: ILTM-1210B
$355.90 USD
Translation missing: en.products.product.shipping_policy_html
Quantity:
Add to Wishlist Remove From Wishlist
Visa Mastercard PayPal American Express Google Pay Apple Pay Shop Pay

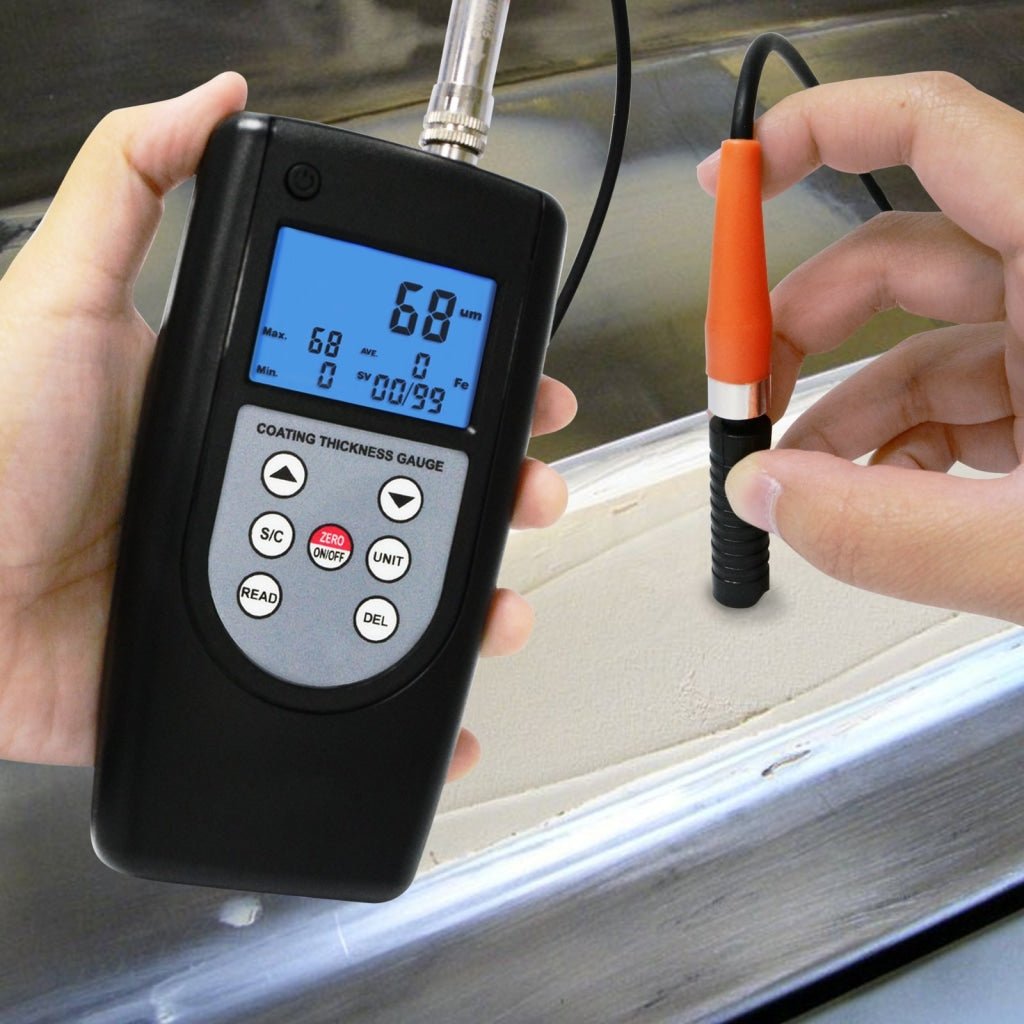

Coating thickness gauge is a kind of portable testing instrument, can take fast, intact, precise measurement of coating thickness. It can be used in both engineering field, and laboratories, as an essential instrument in material protection industry.

Principles:

  1. F Type Magnetic Induction (Iron Base)
    • Applications: Measure the thickness of non-magnetic materials on magnetic materials
    • Examples: Galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminium tile, some alloy tile, paper etc
  2. NF Type Eddy Current (Aluminium Base)
    • Applications: Measure the thickness of non-conductive coatings on non-magnetic metals
    • Examples: Anodizing, varnish, paint, enamel, plastic coatings, powder, etc. Applied to aluminum, brass, non-magnetic stainless steel, etc

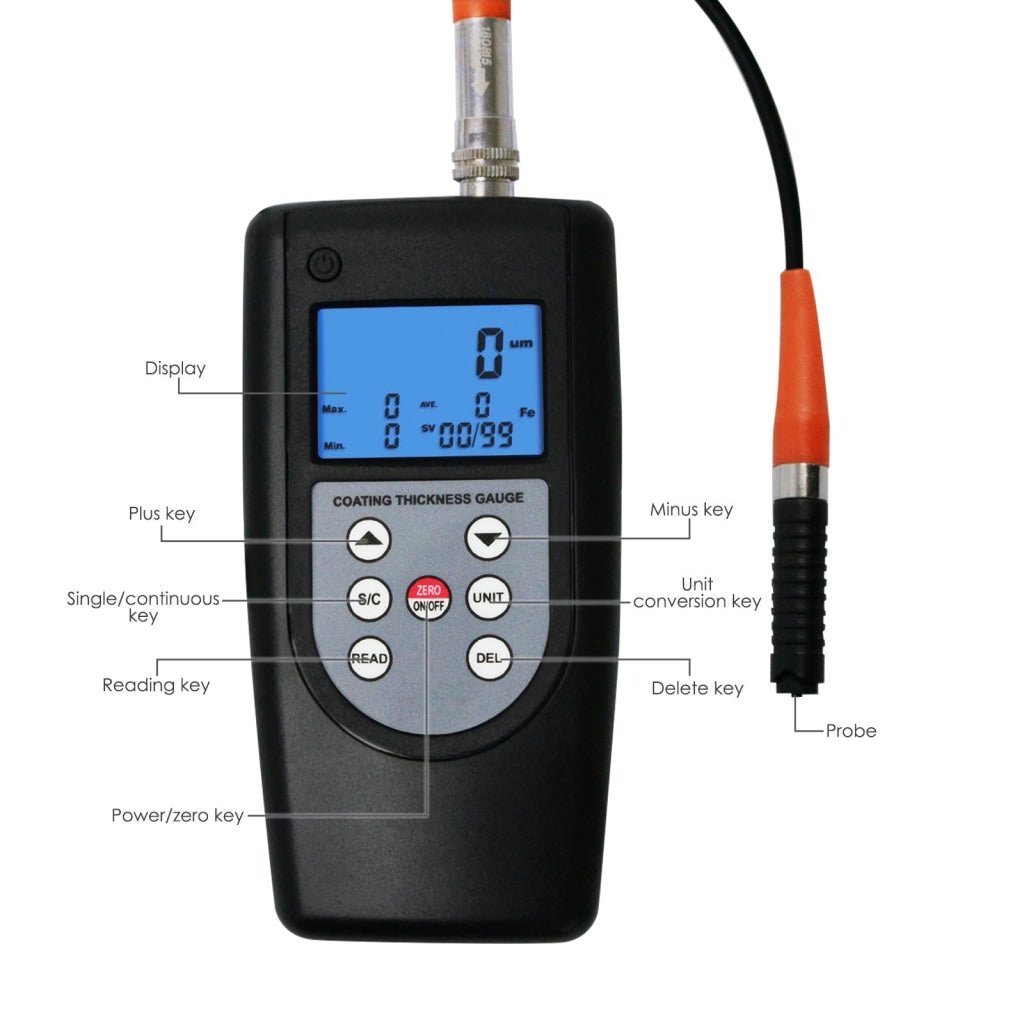

Features:

  • Can store the new data in 99 groups
  • Calculates and displays a statistical analysis of readings (Max, Min, Avg)
  • Magnetic induction (F) and eddy current (N) measuring methods
  • Metric / imperial system selectable
  • Auto memory of calibration value, auto substrate recognition
  • Single and Continuous measurement mode
  • Use Bluetooth or USB/RS-232 data output to connect with PC (Optional accessories, not included)
  • Low battery indicator
  • Manual or automatic power off
  • Meets the standards of both ISO2178 and ISO 2361 as well as DIN, ASTM and BS


Specifications:

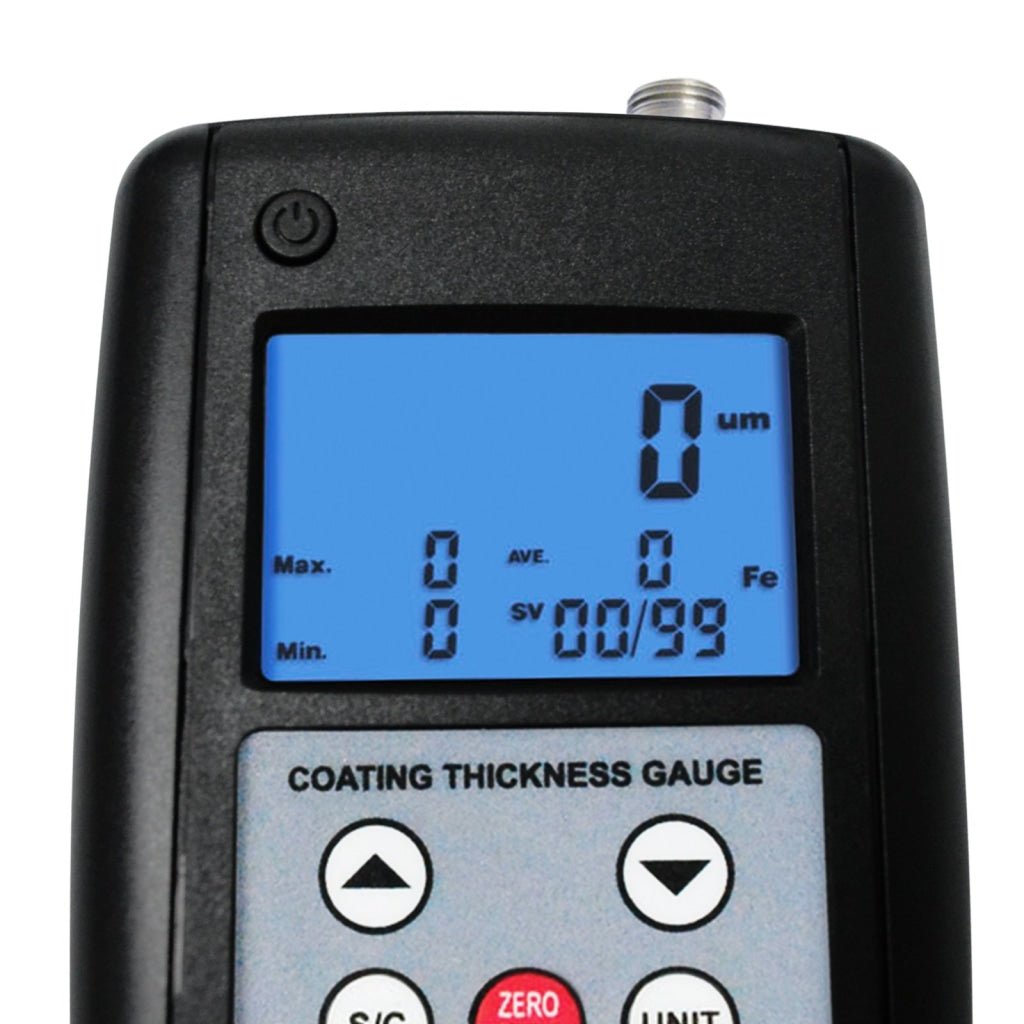

  • Display: 4 digits LCD, backlit
  • Range: 0~2000µm / 0~80mil
  • Resolution: 0.1µm / 1µm
  • Accuracy: ±1~3%n or ±2.5µm or 0.1mil (whichever is greater)
  • Min.Radius Workpiece
    • F Type:convex 1.5mm / concave 25mm
    • NF Type:convex 3mm / concave 50mm
  • Min.Measuring Area: 6mm
  • Min.Sample Thickness: 0.3mm
  • Data memory: 99 Groups
  • Operating Conditions
    • Temperature:0~40ºC
    • Humidity:10~90%RH

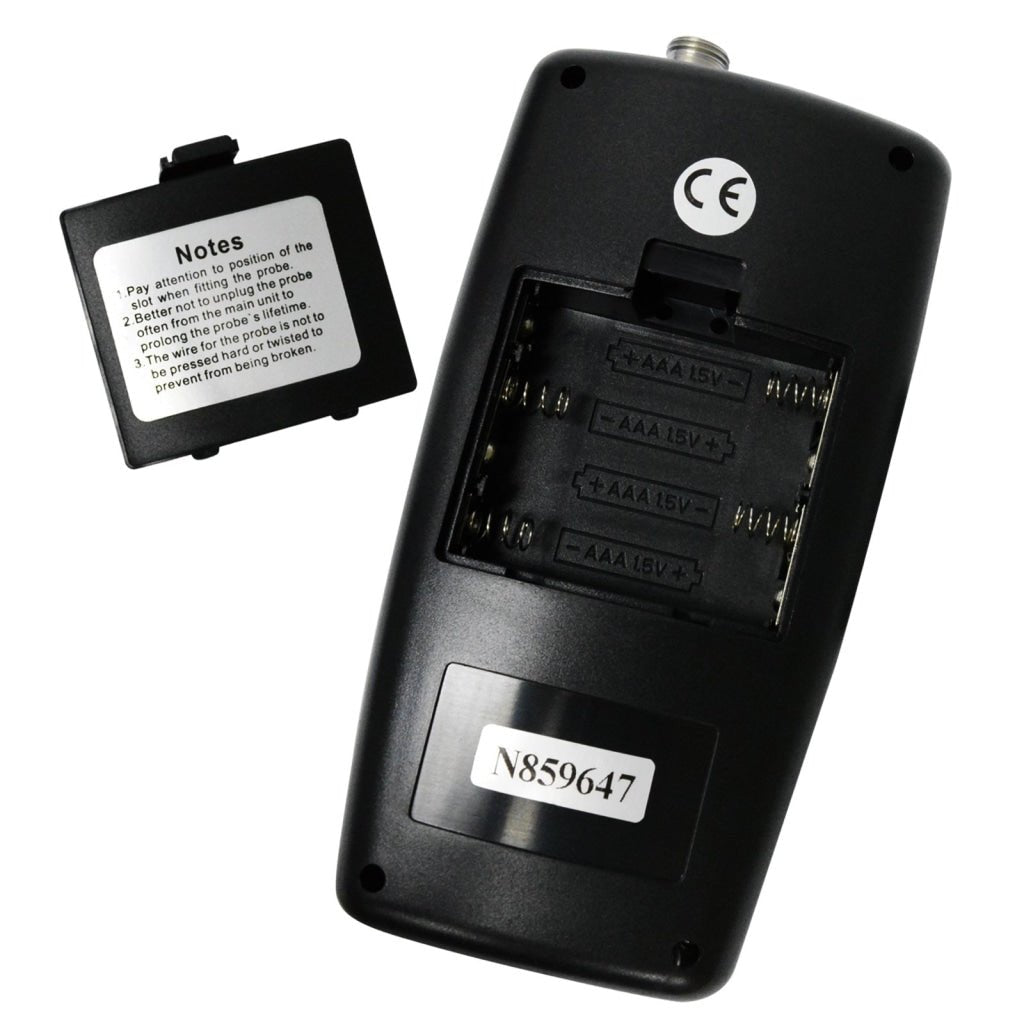

  • Power Supply: 4 x 1.5V AAA (UM-4)

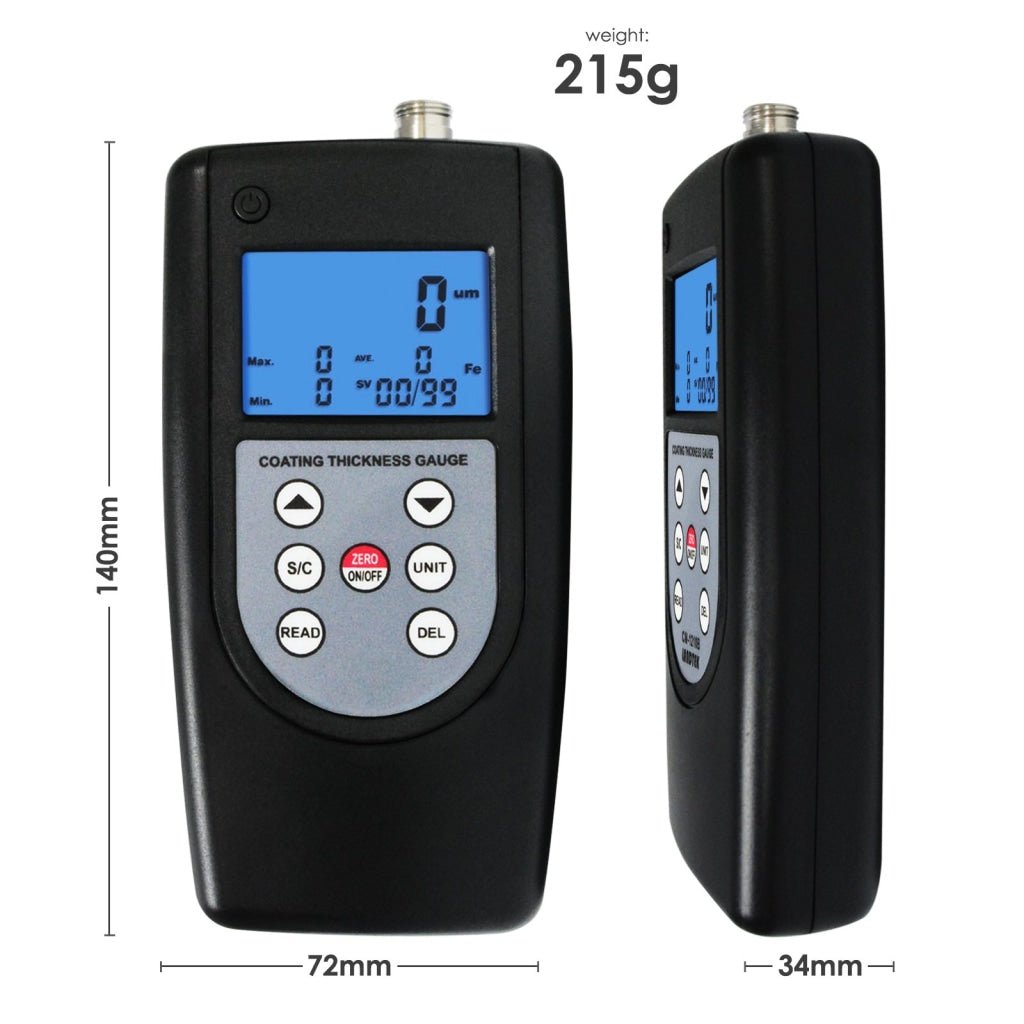

  • Battery Dimensions: 140 x 72 x 34mm
  • Weight: 215g

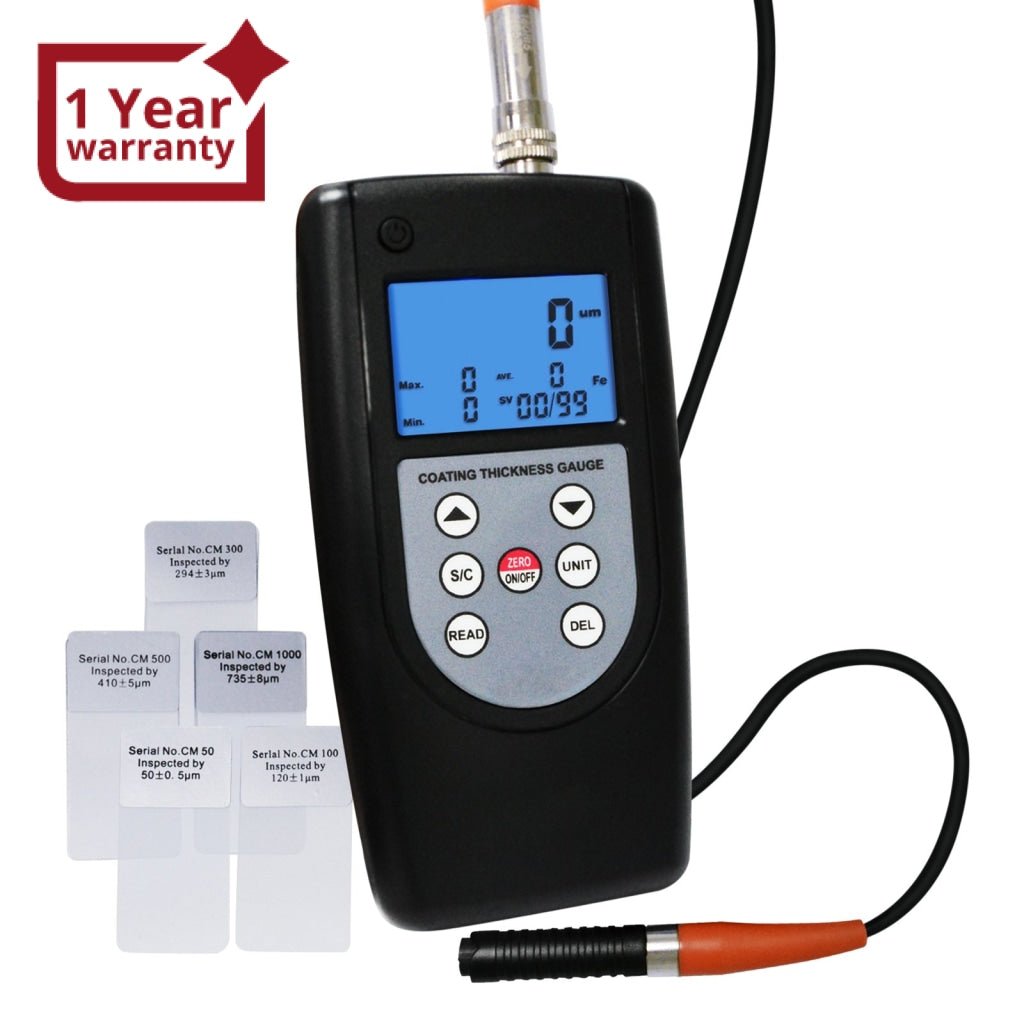

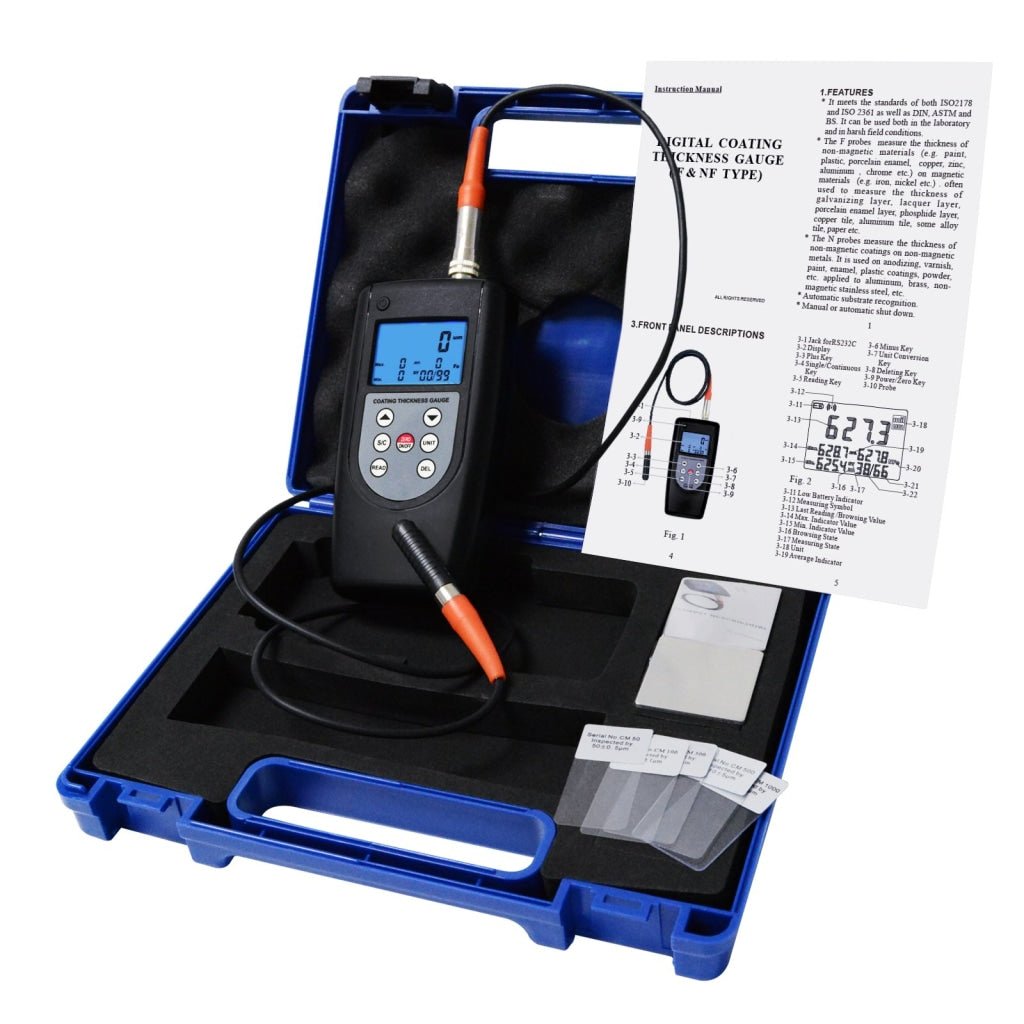

Set Includes:

  • 1 x Coating Thickness Gauge (main unit)

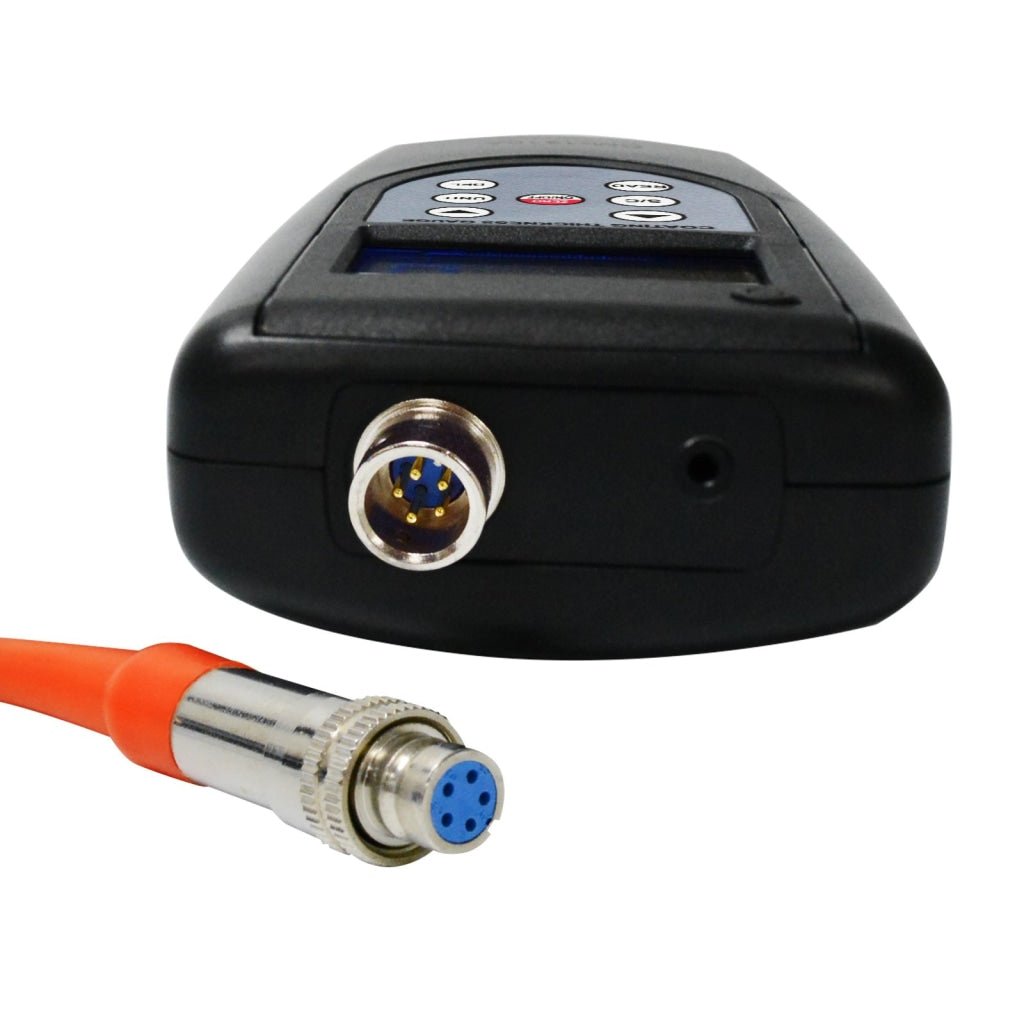

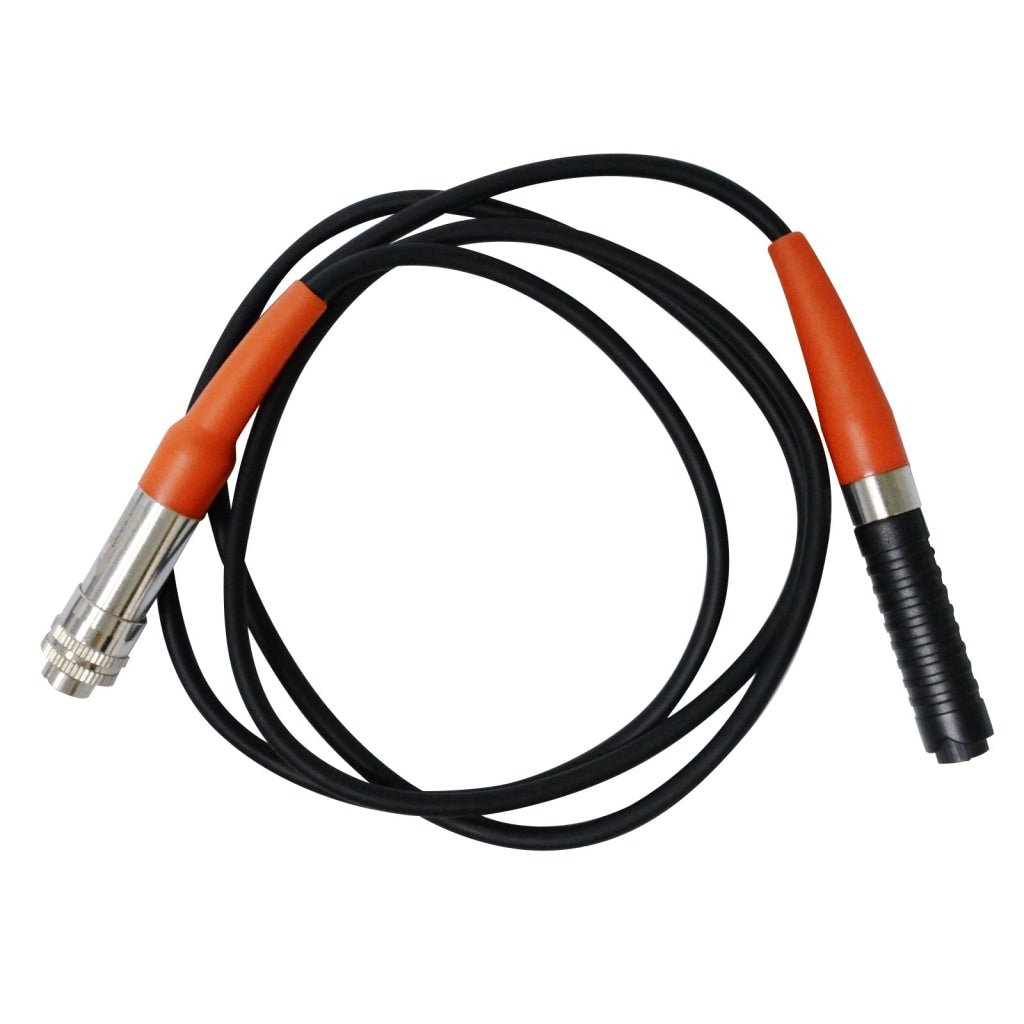

  • 1 x Probe (F & NF Type)

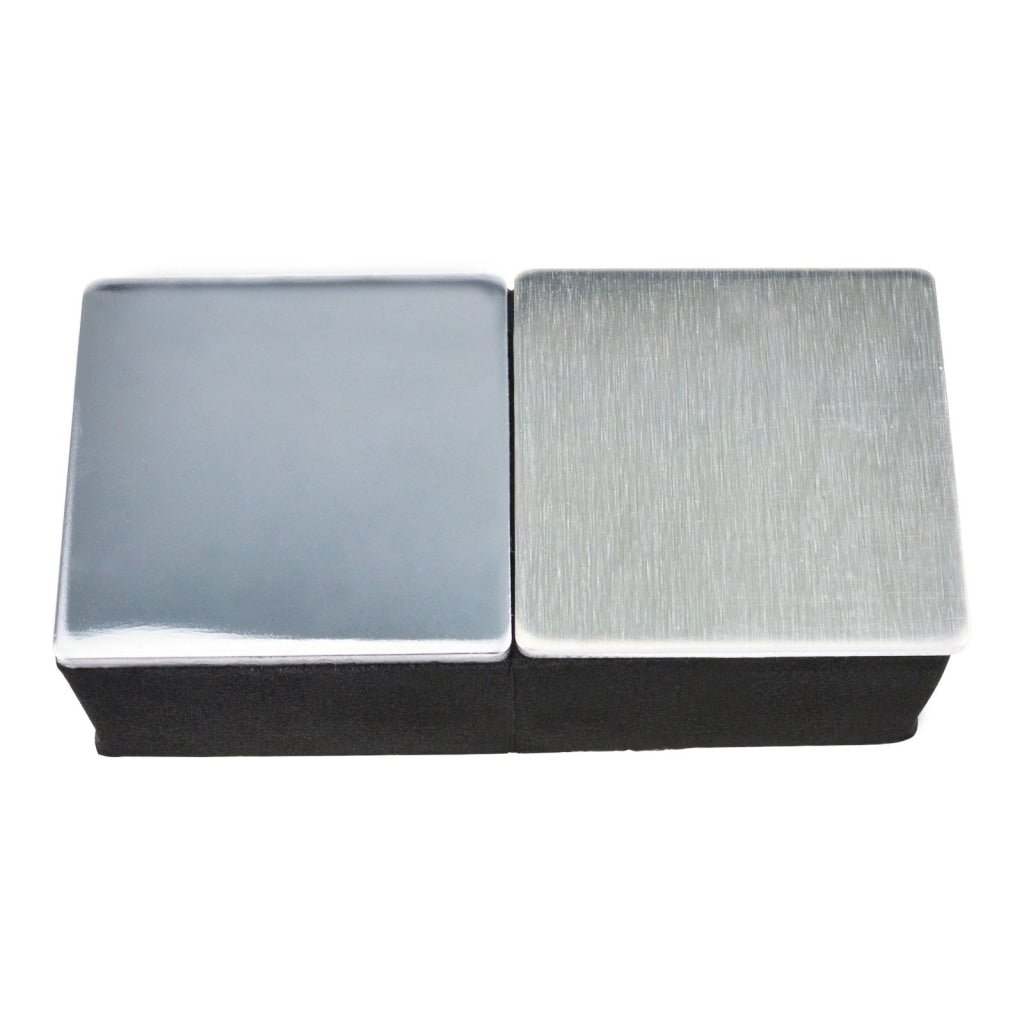

  • 1 x Calibration Base (F)
  • 1 x Calibration Base (NF)

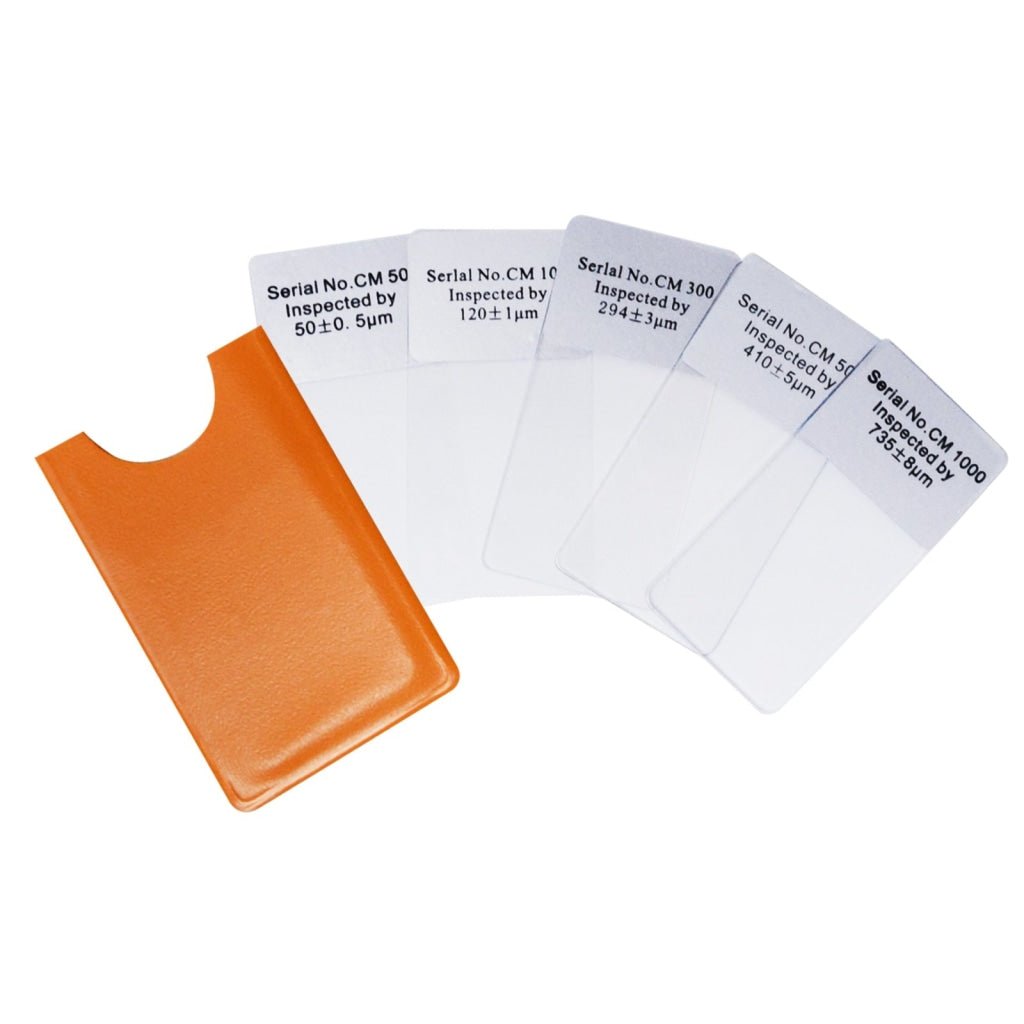

  • 5 x Calibration Foils
  • English Operation Manual
  • Carrying Case

A printed user manual is already included with this item. No digital user manual or software is available.
