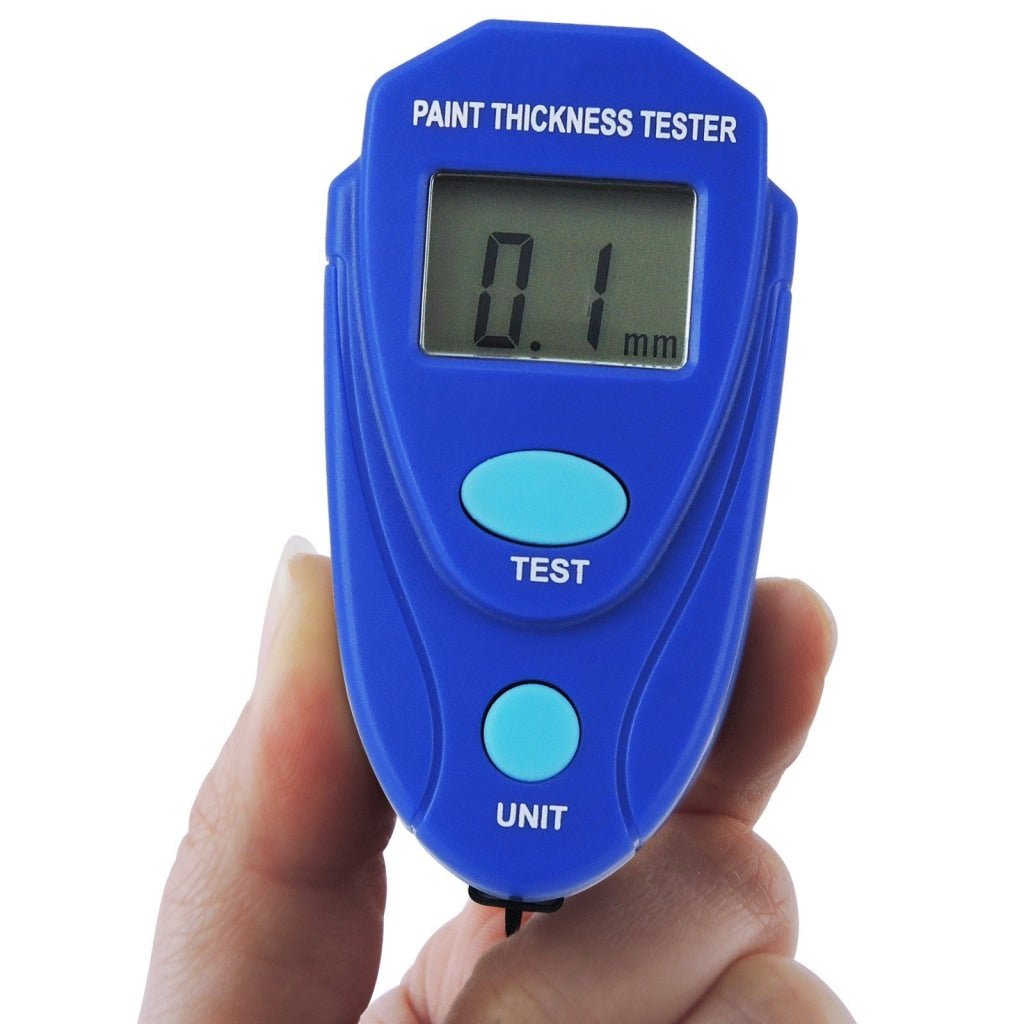

ILTM-1025 Digital Non-Magnetic Coating Thickness Gauge Car Painting Thickness Meter Tester Mini Handheld Tool

Sku: ILTM-1025
$32.90 USD
Translation missing: en.products.product.shipping_policy_html
Quantity:
Add to Wishlist Remove From Wishlist
Visa Mastercard PayPal American Express Google Pay Apple Pay Shop Pay

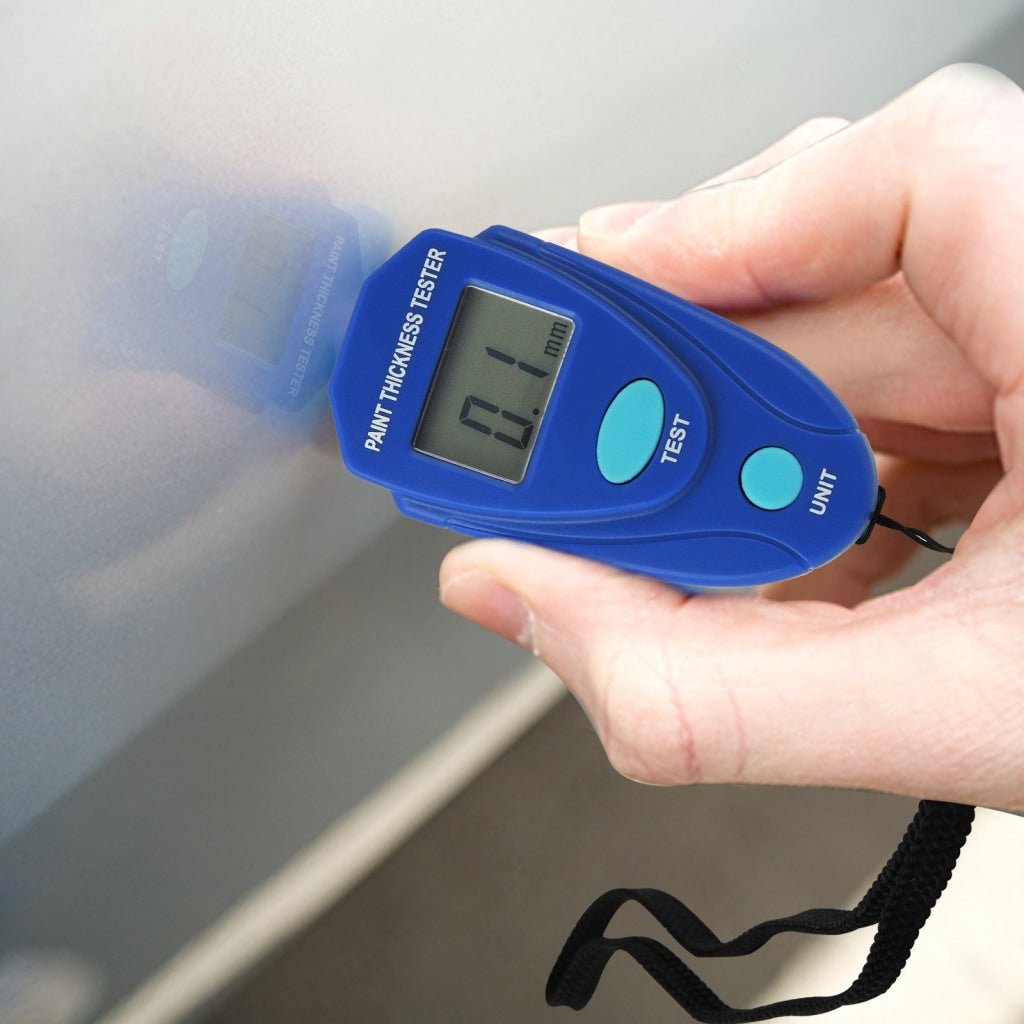

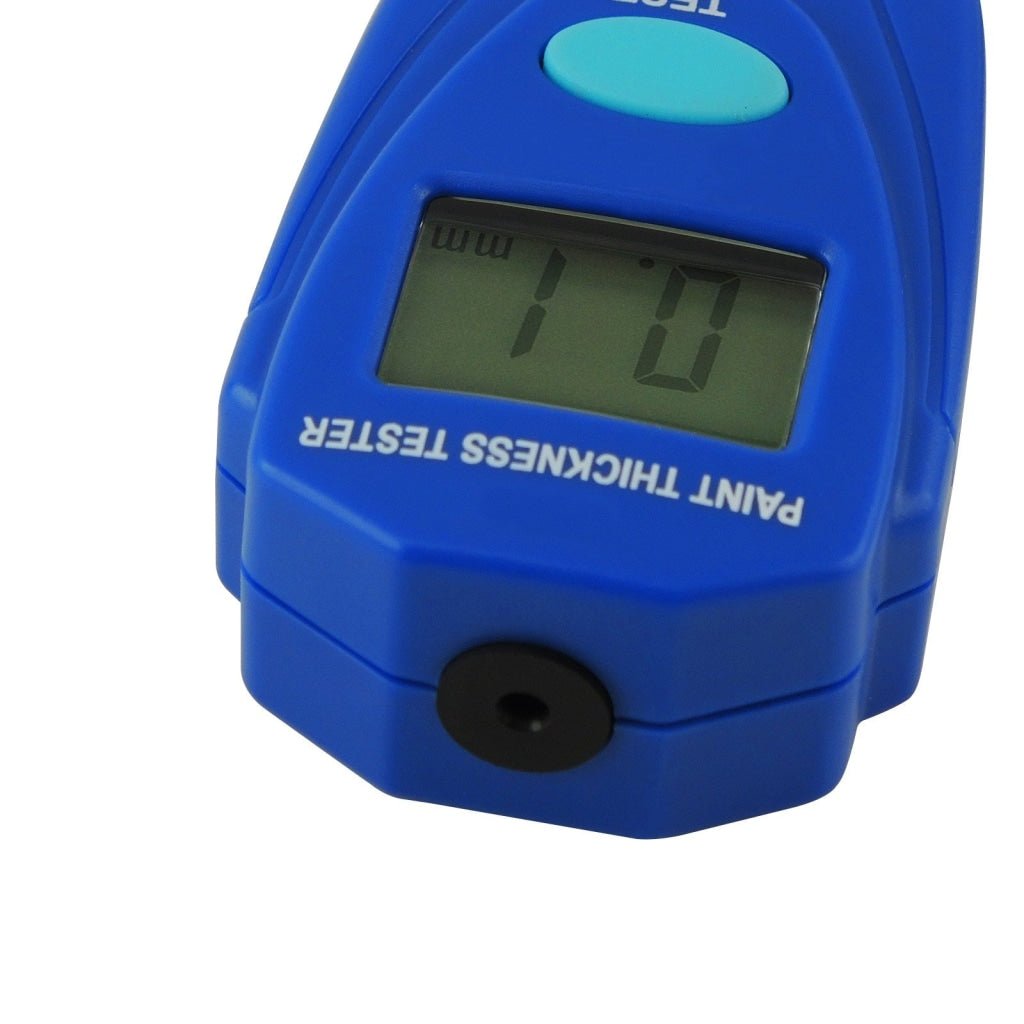

This paint thickness meter is designed to not-destructively measure the thickness of non-magnetic coatings (including paint, enamel, plastic, epoxy, etc.) on iron, steel or aluminum.


Features:

  • Portable Digital Paint thickness gauge
  • With Range of 0.1~2.00mm,±0.1 accuracy
  • Measurement mode : Fe
  • Automatic calibration, Data hold
  • Auto power off mode designed to conserve battery life
  • Compact design and easy to carry
  • Powered by 3V button cell (included in set)



Specifications:

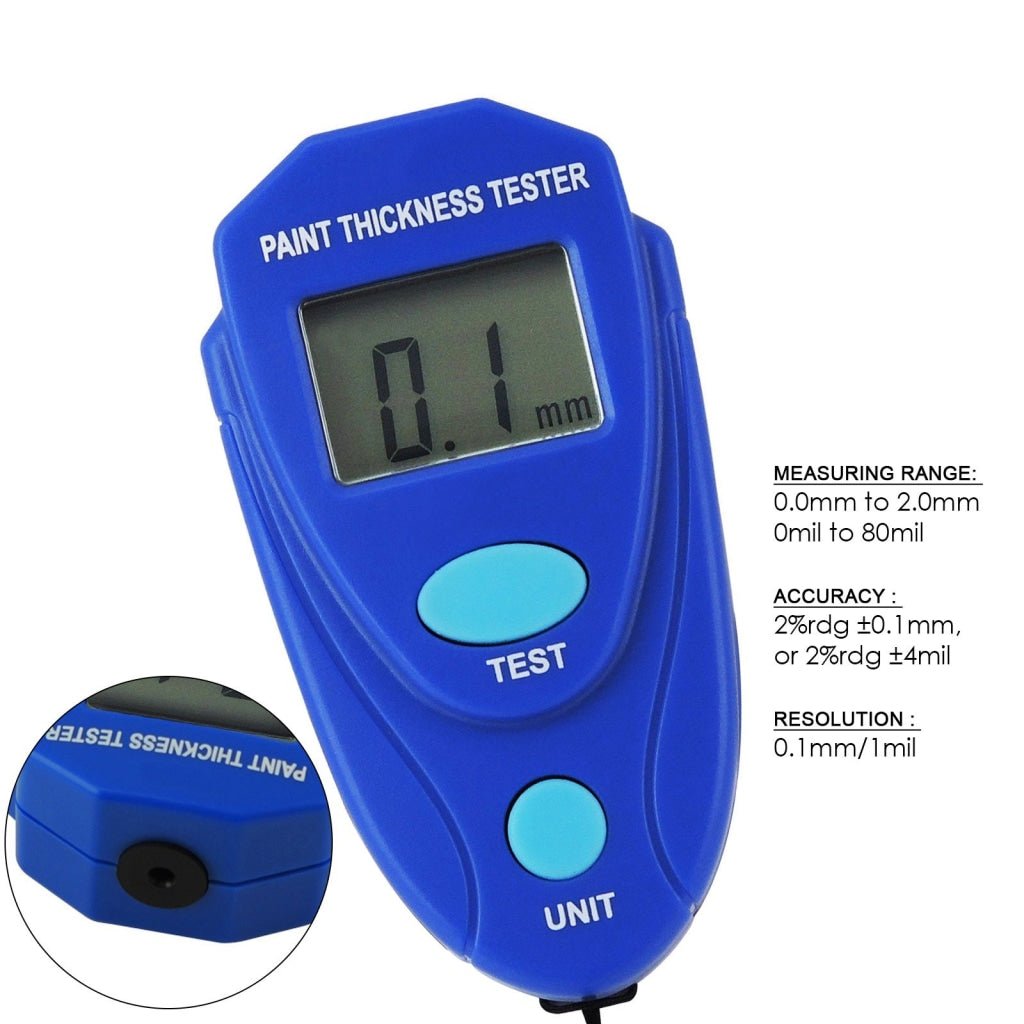

  • Measuring Range: 0.0mm to 2.0mm
      • 0mil to 80mil
  • Accuracy : 2%rdg ±0.1mm, or 2%rdg ±4mil
    • note: Accuracy is guaranteed at the operating temperature of 23°C ±5°C and relative humidity of not more than 75%.
  • Resolution : 0.1mm/1mil

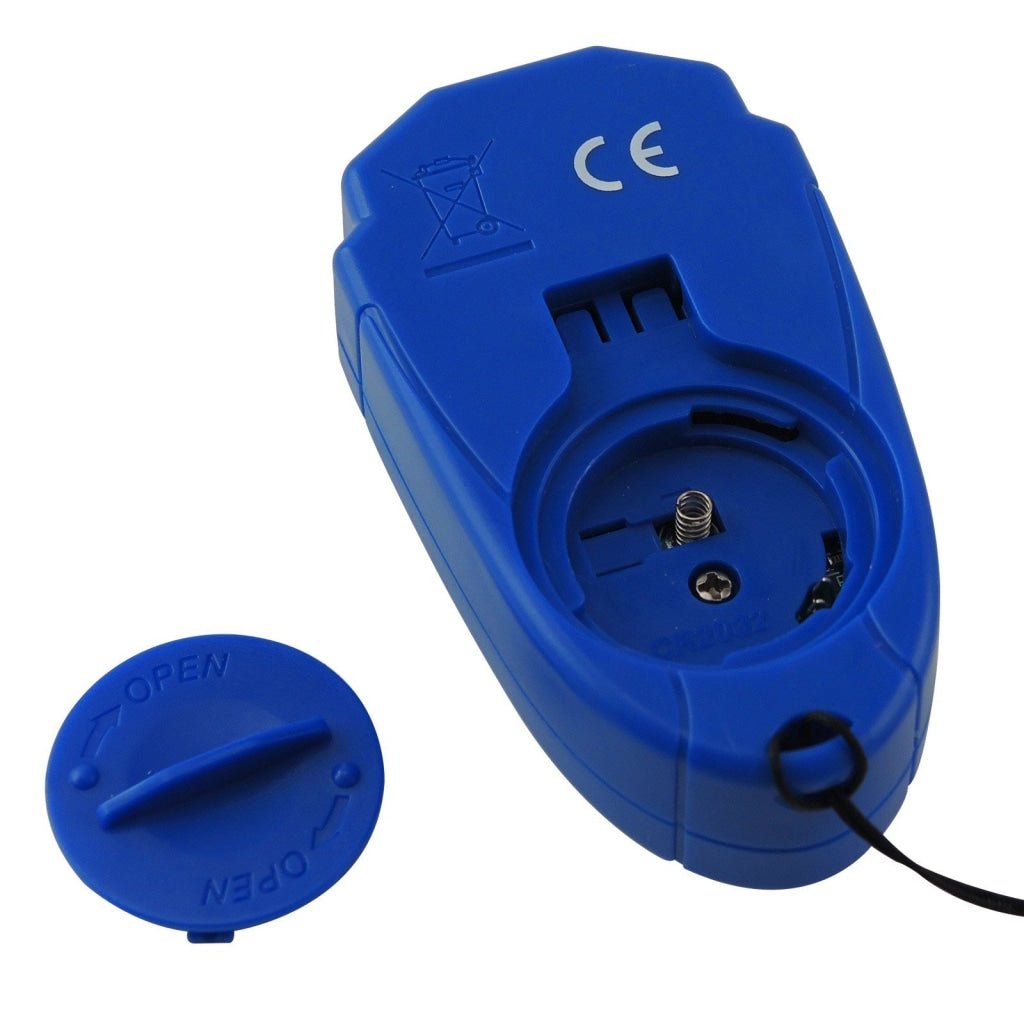

  • Power Supply : 1 x 3V button cell, CR2032 or equivalent
  • Operating Environment
    • Temperature : 0°C to 40°C
    • Relative Humidity : < 80%
  • Temperature Coefficient :
    • 0.05x(2%rdg ±0.1mm, or 2%rdg ±4mil)/°C(<18°C or >28°C)
  • Storage Environment
    • Temperature : -10°C to 50°C
    • Relative Humidity : <80%

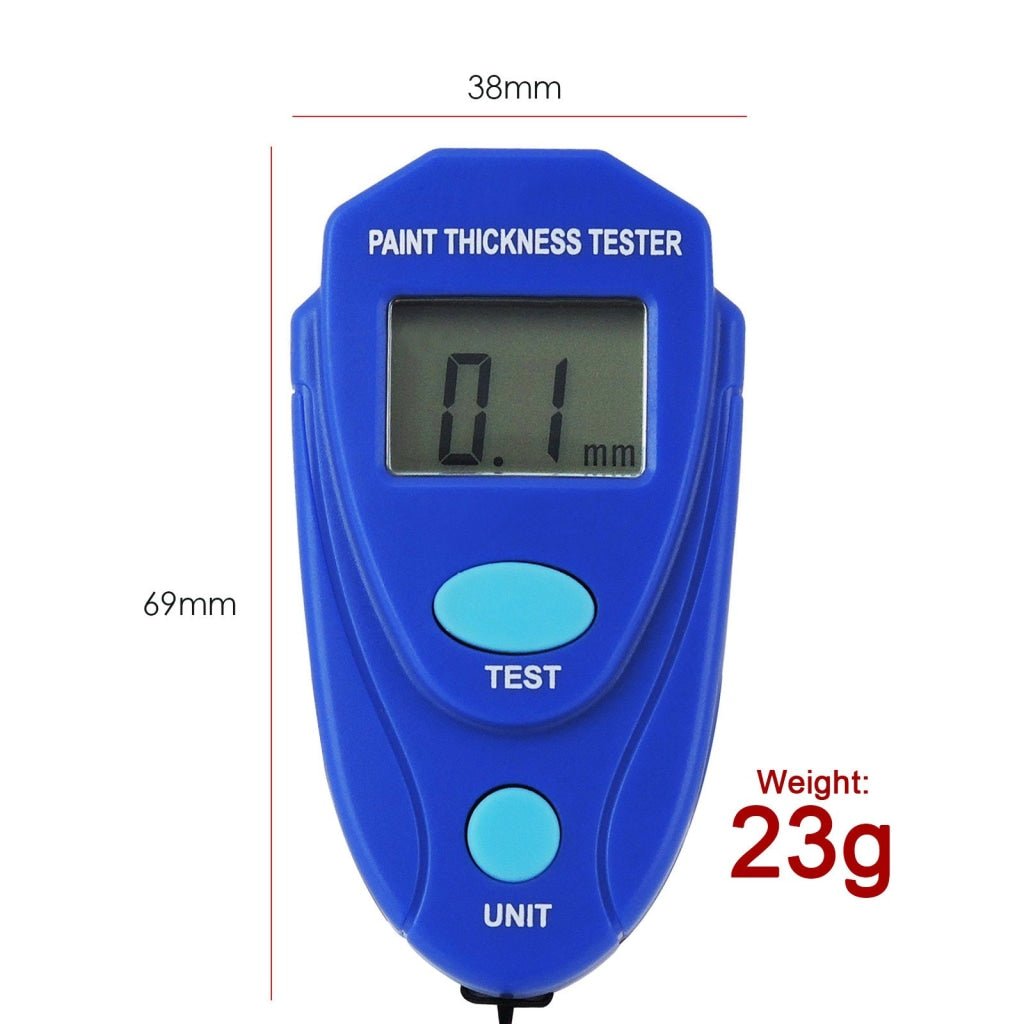

  • Size : 6.9 x 3.8 x 2cm
  • Weight : About 23g (including button cell)

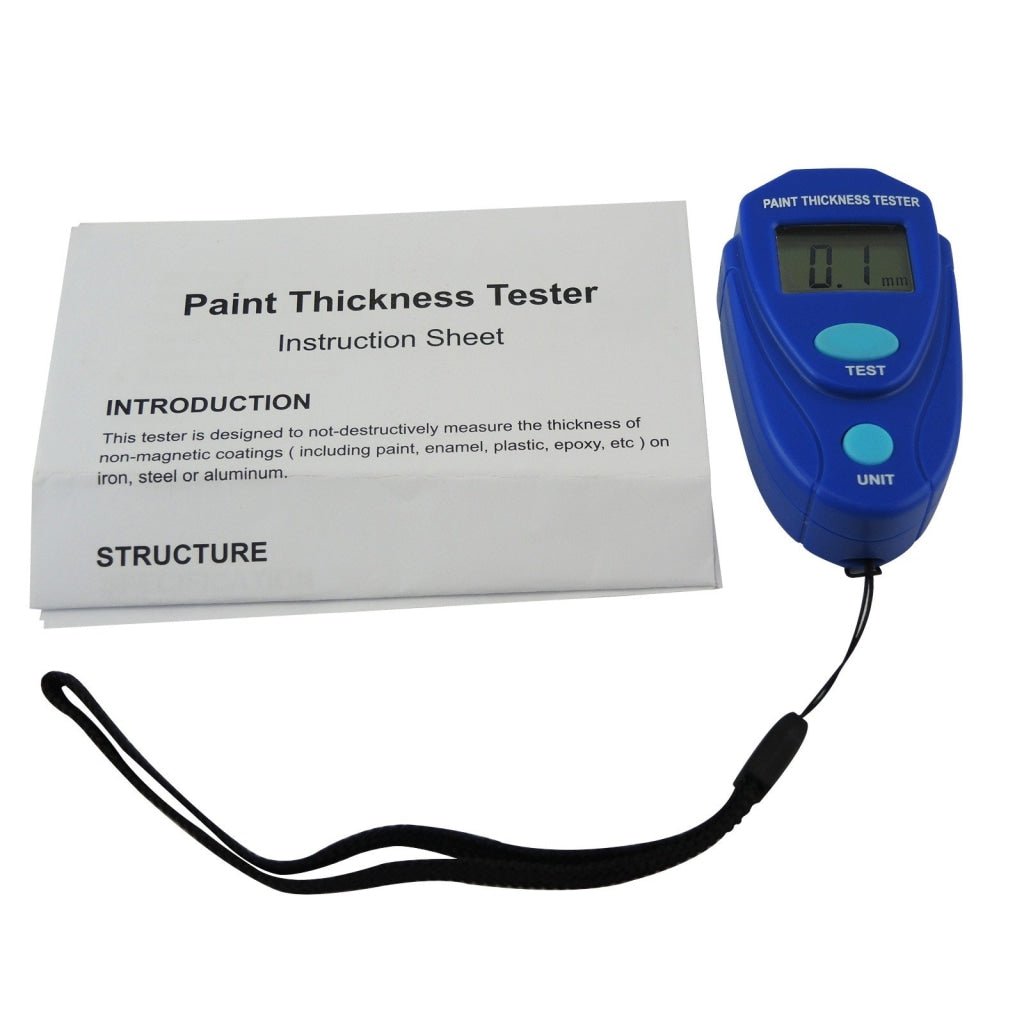

Set Comprise:

  • 1 x Paint Thickness Tester
  • 1 x 3V(CR2032) button cell buttery
  • 1 x English Manual
  • Standard Blister Packaging

A printed user manual is already included with this item. No digital user manual or software is available.

RETURN AND REFUND

Most new, unopened items can be returned within thirty (30) days of delivery for a full refund. If the return is due to our error—such as receiving an incorrect or defective item—we will also cover the return shipping costs.

If you request a refund, it will be issued using the original payment method within four (4) weeks after you hand the package over to the return carrier. This timeframe includes shipping transit to our facility, processing upon receipt, and the time required for the refund to be posted to your account.

WARRANTY POLICY

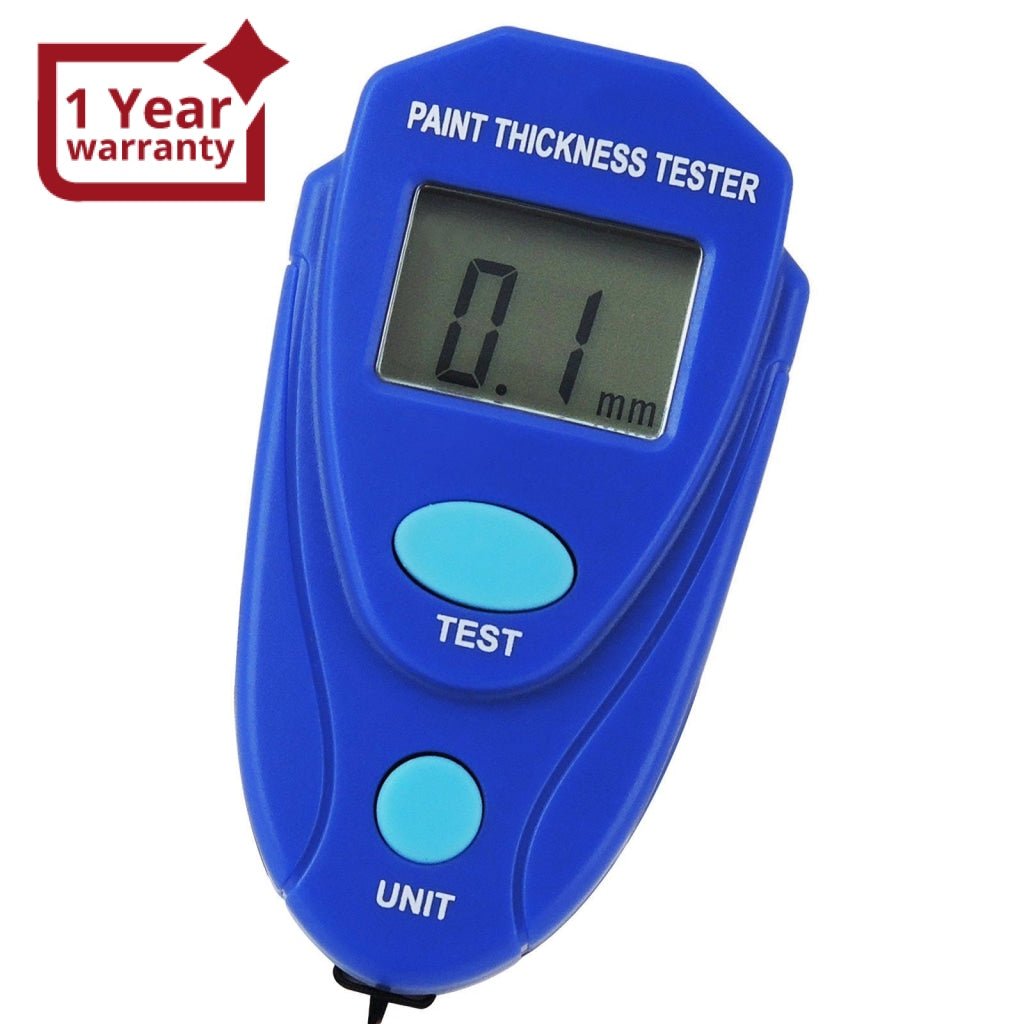

Most of our items come with one (1) year warranty for manufacturer defects. It does not include damage caused by misuse, accidents, abuse, alterations, neglect or other external causes.
