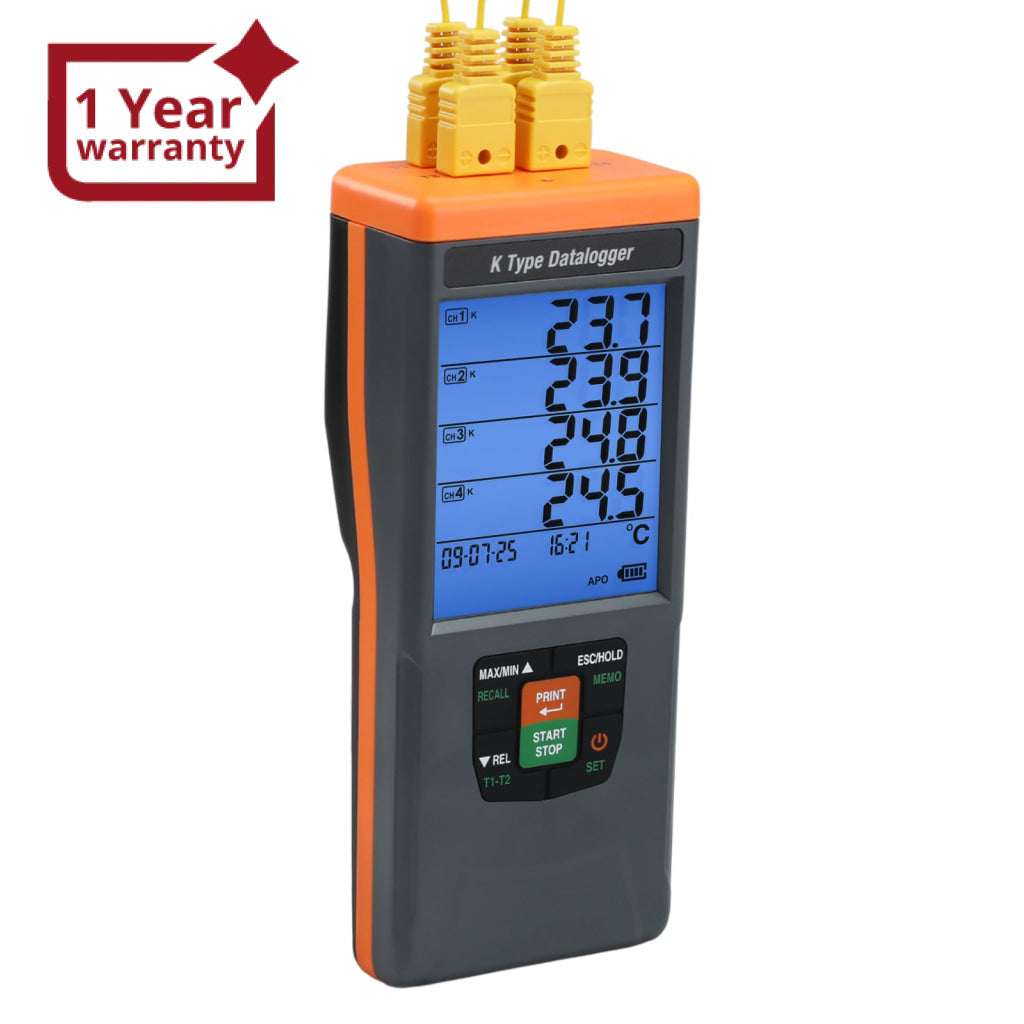

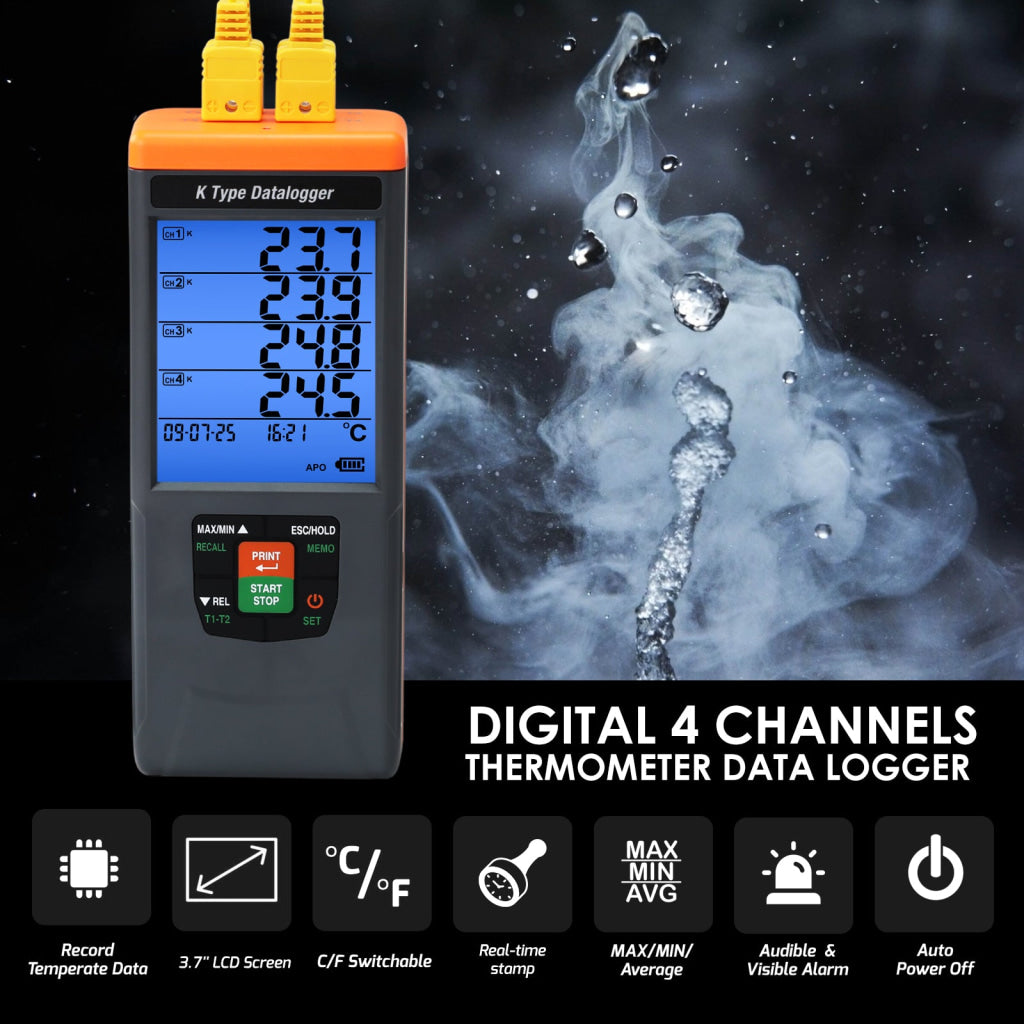

ILTH-88594 GLP-Compliant K-Type Thermocouple Data Logger: High-Accuracy Temperature Meter (-328°F to 2498°F / -200°C to 1370°C) with 48,000-Point Datalogging, CSV Export & Alarms, Portable/Wall-Mountable, Flexible IR Printing (Optional)

Sku: ILTH-88594
$121.90 USD
Translation missing: en.products.product.shipping_policy_html
Quantity:
Add to Wishlist Remove From Wishlist
Visa Mastercard PayPal American Express Google Pay Apple Pay Shop Pay

Ensure precise temperature monitoring with this advanced thermocouple data logger, designed for both professionals and demanding industrial applications. With a wide measuring range of -200°C to 1370°C (-328°F to 2498°F) and high accuracy, it delivers lab-grade performance for critical tasks. The datalogging function stores up to 48,000 records, which can be exported as CSV files without requiring additional software.
Control and security are key: set high/low alarms with visual (LED) and audible (buzzer) alerts, protect your data with password access (GLP compliant), and even print real-time results instantly (IR printer optional).  Whether you need continuous auto-logging or manual spot checks, this logger adapts to your workflow.
Built for convenience, it features USB Type-C charging, long battery life (120+ hours), and flexible mounting options (wall or desktop). Ideal for quality control, labs, HVAC, food safety, and industrial maintenance, this logger combines precision with simplicity—so you can focus on your work, not the tool.

Features:

  • Calibrated and traceable to international standards
  • 48,000 auto-logging records
  • 99 manual logging records with a data recall function
  • Supports access (GLP Password) control and signed data preservation
  • Time stamp for all measurements and adjustments
  • Start and stop logging anytime
  • Real-time printing via the Infrared printer ( IR printer optional )
  • Extra-large LCD
  • Backlight for low-light environments

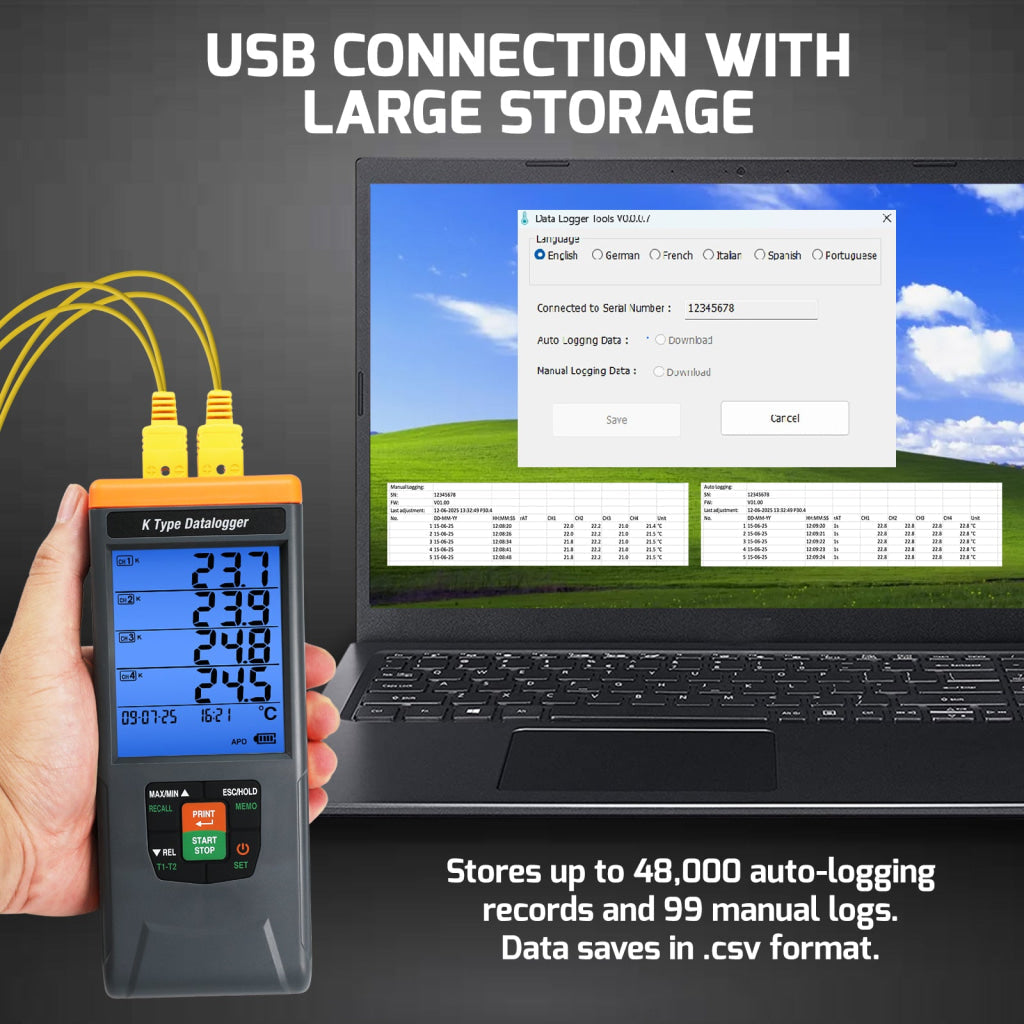

  • Data saved as CSV report (software is not required)
  • Data HOLD, Max, Min data review
  • Low battery indicator
  • Charging and data transmission via USB Type-C cable
  • PC Connection is compatible with Windows XP, 7, 10, and 11
  • Per-channel programmable high/low alarms and temperature offset

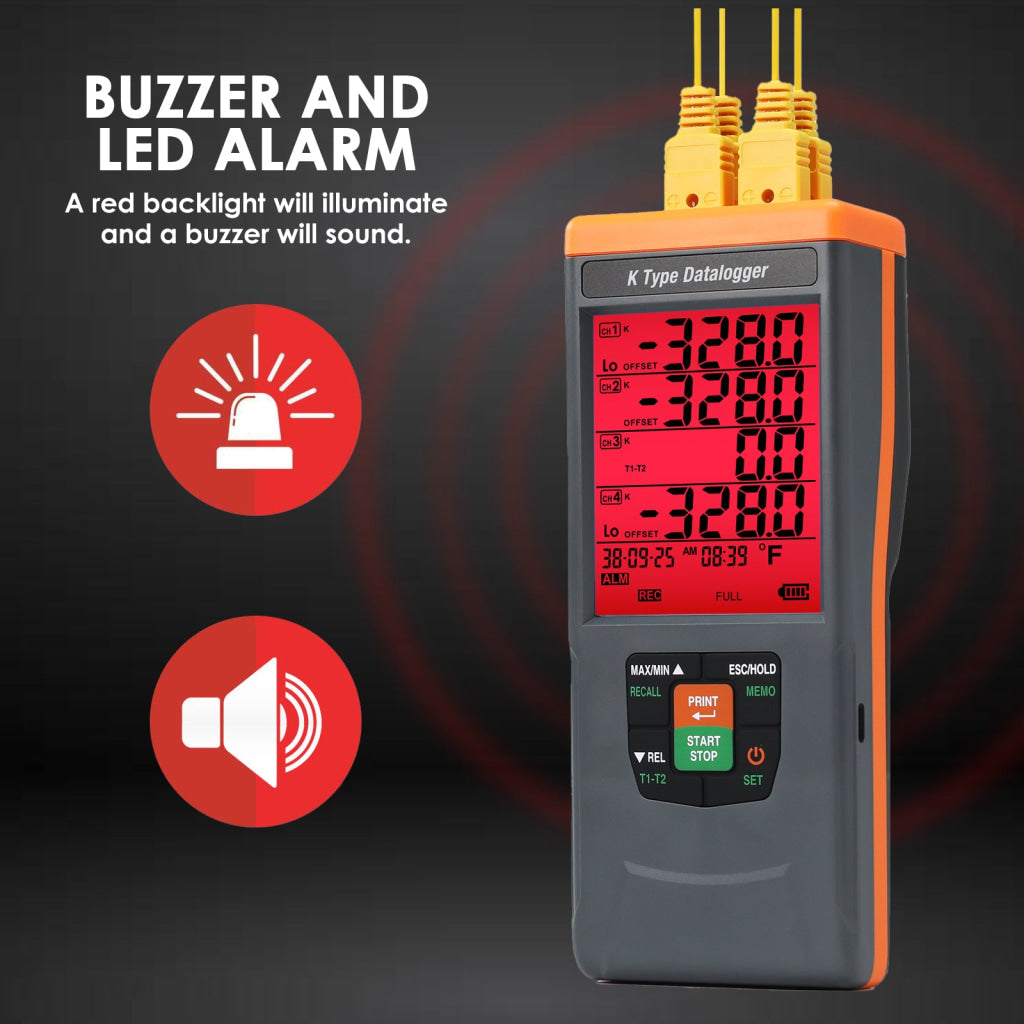

  • Buzzer and LED alarm
  • °C/°F unit selection
  • 20-min auto power-off (can be disabled)

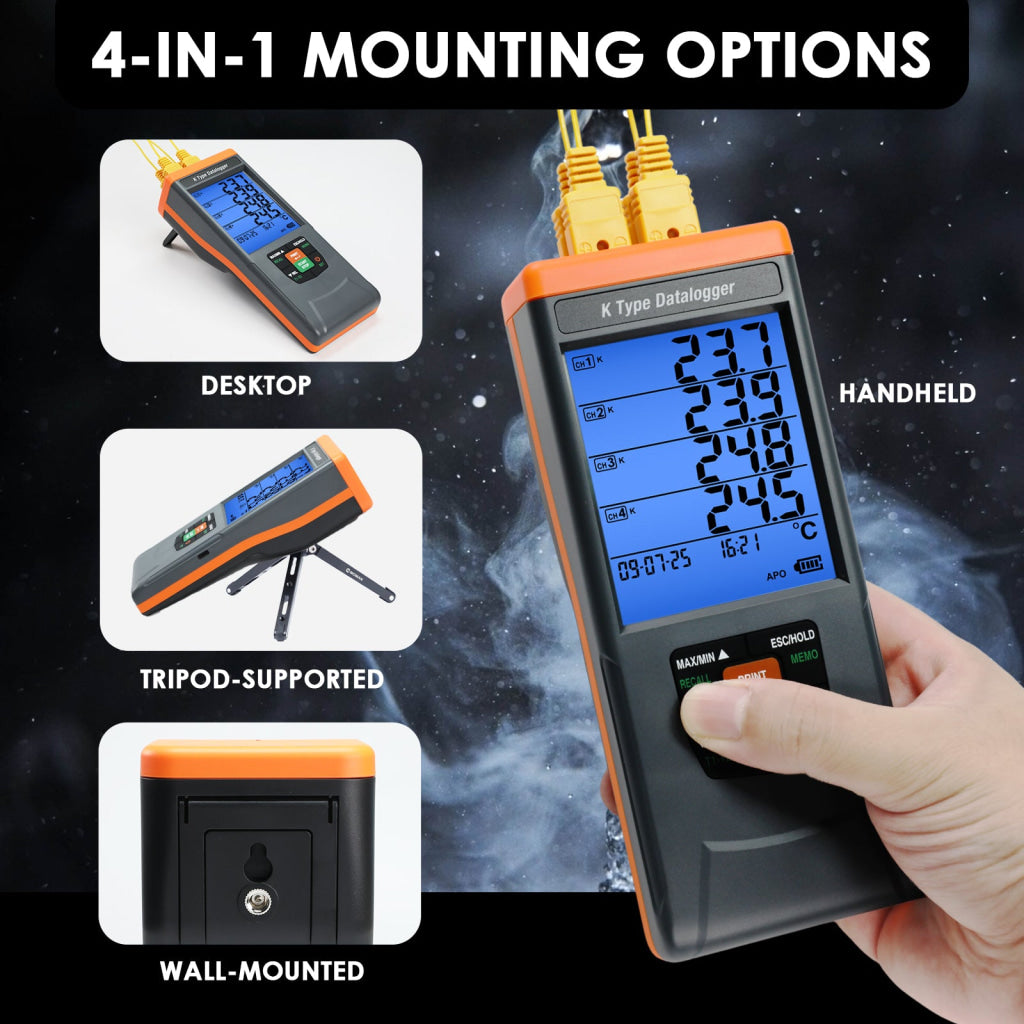

  • Triple-mount design: Handheld/desktop/wall

Specifications:

  • K Temperature Measurement (Main Unit)

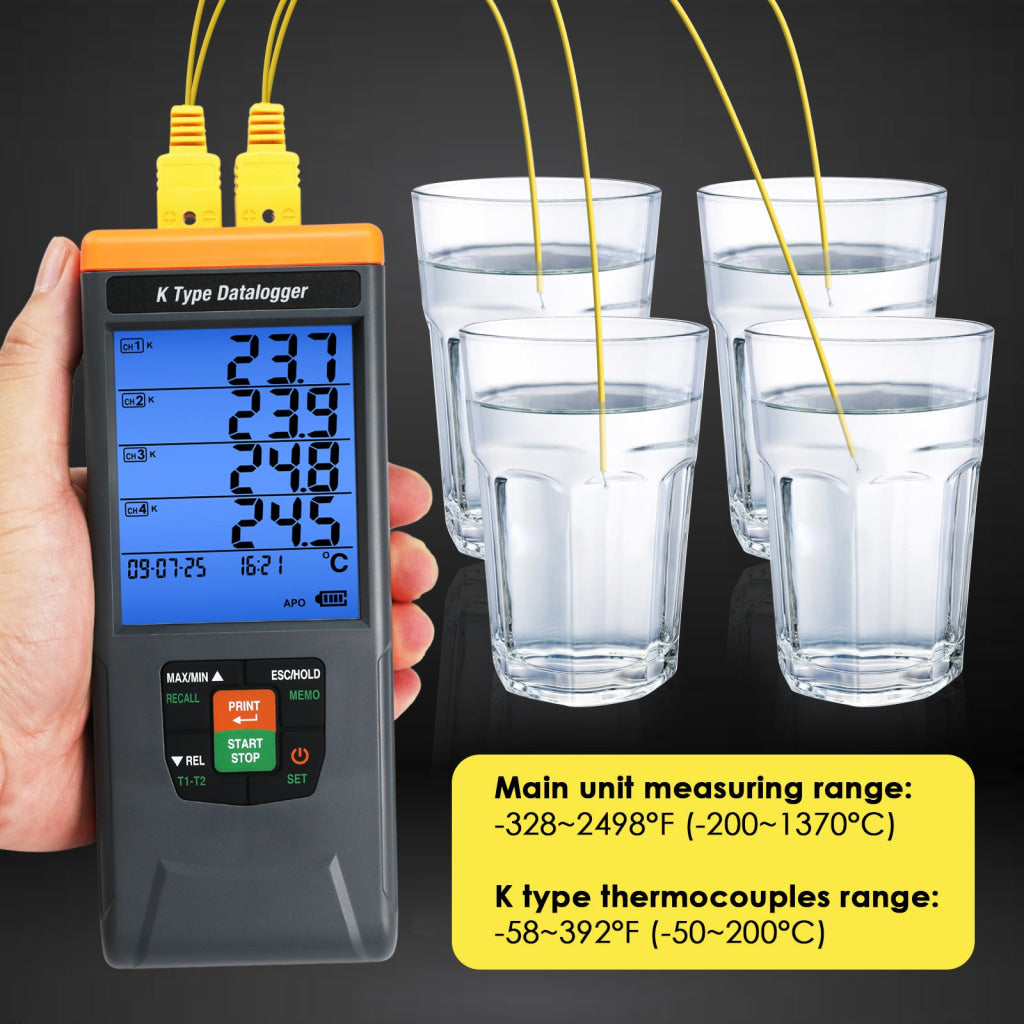

    • Range: -200~1370°C, -328~2498°F
    • Resolution: Above 1000 °C/°F is 1 °C/°F; Below 1000 °C/°F is 0.1 °C/°F
    • Accuracy: ±0.5°C for under 1000°C, 1°C for above; ±0.9°F for under 1832°F, 1.8°Ffor above
  • K Bead Type Thermocouple (Probe)
    • Temp. range: -50~200°C (-58~392°F)
  • Backlight: Blue and Red (red for alarm)
  • Buzzer: ~70 dB at 10cm distance
  • Memory:
    • 48,000 records for auto logging
    • 99 records for manual logging
  • Sampling Rate:
    • 1, 2, 5, 10, 15, 30 sec
    • 1, 2, 5, 10, 15, 30, 60, 90 min
  • Start Delay:
    • 0, 1, 5, 10, 30 min
    • 1, 2, 5, and 24 hrs
  • Power: Built-in rechargeable 3.7V Li battery with USB Type C port
  • Consumption:
    • <6.5mA (BLT off); <30mA (BLT on)
    • >120 working hours (BLT/Buzzer off)
  • LCD Size: 60(L)  x  75(W) mm
  • Operating Environment: 10~60℃ ; ＜80%RH
  • Storage Environment: -20~50℃; ＜90%RH

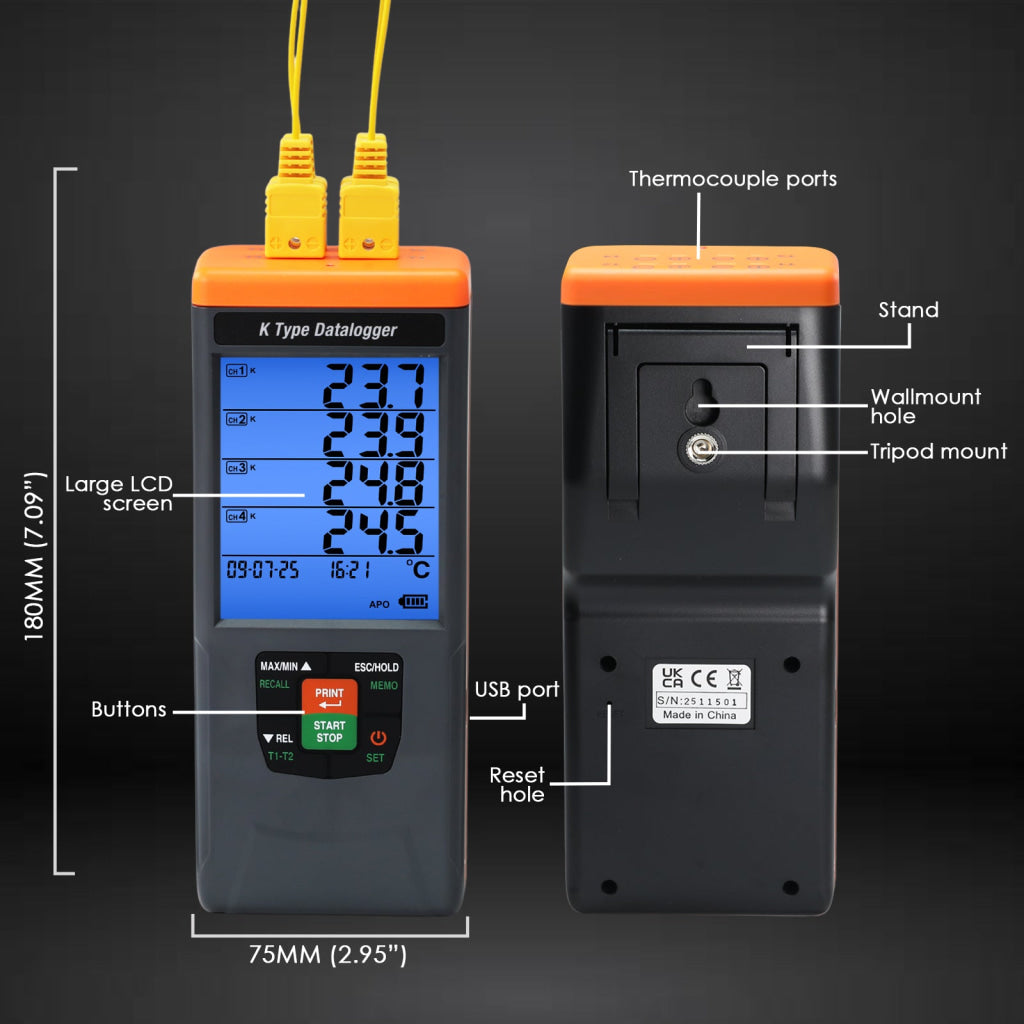

  • Dimension: 180(L)  x  75(W)  x  50(H) mm
  • Weight: ~200gms

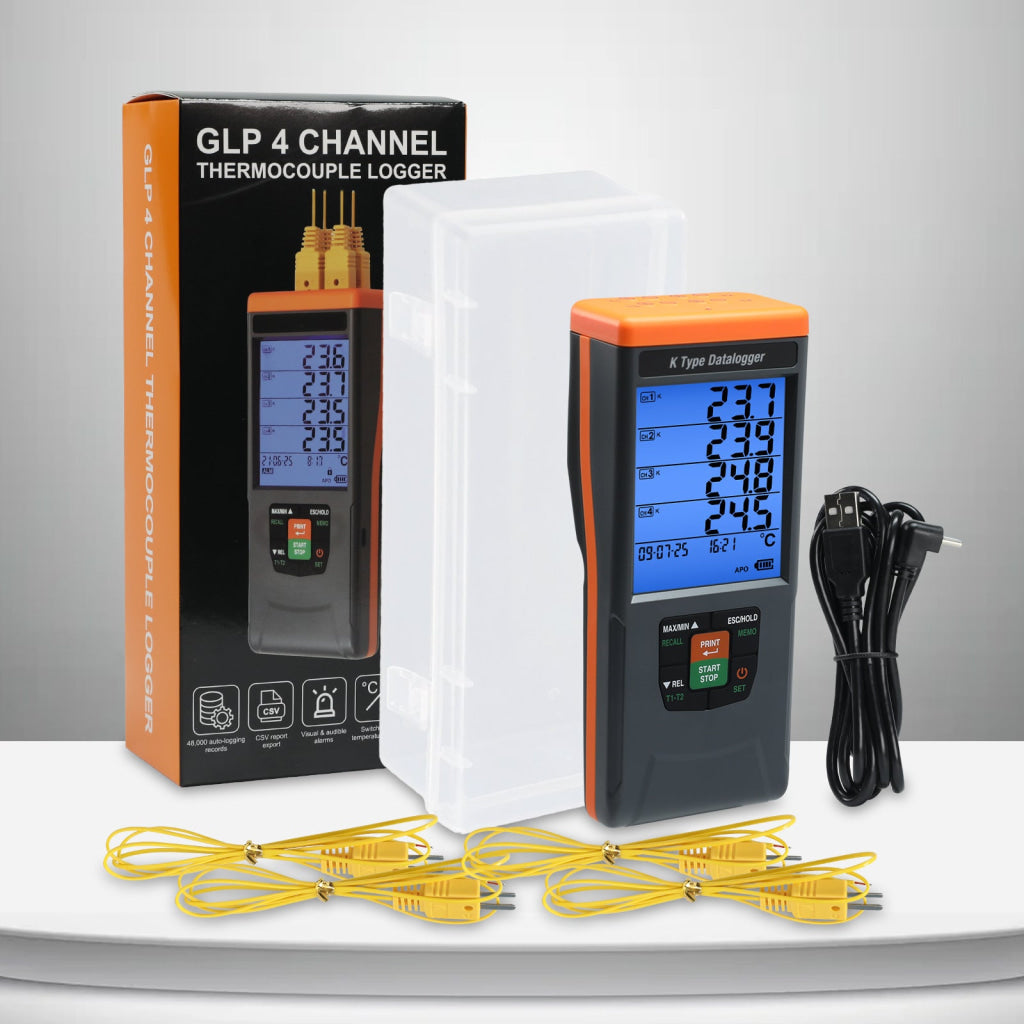

Set Includes:

  • 1 x Thermocouple Logger

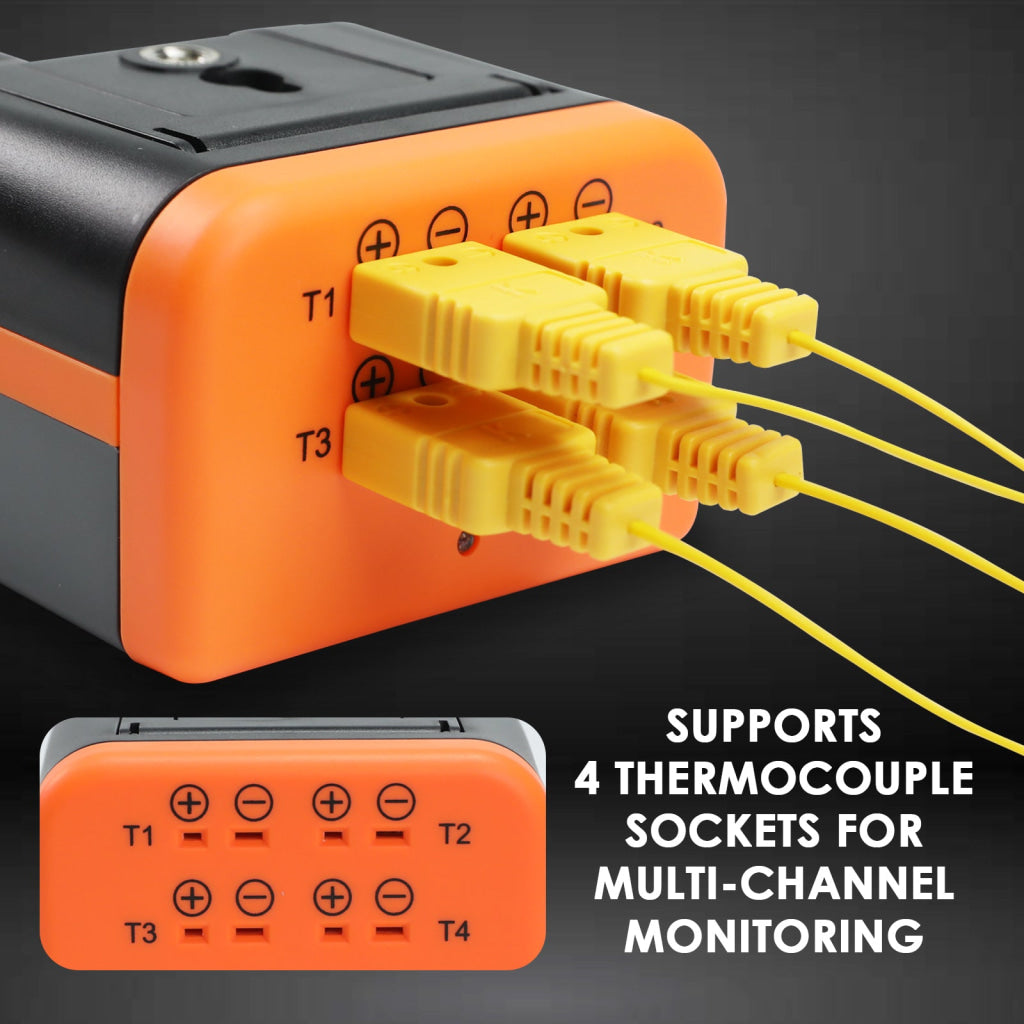

  • 4 x Class 1 Bead-type Thermocouple Probe
  • 1 x USB Type-C Cable
  • English Instruction Manual
  • Standard Factory Packaging

A printed user manual is already included with this item. No digital user manual or software is available.
