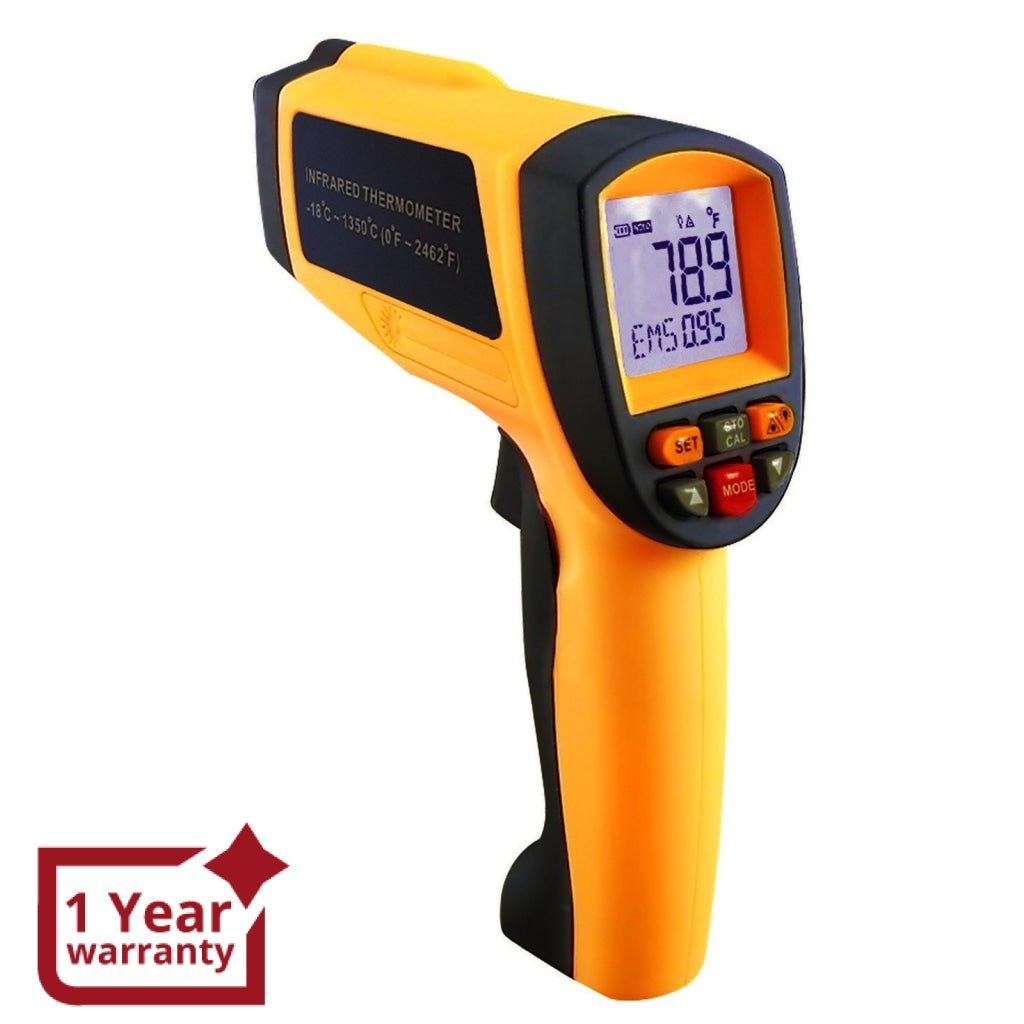

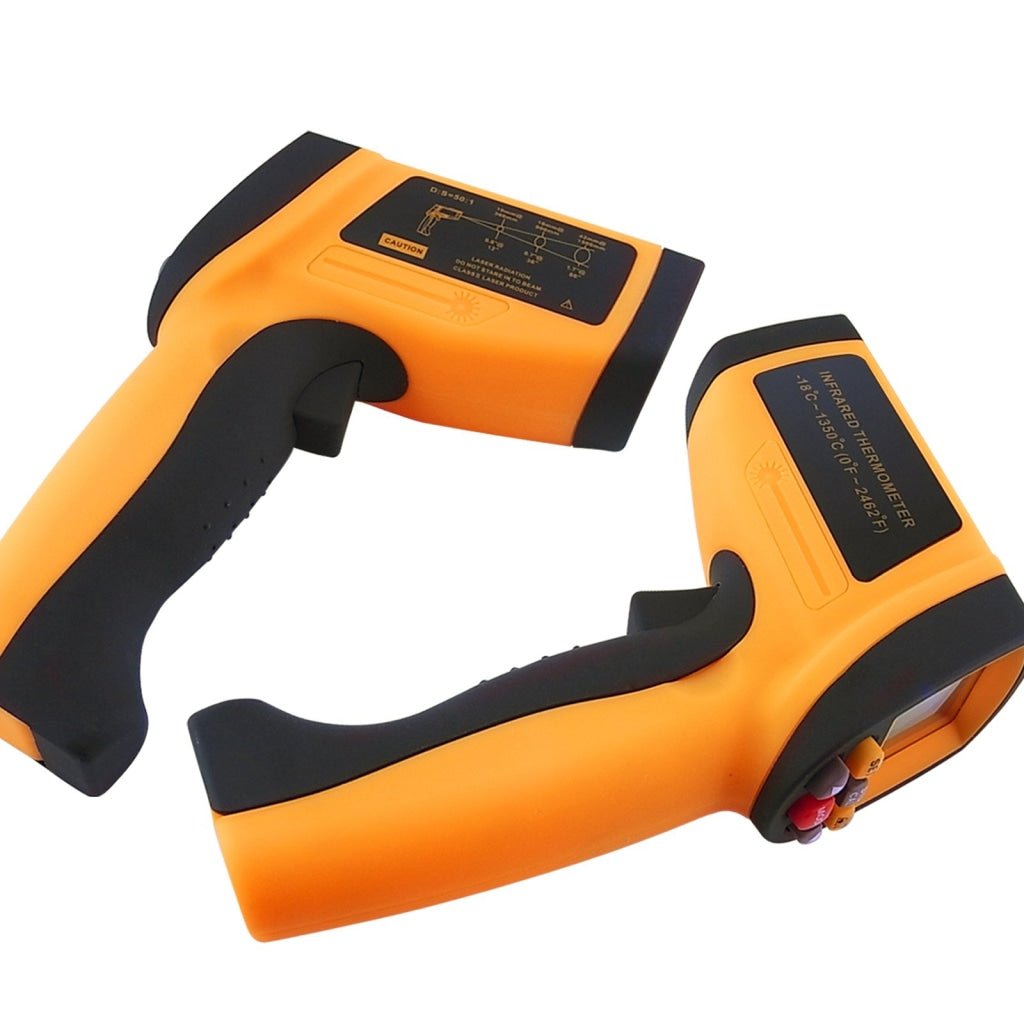

ILTH-805 Digital 50:1 IR Laser Thermometer 0.1~1 EM Pyrometer 2462 °F

Sku: ILTH-805
$107.90 USD $149.00 USD
28
Translation missing: en.products.product.shipping_policy_html
Quantity:
Add to Wishlist Remove From Wishlist
Visa Mastercard PayPal American Express Google Pay Apple Pay Shop Pay

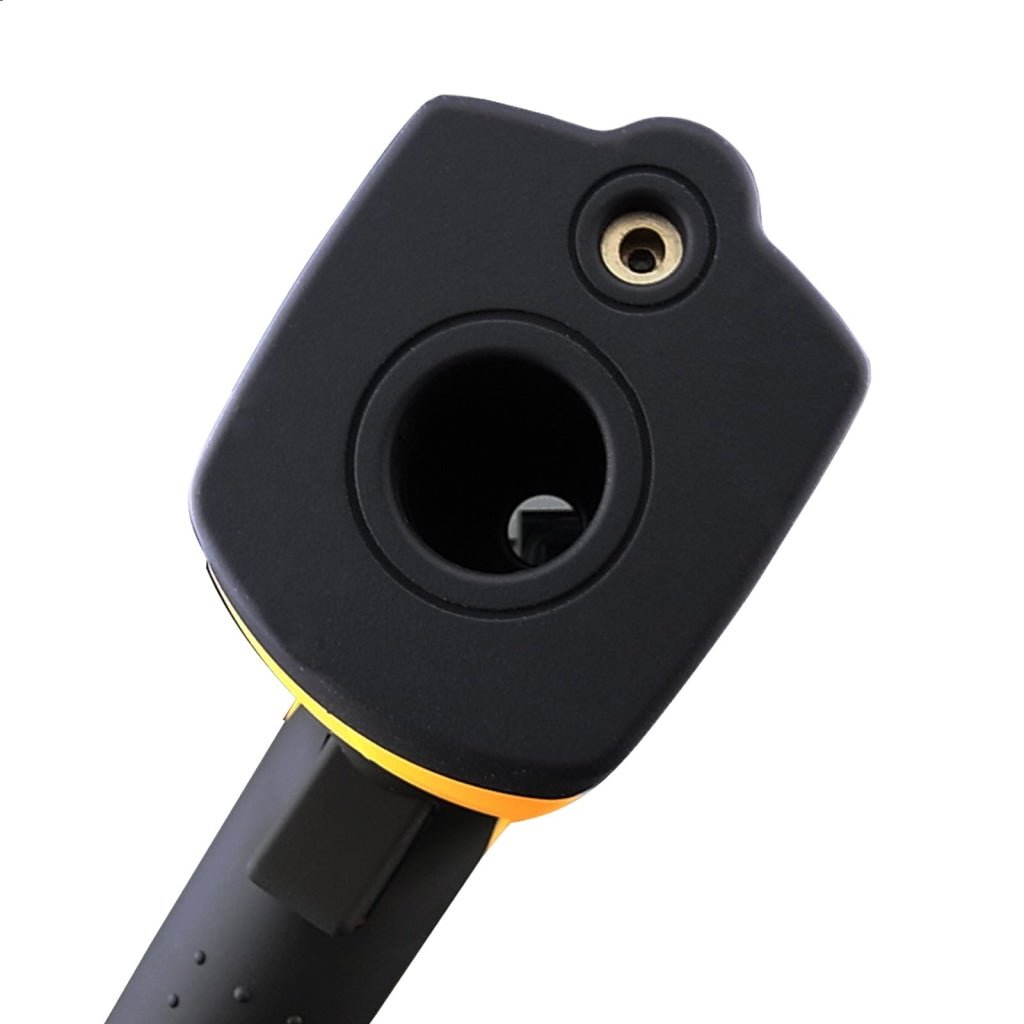

The  Professional Digital Infrared Thermometer  is a reliable device used for measuring temperature of the object's surface, which is applicable for various hot, hazardous or hard-to-reach objects without contact safely and quickly. J ust aim the  Laser Point , press the button, and read the temperature in less than a second. It makes aiming even more precise.

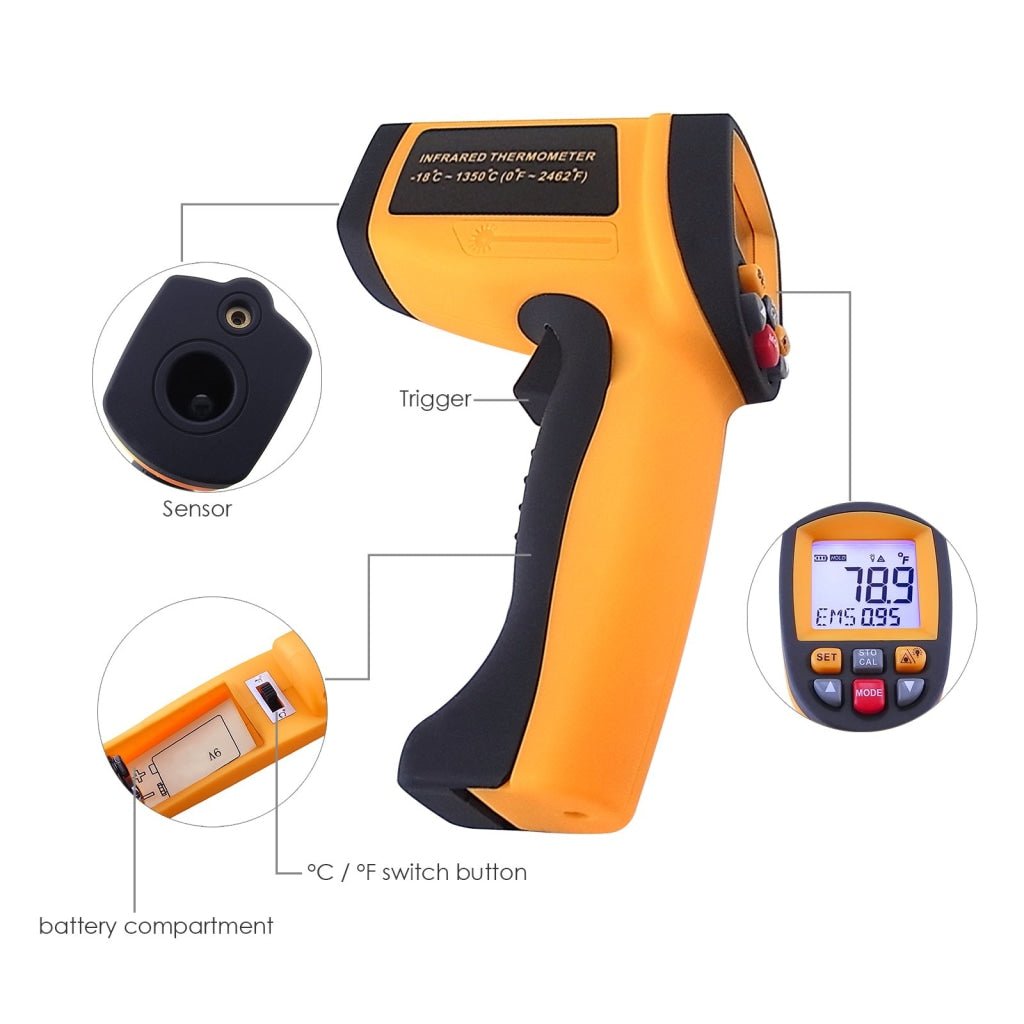

It has  Ultra High Distance to Spot Ratio (50:1)  and much wider Temperature Range from  -18 to 1350°C (0 ~ 2462°F) . The thermometer also featured with  Backlight  LCD, High Accuracy,  Fast Responding  Time  (0.5 seconds) , User  Adjustable Emissivity  (Preset at 0.95) and Spectral Response from  8 to 14 µm . It also has Optics, Temperature Sensor signal amplifier, Processing circuit that gives the information into a temperature reading which is displayed on the LCD.

In addition,  °C and °F  can be easily switch. It also has  12 memories data storage , Maximum, Minimum, Average  and  Difference  temperature functions,  Adjustable High  and  Low  Temperature  Alarm  and battery life indication.

Applications

  • Heat ventilation air-conditioning and refrigeration
  • Automotive industry

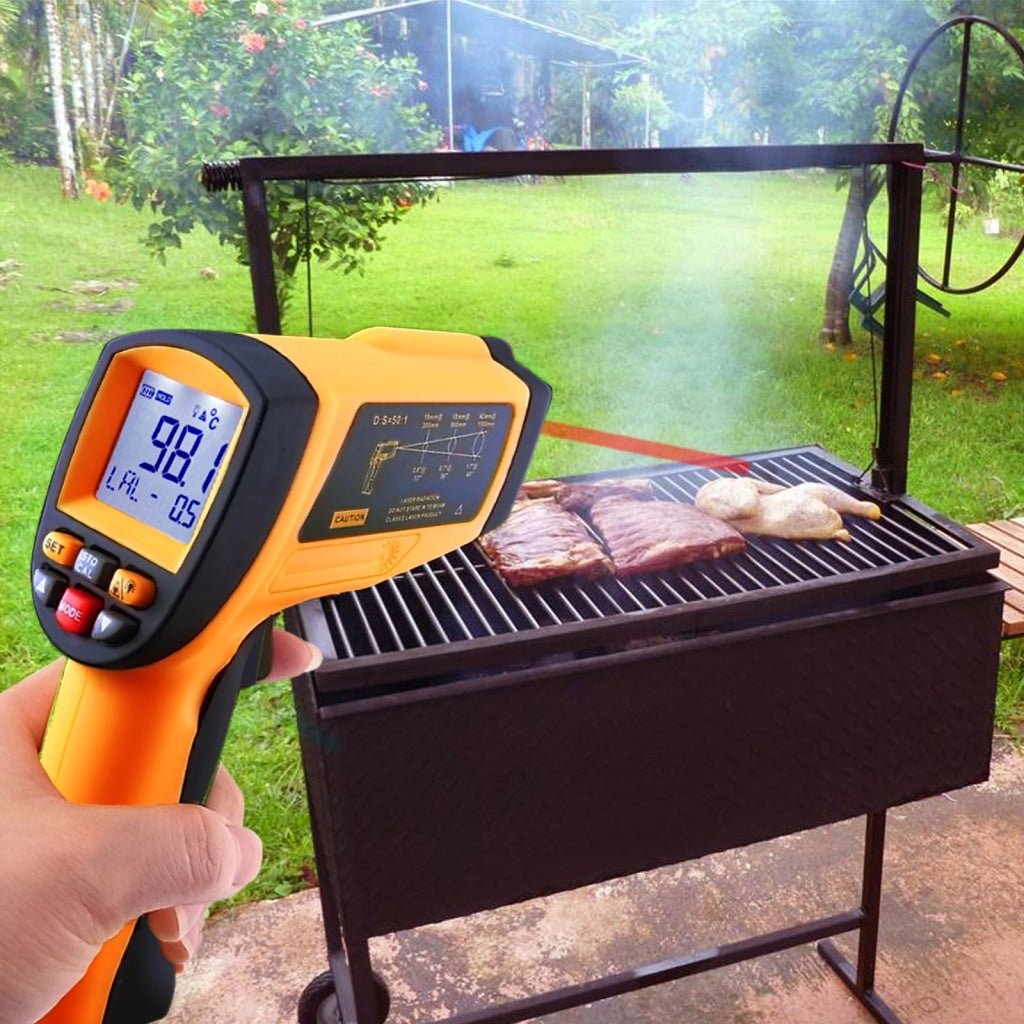

  • Food preparation
  • Horticulture
  • Construction, mechanics
  • Electrical & power voltage/current inspection field
  • Water treatment and water quality inspection
  • Environmental monitoring
  • Marine and weather

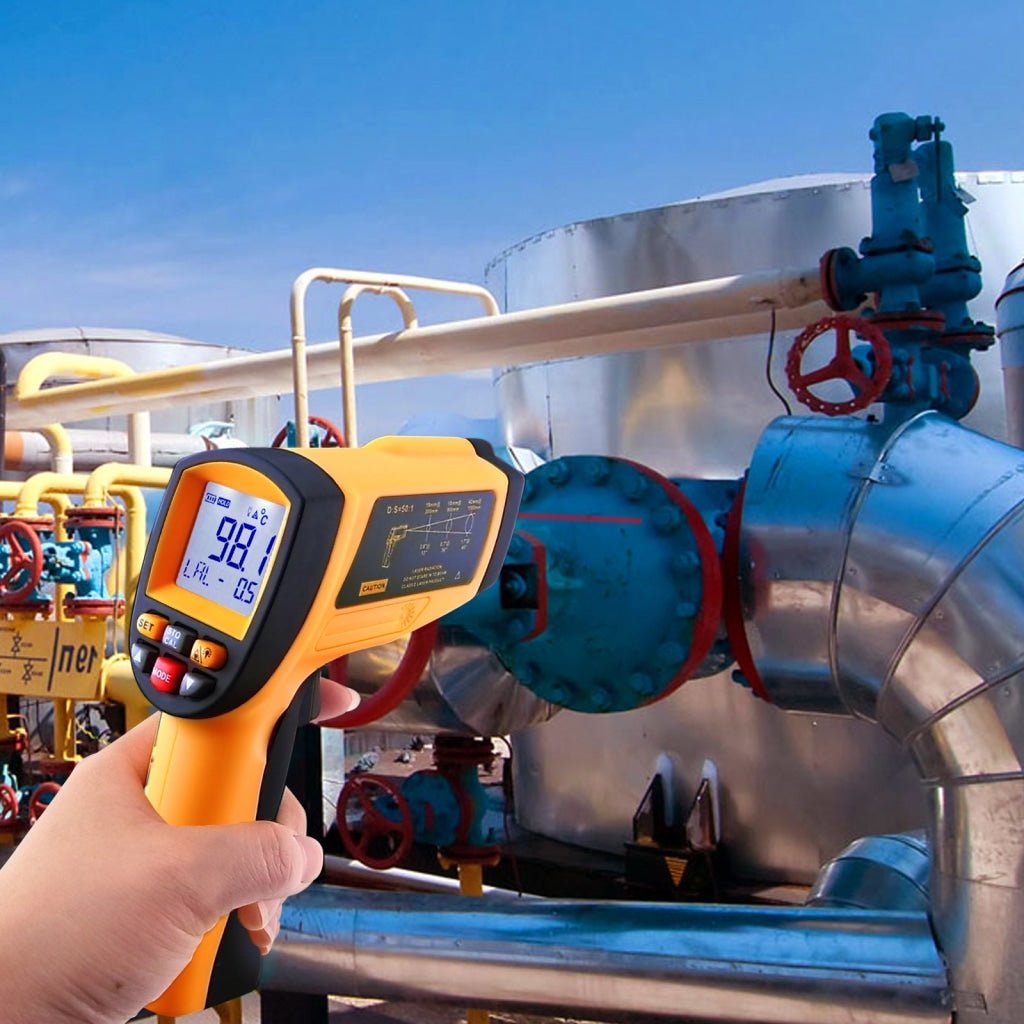

  • Gas industry
  • Food processing industry


Features

  • Memory storage function (up to 12 data)
  • Highly accurate and reliable

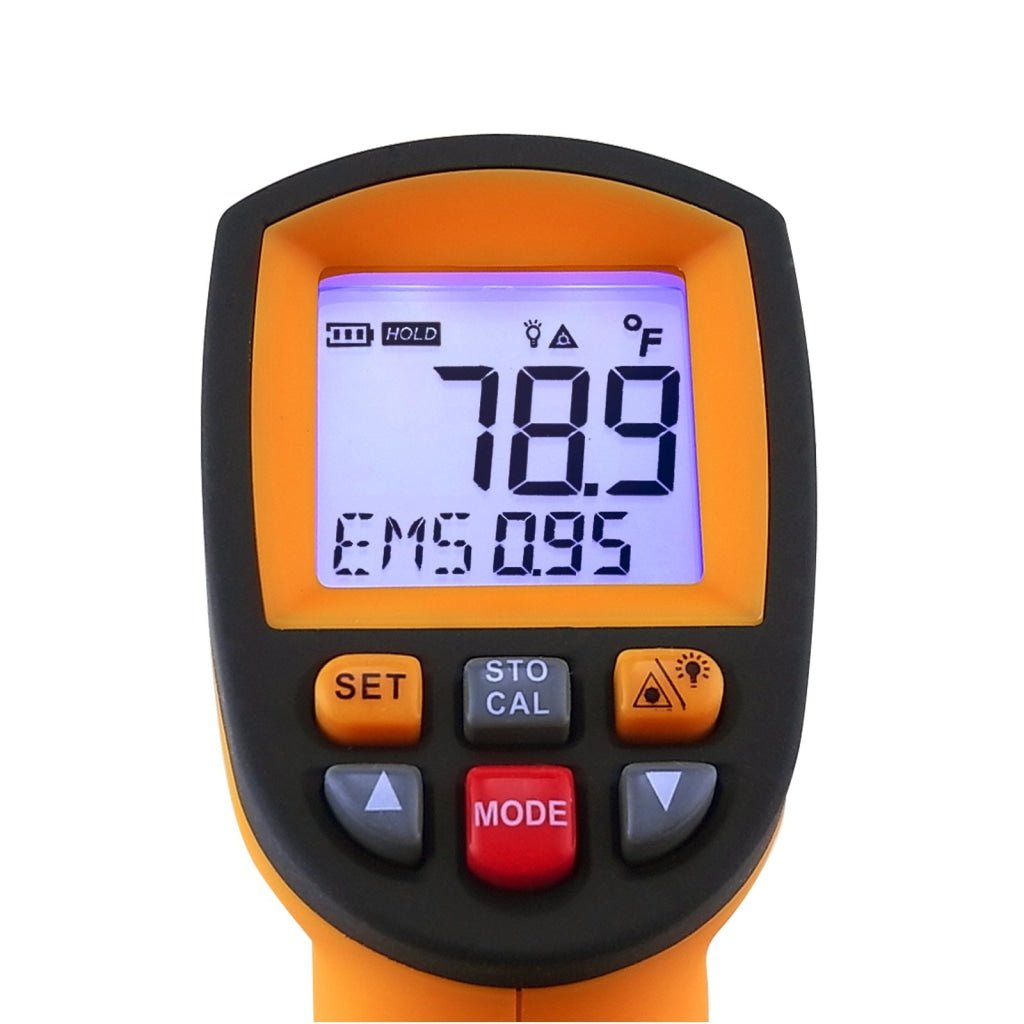

  • Large clear LCD display with Backlight
  • Auto Power Off
  • Data Store/Recall Function
  • Data Hold Function
  • Access surface temperature in 1 second
  • Maximum, Minimum, Average and Difference temperature functions
  • Adjustable High / Low Temperature Alarm
  • Fast response time (0.5 seconds)
  • Measure hazardous or inaccessible objects (high-voltage parts)


Specifications

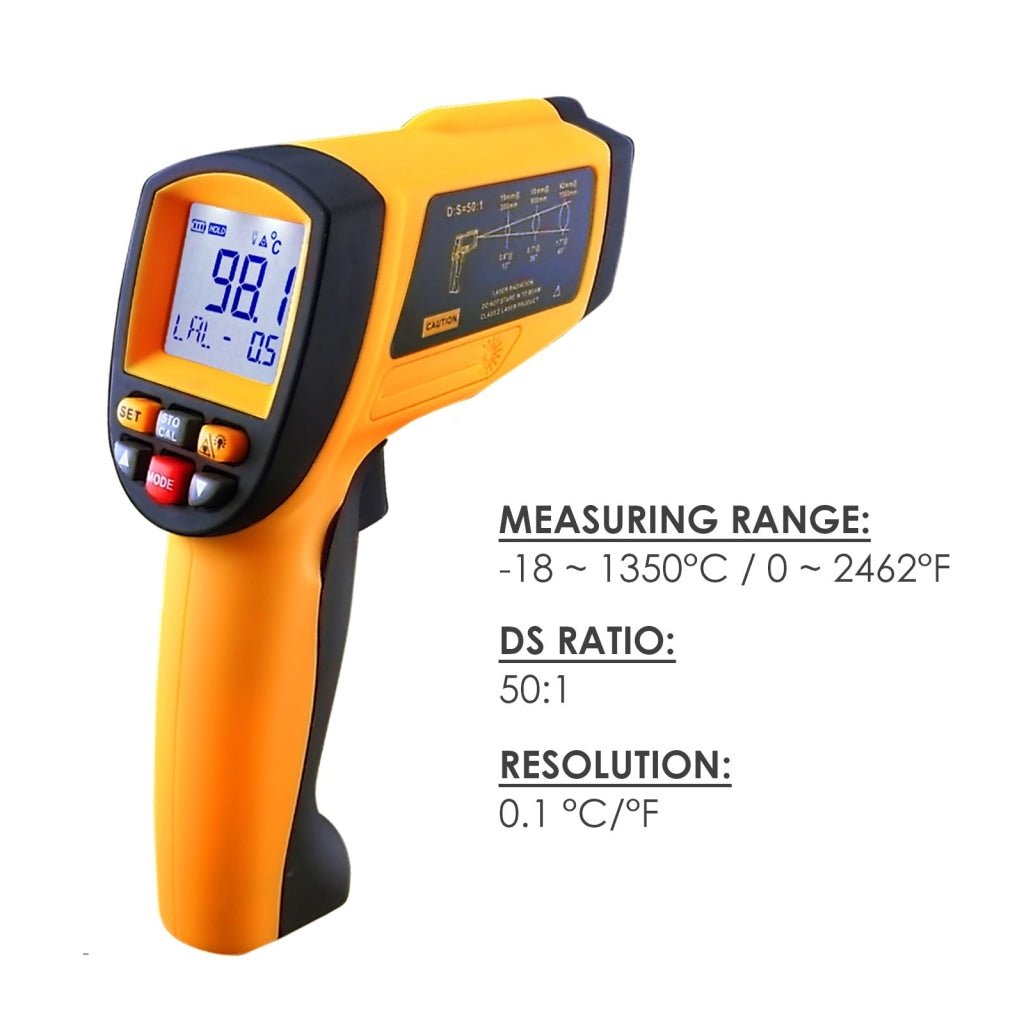

  • Measuring Range: -18 ~ 1350°C / 0 ~ 2462°F
  • Accuracy
    •  0 ~ 1350°C (32~2462°F): ±1.5°C (±2.7°F) or ± 1.5%
    •  -18 ~ 0°C (0~32°F): ±3°C (±5°C) or ± 2% whichever is greater
  • Distance to Spot Size / DS Ratio: 50:1
  • Resolution: 0.1 °C/°F
  • Repeatability: 1% of reading or 1°C
  • Response Time: 500mSec, 95% response
  • Spectral Response: 8~14µm
  • Emissivity: User Adjustable and Preset at 0.95
  • Laser Power: <1 mW
  • Laser Class : Class III
  • Operating Environment Storage Temperature: -20~60°C (-4~140°F)
    • Temperature: 0~40°C (32~104°F)
    • Humidity: 10~95% R.H. non-condensing at up to 30°C (86°F)
  • Low battery indication (3 levels)

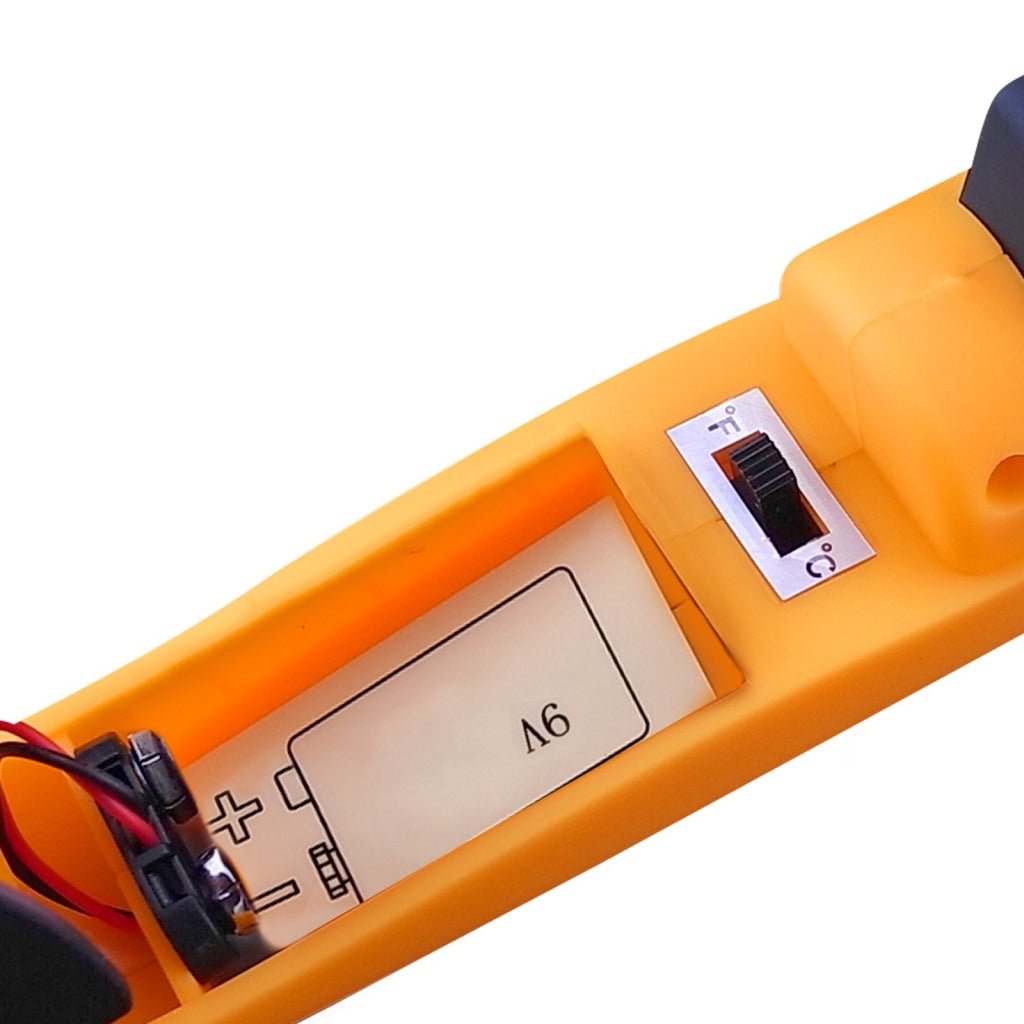

  • Power: 1 x 9V Battery (included)
  • Typical Battery Life (Alkaline): 12 hours (Laser), 22 hours (non-Laser)

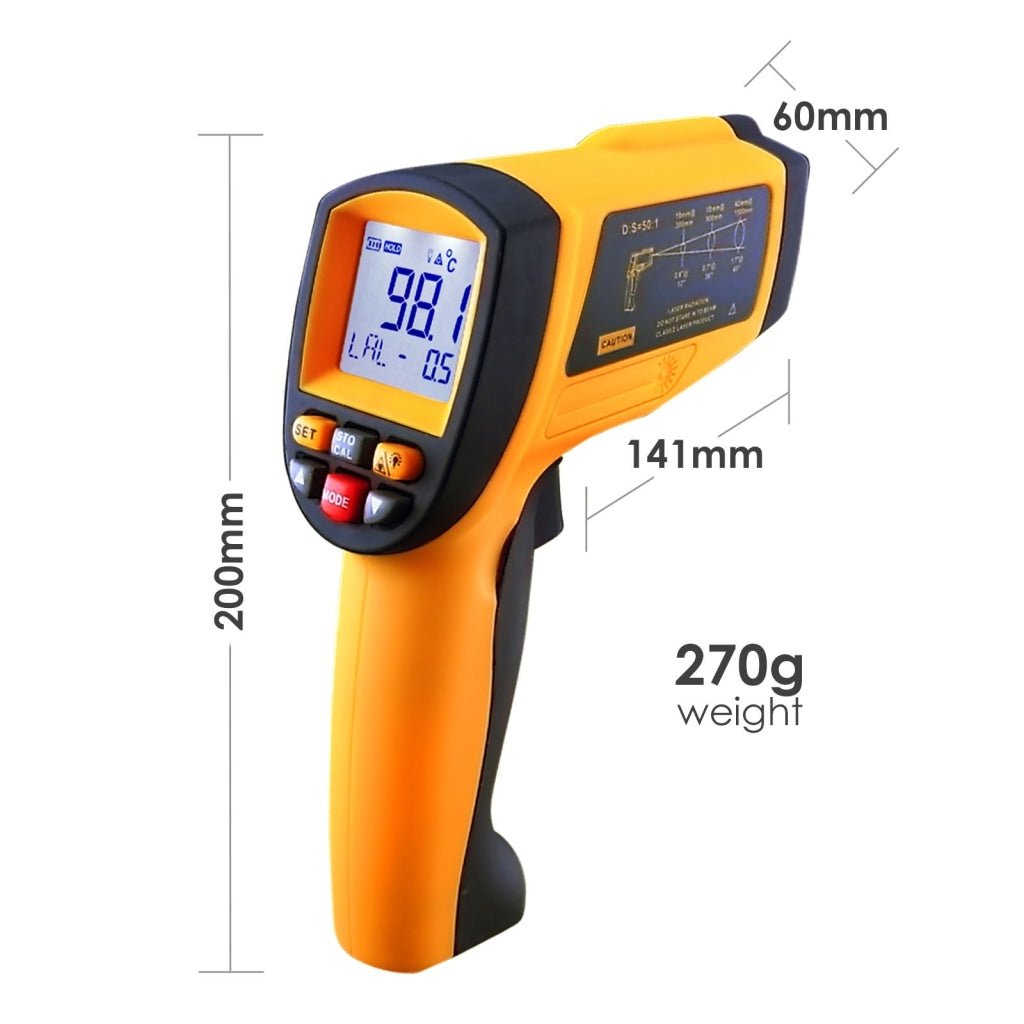

  • Item Size: approx. 141 x 60 x 200mm
  • Item Weight: approx. 270g



Approximate Emissivity
Material
Emissivity

**Aluminum
**0.30
**Brass , Lead
**0.50

**Basalt , Iron
**0.70

**Steel
**0.80

**Carbon , Glass (plate)
**0.85

**Brick , Frozen Food , Sand , Snow
**0.90

**Dirt , Oil , Textiles , Wood
**0.94

**Hot Food , Paint , Water
**0.93

**Asphalt , A sbestos, Ceramic , Concrete , Copper ,
**Paper , Plastic , Rubber
**0.95

**Ice , Limestone , Skin
**0.98

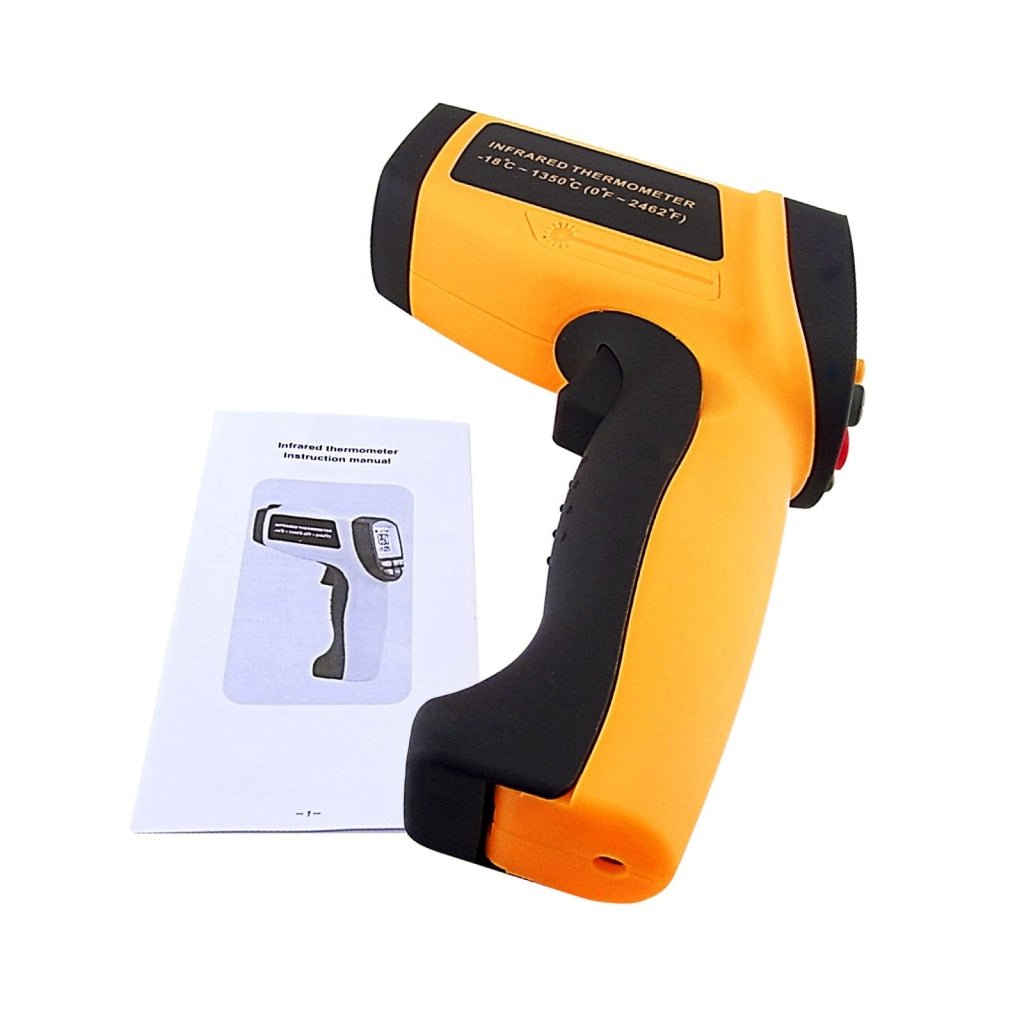

Set Includes

  • 1 x Professional Infrared Thermometer
  • 1 x 9V Battery
  • 1 x Instruction Manual
  • Standard Packaging Box

A printed user manual is already included with this item. No digital user manual or software is available.
