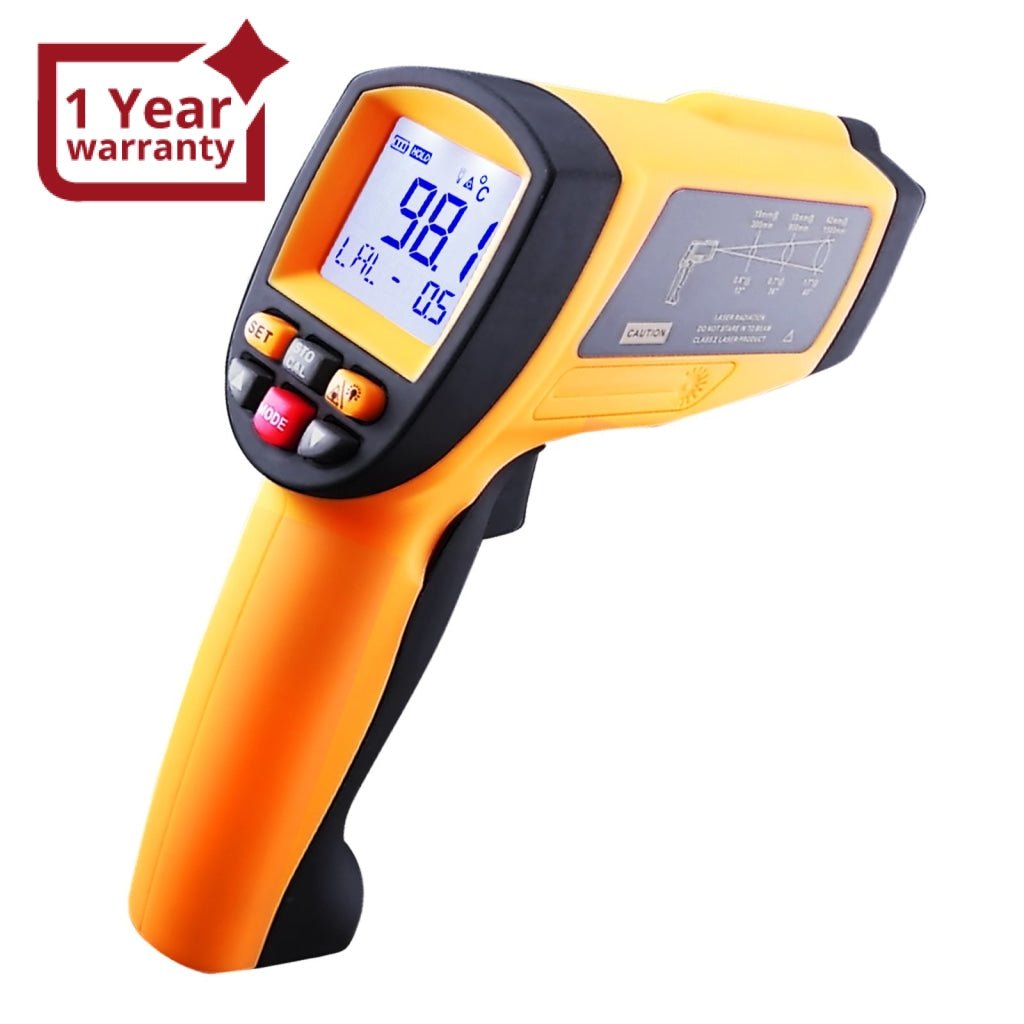

ILTH-803 Digital 20:1 Professional Infrared Thermometer 0.1~1EM Pyrometer

Sku: ILTH-803
$86.90 USD
Translation missing: en.products.product.shipping_policy_html
Quantity:
Add to Wishlist Remove From Wishlist
Visa Mastercard PayPal American Express Google Pay Apple Pay Shop Pay

The Professional Digital Infrared Thermometer is a reliable device used for measuring temperature of an object’s surface, which is applicable for various hot, hazardous or hard-to-reach objects without contact safely and quickly. Just aim the laser point, press the button, and read the temperature in less than a second.

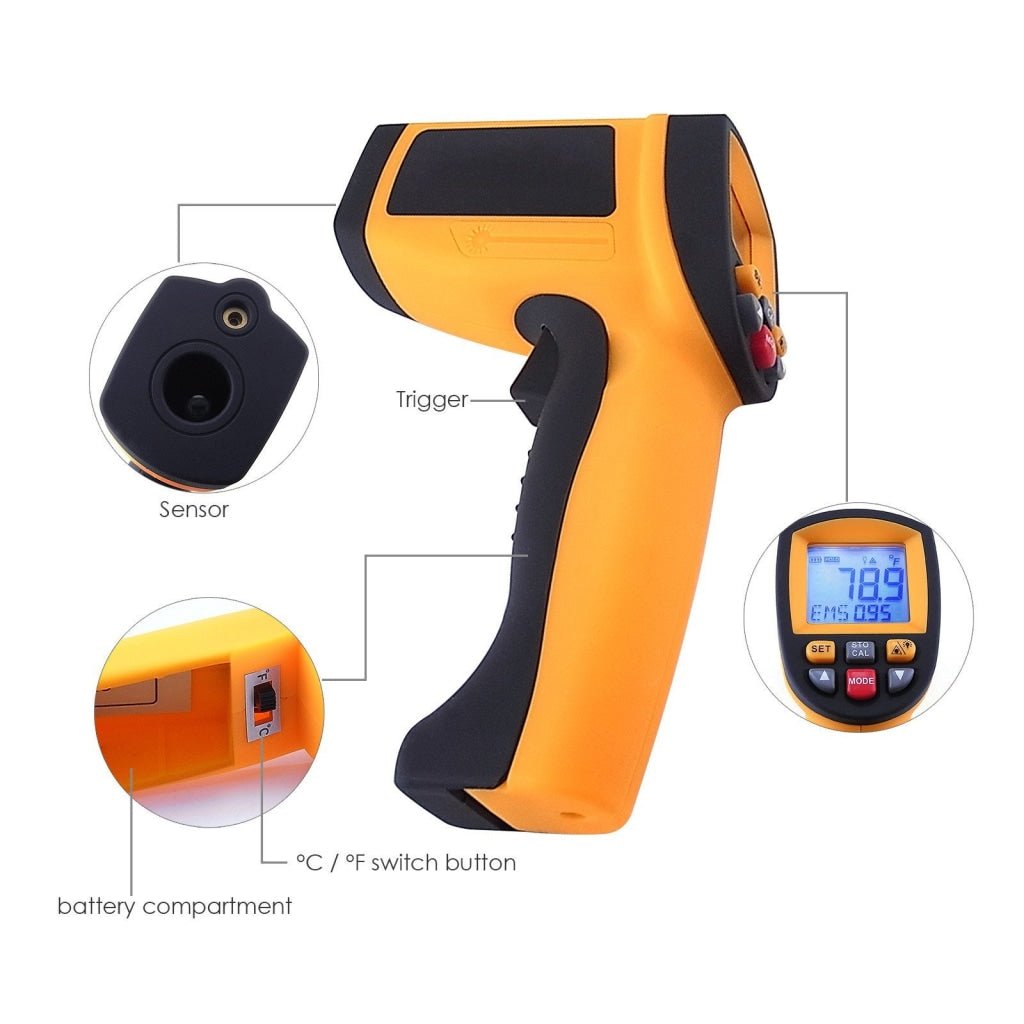

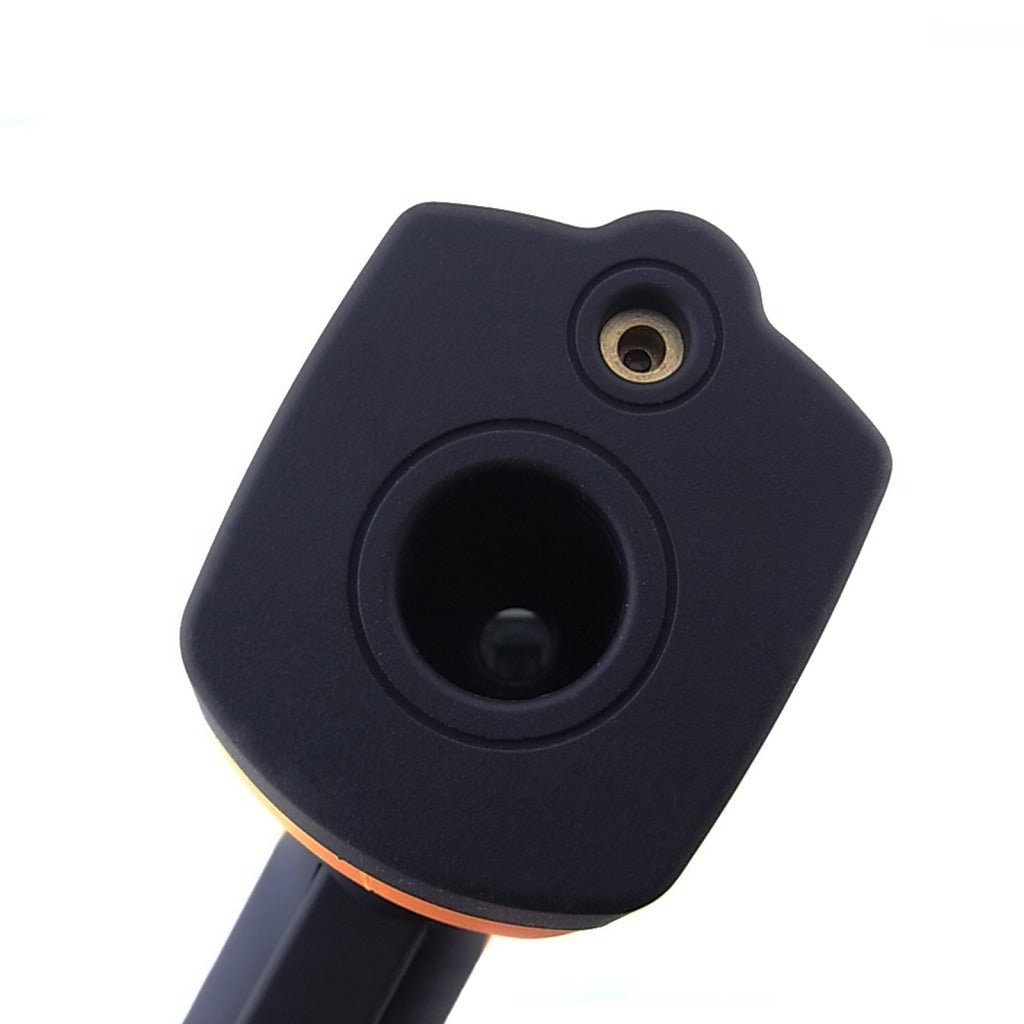

The unit consist of optics, temperature sensor signal amplifier, processing circuit and LCD display. The device's electronics translate the information into a temperature reading which is displayed on the LCD.

Applications:

  • Heat ventilation on air-conditioning and refrigeration
  • Automotive industry

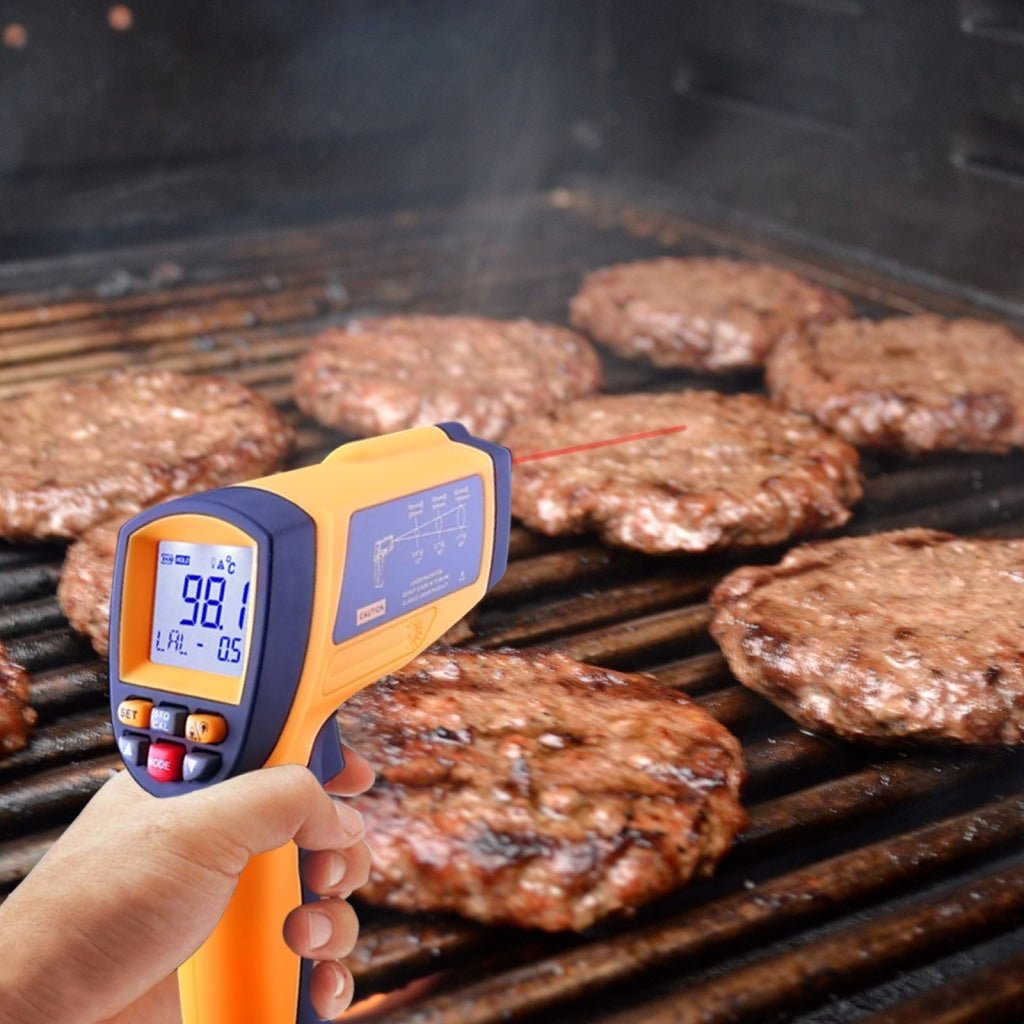

  • Food preparation
  • Horticulture
  • Construction, mechanics
  • Electrical & power voltage/current inspection field
  • Environmental monitoring
  • Marine and weather
  • Gas industry
  • Food processing industry


Features

  • Stores up to 80 sets measured data
  • Wide Temperature range
  • Highly accurate and reliable
  • Adjustable Emissivity

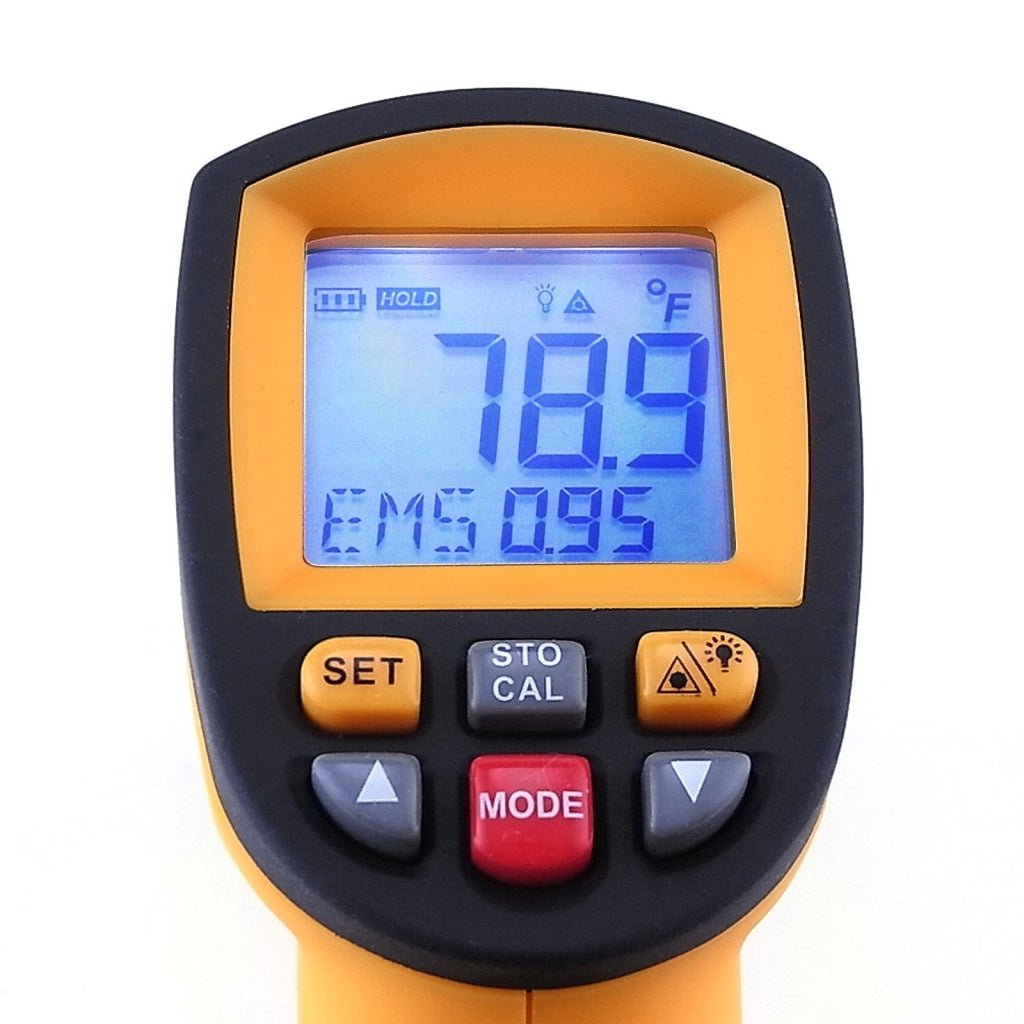

  • Large clear LCD display with Backlight
  • Battery Life Indication
  • Auto Power Off
  • Data Store/Recall Function
  • Data Hold Function
  • Scanning function in locating a hot spot

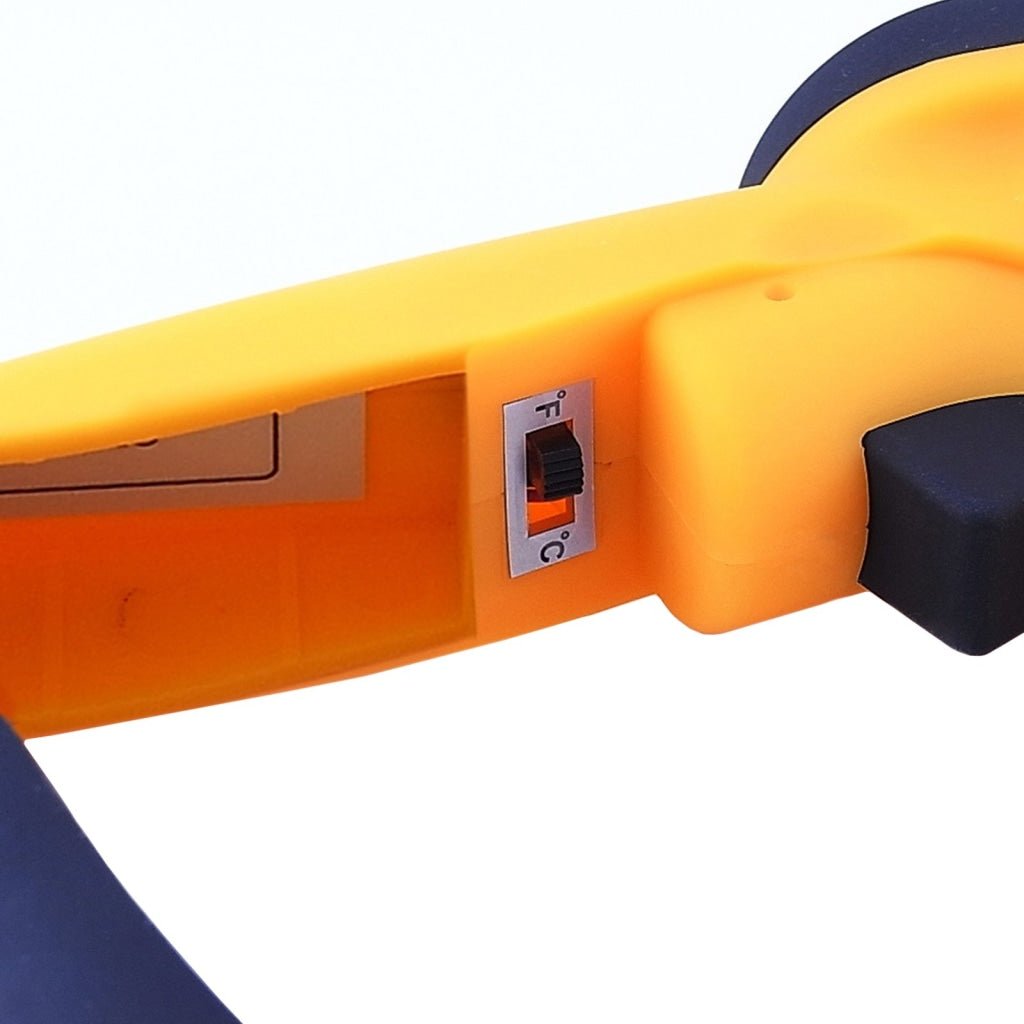

  • Switchable temperature unit (°C and °F)
  • Adjustable High / Low Temperature Alarm
  • Fast response time
  • Laser Target Pointer selection

Specifications

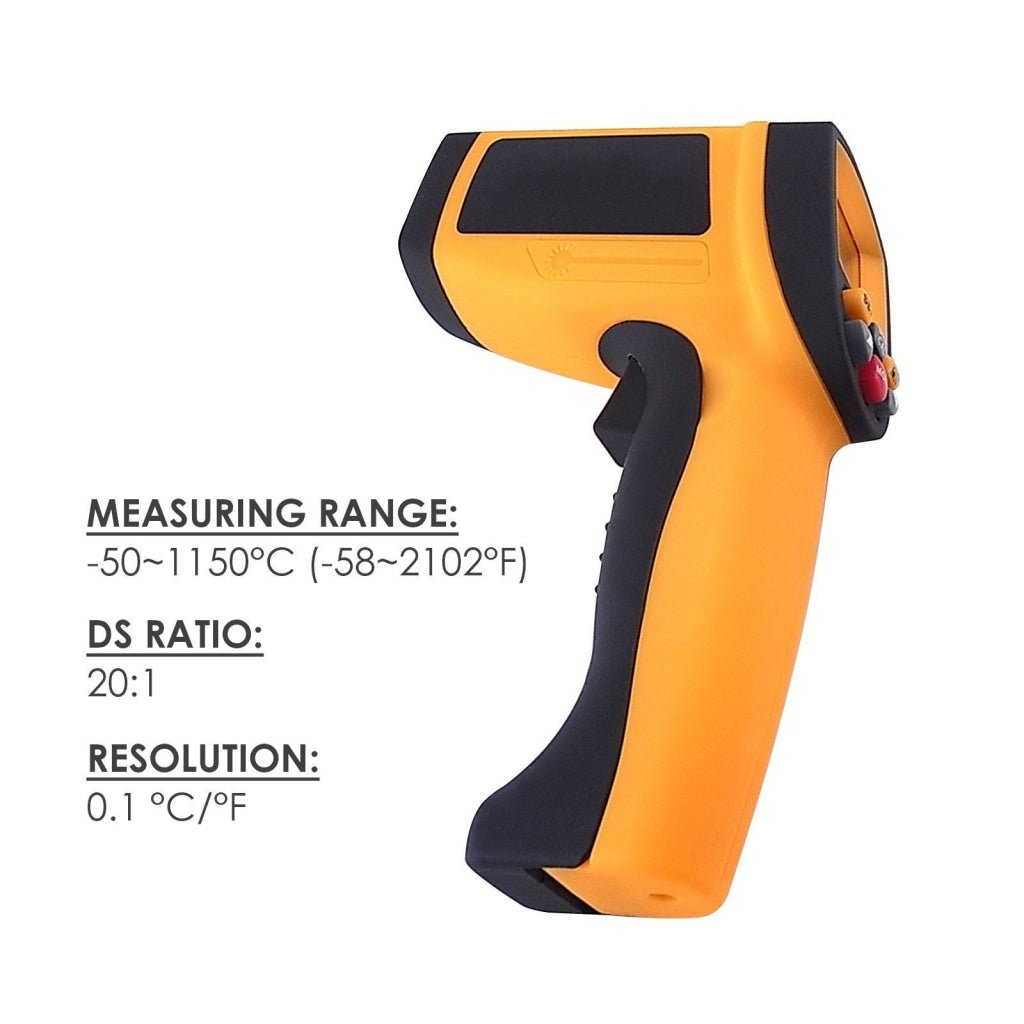

  • Measuring Range:  -30~1150°C (-22~2102°F)
  • Accuracy
    • 0~1150°C (32~2102°F) : ±1.5°C (±2.7°F) or ± 1.5%
    • -30~0°C (-22~32°F) : ±3°C (±5°F) whichever is greater
  • Resolution: 0.1 °C/°F
  • Repeatability: 1% of reading or 1°C
  • Response Time: 500mSec, 95% response
  • Spectral Response: 8~14µm
  • Emissivity: 0.10~1.00 Adjustable and Preset at 0.95
  • Distance to Spot Size / DS Ratio: 20:1
  • Laser Power: <1 mW
  • Laser Class : Class II
  • Operating Environment
    • Temperature: 0~40°C (32~104°F)
    • Humidity: 10~95% R.H. non-condensing at up to 30°C (86°F)
  • Storage Temperature: -20~60°C (-4~140°F)
  • Power: 1 x 9V Battery (included)
  • Typical Battery Life (Alkaline): 12 hours (Laser), 22 hours (non-Laser)

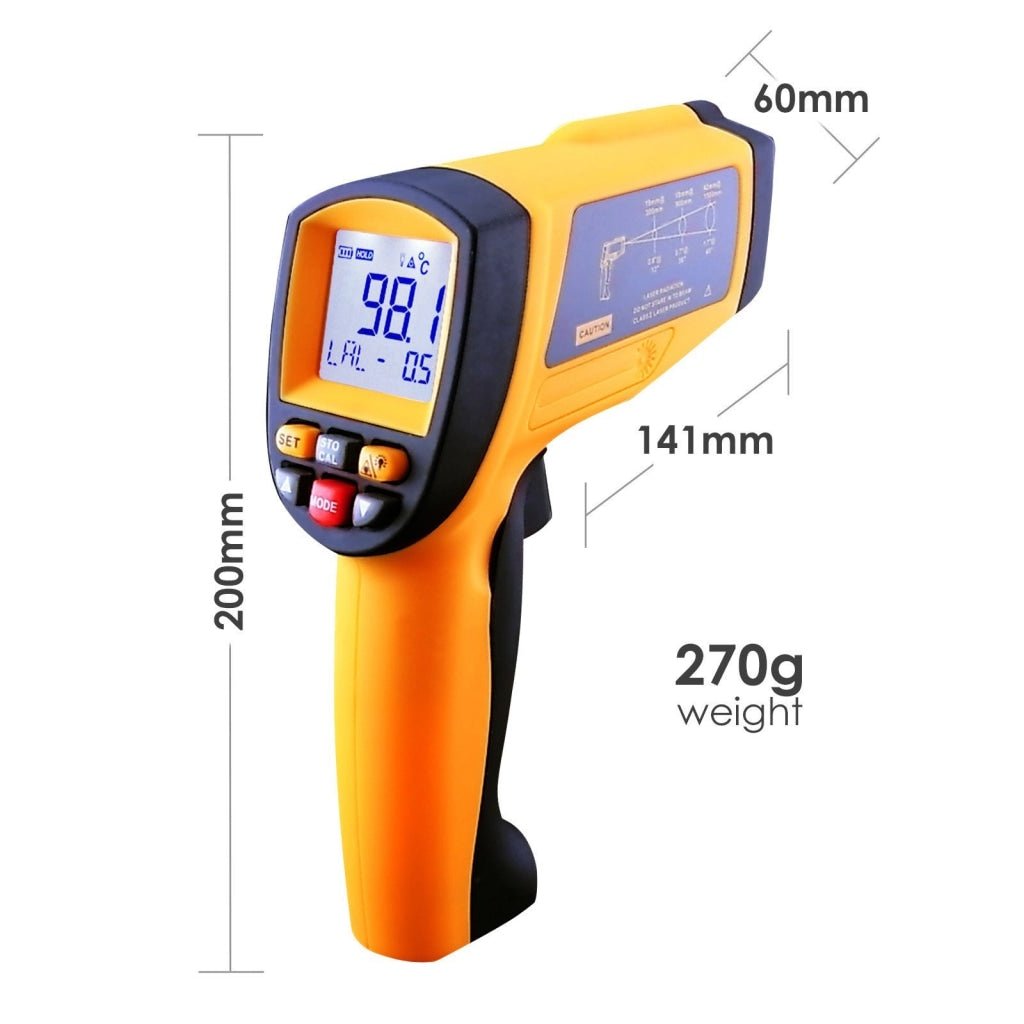

  • Item Size: approx. 141 x 60 x 200mm
  • Item Weight: approx. 270g

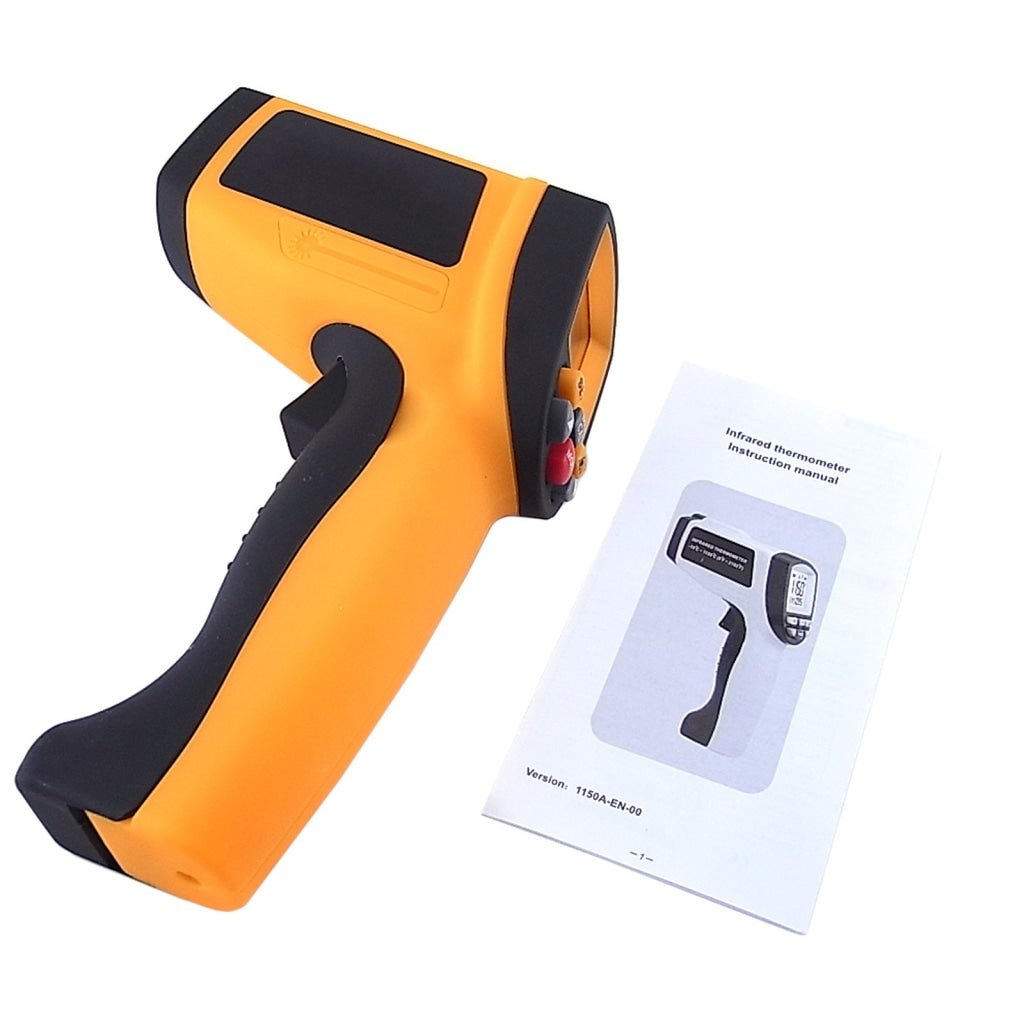

Set Includes

  • 1 x Infrared Thermometer
  • 1 x English  Instruction Manual
  • 1 x 9V Battery
  • Standard Packaging Box

A printed user manual is already included with this item. No digital user manual or software is available.
