ILTH-747 Digital 4-Channel K / J / T / E / R / S / N Type Thermocouple Thermometer Datalogger 16,800 Data Logging T1/T2, T3/T4 Input Terminal Data Logger

Sku: ILTH-747
$234.90 USD
Translation missing: en.products.product.shipping_policy_html
Quantity:
Add to Wishlist Remove From Wishlist
Visa Mastercard PayPal American Express Google Pay Apple Pay Shop Pay

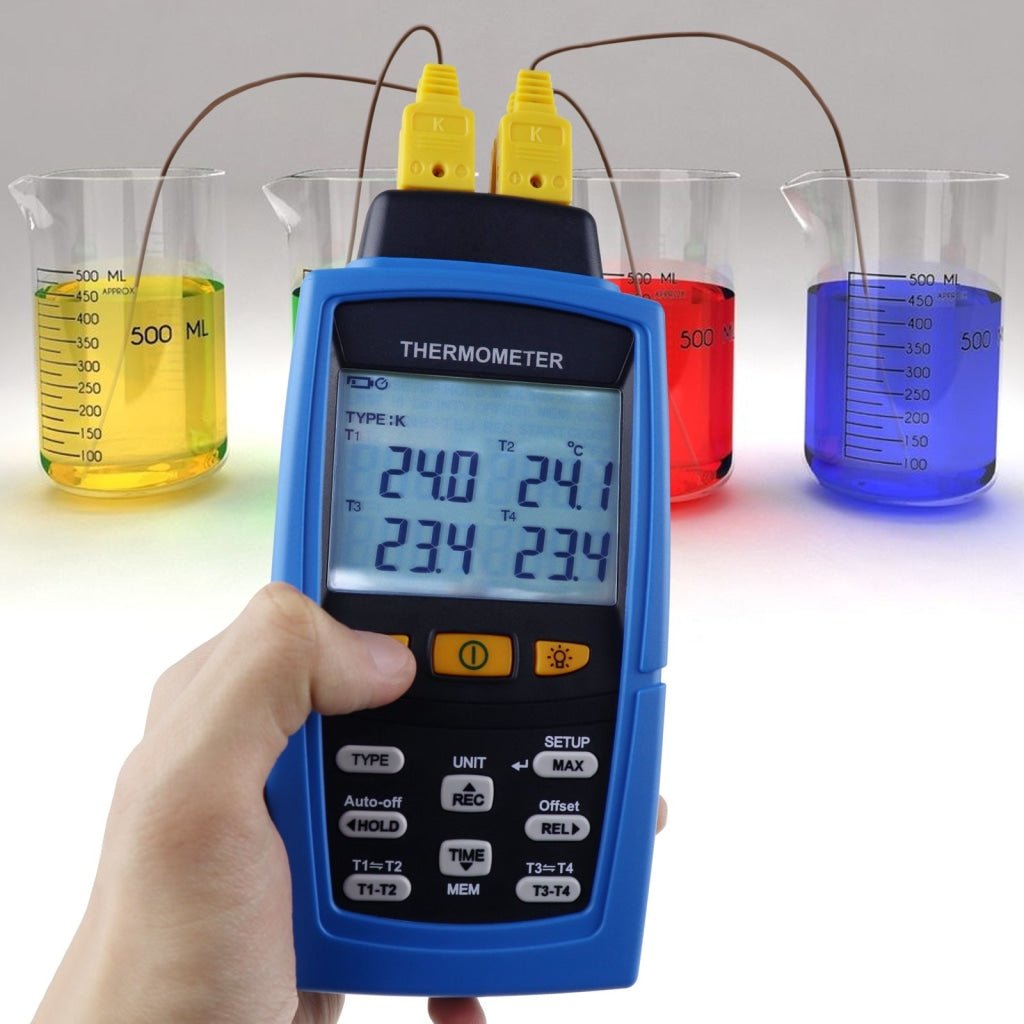

This 4 Channel K /J/ T / E/ R / S/ N type thermocouple datalogger thermometer is the best tool for multiple measurement. It has data logging capacity up to 16,800 records. The temperature measurement can be view in either °C / °F / K unit.

Applications:  Can be use in different fields Industrial, Refrigeration, Laboratory, Ventilation, Automotive, Storage, Research, Agriculture, Biotechnology, Chemical Industry, Food Processing, Energy Management etc.

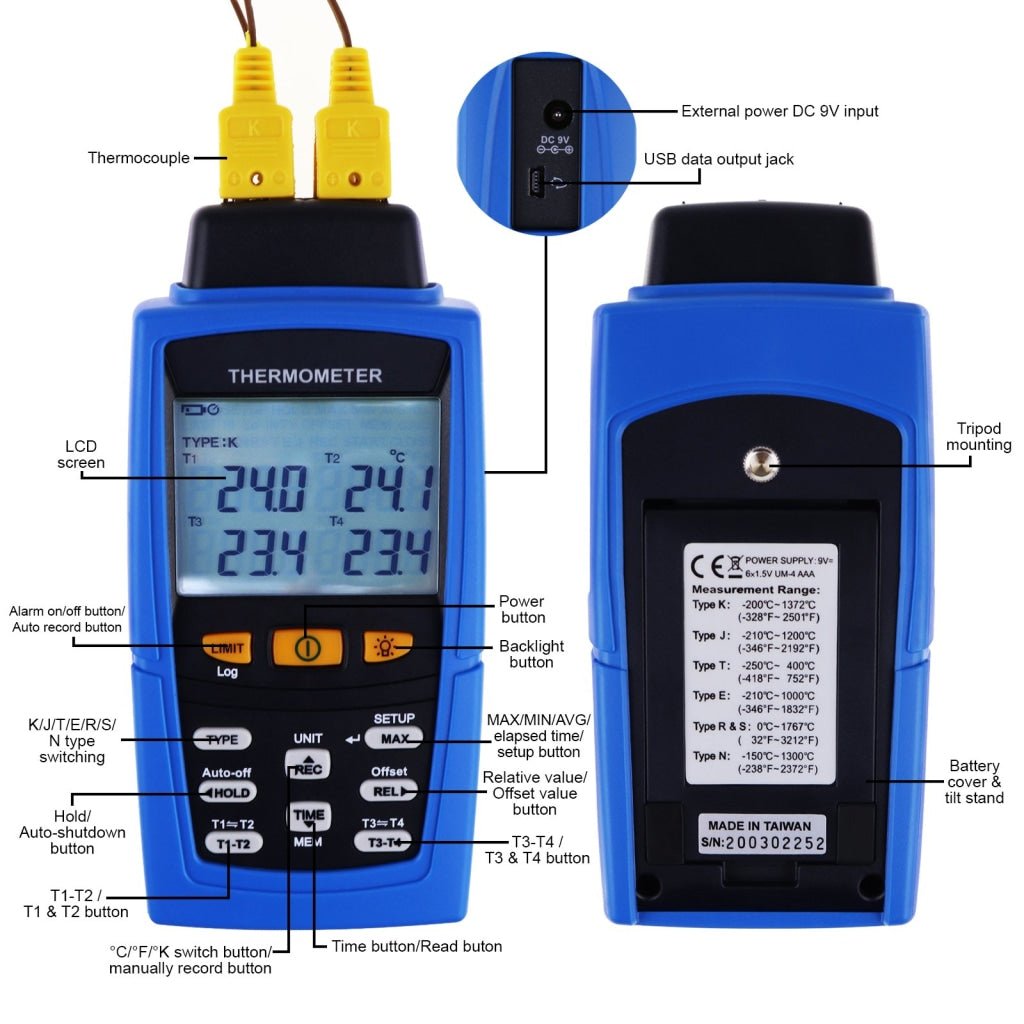

Features:

  • Measure [T1, T2, T3, T4] readings or differential [T1-T2]  & [T3-T4]
  • HOLD function to freeze current readings
  • 15 minutes auto power off function which can be disabled
  • Programmable temperature HIGH/LOW alarm limit for 4 Channels
  • Switch button for different type of thermocouple (K /J/ T/ E/ R / S/ N)
  • Switchable temperature unit (°C / °F / K)

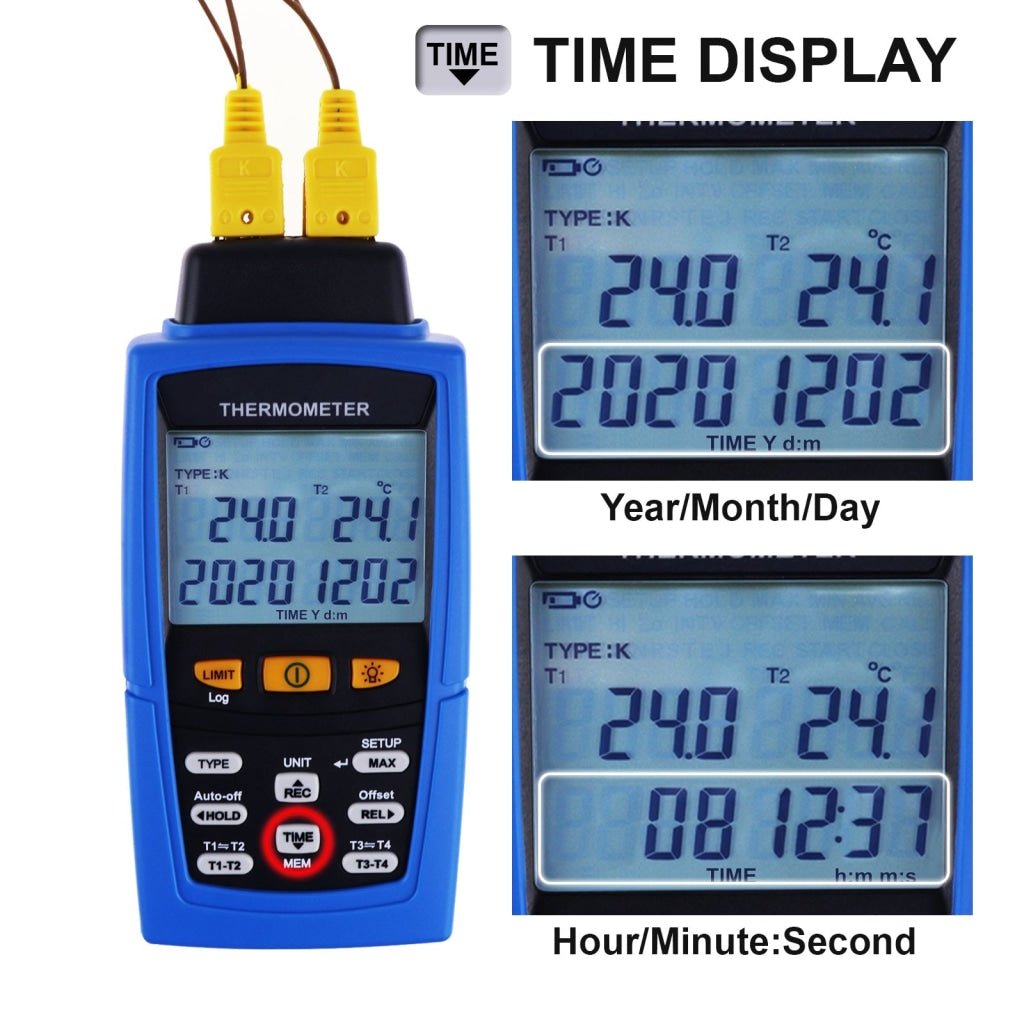

  • One button press to see Real time display (year-mon-date,hour-min-second)
  • Temperature offset function to compensate for the error
  • MAX/MIN/AVG value
  • Relative value measurement
  • Offset value setting
  • Auto ranging function
  • Overload and battery low indication
  • ON/OFF Backlight and alarm function
  • Auto and manual recording of data
  • Supported operating systems: XP / Windows7 / 8.1 / 10 / 11



Specifications:

  • Display: 4 channel and 4 digit LCD
  • Input limit: Maximum input 24V DC or AC
  • Datalogging capacity: 16,800 Auto recording / 200 manual recording
  • Save interval: 1 second~24 hours
  • Electrical Specification: Accuracy is specified for ambient temperatures between 18~28°C (64~82°F)
    • TYPE-K Range: -200~1372°C (-328~2501°F)
    • TYPE-J Range: -210~1200°C (-346~2192°F)
    • TYPE-T Range: -250~400°C (-418~752°F)
    • TYPE-E Range: -210~1000°C (-346~1832°F)
    • TYPE-R / S Range: 0~1767°C (32~3212°F)
    • TYPE-N Range: -150~1300°C (-238~2372°F)
    • Resolution:
      • 0.1 - K / J / T / E / N≤1000°C
      • 1 - R / S / K / J / T / E / N≥1000°C
    • Accuracy:
      • K/J/E/T/N Type: ±(0.05% rdg + 0.7°C / 1°F Below-100 °C (-148 °F): K, J, T, E add 0.15% reading. N add 0.45% reading
      • R/S Type: ±(0.05% rdg+3°C /5.4°F
    • Temperature coefficient: 0.05% ±0.07°C of reading/°C (0.06°F/°F) outside 18~28°C(64~82°F) specified range
    • Temperature Scale: ITS-90
      Note: Specifications above does not include thermocouple accuracy
  • Power Source: 6 x 1.5V battery or 9V AC to DC adaptor
  • Operating Environment: 0~50°C (32~122°F), <80%RH
  • Storage Environment: 0~50°C (32~122°F), <80%
  • Weight: approx. 330gms

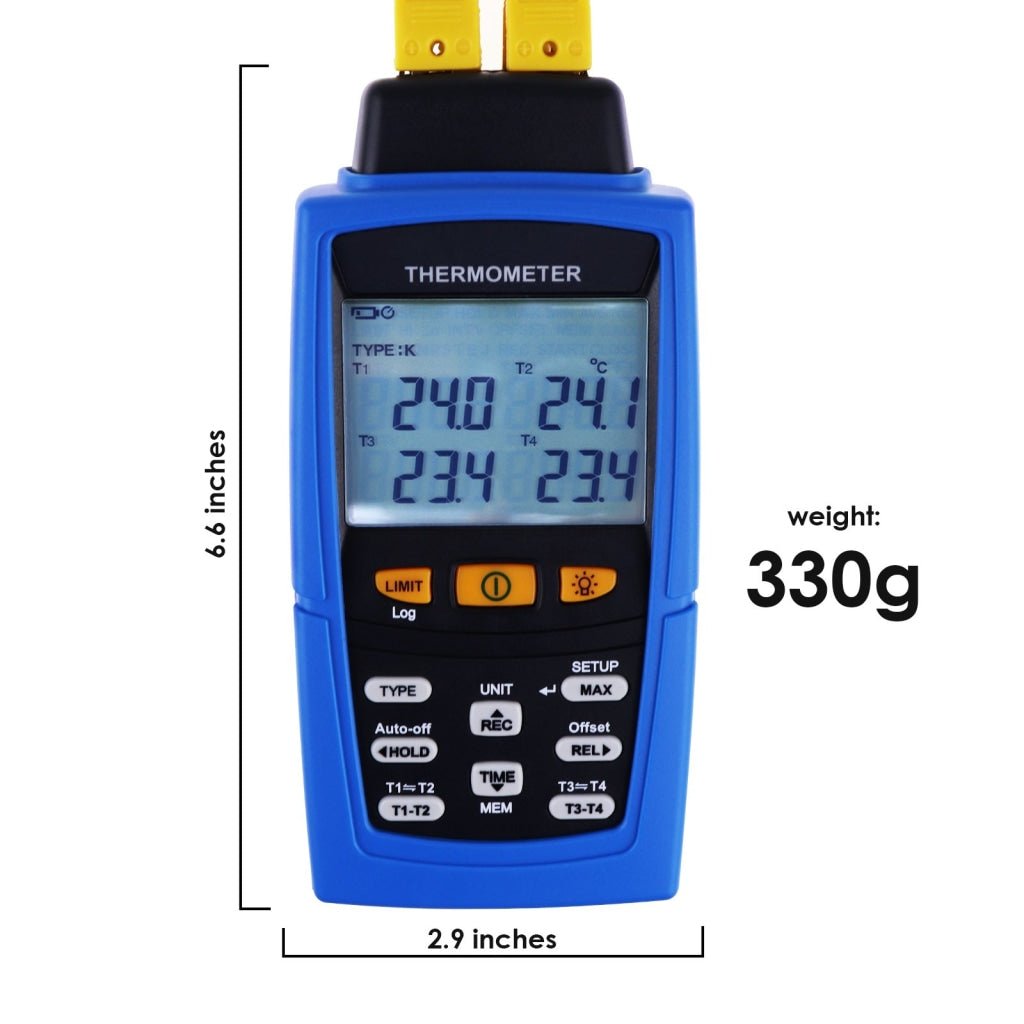

  • Dimension: approx. 168 x 73 x 35mm

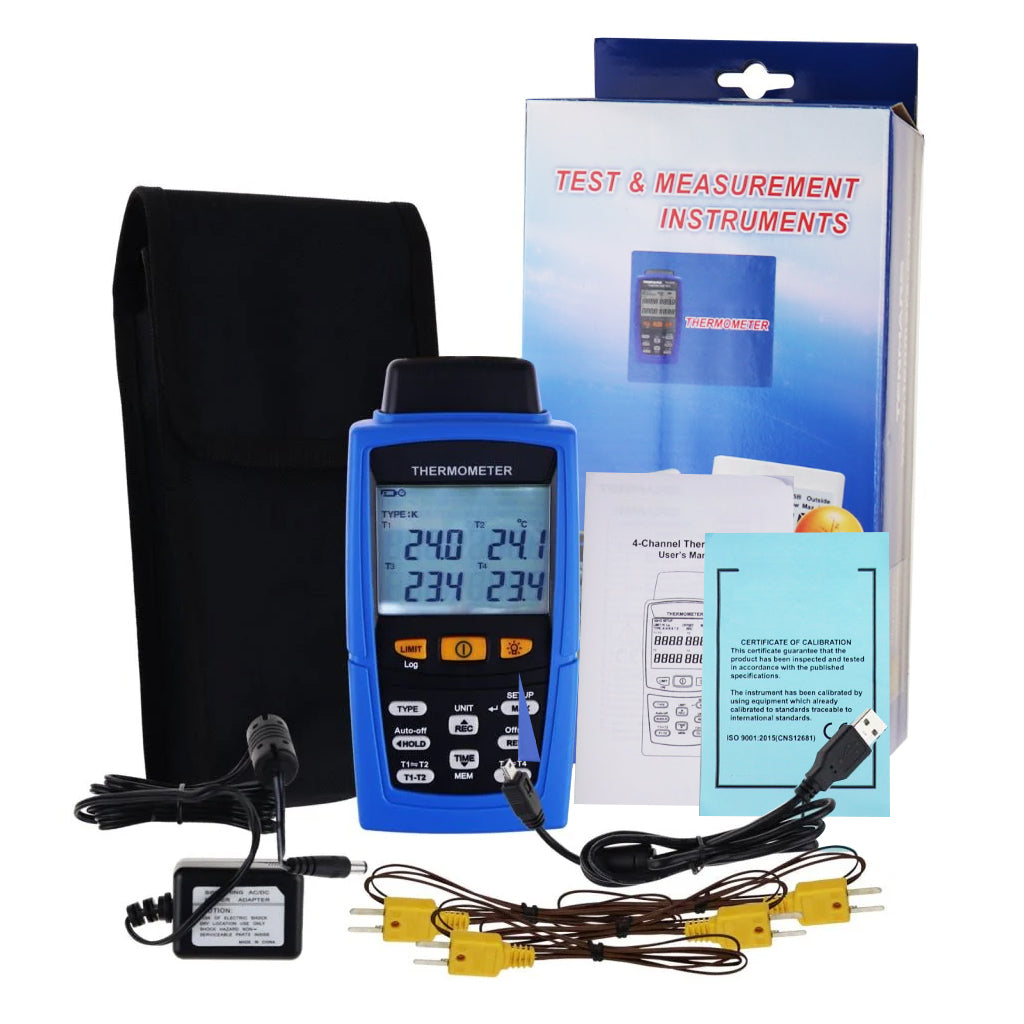

Set Includes:

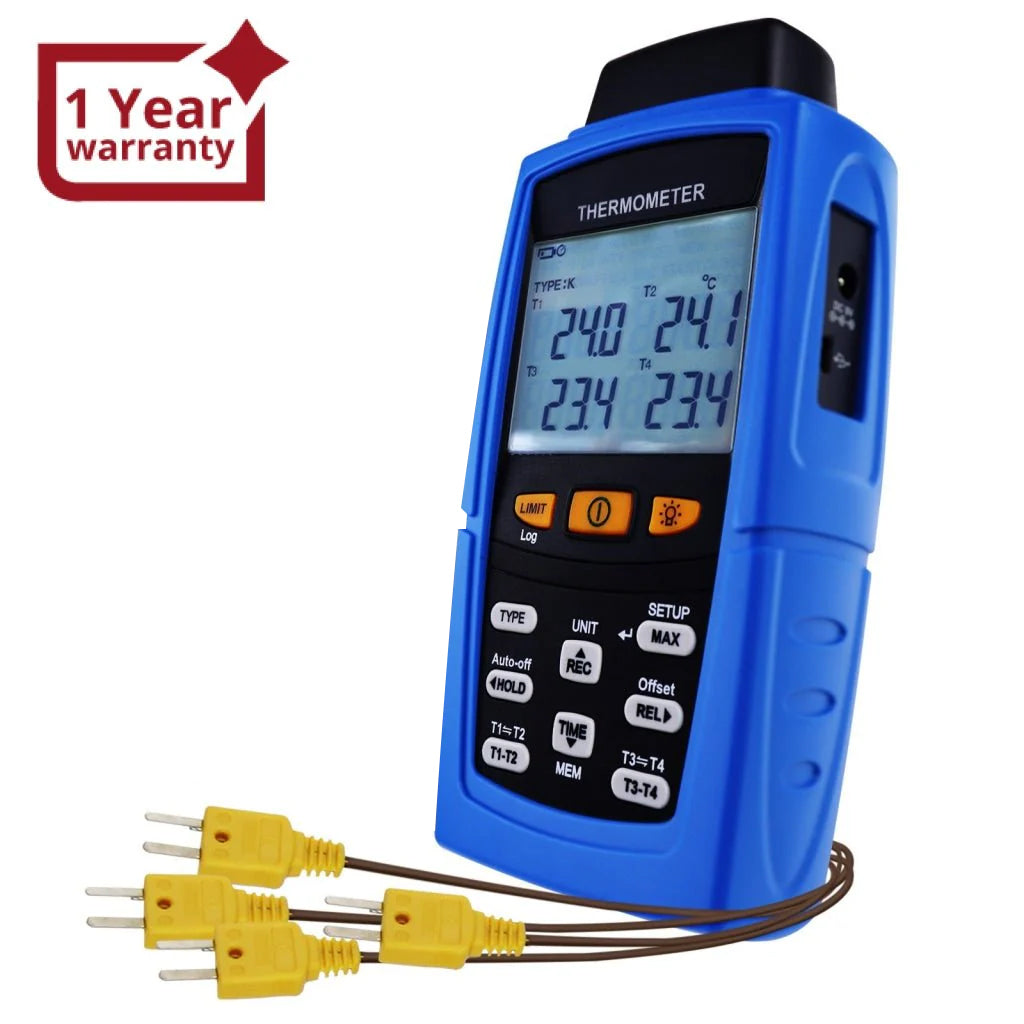

  • 1 x Thermocouple thermometer

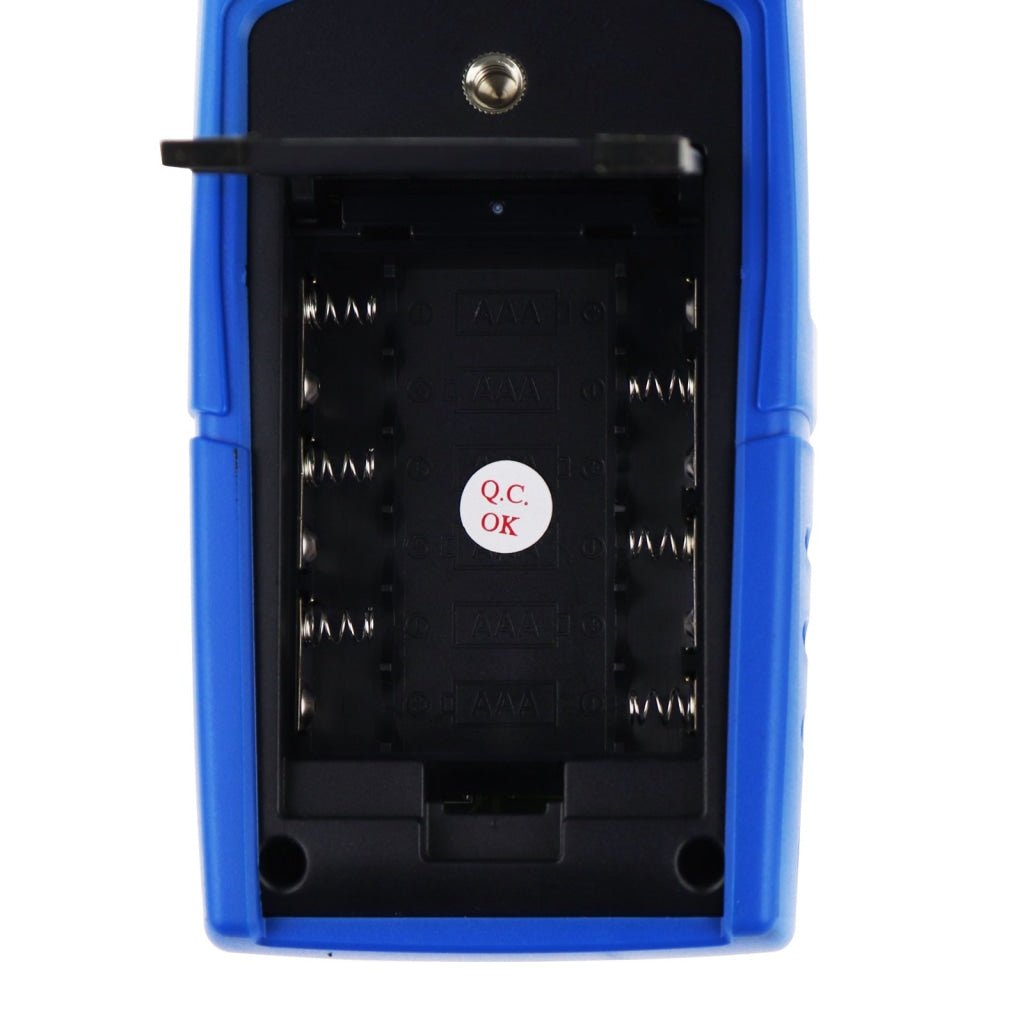

  • 6 x 1.5V AAA battery

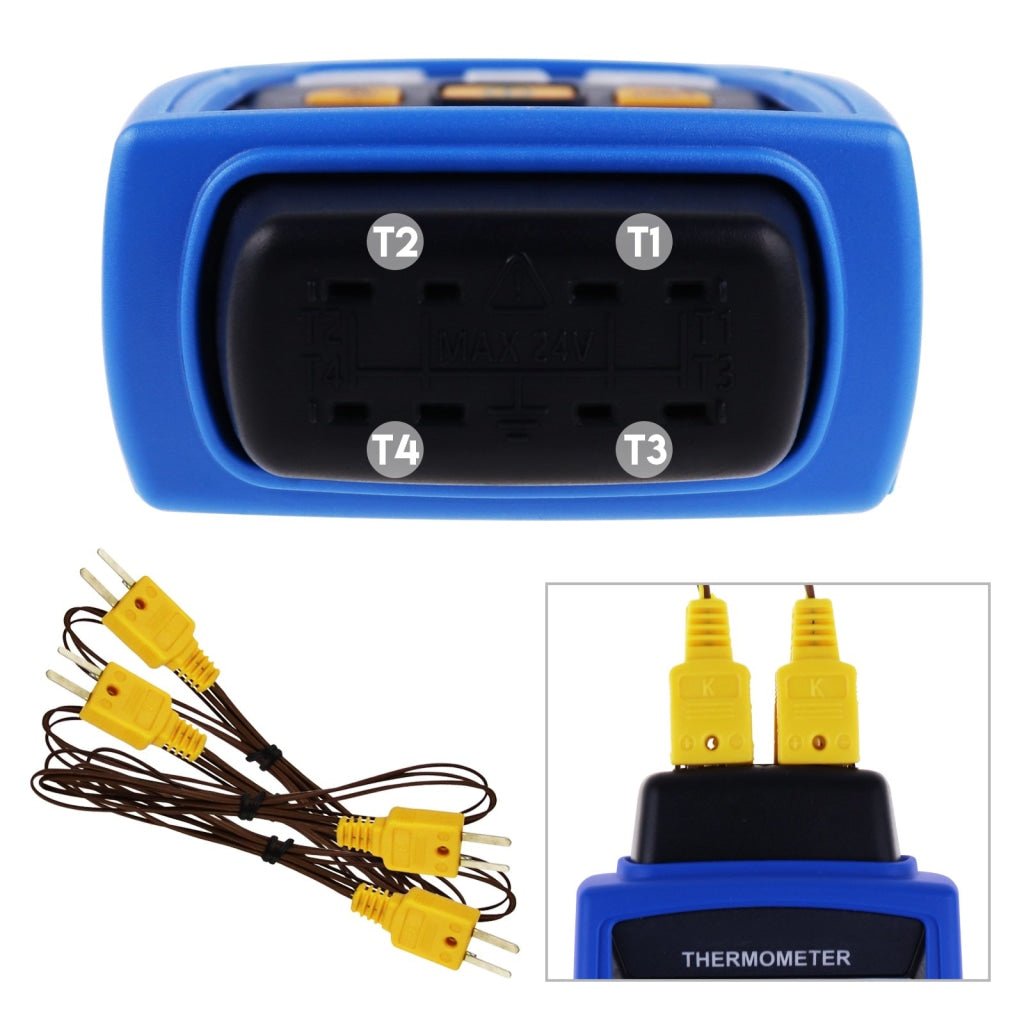

  • 4 x K-type Thermocouple probe

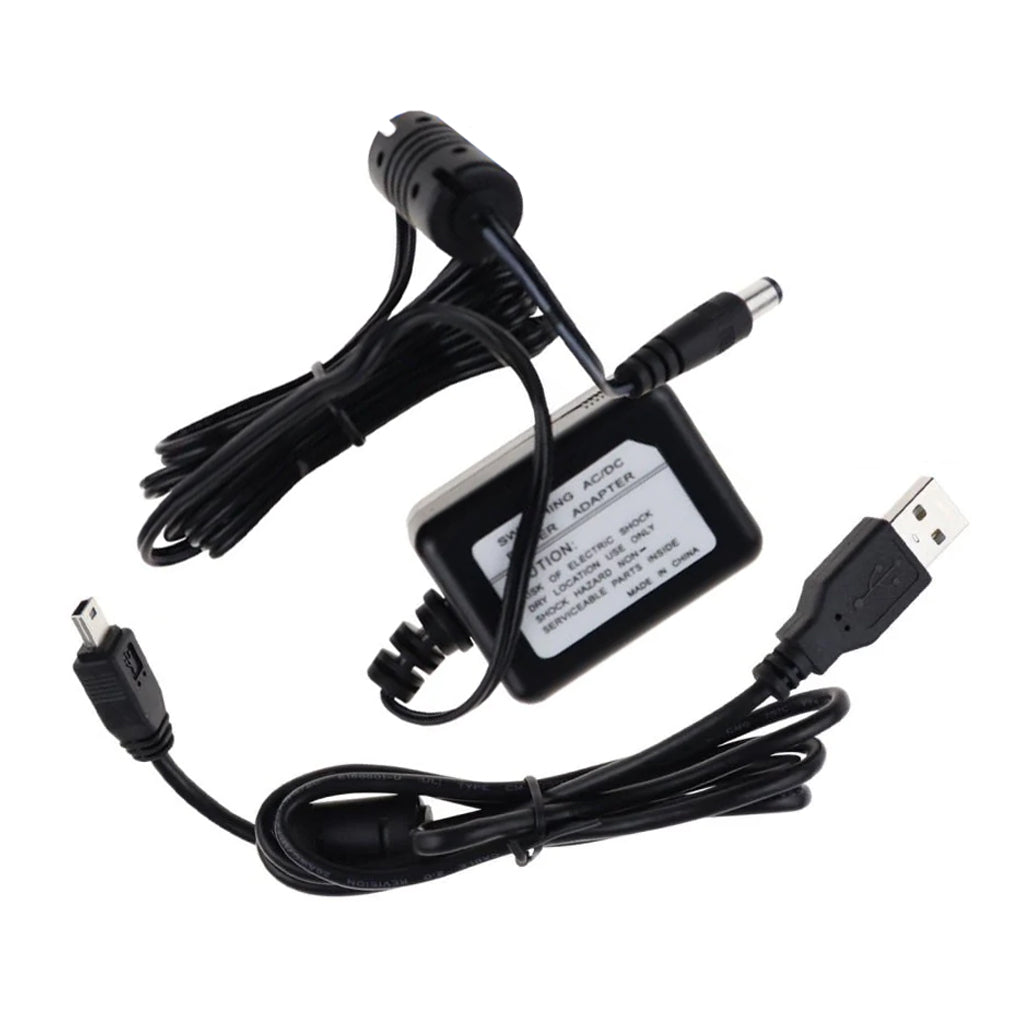

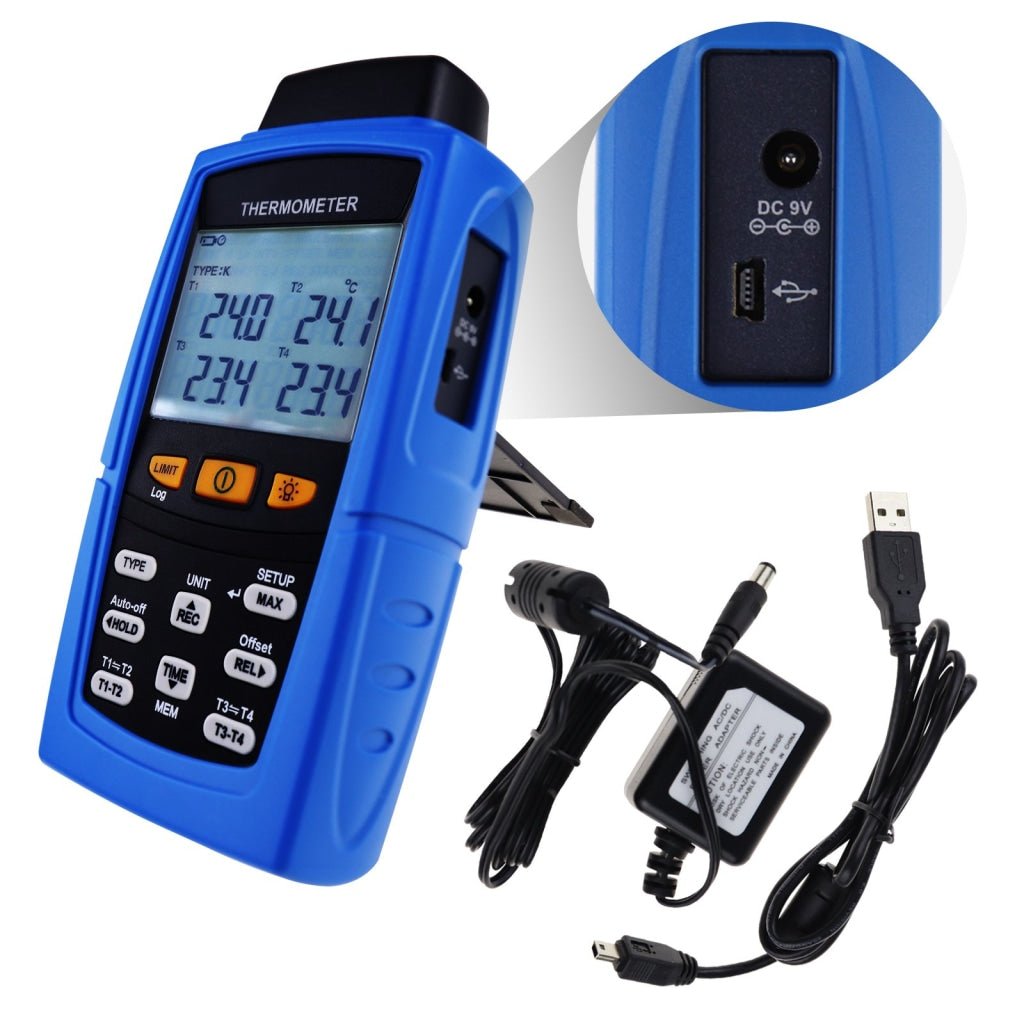

  • 1 x 9V AC to DC adaptor
  • 1 x USB Cable
  • English Instruction Manual

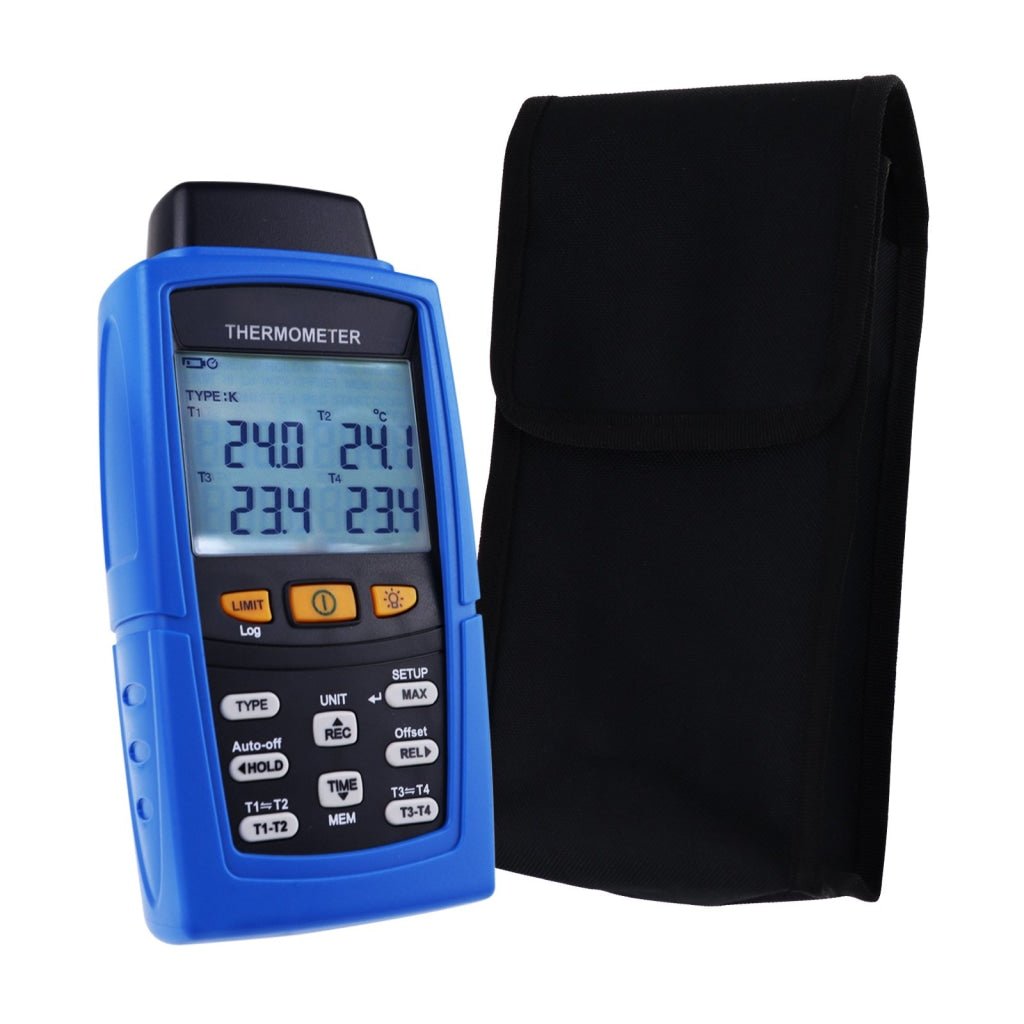

  • Carrying Pouch
  • Standard Factory Packaging

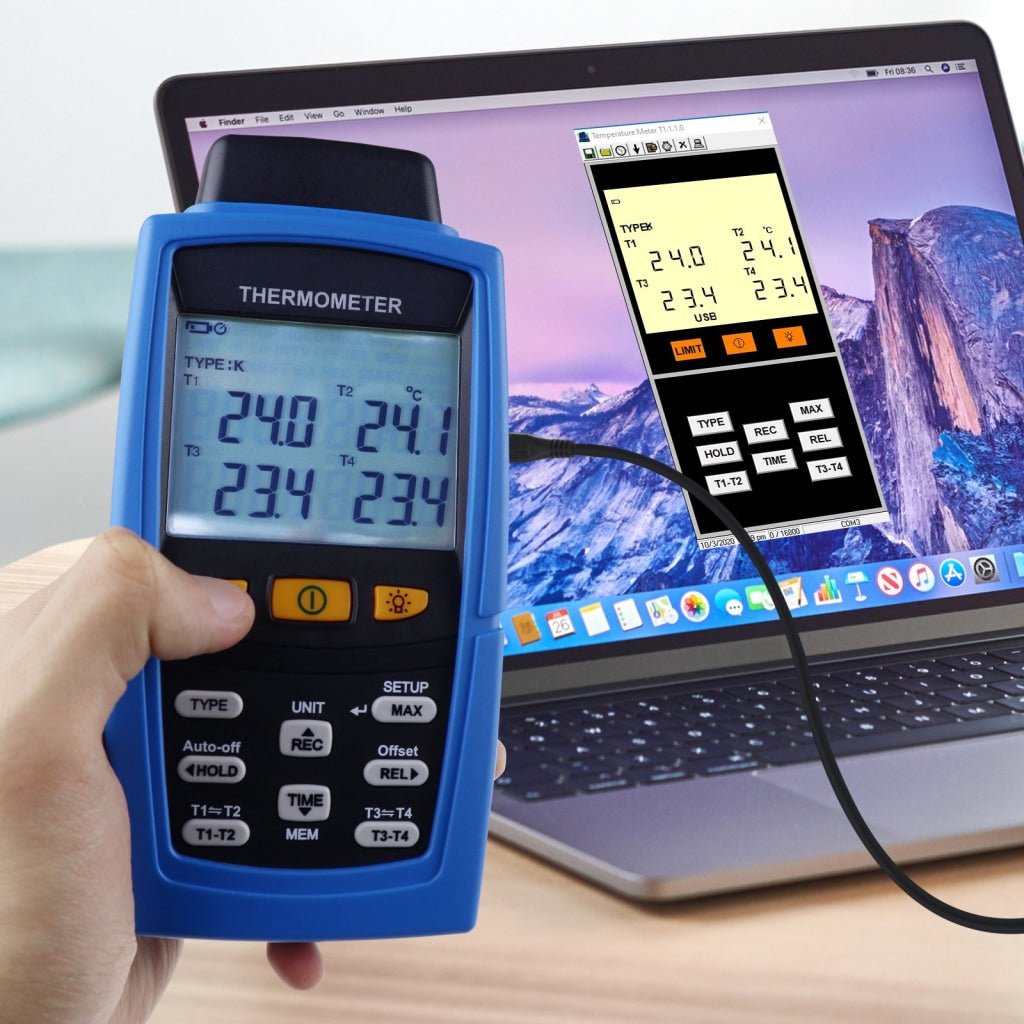

    Download Software
