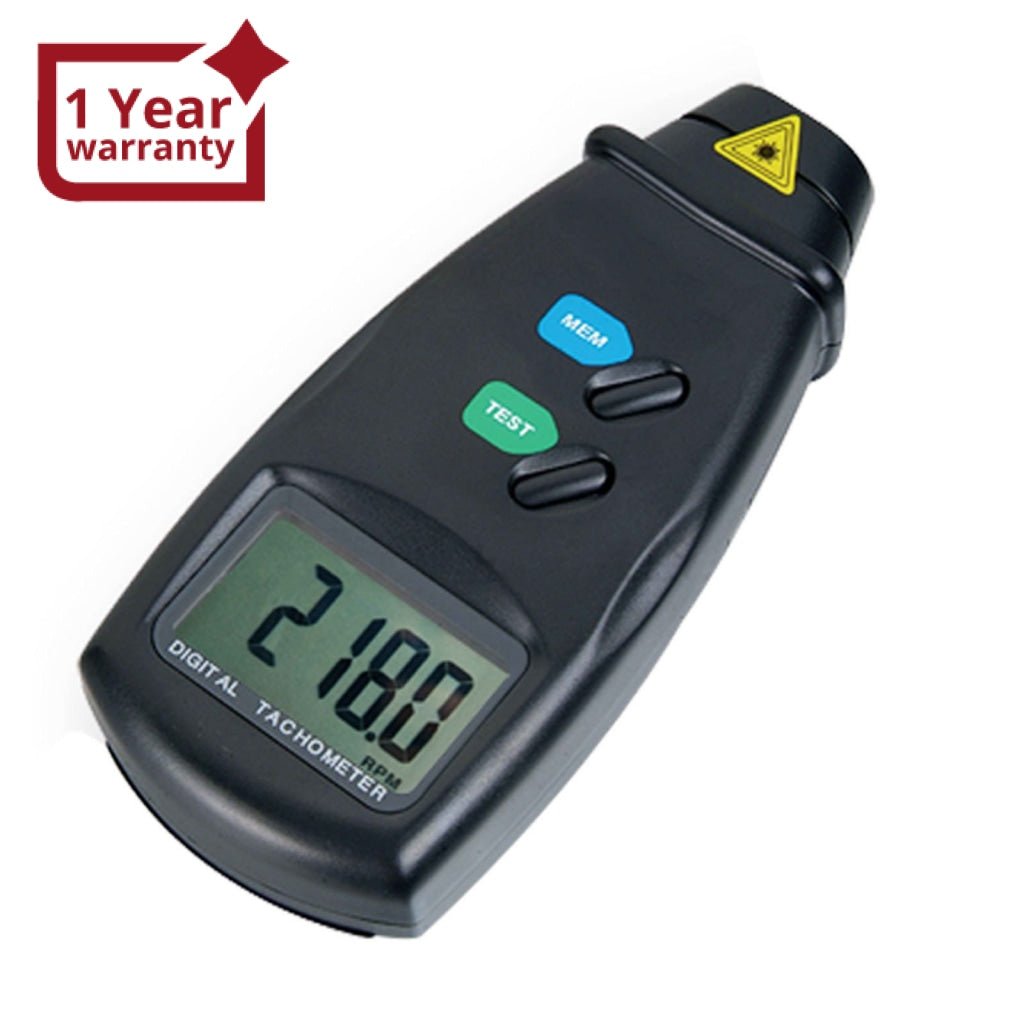

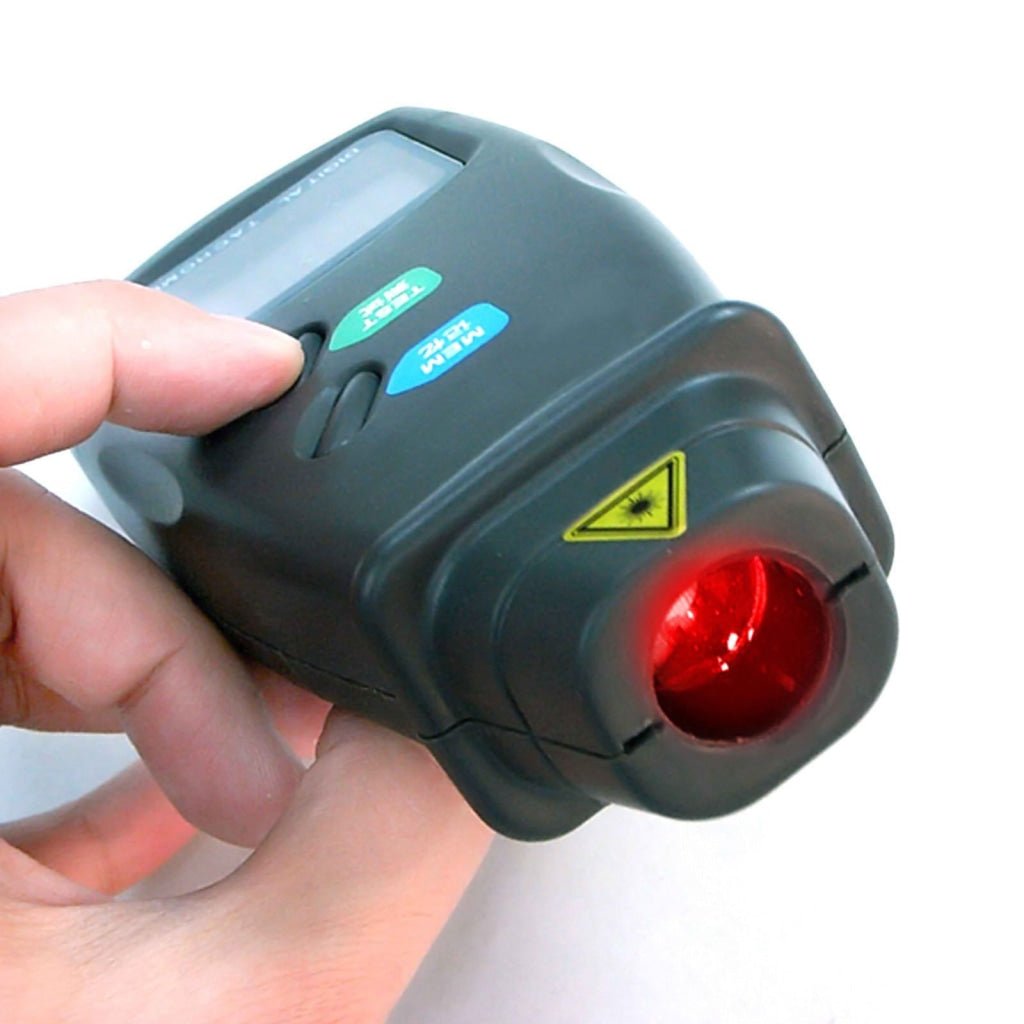

ILTA-828 Digital Laser Non-Contact Photo Tachometer RPM Measurer with LED Laser for HVAC Automotive Tool

Sku: ILTA-828
$32.90 USD
Translation missing: en.products.product.shipping_policy_html
Quantity:
Add to Wishlist Remove From Wishlist
Visa Mastercard PayPal American Express Google Pay Apple Pay Shop Pay

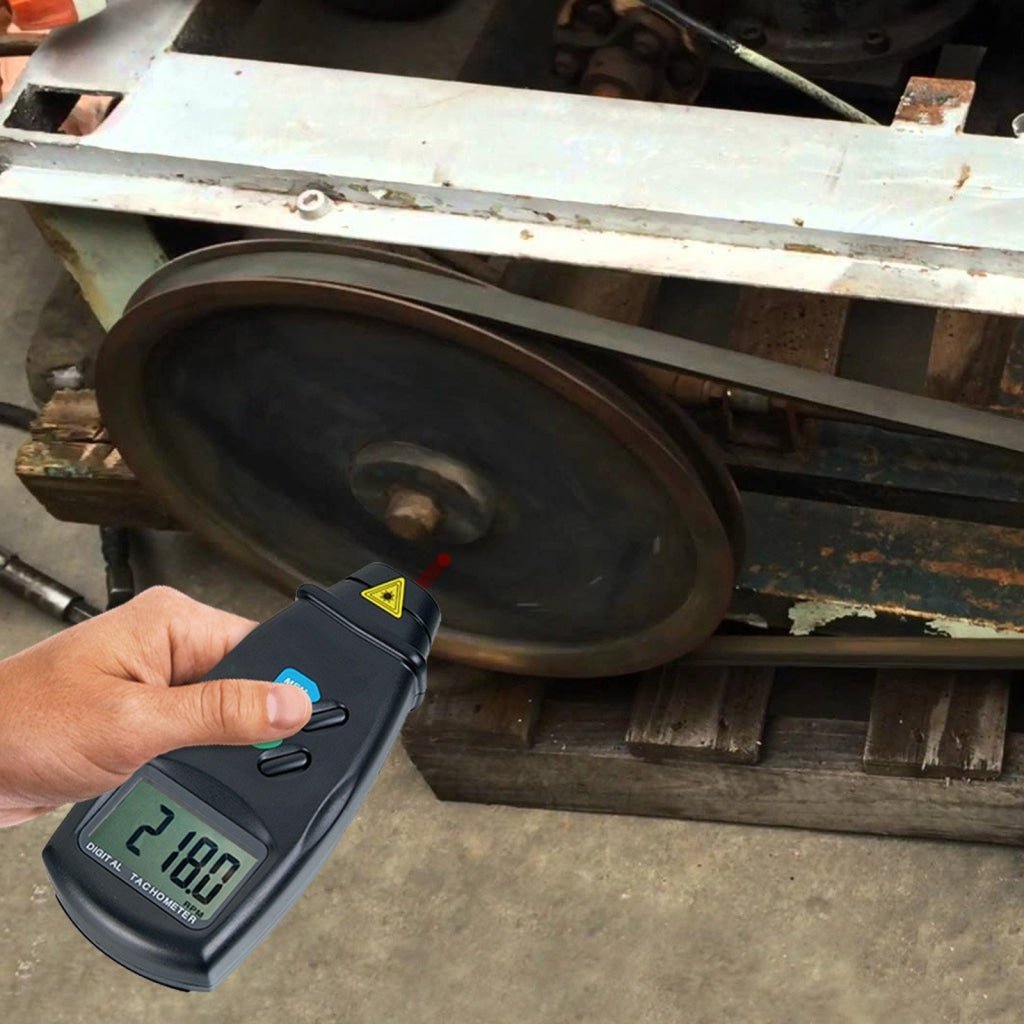

ILTA-828 is a high quality electronics that tool can measure the rotational speed (RPM) icts with wide measuring range and high resolution. It is applicable for measuring: speed of rotating machinery, motors, wheels, lathe for metal or wood cutting works and others.

Applications & Uses : This speed sensing device can be used in automobiles, trucks, tractors, aircraft, trains, light rail vehicles, and automotive.

Features

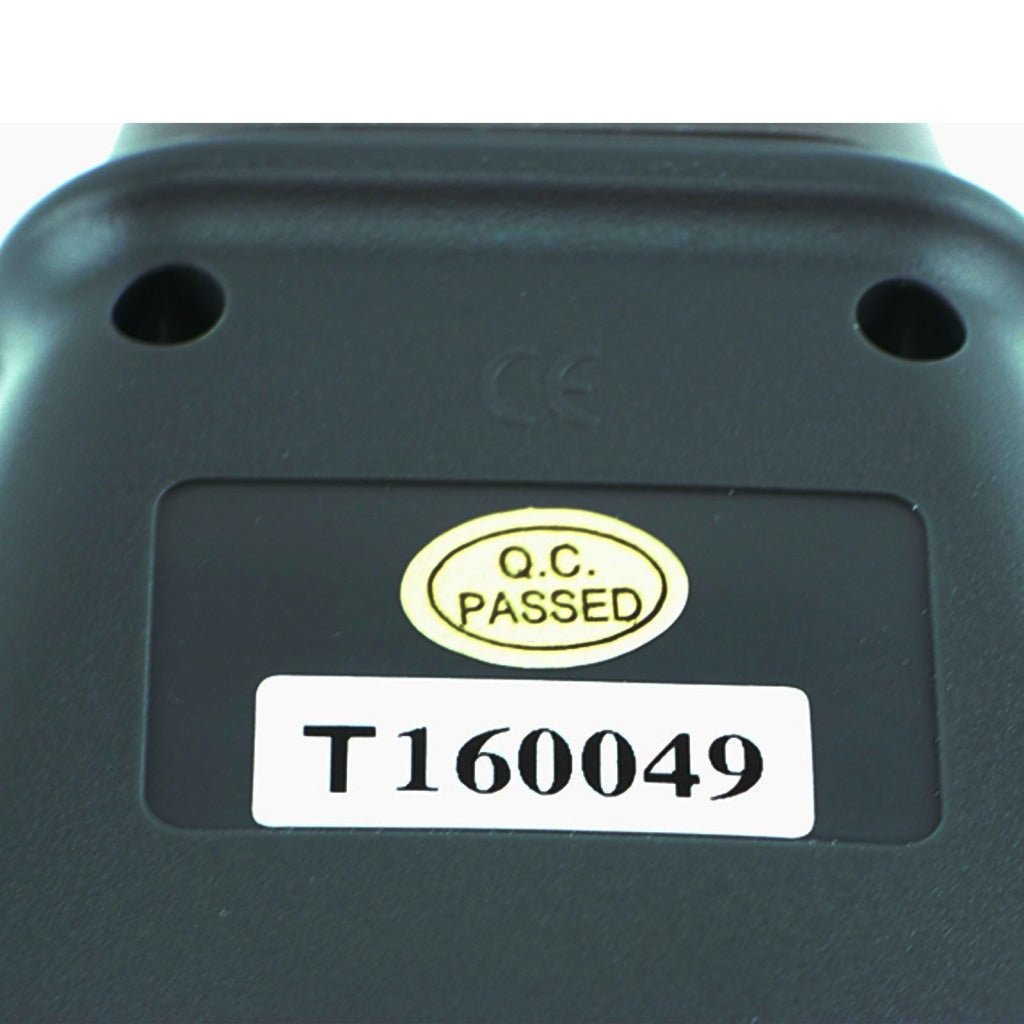

  • Tested according to European international guidelines and standards (CE Marking)
  • Wide measuring range, high Accuracy and Resolution
  • Long detecting distance up to 500mm(20 inch) with Laser

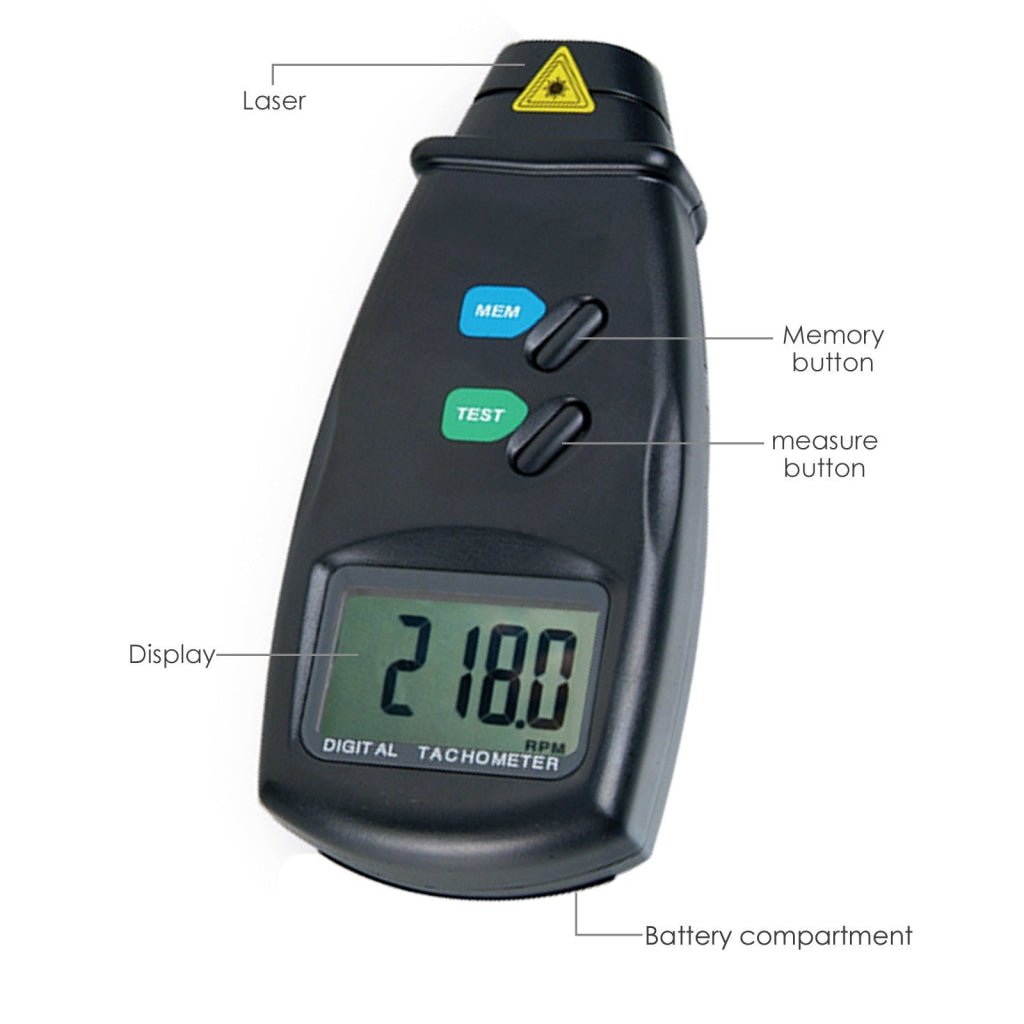

  • Large 5 digits LCD Display
  • Auto test range select
  • Use Microcomputer LSI circuit and crystal time base offering high accuracy and quick measurement time
  • Highly accurate, displays exact RPM with no guessing errors
  • With fraction of minute sampling time(0.8 sec)
  • Maximum, Minimum and Last Measured value
  • Wide Detecting distance
  • Carefully shaped to fit comfortably in hand Either
  • Low battery indication
  • Durable & Reliable


Specifications

  • LCD Display: 5 digits, 18mm (0.7")LCD with Function Annunciation

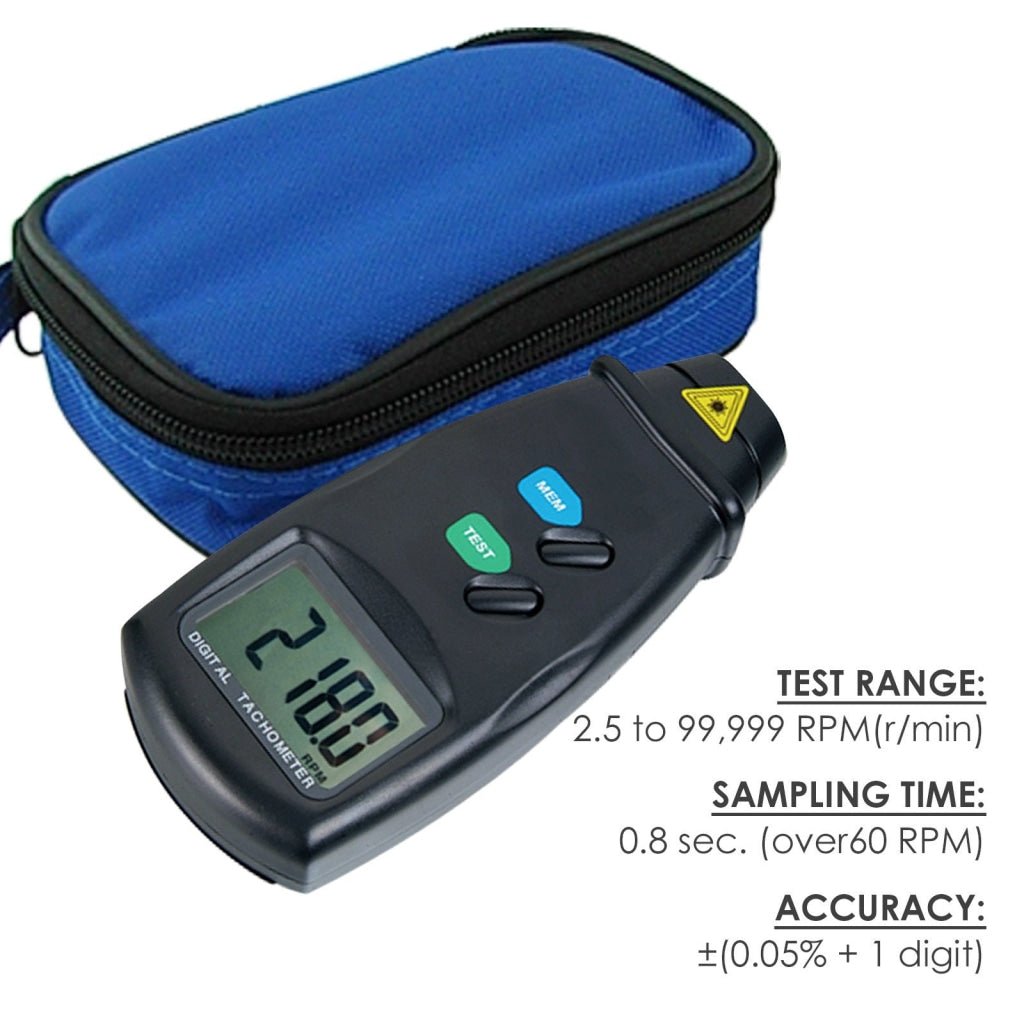

  • Test Range: 2.5 to 99,999 RPM(r/min)
  • Resolution: 0.1 RPM (2.5 to 999.9RPM)
                            1 RPM (over 1,000 RPM)
  • Accuracy:  ±(0.05% + 1 digit)
  • Sampling Time:  0.8 sec. (over60 RPM)
  • Test range selection:   Automatic
  • Memory : Max. value, Min. value and Last value
  • Detecting Distance:
    • 50~200mm / 2~10 inches (LED)
    • 50~500mm / 2~20 inches (Laser)
  • Time Base :  Quartz Crystal
  • Circuit:  Exclusive one-chip of micro computer LSI Circuit

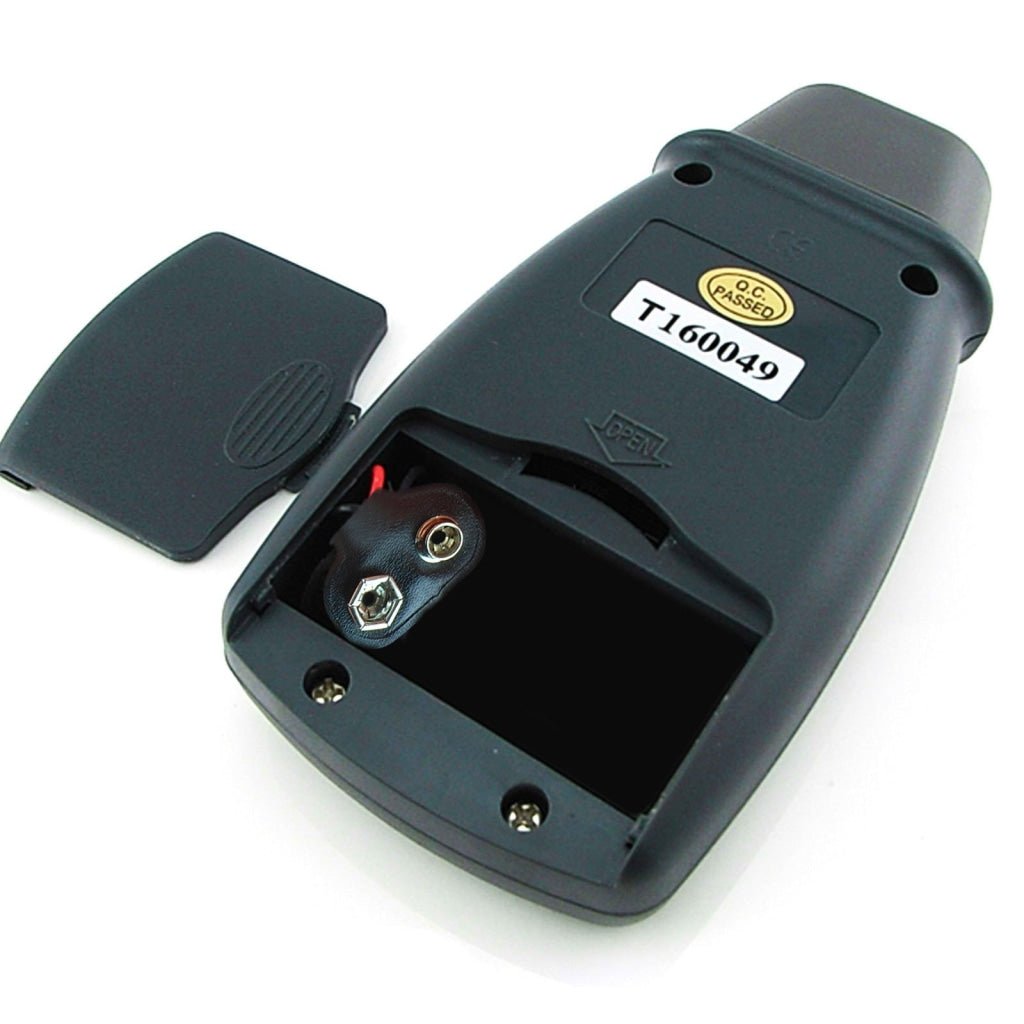

  • Power Supply:  9V Battery (included)
  • Power Consumption:
    • Approx. 35mA (LED)
    • Approx. 30mA (LED)
  • Operating Temperature:  0~50°C (32~122°F)

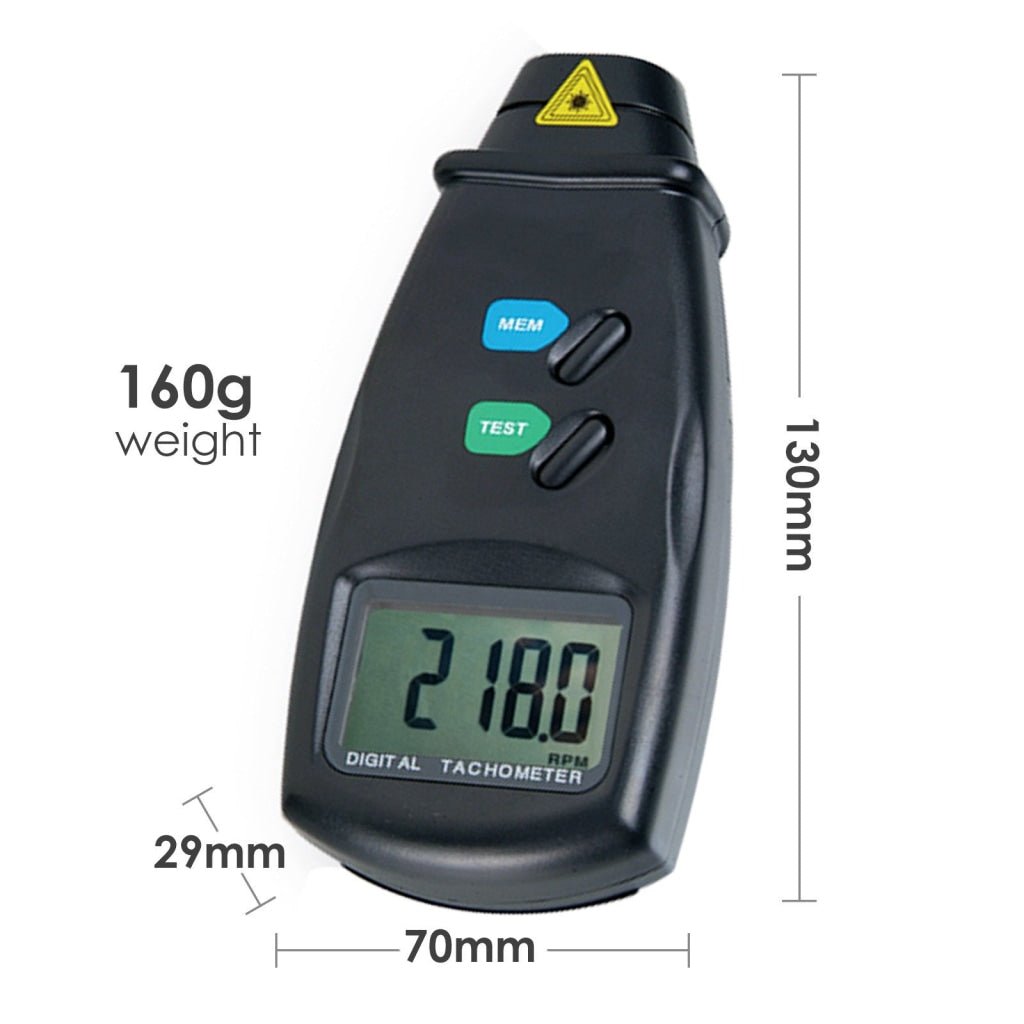

  • Size:  131 x 70 x 29 mm
  • Weight:  160g (including batteries)

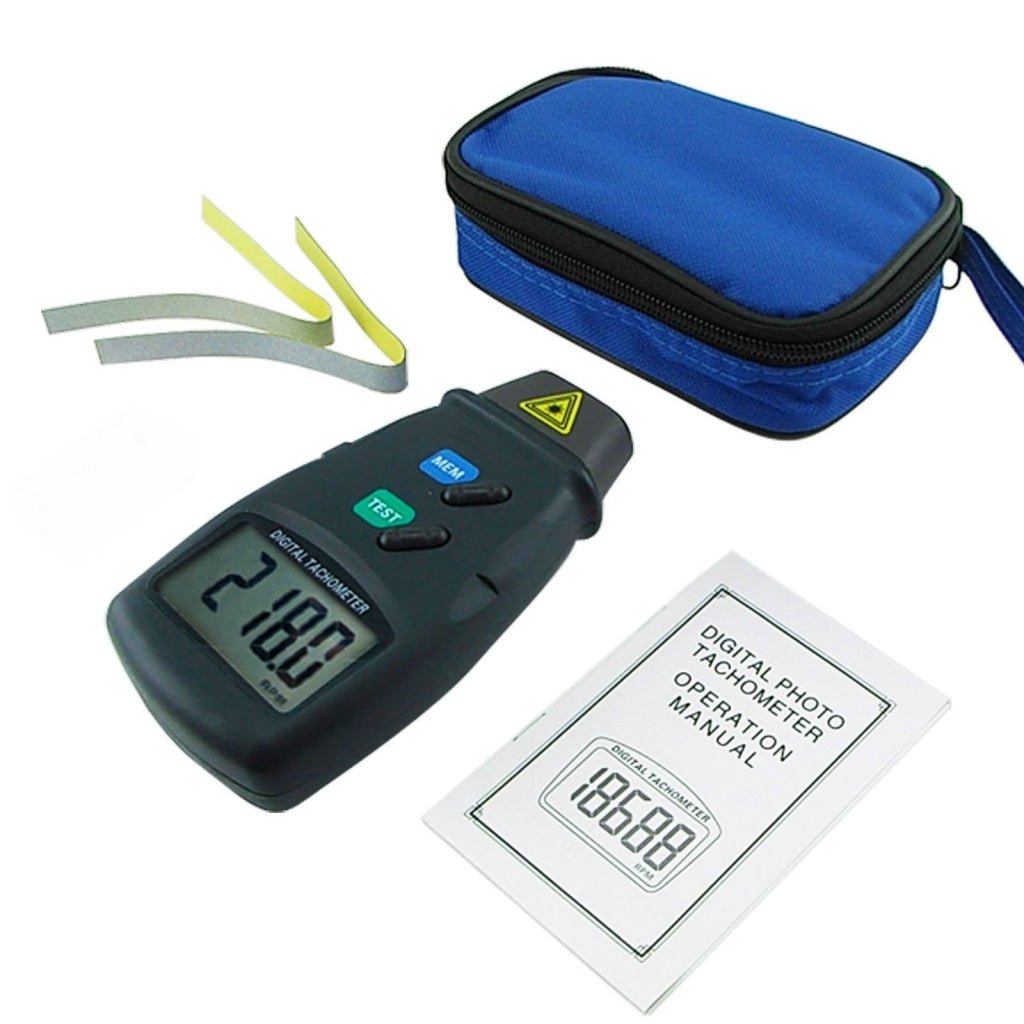

Set Includes
  • 1 x Digital Tachometer
  • 2 x 600mm Reflective Tape Mark
  • 1 x 9V Battery
  • 1 x Protective Carrying Case
  • English Quick Start Guide
  • Standard Factory Package



A printed user manual is already included with this item. No digital user manual or software is available.

RETURN AND REFUND

Most new, unopened items can be returned within thirty (30) days of delivery for a full refund. If the return is due to our error—such as receiving an incorrect or defective item—we will also cover the return shipping costs.

If you request a refund, it will be issued using the original payment method within four (4) weeks after you hand the package over to the return carrier. This timeframe includes shipping transit to our facility, processing upon receipt, and the time required for the refund to be posted to your account.

WARRANTY POLICY

Most of our items come with one (1) year warranty for manufacturer defects. It does not include damage caused by misuse, accidents, abuse, alterations, neglect or other external causes.

The warranty will not extend to consumables (i.e. electrodes, calibration solution, battery, index oil), accessories, cable, compact disk and/or any written document bundled with the item.

For more information, please visit our Return, Refund, and Warranty Policy page.
