ILRH-225 Portable Concrete Rebound Hammer Resiliometer Test Meter Tool 10-70 Mpa Professional Schmidt Hammer

Sku: ILRH-225
$155.90 USD
Translation missing: en.products.product.shipping_policy_html
Quantity:
Visa Mastercard PayPal American Express Google Pay Apple Pay Shop Pay

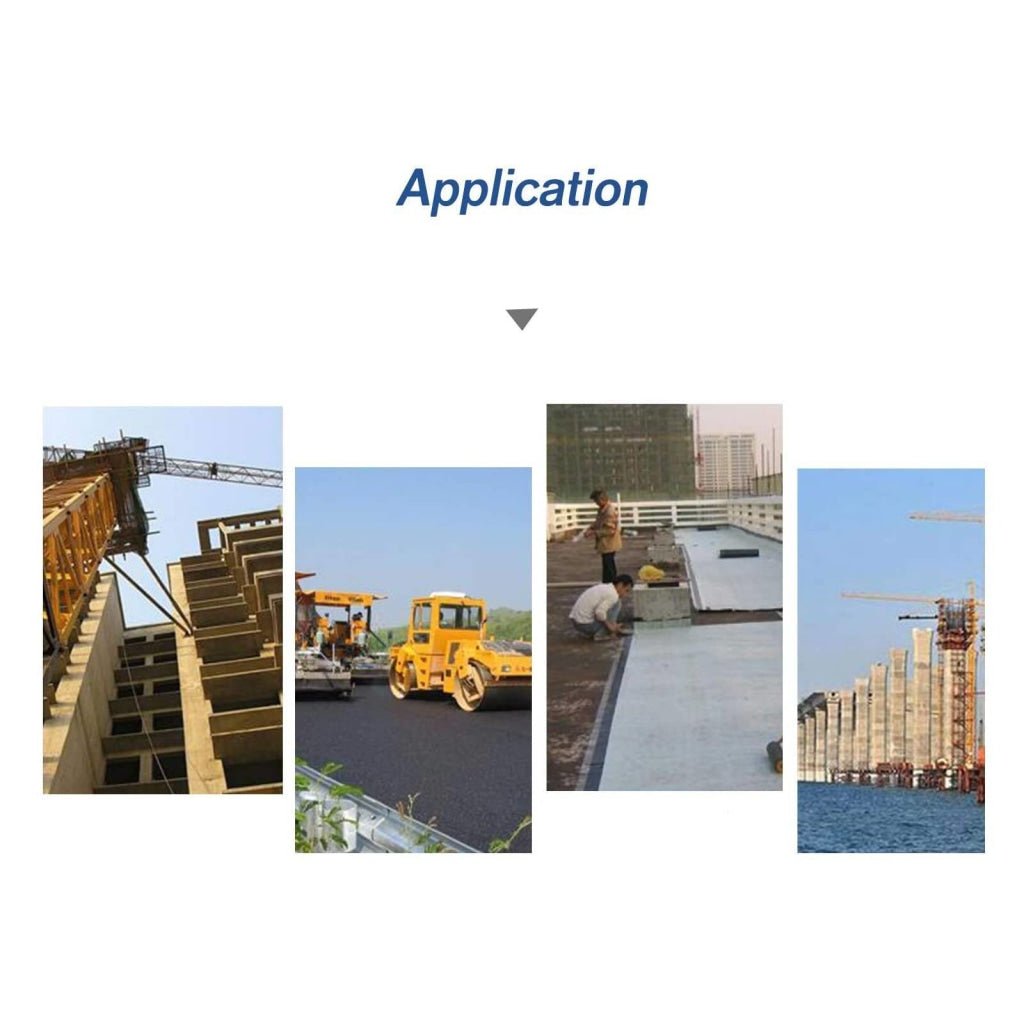

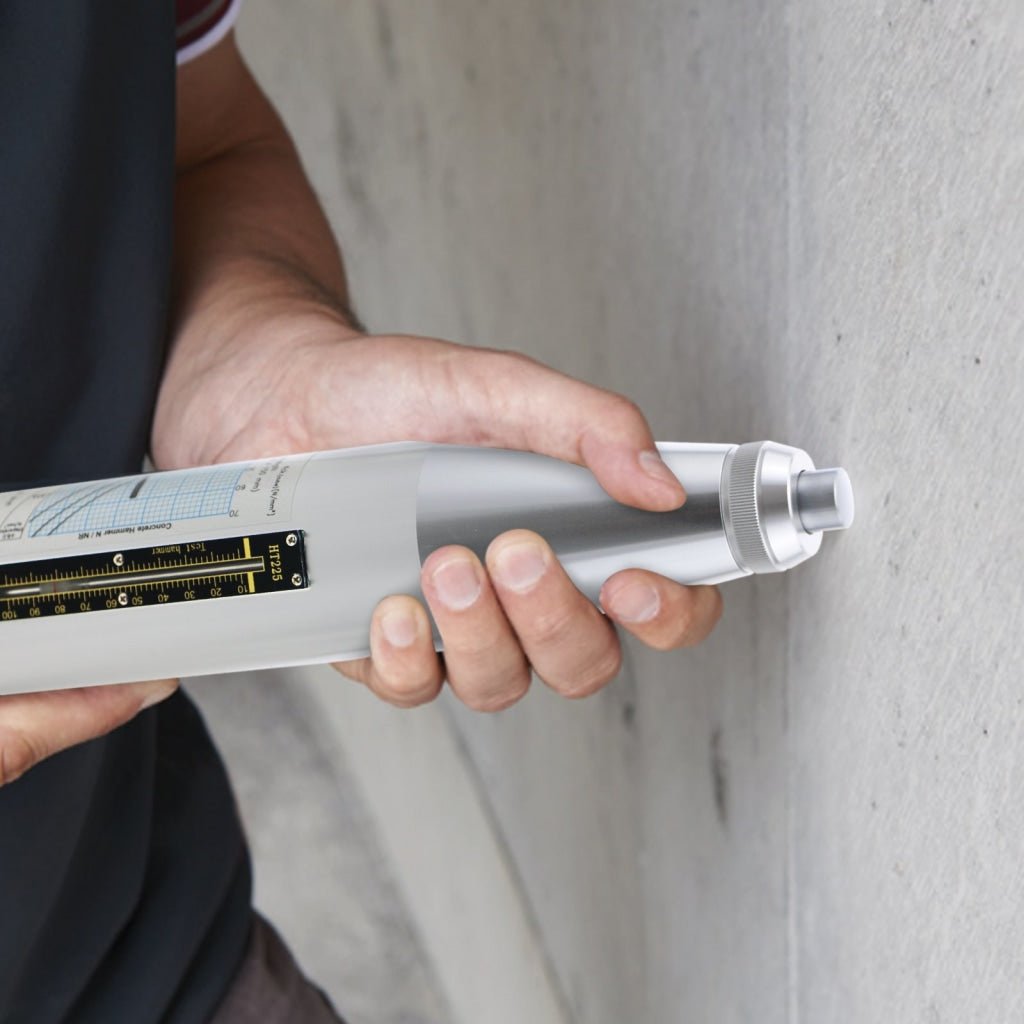

Concrete rebound tester is used to test the compressive strength of concrete, and it is the most widely used non-destructive testing instrument for concrete compressive strength. It has certain strength and strong fatigue resistance. Suitable instrument for testing buildings, highway and bridges.

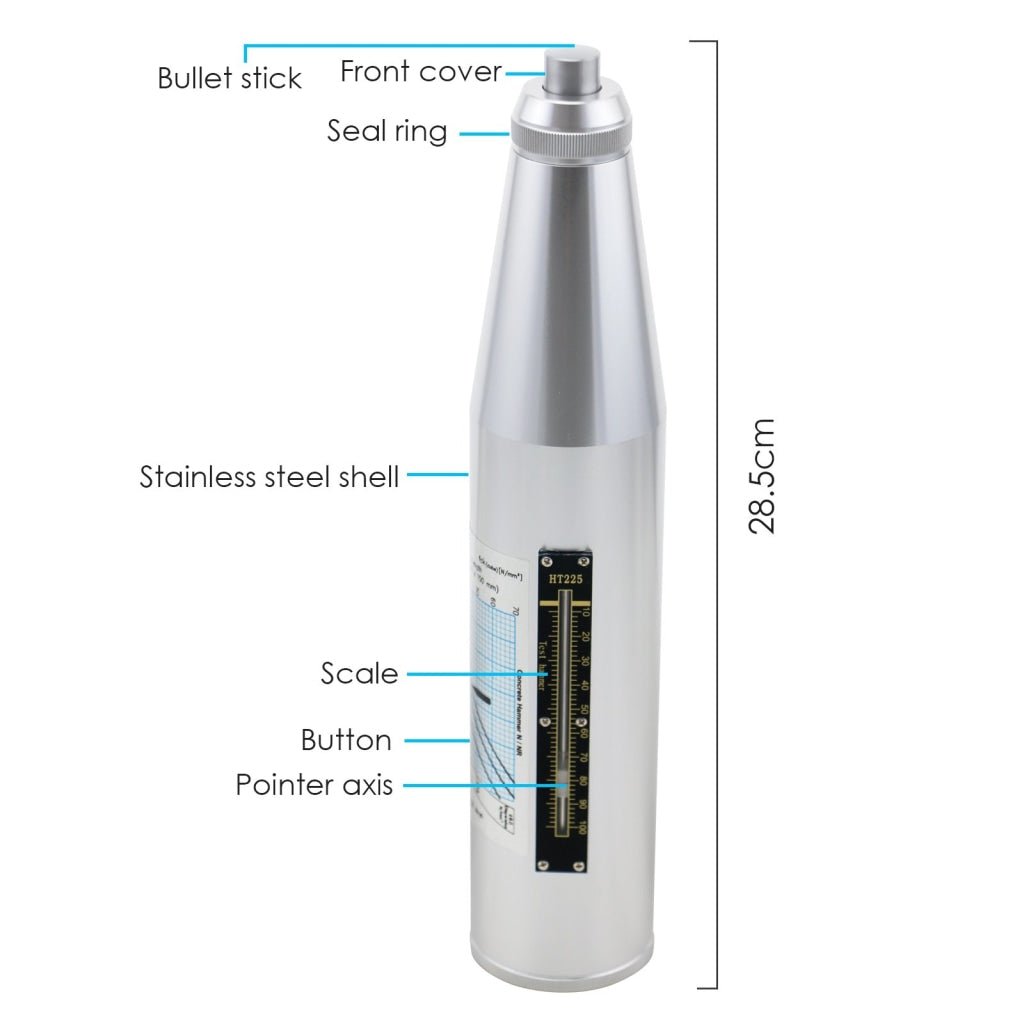

Features:

  • Center rod is made from imported material, high accuracy and durable resistance
  • The shell is made form high Aluminum in order to perfect protect instrument from damage and extend use life
  • Spherical zero adjustment screw: Springback is more smooth..

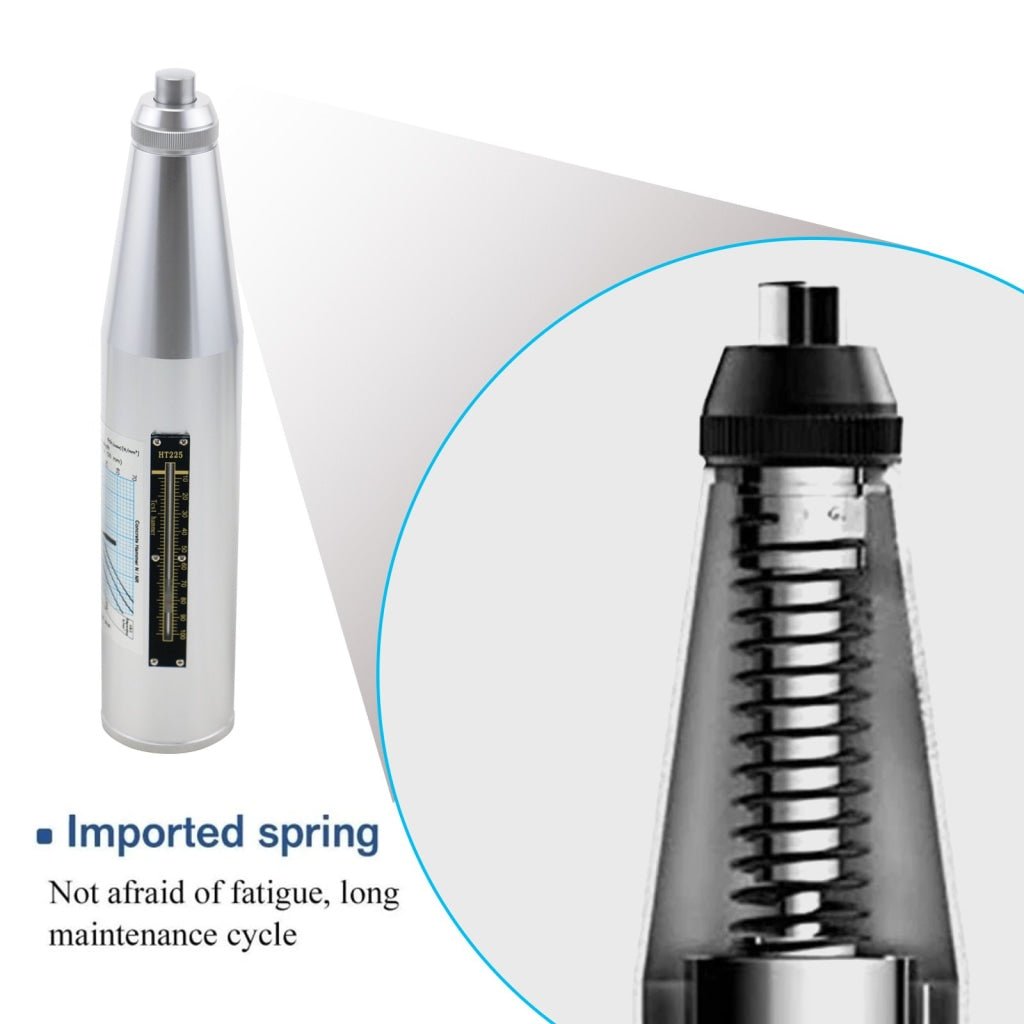

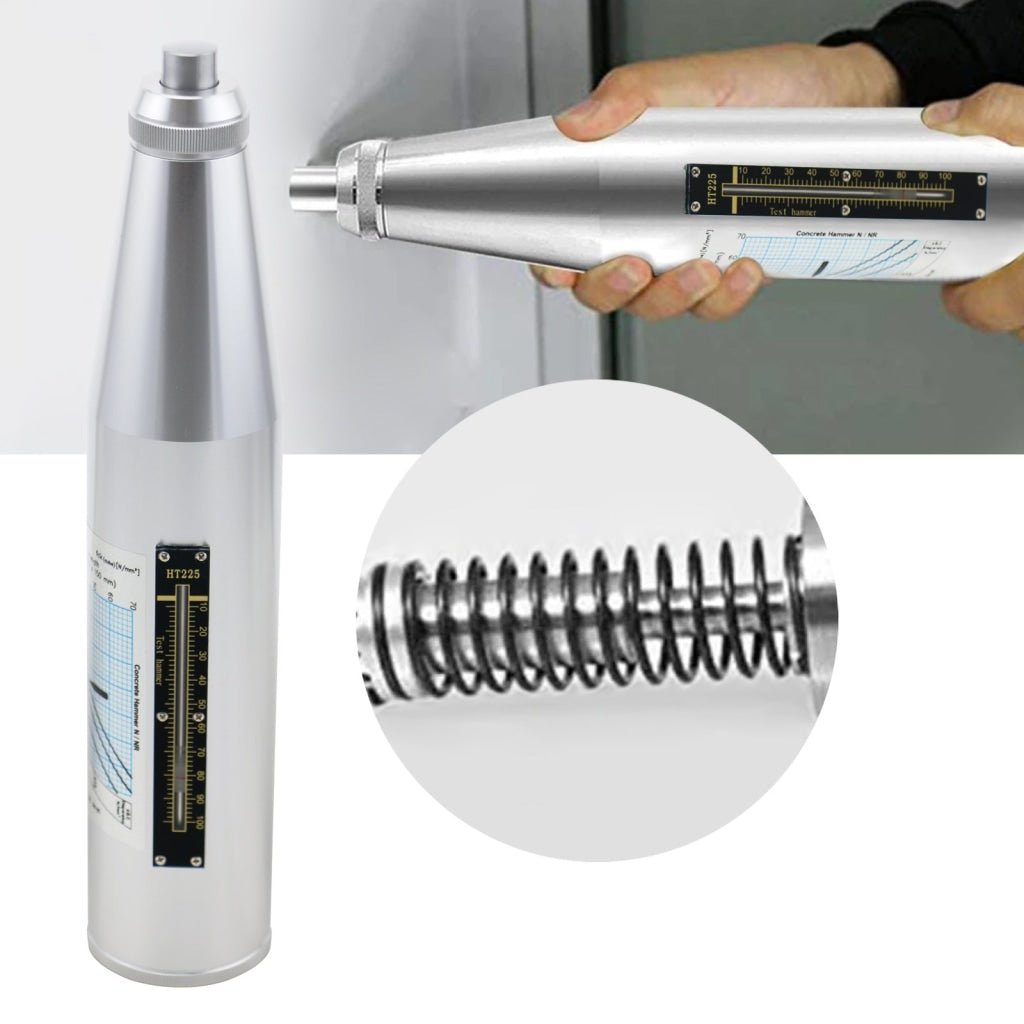

  • Cap/Spring: It has good mechanical properties and good stability.
  • Push button: With one click, it can be retractable.

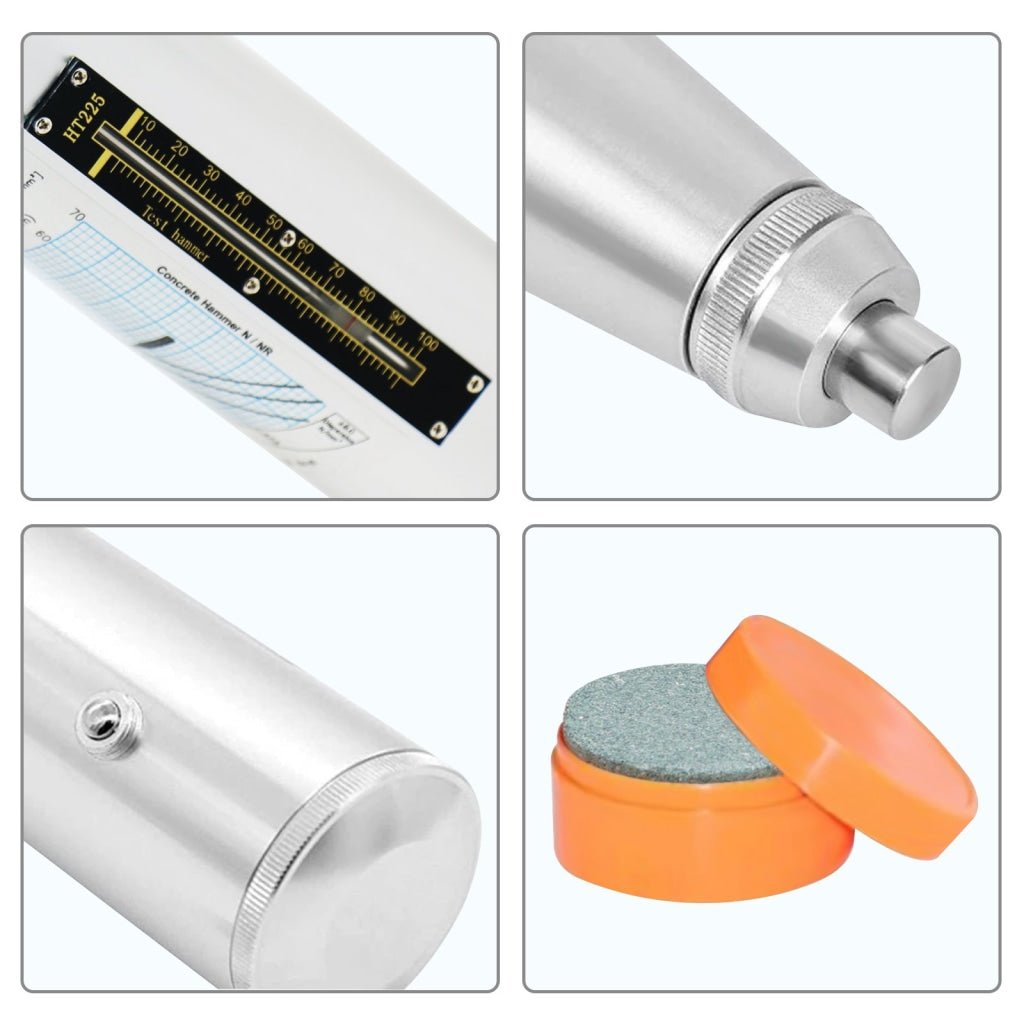

  • Scale: The scale is clear and the pointer is smooth.


Specifications:

  • Measuring range: 10~70MPa
  • Impact energy: 2.207J(0.225Kgf.m)
  • Spring extension: 2.95inch/75mm
  • Static friction of pointer slider: 0.5N~0.8N
  • Radius of spherical tip : 25mm±1mm
  • Average rebound values on steel anvil: 80±2

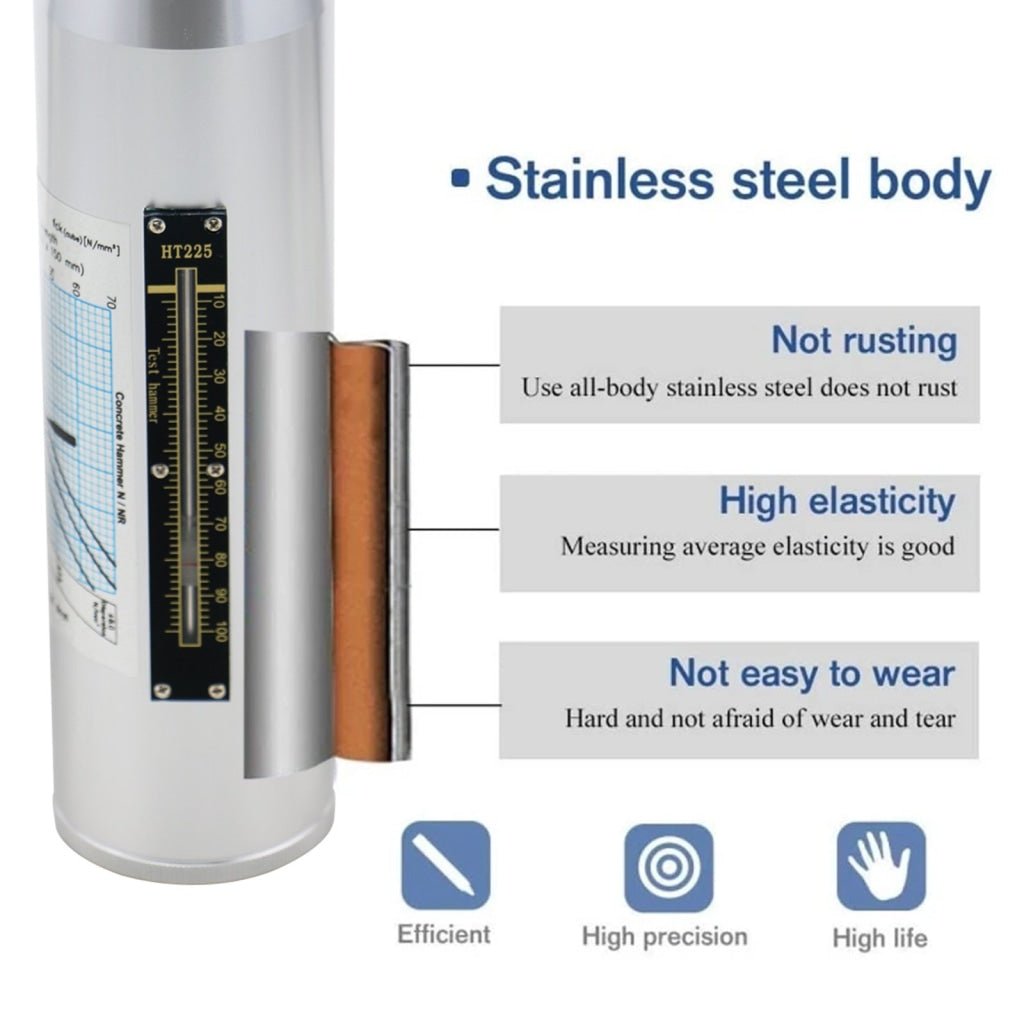

  • Material: Stainless Steel
  • Dimension: 60 x 280mm
  • Weight: 1.0kg

    Test Results Appendix

    Average Rebound Number Concrete Quality
    >40 Very Good
    30 - 40 Good
    20 - 30 Fair
    <20 Poor
    0 Delaminated

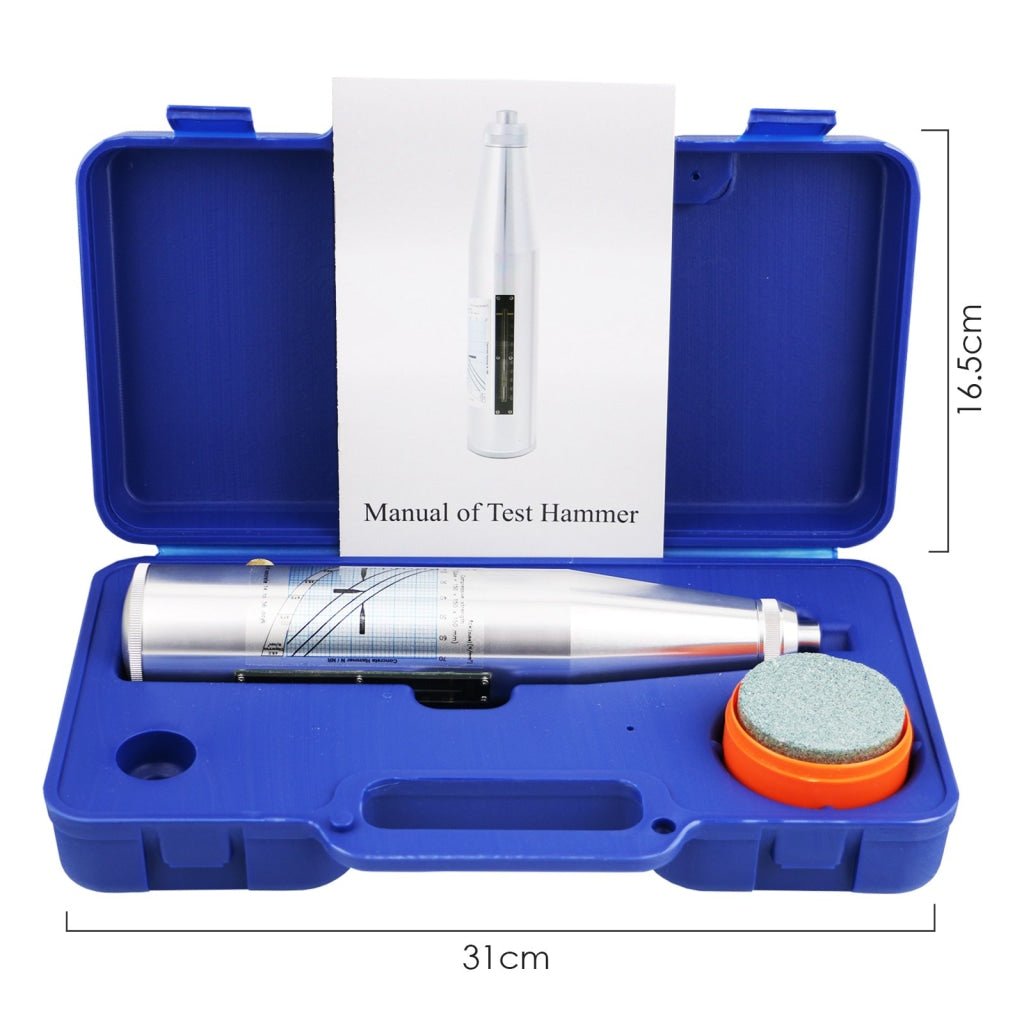

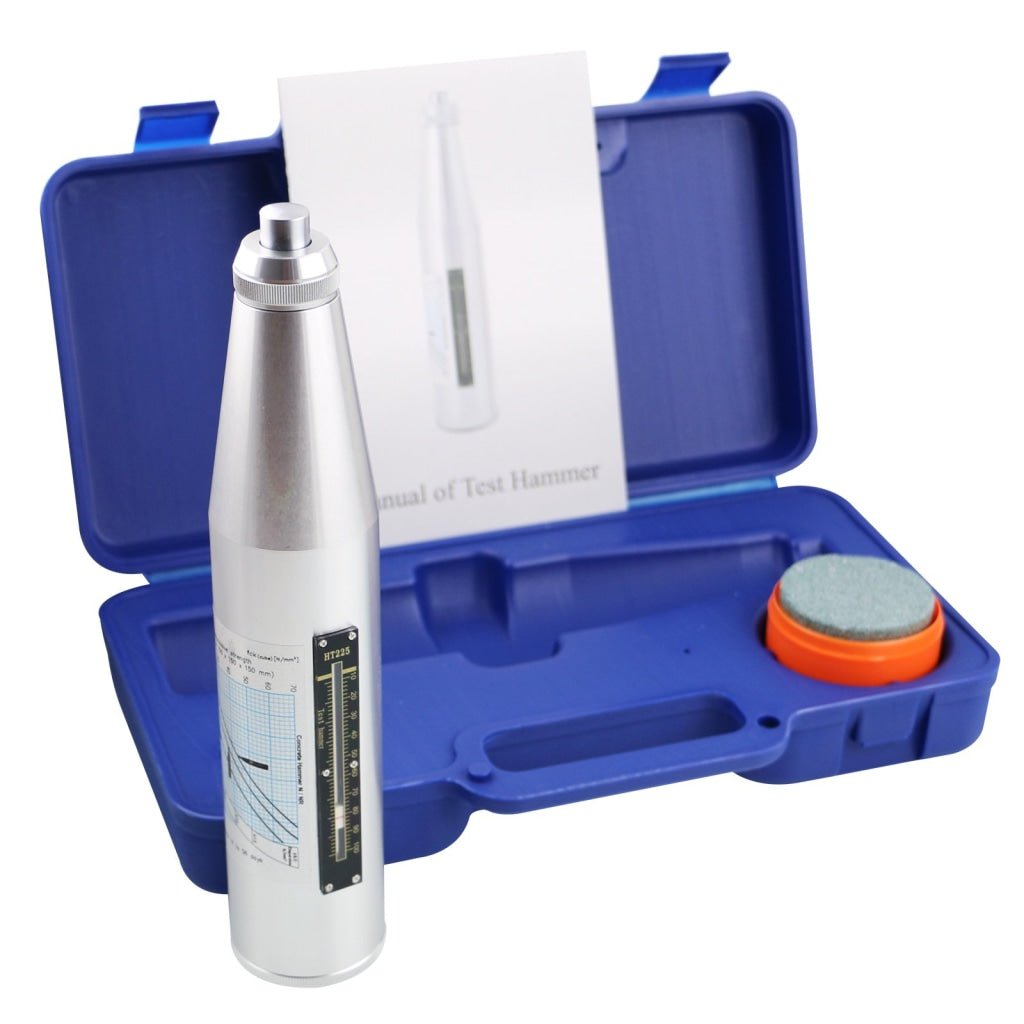

Set Includes:

  • 1 x Concrete Test Hammer
  • 1 x Millstone
  • English Instruction Manual
  • Carrying Case
  • Standard factory packaging

A printed user manual is already included with this item. No digital user manual or software is available.

RETURN AND REFUND

Most new, unopened items can be returned within thirty (30) days of delivery for a full refund. If the return is due to our error—such as receiving an incorrect or defective item—we will also cover the return shipping costs.

If you request a refund, it will be issued using the original payment method within four (4) weeks after you hand the package over to the return carrier. This timeframe includes shipping transit to our facility, processing upon receipt, and the time required for the refund to be posted to your account.

WARRANTY POLICY

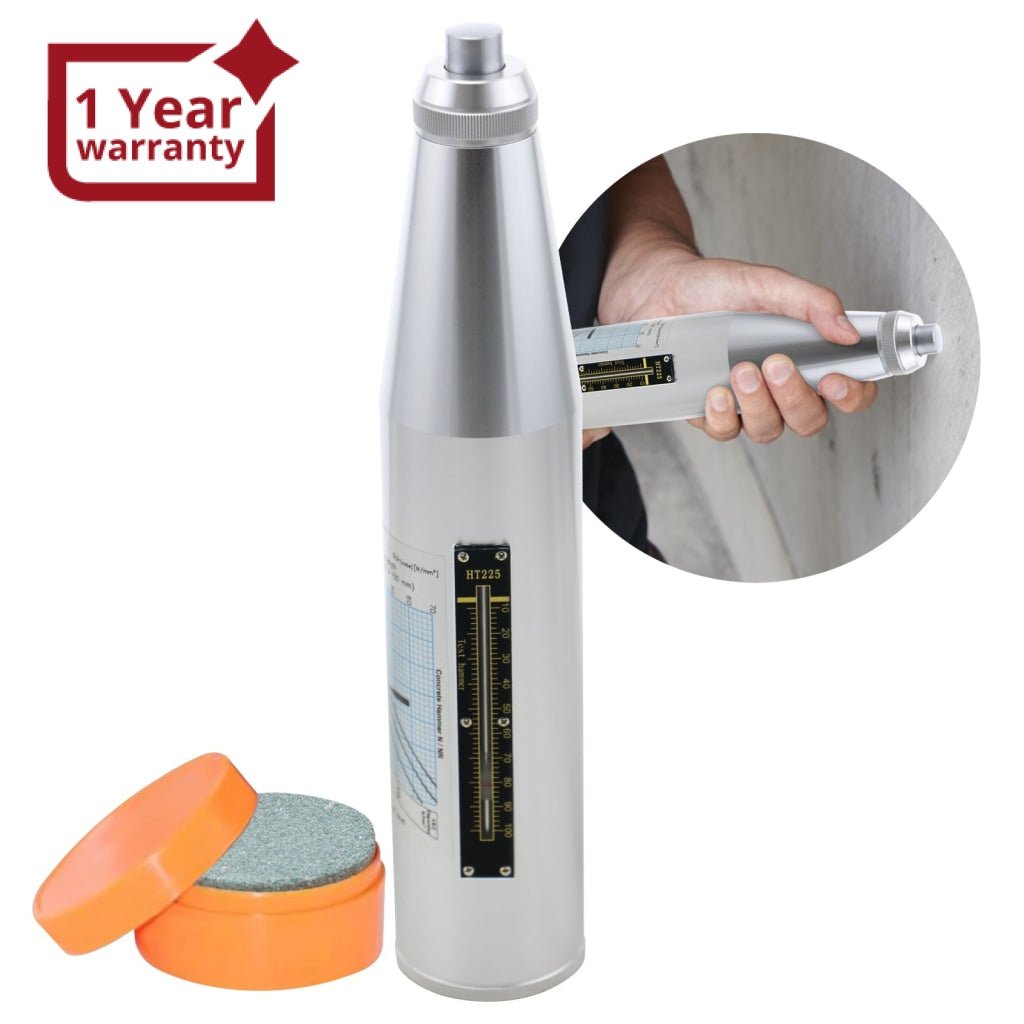

Most of our items come with one (1) year warranty for manufacturer defects. It does not include damage caused by misuse, accidents, abuse, alterations, neglect or other external causes.
