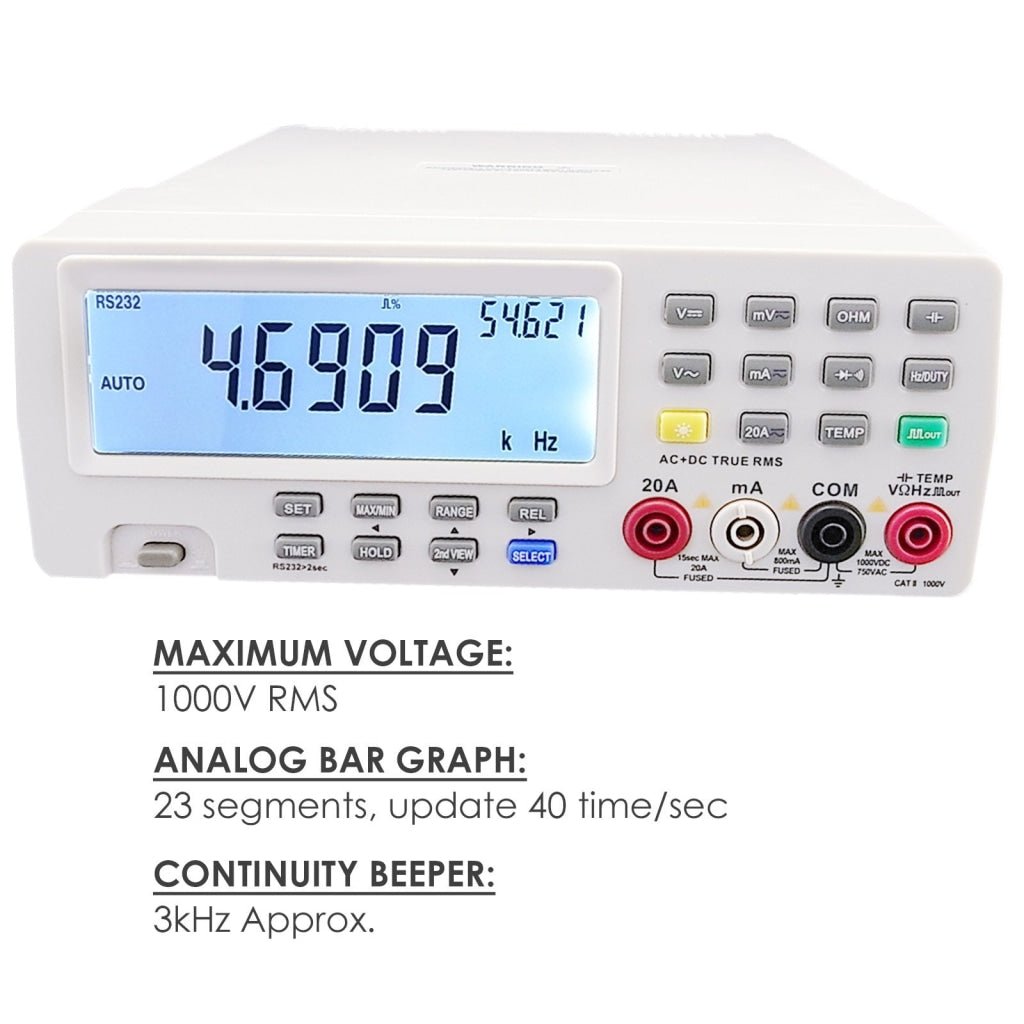

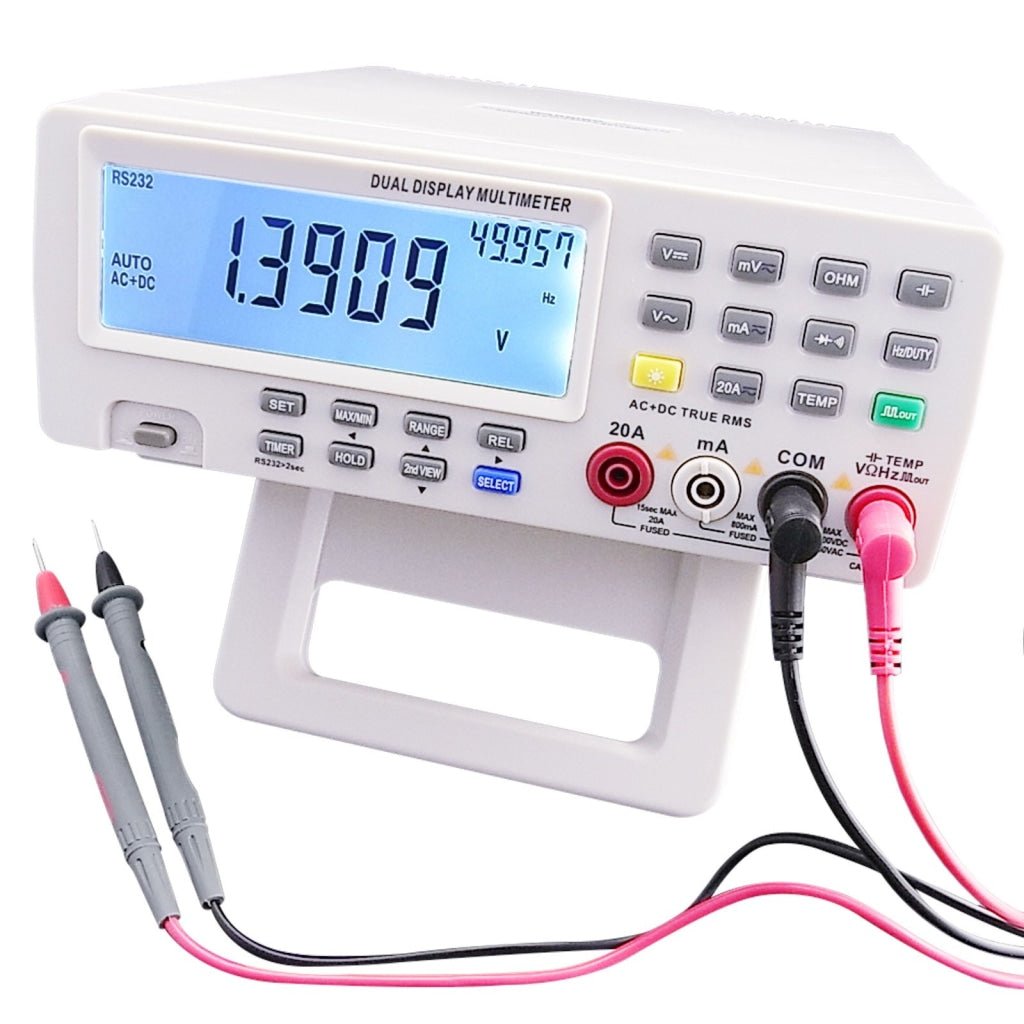

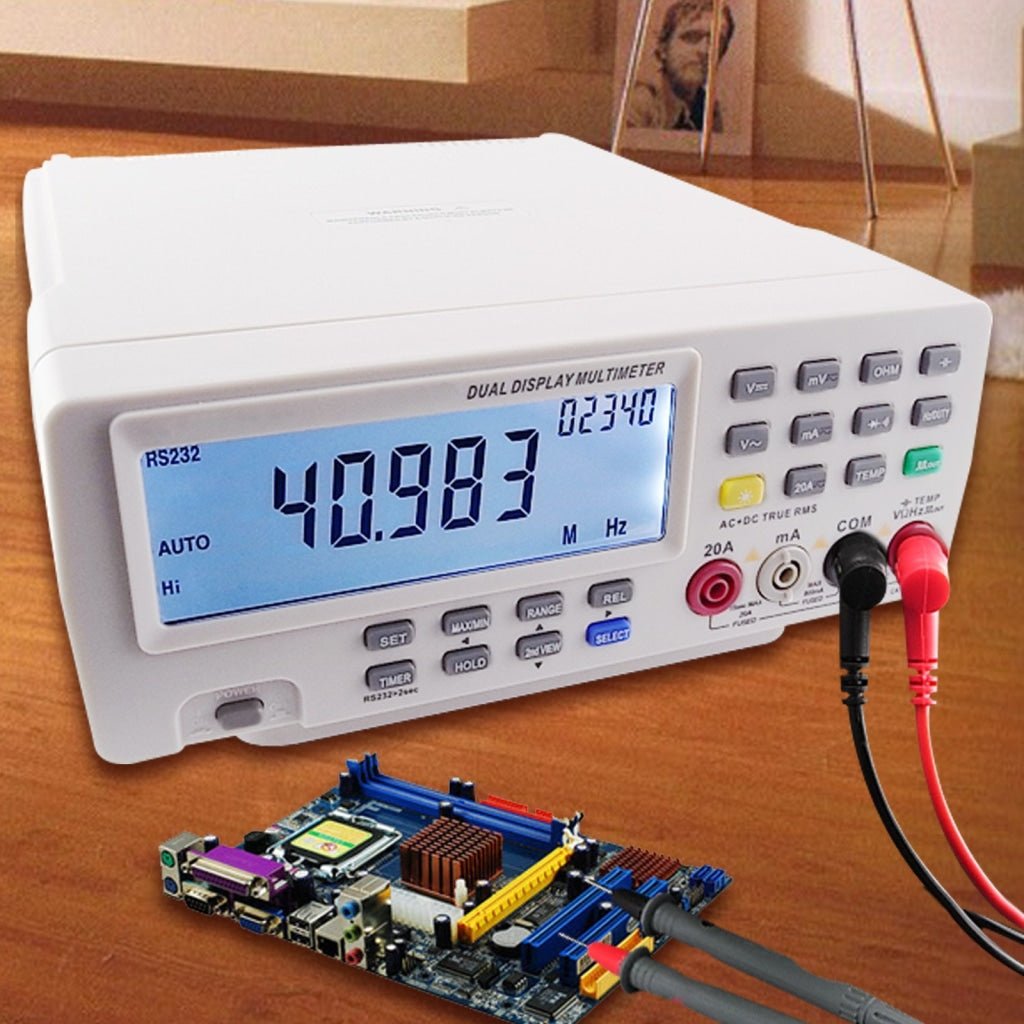

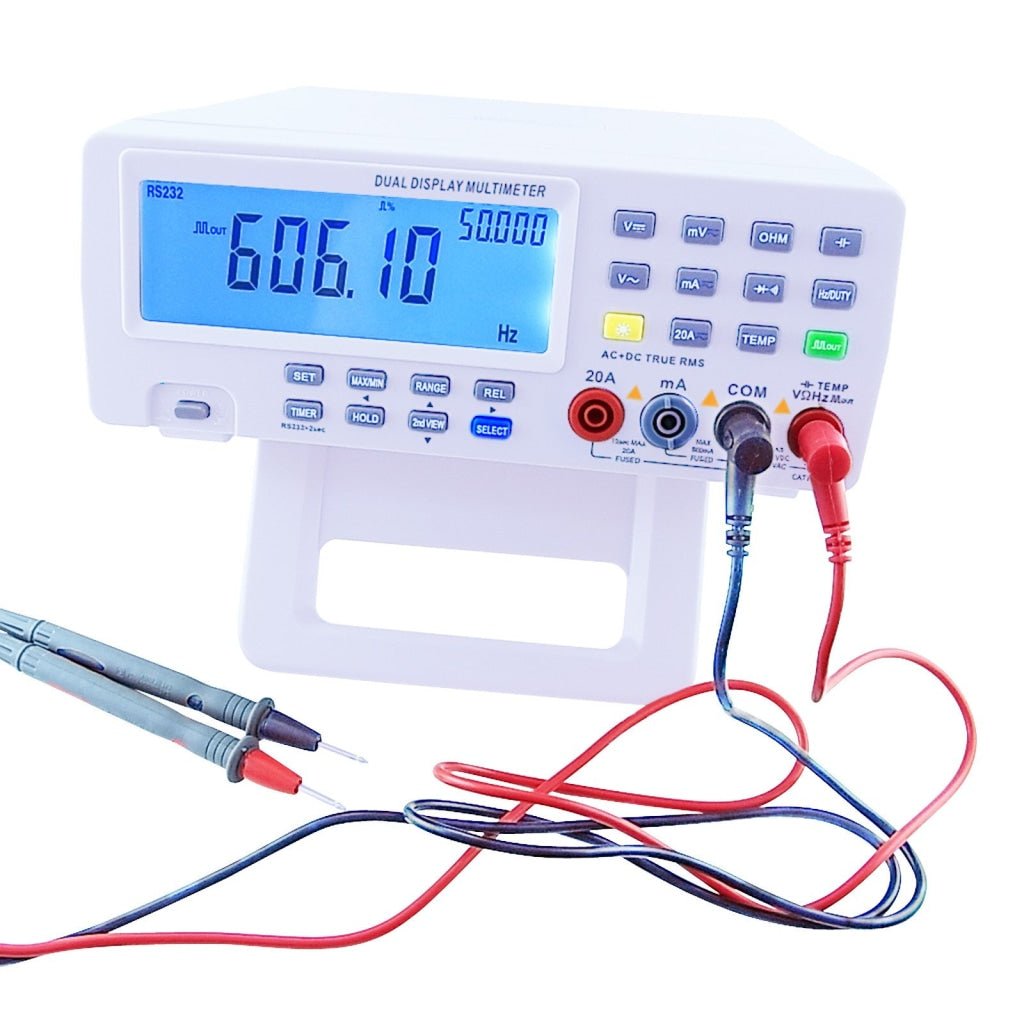

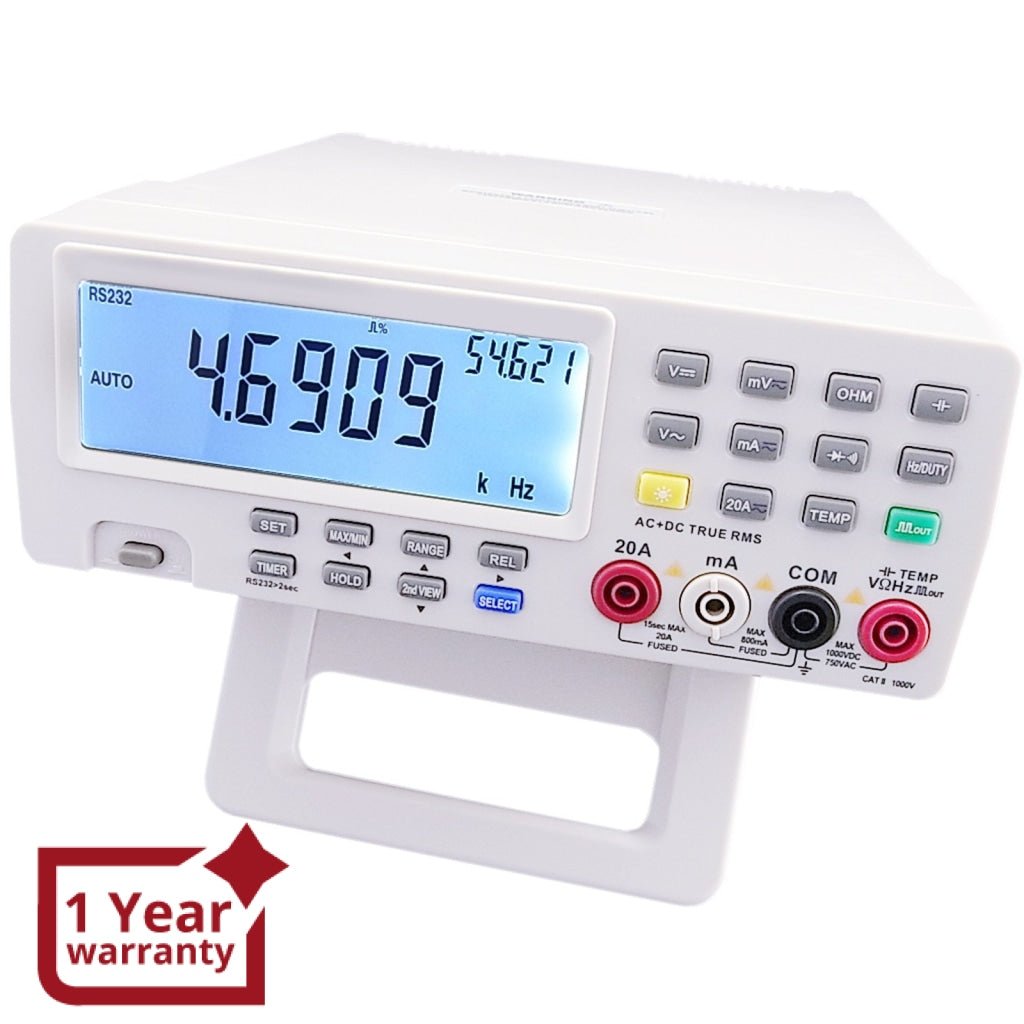

ILMU-911 DMM Digital Bench Top Multimeter PC Analog Bar Meter

Sku: ILMU-911
$234.90 USD
Translation missing: en.products.product.shipping_policy_html
Quantity:
Visa Mastercard PayPal American Express Google Pay Apple Pay Shop Pay

The Professional Bench Top Multimeter is a unique multi-functional device suitable for use on production lines, laboratories, factories, radio-technology, R & D, maintenance and repairing work.

The meter can provide functions including analog bar and unit symbol display, data holding, relative value measuring and maximal/minimal value measuring.


Features:

  • High contrast and Wide visual angle LCD display with backlight
  • Dual Display:
    • Main Display: 80000
    • Secondary Display: 80000
    • Analog Bar Graph: 23 segments, update 40 time/sec

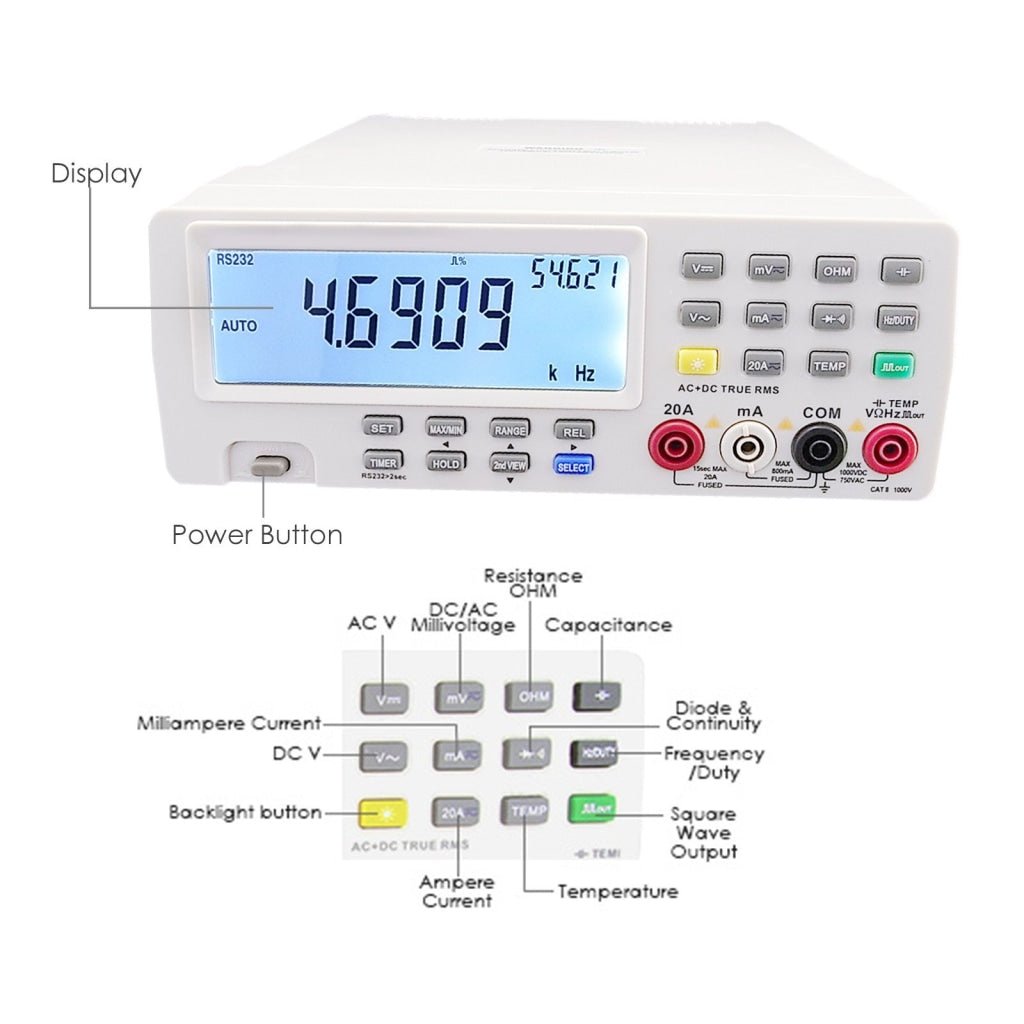

  • More than 50 measuring functions including DC/AC Voltage, DC/AC Currents, Resistance (Ω), Capacitance, Frequency (Hz), Temperature (°C/°F), Duty Cycle, Diode & Continuity Check
  • Single Analyzed:
    • (AC+DC) measuring synchronous
    • (AC+Hz) measuring synchronous
    • (DC+dBm) measuring synchronous
    • (dBm+Hz) measuring synchronous
    • (Hz+Duty) measuring synchronous
    • (°C+°F) displaying synchronous
  • Frequency measurement : 0.5Hz -1000.000000MHz
  • Basic DC Accuracy : 0.05 %
  • mV Impedance : >1000MΩ
  • 16 Frequency points, 1% to 99% duty selectable square wave output
  • Analyzing component of current or voltage signal
  • Resistance Measuring : 0.1Ω to 80MΩ,10MΩ to 8000MΩ
  • Capacitance Measuring : 10nF to 100µF
  • Temperature Measuring : -50°C to 1372°C, -58°F to 2502°F
  • dBm 20 types of reference impedance
  • Auto data hold/ peak hold
  • Relative measuring : REL, Relative percent : REL%
  • 36 hours dynamic recording : MAX / MIN / AVG / MAX-MIN
  • Communication : 9-pin isolated optical RS232 cable
  • Measure speed is about 3 per second
  • Timer for measurement
  • Safety/Compliance : IEC 61010 CAT II 1000V ; CAT III 600V
  • Auto power off
  • 0.1 ~ 99.9% pulse duty cycle measuring
  • Set upper and lower limit area measuring

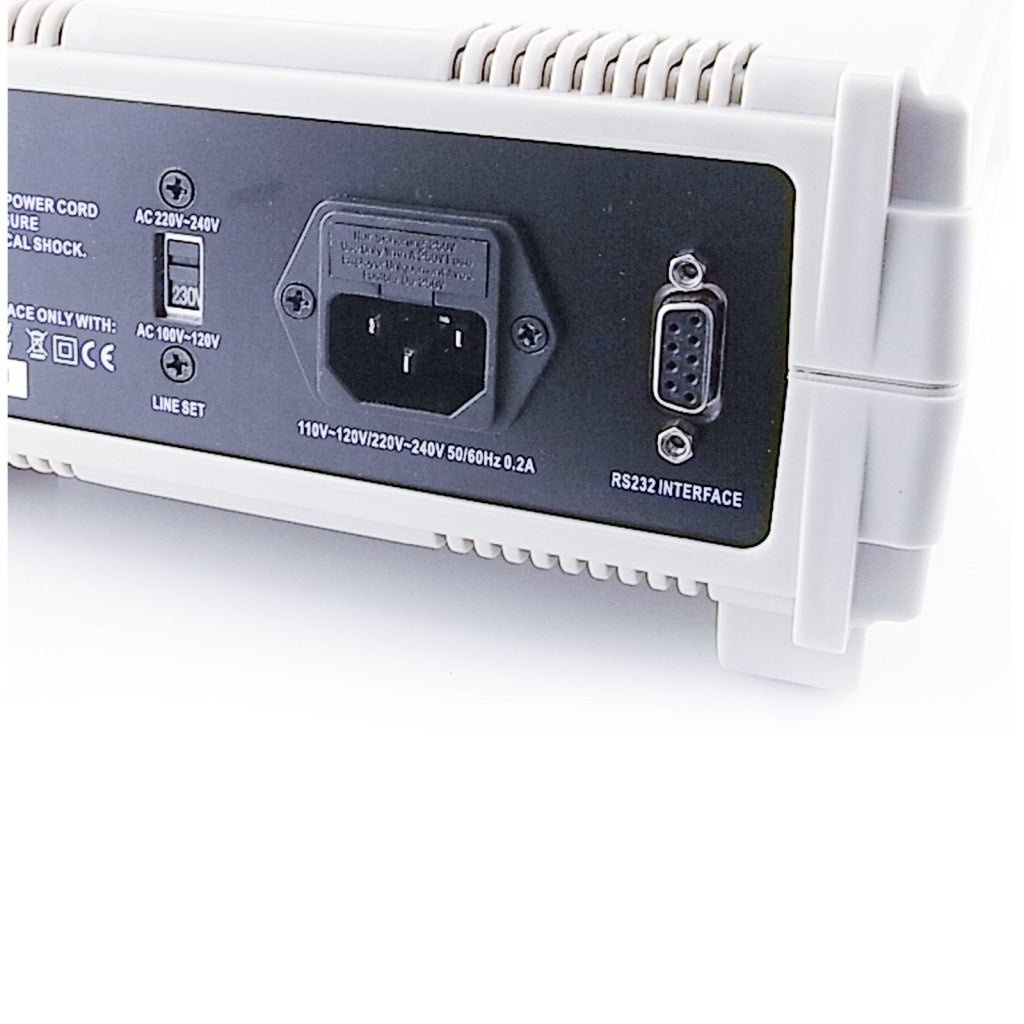

  • Photoelectricity insulation RS-232 computer interface
  • Timing measuring function
  • AC measuring adopt High accuracy RMS, Widely measuring and AC+DC function, can measure the accuracy virtual value of AC by any wave

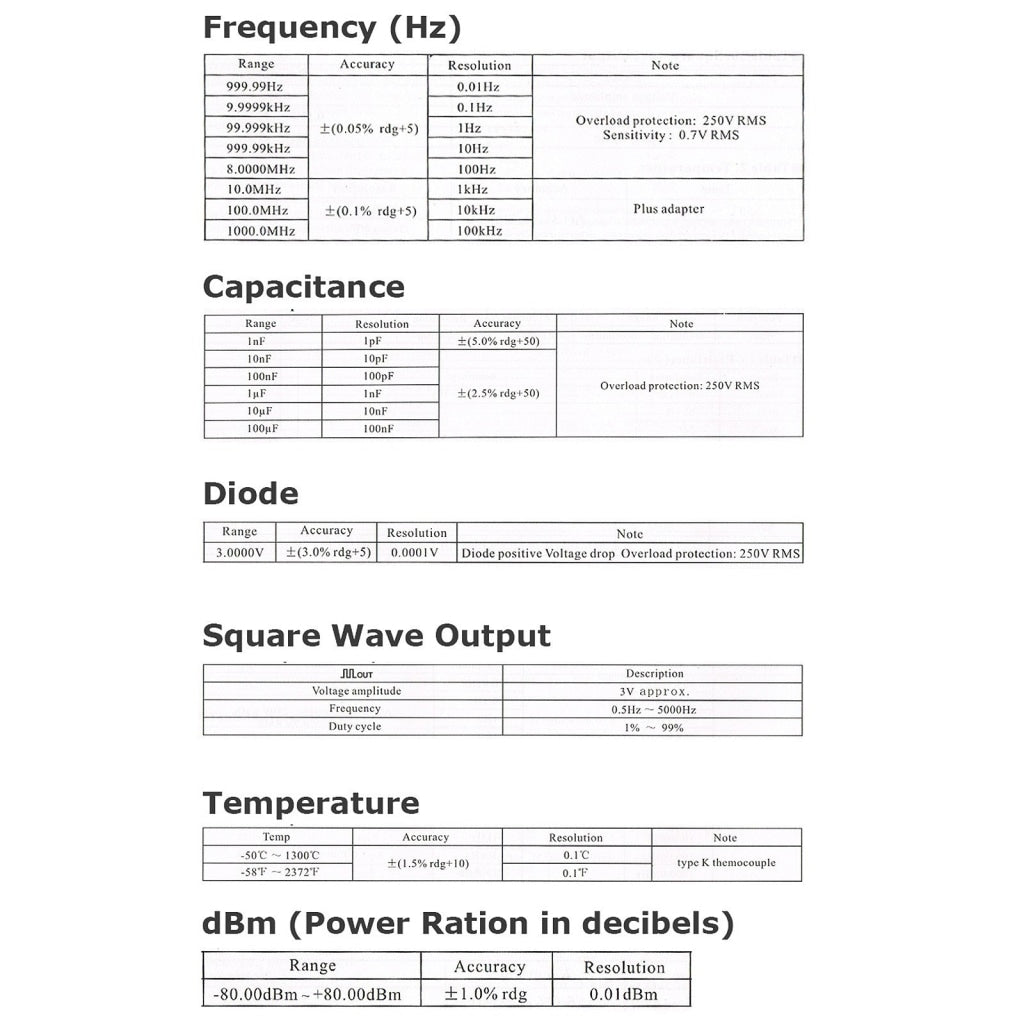

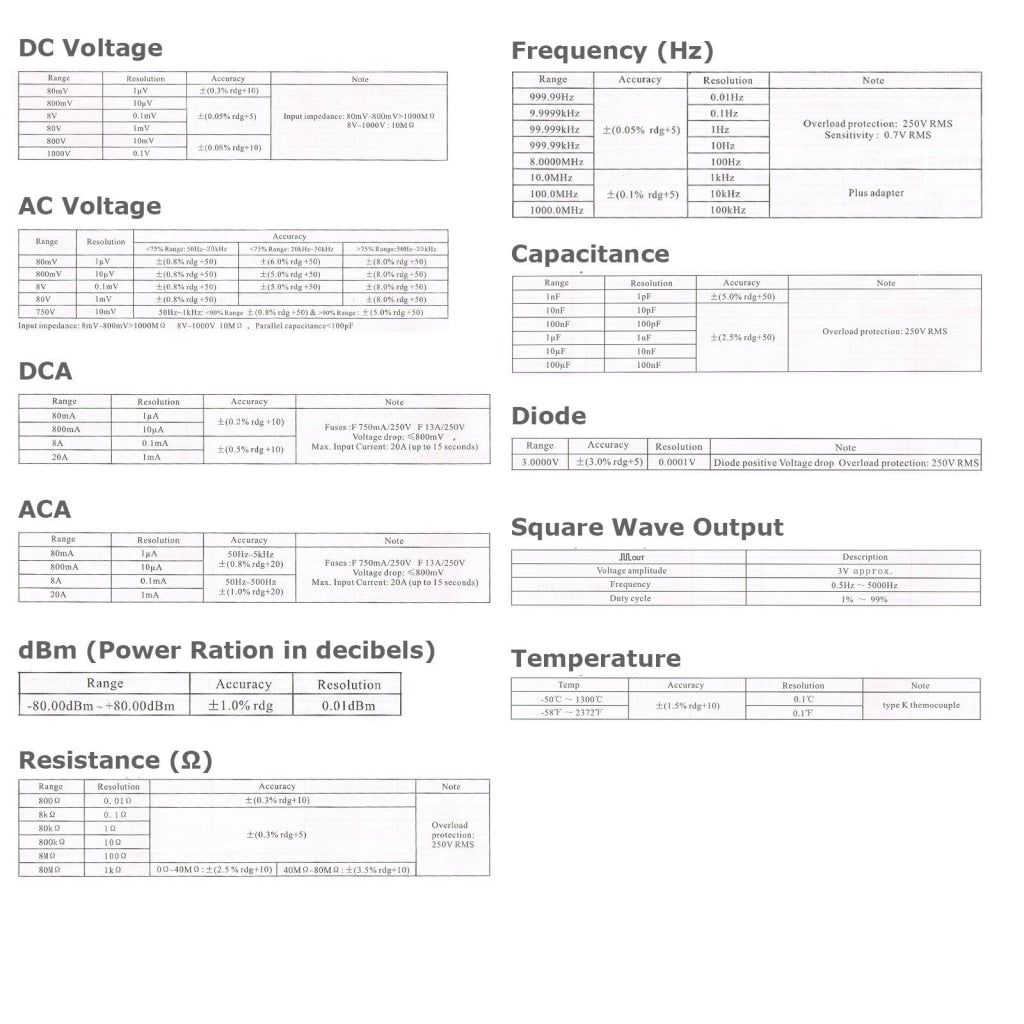

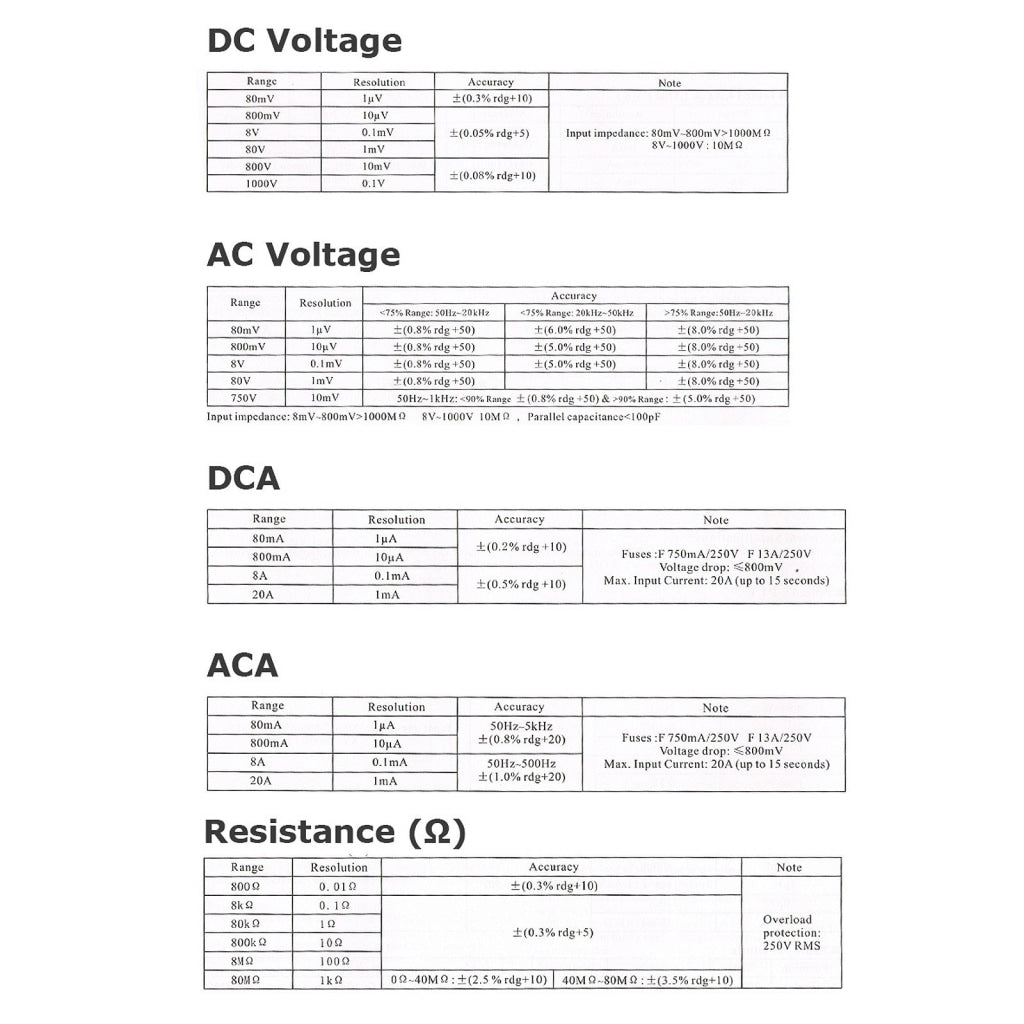

Specifications:

  • Maximum voltage between any terminal and earth ground: 1000V RMS
  • Continuity Beeper: 3kHz Approx.
  • Operating Temperature: 0~50°C
  • Storage Temperature : -20~60°C
  • Operating Altitude: under 2000m
  • Storage Altitude : under 5000m
  • Relative Humidity :  ≤75% @ 0~40°C;  ≤45% @ 40~50°C
  • Electromagnetic Compatibility : in a RF field or 1 V/m on all ranges and function except Capacitance
  • Total Accuracy : specified +5% of range Capacitance not specified in RF fields performance above 1 V/m is not specified
  • PC Interface : RS-232
  • Compatible with Windows 2000 & XP only
  • AC Power : 110~220 V (US / EU / AU / UK Power adapter plug)

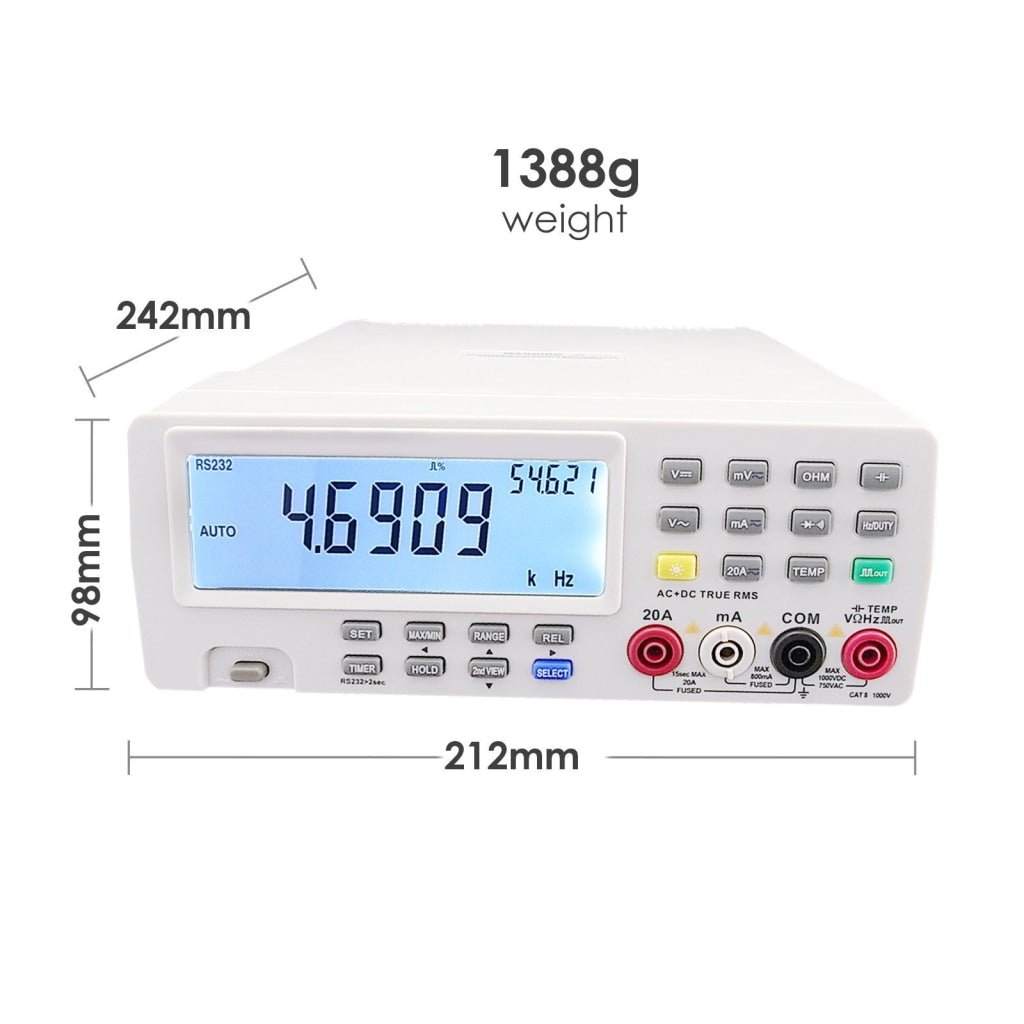

  • Size : approx. 242 x 212 x 98 mm
  • Weight : approx.1388g (accessories not included)

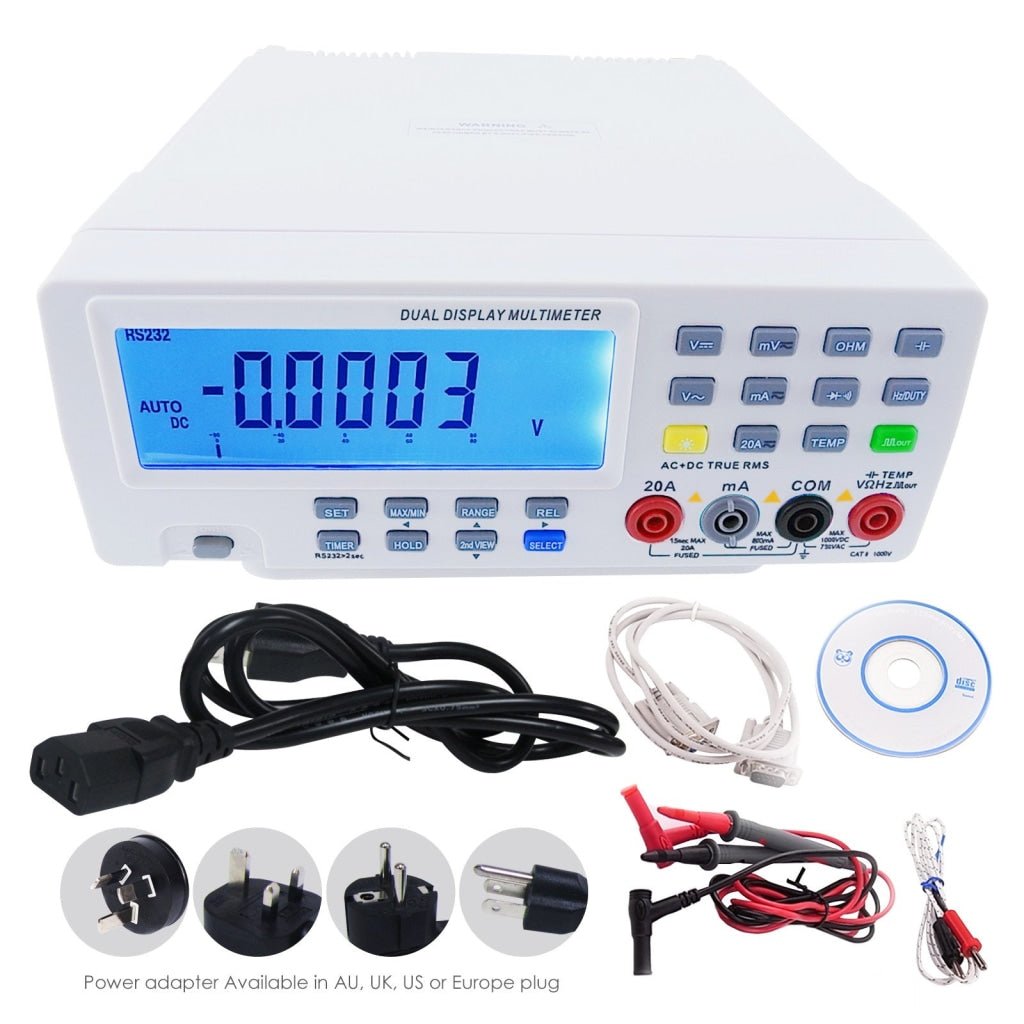

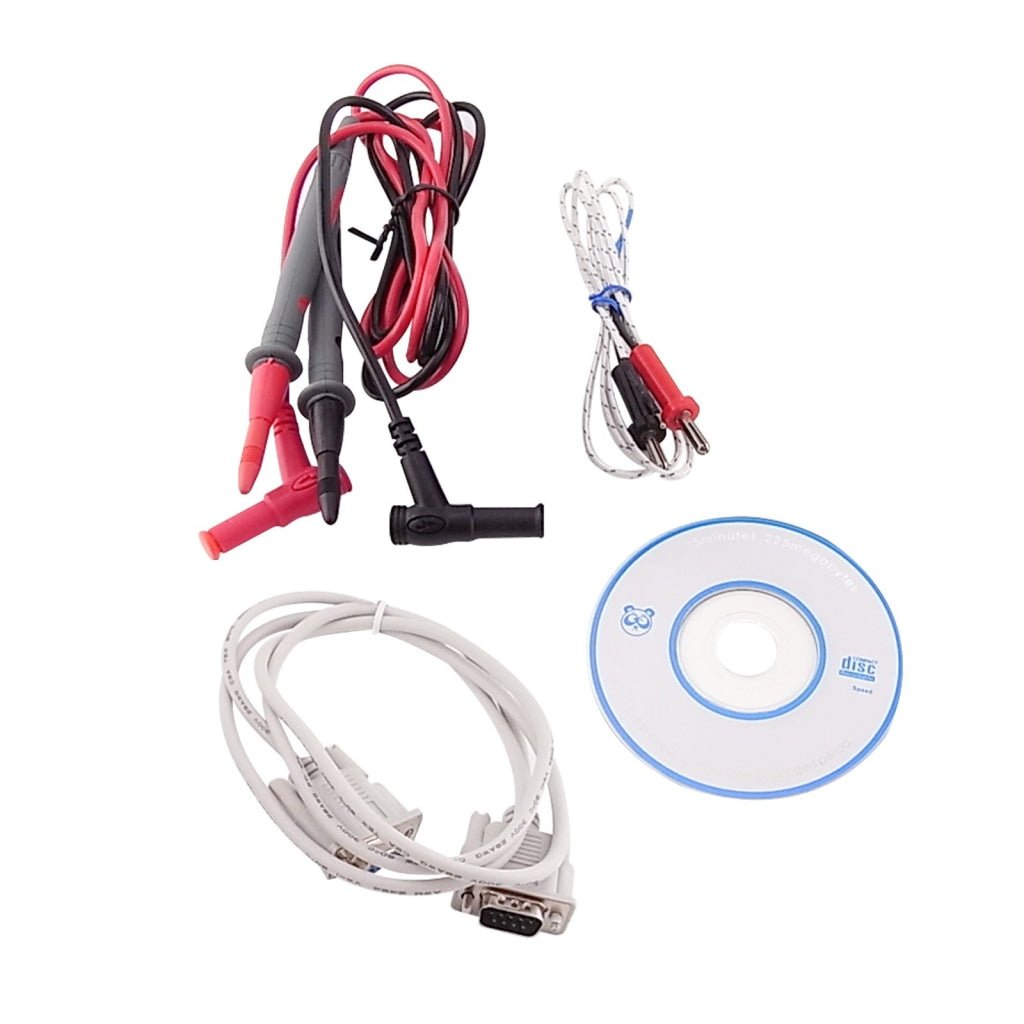

Set Includes:

  • 1 x Digital Bench Top Multimeter
  • 1 x Pair of Test Leads
  • 1 x Type K Thermocouple
  • 1 x RS-232 Software CD
  • 1 x 9-pin Cable Adapter
  • 1 x AC Power Cord (available in US / EU / AU / UK Power Plug)
  • English Instruction Manual
  • Standard Packaging Box

A printed user manual is already included with this item. No digital user manual or software is available.
