ILMU-873 Professional Digital Multimeter, Auto-& Manual-Ranging, 6000 counts, with K-Type Thermocouple/ AC DC Voltage/ DCA/ ACA/ Ohm/ Hz/ Continuity/ Frequency/ Capacitance/ Resistance/ F/C Thermometer

Sku: ILMU-873
$42.90 USD
Translation missing: en.products.product.shipping_policy_html
Quantity:
Add to Wishlist Remove From Wishlist
Visa Mastercard PayPal American Express Google Pay Apple Pay Shop Pay

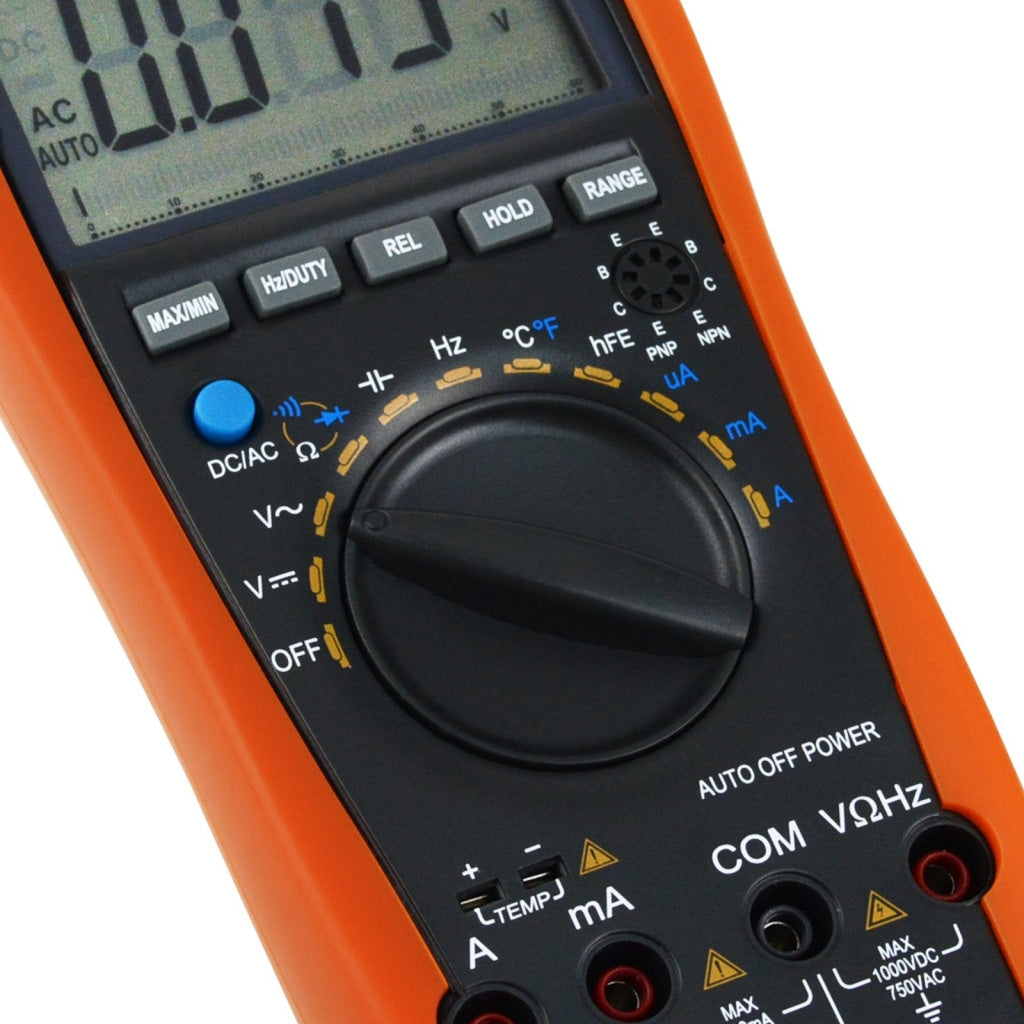

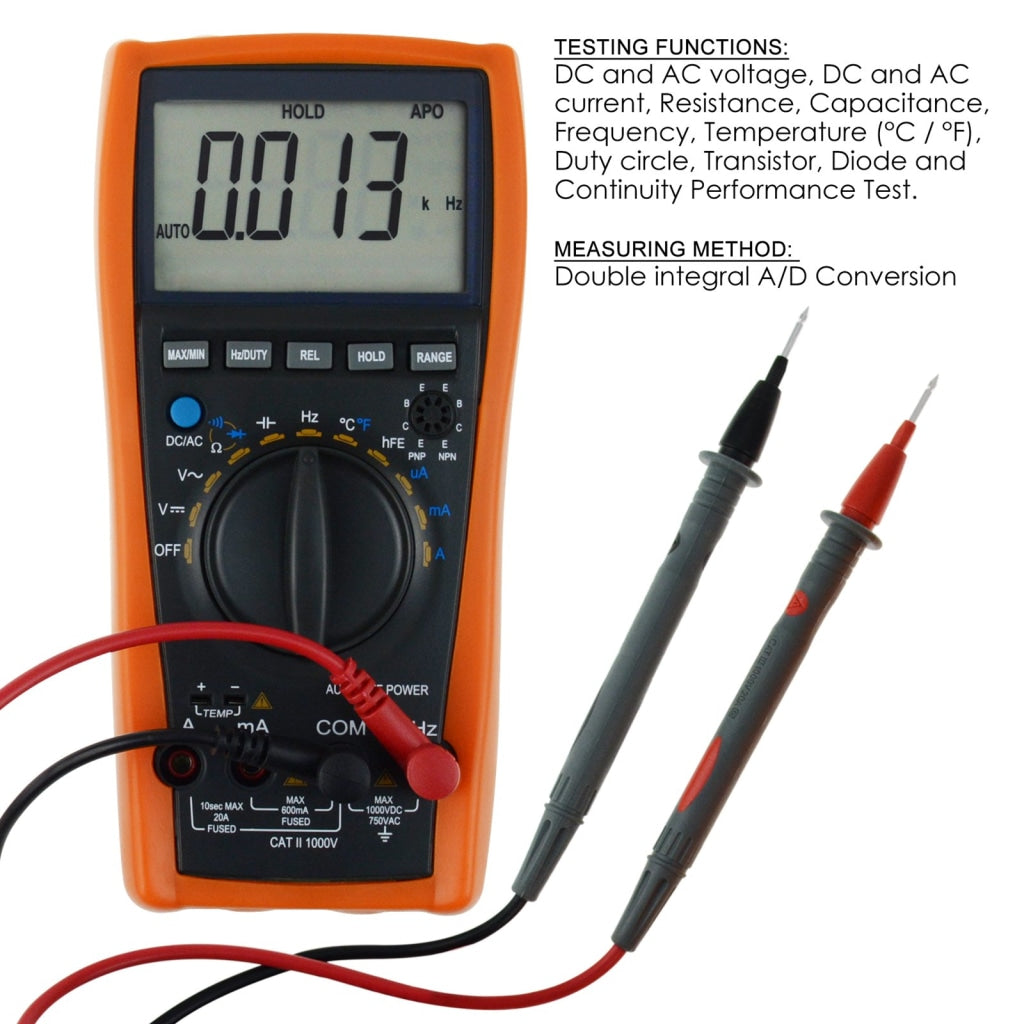

The designed parameter has the function of measuring DC and AC voltage, DC and AC current, Resistance, Capacitance, Frequency, Temperature (°C / °F), Duty circle, Transistor, Diode and Continuity Performance Test.

Features includes: analog bar and unit symbol display, data holding, relative value measuring, maximal / minimal value measuring, auto / manual range switching (RANGE), auto power off and warning function. Plus, it adopts double integral A / D converter as its core.

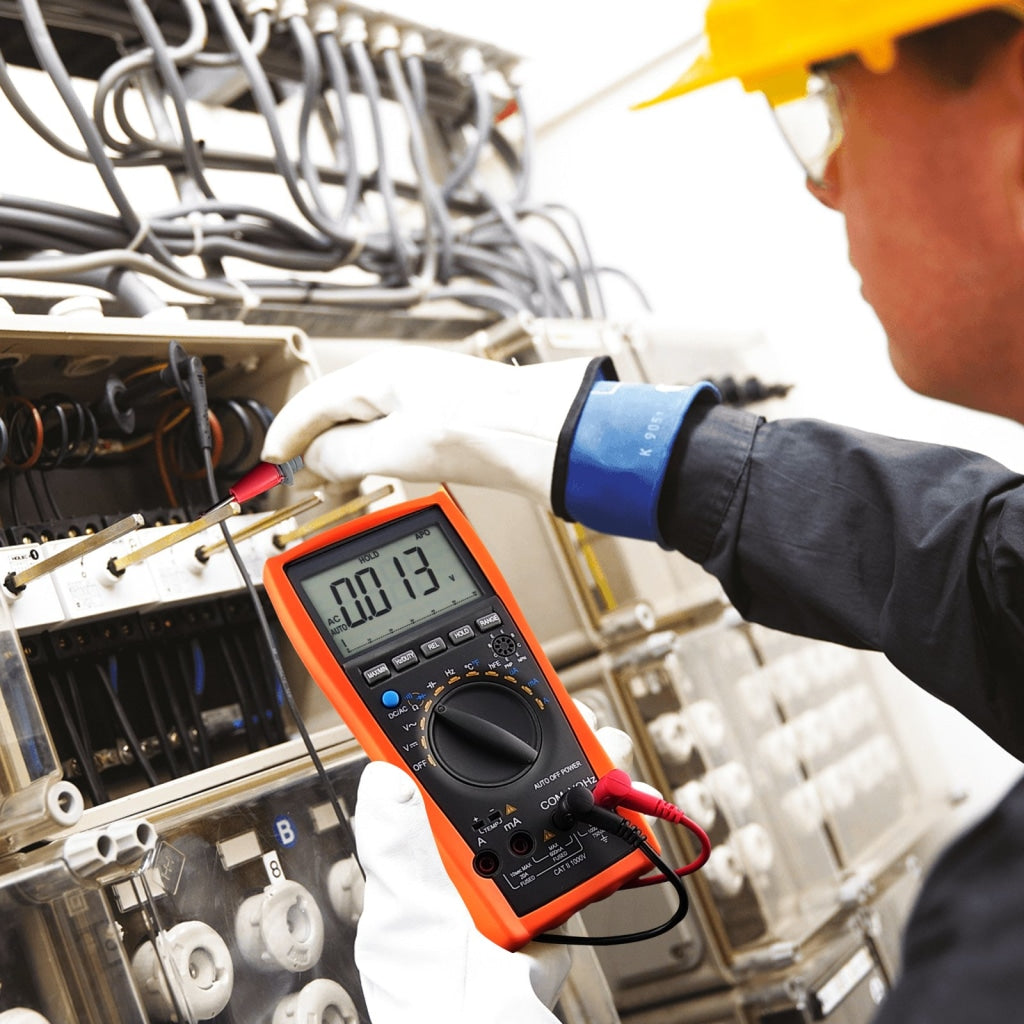

It is an ideal tool for labs, factories and radio-technology.It is designed according to IEC1010 standard ( safety standard issued by International Electro technical Committee.)


Features:

  • Double integral A/D conversion
  • Designed for field professionals
  • Full overload protection
  • 6000 counts (3 6/7 digits) Large LCD Display
  • Full function protection, anti-high voltage circuit design.
  • Low battery display indication
  • Unit symbol display and 61 selection analog bar display
  • With automatic polarity
  • Selectable between °C and °F
  • Relative Value, Frequency/Duty cycle, transistor measuring and data hold

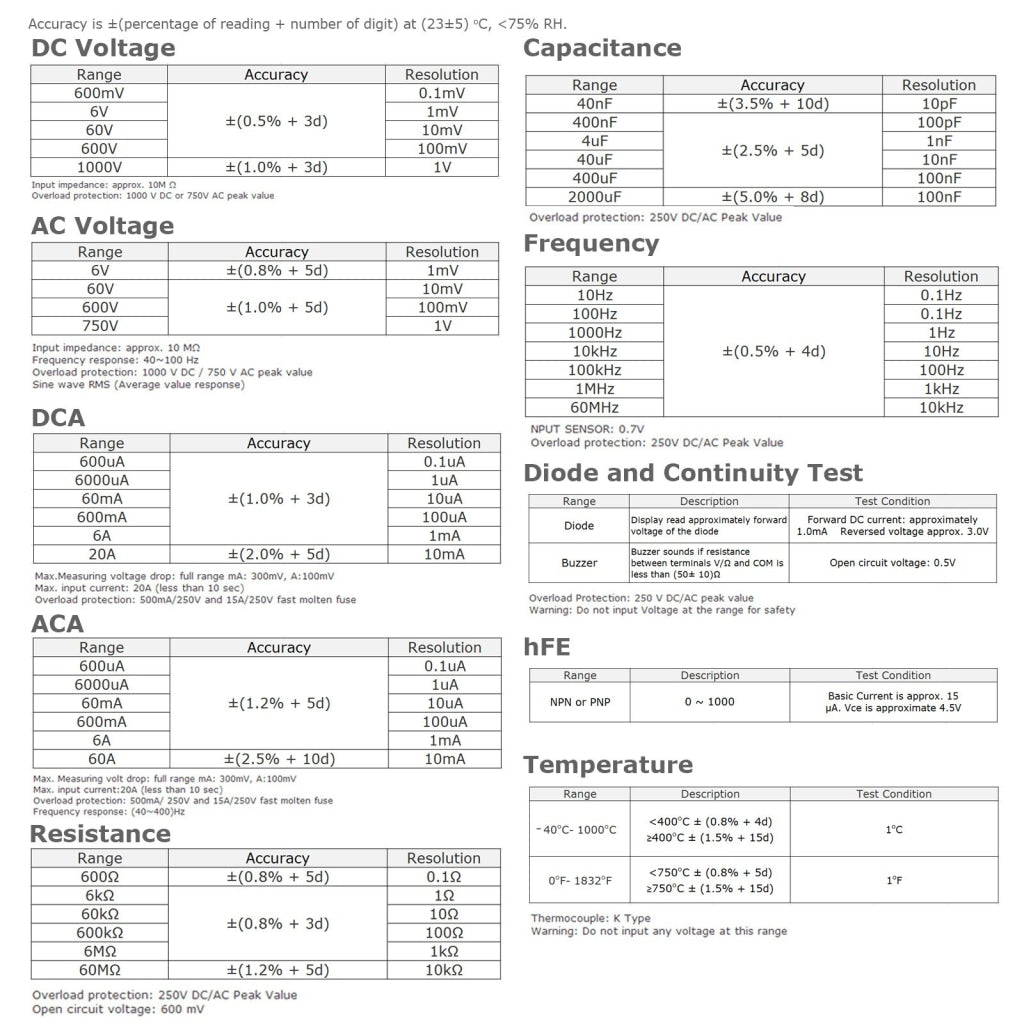

Specifications:

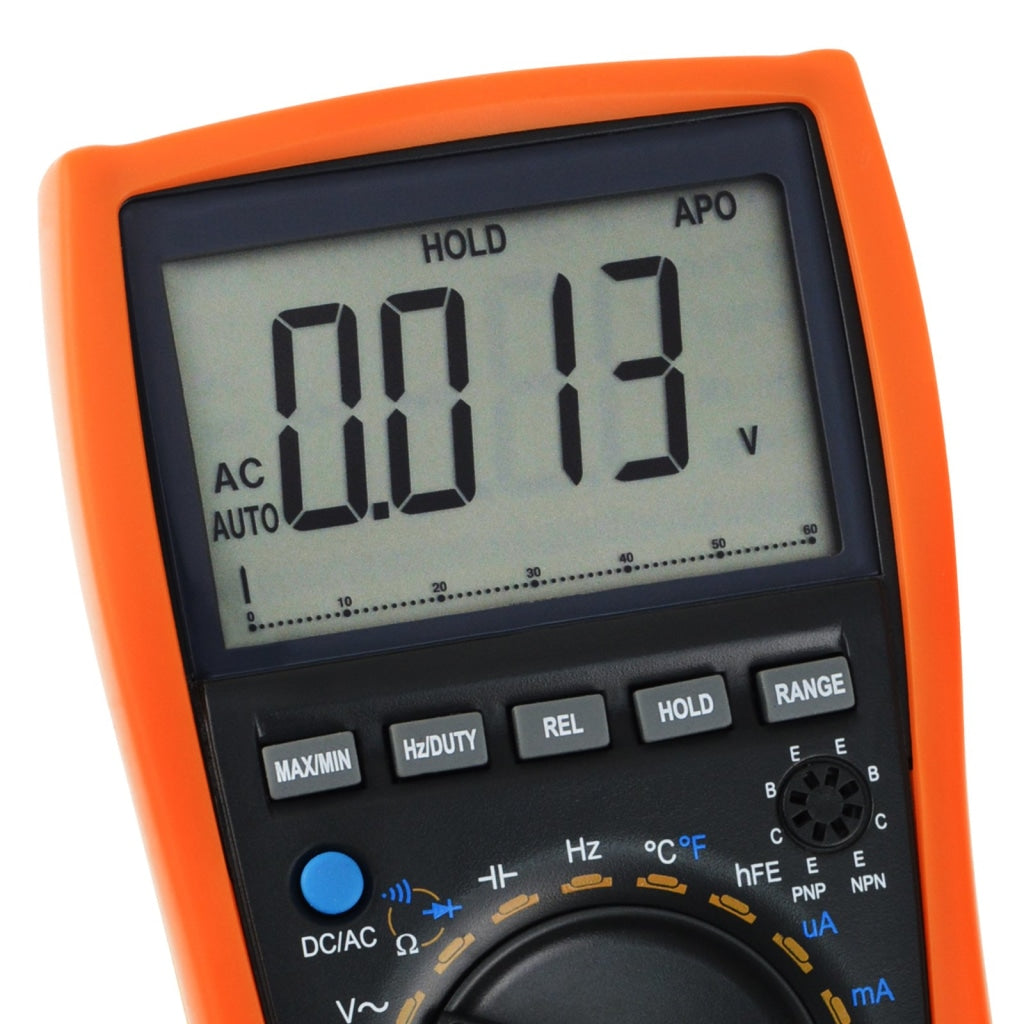

  • Display: 6000 (3 6/7) digits Large LCD with automatic polarity, unit symbol and 61 selection analog display
  • Measuring method: double integral A/D Conversion
  • Sampling Rate: approx. 3 Times / Second
  • Over range indication: "OL" displayed in the highest digit
  • Low battery display symbol
  • Operating Temperature: 0 ~ 40 °C; Operating Humidity: <80% RH
  • Storage Temperature: -10 ~ 40 °C; Storage Humidity: below 80% RH
  • Safety Standards: CE, IEC1010, double insulation II

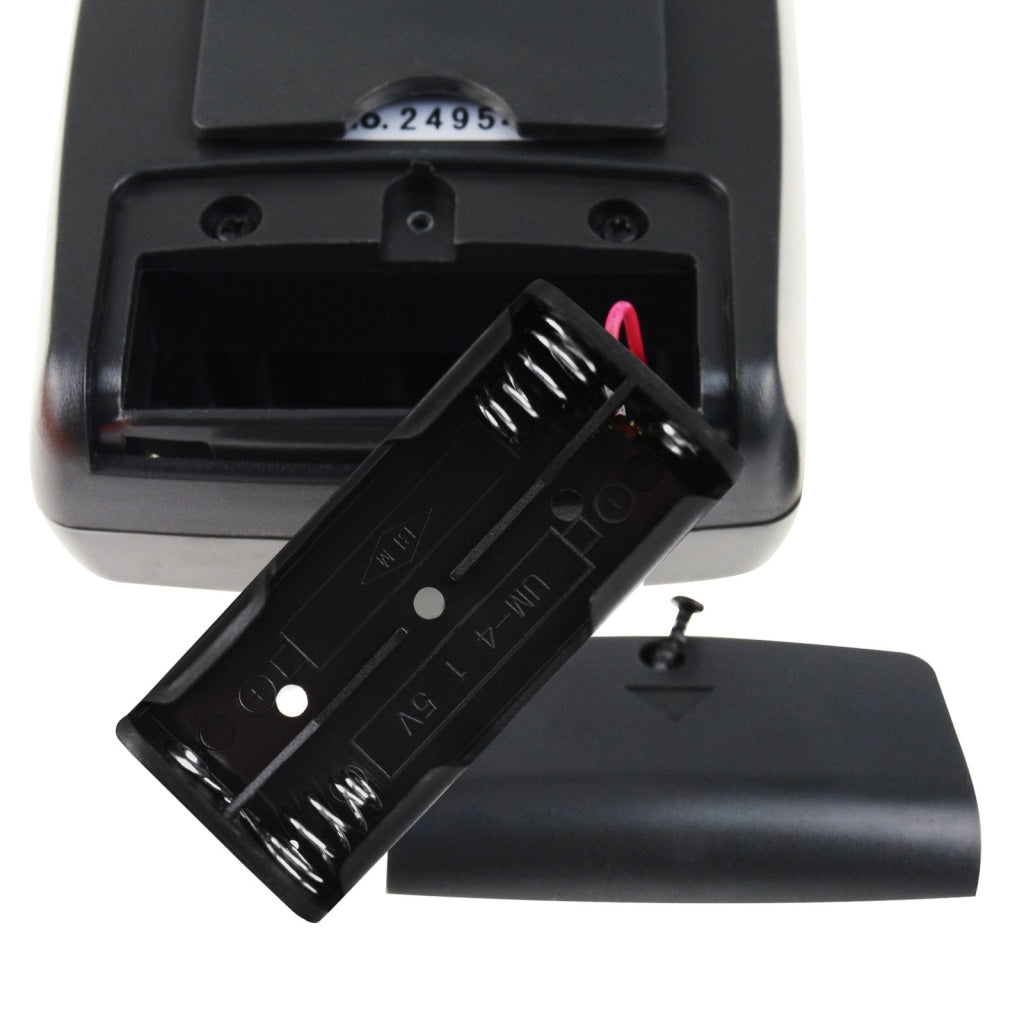

  • Power: 2 x 1.5 V AAA batteries (included)

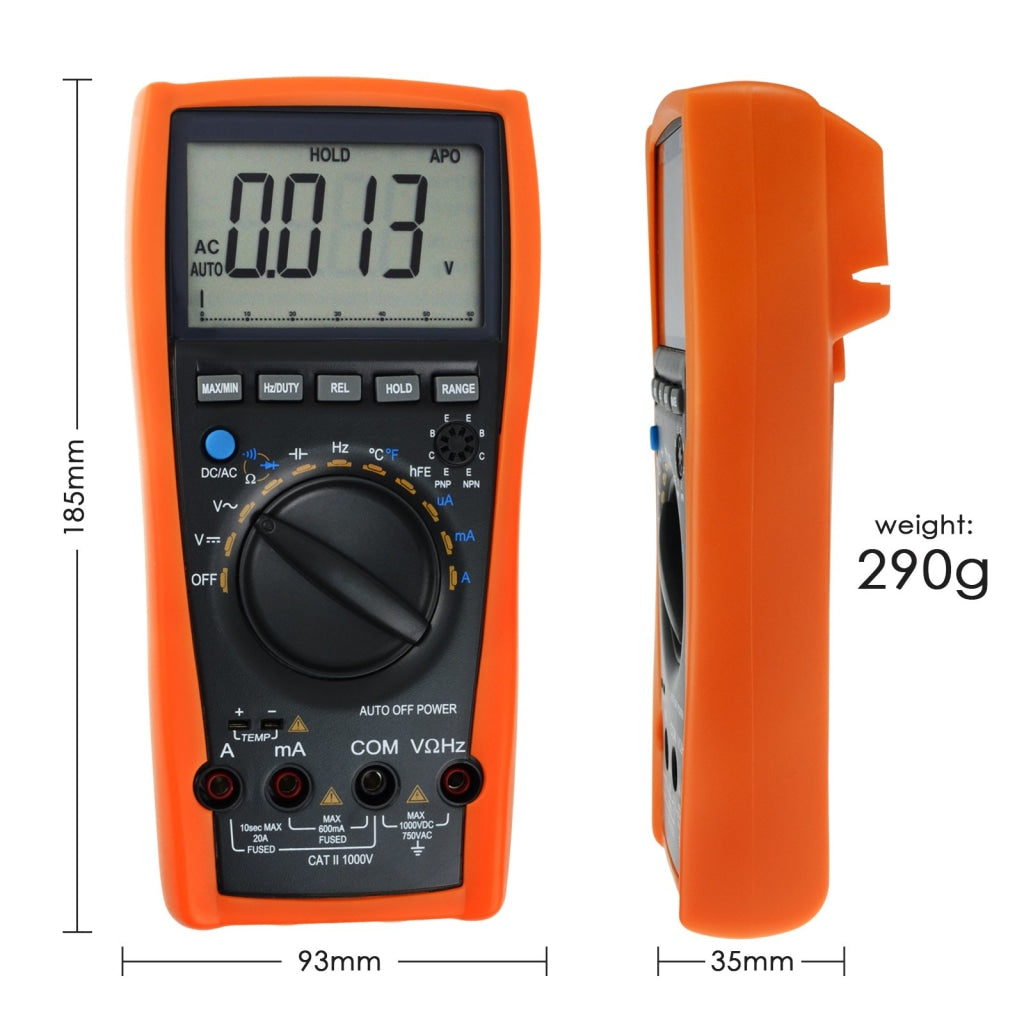

  • Dimensions: 185 (L) x 93 (W) x 35 (H) mm
  • Weight: approx. 290g (batteries included)

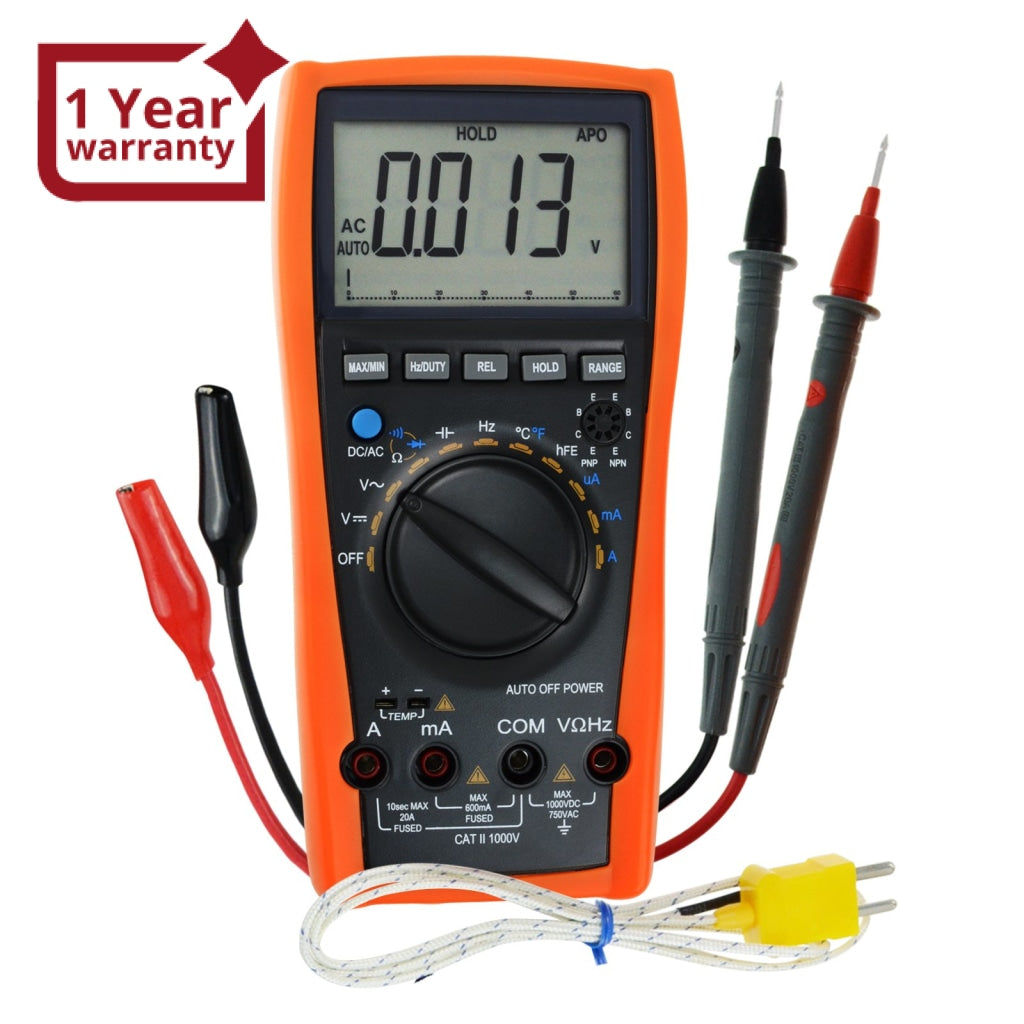

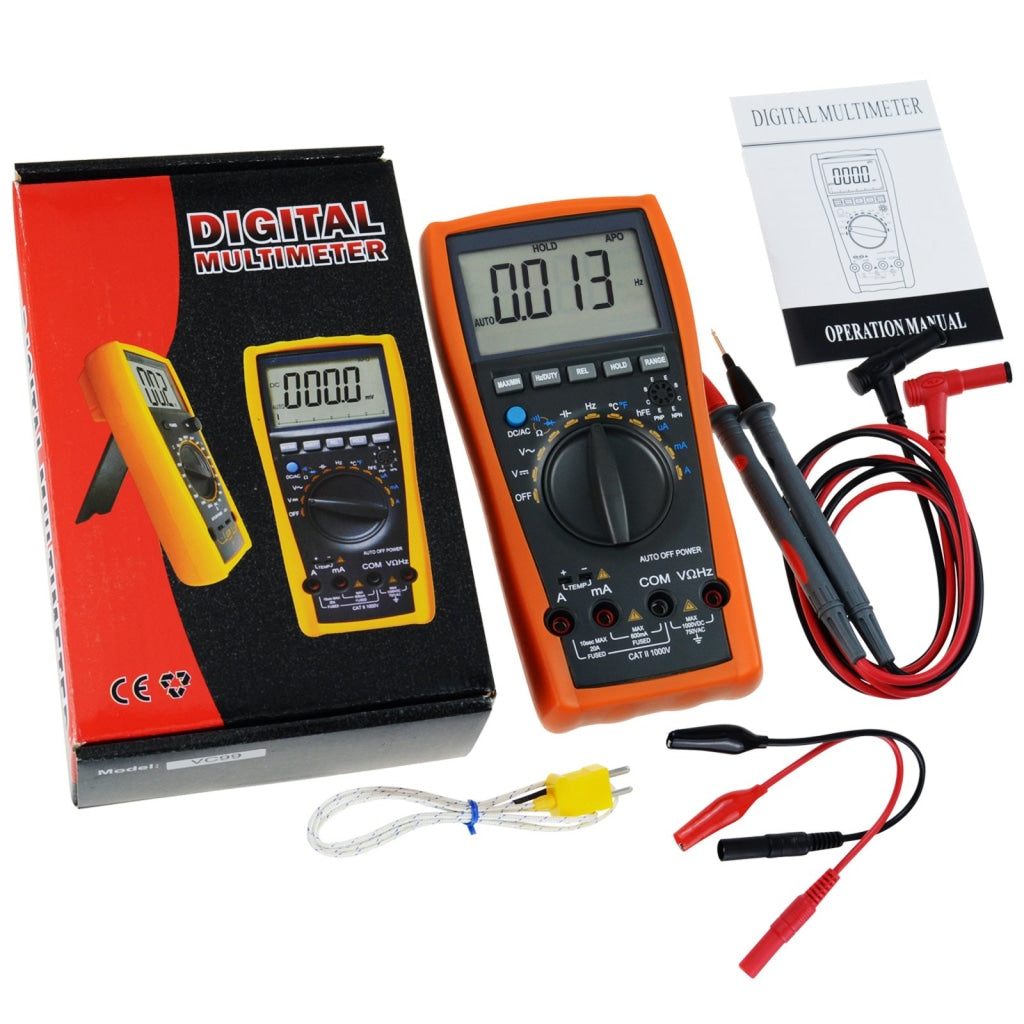

Set Includes:

  • 1 x Auto Range Digital Multimeter
  • 2 x Silicone Test Leads
  • 2 x Alligator Clip Test Leads

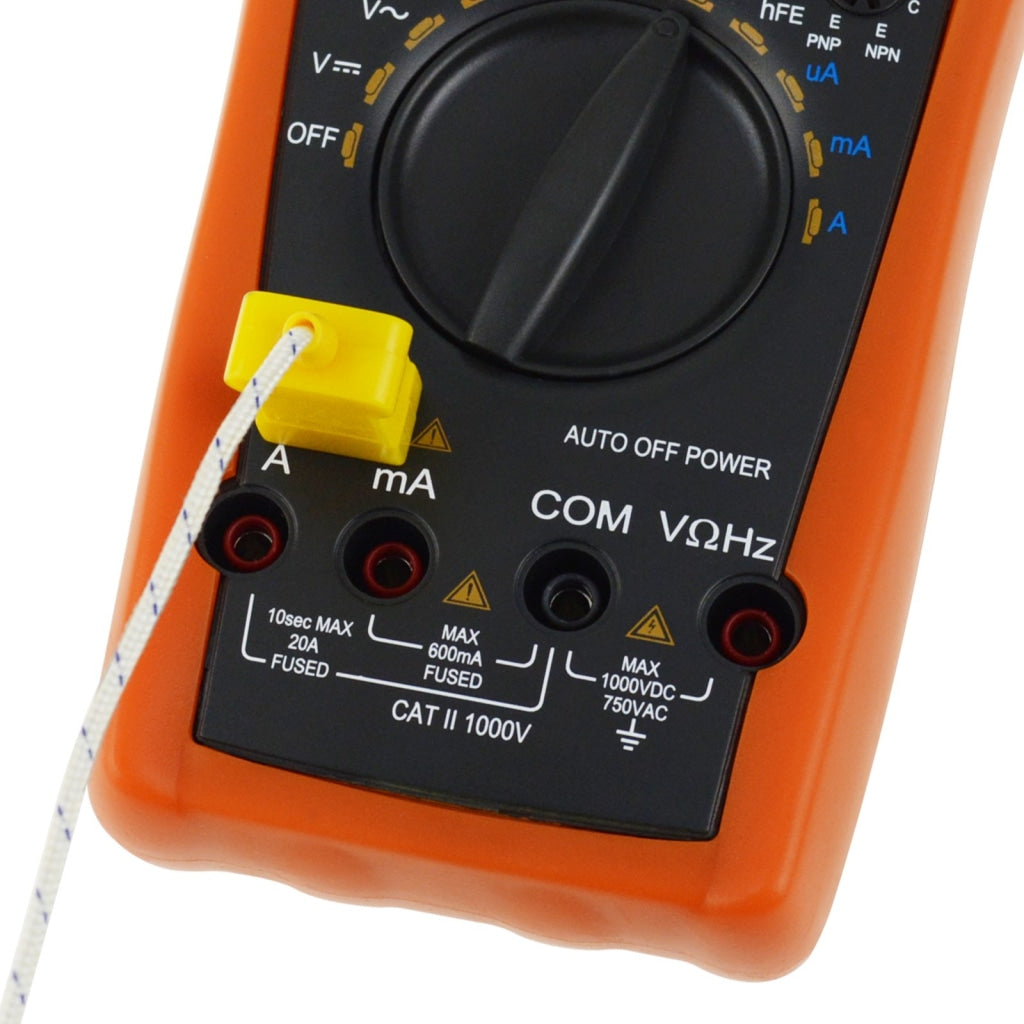

  • 1 x K-Type Thermocouple Wire

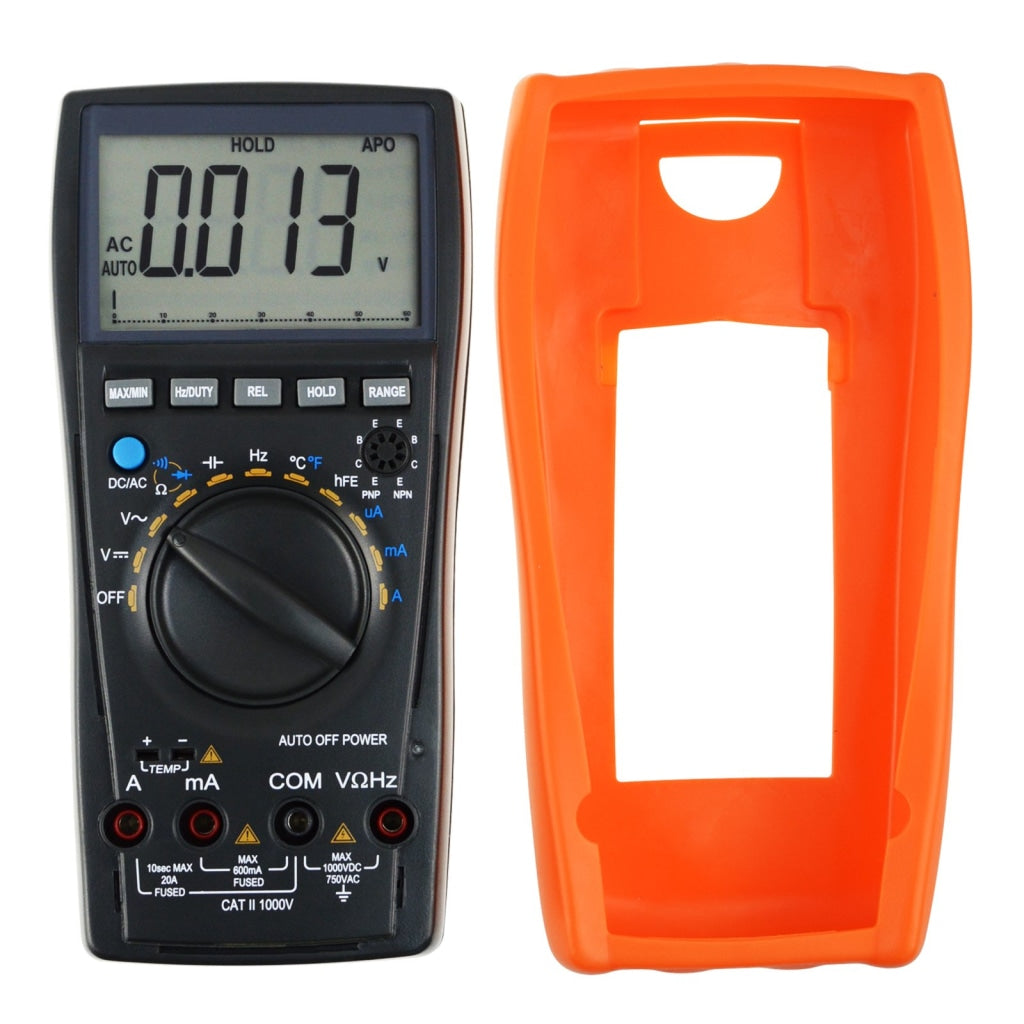

  • 1 x Non-slip Rubber Protection Cover
  • 2 x 1.5 V AAA batteries (installed)
  • 1 x English Instruction Manual
  • Standard Factory Package

VC-99

A printed user manual is already included with this item. No digital user manual or software is available.
