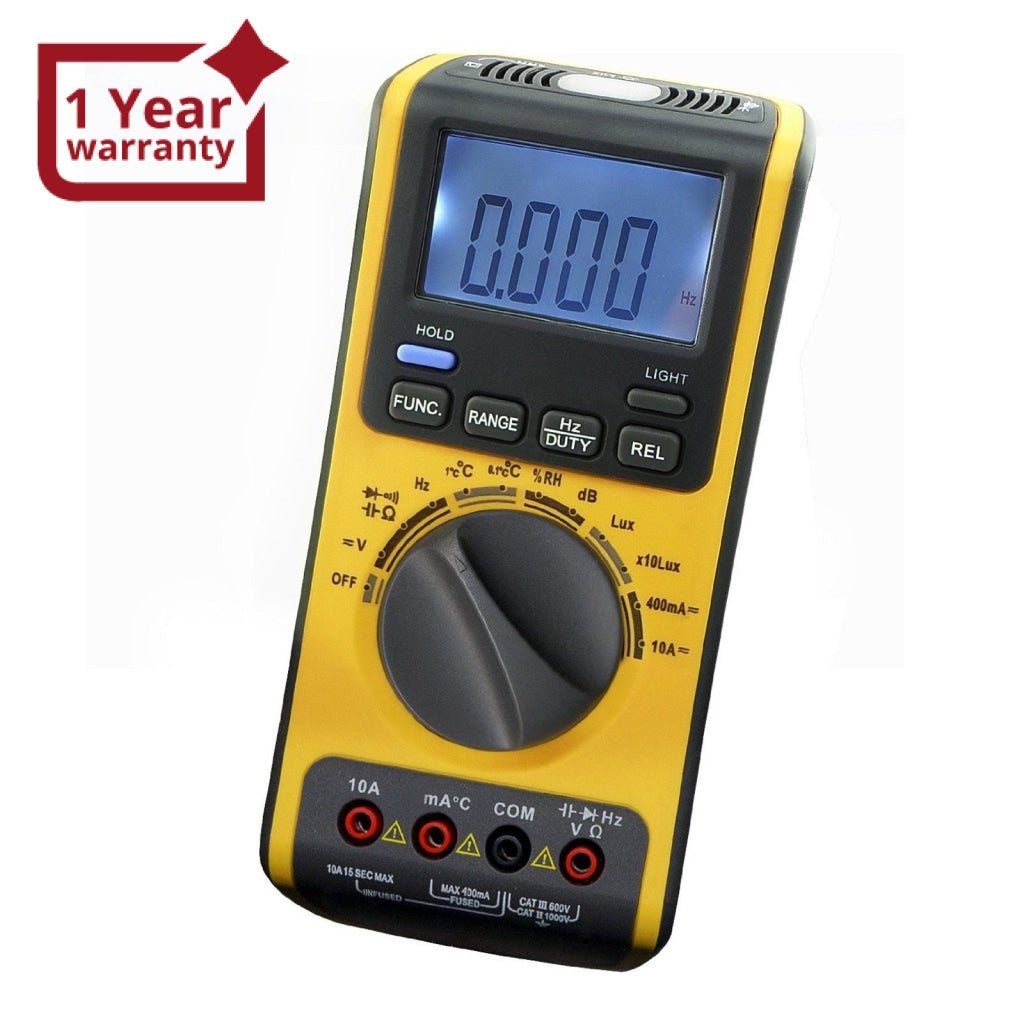

ILMU-866 5-in-1 Multimeter with LUX, dB, °C, RH, AC, DC

Sku: ILMU-866
$75.90 USD
Translation missing: en.products.product.shipping_policy_html
Quantity:
Visa Mastercard PayPal American Express Google Pay Apple Pay Shop Pay

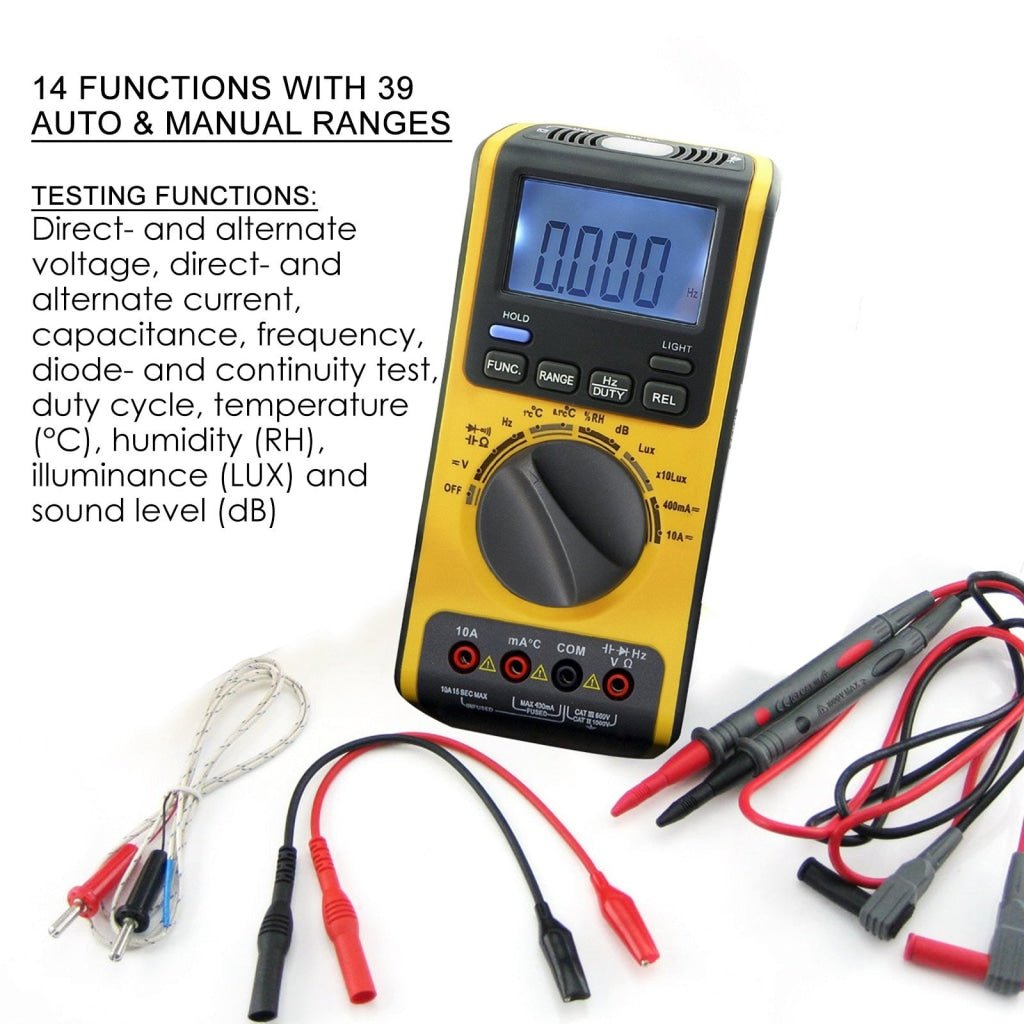

This new generation digital multimeter is capable to measure direct- and alternate voltage, direct- and alternate current, capacitance, frequency, diode- and continuity test, duty cycle, temperature (°C), humidity (RH), illuminance (LUX) and sound level (dB). It has 14 functions and 39 measuring ranges that incorporates 5 devices -- multimeter, sound Level meter, luxmeter, thermometer and hygrometer --into just 1 meter. Moreover, this multimeter receives an iF product design award in Hannover with its cutting-edge design and outstanding functionality.

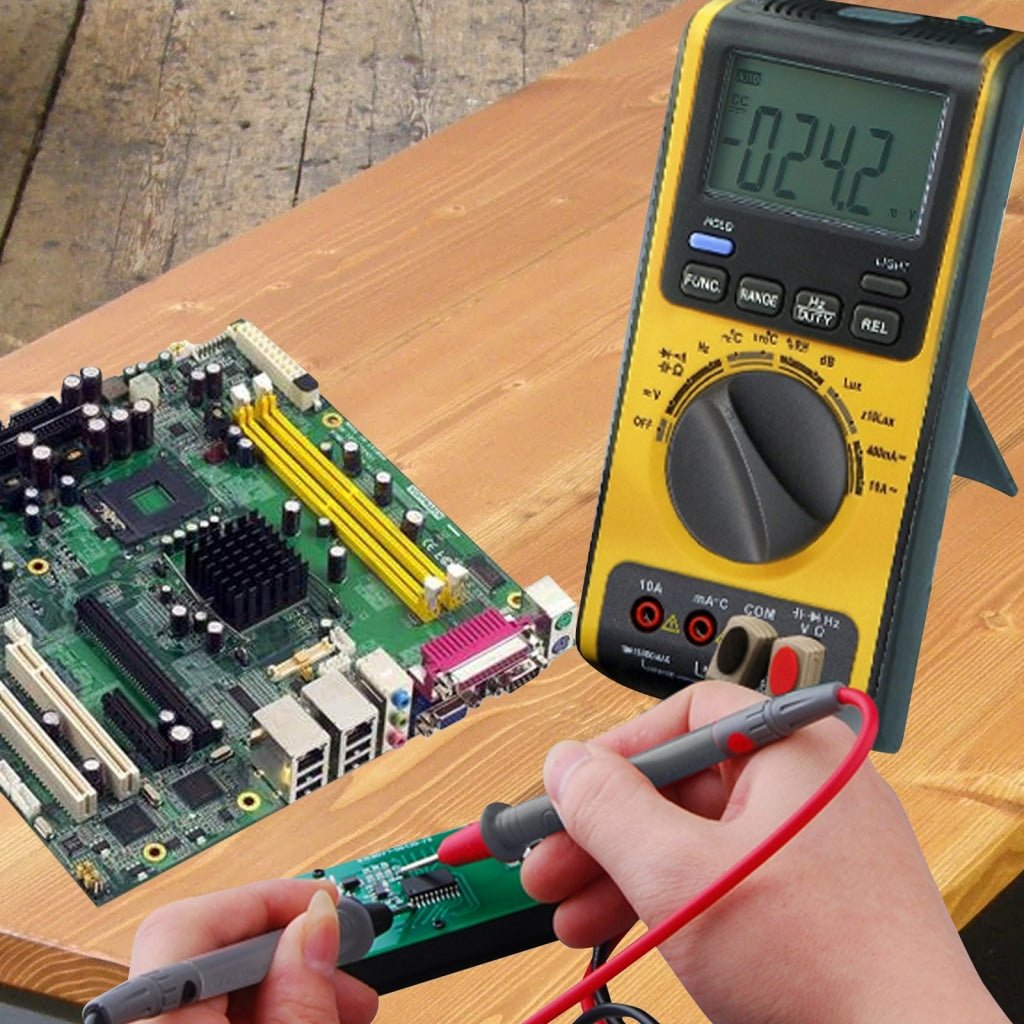

Ideal tool in schools, laboratories, industries and even in home applications.

Features

  • All in Meter: Multimeter, Sound Level Meter, Luxmeter, Thermometer and Hygrometer)
  • Performs DC & AC Current and Voltage, Resistance, Diode and Continuity Test, Capacitance and Frequency Measurements)

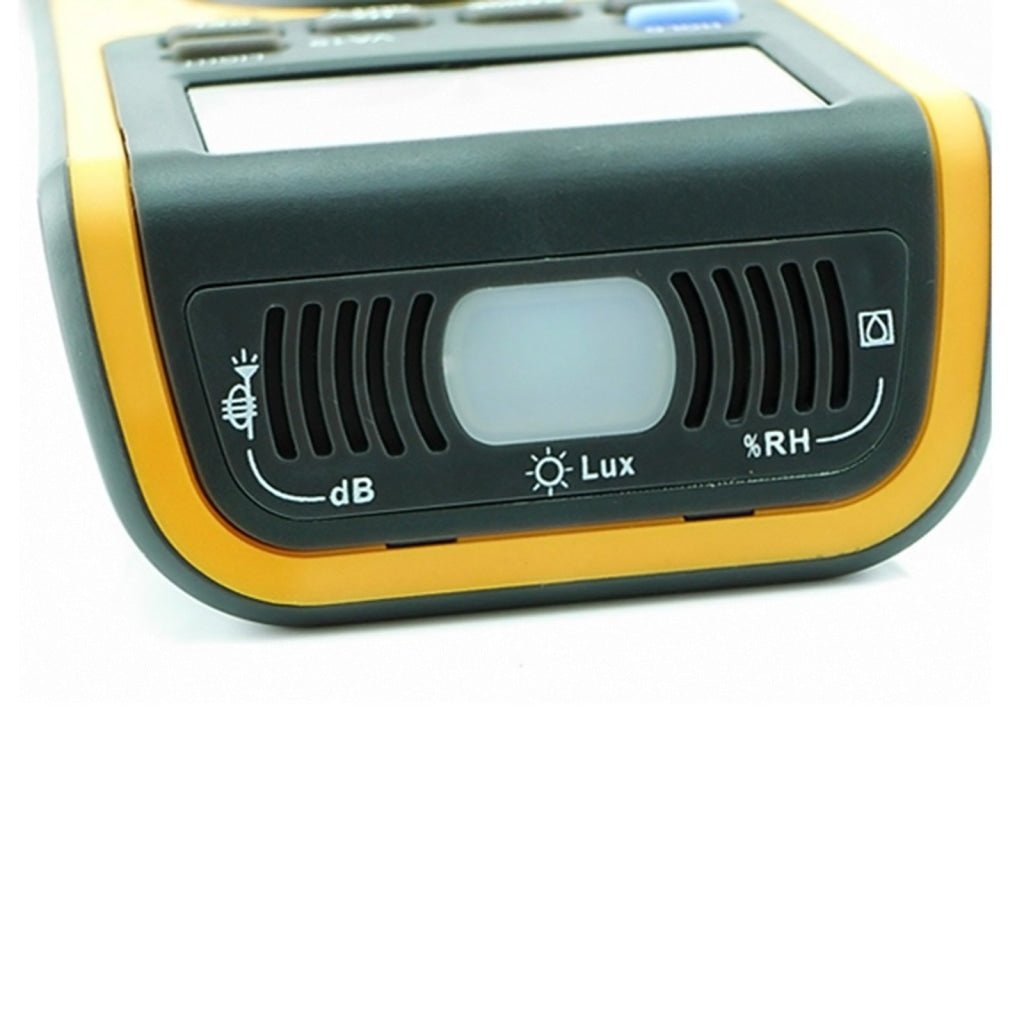

  • Measures Sound Level (dB), Illuminance (Lux), Temperature (°C) and Relative Humidity (RH)
  • 14 functions with 39 auto and manual ranges
  • Over range protection for all ranges

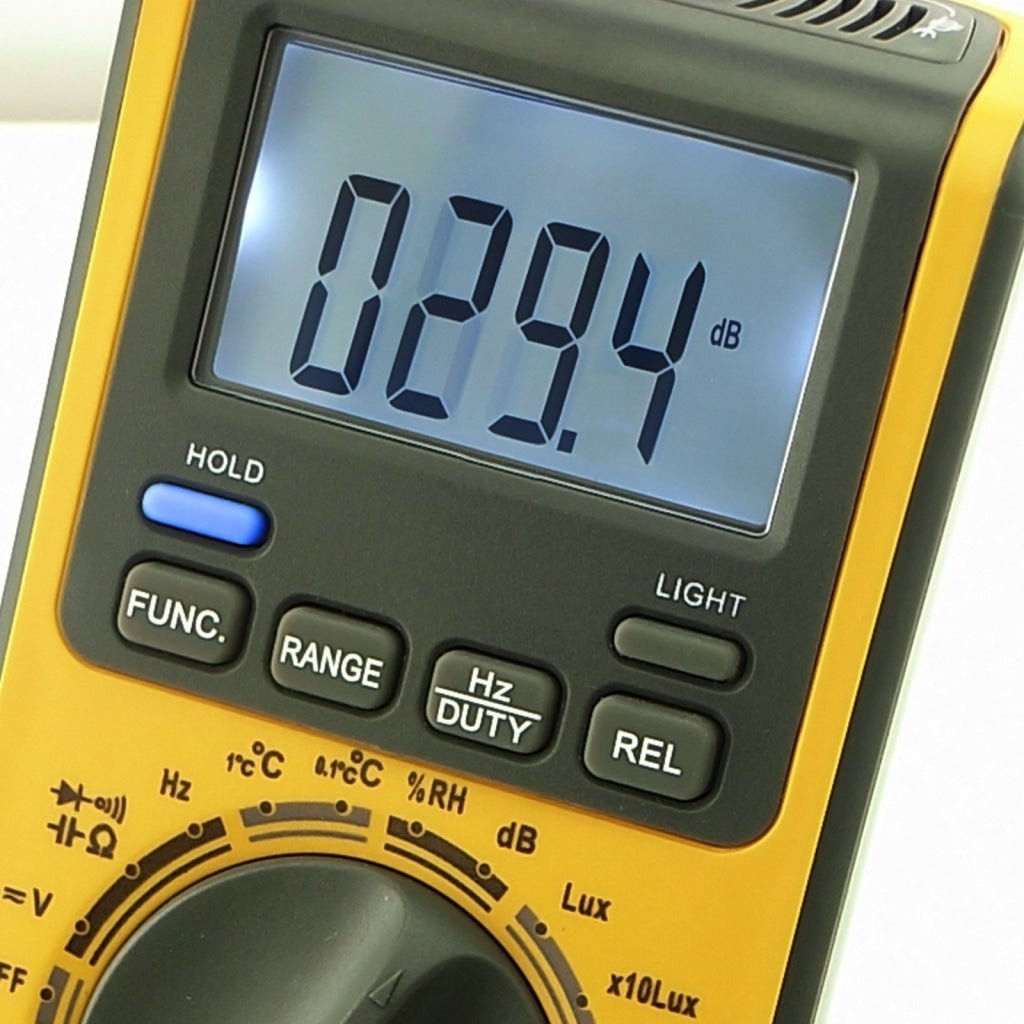

  • Large LCD display with backlight
  • Data hold, low power indication, auto power off
  • Double Insulation

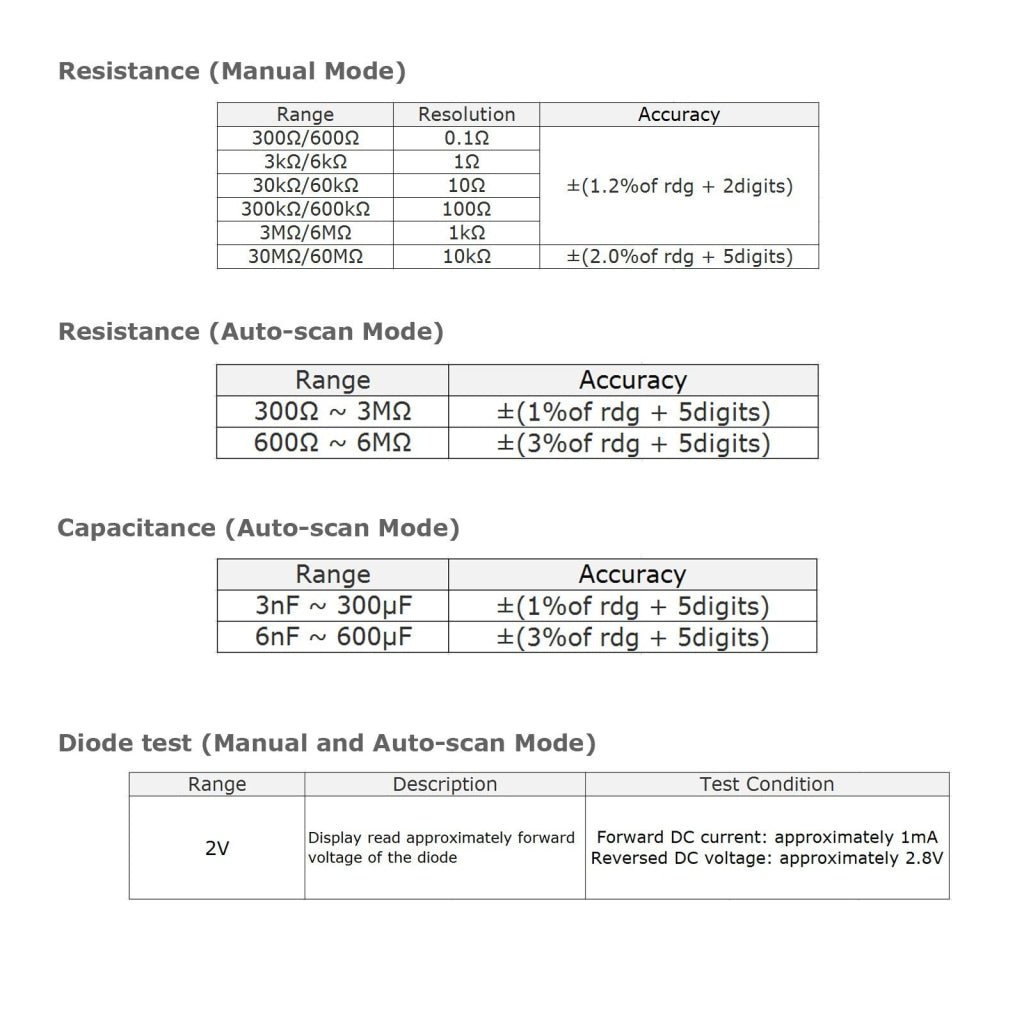

Specifications

  • Auto and manual range
  • 14 functions with 39 ranges
  • Maximum shown value: 3999 counts max
  • Over range protection for all ranges

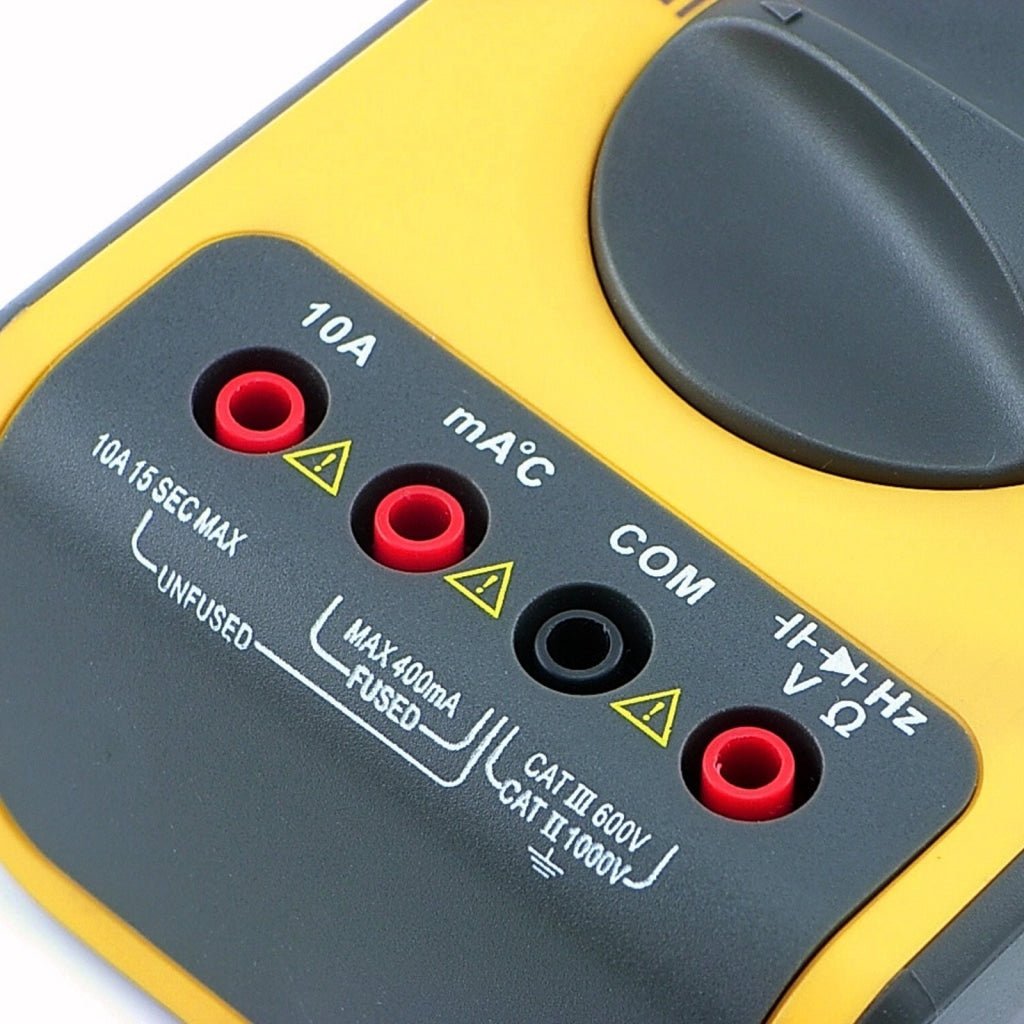

  • Maximum Voltage between Terminals and Earth Ground: 600V DC or rms AC
  • Operating Altitude: 2000 Meters (7000 feet) maximum
  • Polarity indication: "-" indicates negative polarity
  • Over range indication: Display '0L' or '-0L'
  • Sample Time: approximately 0.4 second
  • Unit showing: showing of function and electrical capacity
  • Auto power off time: 15 minutes

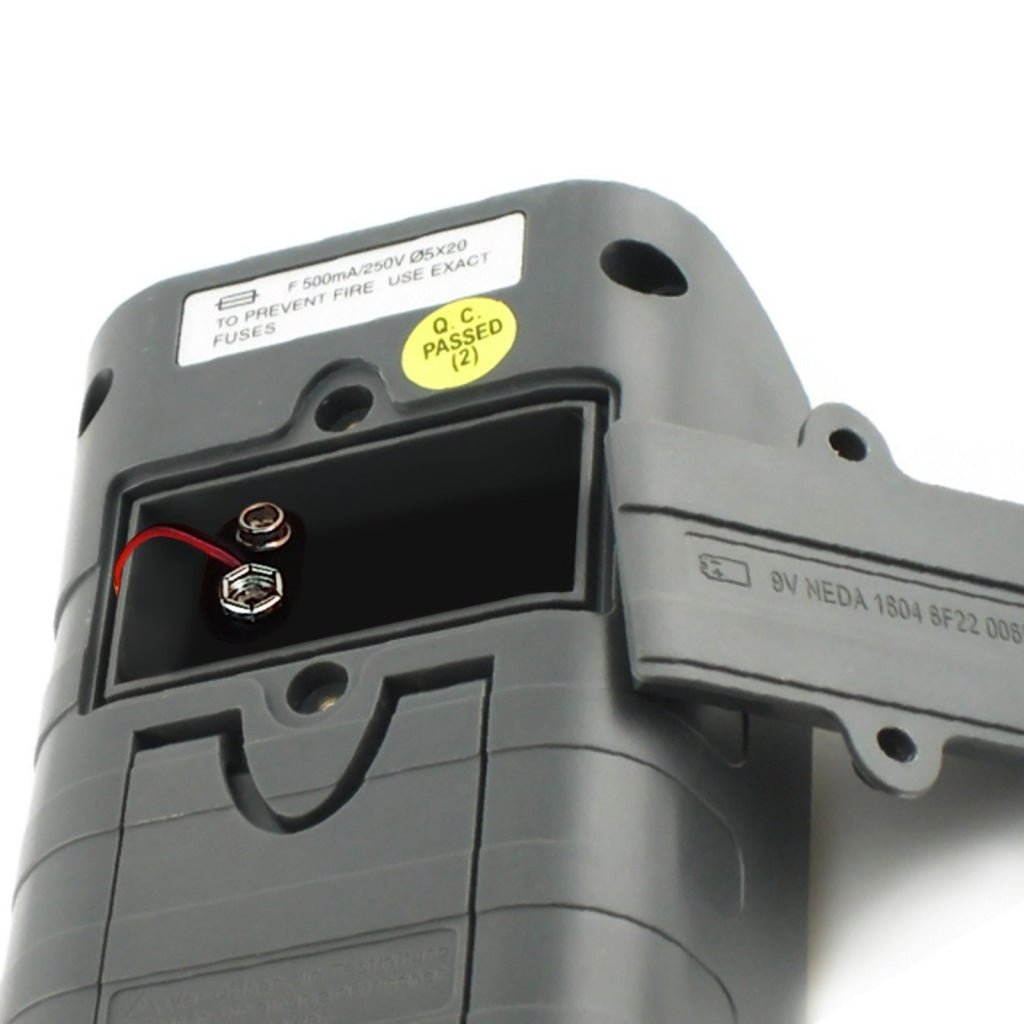

  • Fuse Protection: F 500mA / 250V (quick acting)
  • Low battery indication
  • Temperature Factor:
  • Operating Temperature: 0 ~ 40°C (32 ~ 104°F)
  • Storage Temperature: -10 ~ 50°C (14 ~ 122°F)
  • Power Supply: 9 V PP3 Battery (included)

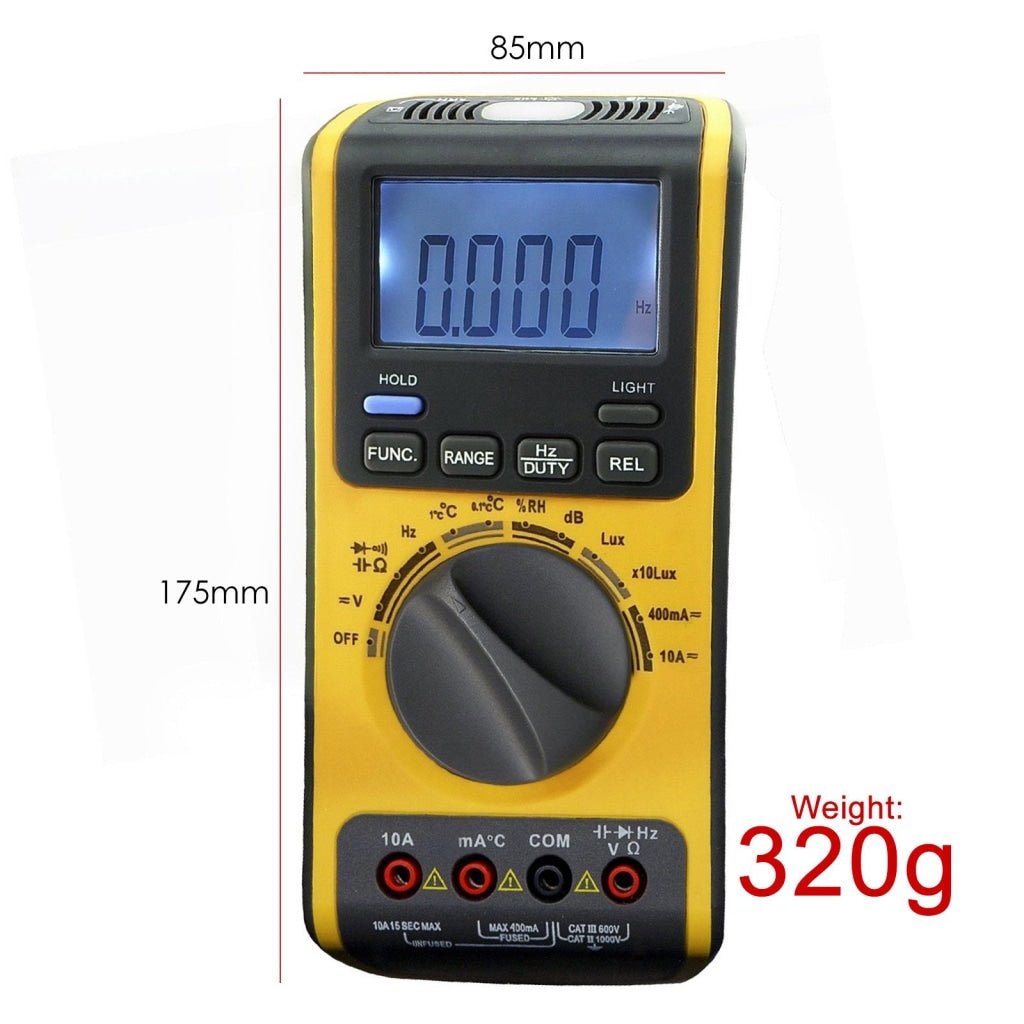

  • Dimension: approx. 178 x 85 x 40mm (L x W x H)
  • Weight: approx. 320g (batteries included)

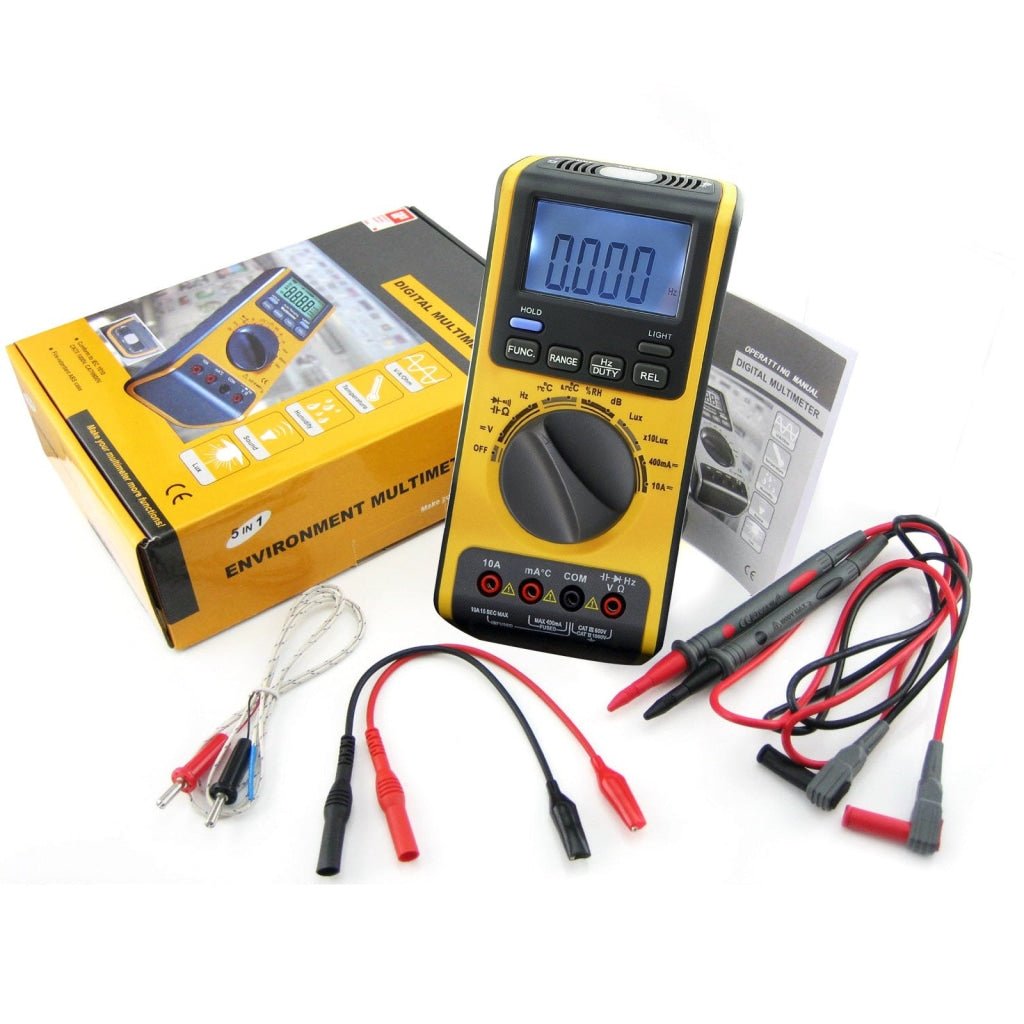

Set Includes

  • 1 x 5-in-1 Multimeter

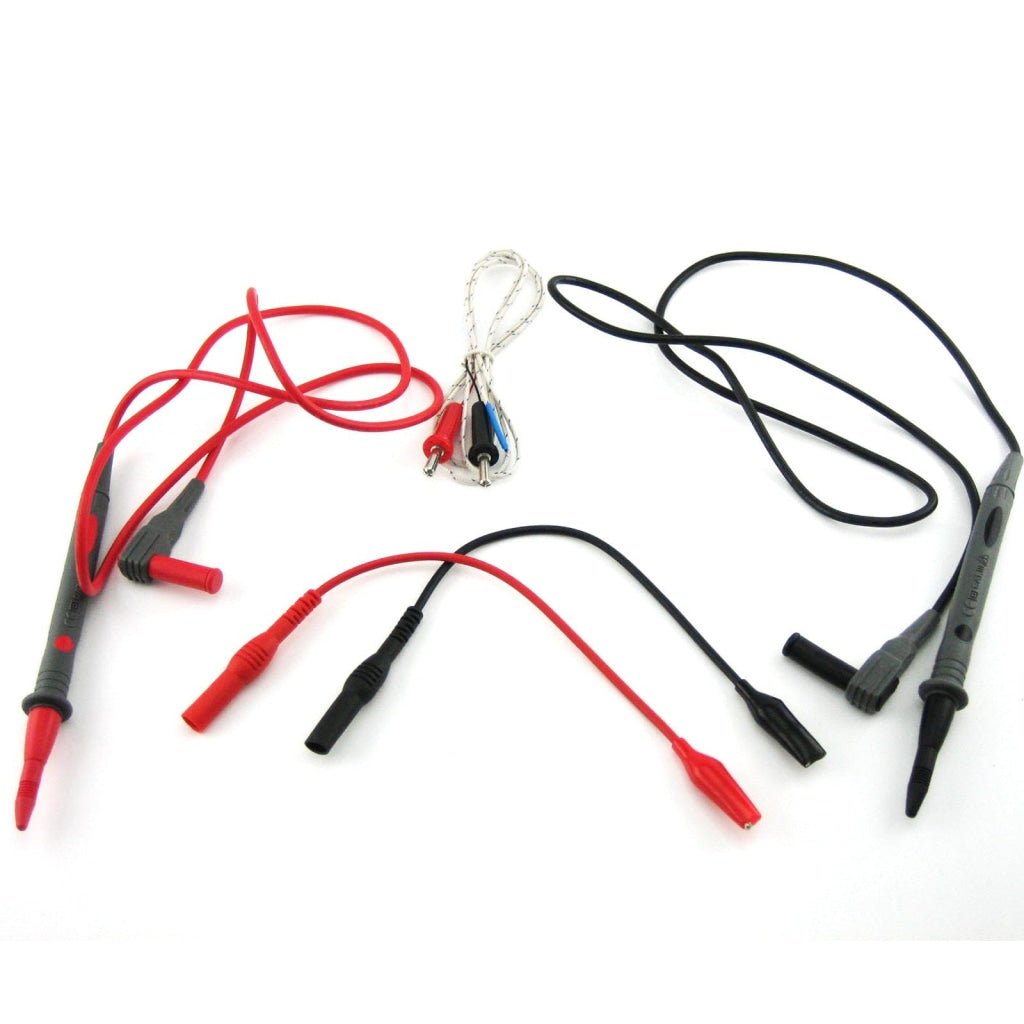

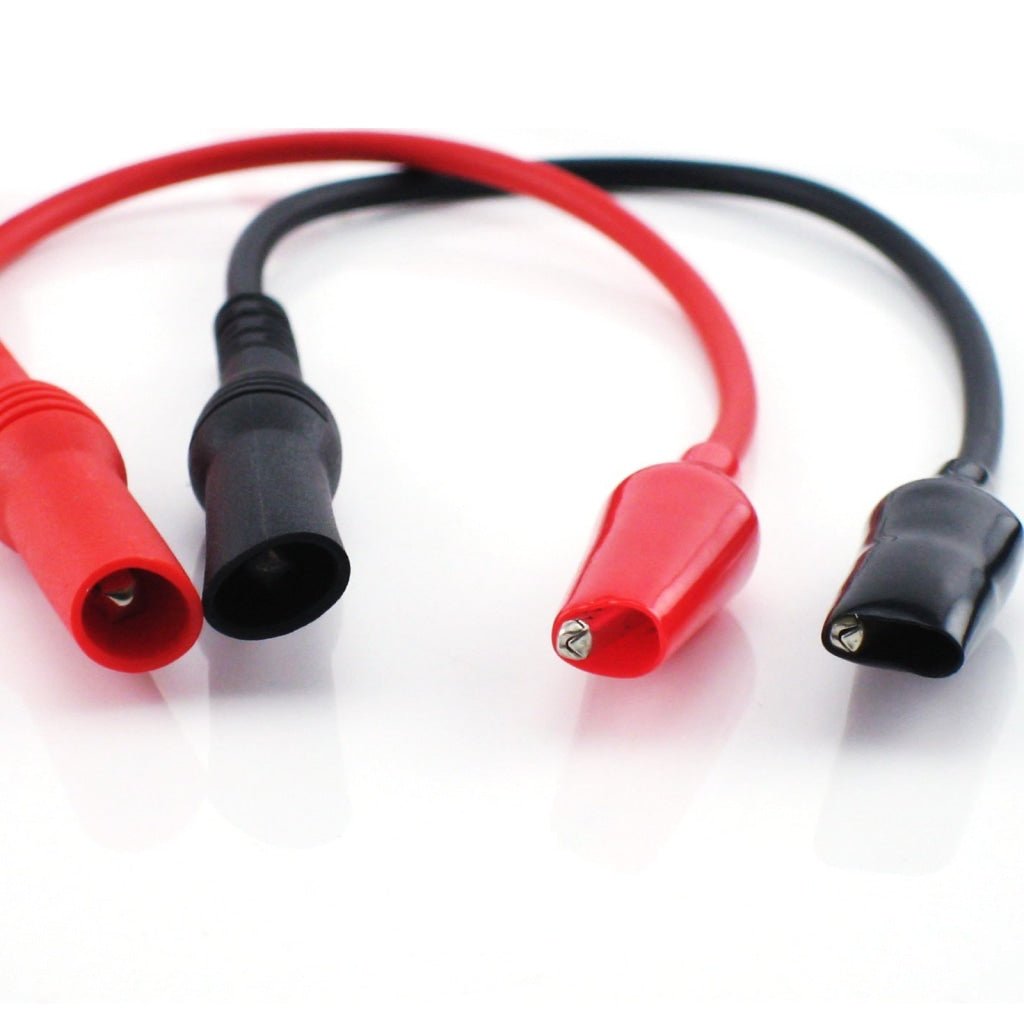

  • 1 Test Leads set
  • 1 x K-Type Thermocouple
  • 1 x 9V PP3 Battery
  • 1 x English Instruction Manual
  • Standard Factory Package

A printed user manual is already included with this item. No digital user manual or software is available.
