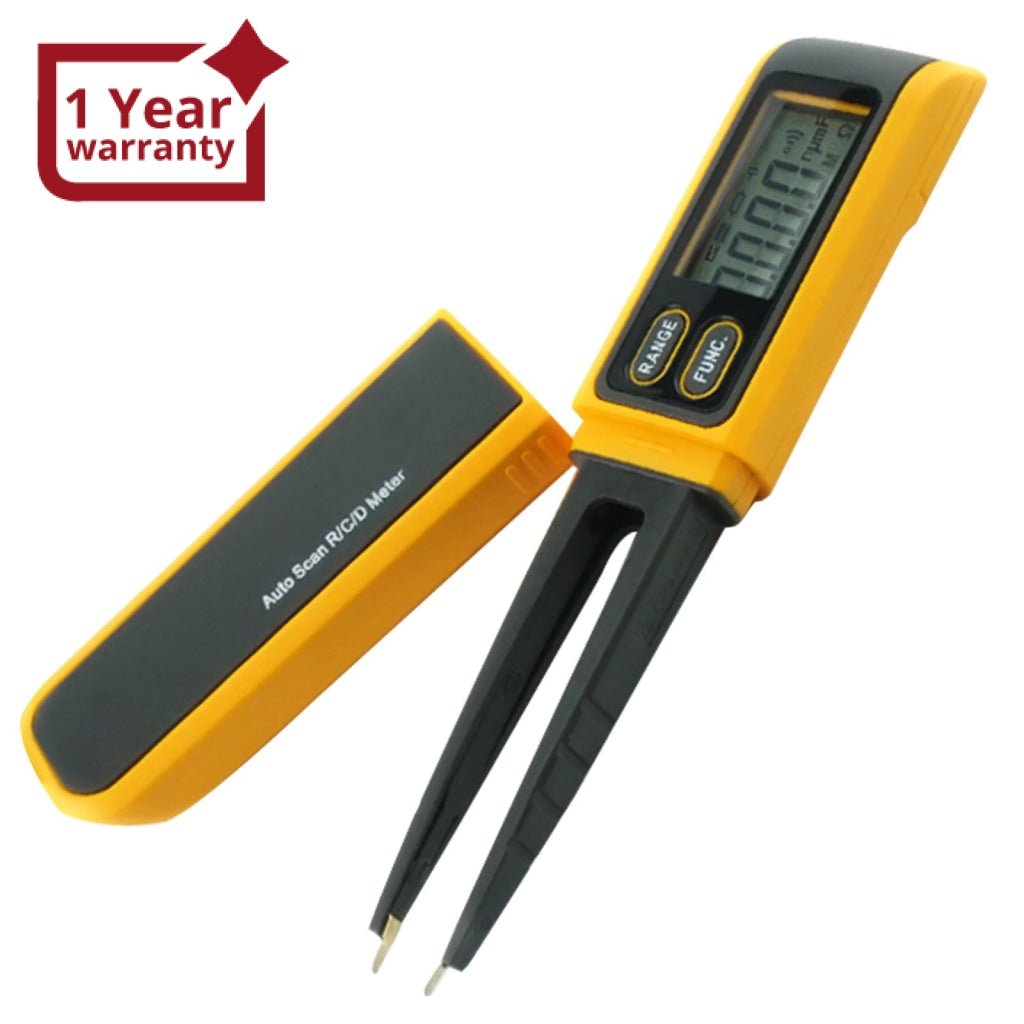

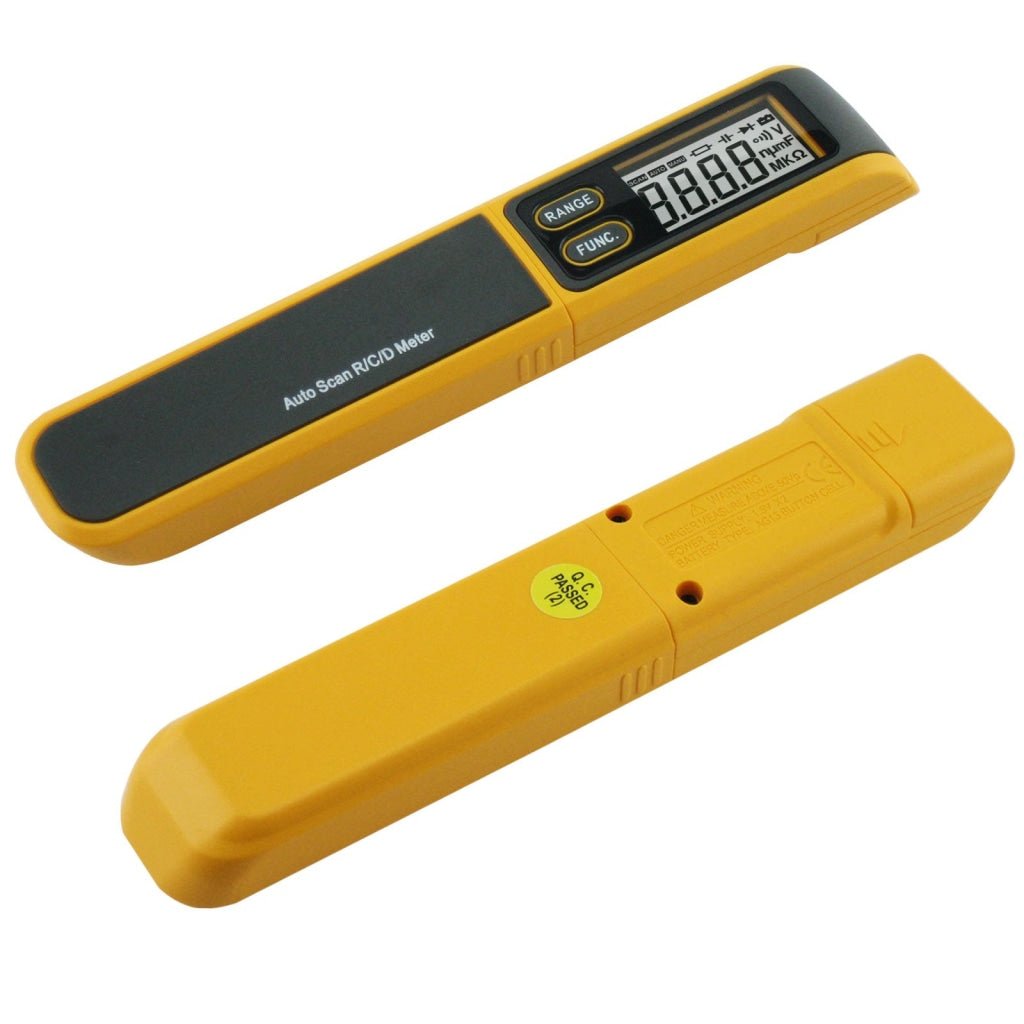

ILMU-826B R/C/D Auto Scan Tweezers Digital Multimeter Meter SMD

Sku: ILMU-826B
$42.90 USD
Translation missing: en.products.product.shipping_policy_html
Quantity:
Add to Wishlist Remove From Wishlist
Visa Mastercard PayPal American Express Google Pay Apple Pay Shop Pay

This auto-scan Resistance and Capacitance Tester for SMD precisely & quickly measure small chip components. Capable for manual & automatic ranging system with full-scale range, over range and low battery indicators, diode test, auto power off with last state auto-save and large LCD display with 5999 Max. display.

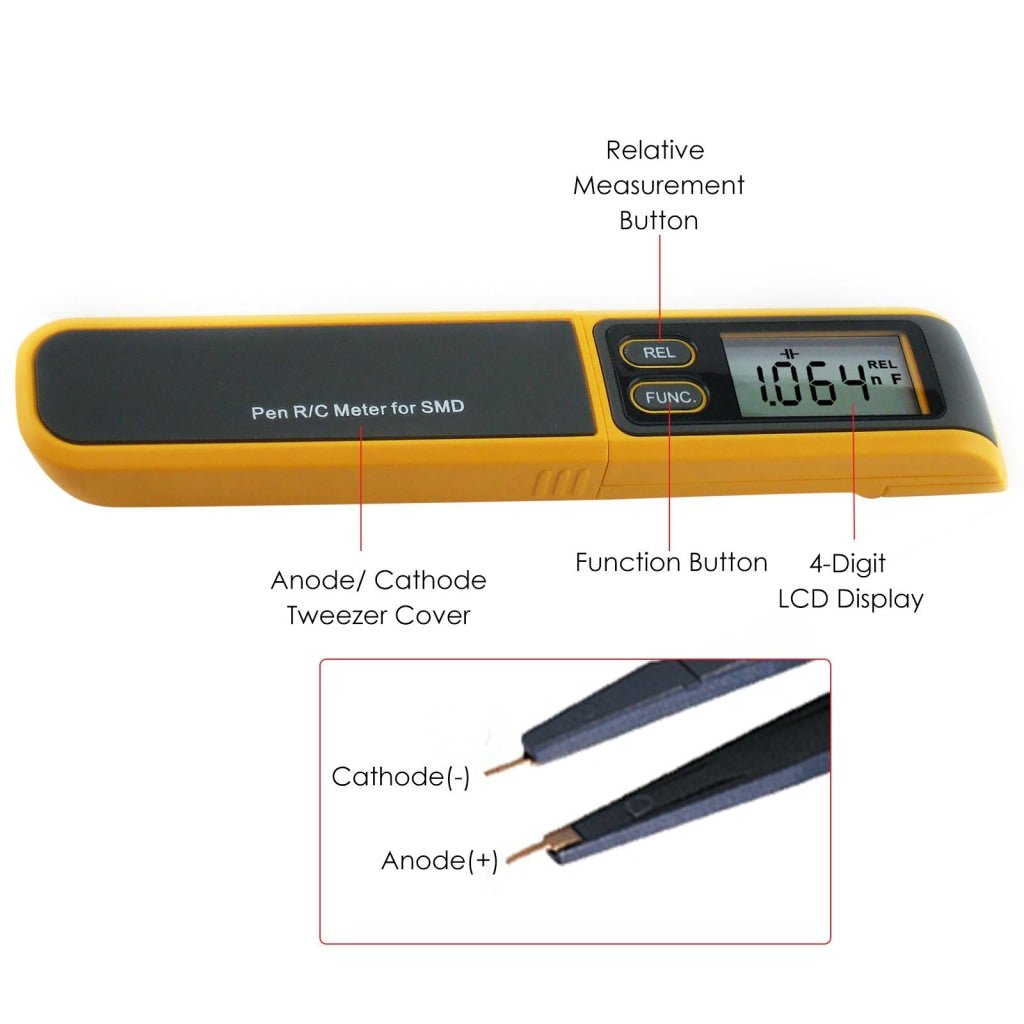

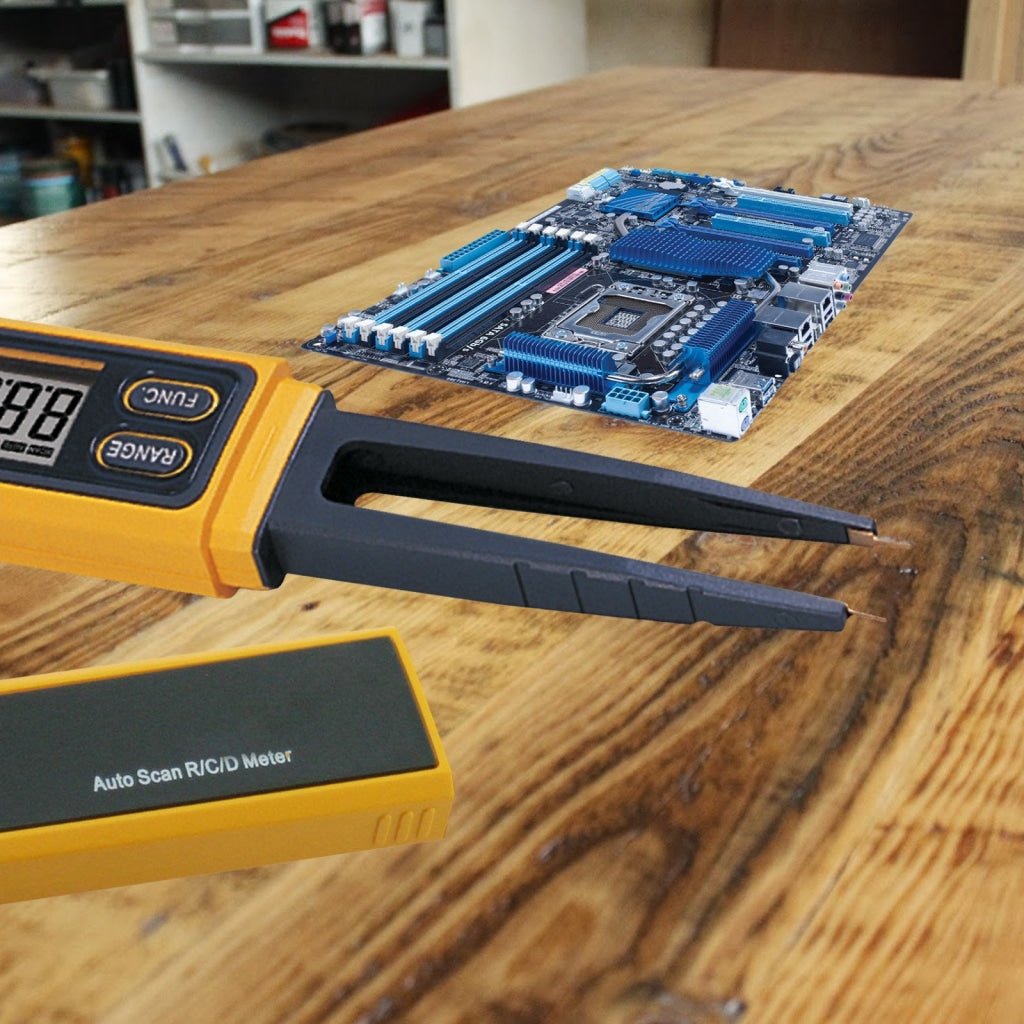

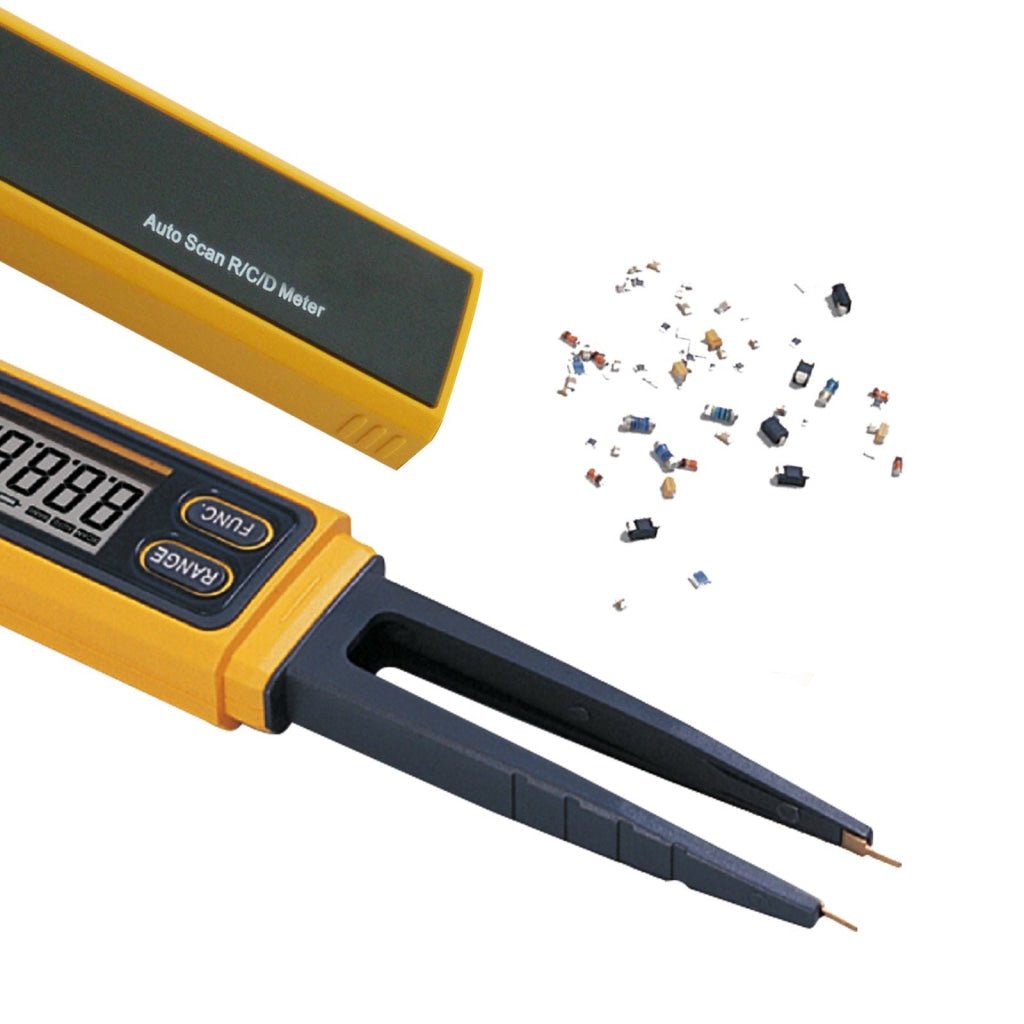

The precise non-magnetic steel tips can pick, hold and make reliable contact even smallest SMD components and devices already mounted on a board. The probe can also be used to test conventional components with too short wire leads to insert into the test terminals.


Features

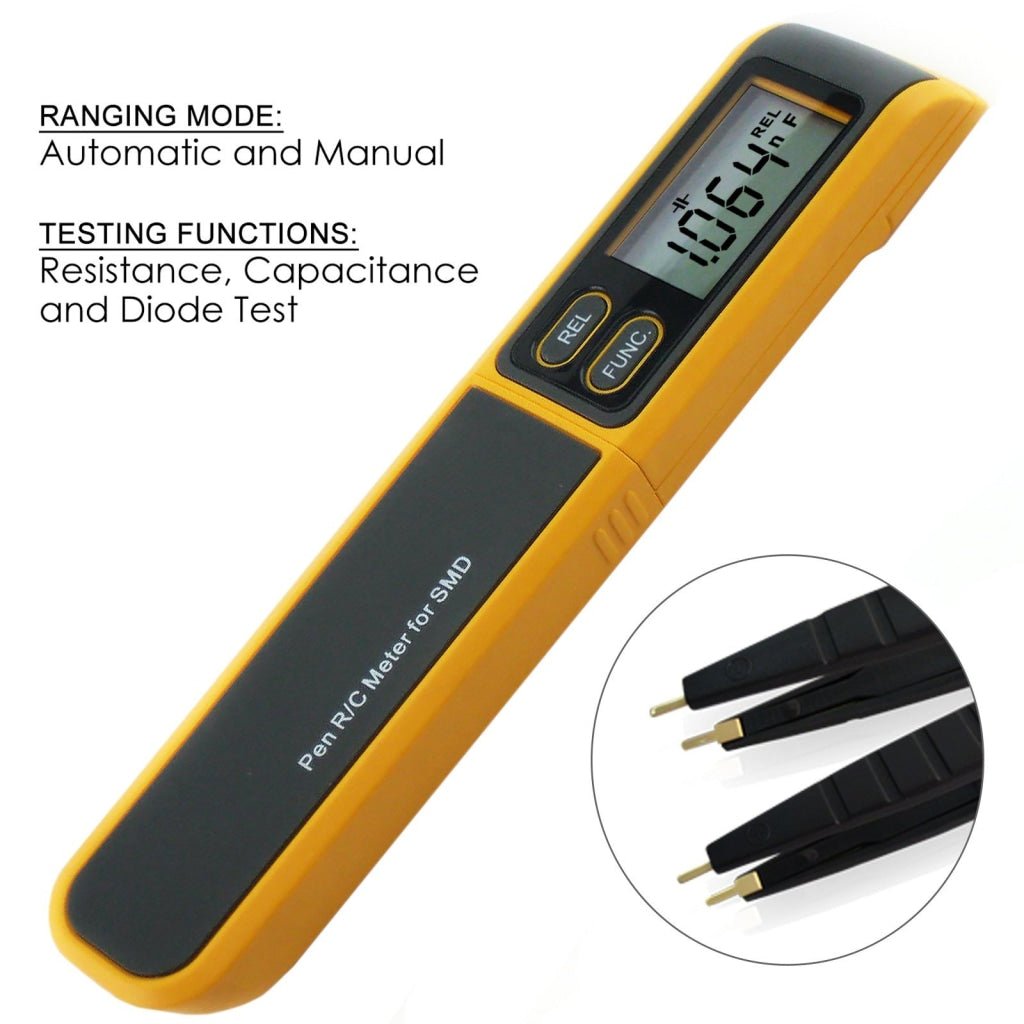

  • Auto and Manual scan mode for Resistance, Capacitance and Diode Test
  • Continuity check
  • High precision Resistance and Capacitance probe
  • Precise tips for small-size devices
  • With sampling rate of 3 times per second
  • Over range and Low battery indication
  • Auto Power off function with last state auto-save
  • Large LCD display with Maximum reading up to 5999
  • Ideal tool for Surface Mount Devices (SMD)
  • Ergonomic design with one-hand operation
  • Tested according to European international guidelines and standards (CE marking)
  • Passed IEC1010 set standards with Pollution Degree 2 & Altitude <2000m

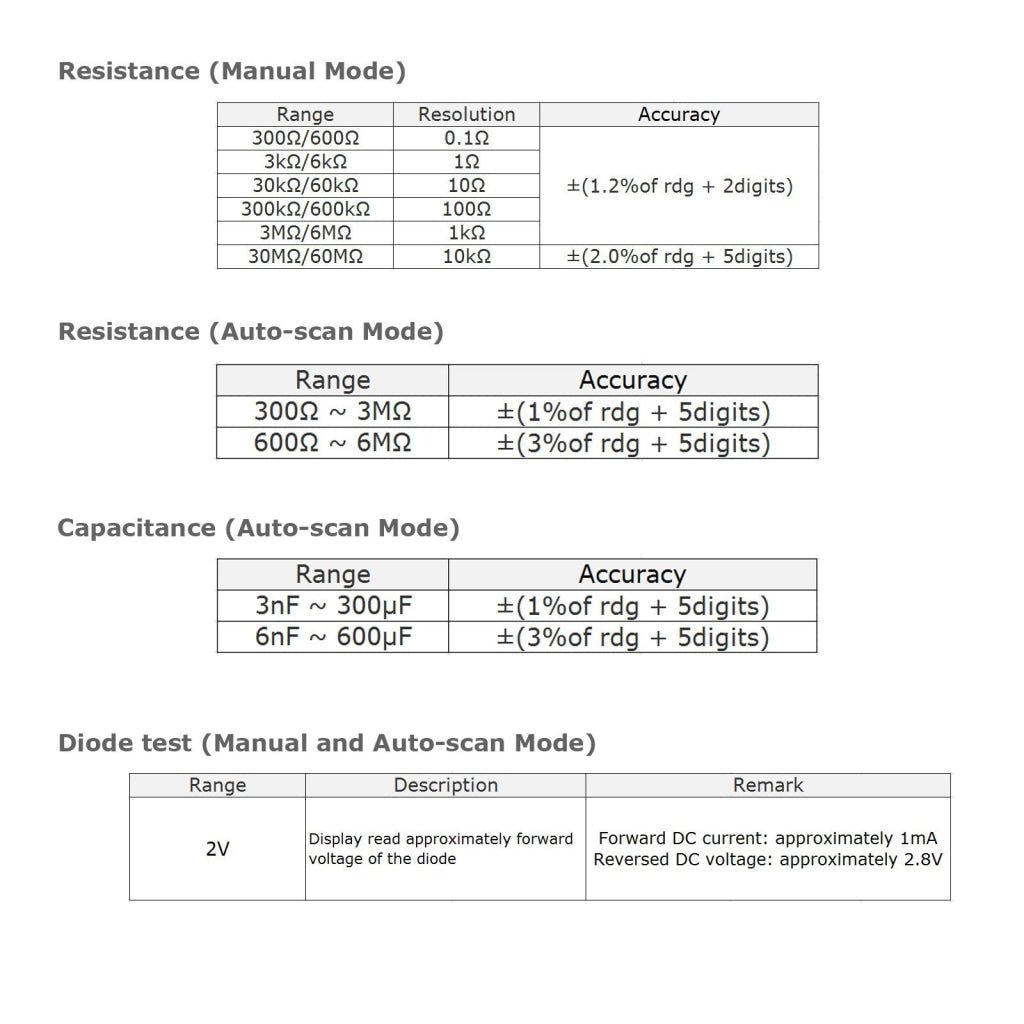

Specifications

  • Environment conditions
    • Pollution degree: 2
    • Altitude < 2000m
    • Operating temperature: 0~40°C, (<80% RH, non-condensing)
    • Storage temperature: -10~60°C, (<70% RH, battery removed)
  • Temperature Coefficient: 0.1 x (specified accuracy) / °C (<18°C or >28°C)
  • MAX. Voltage between terminals and earth ground: 50V DC or 36V AC rms

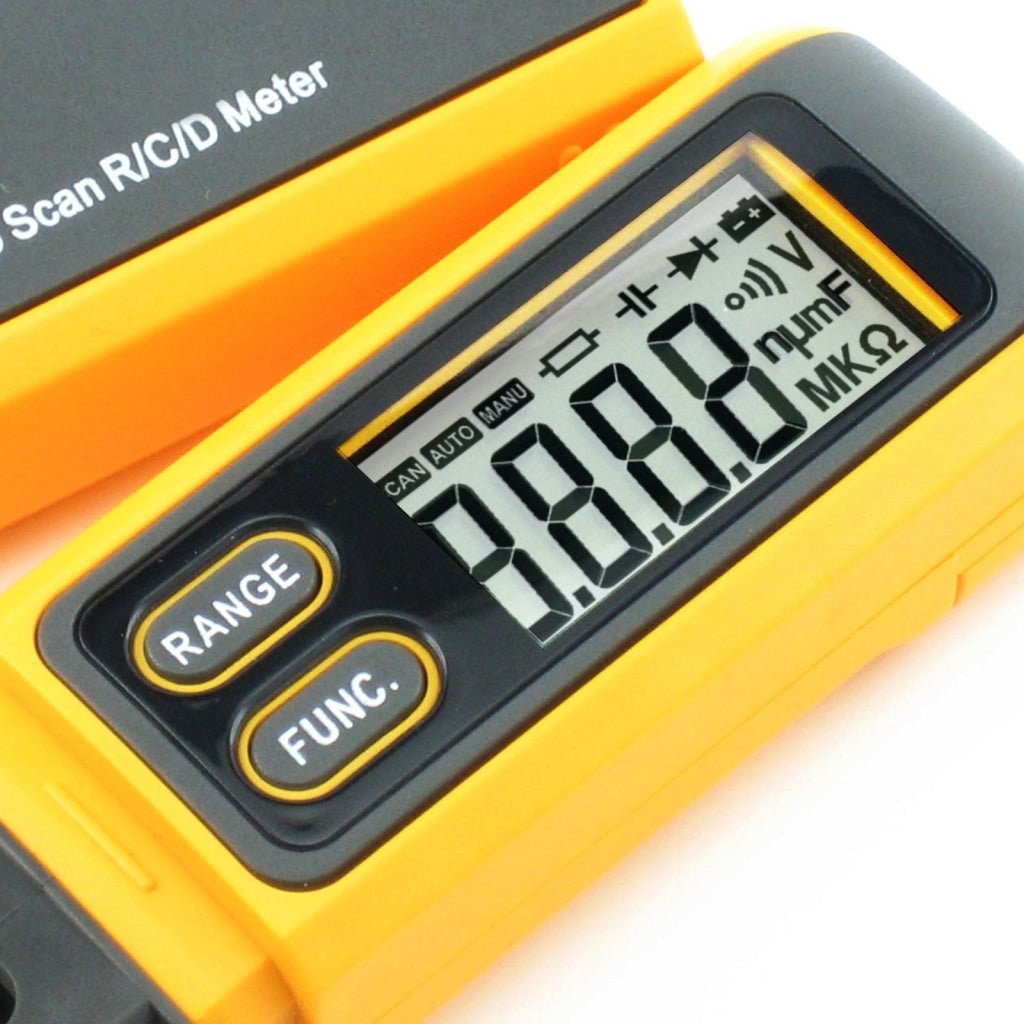

  • Display: 5 5/6 digits LCD display with max. reading 5999
  • Over Range indication: LCD will display "OL"
  • Low battery indication
  • Auto power off if idle for 10min

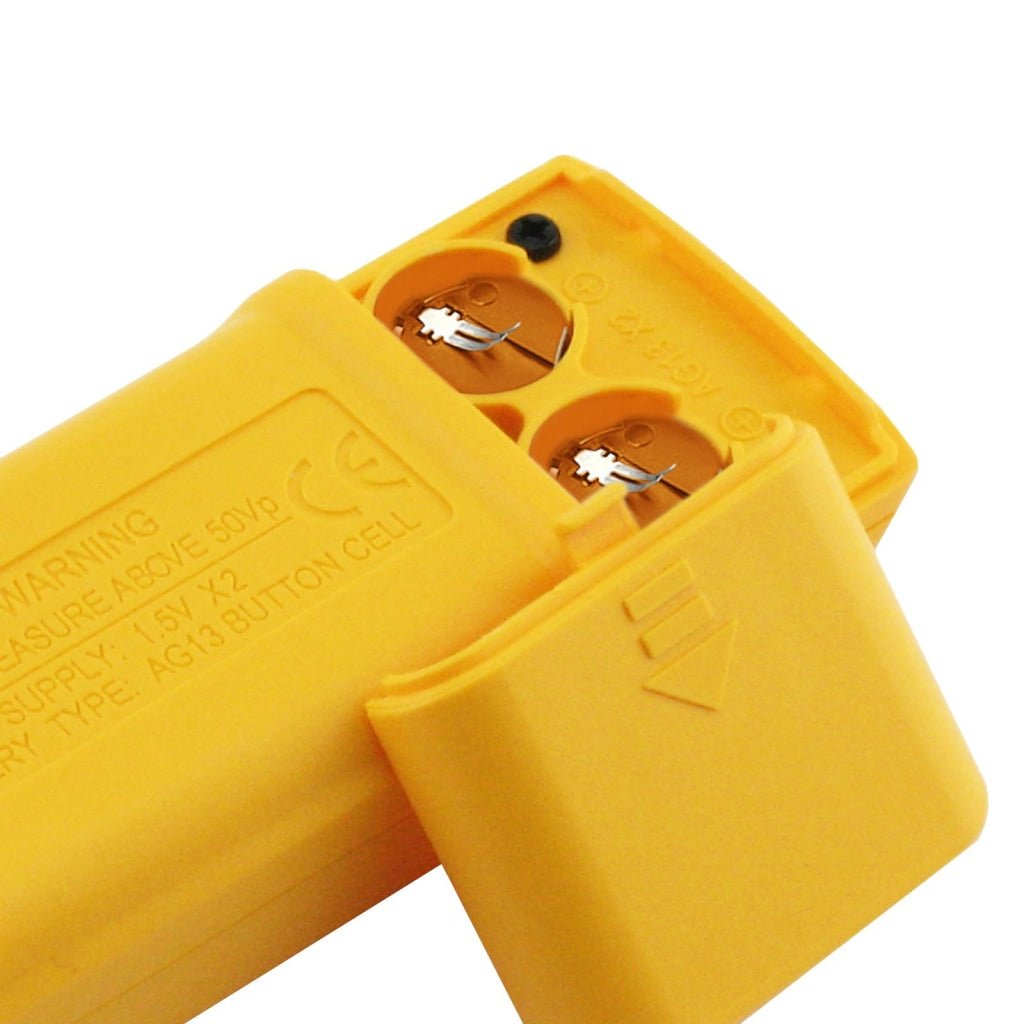

  • Power supply: 1.5V battery x 2 (included)

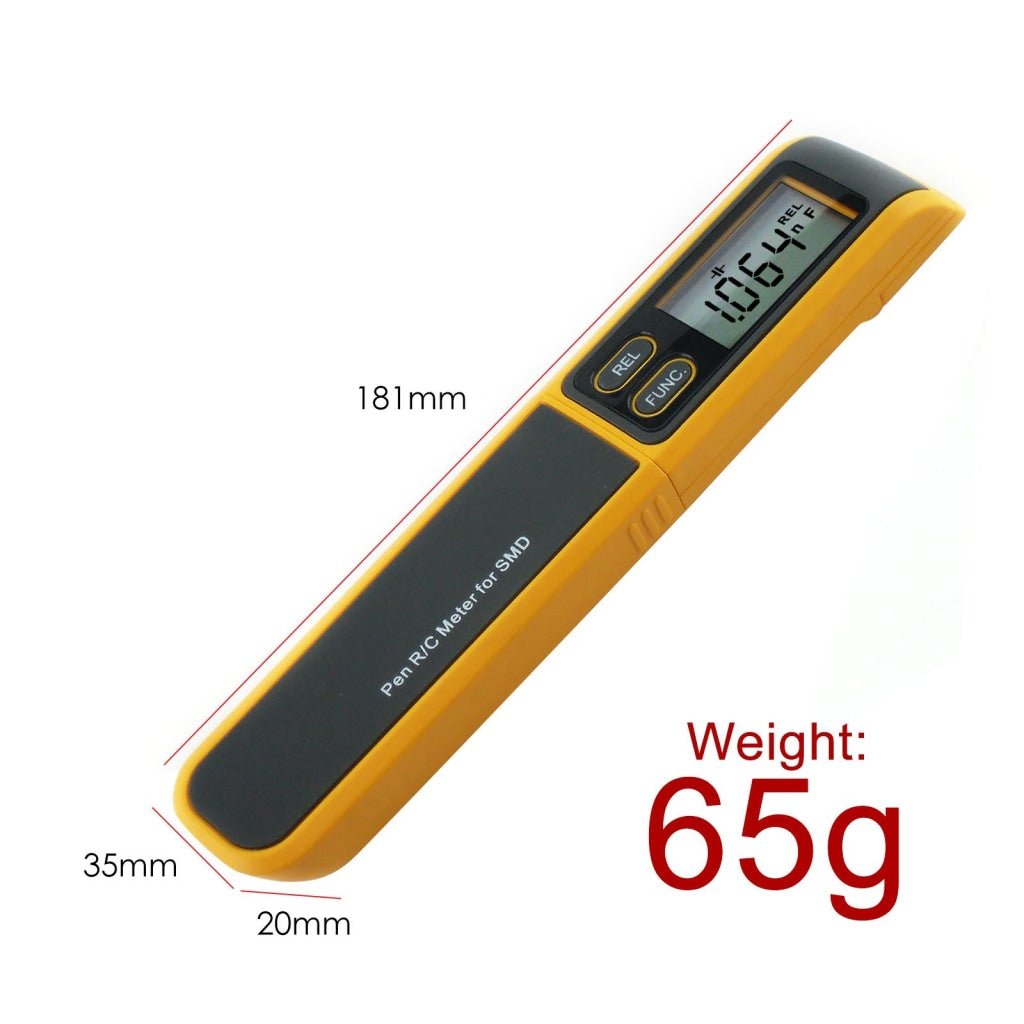

  • Dimensions: 181 x 35 x 20mm (L x W x H)
  •  Weight: approx. 65g (battery included)

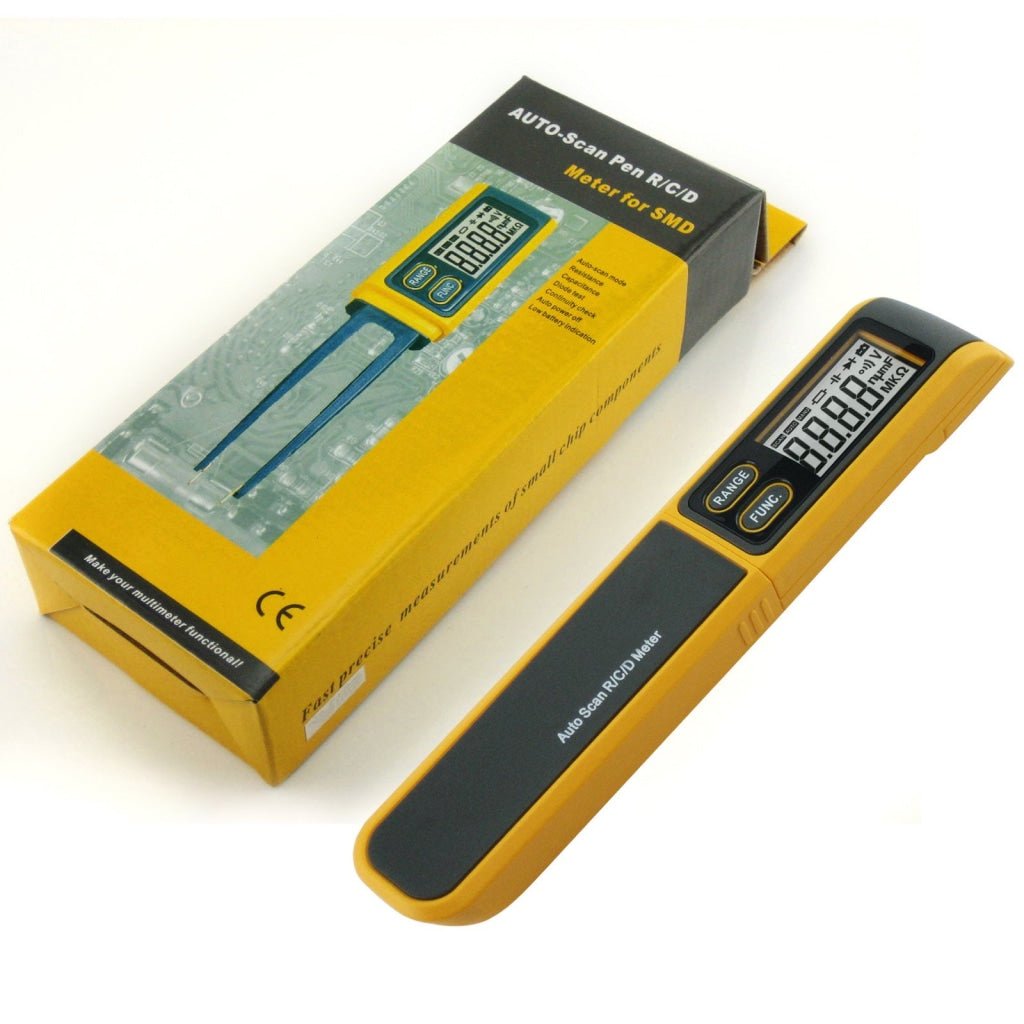

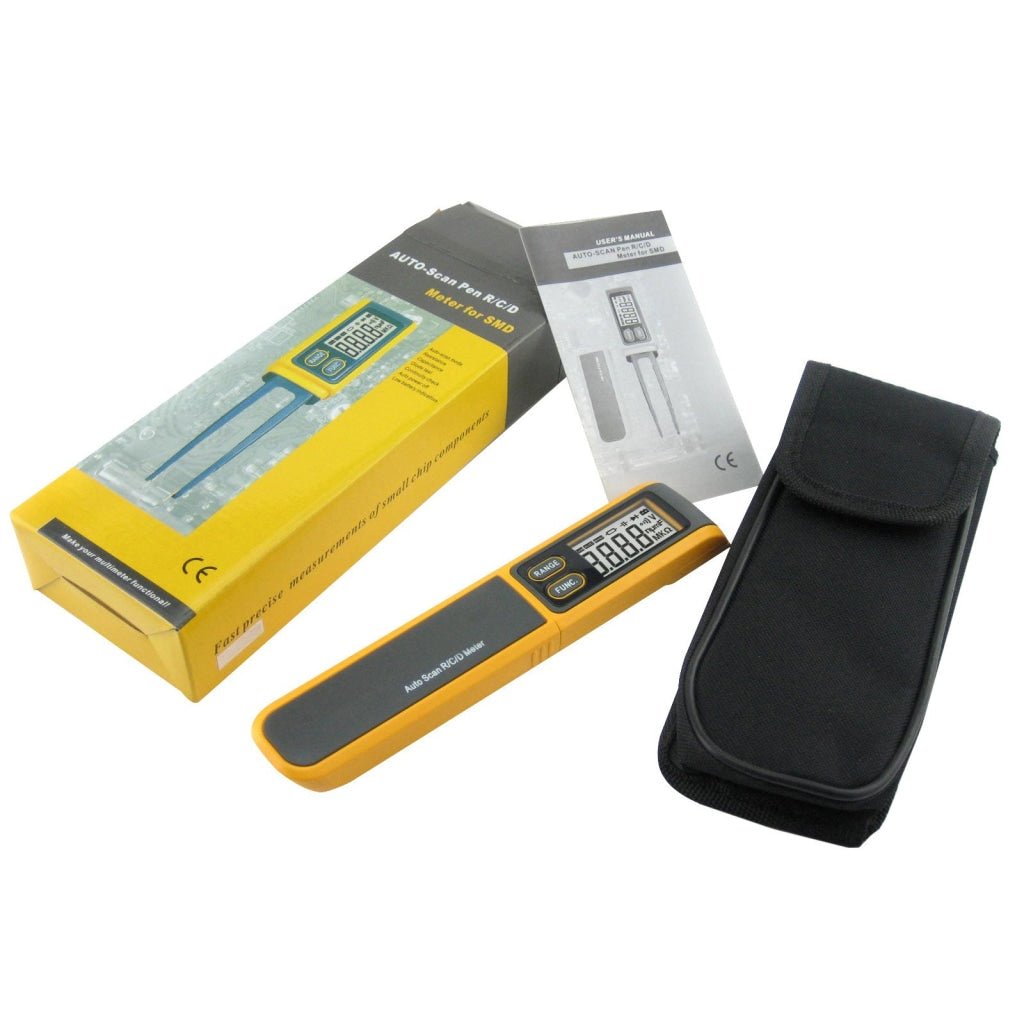

Set Includes

  • 1 x Auto & Manual RC Pen-Type Multimeter
  • 2 x 1.5V Button Battery (FREE)
  • English Quick Start Guide

A printed user manual is already included with this item. No digital user manual or software is available.
