ILMU-743 Resistance Capacitance Diode Test Multimeter Meter R/C SMD

Sku: ILMU-743
$38.90 USD
Translation missing: en.products.product.shipping_policy_html
Quantity:
Add to Wishlist Remove From Wishlist
Visa Mastercard PayPal American Express Google Pay Apple Pay Shop Pay

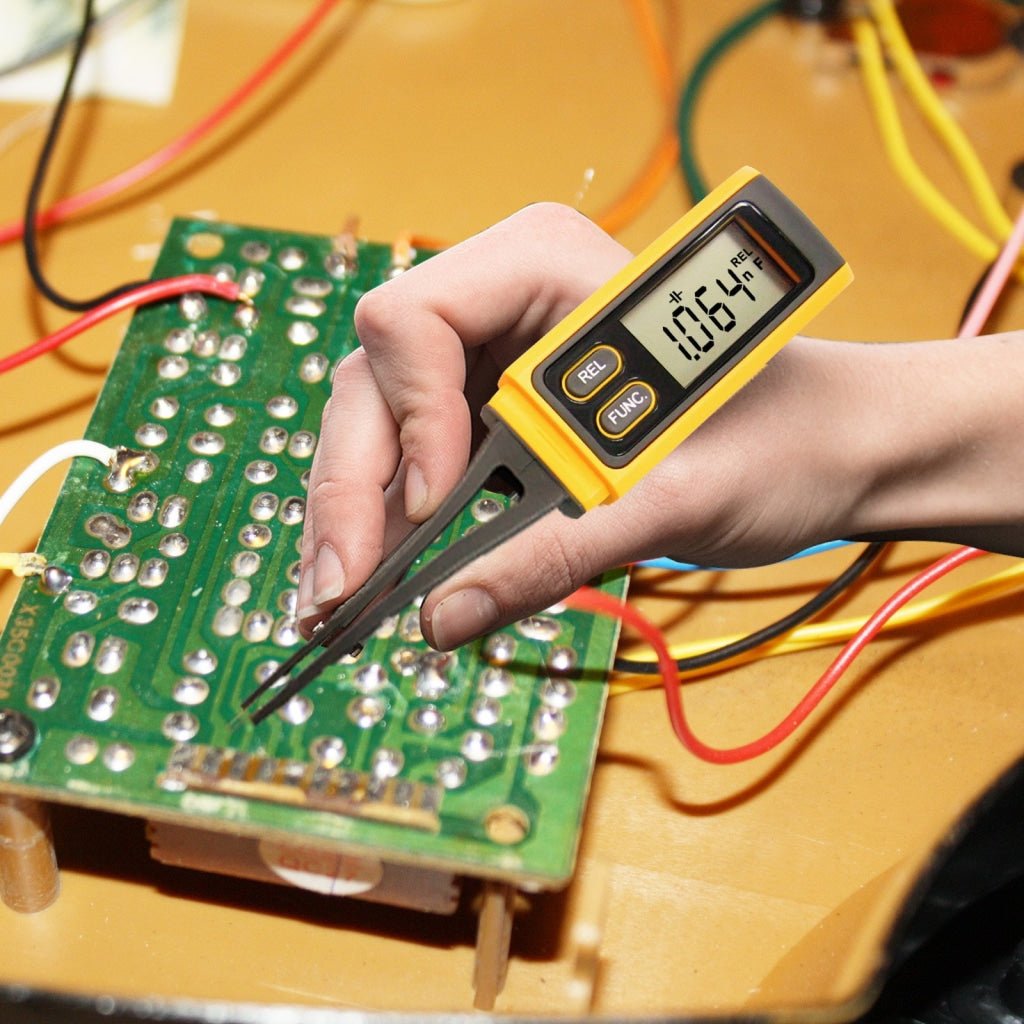

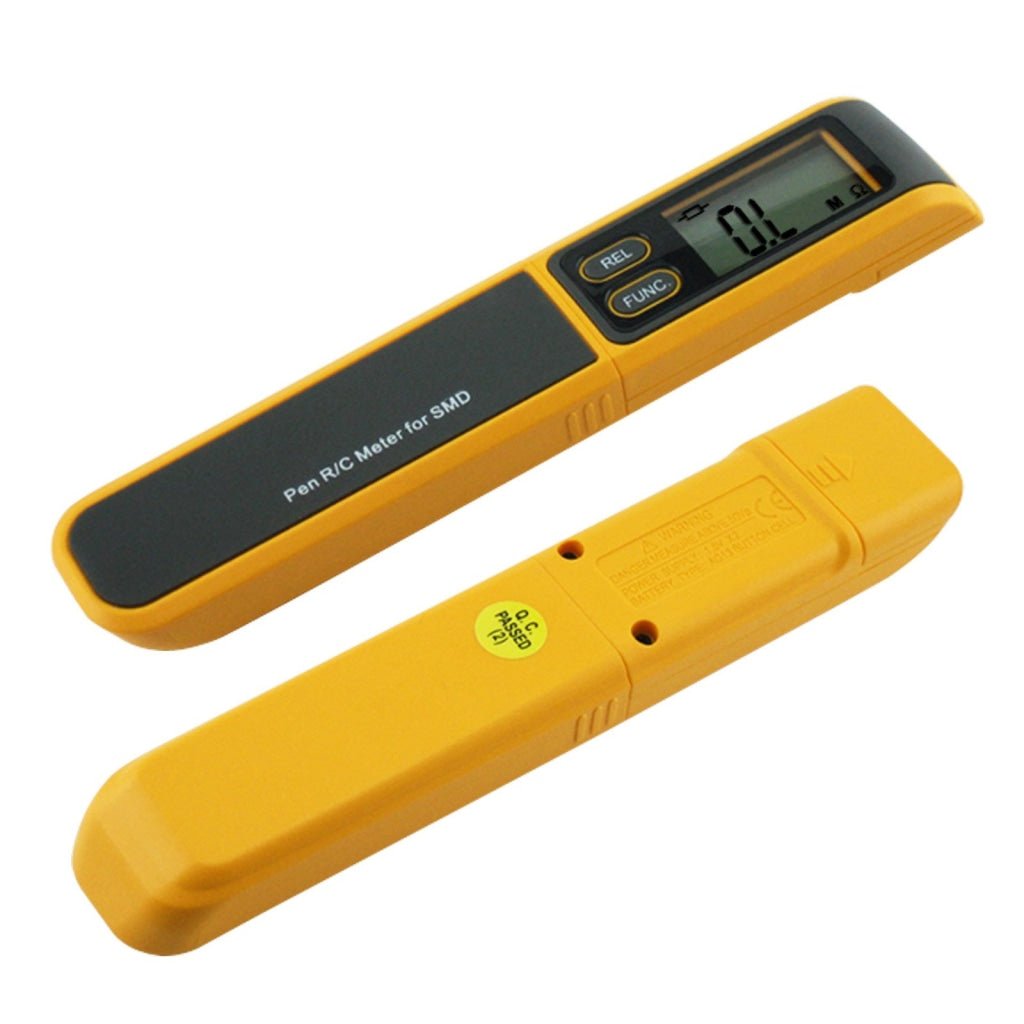

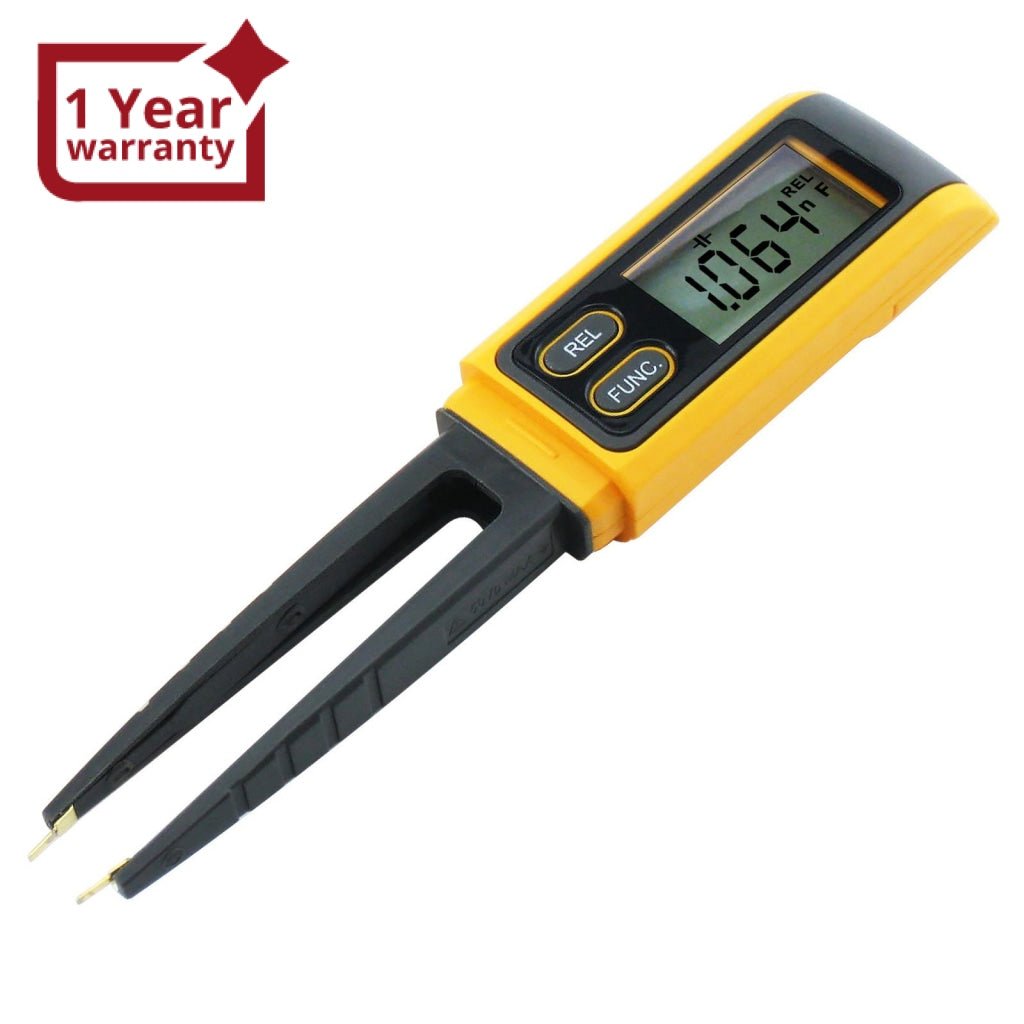

This pen R/C meter for SMD is designed to accurately measure small chip components. Measures diode & polar capacitance and capable for relative measurement. It has large LCD display with 3999max reading. Surface mount devices are usually tiny and without wire leads, making it much more difficult to test and identify Surface Mounted Device (SMD) than conventional components. Using this multimeter is an easy way to sort and evaluate loose components and perform on-board measurements and debugging. The precise non-magnetic steel tips are able to hold and contact reliably even smallest SMD components and devices already mounted on a board. The probe can also be used to test conventional components with too short wire leads to insert into the test terminals.

Features

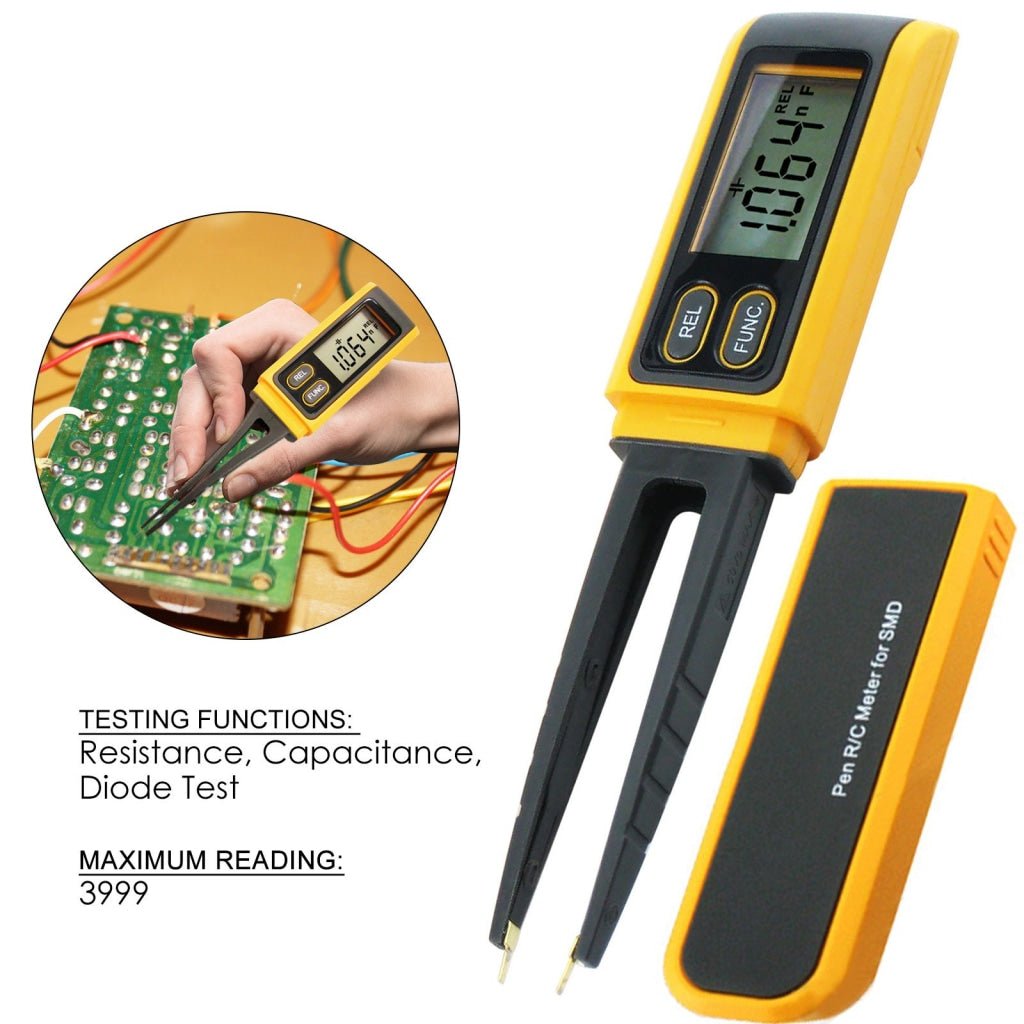

  • Quickly measure high Resistance, Capacitance and Diode Test
  • Relative Measurement
  • High precision Resistance and Capacitance probe

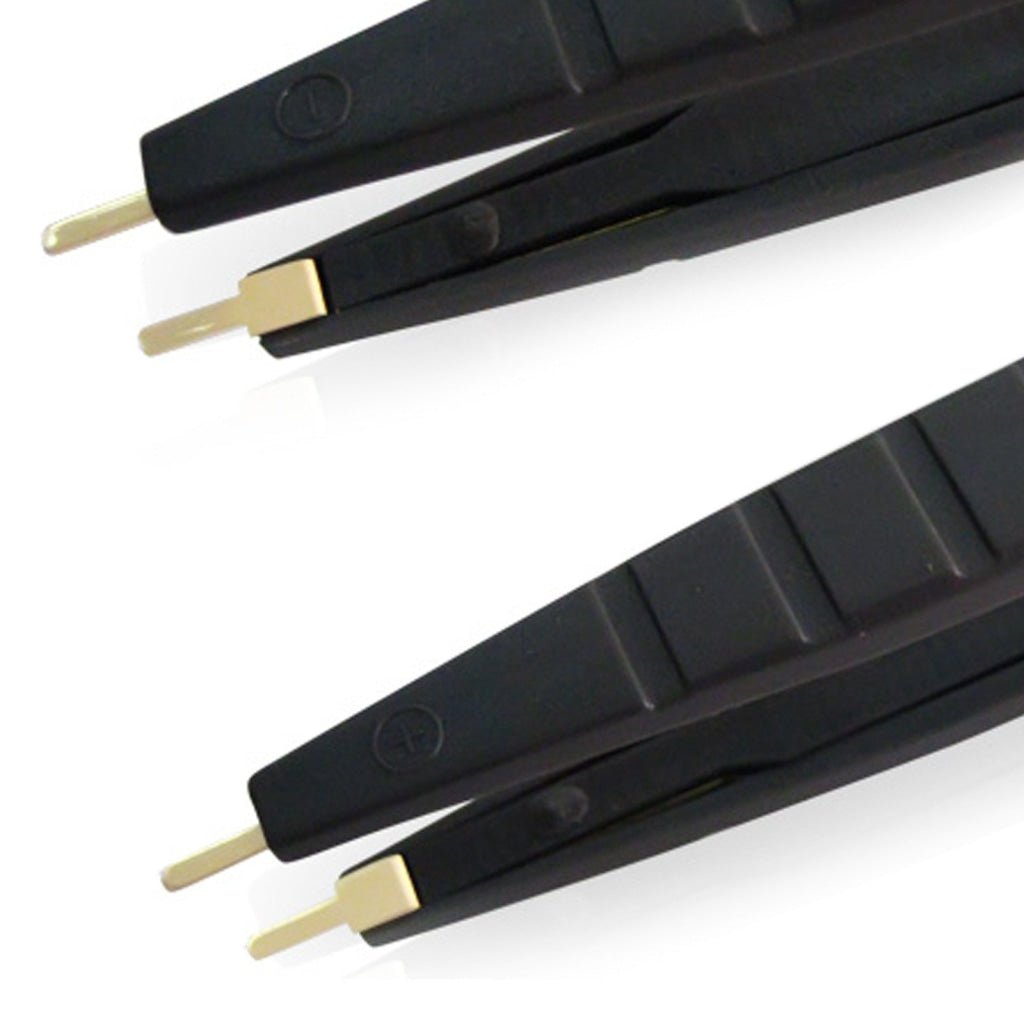

  • Precise tips for small-size devices
  • With sampling rate of 3 times per second
  • Over range and Low battery indication
  • Auto Power off function
  • Low battery indication

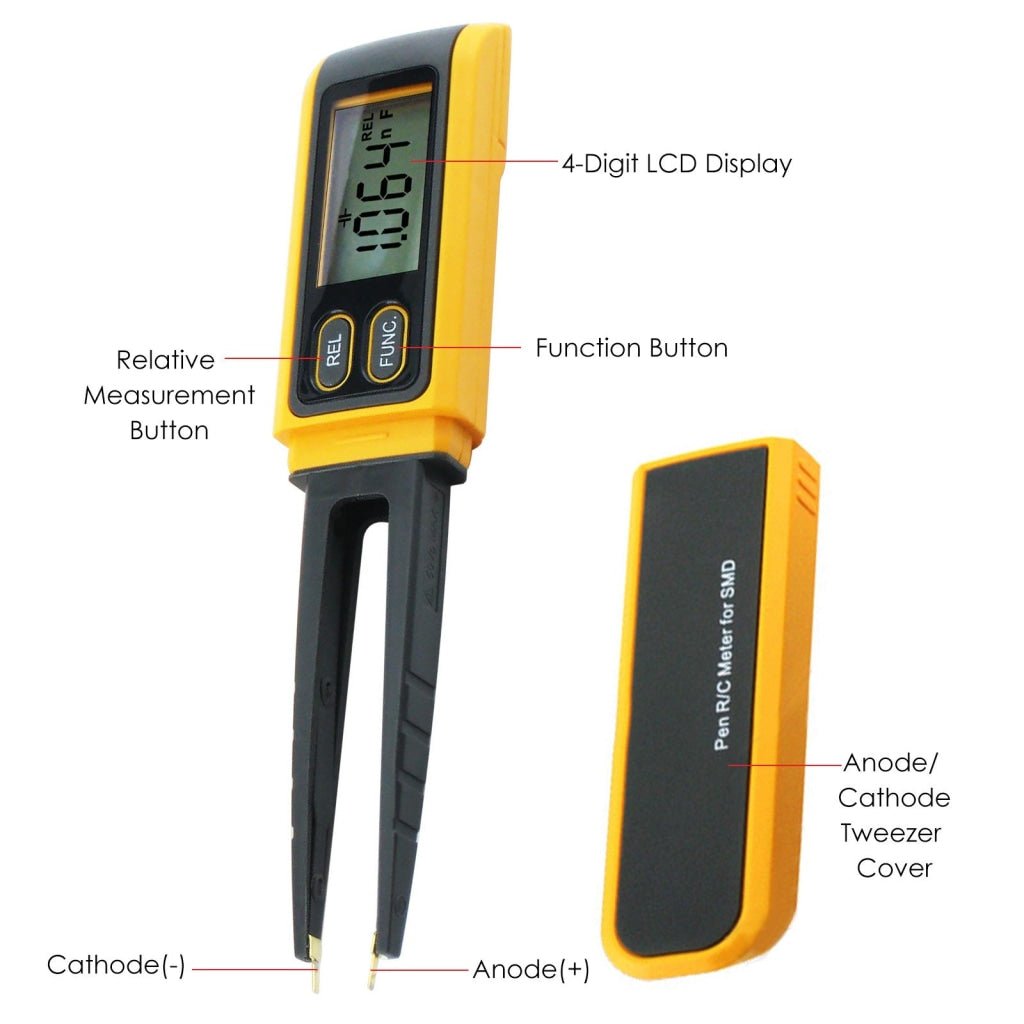

  • Large LCD display with Maximum reading up to 3999
  • Ideal tool for Surface Mount Devices (SMD)
  • Ergonomic design with one-hand operation
  • Tested according to European international guidelines and standards (CE marking)
  • Passed IEC1010 set standards with Pollution Degree 2 & Altitude <2000m

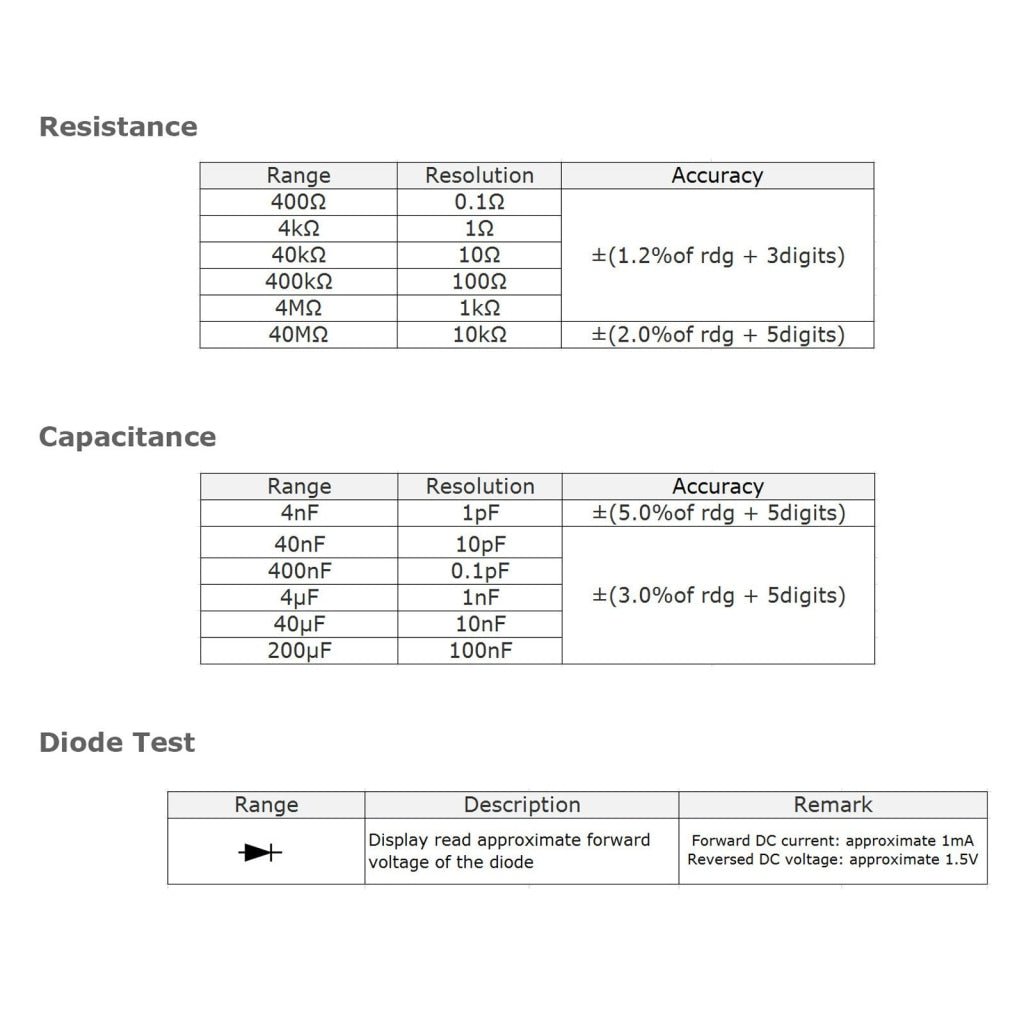

Specifications

  • Environment conditions
    • Pollution degree: 2
    • Altitude < 2000 m
    • Operating temperature: 0~40°C, (<80% RH, non-condensing)
    • Storage temperature: -10~60°C, (<70% RH, battery removed)
  • Temperature Coefficient: 0.1 x (specified accuracy) /°C (<18°C or >28°C)
  • MAX. Voltage between terminals and earth ground: 50V DC or 36V AC rms
  • Sample Rate: 3 times/sec for digital data

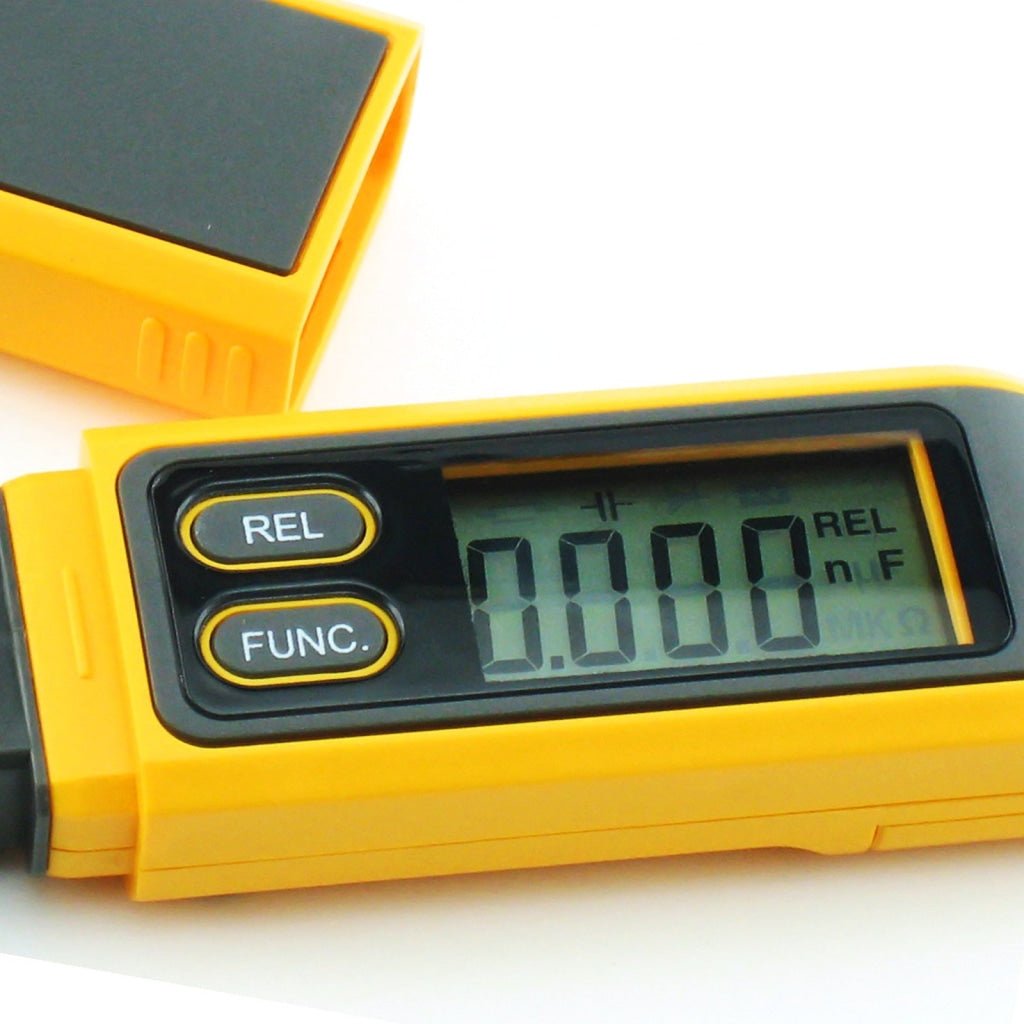

  • Display: 3 3/4 digits LCD display with max. reading 3999

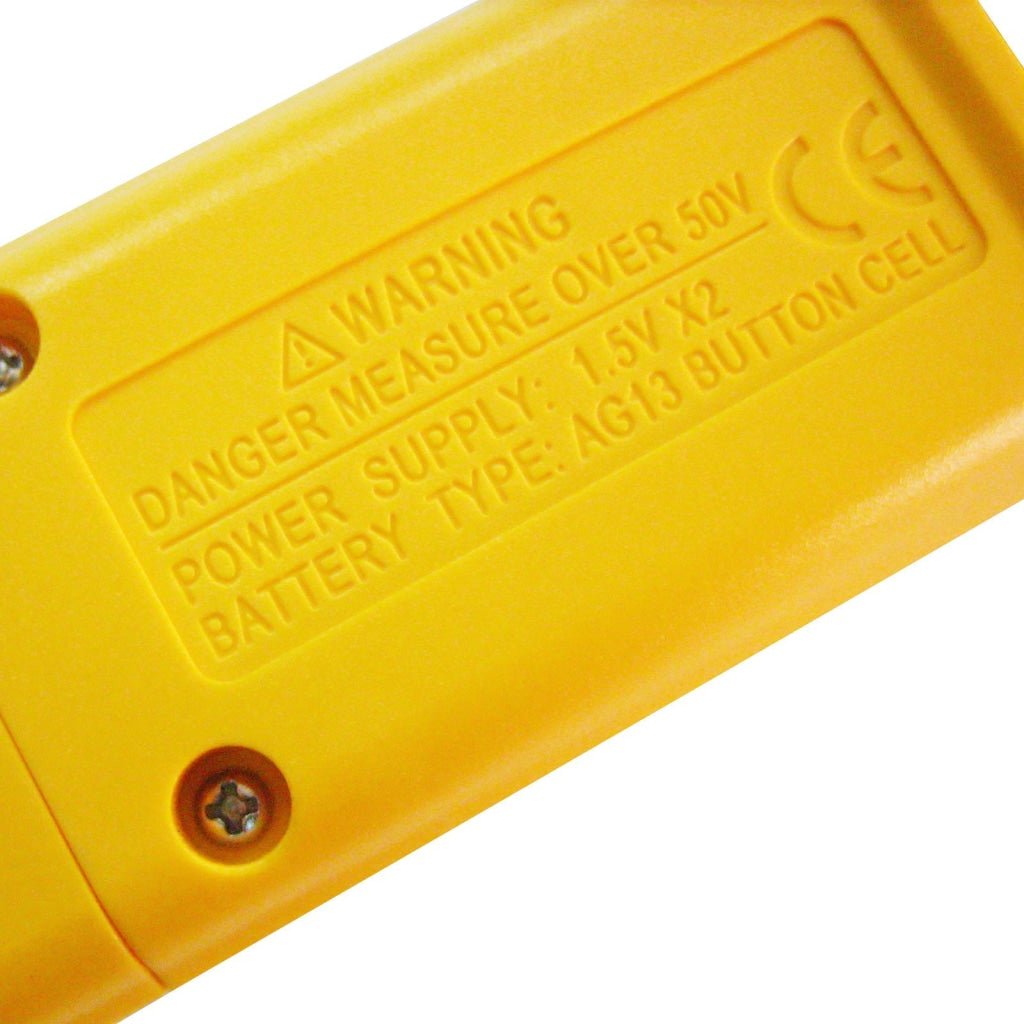

  • Power Supply: 2 x 1.5V Button Battery(FREE)

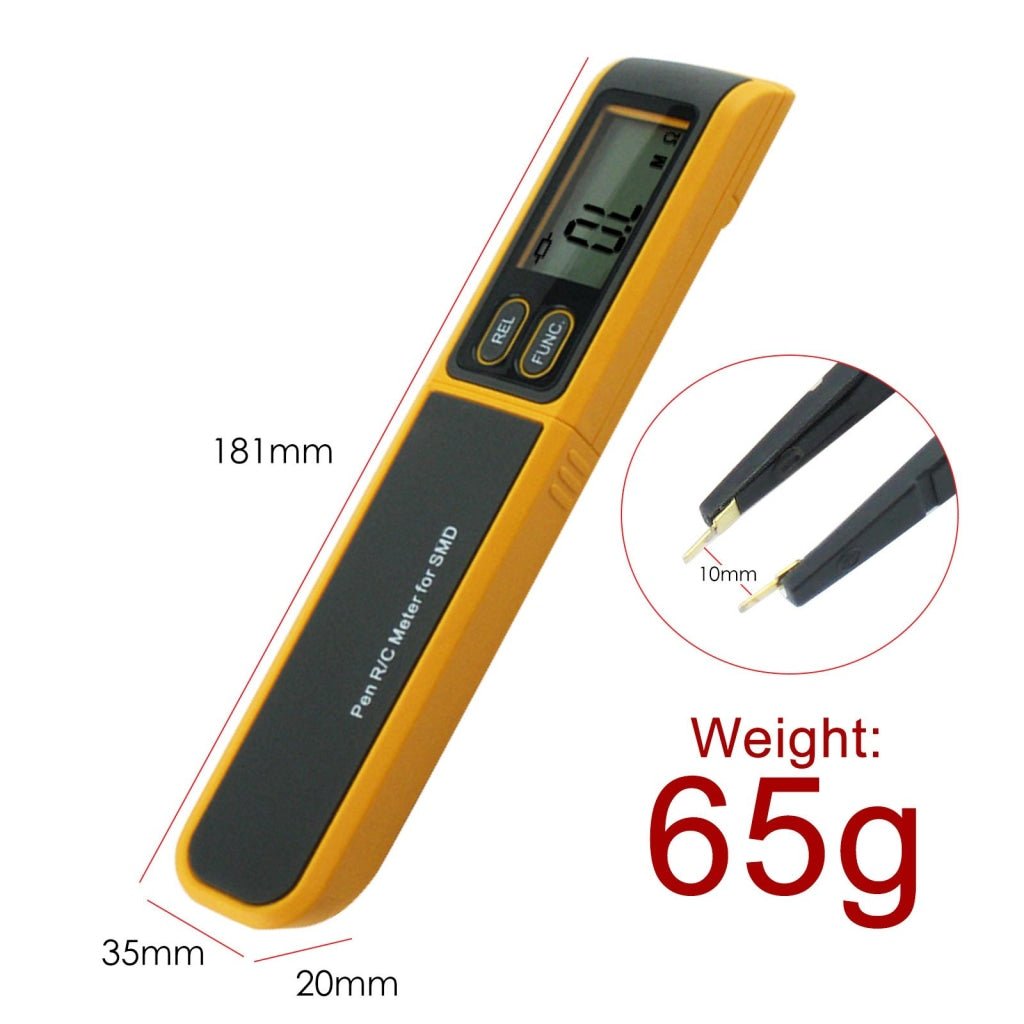

  • Dimensions: 181 x 35 x 20mm (L x W x H)
  • Weight: approx. 65g (battery included)

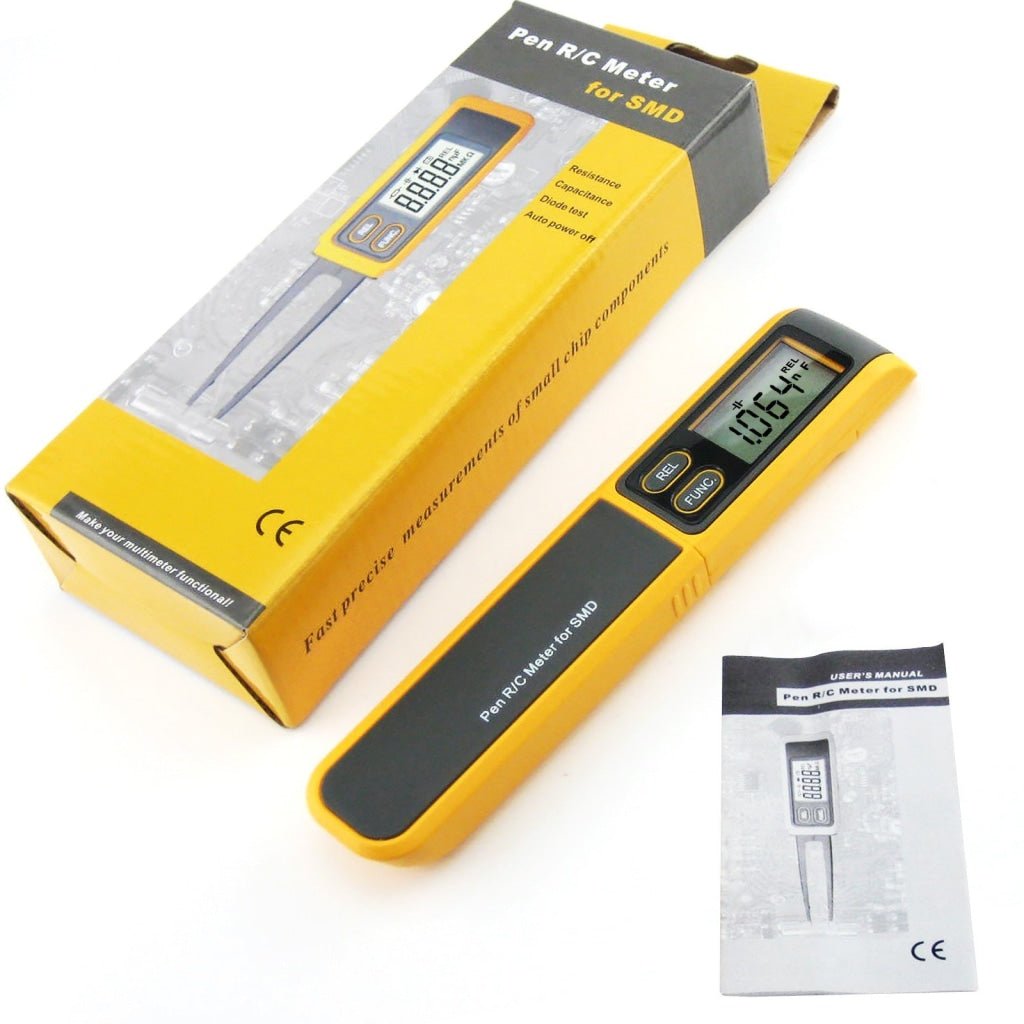

Set Includes

  • 1 x RC Pen-Type Multimeter
  • 2 x 1.5V Button Battery(FREE)
  • English Quick Start Guide

A printed user manual is already included with this item. No digital user manual or software is available.
