ILMU-523 Digital Clamp Meter AC/DC Multimeter with Voltage Tester, Capacitance, Resistance, Frequency, Duty cycle, Diode Test, Line Connection Test, and Temperature, Non-Contact Current Clamp for Electricians, HVAC, Home Repairs & DIY

Sku: ILMU-523_1TC+ADP-B
$62.90 USD
Translation missing: en.products.product.shipping_policy_html
Quantity:
Add to Wishlist Remove From Wishlist
Visa Mastercard PayPal American Express Google Pay Apple Pay Shop Pay

This high-performance clamp meter is a reliable and safe measuring tool designed for quick and accurate readings. With one-handed operation, an ergonomic design, and overload protection, it’s perfect for both professionals and DIY enthusiasts.

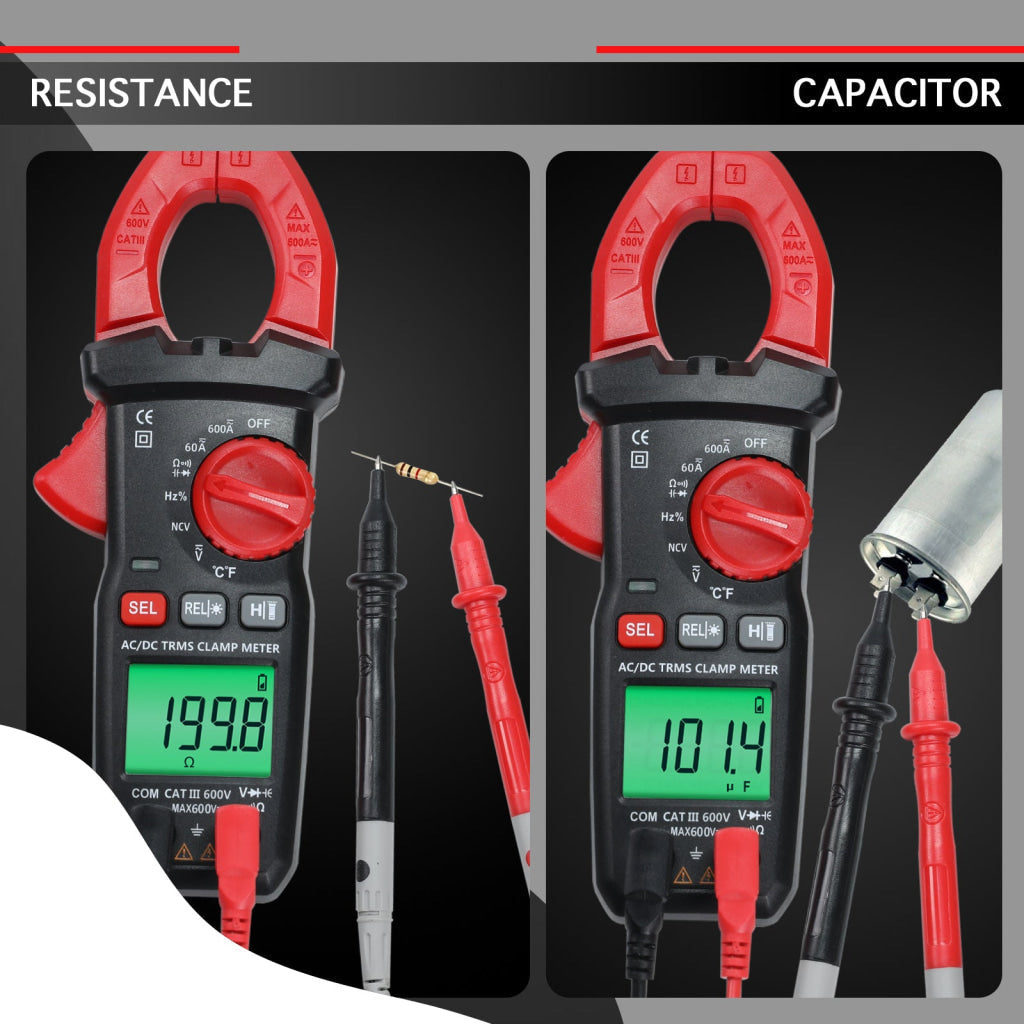

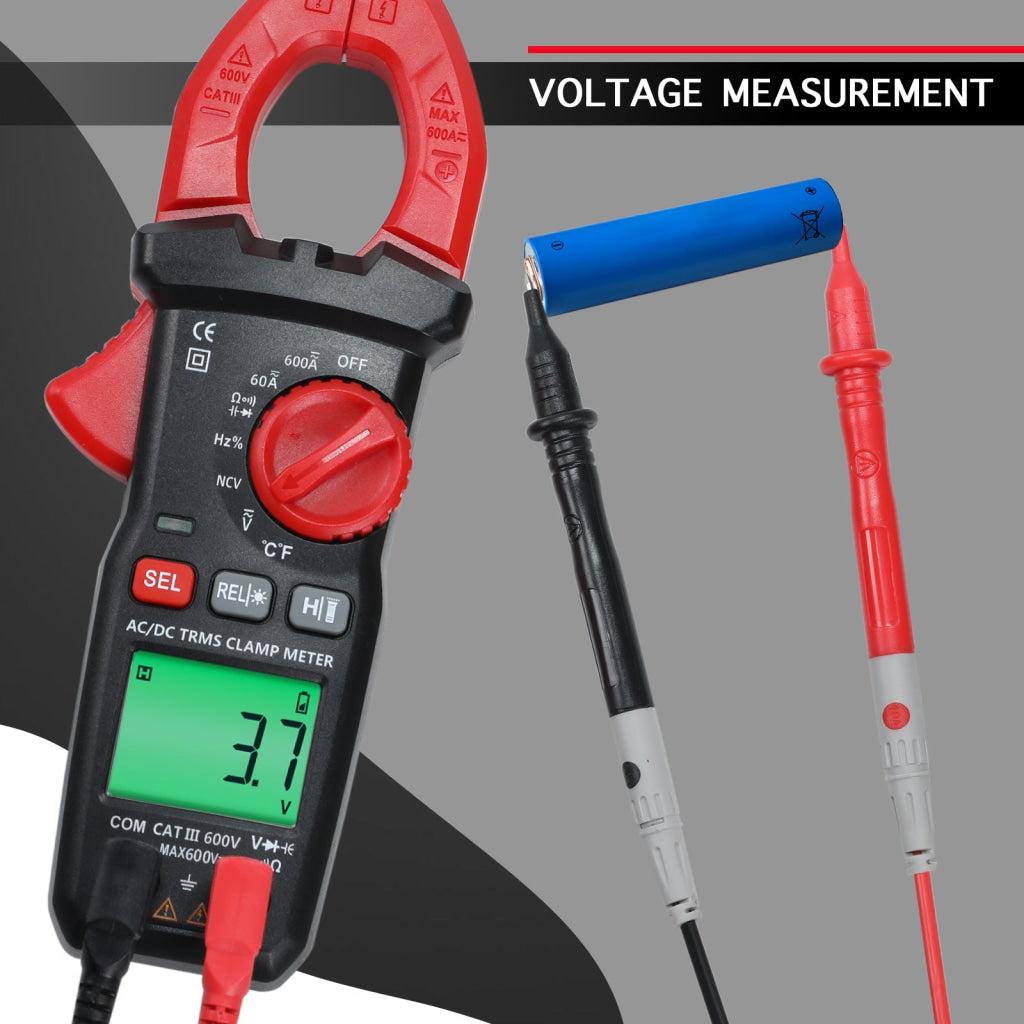

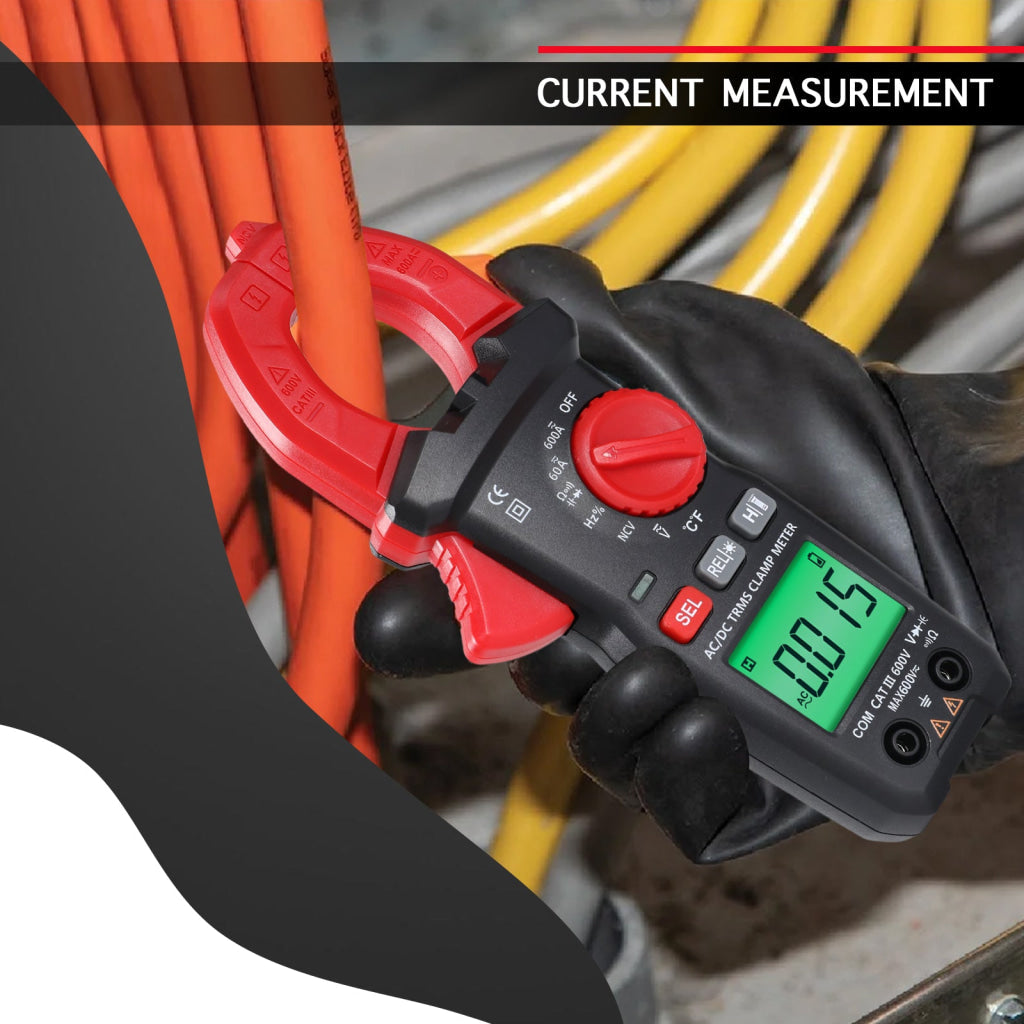

Measures AC/DC current, AC/DC voltage, Resistance, Capacitance, Frequency, Duty Radio, Line Connection test, Diode test, and Temperature. Upgrade your toolkit with this high-quality, multifunctional clamp meter ideal for electrical maintenance, automotive diagnostics, HVAC, and home repairs.

Features:

  • Automatic measuring function and range selection
  • Full range overload protection
  • Wide jaw opening
  • User-Friendly with easy one-hand function

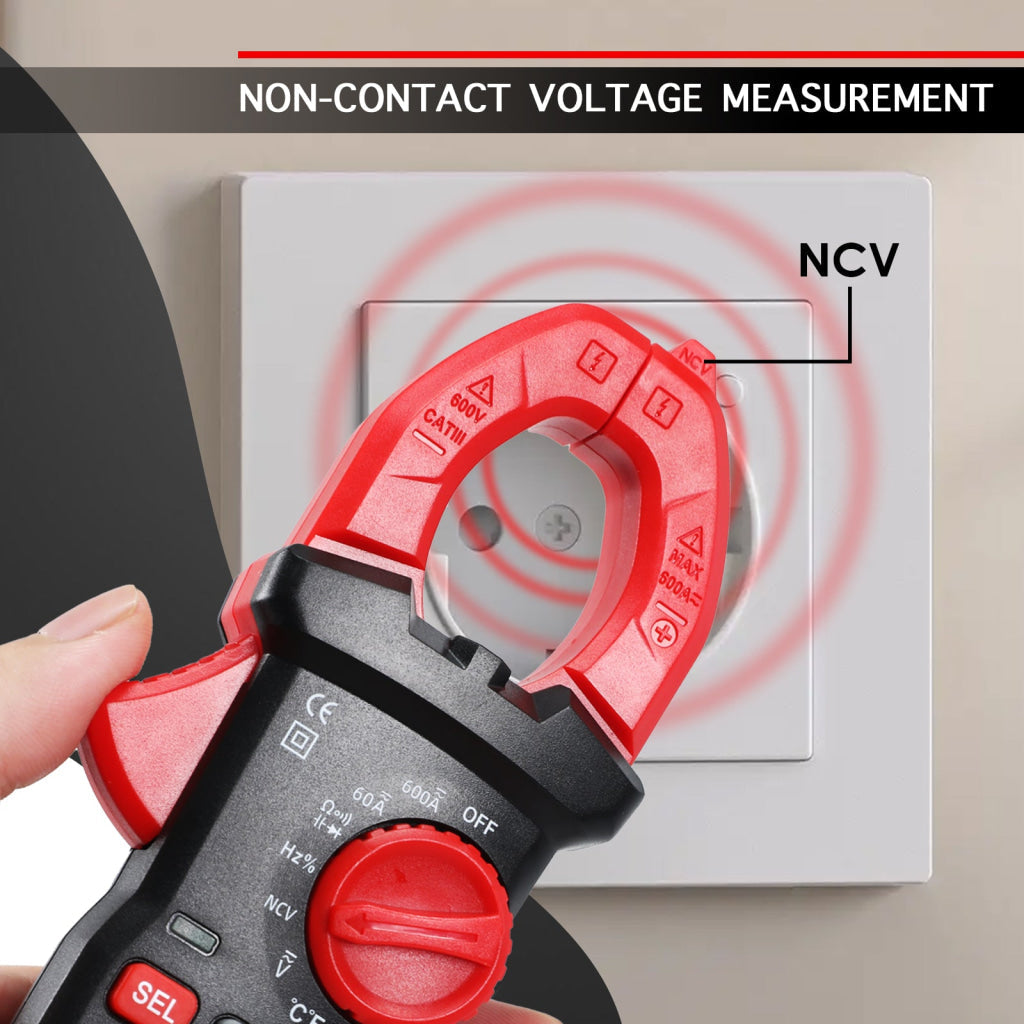

  • Non-contact voltage (NCV)measurement
  • Continuity Test with Audible Beep
  • Versatile measurements multimeter
  • Durable clamp head
  • Intelligent IC and double-integral A/D conversion
  • HOLD and Backlight function
  • 600C DV and 600C AV maximum allowable voltage from terminal to ground
  • High Precision Measurements

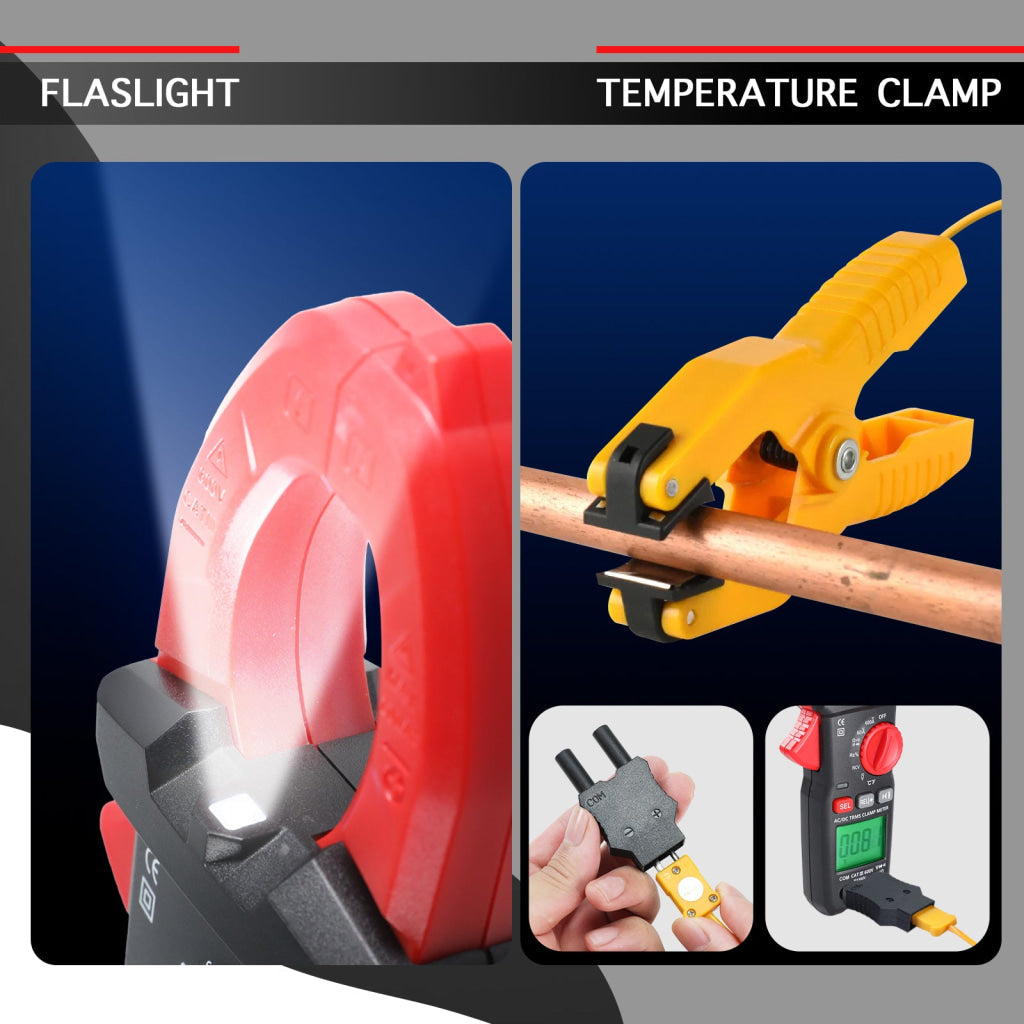

  • Built-in light for dim environment checking

Specifications:

  • Working height: Maximum 2000m
  • Display: LCD screen with 6000 digits max value
  • Polarity Indicator: Automatic indicator,'-' indicates negative polarity
  • Hyperview Display: 'OL' or -'OL'
  • Sampling Time: about 3 times/second
  • Temperature coefficient: less than 0.1X accuracy / °C
  • Automatic shutdown: after 15 minutes
  • Power Supply: 1.5V AAA battery
  • Meter Dimension: 185 x 71 x 35mm
  • Mouth Elongation: 26mm
  • Operating temperature: 0~40°C
  • Storage temperature: -10~50°C

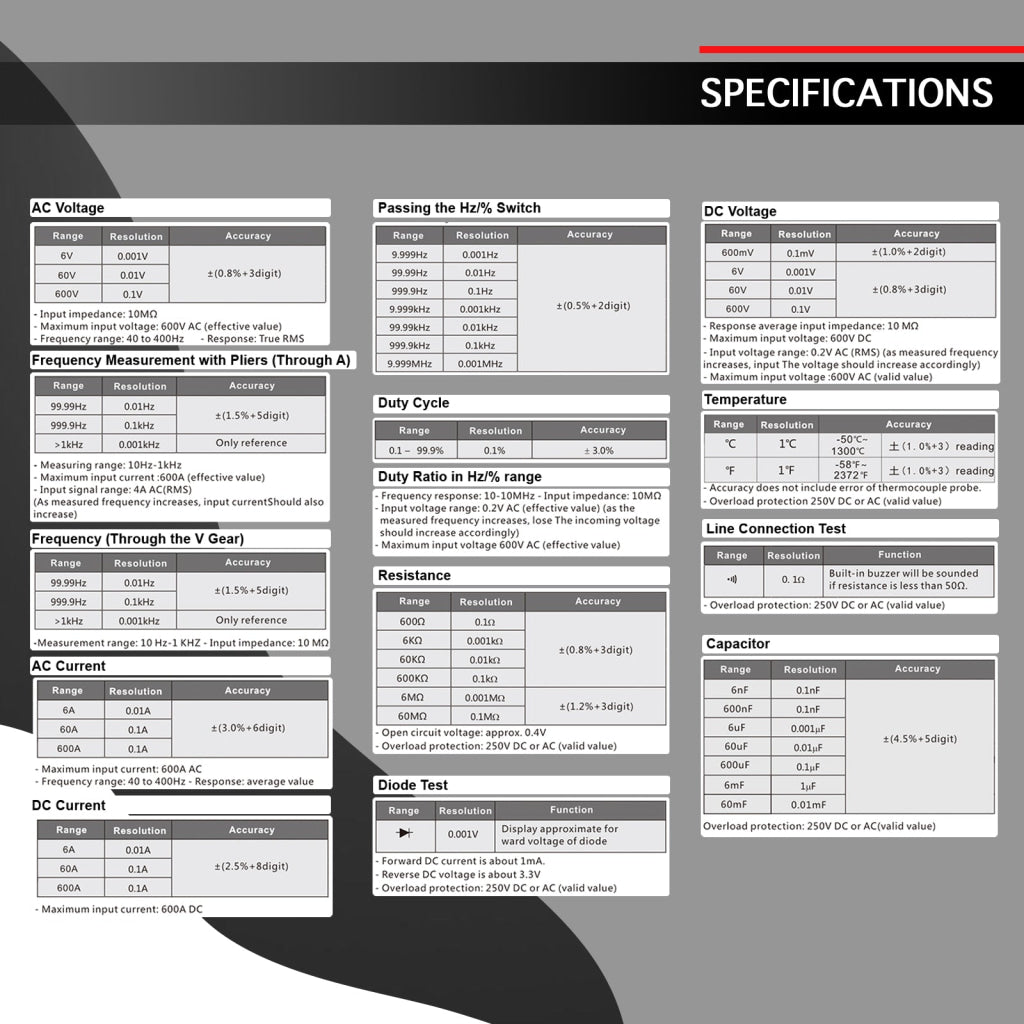

  • K-type Temp Clamp Probe Range: -40~200°C (-40~392°F)Please check the image above for the Technical Specification

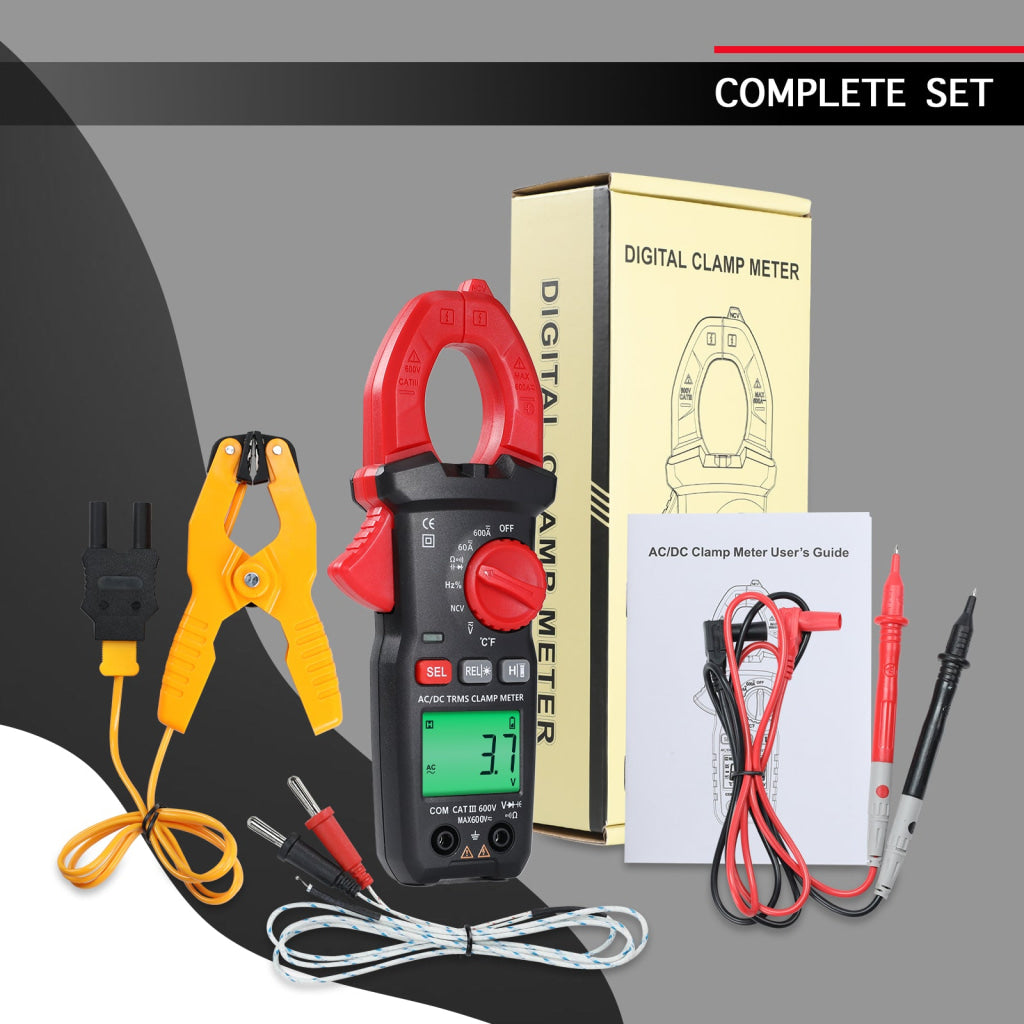

Set Includes:

  • 1 x Clamp Meter
  • 1 x Temperature probe
  • 1 x Temperature Clamp Probe
  • 1 x Banana Plug Adapter
  • 2 x Test Leads
  • English Instruction Manual
  • Standard factory Packaging

A printed user manual is already included with this item. No digital user manual or software is available.
