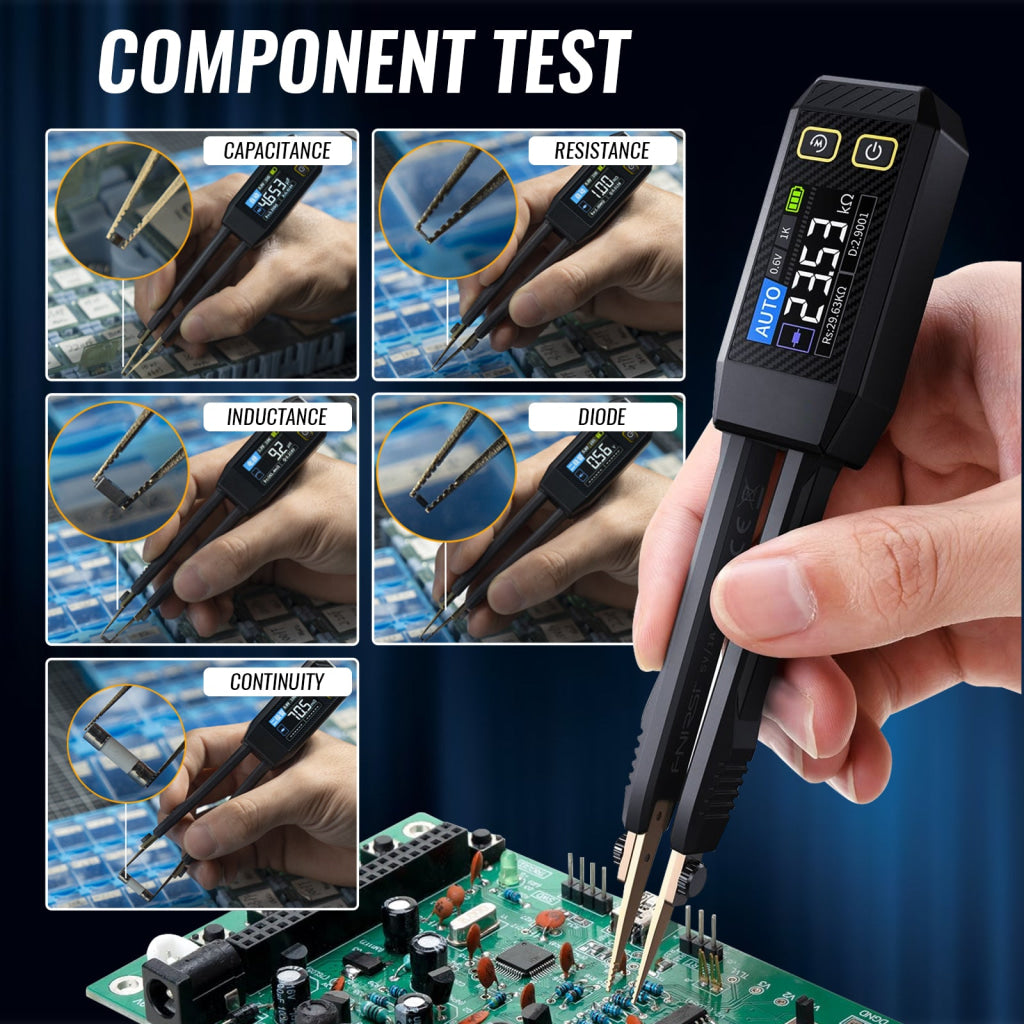

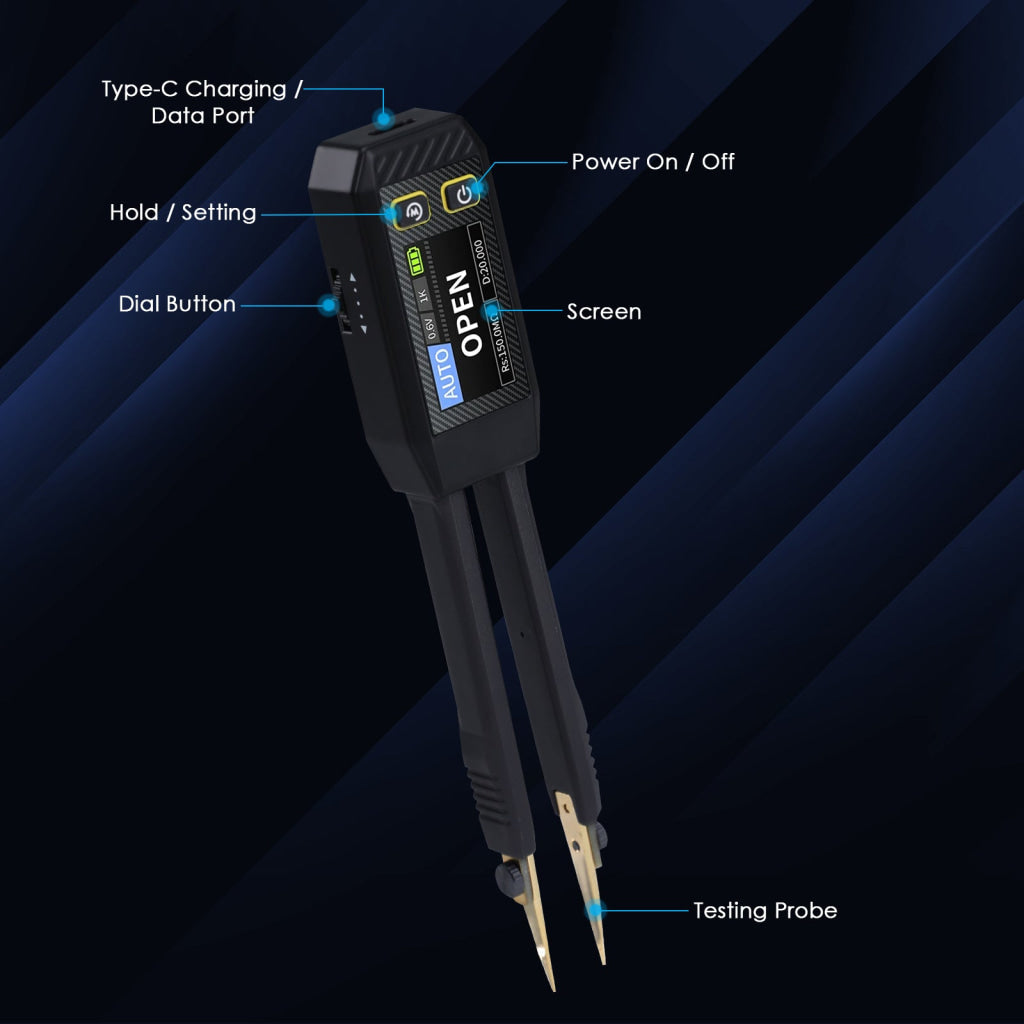

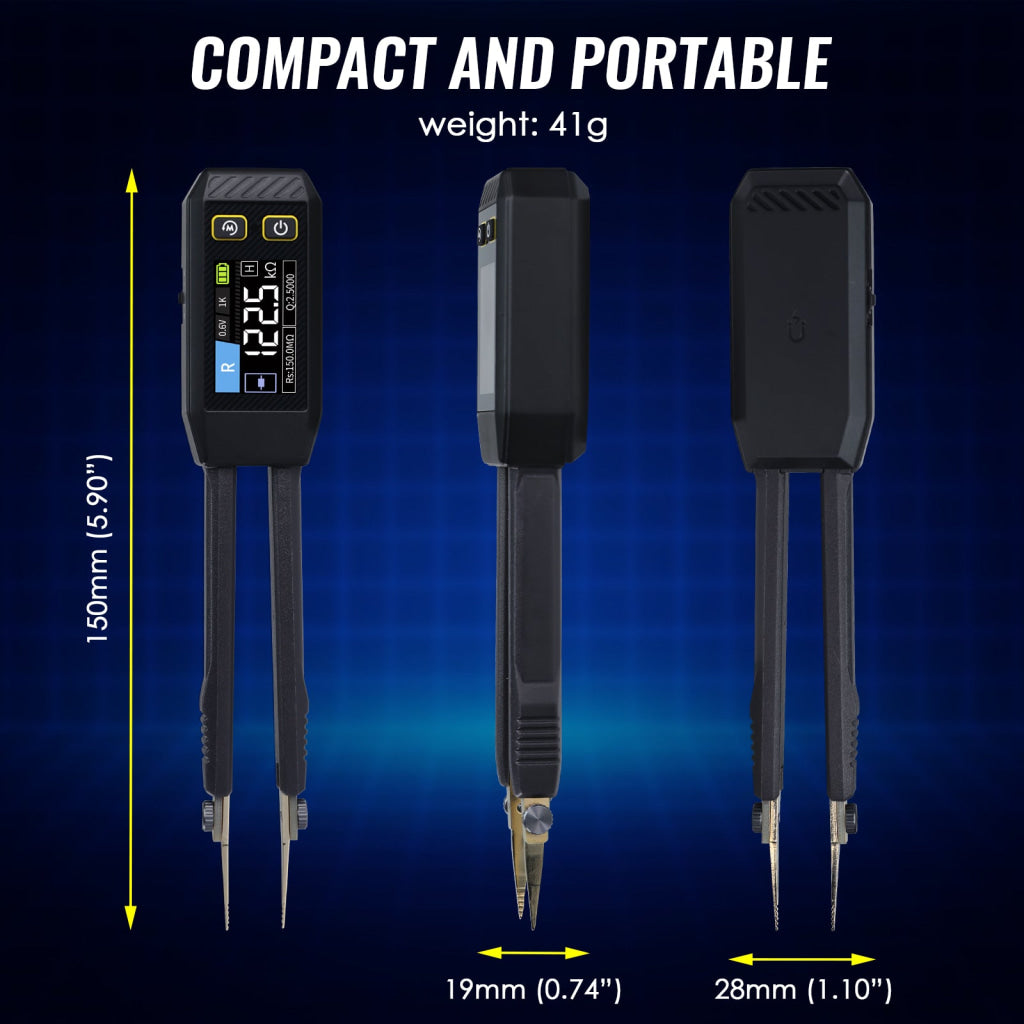

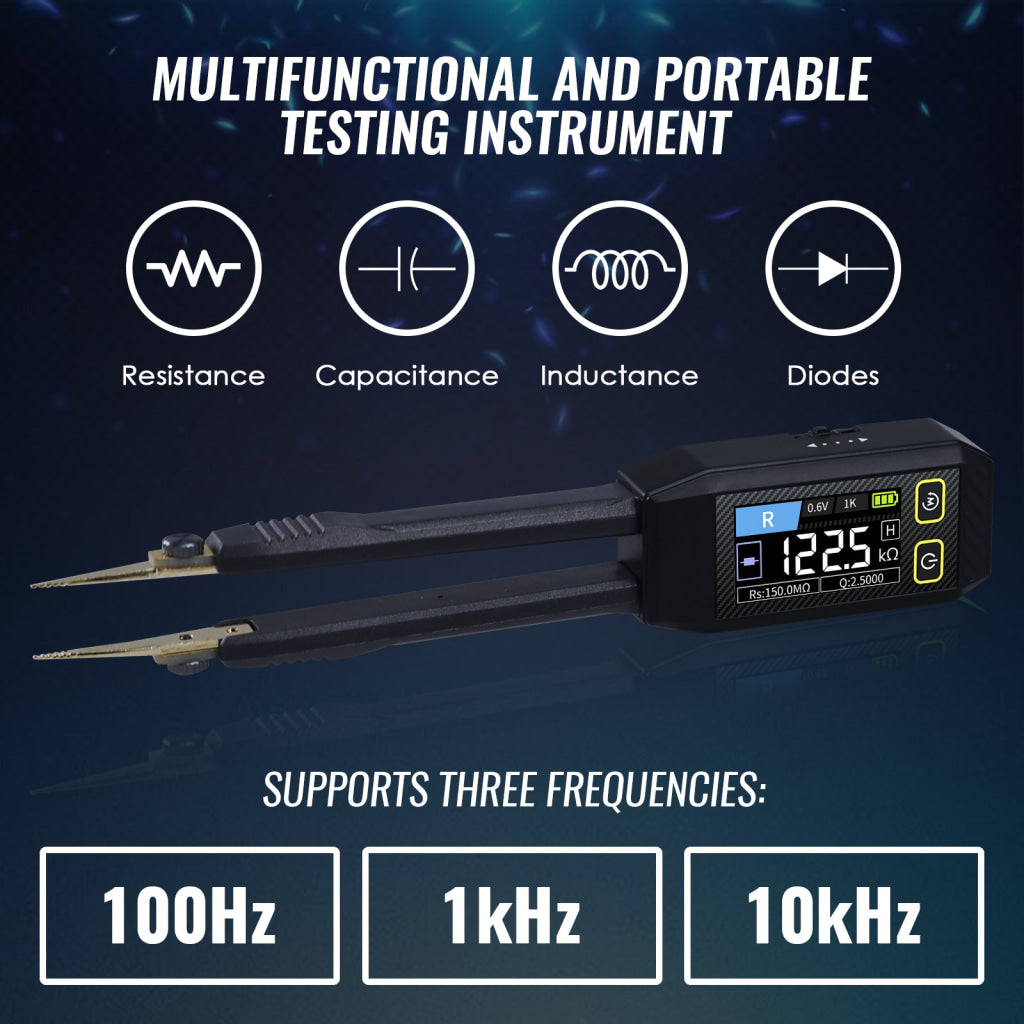

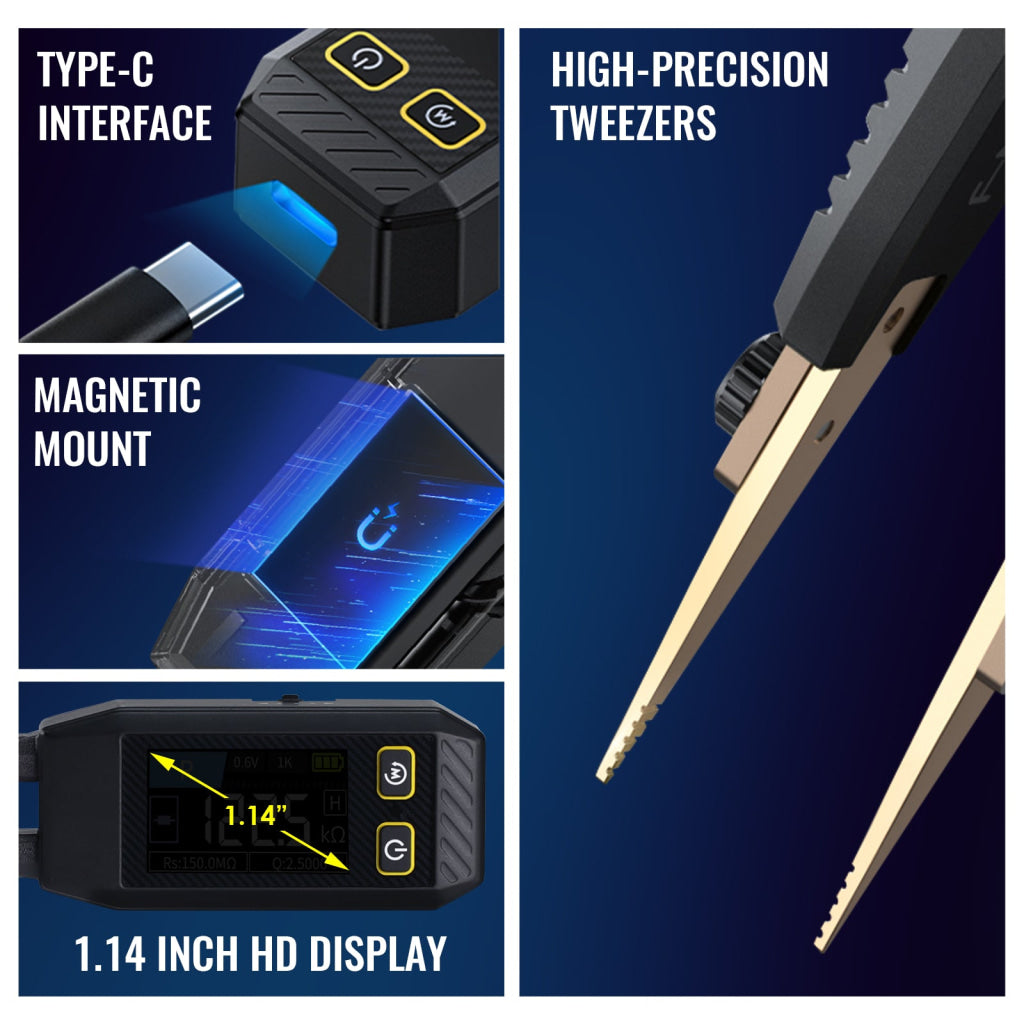

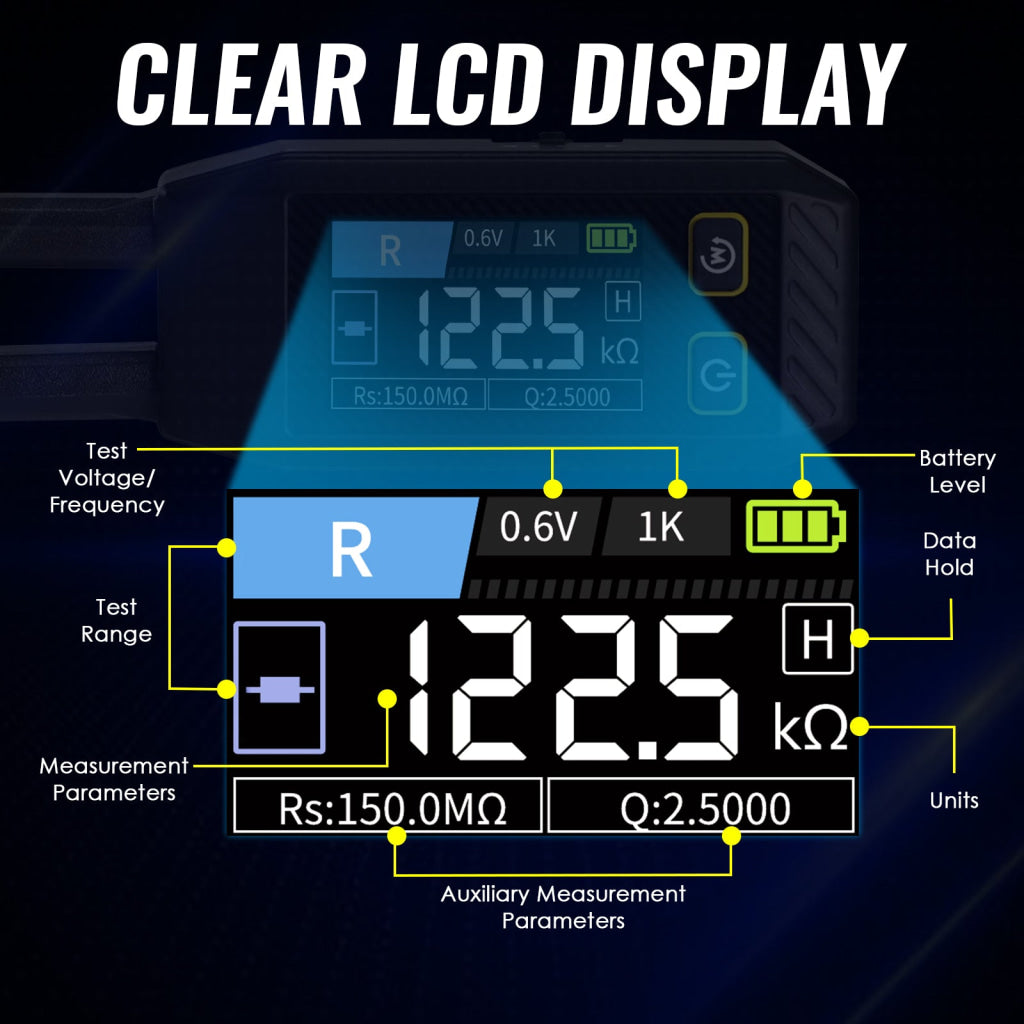

Portable, compact, tweezer-style LCR meter that quickly measures resistance, capacitance, inductance, and diodes with high accuracy. Its ergonomic design is perfect for testing small components in tight spaces, while the 1.14-inch color screen and magnetic back make it easy to use. With a long-lasting battery and three test frequencies (100Hz, 1kHz, 10kHz), it is a must-have tool for engineers, technicians, and hobbyists working in labs or the field.
Features:
Specifications:
Technical Specifications
| Type | Range | 100Hz | 1KHz | 10KHz |
| Capacitance | 1mF-22mF | 5%reading±3 | 5%reading±3 | --- |
| 1uF-1mF | 2%reading±3 | 2%reading±3 | 2%reading±3 | |
| 1nF-1uF | 2%reading±3 | 0.5%reading±3 | 0.5%reading±3 | |
| 1pF-1nF | --- | 2%reading±3 | 2%reading±3 | |
| Inductance | 1H-10H | 5%reading±3 | 5%reading±3 | --- |
| 1mH-1H | 2%reading±3 | 2%reading±3 | 2%reading±3 | |
| 10uH-1mH | 2%reading±3 | 0.5%reading±3 | 0.5%reading±3 | |
| 1uH-10uH | --- | --- | 2%reading±3 | |
| Resistance | 1MΩ-10MΩ | 5%reading±3 | 5%reading±3 | --- |
| 1KΩ-1MΩ | 1%reading±3 | 0.5%reading±3 | 1%reading±3 | |
| 1Ω-1KΩ | 1%reading±3 | 0.5%reading±3 | 0.5%reading±3 | |
| 10mΩ-1Ω | 2%reading±3 | 2%reading±3 | 2%reading±3 |

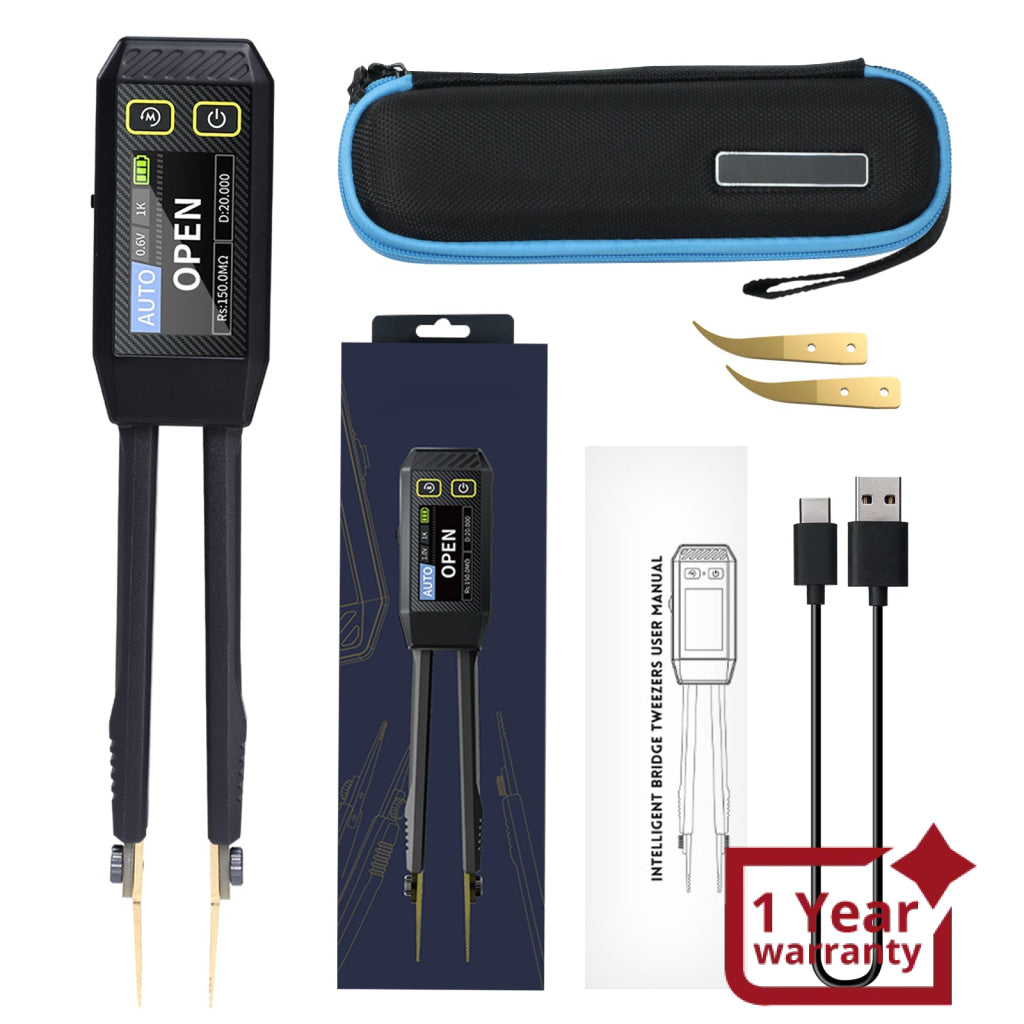

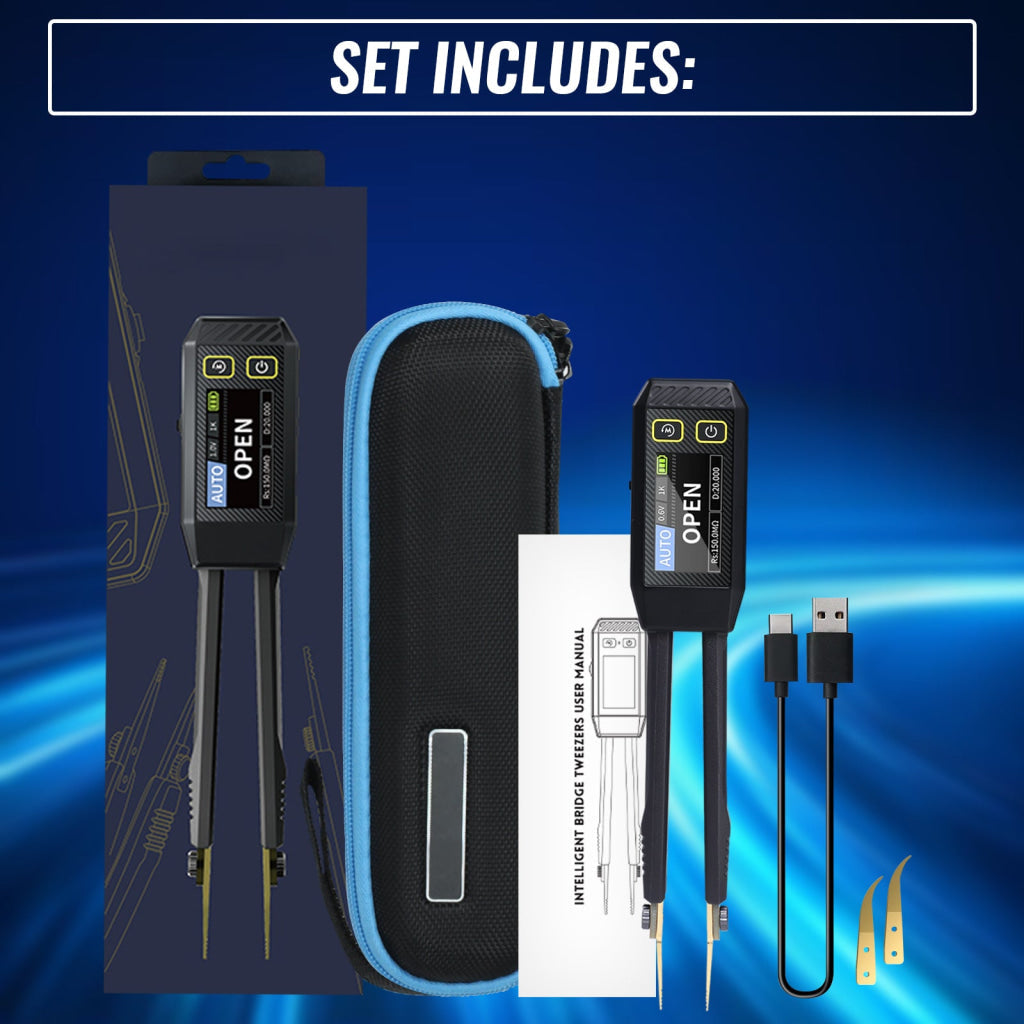

Set Includes:
A printed user manual is already included with this item. No digital user manual or software is available.
