ILMU-1038 Multimeter DMM True RMS TRMS Auto-Ranging w/ USB Interface, Multi Meter Tester, AC/ DC Current Voltage Resistance Capacitance Diode

Sku: ILMU-1038
$59.90 USD $78.90 USD
Translation missing: en.products.product.shipping_policy_html
Quantity:
Add to Wishlist Remove From Wishlist
Visa Mastercard PayPal American Express Google Pay Apple Pay Shop Pay

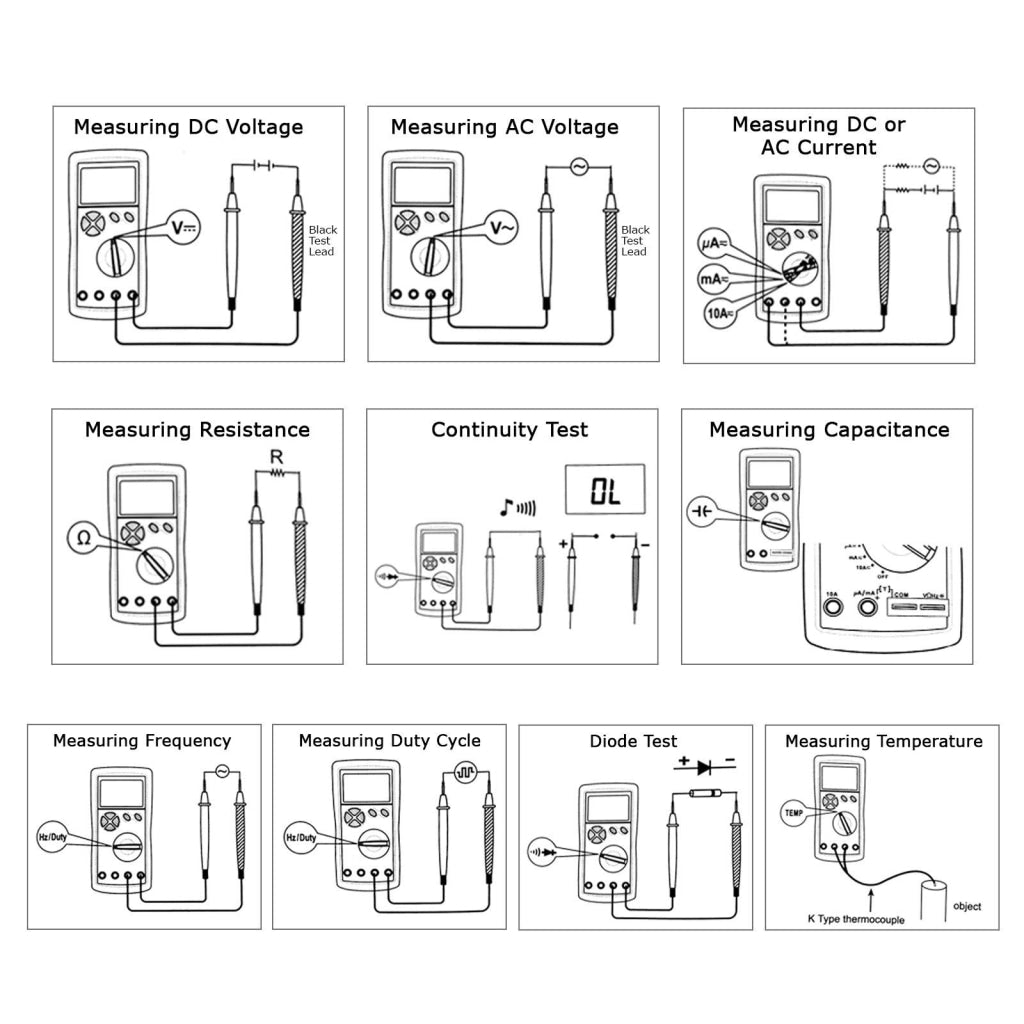

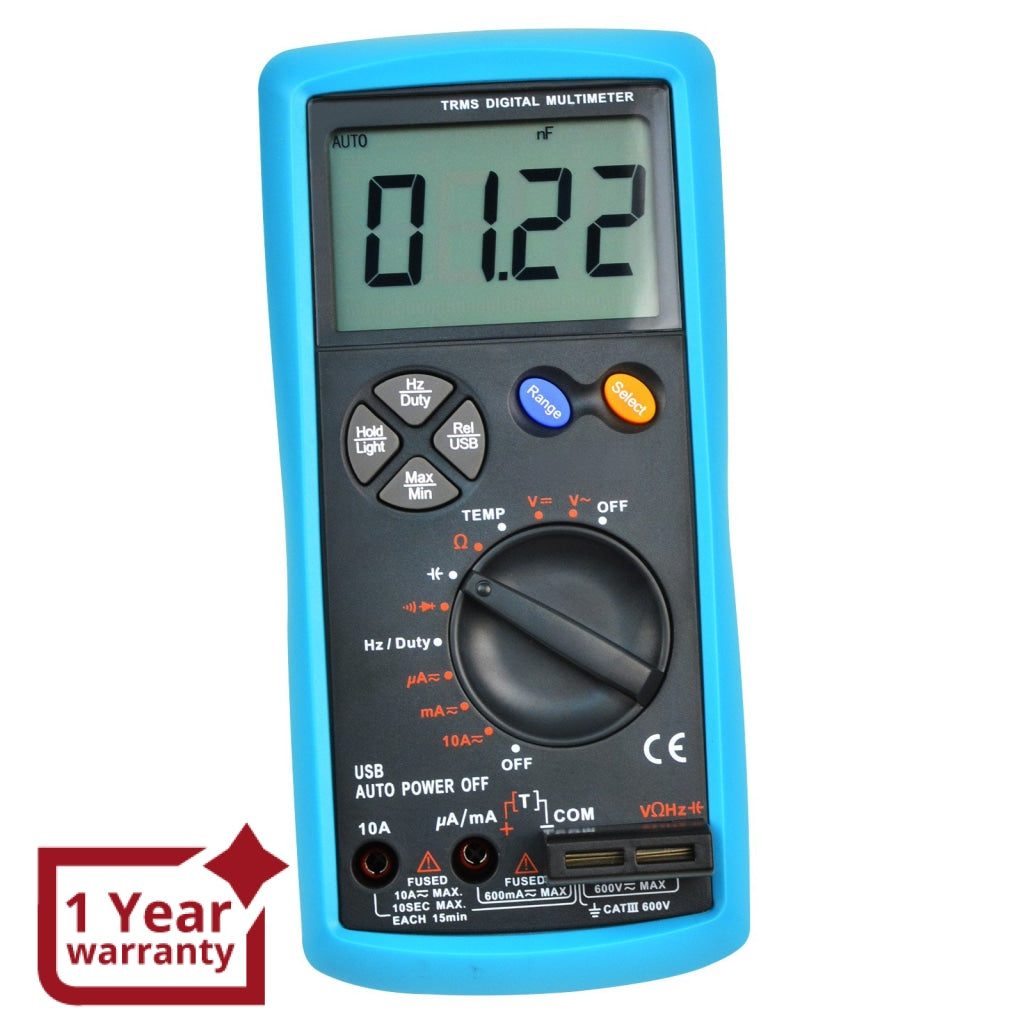

This multimeter can measure DC/AC Voltage, DC/AC Current, Resistance, Capacitance, Frequency, Diode, Temperature(°C/°F), Continuity and Duty Cycle. It has USB2.0 standard interface

It has an CE Marking approval from European Directives for complying with the essential health and safety requirements.

Features:

  • 3 5/6- digit Tru RMS
  • Measures True-RMS AC Voltage and True-RMS AC Current
  • Manual range and auto-range mode

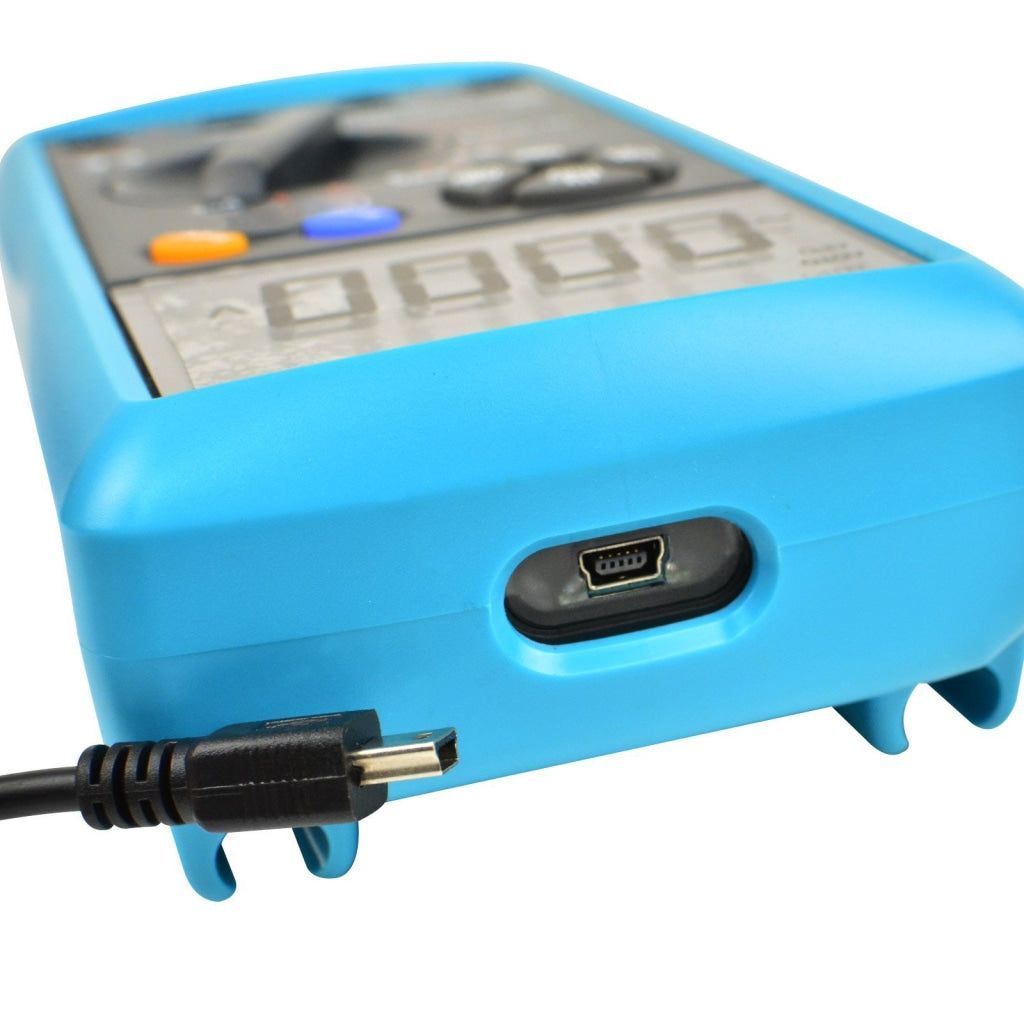

  • Meter to computer transfer of measured readings via USB port
  • With Analog Bar Graph and Reading Unit Indication
  • Auto Polarity Indication
  • Data Hold
  • Backlight Functions
  • Overload Protection for all ranges
  • Low battery indication
  • Relative measurement
  • Max/Min value recording
  • Auto and Manual power off
  • Easy to operate and ideal measurement tool
  • Designed according to IEC-61010 with CAT III 600V and pollution degree 2
  • Conforms to EU Union directives
  • With UL&GS Marking
  • Application:
    • measurements on distribution boards, circuit breakers, wiring including cables, bus-bars, junction boxes, switches, socket-outlets in the fixed installation, and equipment for industrial use and some other equiment like stationary motors with permanent connection to the fixed installation.

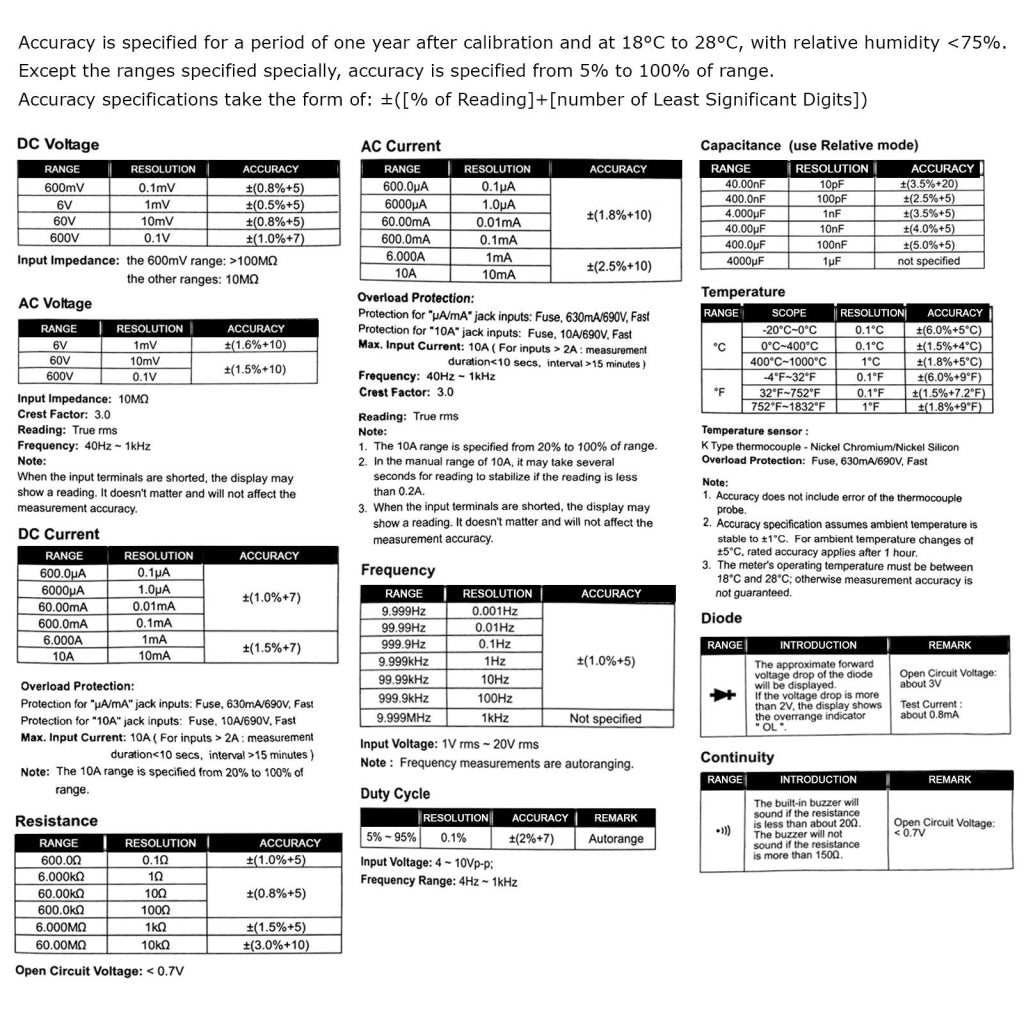

Specifications:

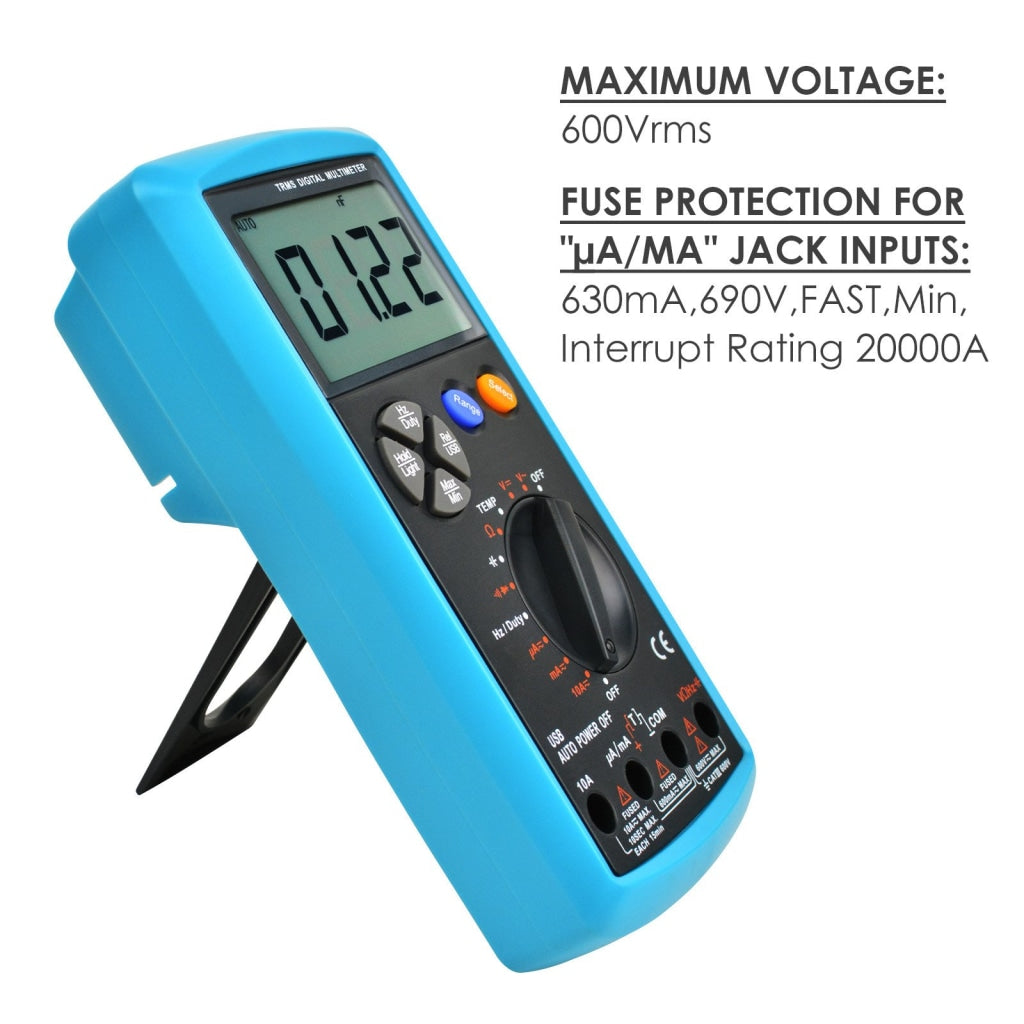

  • Maximum Voltage between any Terminal and Earth Ground : 600Vrms

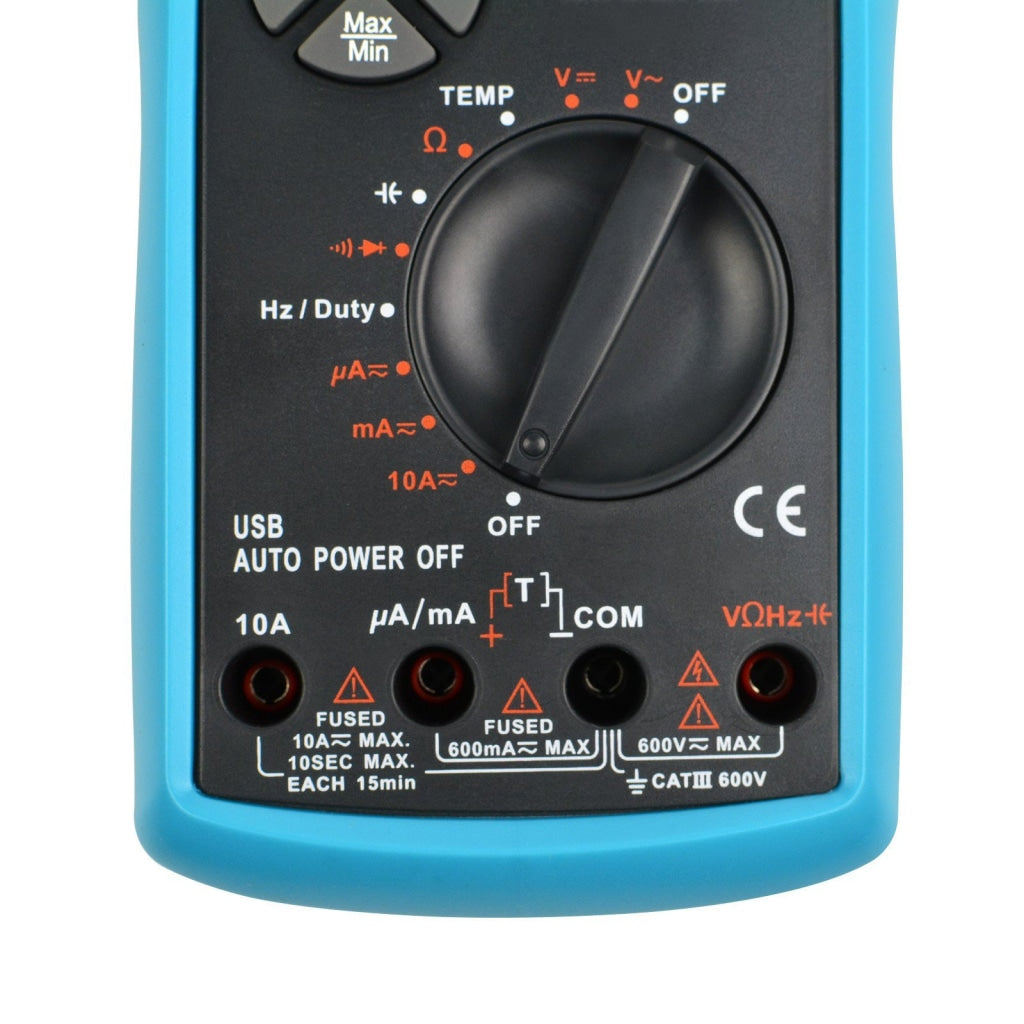

  • Fuse Protection for "μA/mA"Jack Inputs:
    • 630mA,690V,FAST,Min,Interrupt Rating 20000A
  • Fuse Protection for "10A"Jack Inputs:
    • 10A,690V,FAST,Min,Interrupt Rating 20000A
  • Display:LCD, with a max,reading of 9999
  • Overrange Indication:"OL"shown on the display
  • Negative Polarity Indication:"-" shown on the display automatically
  • Sampling Rate: about 3 times/sec
  • Operating Environment: 0~40 °C,<75%RH
  • Temperature Coefficient:
    • 0.2 x (specified accuracy)/°C(<18 °C or >28°C)
  • Storage Environment: -30~60 °C,<85%RH
  • Operating Altitude:0-2000 meters

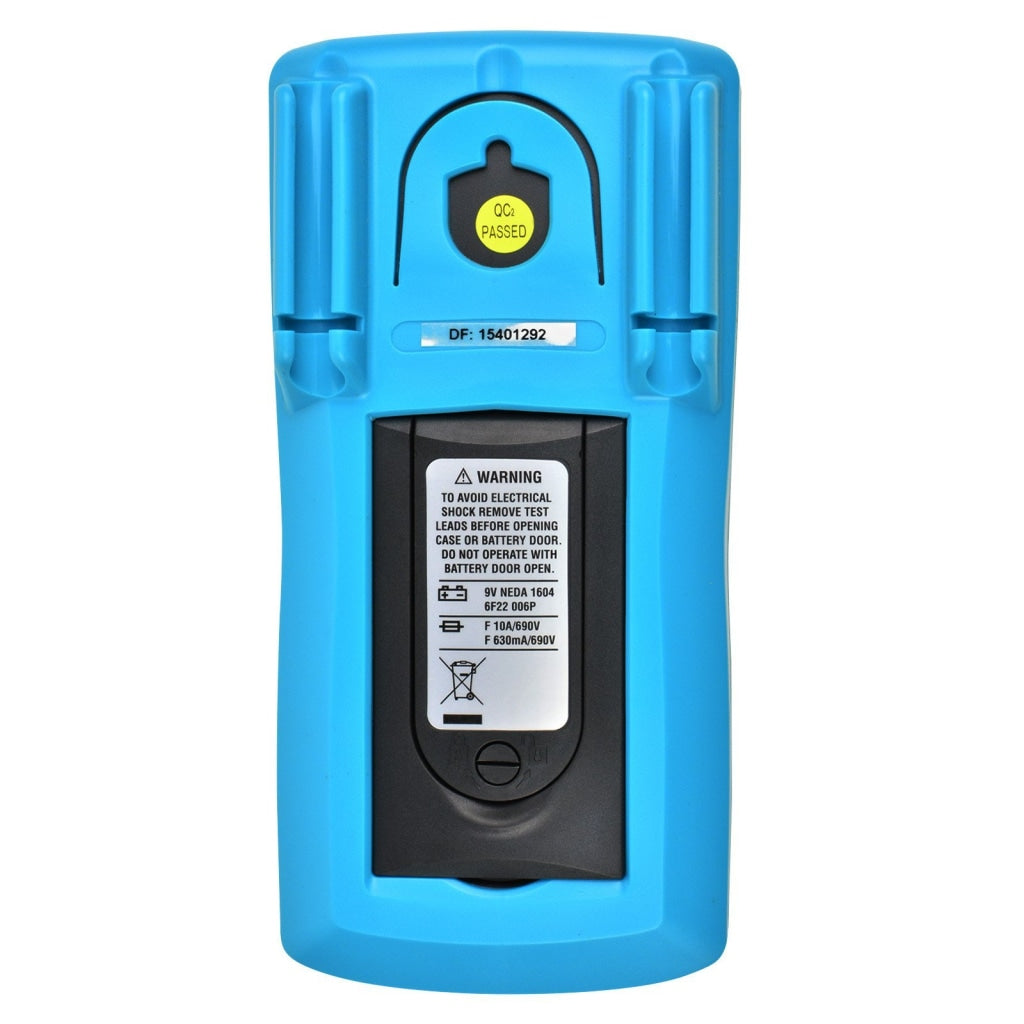

  • Power : 1 x 9V Battery

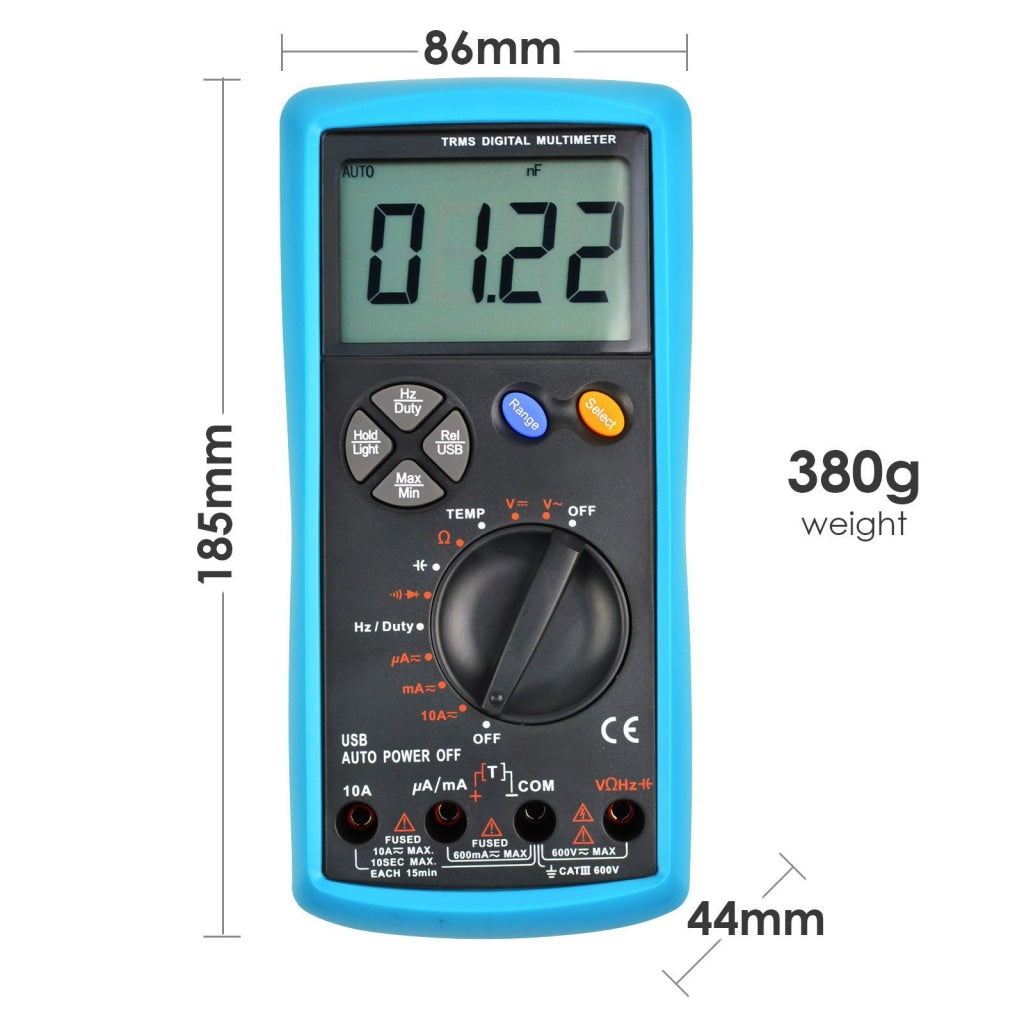

  • Size:185 x 86 x 44mm
  • Weight: about 380g (including battery and the holster)

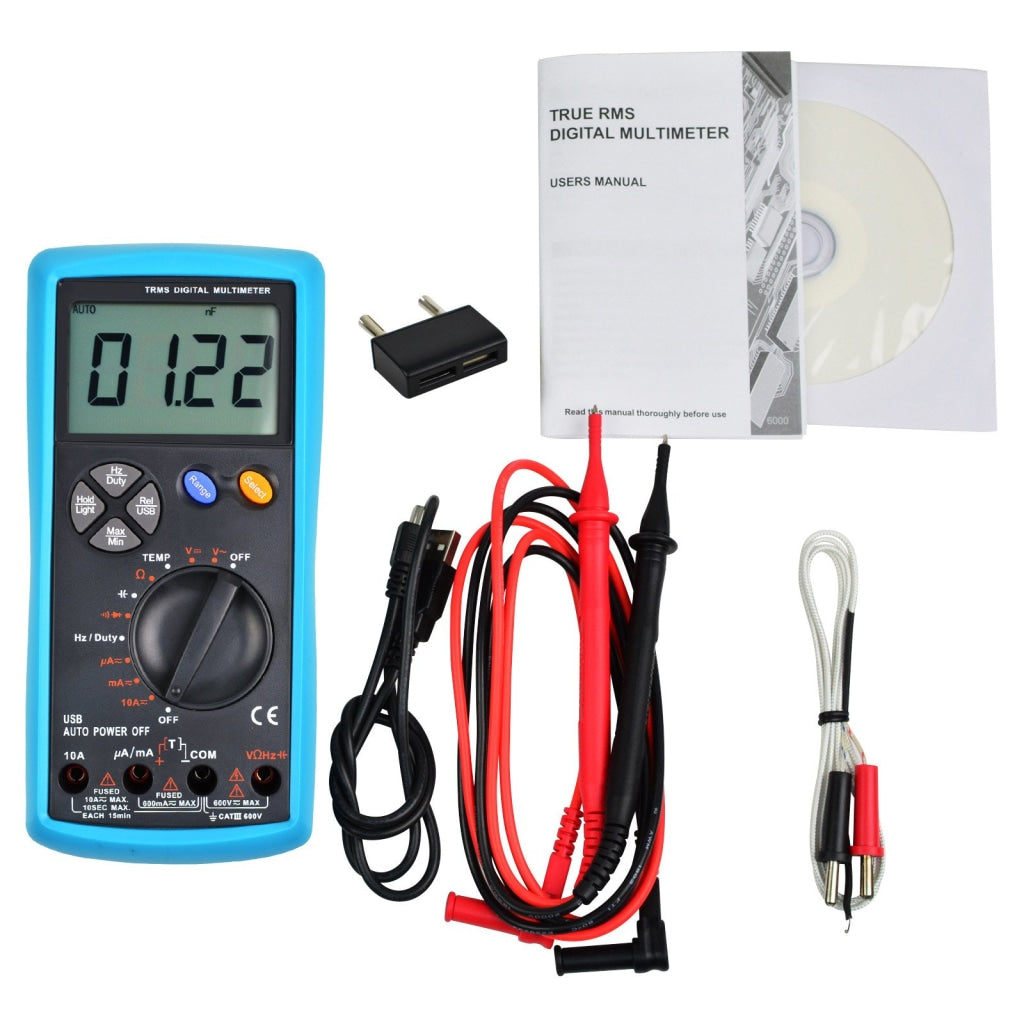

Set Includes:

  • 1 x True RMS Multimeter

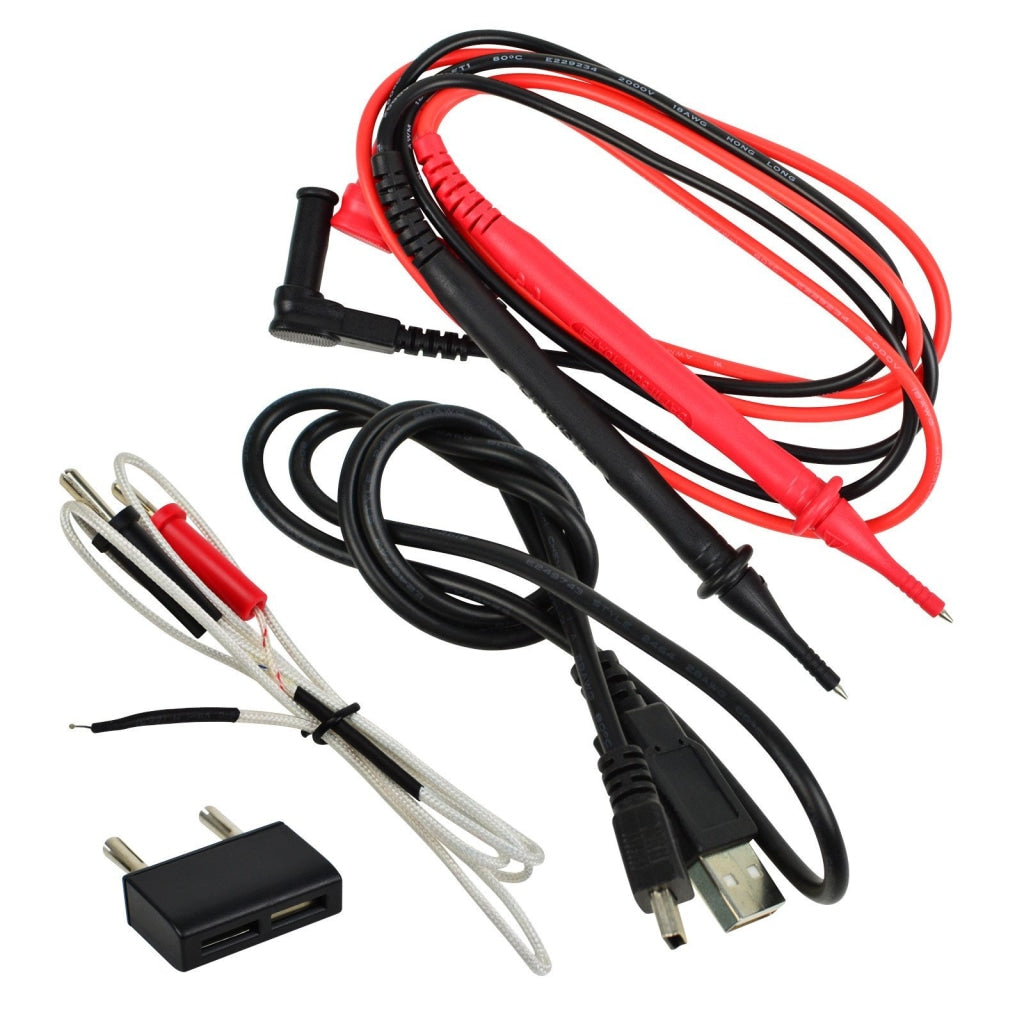

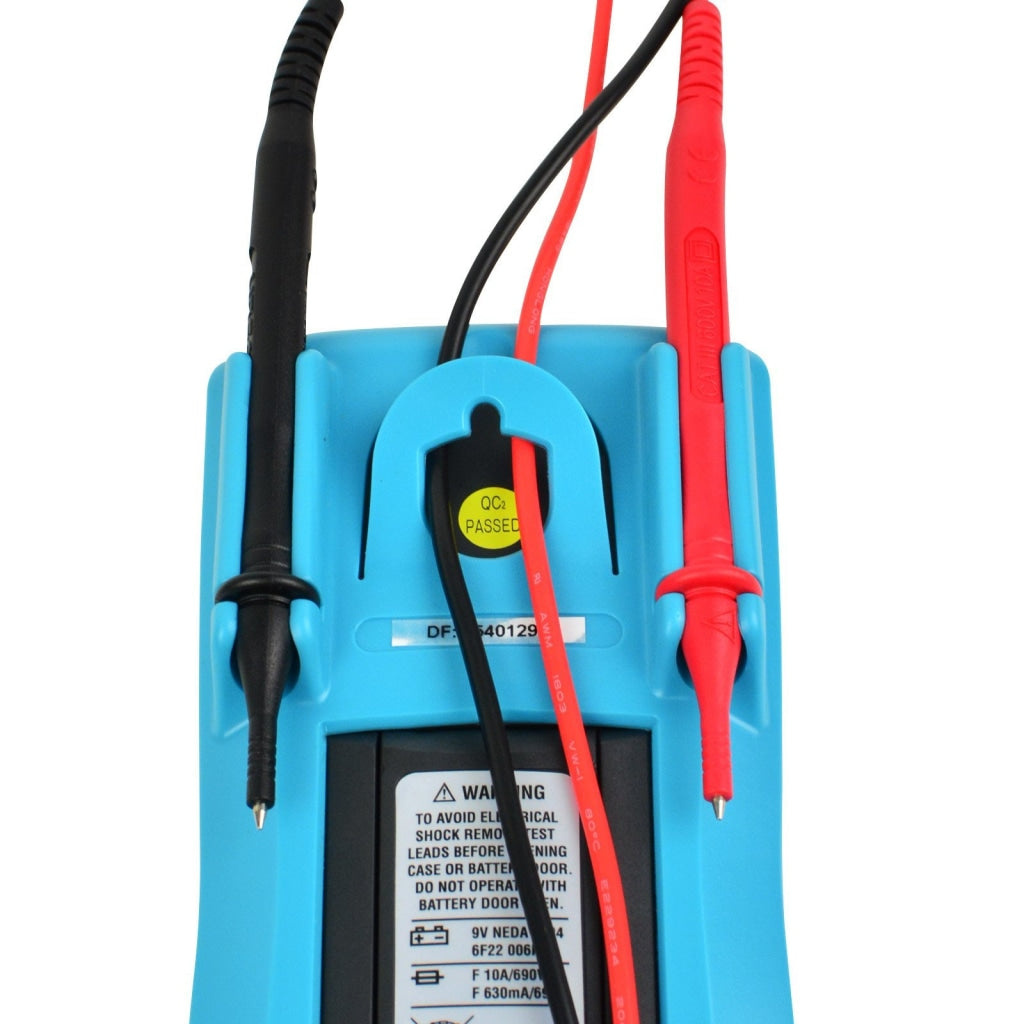

  • 1 x Test Leads (pair)

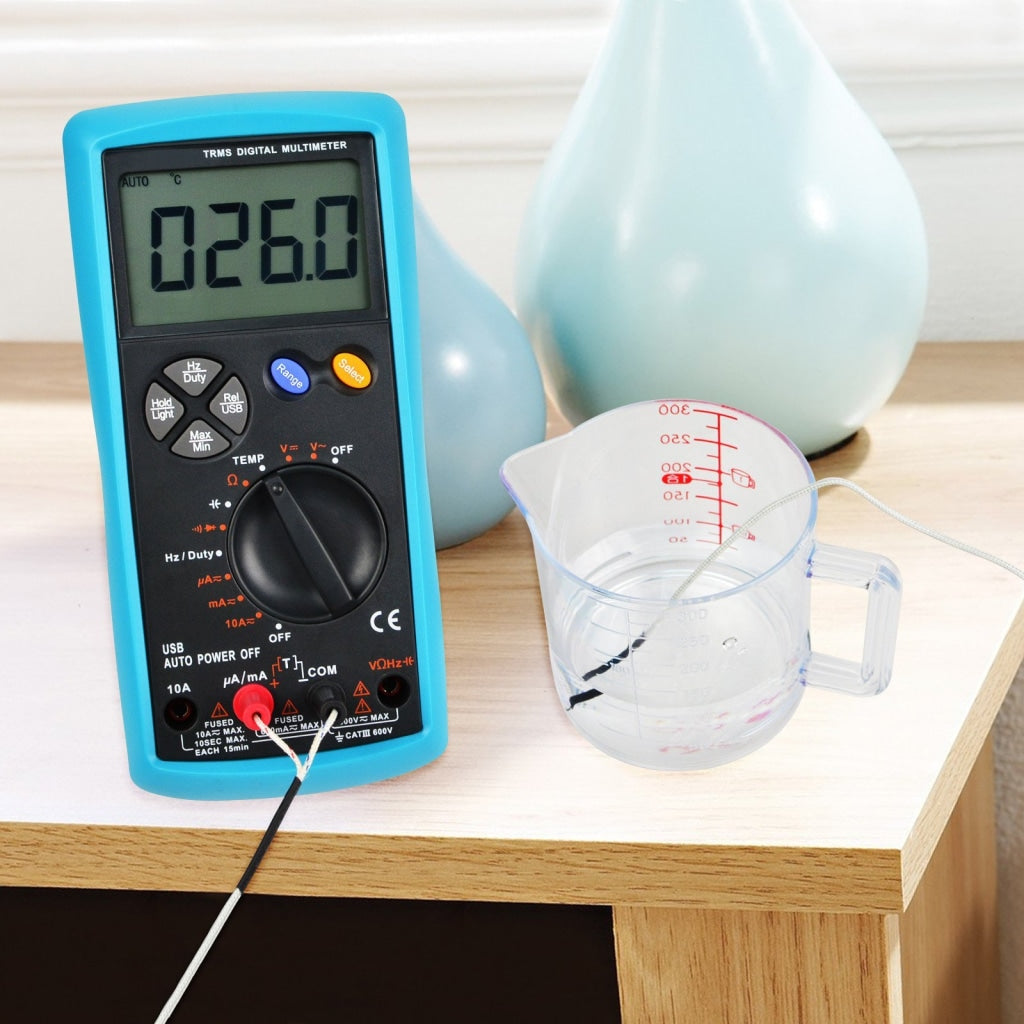

  • 1 x K-Type Thermocouple
  • 1 x Transistor Test Socket
  • 1 x USB cable
  • 1 x CD Software
  • 1 x 9V Battery (FREE)
  • 1 x English Manual
  • Standard Blister Packaging

A printed user manual is already included with this item. No digital user manual or software is available.
