ILMA-819 Digital Manometer with USB Interface, Differential Pressure Gauge, Air Pressure Testing Instrument Tester, 11 Measurement Units

Sku: ILMA-819
$90.90 USD
Translation missing: en.products.product.shipping_policy_html
Quantity:
Add to Wishlist Remove From Wishlist
Visa Mastercard PayPal American Express Google Pay Apple Pay Shop Pay
Offers 11 selectable pressure units: bar, mbar, kPa, kgf/cm2, mmHg, cmH2O, Ozf/in2, psi, inHg, inH2O, ftH2O. Featuring data save and data adjustment, automatic turn-off, and connects meter and PC to read and export the data via USB cable.

Widely used in measuring pressure of fans, resistance, wind velocity, oven pressure, differential pressure of filter, and monitoring the gas content in the air in process of combustion.

Features:

  • Large LCD
  • Data hold
  • Differential mode
  • Record and save data
  • USB Port
  • Reset and data adjustment
  • Record and view saved MIN/MAX/AVG Values
  • Low battery indication
  • Auto power off
  • Recording time
  • Backlight
  • Factory calibrated
  • Reset to Factory setting is available


Specifications:

  • Range: 0.100 (bar,) 100.0 (mbar), 10.00 (kPa), 0.101 (kgf/cm2), 75.0 (mmHg), 101.9 (cmH2O), 23.20 (Ozf/in2), 1.450 (psi), 2.95 (inHg), 40.1 (inH2O), 3.34 (ftH2O)
  • Resolution: 0.001 (bar,) 0.1 (mbar), 0.01 (kPa), 0.001(kgf/cm2), 0.1 (mmHg), 0.1 (cmH2O), 0.01 (Ozf/in2), 0.001 (psi), 0.01 (inHg), 0.1 (inH2O), 0.01 (ftH2O)
  • Maximum Pressure: 0.500 (bar,) 500.0 (mbar), 50 (kPa), 0.509 (kgf/cm2), 375.0 (mmHg), 509.5 (cmH2O), 116.00 (Ozf/in2), 7.251 (psi), 14.76 (inHg), 200.5 (inH2O), 16.70 (ftH2O)

  • Environmental Temperature Compensation
    • Accuracy: ±0.3%FSO(25°C)
    • Repeatability: ±0.2% (Maximum±0.5%FSO)
    • Linearity/Hysteresis: ±0.29%FSO
    • Response: Typical 0.5s
    • Up Overload Indication: Err1
    • Down Overload Indication: Err2
    • Operating Temperature: 0~50°C
    • Storage Temperature: -10~60°C
    • USB Communication
    • Power Supply: 4 x 1.5V AAA battery

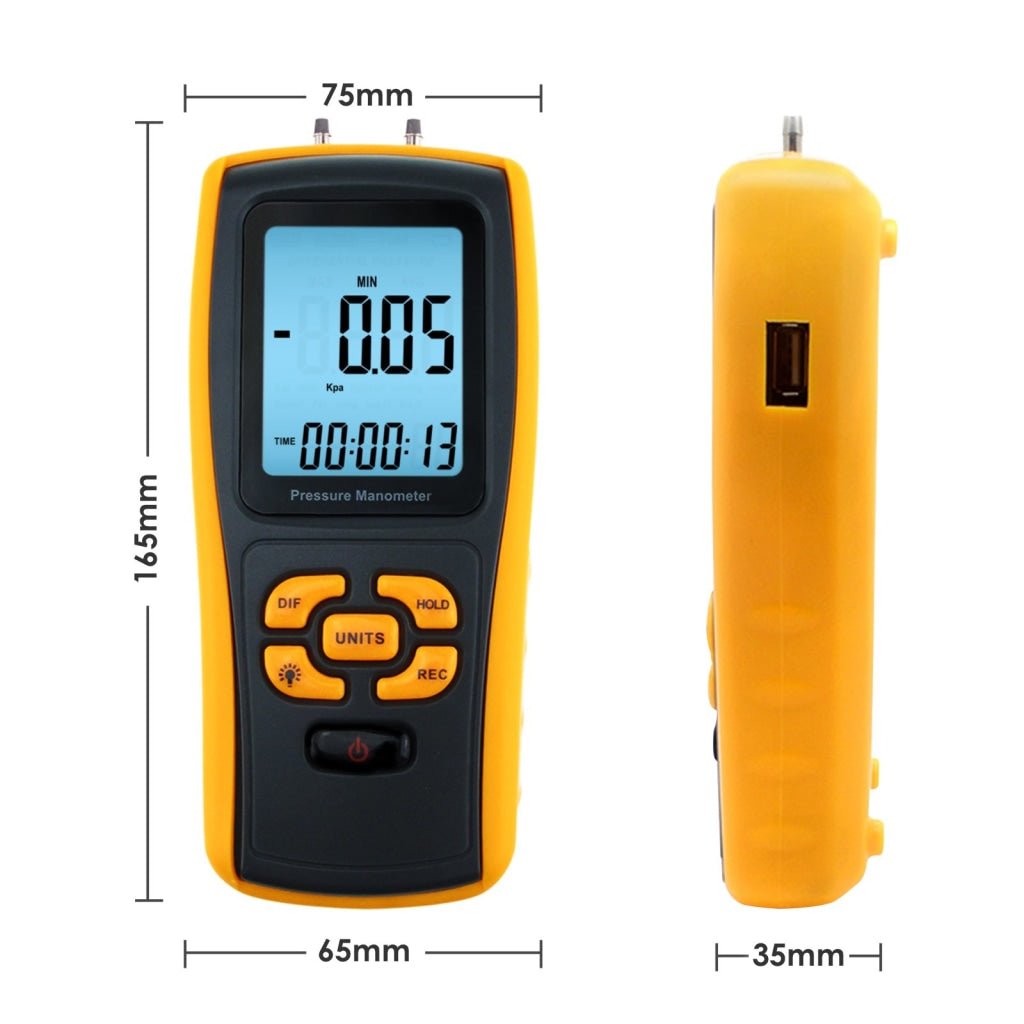

    • Size: 7 x 3 x 1.2 inch
    • Weight: 235g

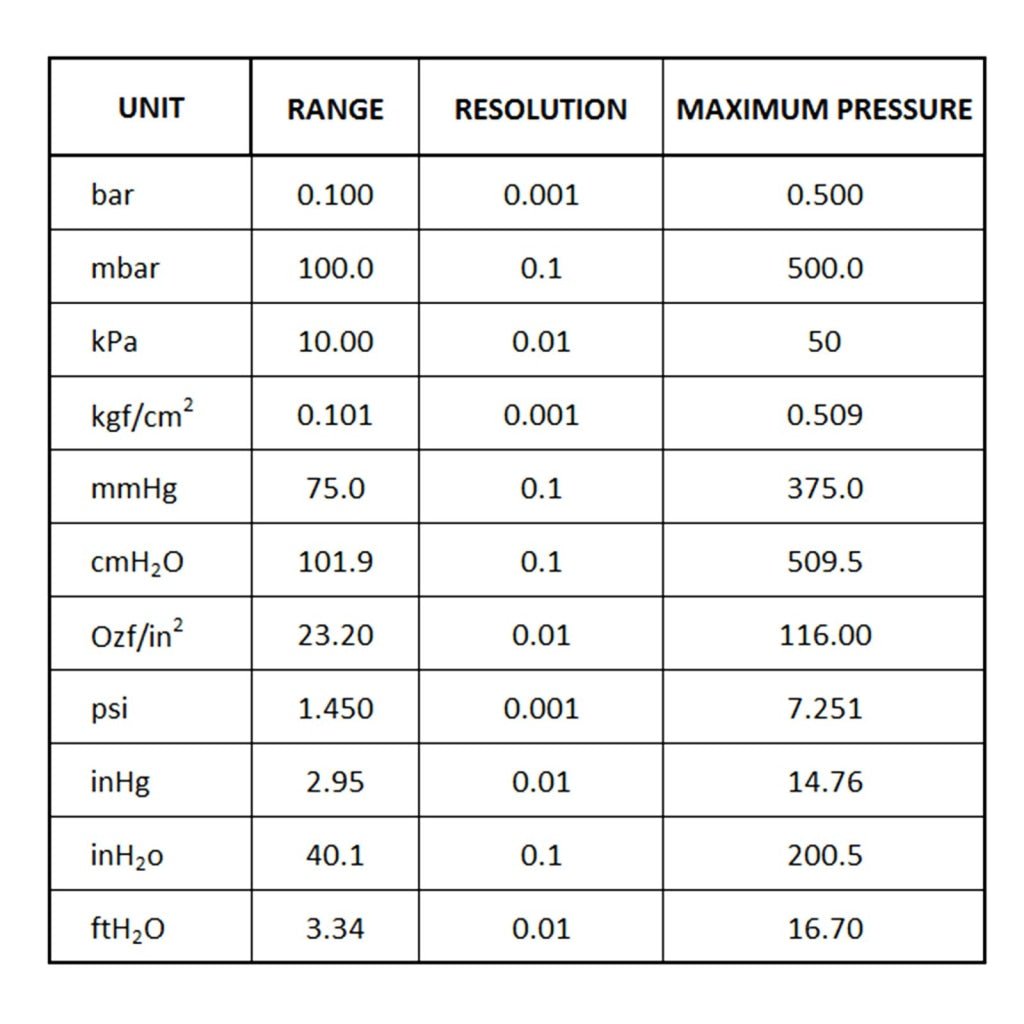

Pls see specific range, resolution and maximum pressure in the Photos


    Set Includes:

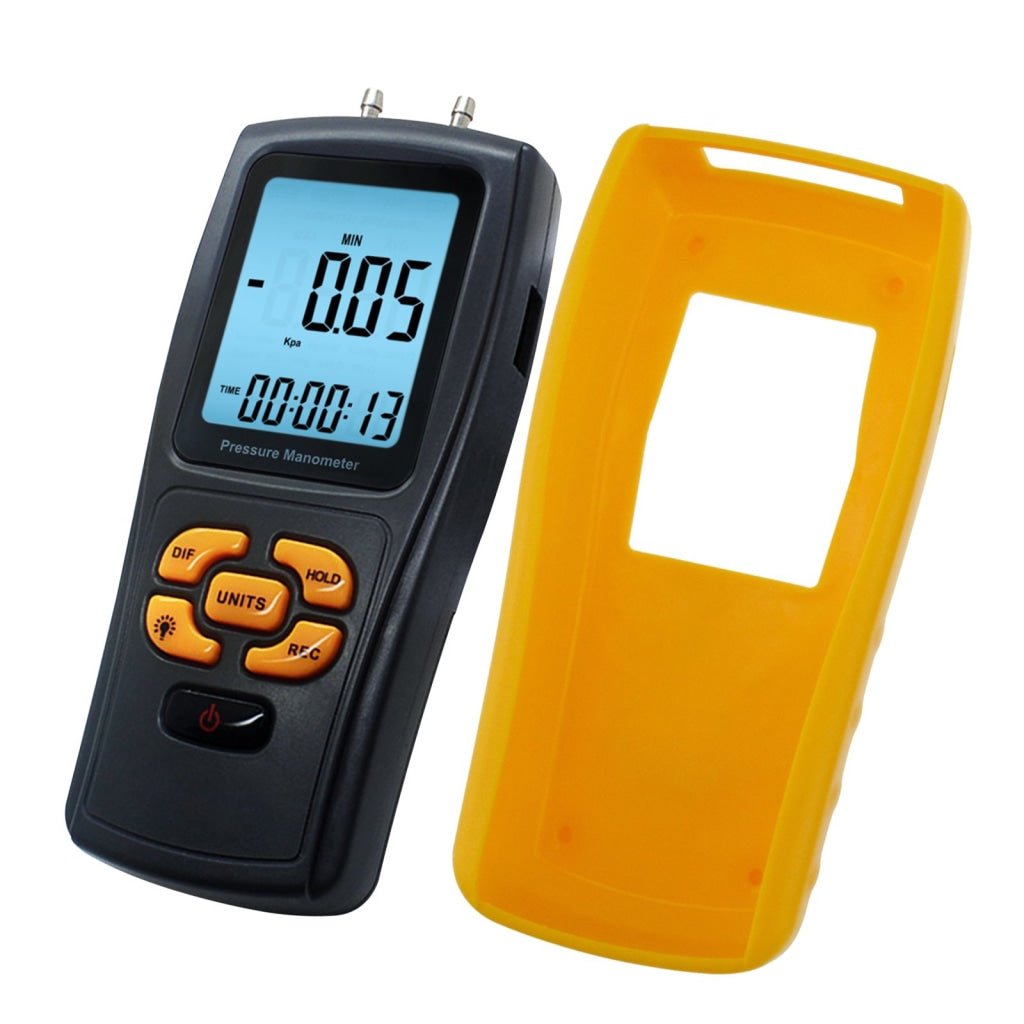

    • 1 x Pressure Manometer

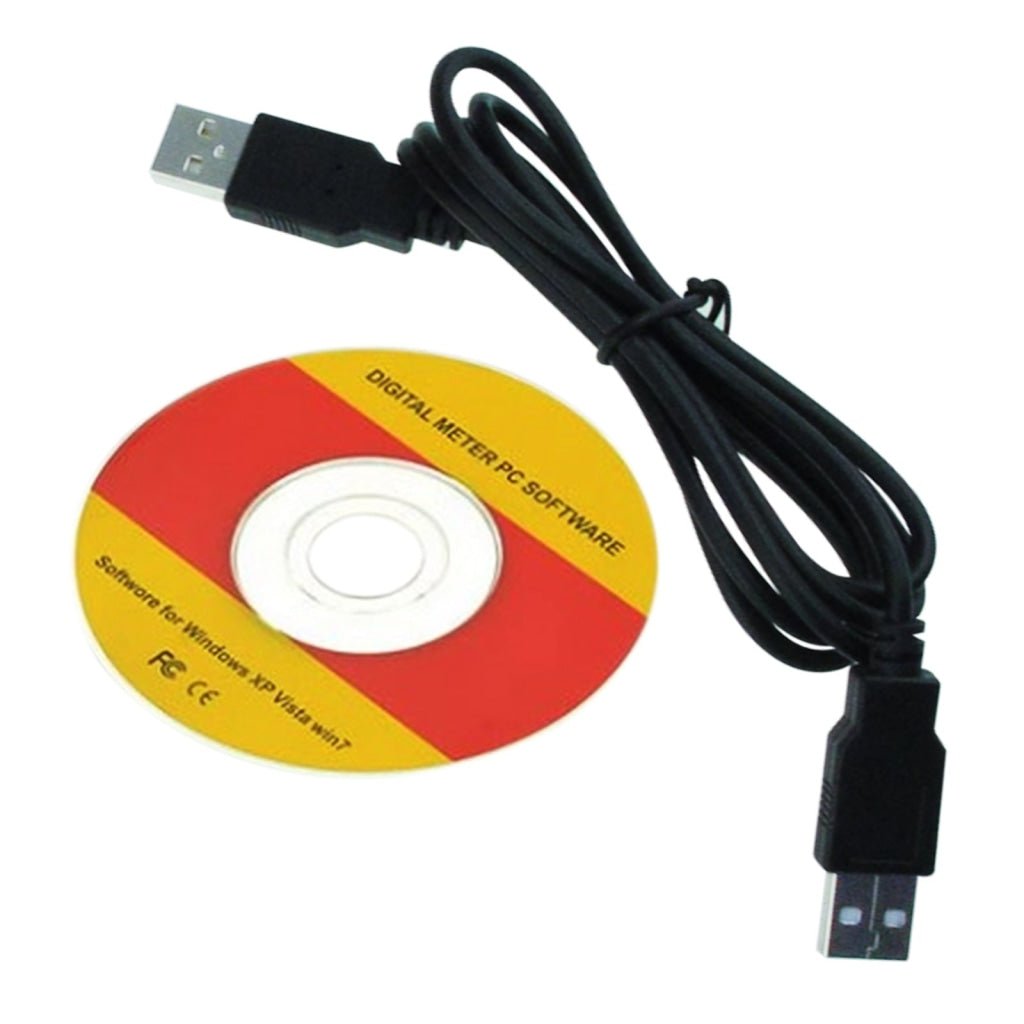

    • 1 x USB Wire
    • 1 x CD Software
    • 2 x Translucent Silica Gel Hose
    • 2 x Transparent PVC Hose
    • 4 x 1.5V AAA Battery
    • English Operation Manual
    • Standard Packaging Box



    Download Software
