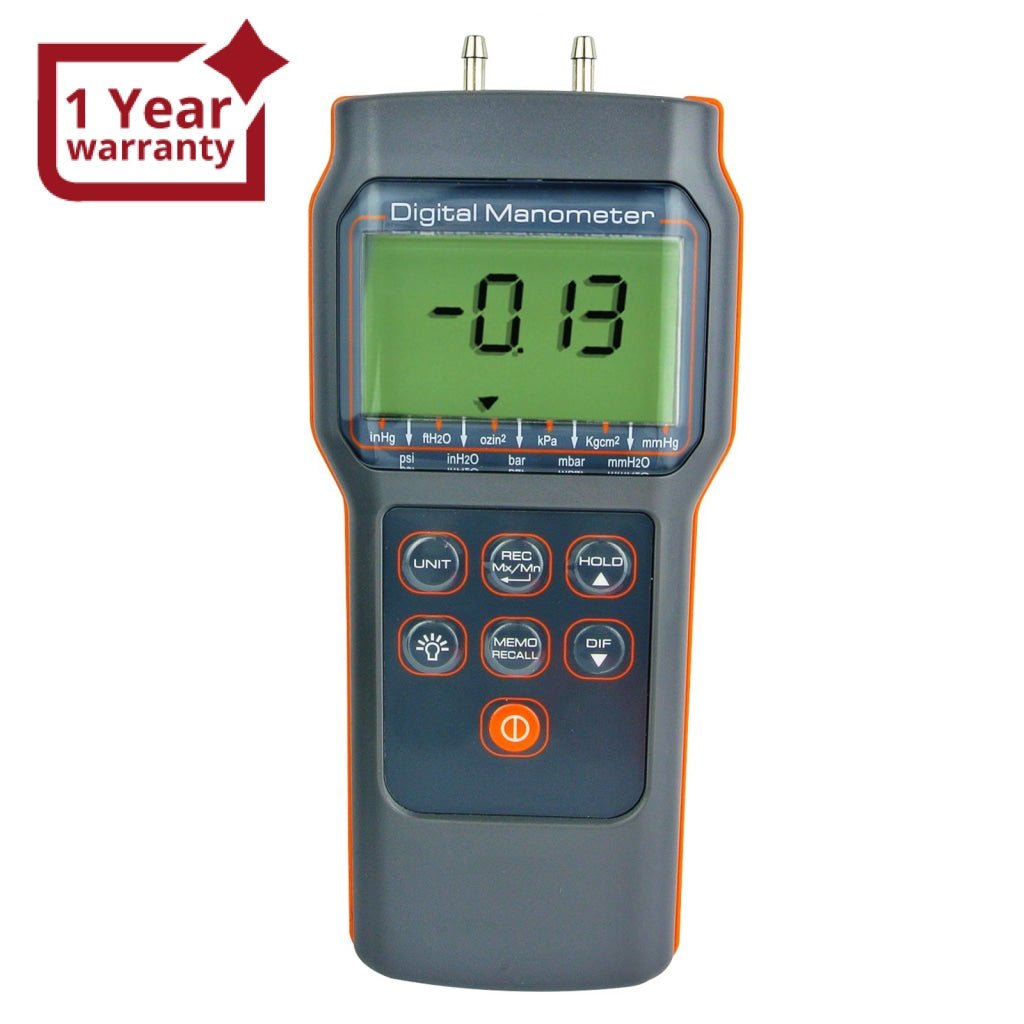

ILMA-817 Digital Differential Air Pressure Manometer 15.000psi Gauge High Accuracy Portable Meter HVAC Test Tool

Sku: ILMA-817
$138.90 USD
Translation missing: en.products.product.shipping_policy_html
Quantity:
Add to Wishlist Remove From Wishlist
Visa Mastercard PayPal American Express Google Pay Apple Pay Shop Pay
This high quality Professional Digital Manometer that measures Gauge Pressure-a measure of pressure with reference to ambient pressure, and Differential Pressure-a measure of the difference between two pressures.

This Manometer has a 11 pressure units that are selectable for Imperial and Metric in the different area:
  • inHg
  • ftH2O
  • Ozin2
  • kPa
  • Kgcm2
  • mmHg
  • psi
  • inH2O
  • bar
  • mbar(hpa)
  • mmh2O

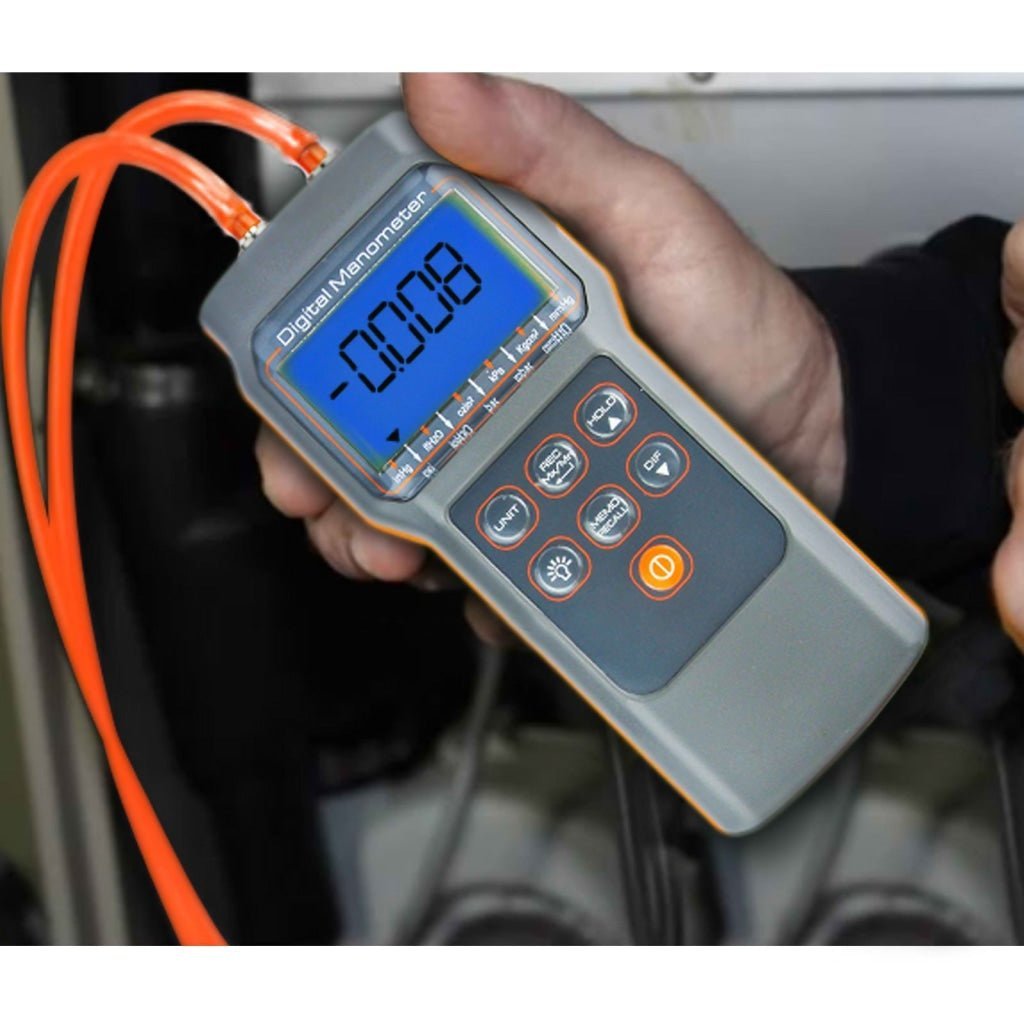

This Manometer is ideal for HVAC/R technicians measuring pressure level,Medical equipment,Computer Peripherals,Pneumatic controls.


Features:
  • Portable Digital Gauge& Differential Pressure meter

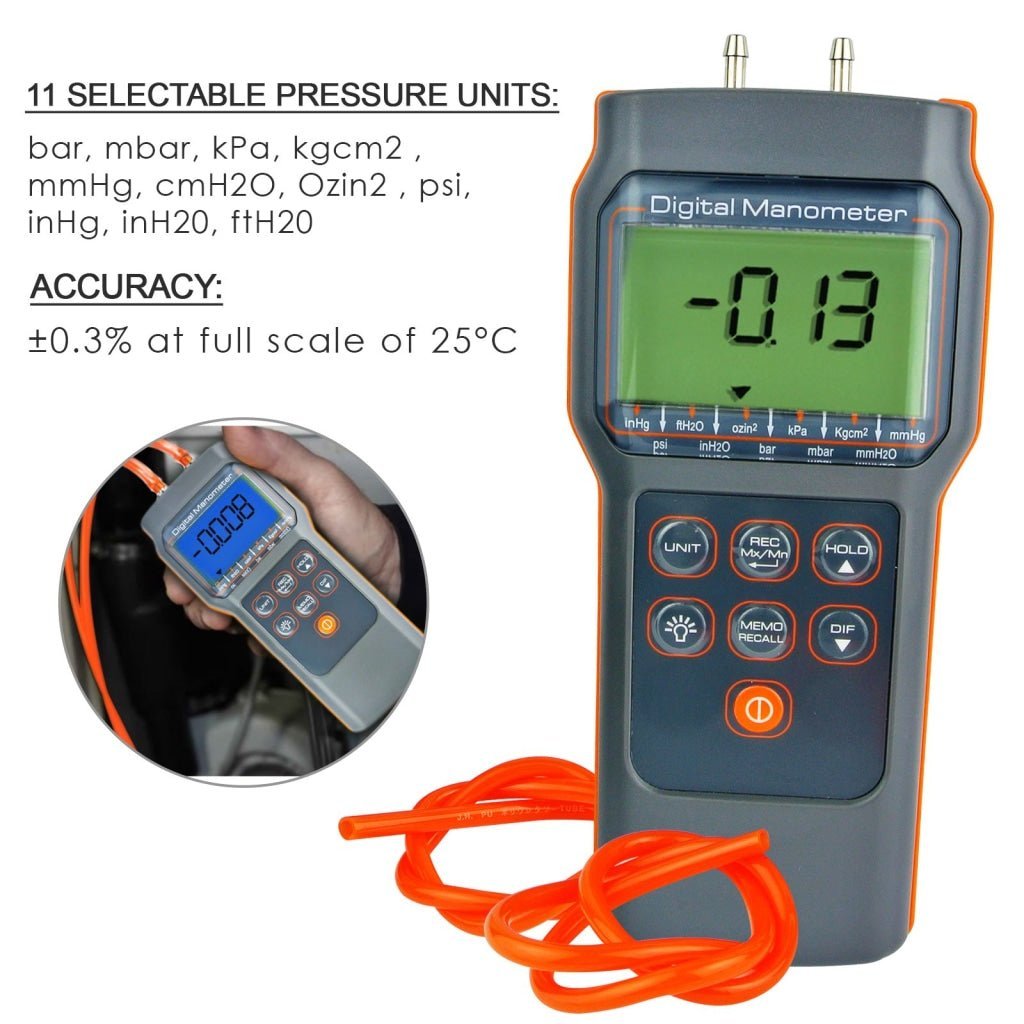

  • 11 measuring units: bar, oz in2, psi, kPa, inHg, mbar, mmHg, kgcm2, inH2O, ftH2O, mmH2O
  • Highly accurate measurements; accuracy is at ±0.3% of full scale

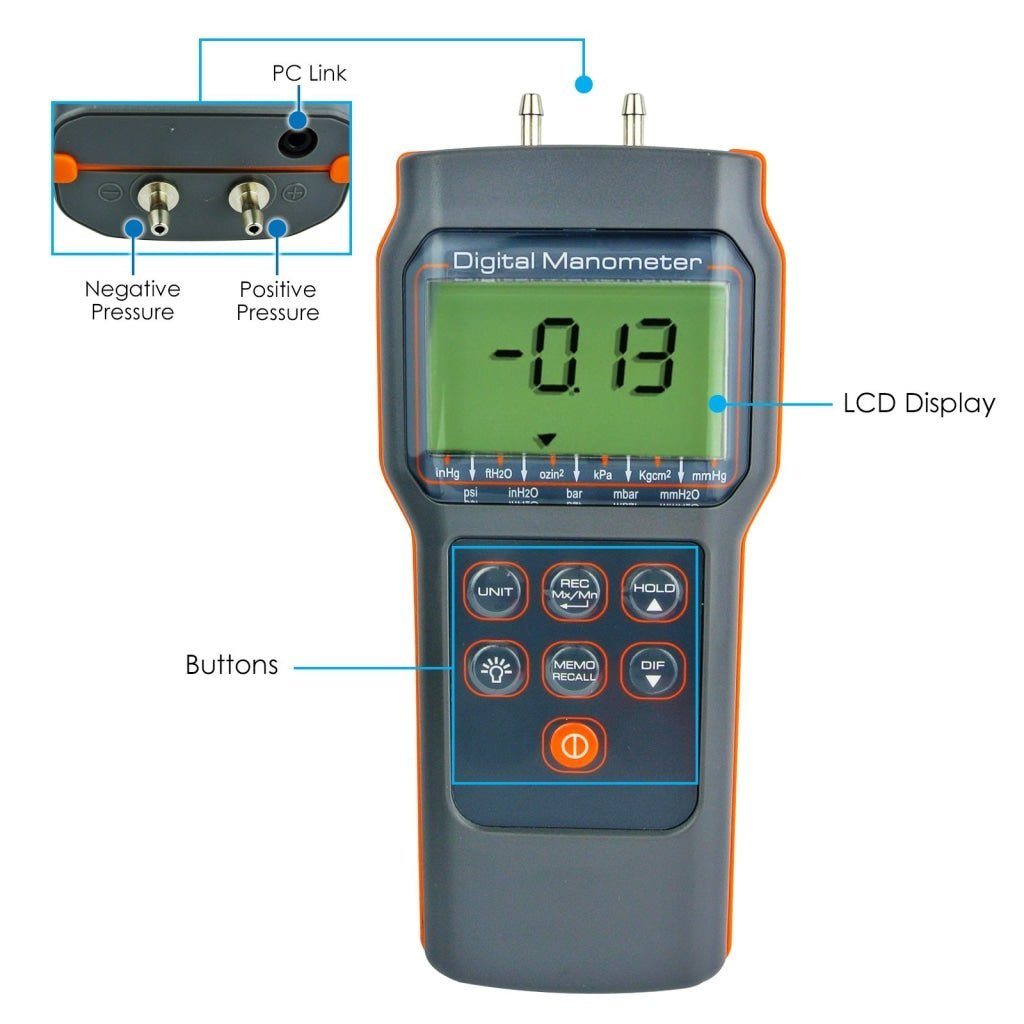

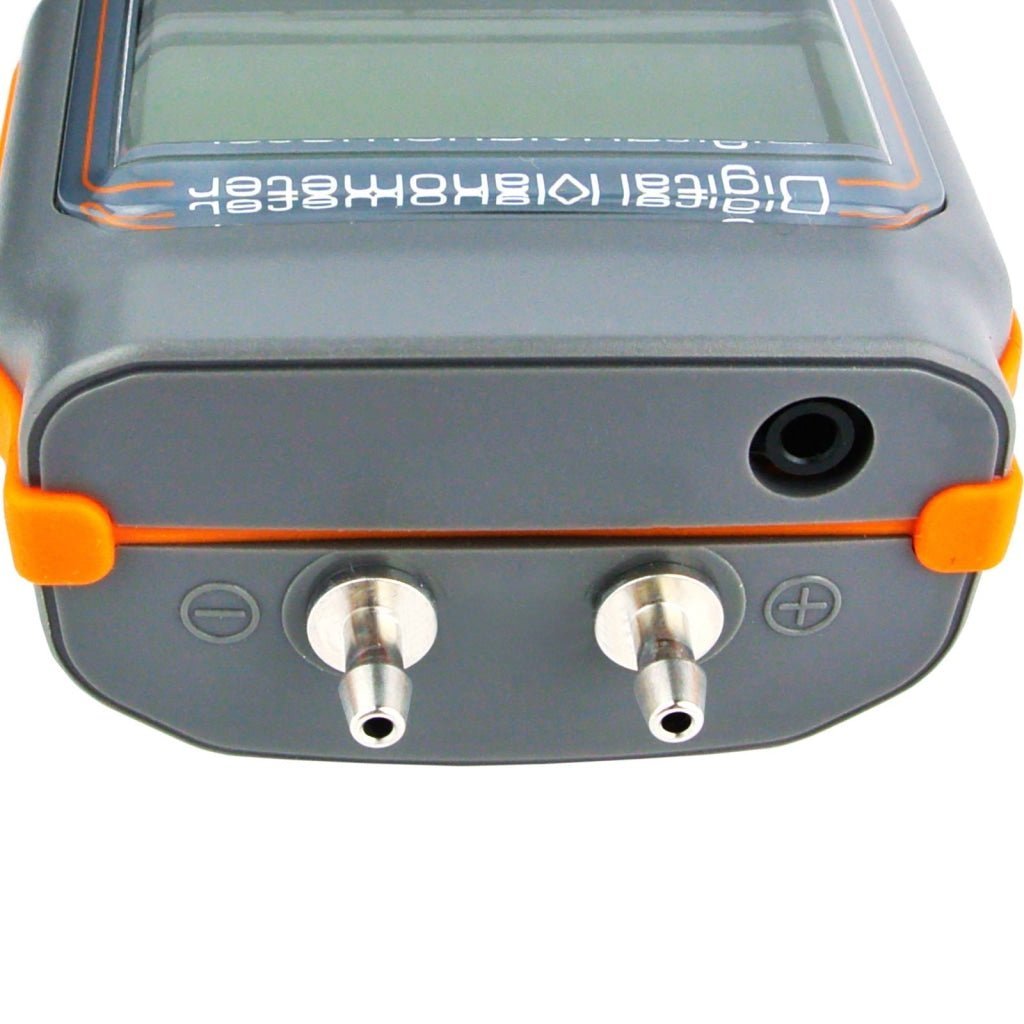

  • Available 4mm negative and positive metal hose plug

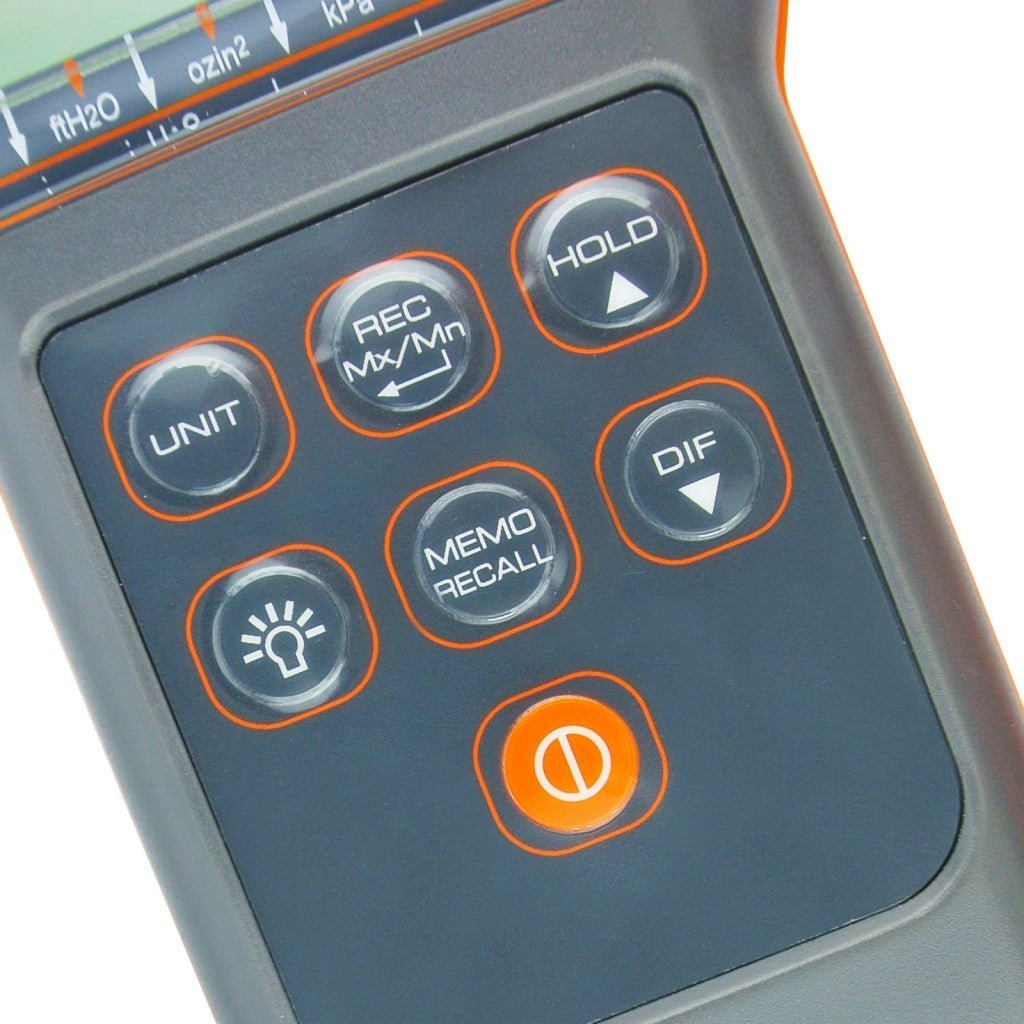

  • Hold function freezes current readings
  • Checking Min, Max, Record Features
  • Over-range indication with error message
  • Display pressure change from baseline
  • Blue backlight function works for dark are
  • Auto power off that can be disabled
  • Accumulative time shows in recording period
  • PC interface available for real time download

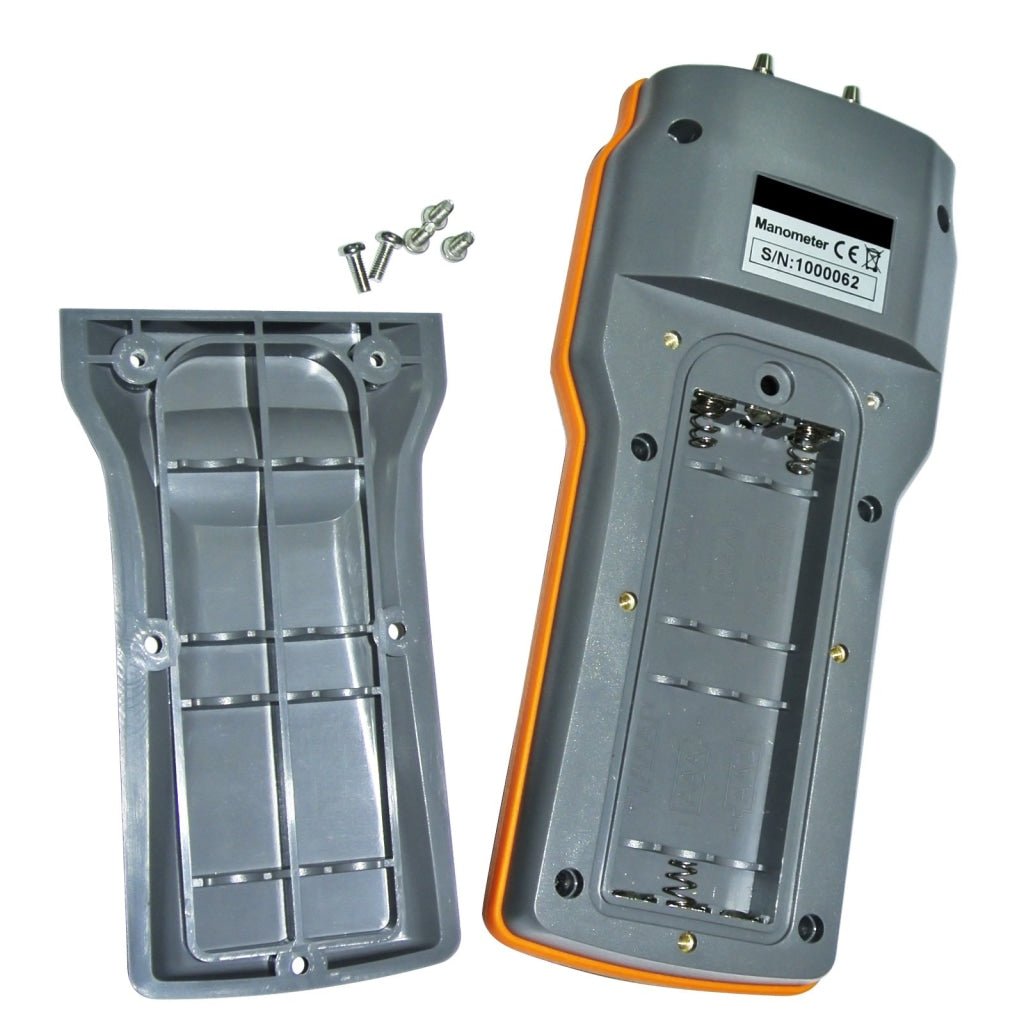

  • Powered by 6pcs AAA batteries
  • Low battery indicator

Specifications:
  • Range and Resolution:
    • psi: ±15.000 ; 0.001
    • kPa: ±103.42 ; 0 .01
    • mmHg: ±775.7 ;  0.1
    • Kg/cm2: ±1.055 ; 0.001
    • mbar(hpa): ±1034.2 ; 0.1
    • bar: ±1.034 ;0.001
    • in H2O: ±415.20 ; 0.01
    • mmH2O: ±10546 ; 1
    • in Hg: ±30.5 ; 0.001
    • ft H2O: ±34.6 ;  0.001
    • oz/inch2: ±240.00 ; 0.01
  • Accuracy: ±0.3% of full scale at 25°
    • Repeatability:  ±0.2% ~ 0.5% of full scale
    • Linearity / Hysteresis: ±0.29% ~ 1% of full scale
    • Combined Accuracy: ±1.0% of full scale
  • Response Time: 0.5 second

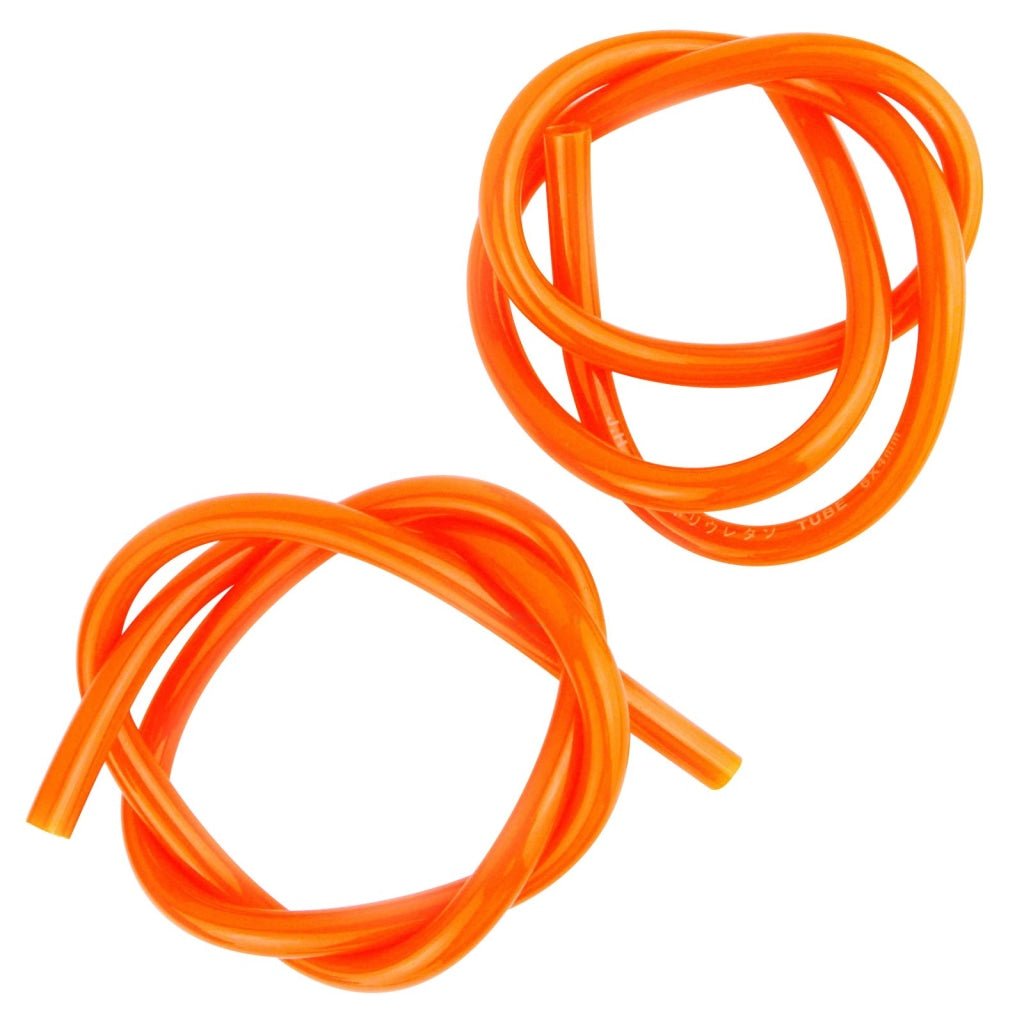

  • Lug & Tubing : 4mm lug-orange tube 500mm long (included in set)
  • Compensated temp. range:10 ~ 30 °C

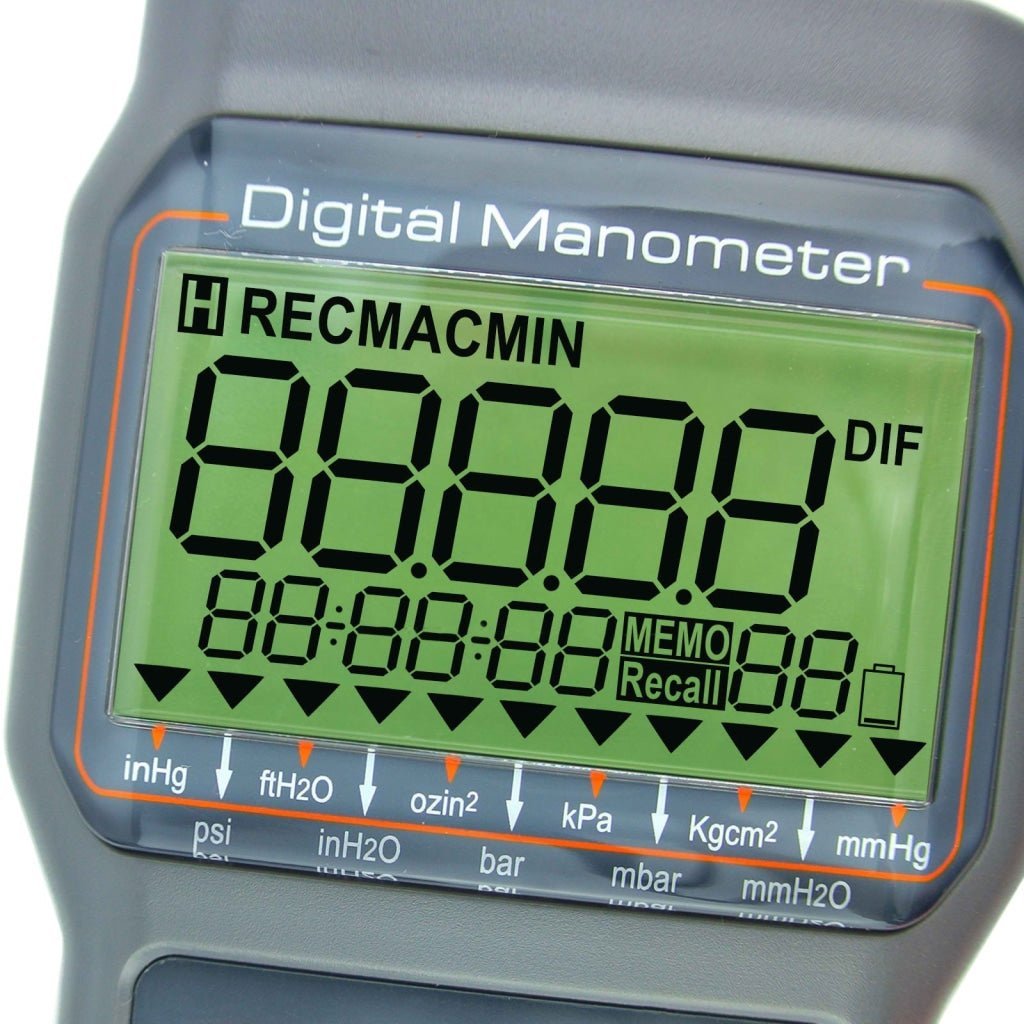

  • LCD size: 32.5 x 54mm
  • Operating Temp: 0  ~  50 °C
  • OPerating RH: Humidity <80%
  • Storage Temp: -20 ~ 50 °C
  • Storage RH: Humidity <90%

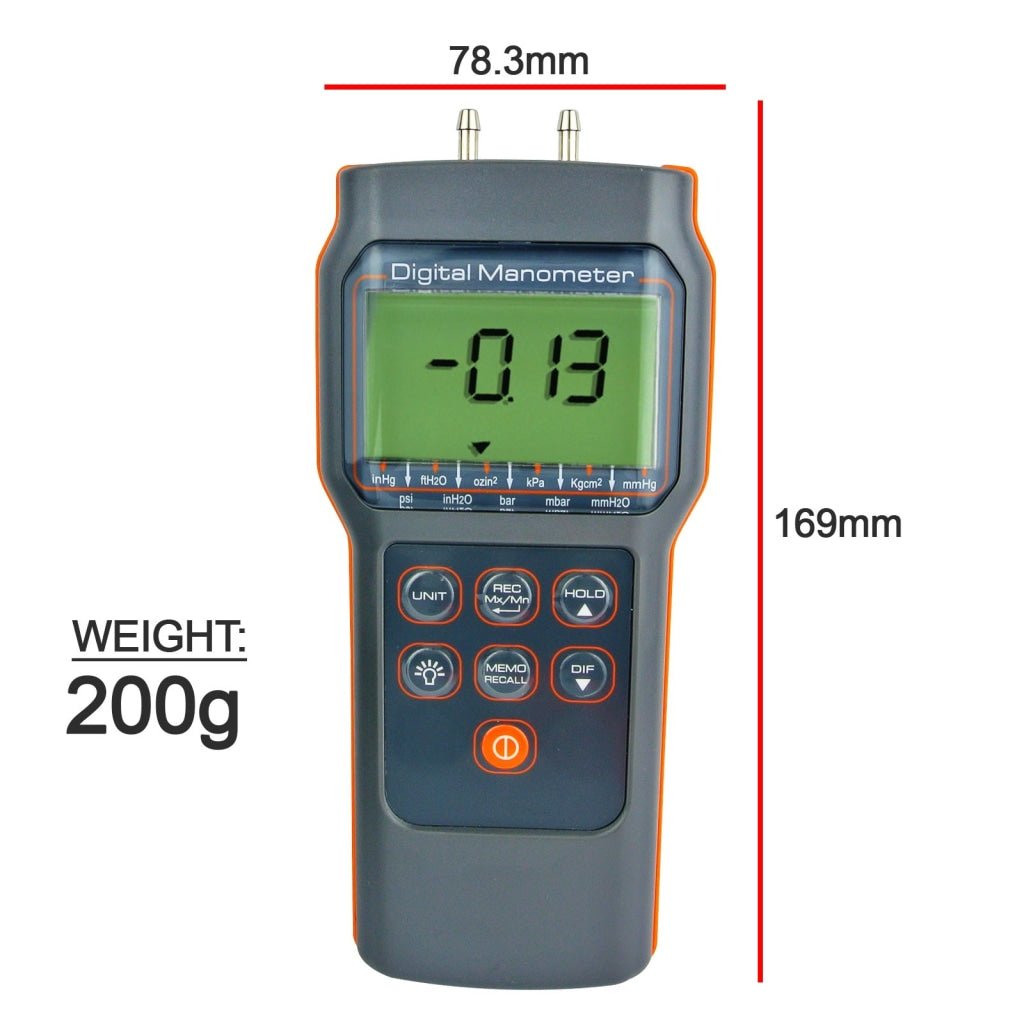

  • Dimension: 169 x 78.3 x 34.4
  • Weight: ~200g
  • Battery: 6 x AAA batteries

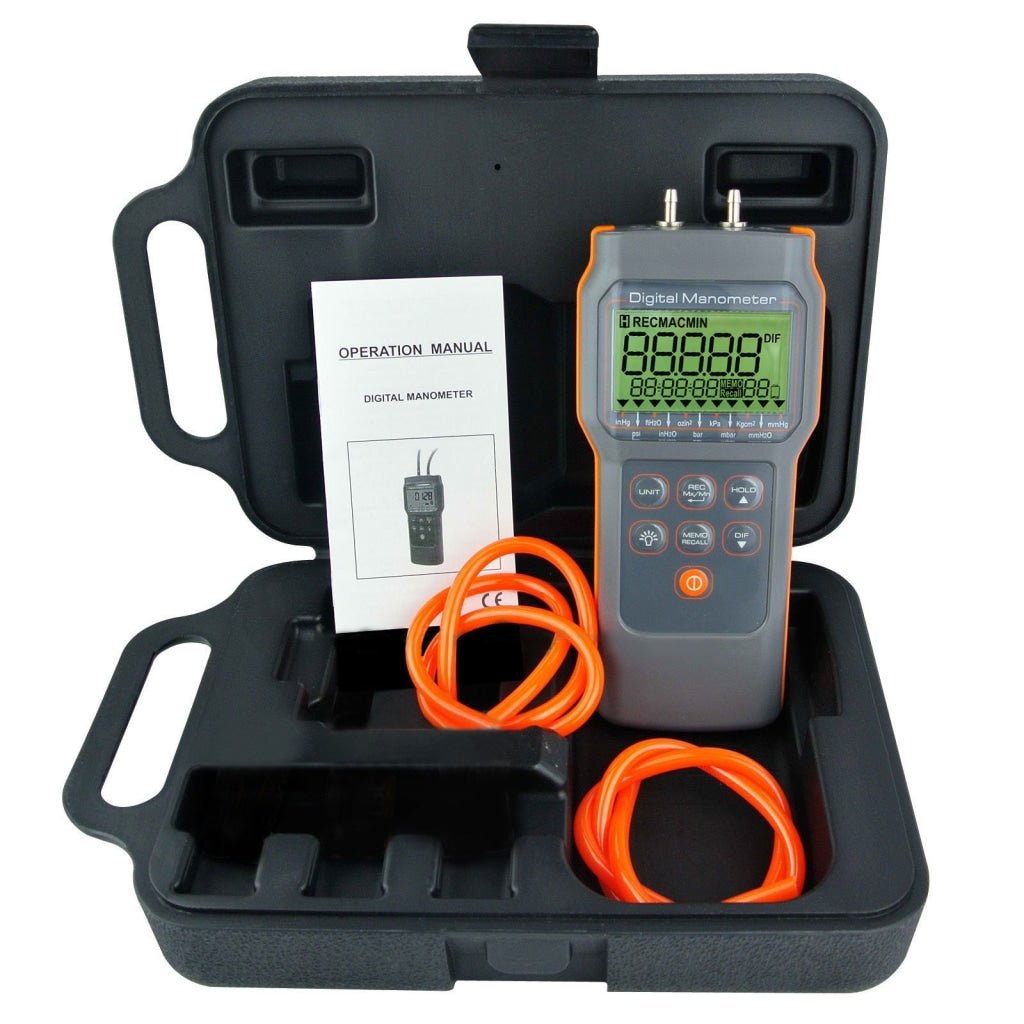

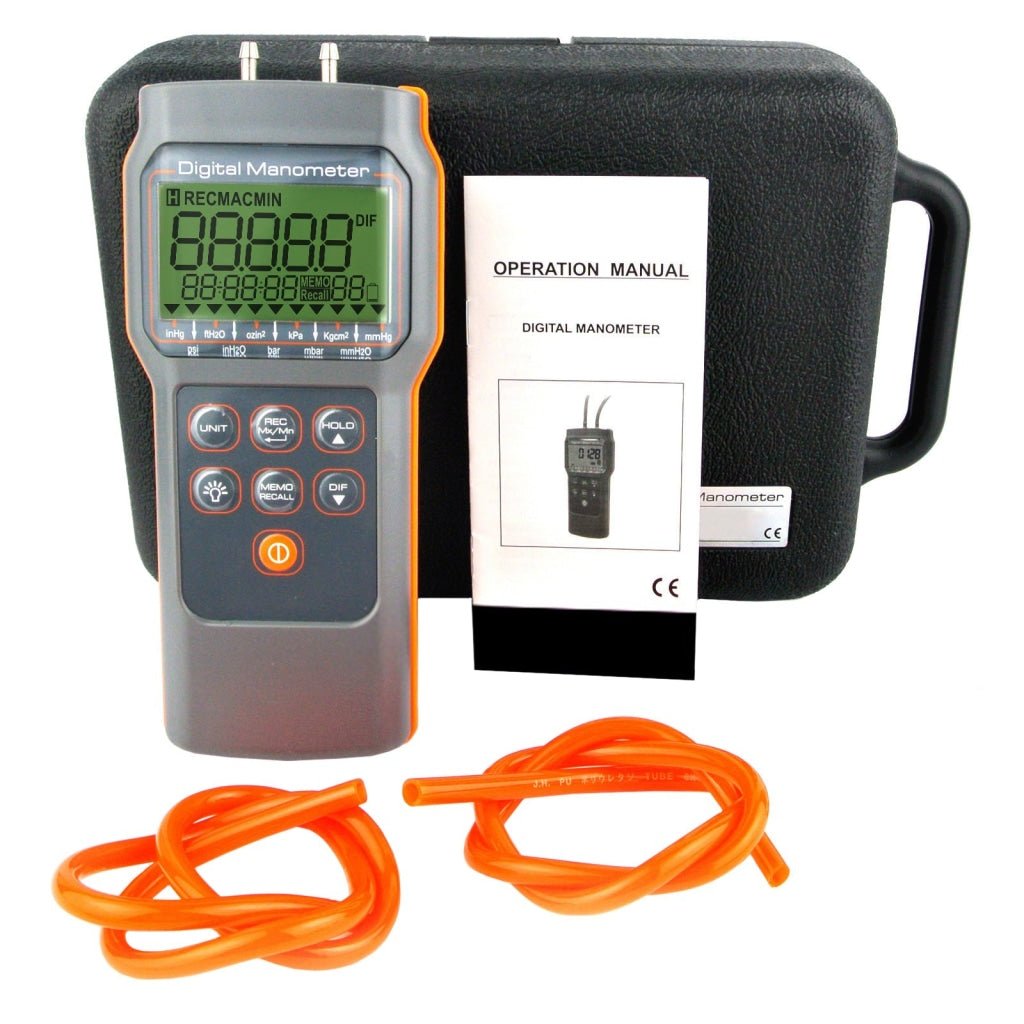

Set Includes:
  • 1 x Economic Digital Manometer
  • 6 x AAA Battery
  • 1 x English Instruction Manual
  • 2 x Connection hose
  • 1 x Hard carry case

      A printed user manual is already included with this item. No digital user manual or software is available.
