ILMA-334 Digital Manometer Portable Air Vacuum / Gas Pressure Gauge Meter 12 Measurement Units with Backlight and Data storage Function Sing Pipe or Differential Pressure of 1-2 Pipes Detection

Sku: ILMA-334
$49.90 USD
Translation missing: en.products.product.shipping_policy_html
Quantity:
Visa Mastercard PayPal American Express Google Pay Apple Pay Shop Pay

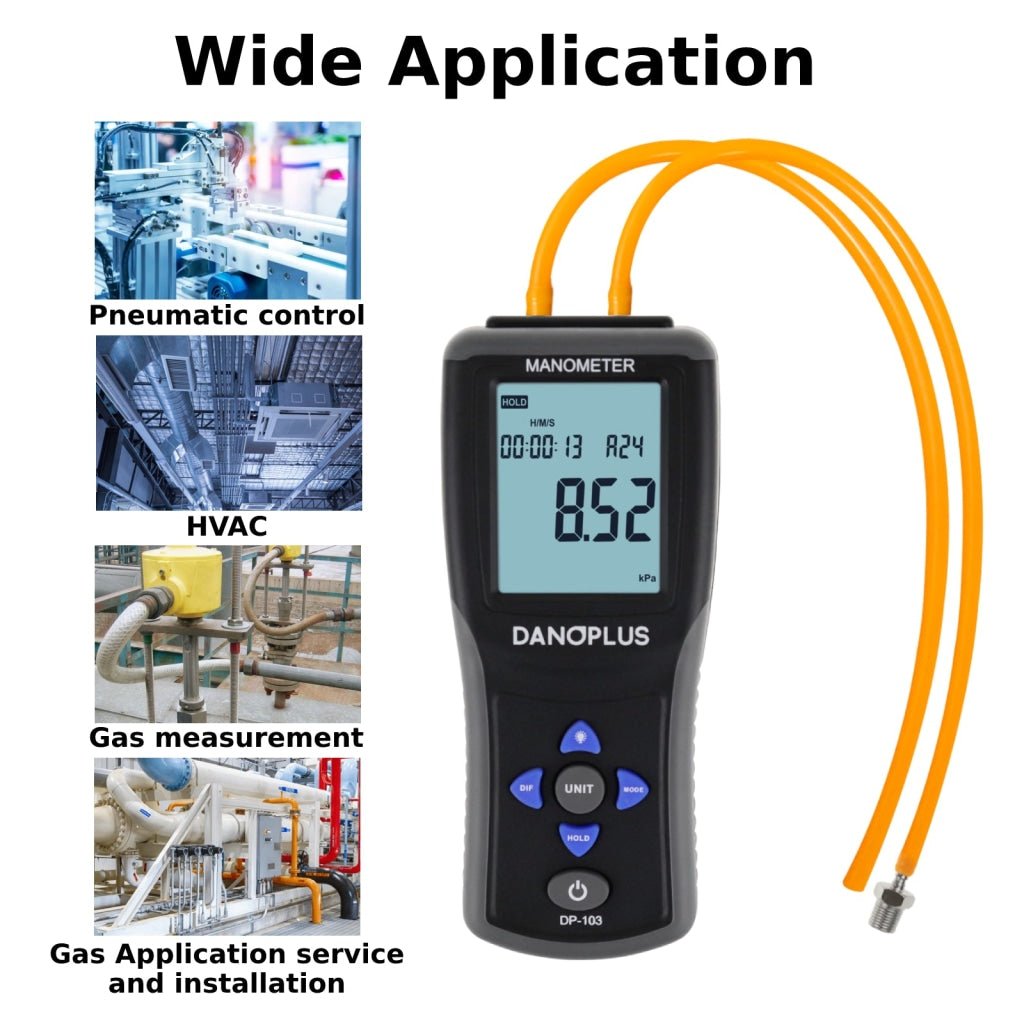

Measure the air pressure of single pipe or pressure difference between two detection ports. It has 12 units of measurement and is widely used in natural gas pipelines, air-conditioning refrigeration, ventilation system, mechanical hydraulics, plastic molding, biopharmaceutical molding, mining area pressure detection, gas/liquid production, and industrial equipment pressure detection.

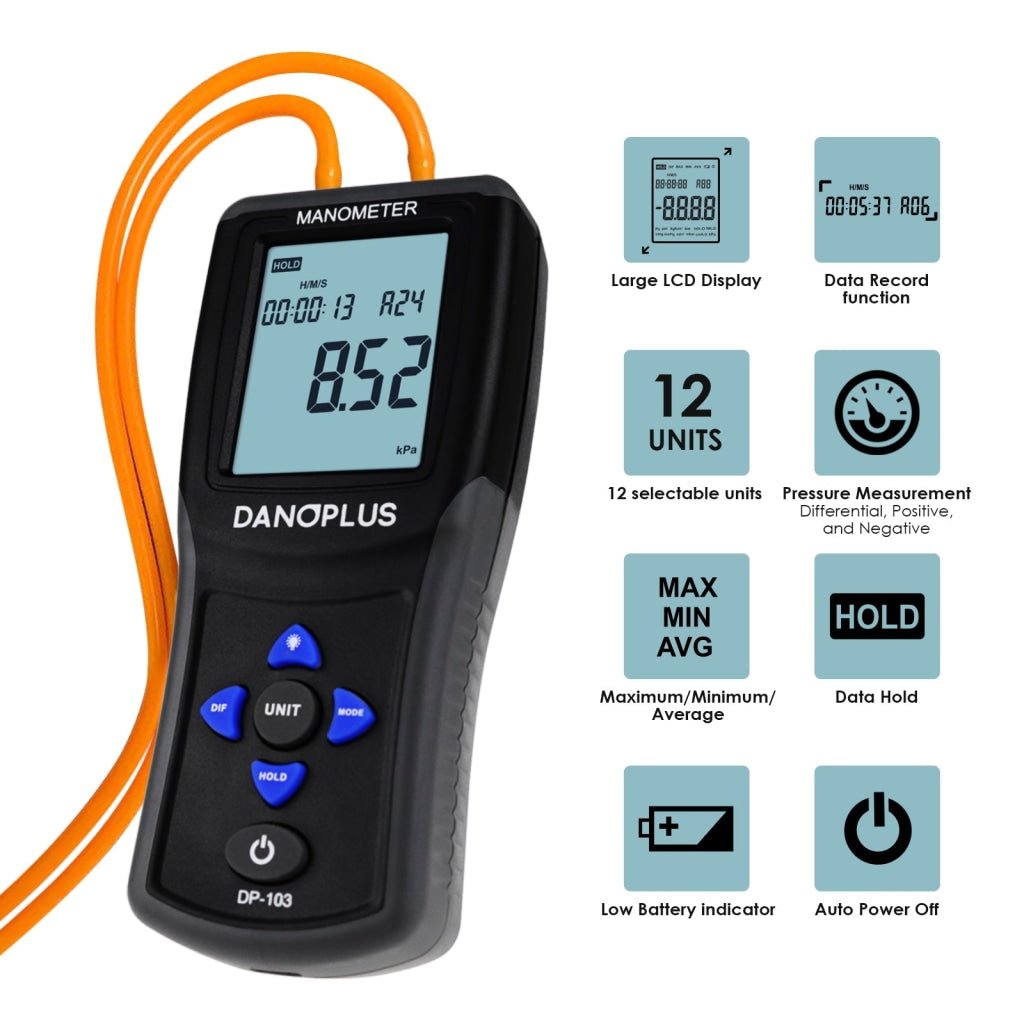

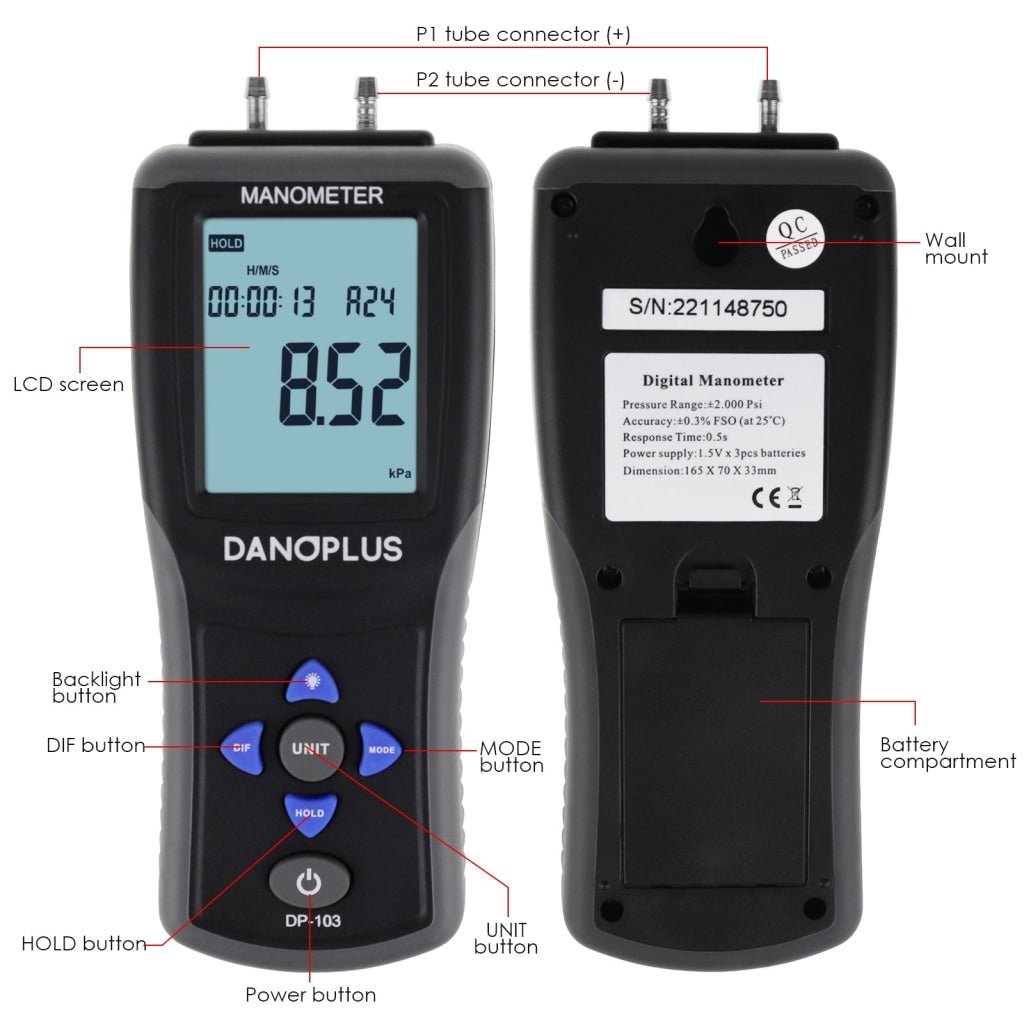

Features:

  • 12 Selectable units of measurement
  • Pressure Difference Measurement
  • MAX / MIN / AVG Data mode
  • Data HOLD function

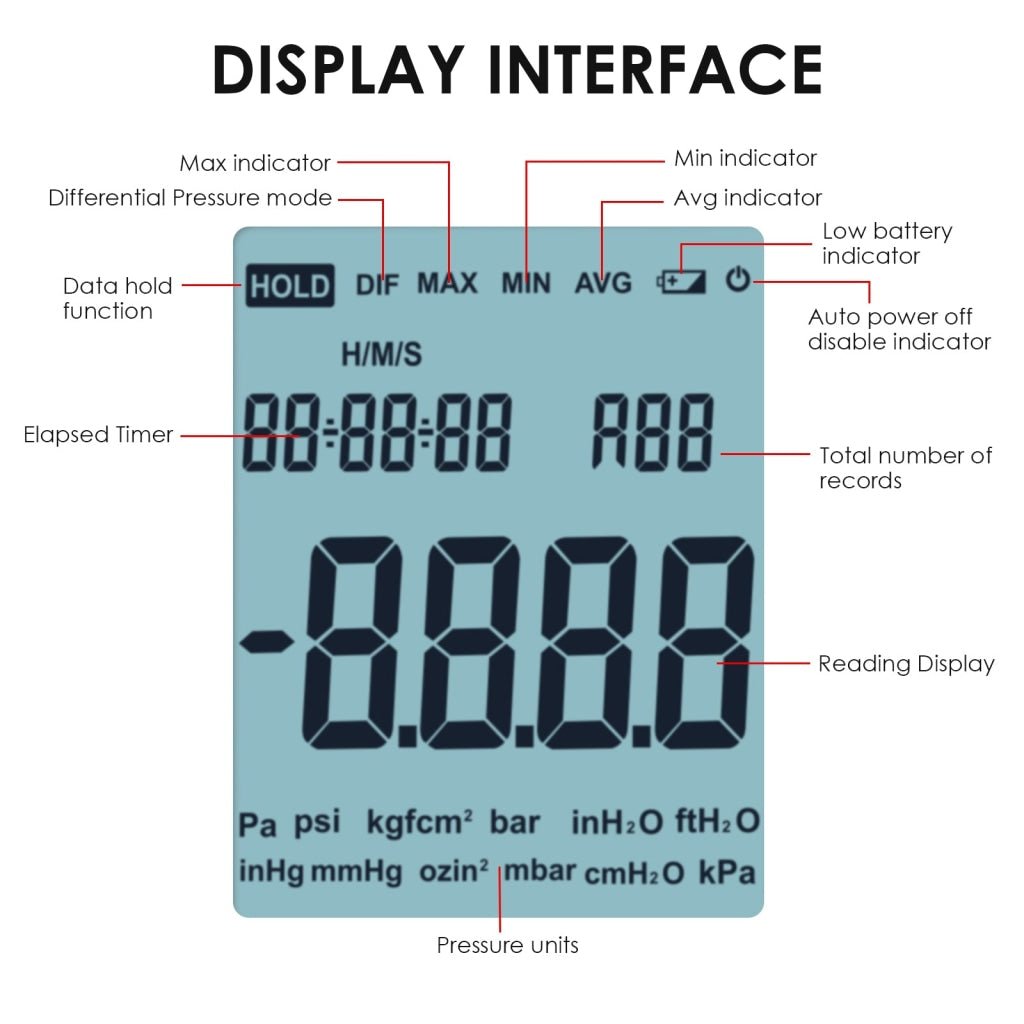

  • Large LCD with backlight
  • Data storage function with a time stamp
  • Zero function
  • Low battery alarm
  • Automatic power off function
  • Over range indicator: HI / LO
  • USB for power supply

Specifications:

  • Pressure Range: ±2.000 Psi

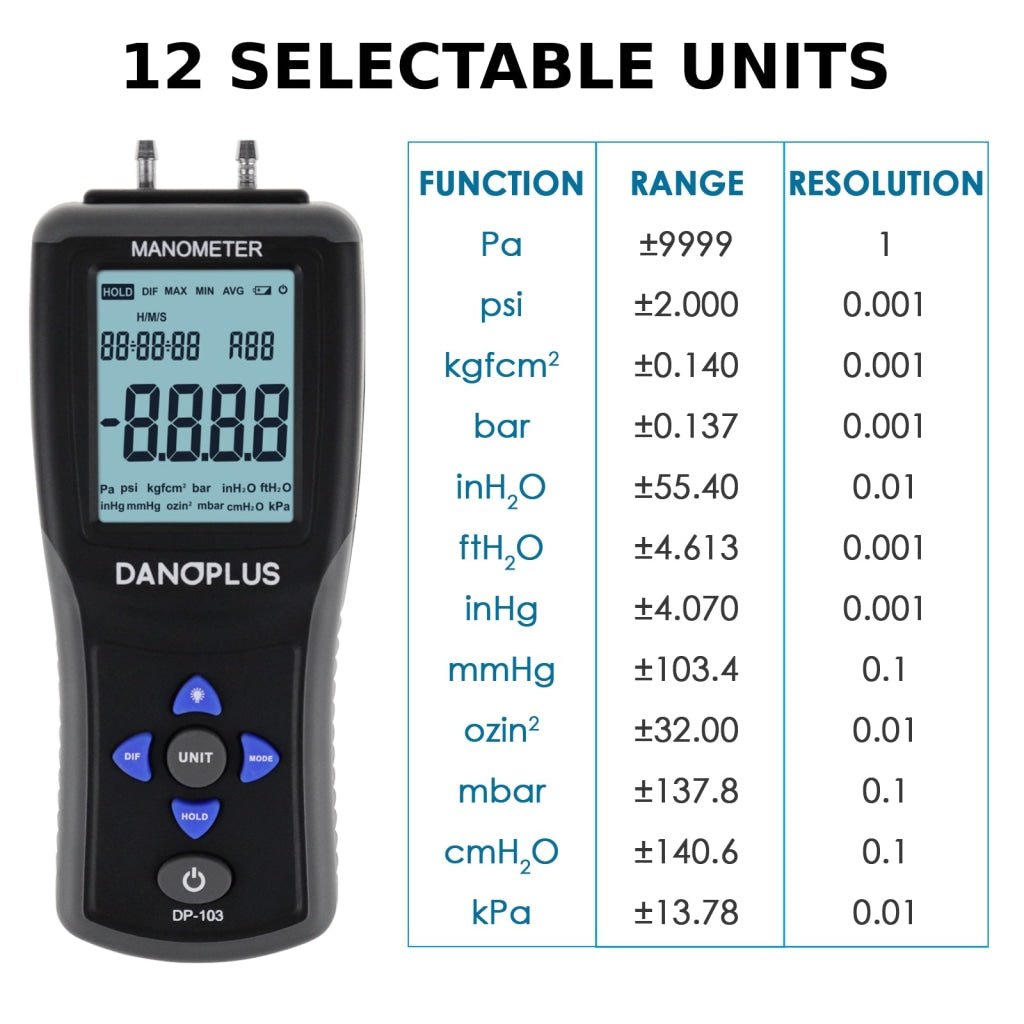

  • Measurement unit: Pa, psi, kgfcm², bar, inH₂O, ftH₂O, inHg, mmHg, ozin², mbar, cmH₂O and kPa
  • Accuracy: ±.3% FSO (@25°C)
  • Repeatability: ±.2% (Max±0.5%FSO)
  • Linearity / Hysteresis: ±0.29% FSO
  • Data Storage: 99 groups
  • Response time: 0.5s
  • Out of range indicator: Hi or Lo
  • Automatic Power off conditions: No operation for 10mins
  • Operation condition: 0~50°C (32~122°F)
  • Storage condition: -10~60°C (14~140°F)
  • Power Supply: 1.5V x 3pcs AAA batteries

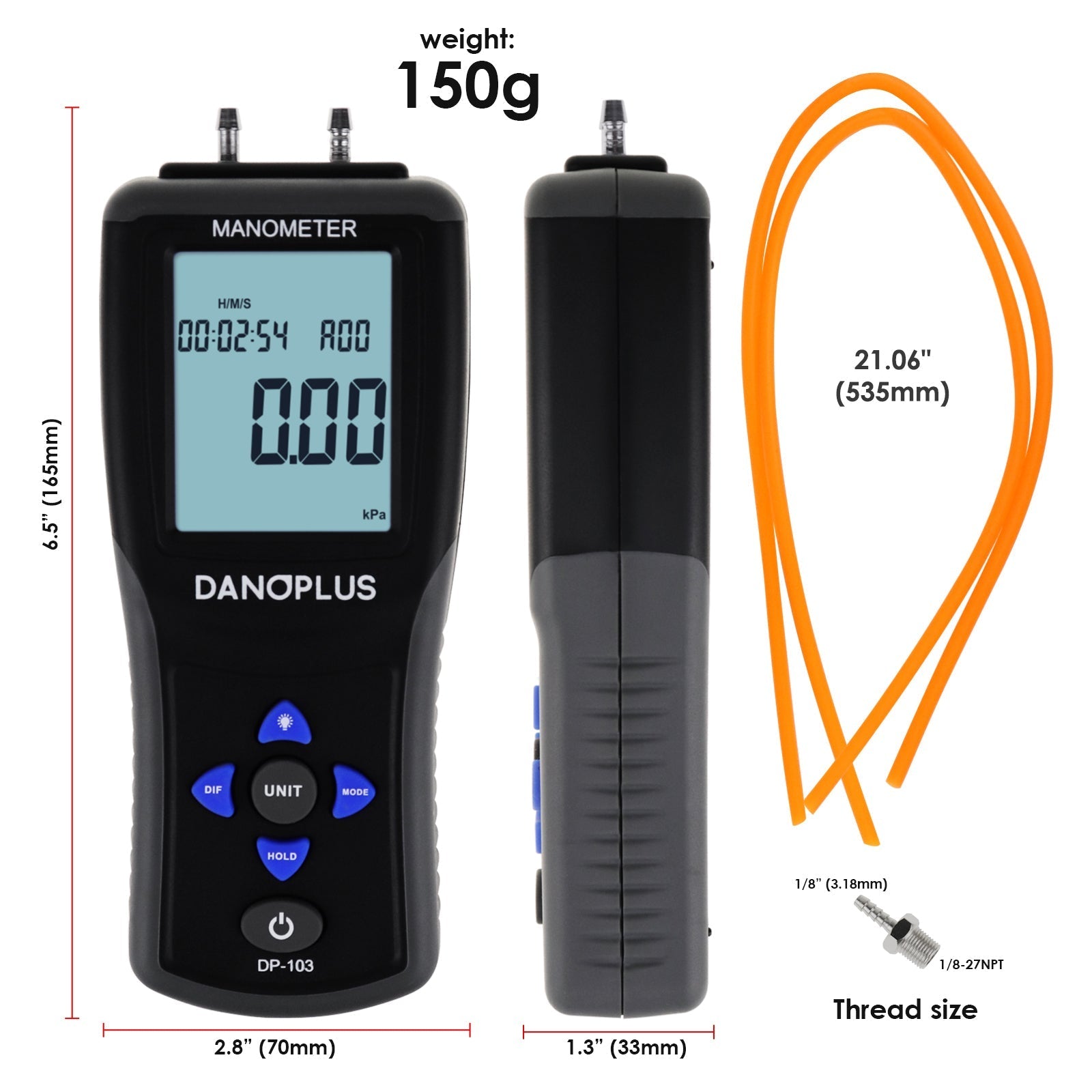

  • Dimension: 165 x 70 x 33mm
  • Weight: 150gms (without batteries)

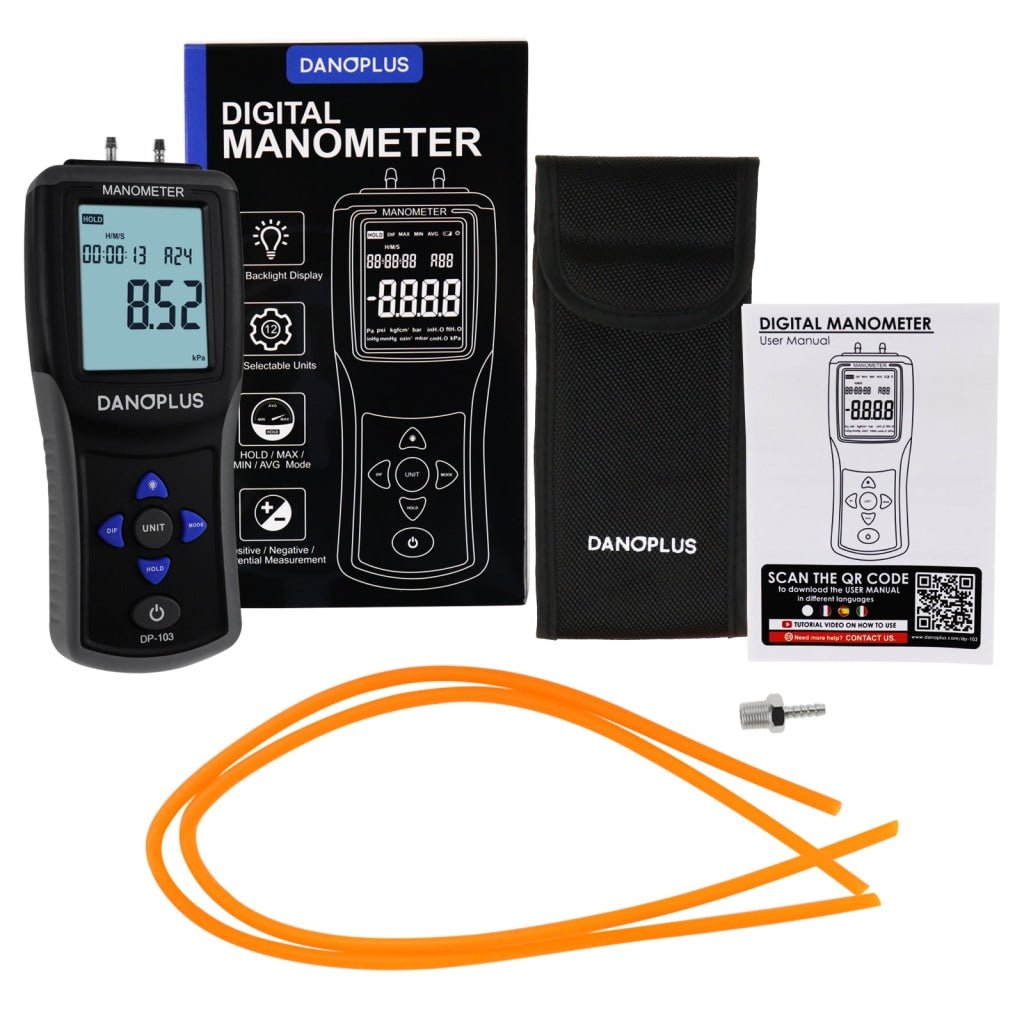

Set Includes:

  • 1 x Digital Manometer
  • 2 x Plastic Hose
  • 1 x Metal Connector
  • 1 x Carry Pouch
  • English Manual
  • Standard Factory Packaging

A printed user manual is already included with this item. No digital user manual or software is available.
