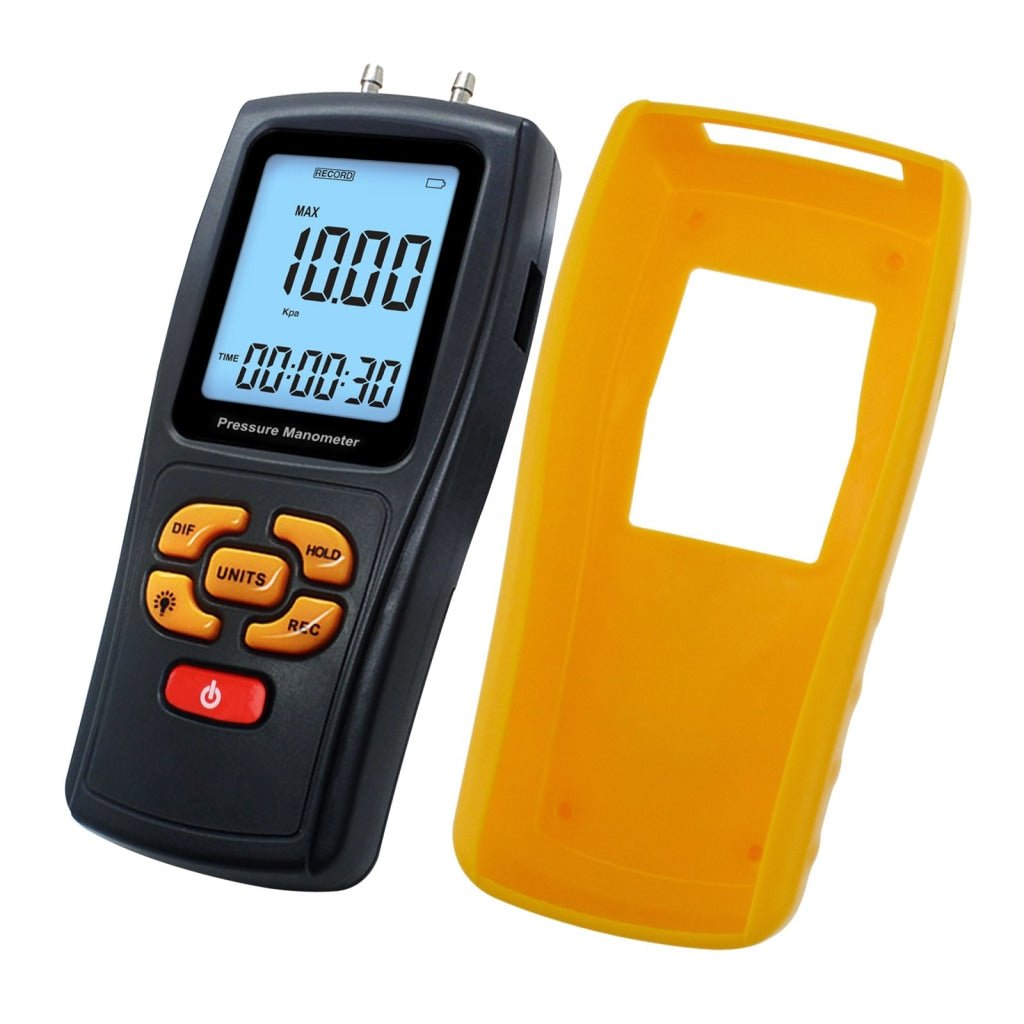

ILMA-277 Digital Manometer Digital Air Pressure Meter Differential Air Pressure Gauge Dual Port HVAC Gas Pressure Tester Handheld Portable Tool

Sku: ILMA-277
$81.90 USD
Translation missing: en.products.product.shipping_policy_html
Quantity:
Add to Wishlist Remove From Wishlist
Visa Mastercard PayPal American Express Google Pay Apple Pay Shop Pay

This digital manometer is the perfect device to measure differential pressure. It has 11 selectable pressure units: bar, mbar, kPa, kgf/cm2, mmHg, cmH2O, Ozf/in2, psi, inHg, inH2O, ftH2O, suitable for industrial and household needs.

Application:

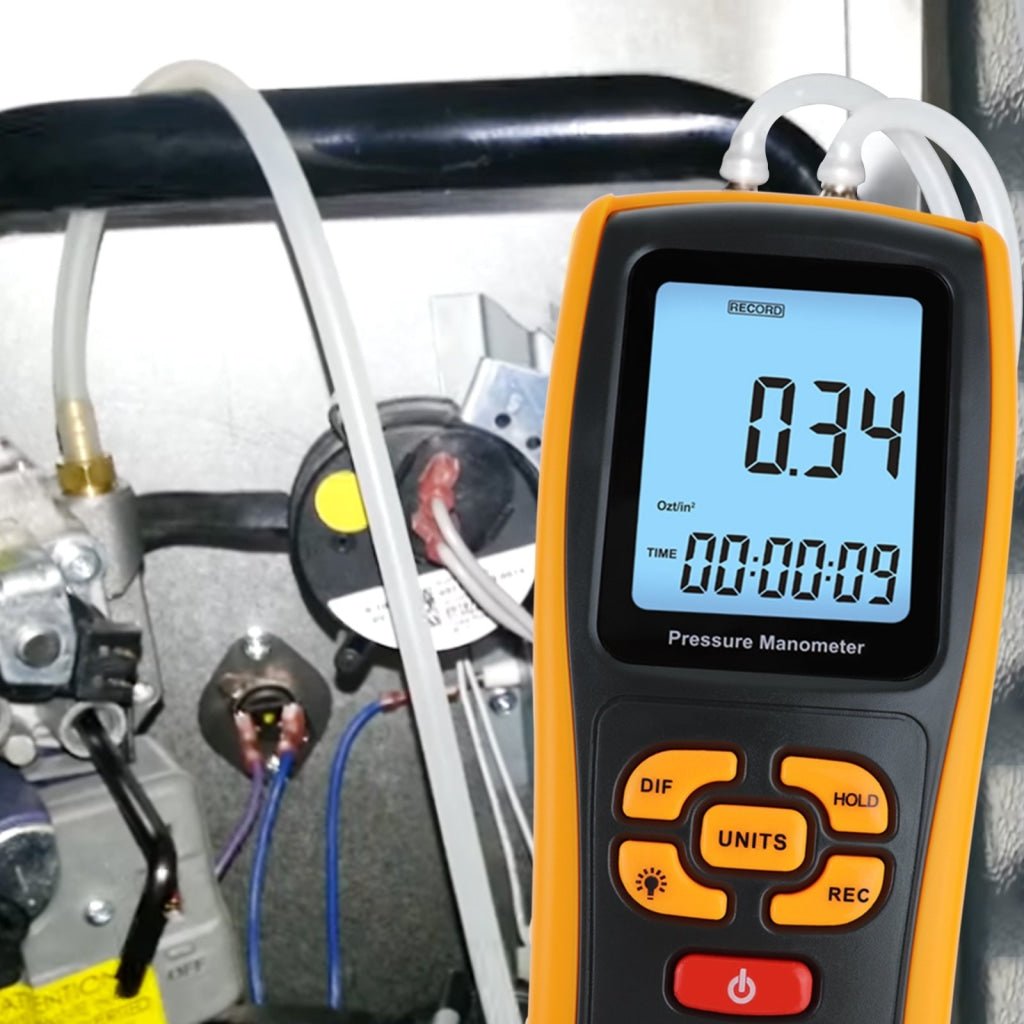

Widely used in measuring pressure of fans, resistance, wind velocity, oven pressure, differential pressure of filter, and monitoring the gas content in the air in the process of combustion.

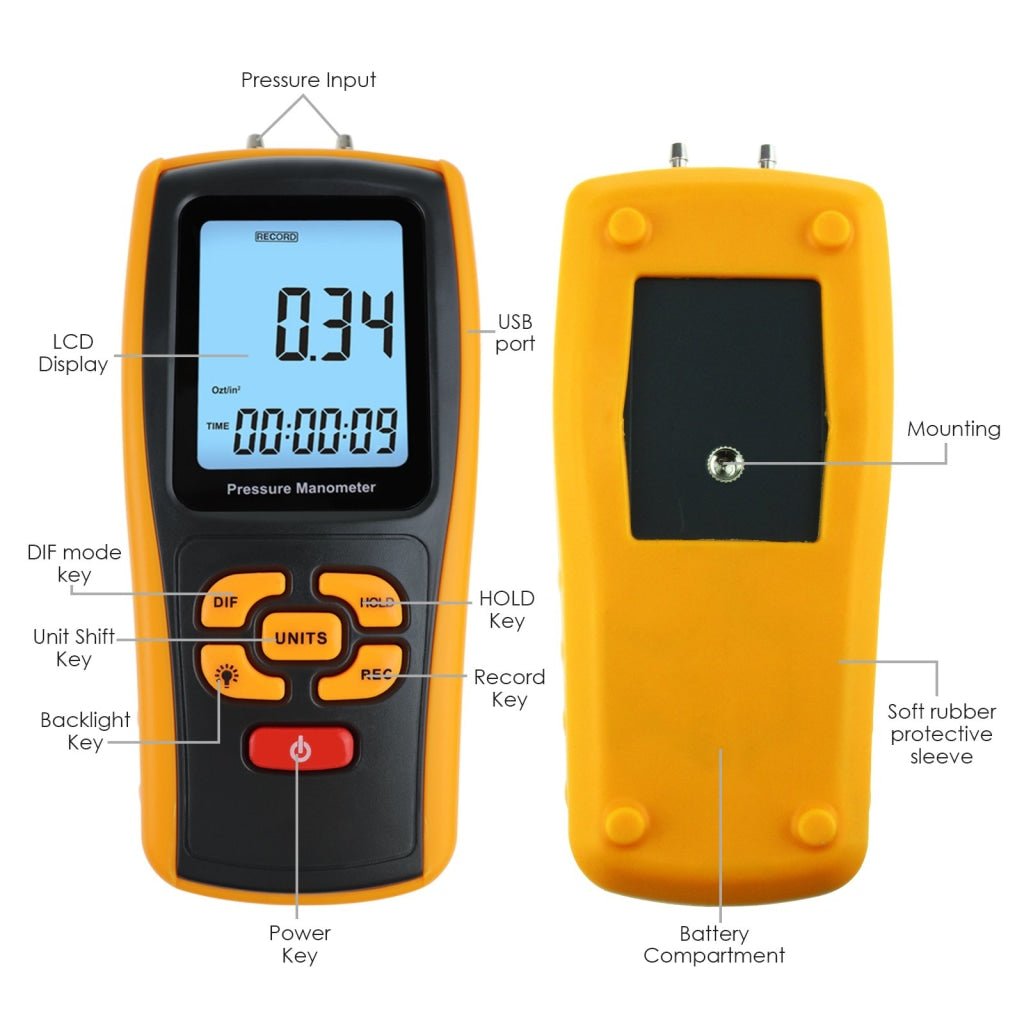

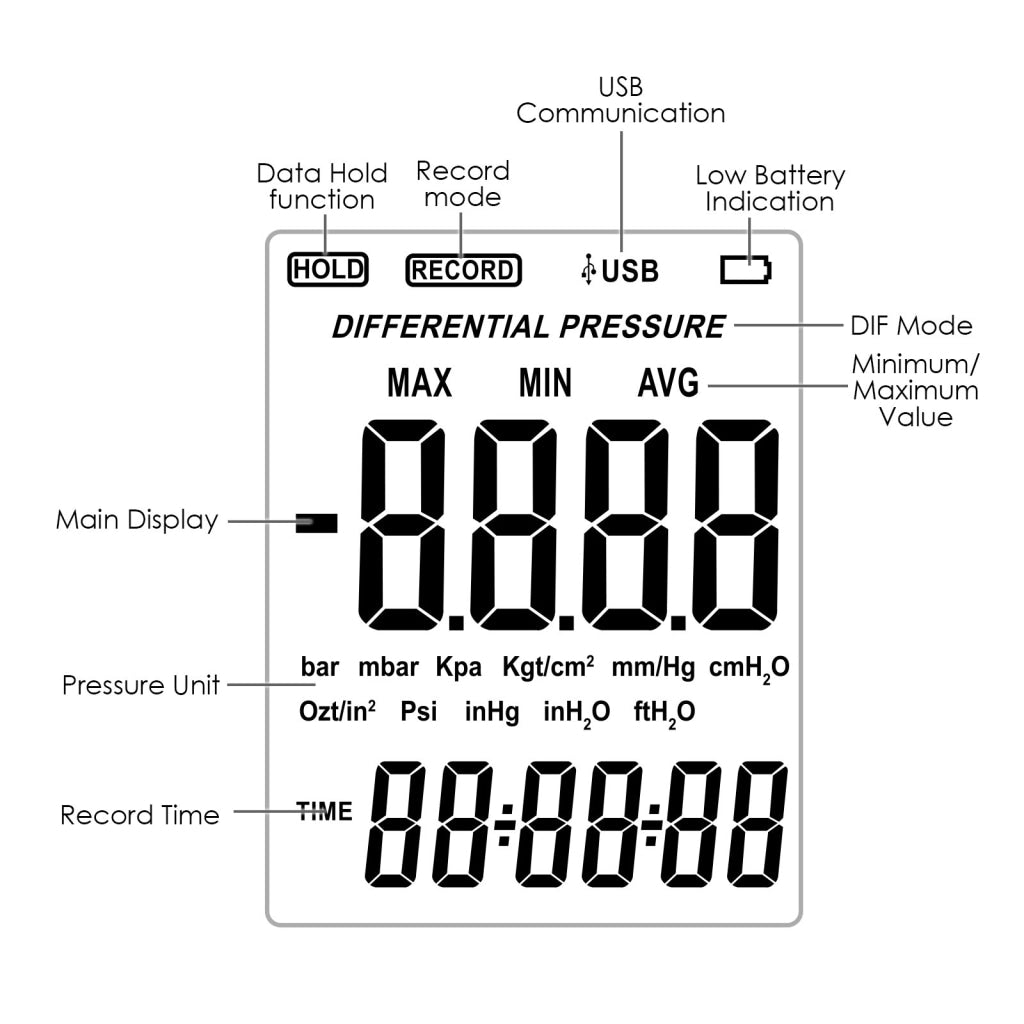

Feature:

  • Large LCD display with backlight
  • 11 Pressure unit measurement: bar, mbar, kPa, kgf/cm2, mmHg, cmH2O, Ozf/in2, psi, inHg, inH2O, ftH2O
  • Data HOLD function
  • Max / Min / AVG values measurement
  • With differential and record mode

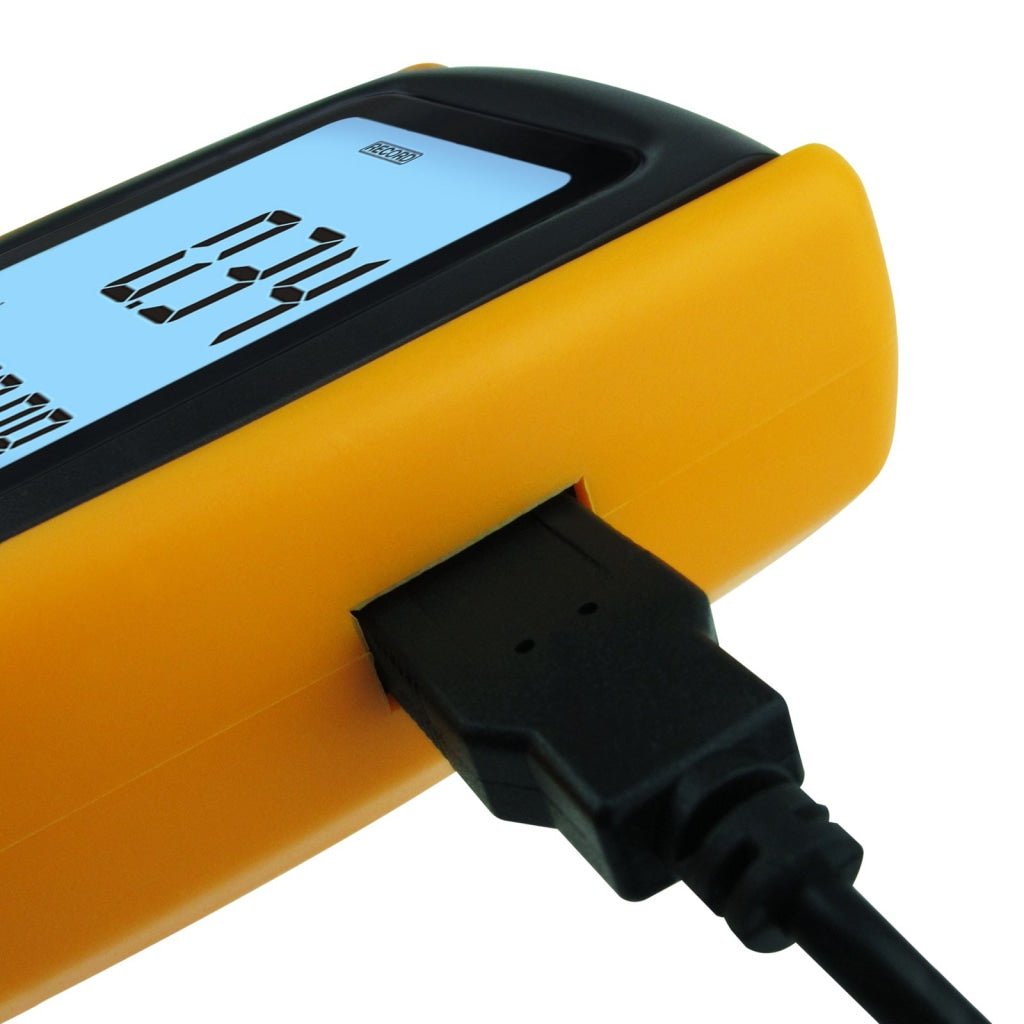

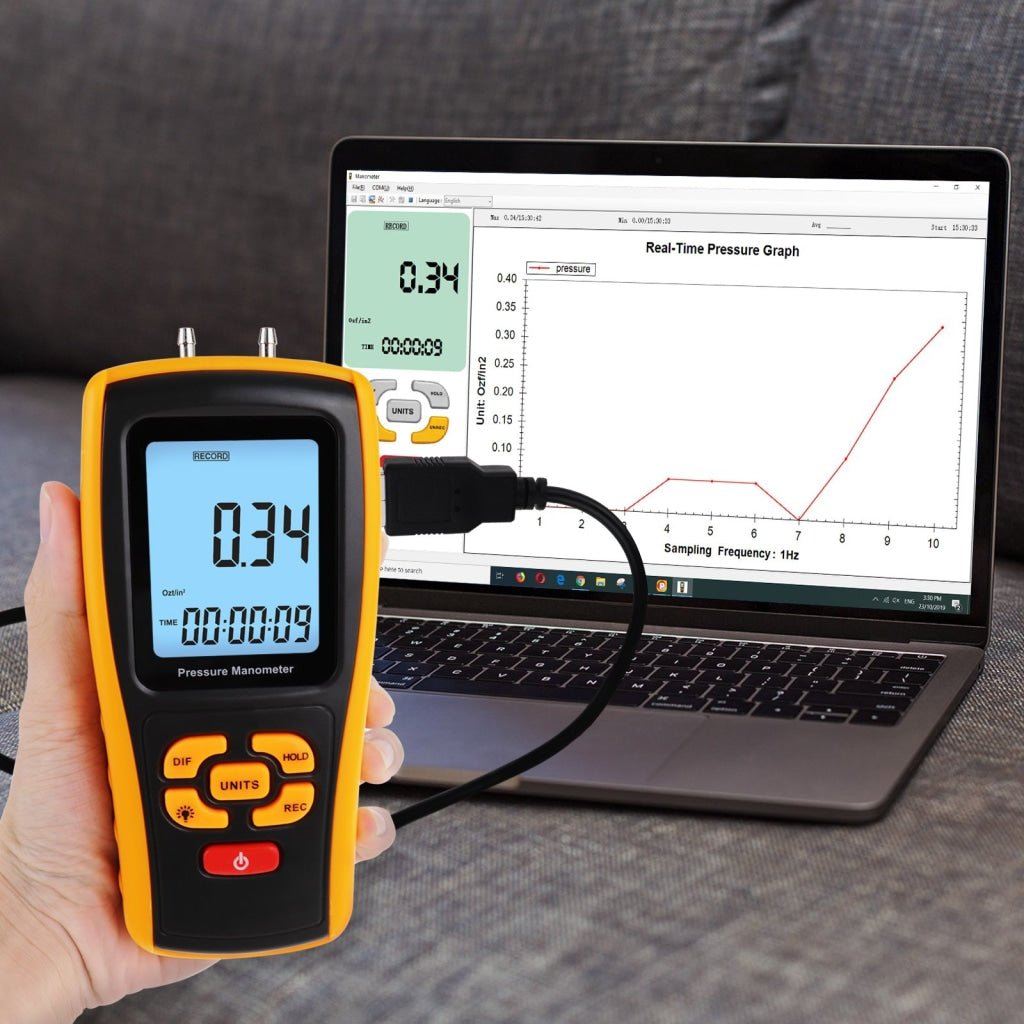

  • USB port allows connection with PC to read and export the data via USB cable
  • Reset and data adjustment
  • Low battery indicator
  • Manual / Automatic power off function
  • Overload indication
  • Reset and calibration function
  • Factory pre-calibrated


Specifications:

  • Measuring range: ±10kPa
  • Accuracy: ±0.3%FSO (25℃)
  • Repeatability: ±0.2% (Maximum +/-0.5 FSO)
  • Linearity/hysteresis: ±0.29 FSO
  • Response: Typical 0.5s
  • Up overload indication: Err1
  • Down overload indication: Err2
  • Operating temperature: 0~50℃
  • Storage temperature: -10~60℃
  • Power supply: 4 x 1.5V AAA battery

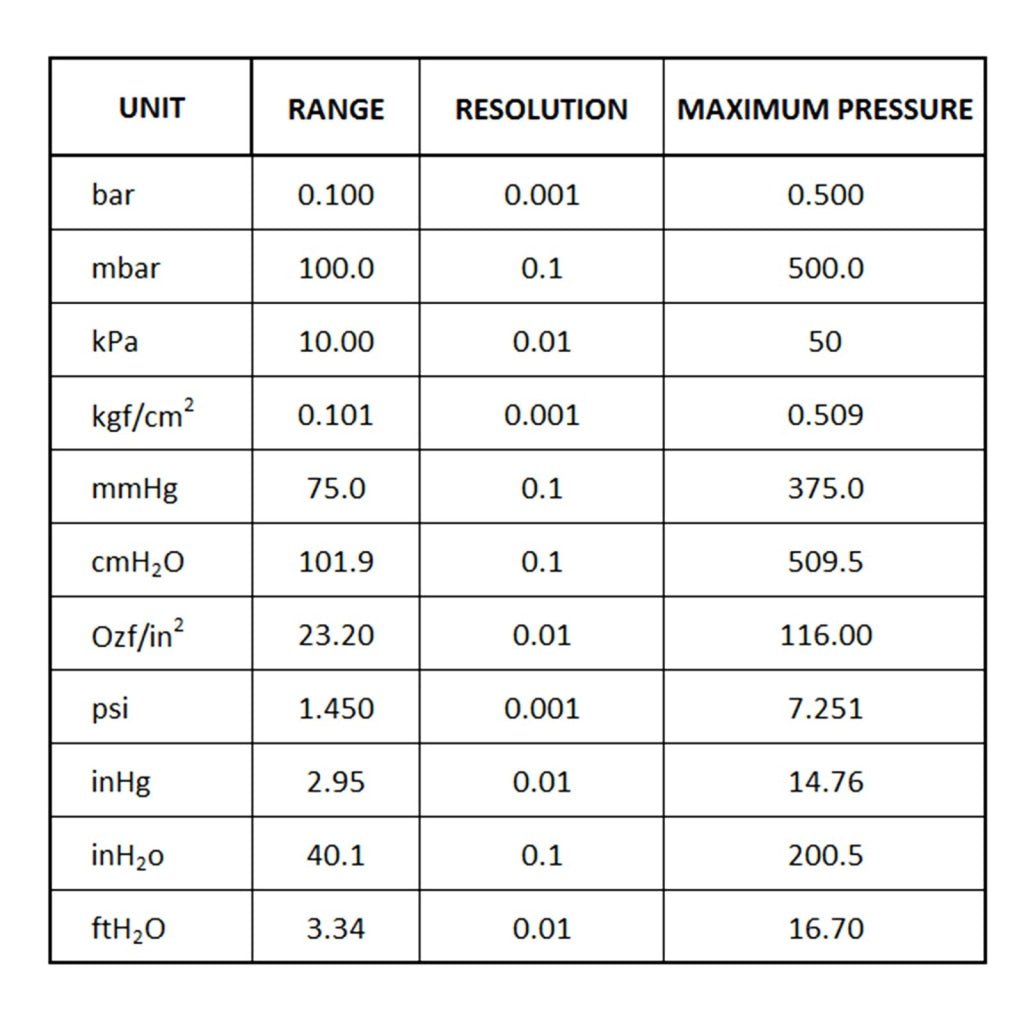

    Pls see the specific range, resolution and maximum pressure in the Photos

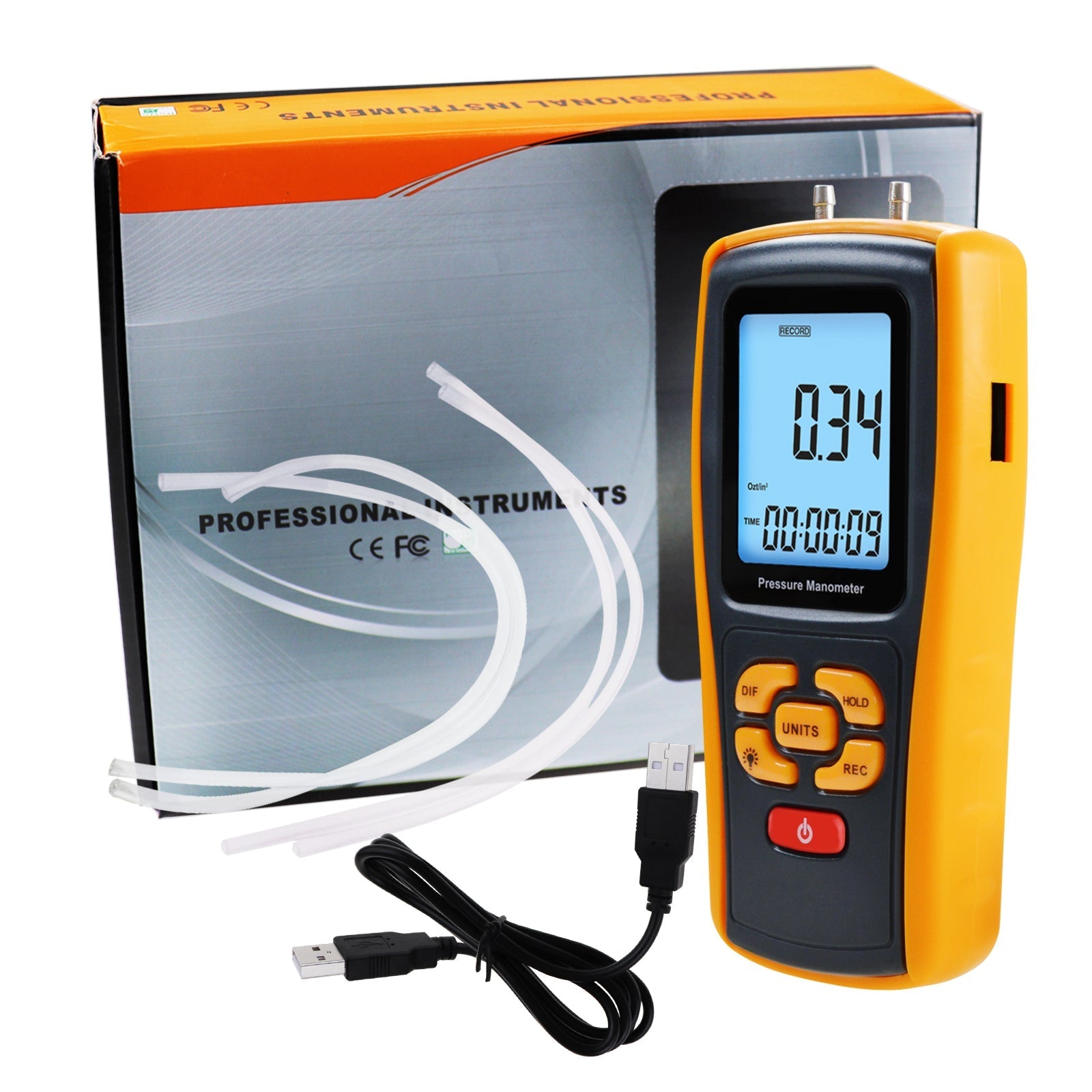

Set Includes:

  • 1 x Pressure Manometer
  • 1 x USB Wire
  • 2 x Translucent Silica Gel Hose
  • 2 x Transparent PVC Hose
  • 4 x 1.5V AAA Battery
  • English Operation Manual
  • Standard Packaging Box

    A printed user manual is already included with this item. No digital user manual or software is available.

    RETURN AND REFUND

    Most new, unopened items can be returned within thirty (30) days of delivery for a full refund. If the return is due to our error—such as receiving an incorrect or defective item—we will also cover the return shipping costs.

    If you request a refund, it will be issued using the original payment method within four (4) weeks after you hand the package over to the return carrier. This timeframe includes shipping transit to our facility, processing upon receipt, and the time required for the refund to be posted to your account.

    WARRANTY POLICY

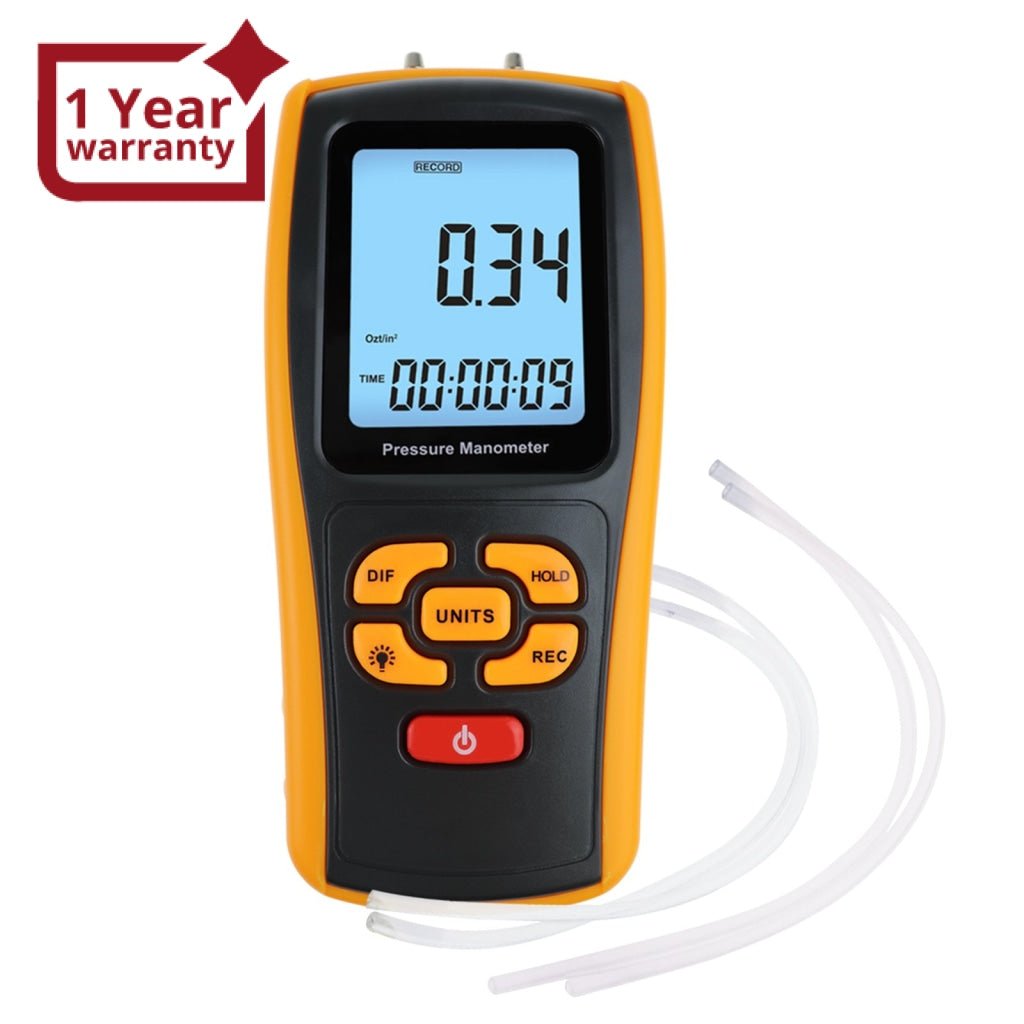

    Most of our items come with one (1) year warranty for manufacturer defects. It does not include damage caused by misuse, accidents, abuse, alterations, neglect or other external causes.
