ILLX-510 Portable Spectral Illuminance Meter Light Lux Tester with Spectral Sensor Measuring CRI, CCT, Blue Light, UV Index, Temperature, Humidity

Sku: ILLX-510
$172.90 USD
Translation missing: en.products.product.shipping_policy_html
Quantity:
Add to Wishlist Remove From Wishlist
Visa Mastercard PayPal American Express Google Pay Apple Pay Shop Pay

This Illuminance Meter is a highly versatile and advanced instrument with a precision spectral sensor. It is capable of measuring a wide range of parameters, including illuminance, UV index, flicker frequency, standard deviation of color matching (CDCM), color rendering index (CRI), correlated color temperature (CCT), temperature, and humidity. This makes it suitable for diverse applications such as evaluating lamps and lanterns, outdoor lighting, greenhouse lighting, and stage lighting. Additionally, the device can display the spectral curve, enabling users to identify the type of lighting fixture and assess potential blue light hazards. It complies with relevant industry standards, ensuring accurate and reliable measurements for professionals in lighting design, environmental monitoring, and related fields.

Features:

  • Designed with a spectral sensor with spectral response identical to the V(λ) function, providing
    accurate measurement for different colors of light.

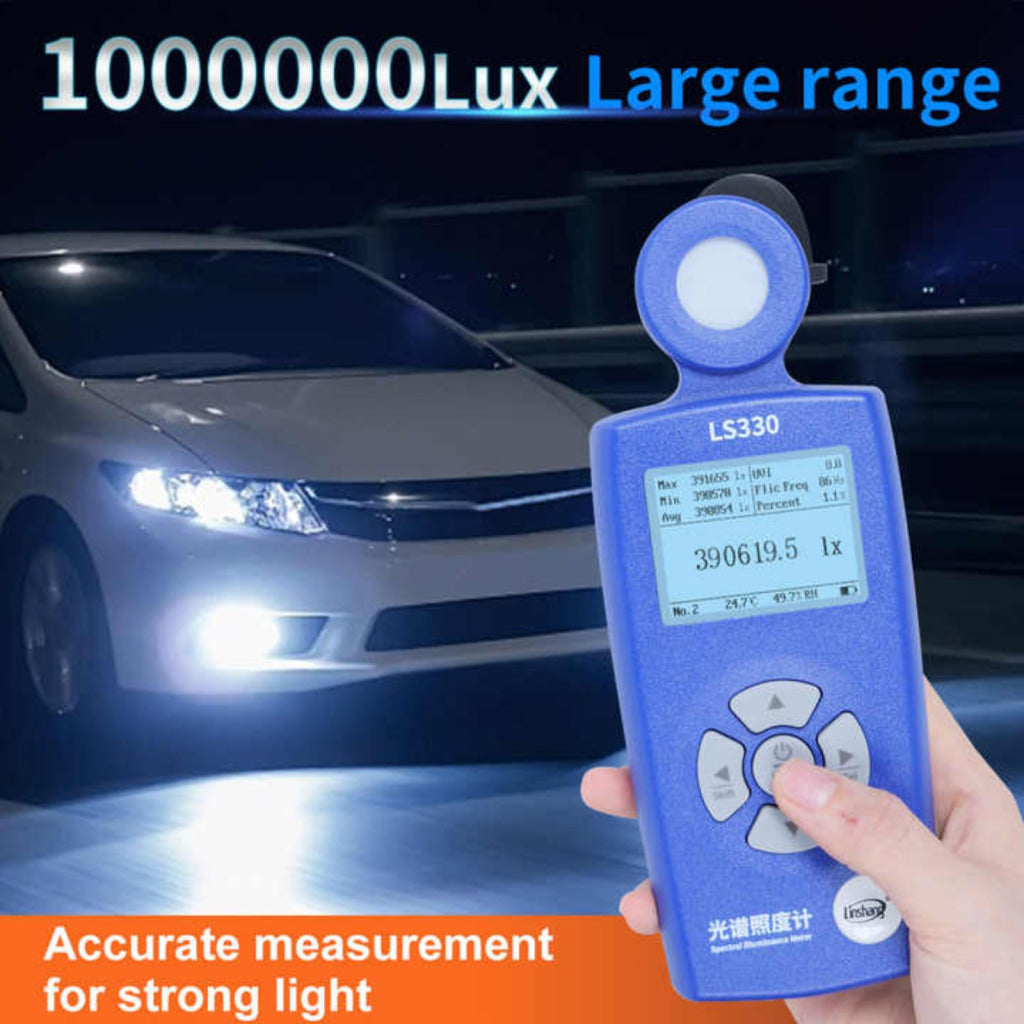

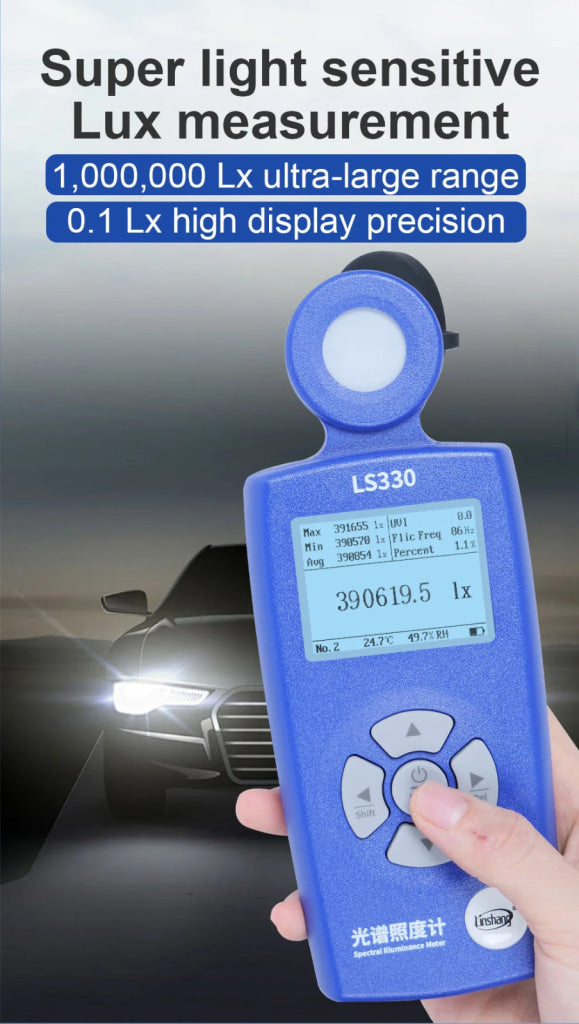

  • Ultra-large measurement range

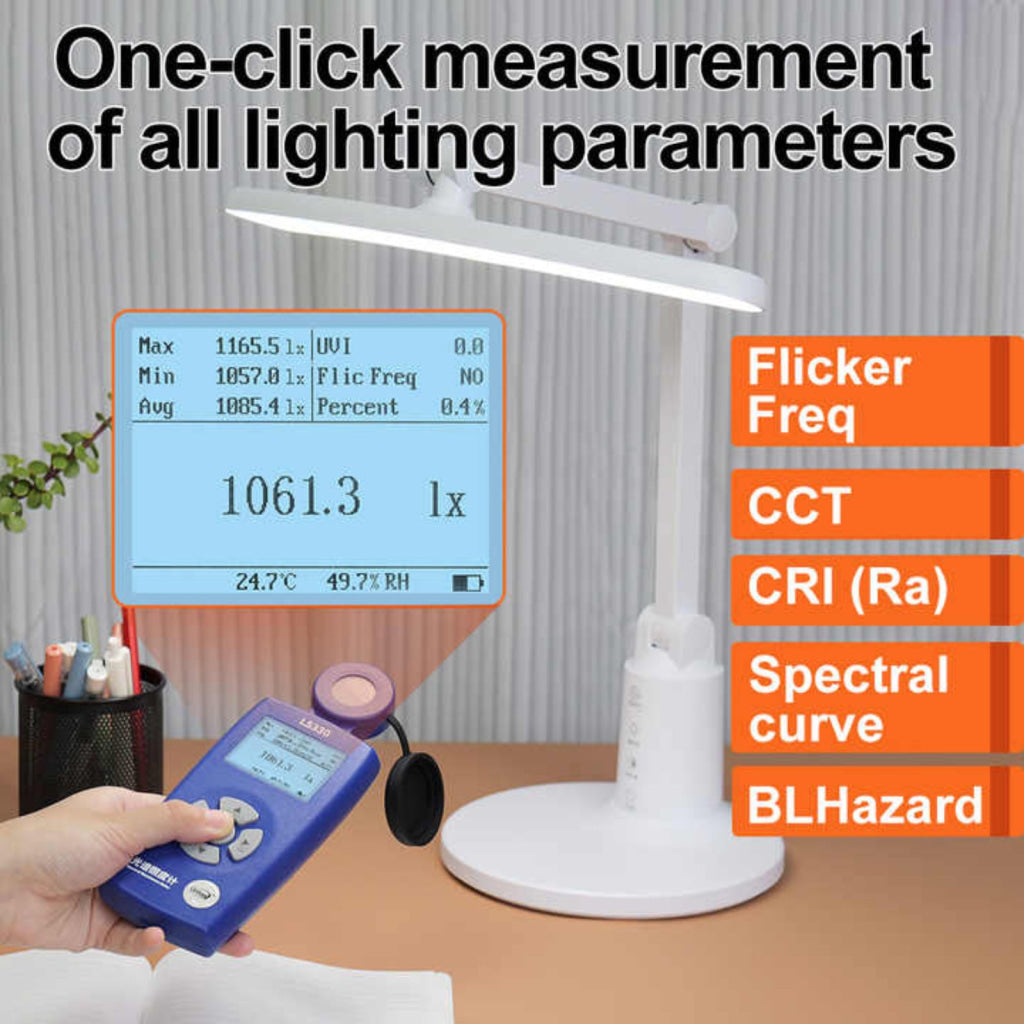

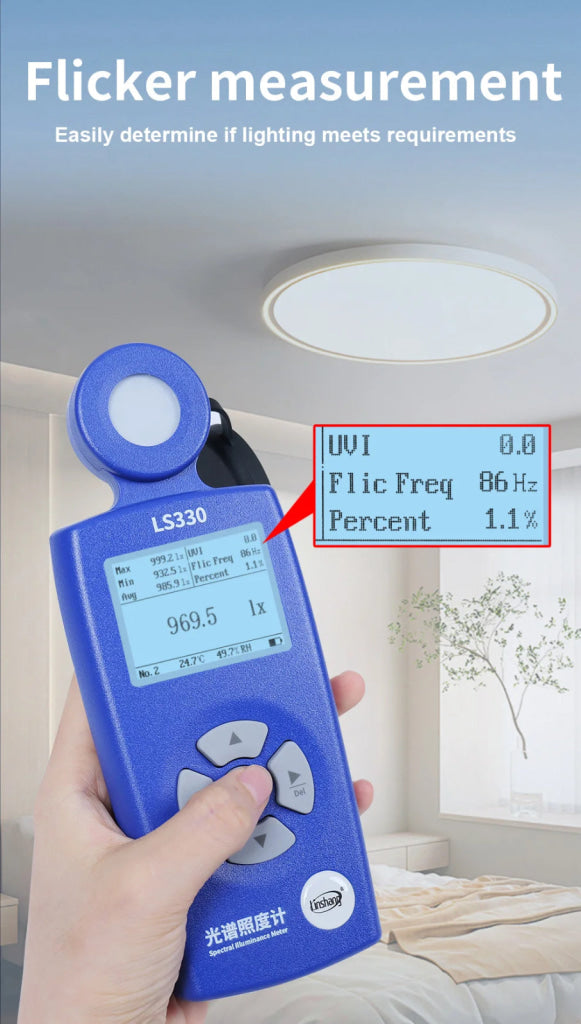

  • Measure flicker frequency to evaluate whether the flicker of the lighting meets requirements

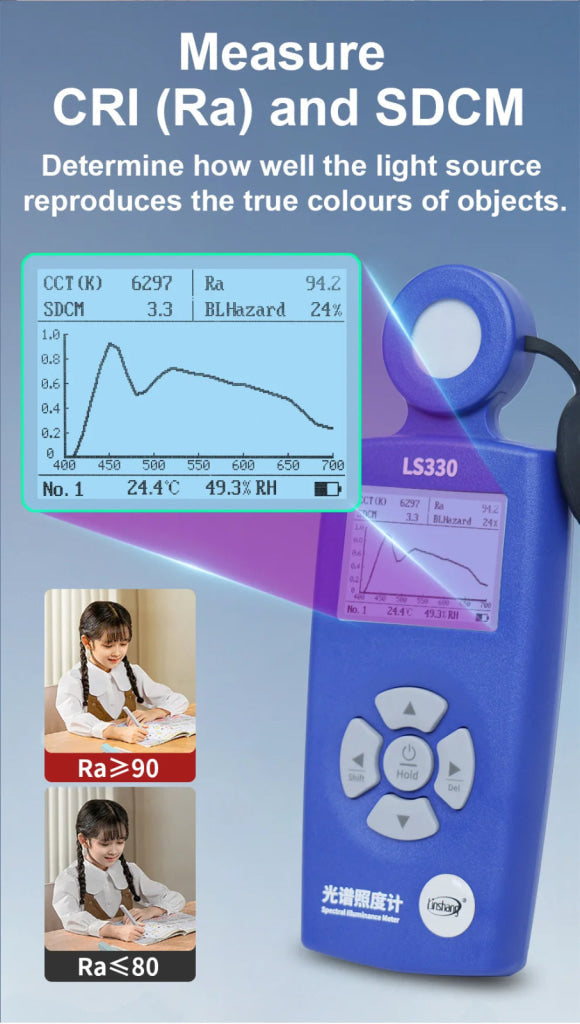

  • Measure the color rendering index (CRI) to assess the lighting ability to reproduce colors

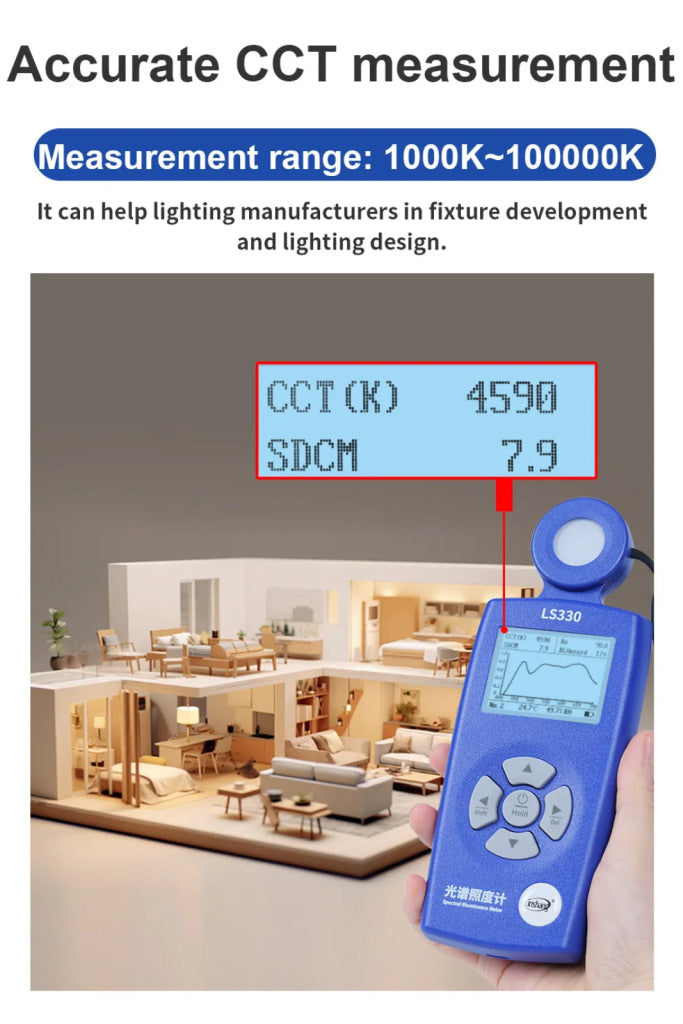

  • Measure correlated color temperature (CCT) to determine if the lighting color temperature
    meets requirements

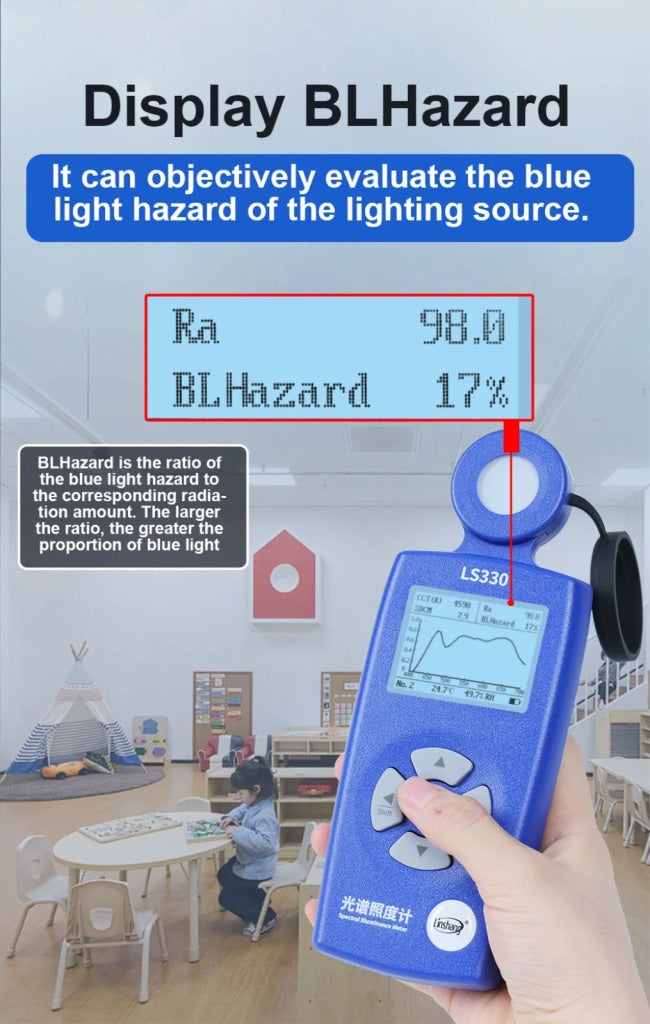

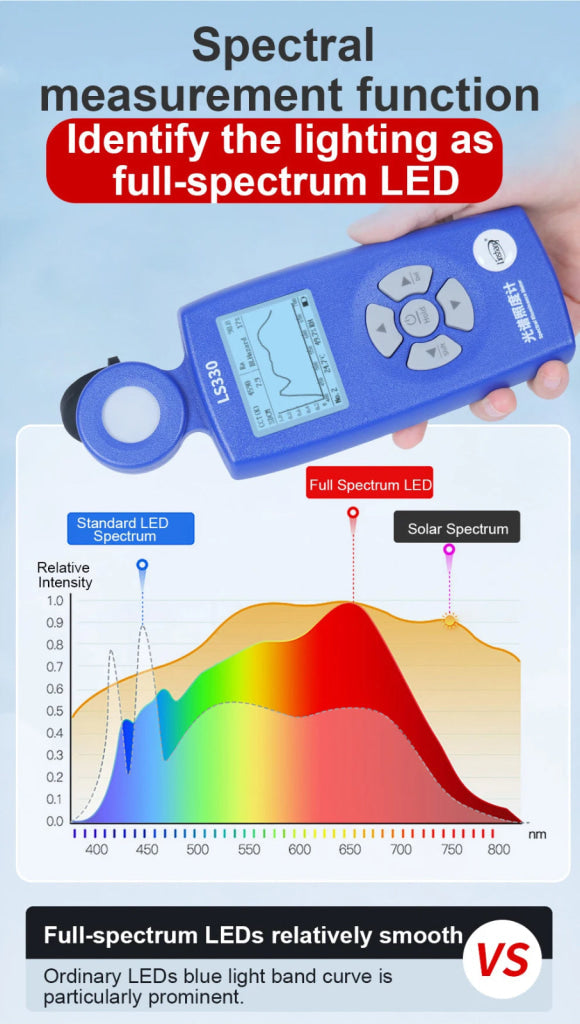

  • Spectral curve can identify if the lighting is full-spectrum LED and its blue light protection

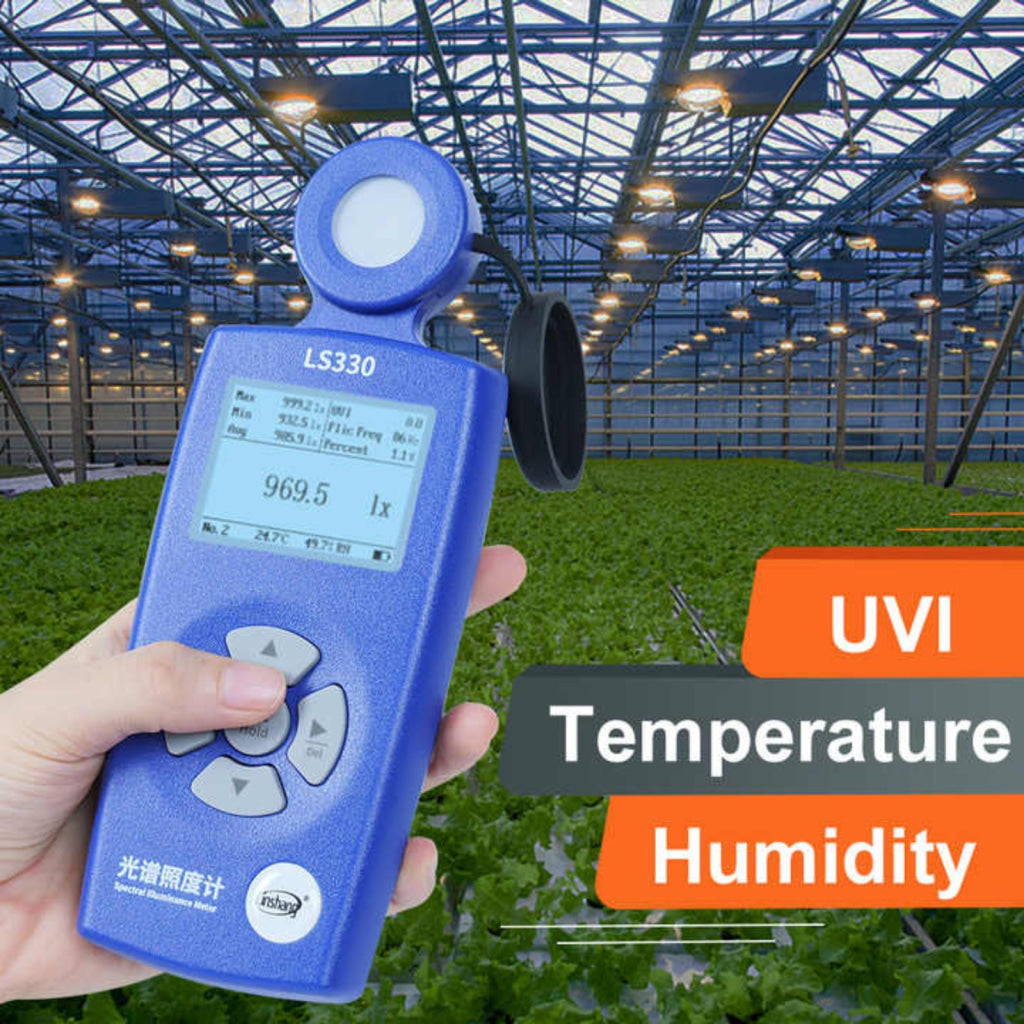

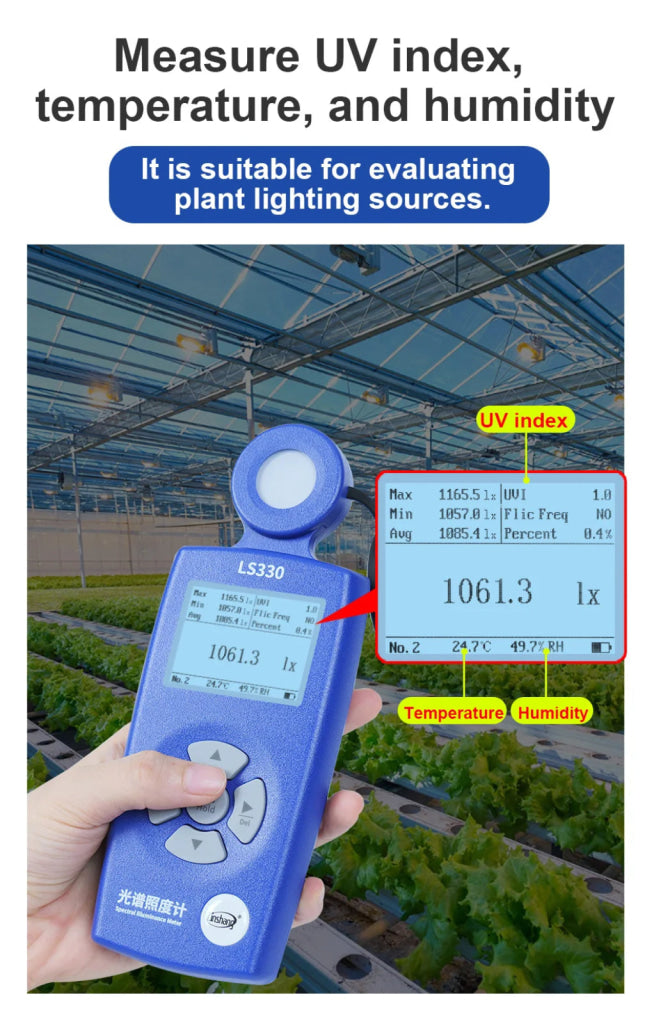

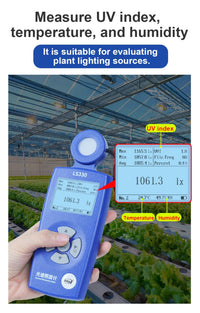

  • Can measure UV index, temperature, and humidity measurement for
    environmental parameters

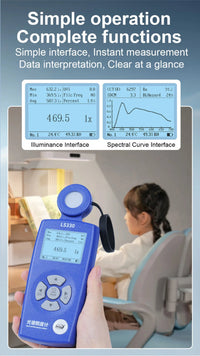

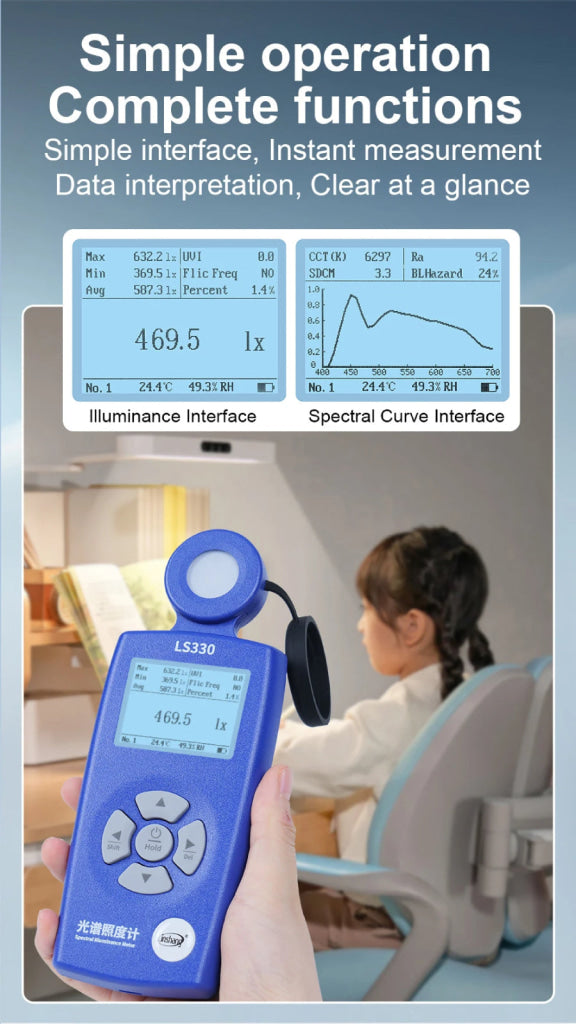

  • Statistical functions display real-time, maximum, minimum, and average illuminance values
    simultaneously
  • Auto shutdown can be set to prevent battery drain when not in use
  • Advanced digital probe technology, where digital signal processing is performed directly,
    reducing interference and providing excellent measurement accuracy
  • With backlight function and can record up to 9 sets of data


Specifications:

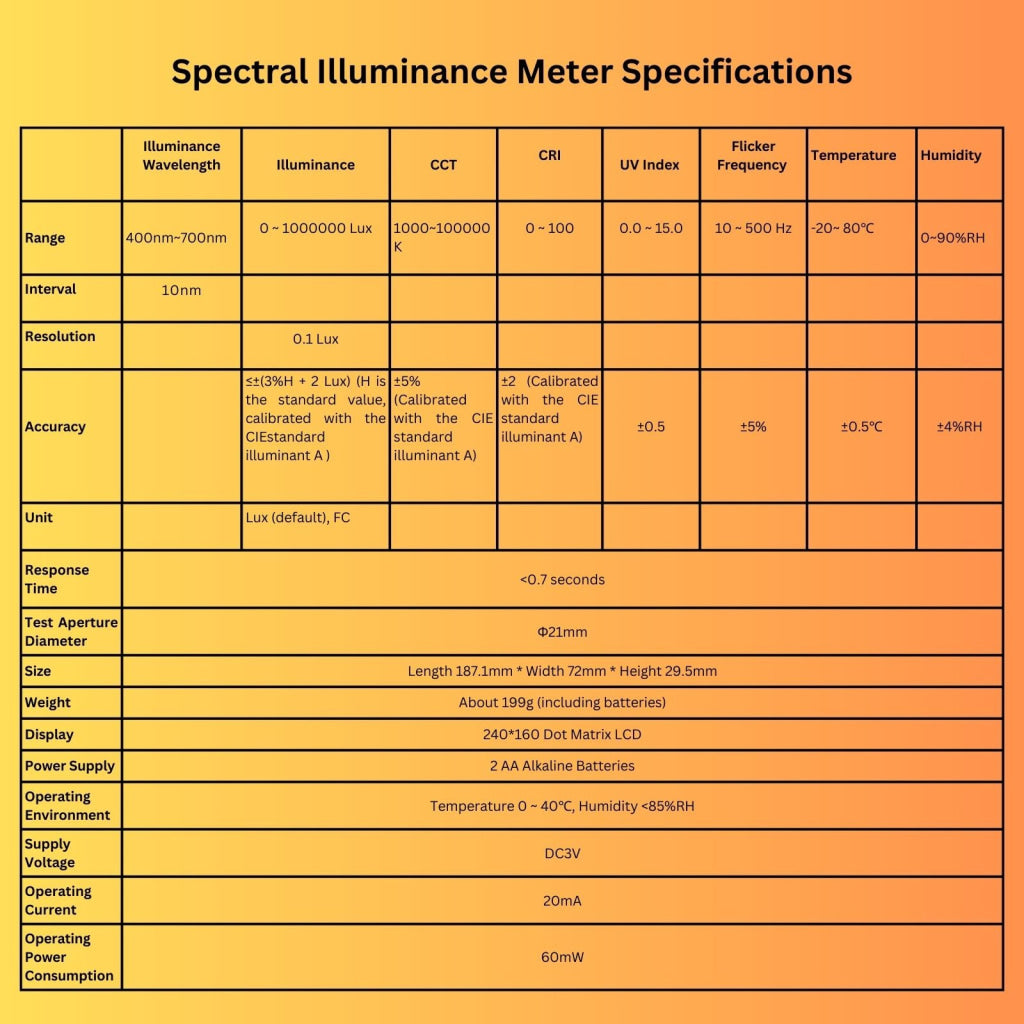

       Click HERE or check the images above for the item's Specifications


Set Includes:

  • 1 x Spectral Illuminance Meter
  • 2 x AA Battery
  • 1 x English instruction Manual
  • Standard factory Packaging

A printed user manual is already included with this item. No digital user manual or software is available.
