ILLX-426 Split Type Digital Light Lux Meter with Temperature Measure Colored LCD Display Illuminance Meter for Luminosity Measuring & Monitoring

Sku: ILLX-426
$75.90 USD
Translation missing: en.products.product.shipping_policy_html
Quantity:
Visa Mastercard PayPal American Express Google Pay Apple Pay Shop Pay

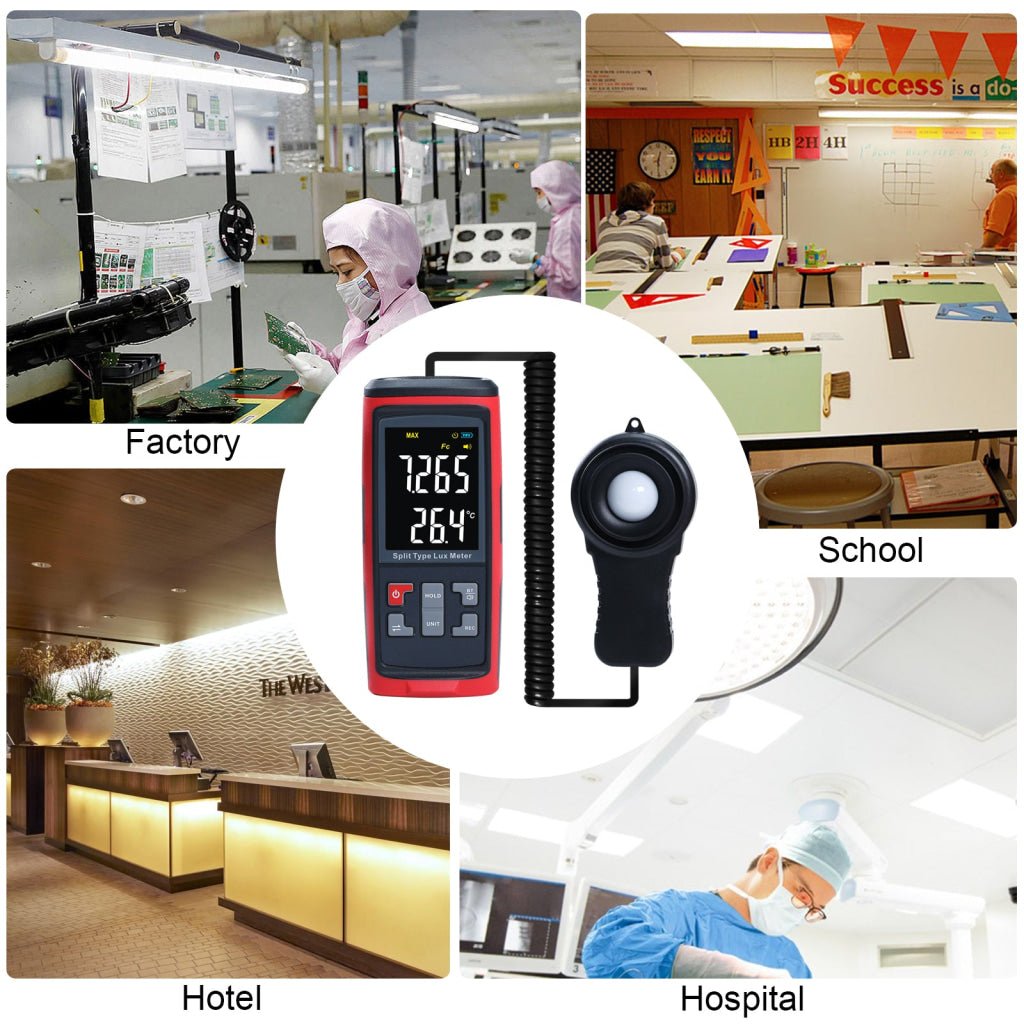

A split illuminance meter is a professional instrument that measures luminosity and brightness. It is utilized in various settings for light intensity measurement, including engineering, quality control, health prevention, and diverse environments such as factories, schools, offices, traffic routes, and homes.

Features

  • Measure Current/Maximum/Minimum/Difference value
  • Alarm function  when illuminance exceeds the default setting
  • Temperature measurement

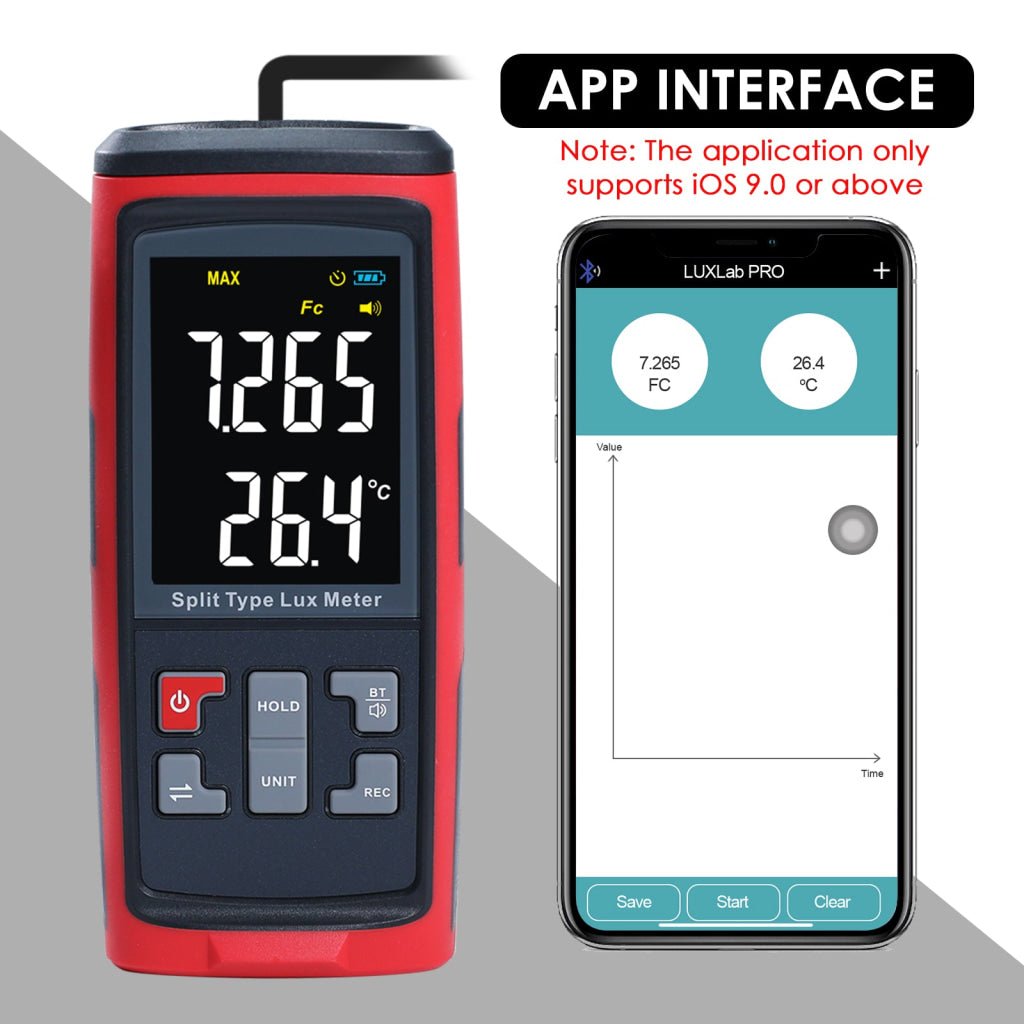

  • Bluetooth mobile phone APP (iOS 9.0 or above ONLY) communication and computer communication function
  • Measure statistics illuminance integral and integral average

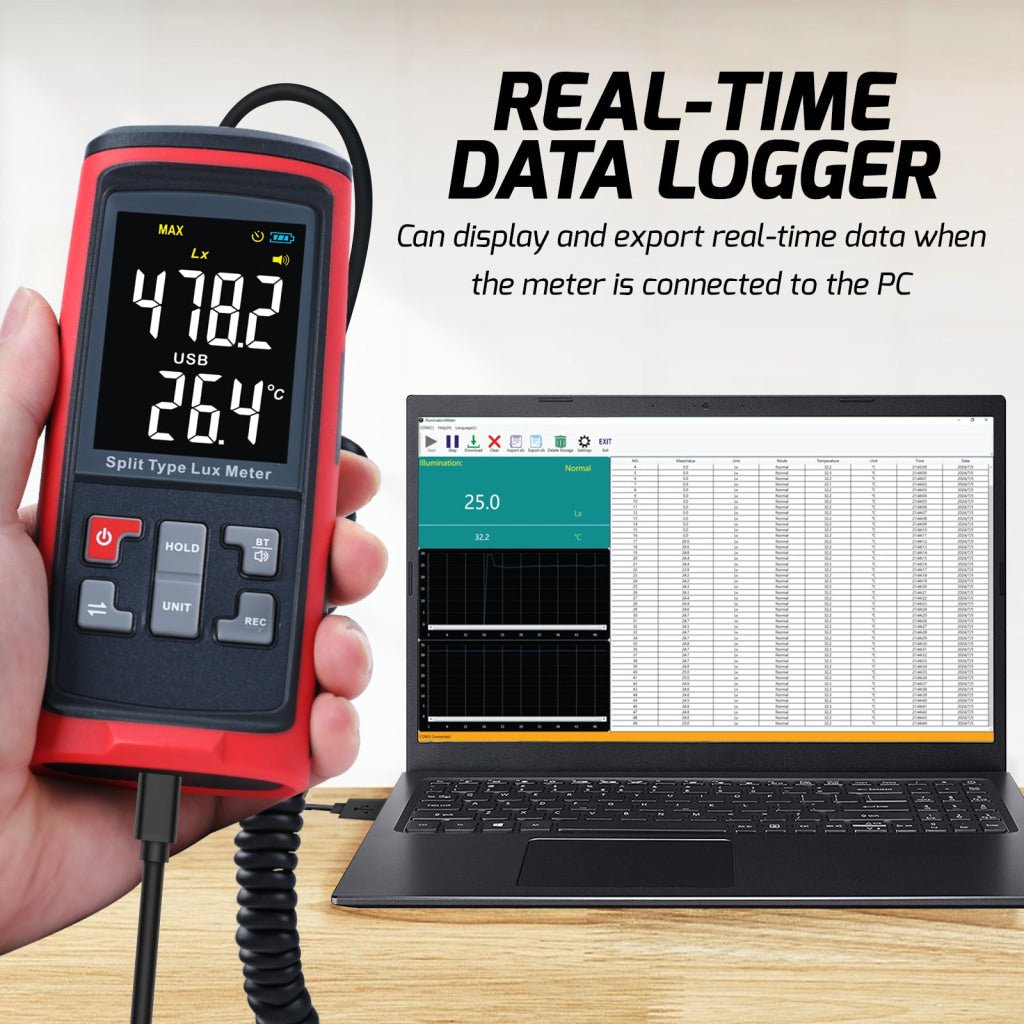

  • Datalogging functions
  • Able to measure low-light environment (<10Lx)
  • Automatic range
  • Sensitive response
  • Switchable illuminance units (Lx/Fc)
  • Switchable temperature units (℃/℉)
  • Manual / Automatic shutdown

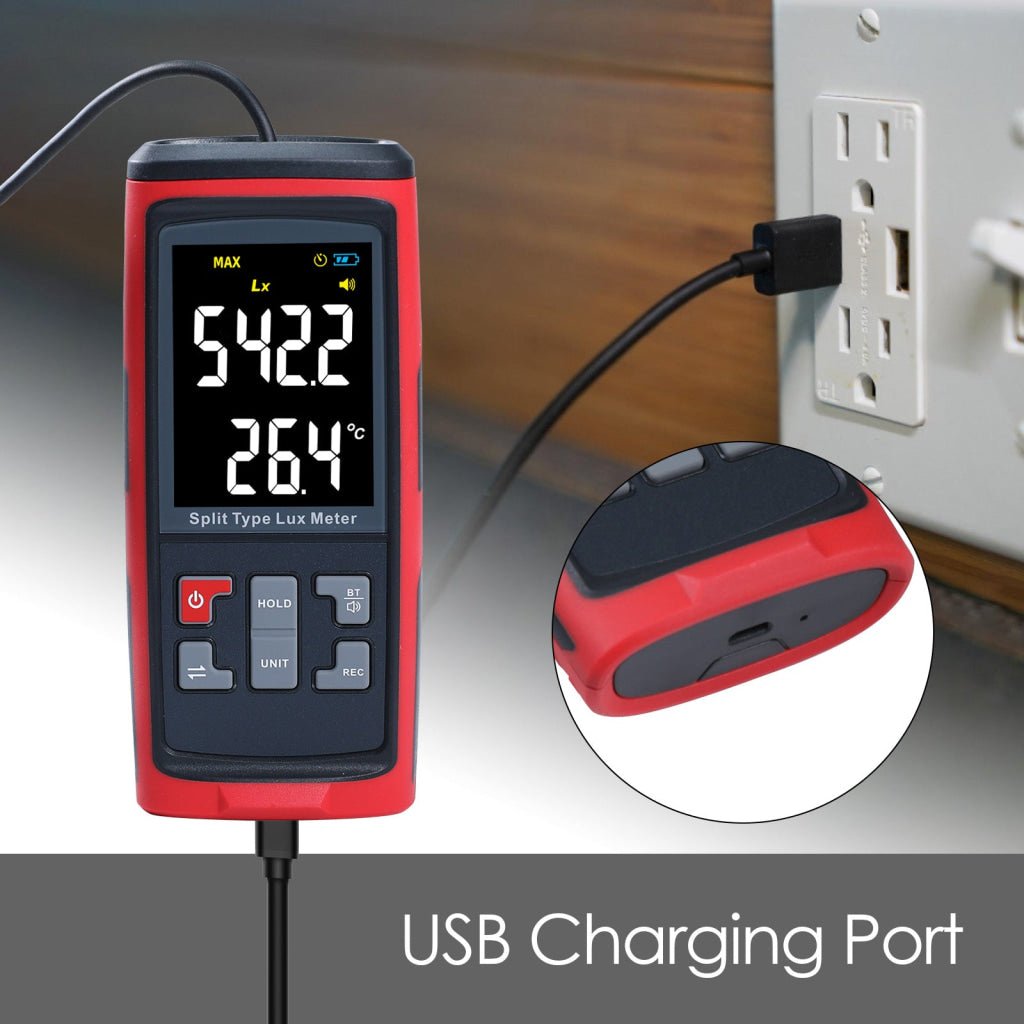

  • Low battery/charging indicator


Specifications:

  • Illuminance probe: Silicon photodiodes
  • Illuminance range: 0~200000Lx (0~18581Fc)
  • Maximum number of records: 32752
  • Recording interval: 1s~9999s
  • Computer configuration:
    • Operating memory (RAM): 4G or above;
    • Main frequency: 3G or above; 64-bit WIN 7/WIN 10/WIN 11
  • Conversion relationship: 1Fc = 10.764Lx

    Gears  Gear Range Resolution Error
    1 gear 0~999.9Lx (0~92.894Fc) 0.1 Lx (0.01Fc) ±3%
    2 gear 1000~9999Lx (93~929Fc) 1 Lx (0.1Fc) ±4%
    3 gear 10000~99999Lx (929~9290Fc)  10 Lx (0.9Fc) ±4%
    4 gear 100000~200000Lx (18581Fc) 100 Lx (9.3Fc) ±4%
    Temperature range -10℃~65℃ (14℉~149℉) 0.1 ℃ (32℉) ±1.5℃ (35℉)


Set Includes:

  • 1 x Lux Meter
  • Carrying Case
  • English Instruction Manual
  • Standard Factory Packaging

A printed user manual is already included with this item. No digital user manual or software is available.
