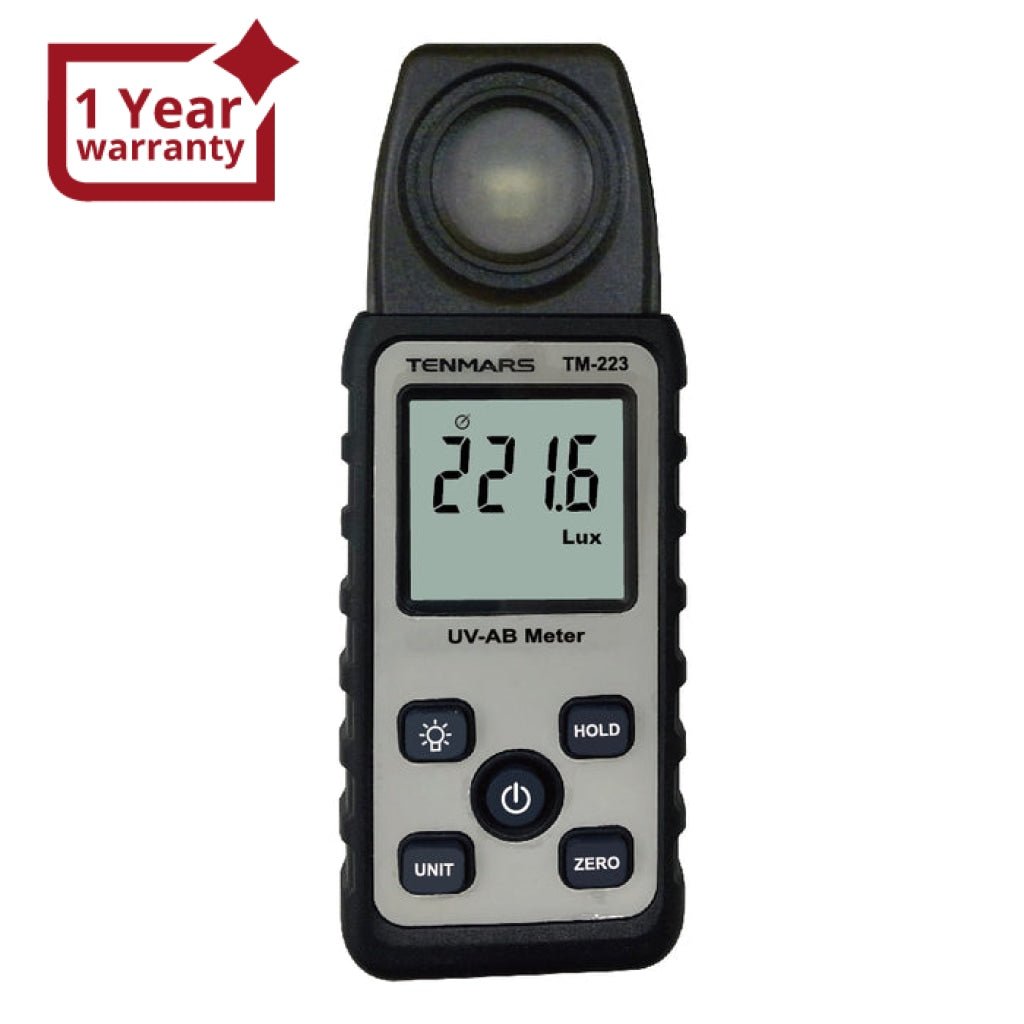

ILLX-223 Digital Handheld UV-AB Light Meter Ultra-Violet (UV) Detector 290~390nm Range

Sku: ILLX-223
$154.90 USD
Translation missing: en.products.product.shipping_policy_html
Quantity:
Add to Wishlist Remove From Wishlist
Visa Mastercard PayPal American Express Google Pay Apple Pay Shop Pay

 Wide Application:

  • Monitoring blue light radiation hazards in welding
  • UV sterilization
  • Graphic arts
  • Photochemical matching
  • UV EPROM erasure
  • Photos resist exposure
  • Curing of inks, adhesives, and coatings
  • Convenient, no need to adjust, data displayed clearly
  • Weathering "degradation studies"
  • UV sterilization
  • Virology
  • Microbial genetics
  • DNA research
  • Biologic hoods
  • General laboratory use

Features:

  • Data HOLD function
  • Low battery indication
  • Backlight function (it will turn off automatically after being turned on for 15 seconds)
  • Zero function
  • 1uW/cm² or 1.00mW/cm² unit selection
  • Overload display “OL”.
  • Auto power off for 15 minutes

Specifications:

  • Display: 3¾ digits LCD with a maximum reading of 4000
  • Sensor: UV light sensor
  • Measuring range: 4000μW/cm²,20mW/cm²
  • Resolution: 1μw/cm²,0.01mW/cm²
  • Accuracy: ±4(%FS + 2dgt) FS: full scale 15%: sunlight ultraviolet
  • Spectrum Range: 290~390nm
  • Calibration Point: 365nm
  • Sample Time: Approx. 3sec
  • Operating Environment: Temperature 5~40°C, below 80%RH
  • Storage Environment: -10~60°C, below 70%RH
  • Power Supply: 2 x 1.5V batteries
  • Weight: approx. 90g
  • Size: approx. 133 x 48 x 27mm

Set Includes:

  • 1 x UV-AB Light Meter
  • 2 x 1.5V AAA Battery
  • English Instruction Manual
  • Carrying Case
  • Standard Factory Packaging

A printed user manual is already included with this item. No digital user manual or software is available.
