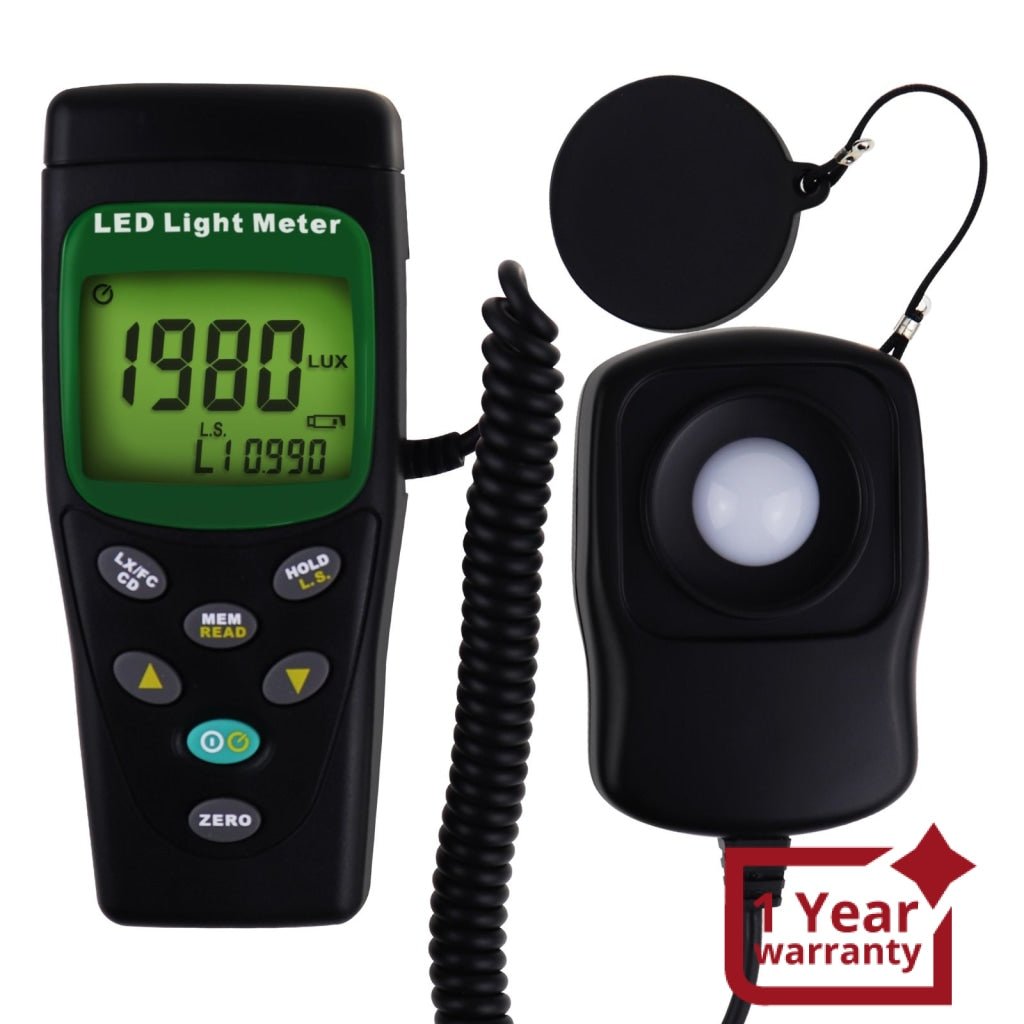

ILLX-209 Digital LED Light LUX / FC (Footcandle) Meter Luminous Intensity Measurement Luxmeter 400000 Lux 40000 FC Measure Handheld Illuminance Tester

Sku: ILLX-209
$174.90 USD
Translation missing: en.products.product.shipping_policy_html
Quantity:
Add to Wishlist Remove From Wishlist
Visa Mastercard PayPal American Express Google Pay Apple Pay Shop Pay

Measures light from visible luminaries equipped with white light LED, fluorescent, metal halide, high-pressure sodium and incandescent sources.

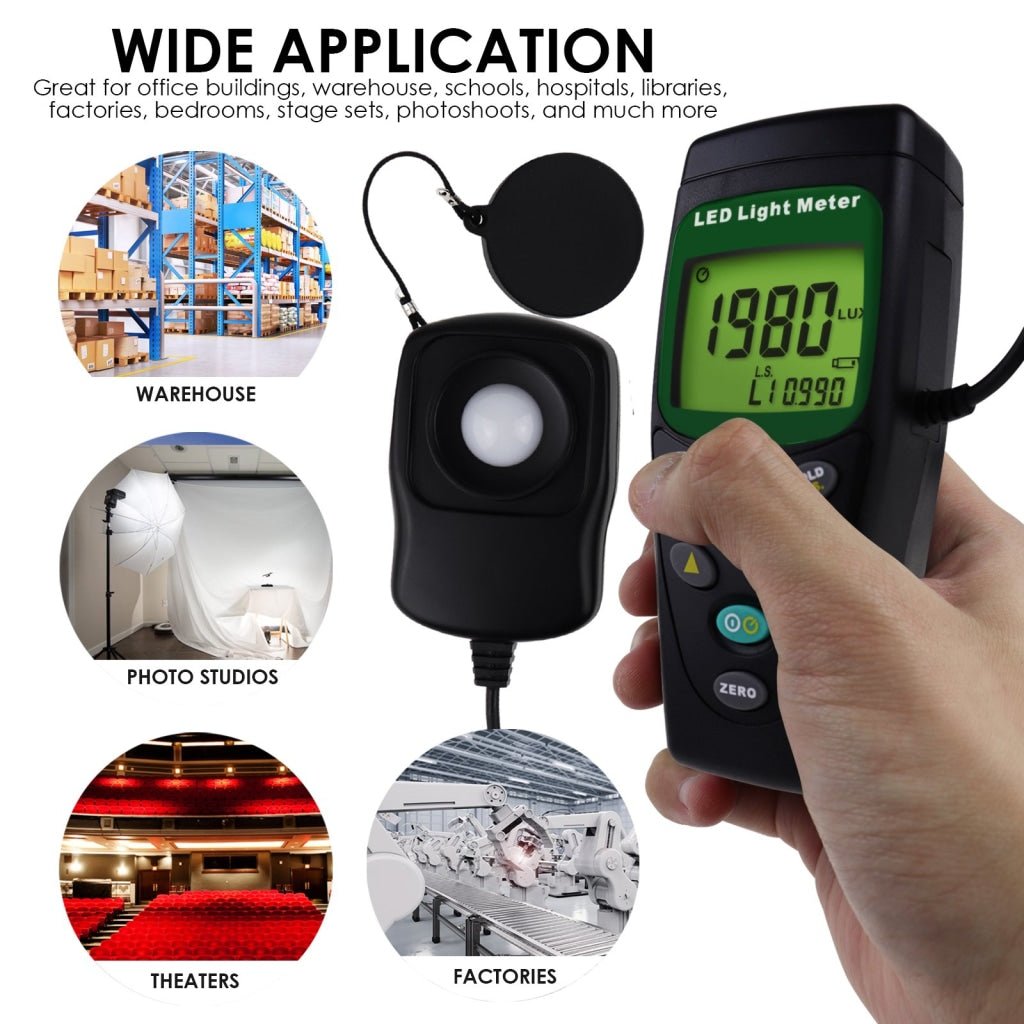

Applications: It has widely applications for measuring light levels in warehouses, factories, office buildings, restaurants, schools, library, hospitals, photographic, making video, parking garages, museums, art galleries, stadiums, building security, greenhouses and at home. You can use to test if your workplace gets enough light and adjust the lighting for your house plant or optimize the light of your new LED light fixture.

Features:

  • Luminous Intensity Measurement
  • Spectral response close to CIE luminous spectral efficiency
  • Measuring lights source: LED white light and all visible light
  • Overload and low battery indicator
  • Cosine Angular corrected
  • Measuring intensities of illumination in LUX or Footcandles (FC)
  • Data HOLD
  • MAX/AVG/MIN Hold
  • Zero adjustment
  • 99 records storage capacity
  • Manual / Auto power OFF with disable function
  • Auto ranging
  • According to JIS C1609:1993 and CNS 5119 general A class Specifications
  • CE ROHS Standards Certification
  • Quality Product Made in Taiwan



Specification:

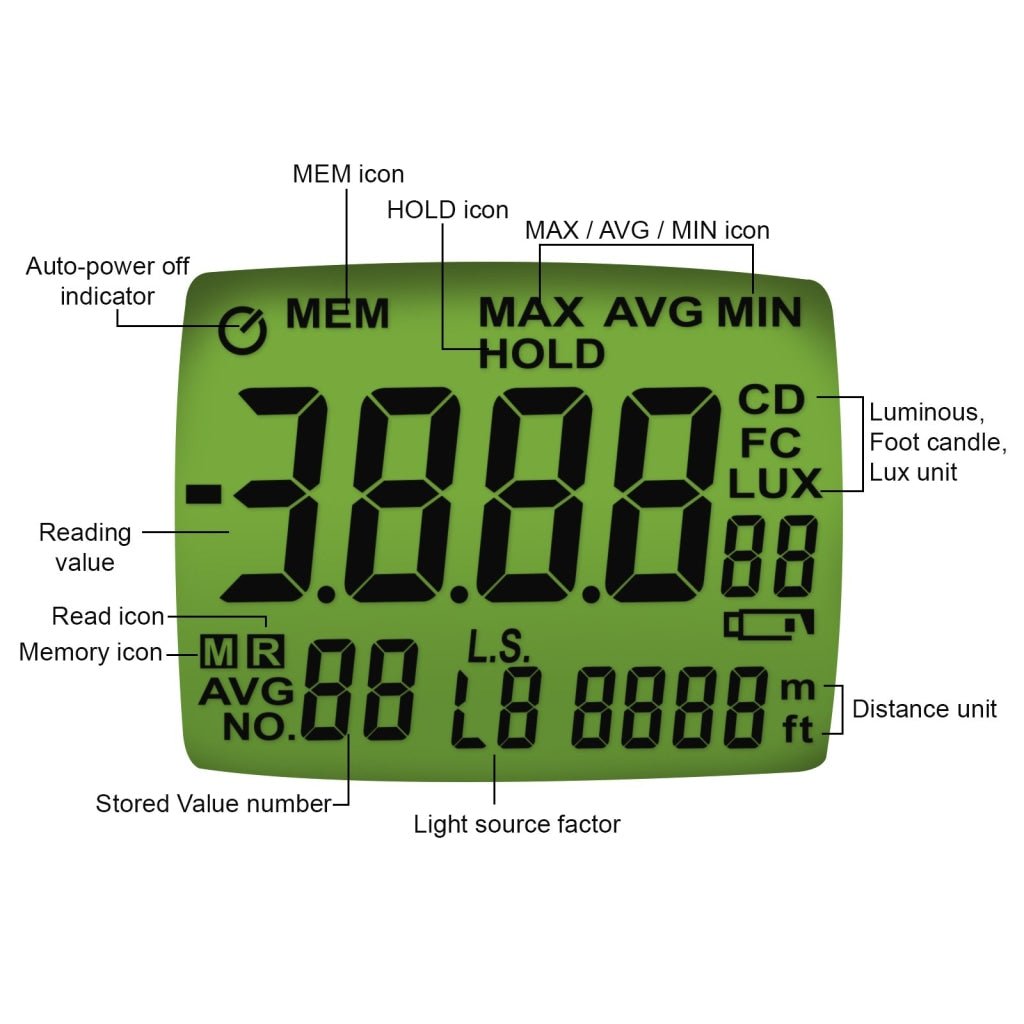

  • Display: 4000 count, maximum display 3999
  • Measuring Range:
    • 40, 400, 4000, 40000, 400000 Lux
    • 40, 400, 4000, 40000 Footcandles
  • Accuracy: ±3% (Calibrated to standard incandescent lamp 2856°K) 6% other visible light source
  • Sensor: Silicon photodiode and filter
  • Angle deviation from cosine characteristics
    • 10° - ±0.5%
    • 30° - ±2%
    • 50° - ±3%
    • 60° - ±6%
    • 80° - ±25%
  • Sampling Rate: 2.5 times per second for digital display
  • Operating Environment: 5~40°C (41~104°F), 0~80% RH
  • Storage Environment:-10~60°C (14~140°F), 0~70% RH

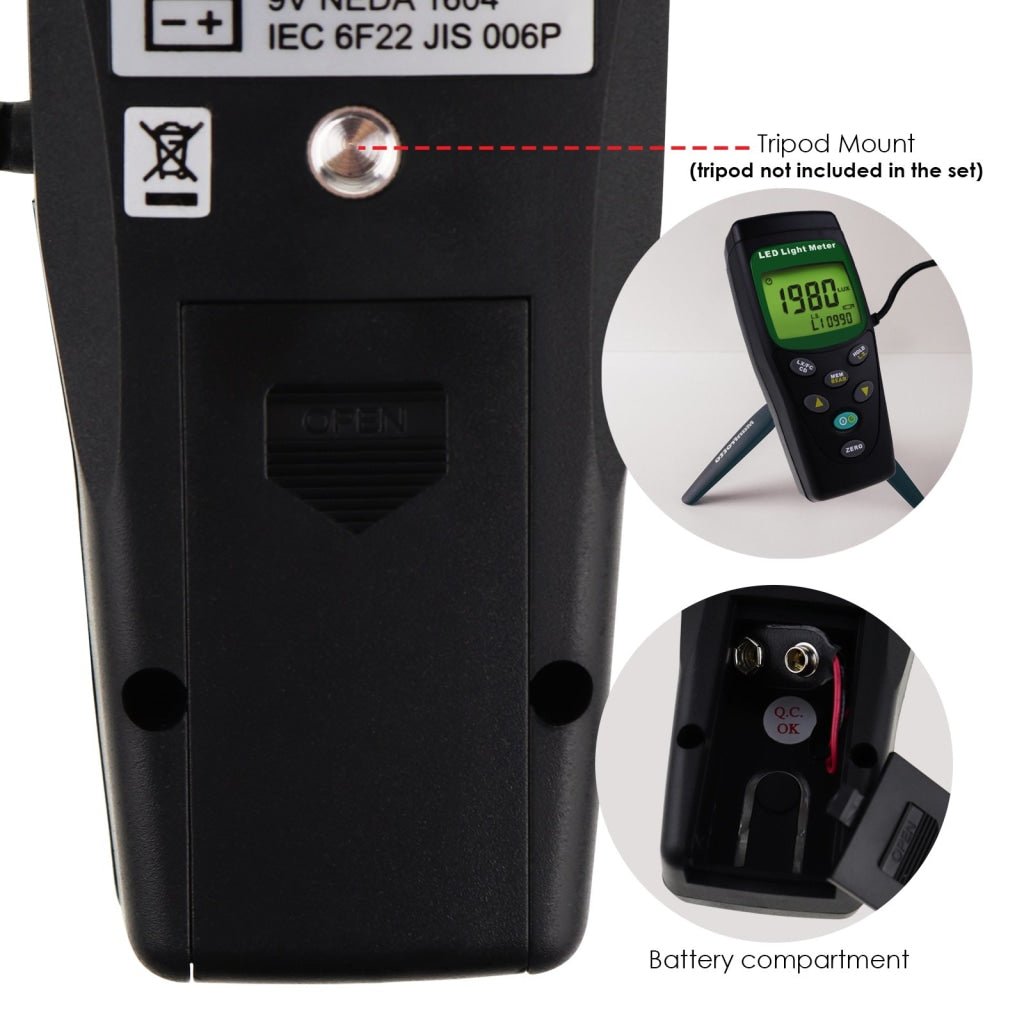

  • Power Supply: 1 x 9V NEDA 1604 Battery
  • Battery life: about 200 hours
  • Dimension
    • Meter: 38 x 55 x 130mm (1.5 x 2.2 x 5.1 inch)

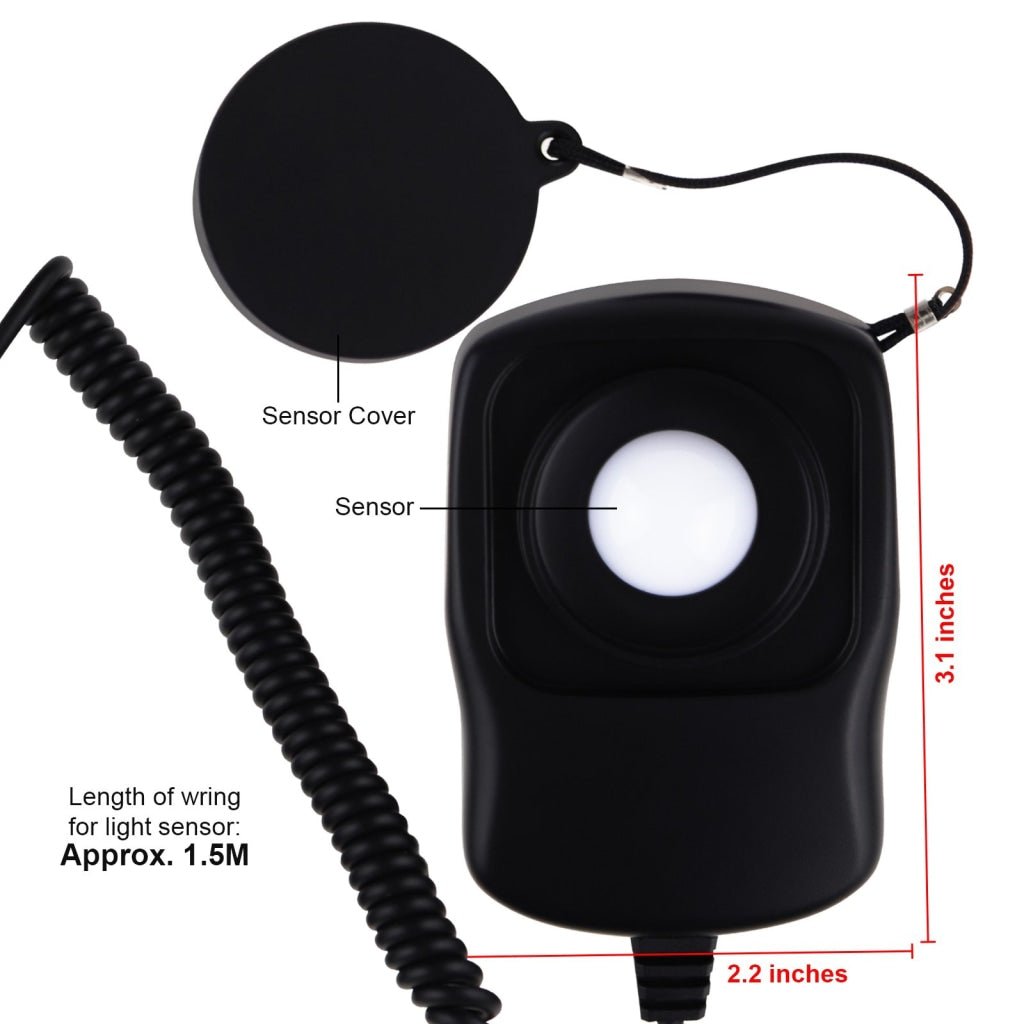

    • Sensor: 25 x 55 x 80mm (9.8 x 2.2 x 3.1 inch)
  • Weight: approx. 250gms (including battery)
  • Length of wiring for light sensor: approx. 1.5 meter

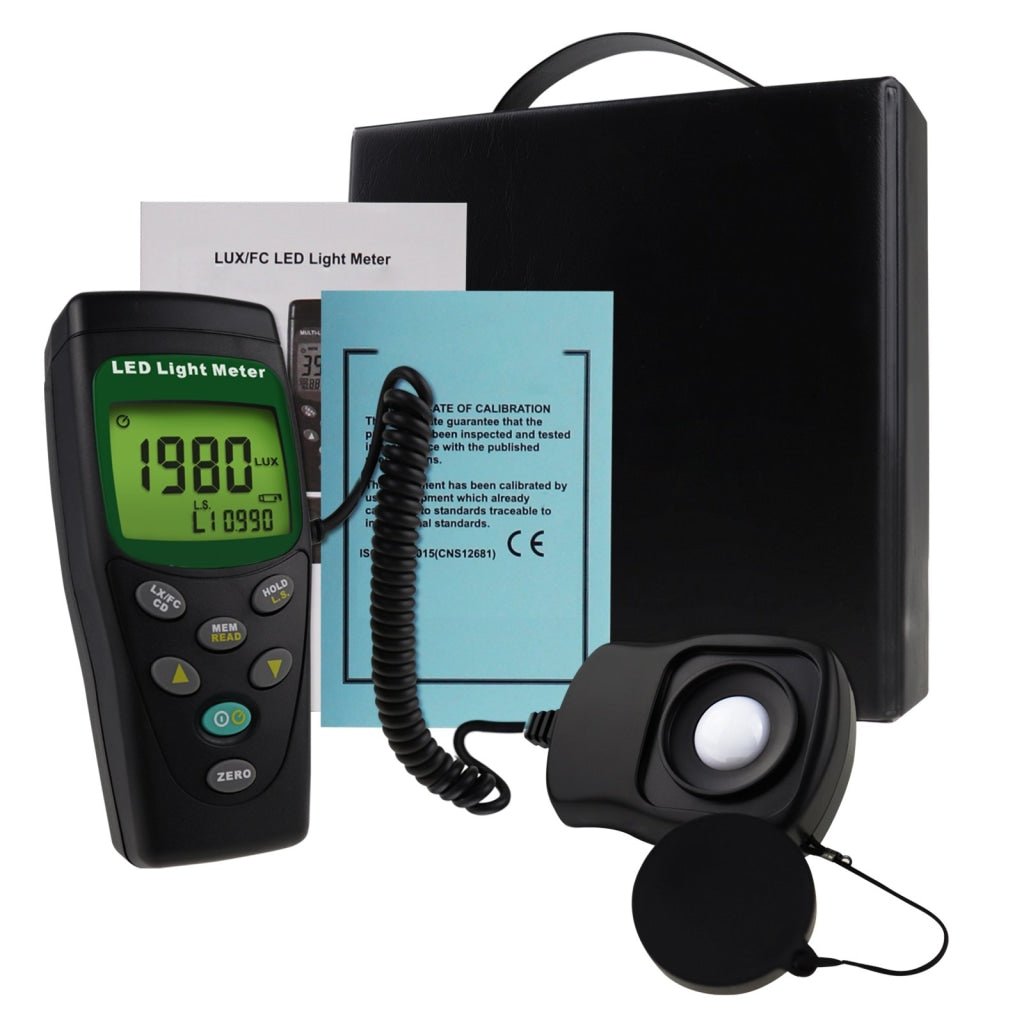

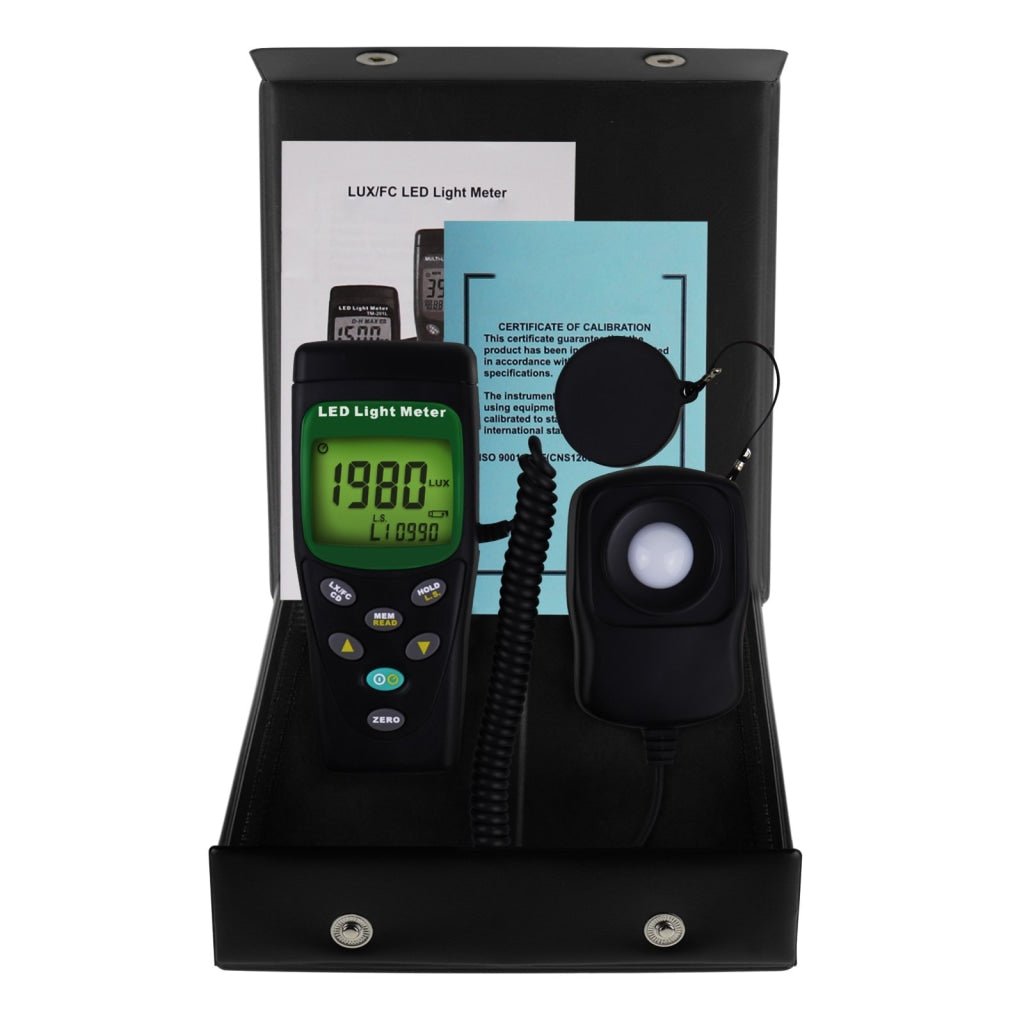

Set Includes:

  • 1 x LED (LUX/FC) Light Meter
  • 1 x 9V Battery
  • English Instruction Manual
  • Carrying Case
  • Standard Factory Package

      A printed user manual is already included with this item. No digital user manual or software is available.
