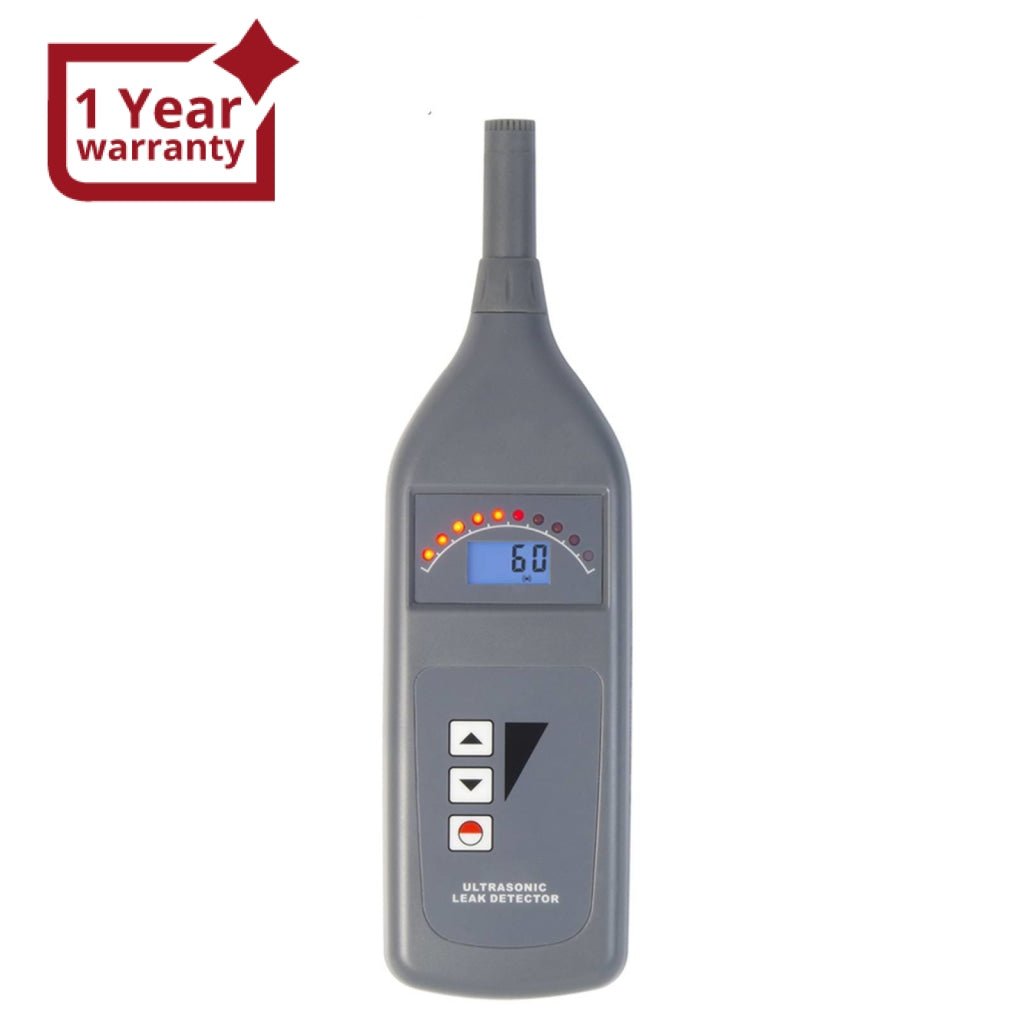

ILLD-586 Ultrasonic Leakage Detector Frequency Response 20 KHz to 100 Khz

Sku: ILLD-586
$256.90 USD
Translation missing: en.products.product.shipping_policy_html
Quantity:
Add to Wishlist Remove From Wishlist
Visa Mastercard PayPal American Express Google Pay Apple Pay Shop Pay

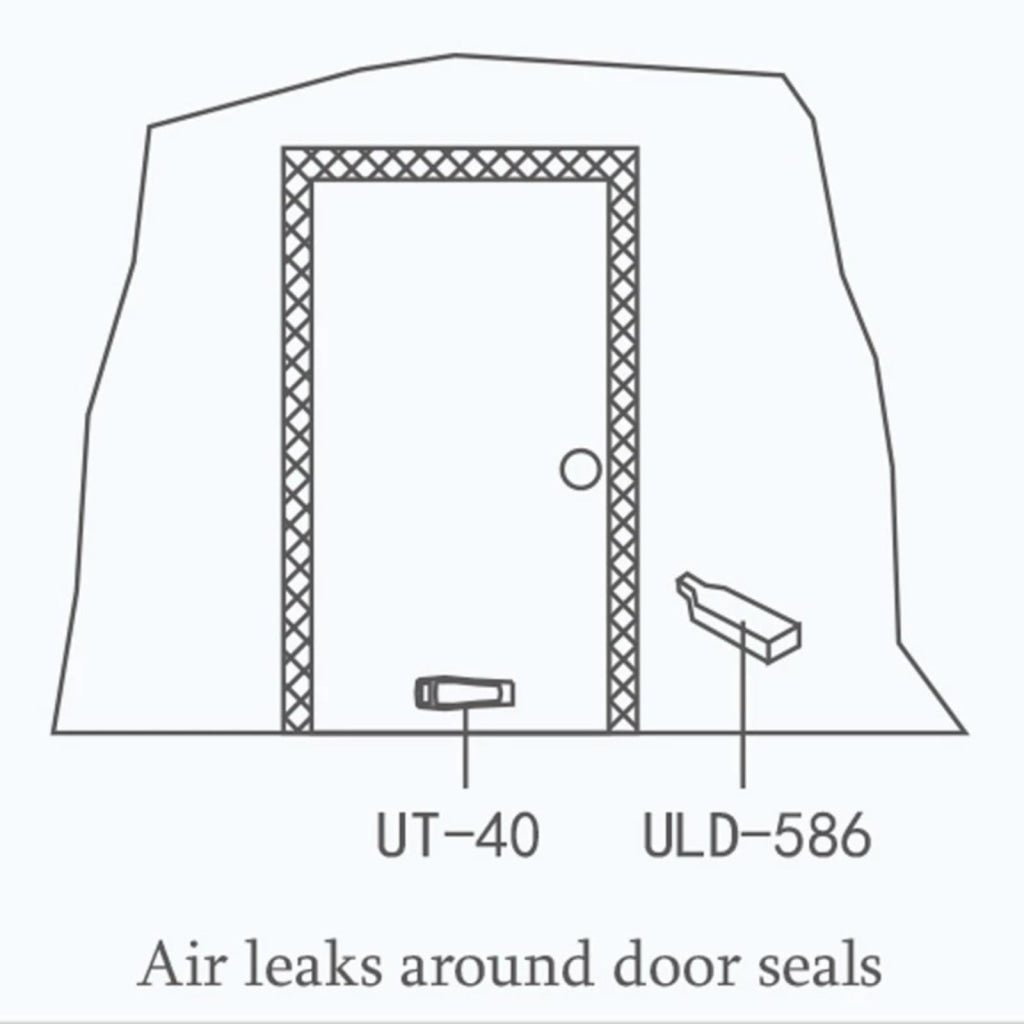

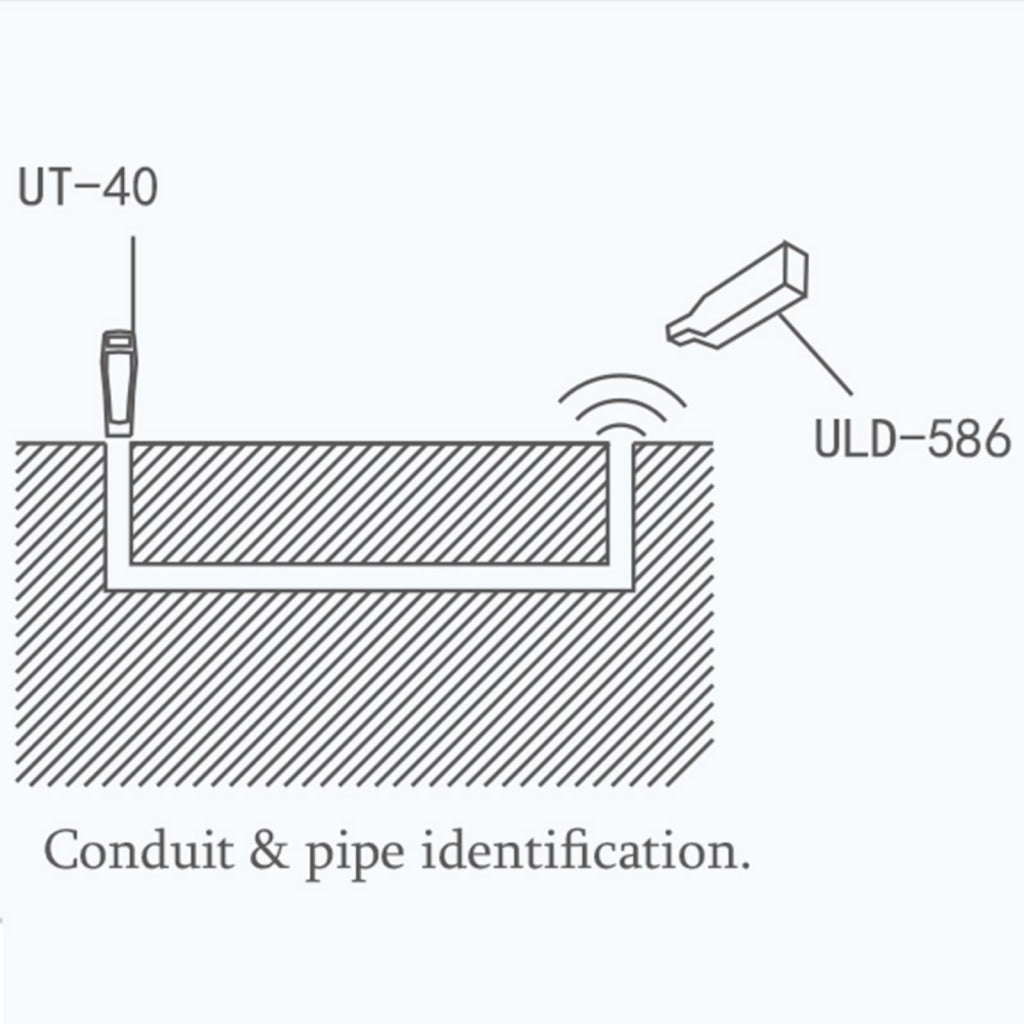

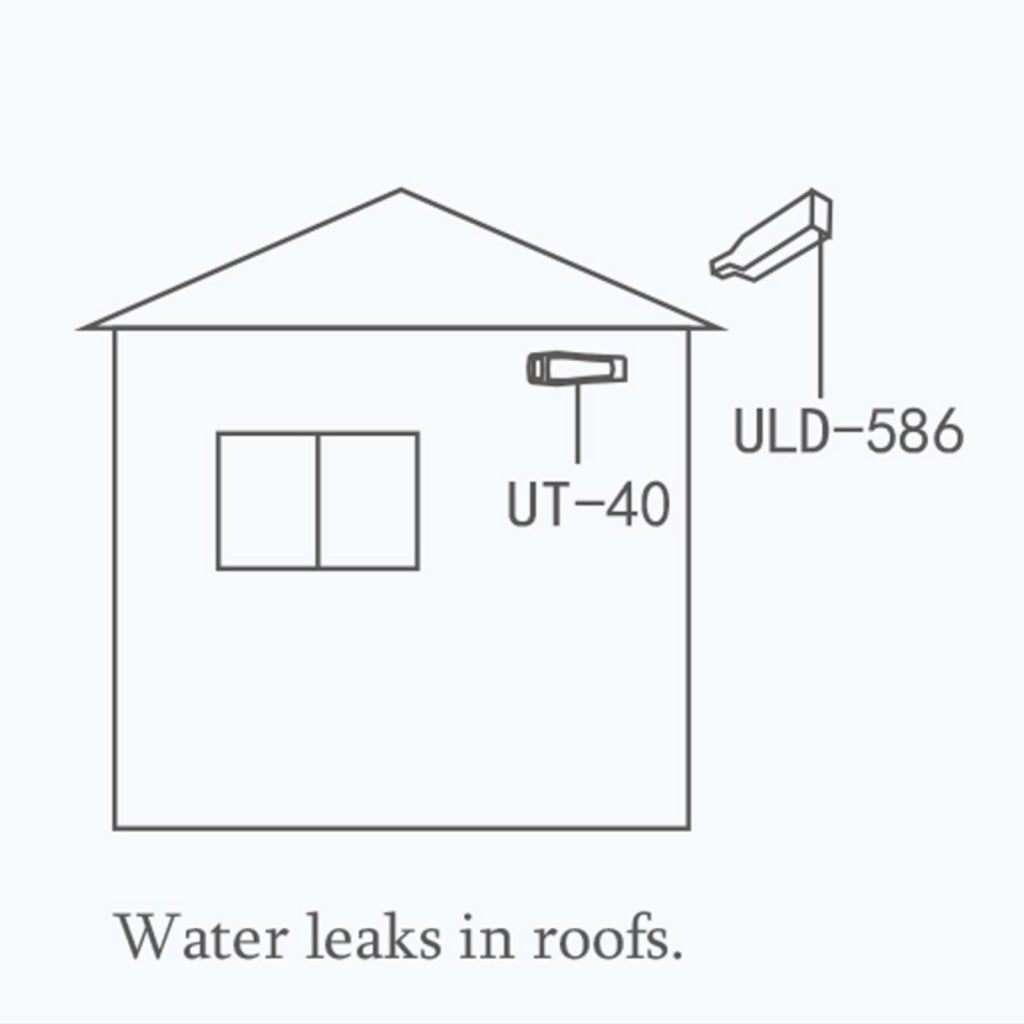

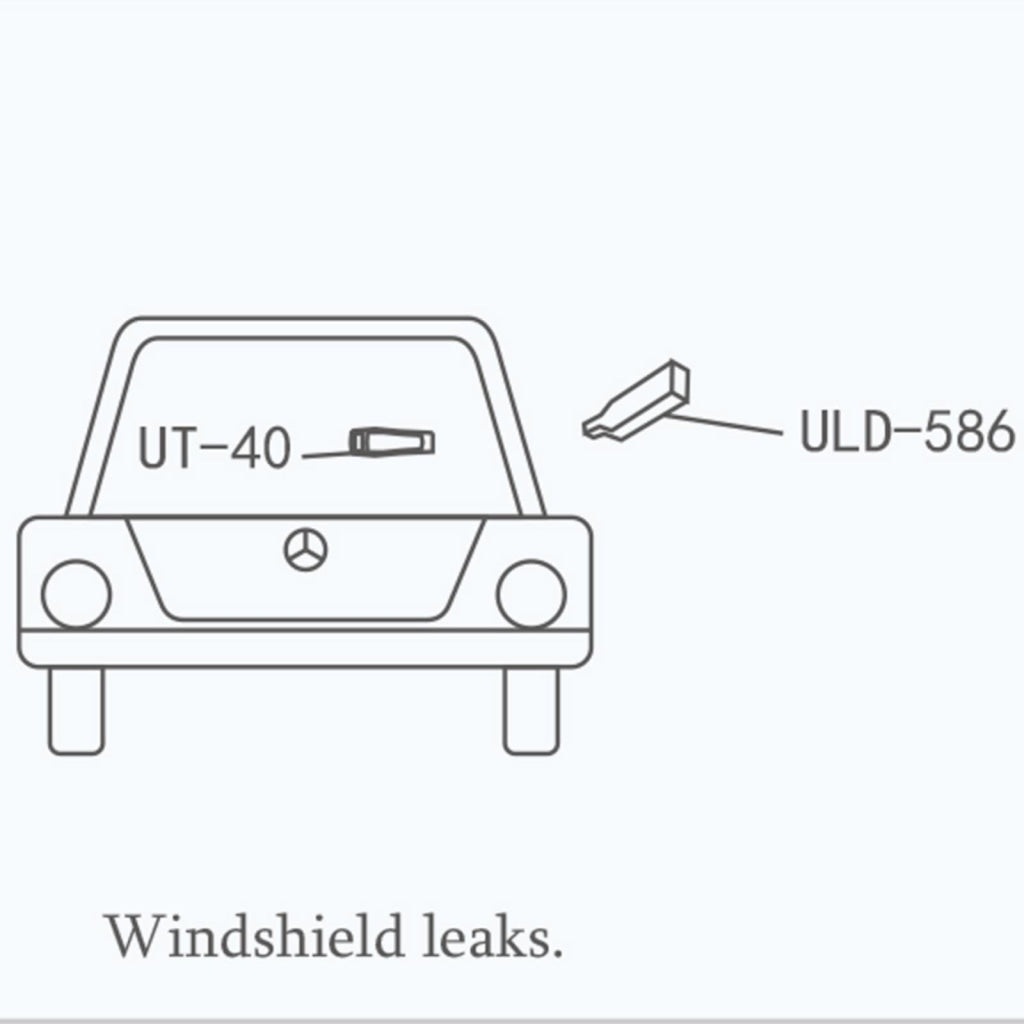

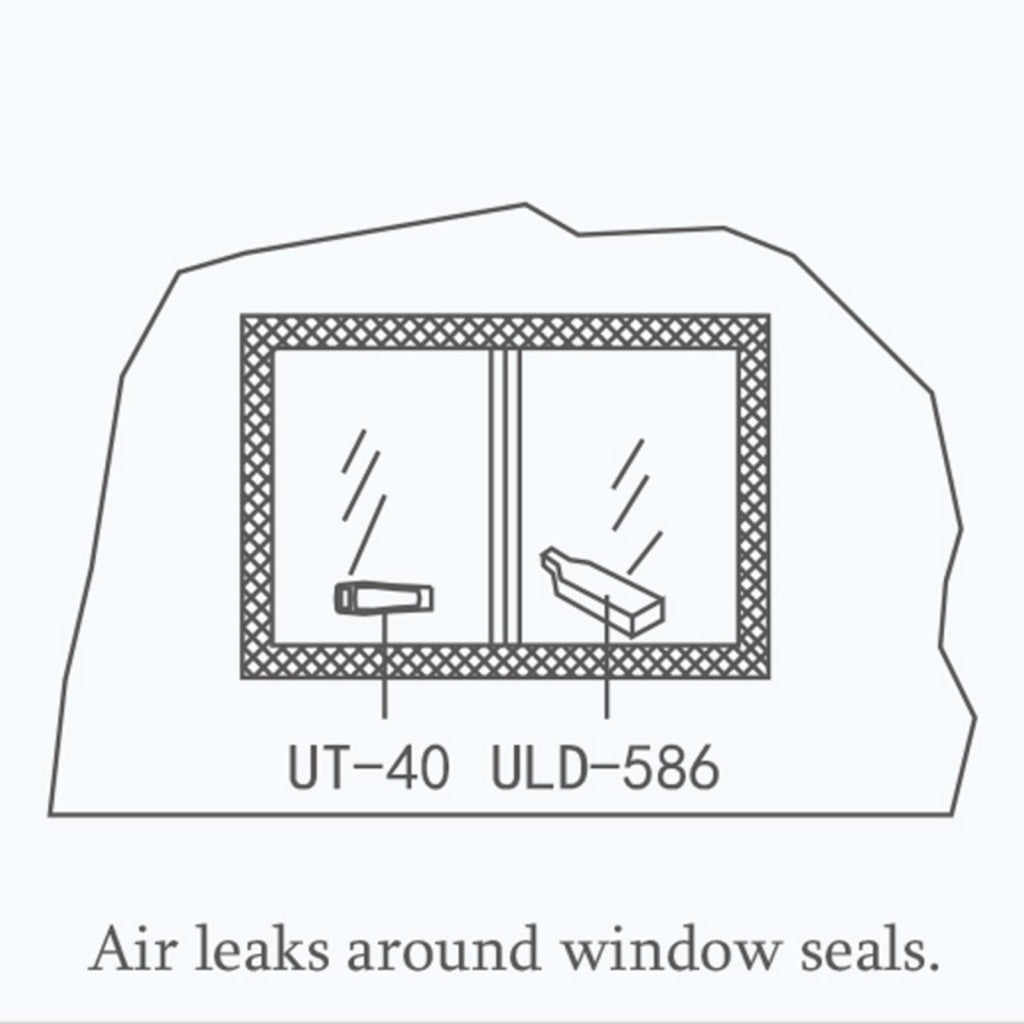

Used for measuring Leakage of system. Applicable to detect Leaks in refrigeration and air condition systems, Leaks in heating system, Internal leaks in steam transfers, Compressed air leaks, Tire & tube leaks, Engine seals, Electrical arcing, The bearing problems, Bake system. With the Ultrasonic transmitter, it is applicable to Air leaks around door & window gaskets & seals, Water leaks in roofs, Conduit & pipe identification, Door & trunk seals, Windshield leaks.

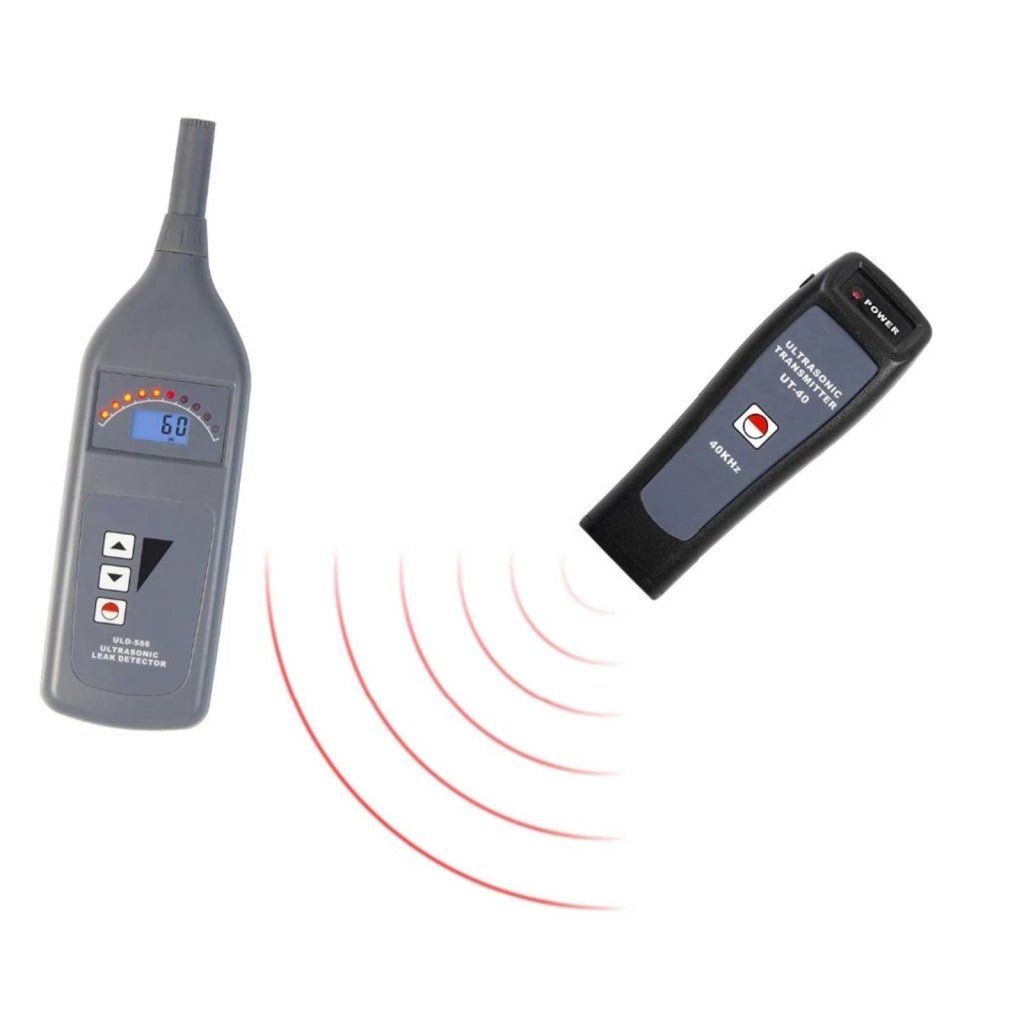

Note to Buyer(s): This item works with ILLD-40 Ultrasonic Transmitter (Click here if you want to buy together with the Transmitter).

Features:

  • Designed to locate the source of the ultrasonic emissions generated by gas or air leaks.
  • Leakage level is displayed by LED display panel and is covered to audible sound b either internal buzzer or to optional external earphone.


Specifications:

  • Leakage Sensitivity Indicator: LED display panel & audible tone. (LED display is a relative measurement only. Audible tone is the frequency of the received ultrasonic sound divided by 32.)
  • Frequency Response: 20 Khz to 100 Khz
  • Power Supply: 4 x 1.5 AAA(UM-4) battery
  • Power Consumption: Approx. DC 25 mA.
  • Operating Temperature: 0~50°C ( 32~122°F ).
  • Operating Humidity: Max. 80% RH.
  • Weight: Approx. 140 g/0.31 lb (including battery).
  • Dimension: 236 x 63 x 26 mm (9.3 x 2.5 x 1.0 inch)


Set Includes:

  • 1 x Ultrasonic Leakage Detector
  • English Instruction manual
  • Standard factory packaging

A printed user manual is already included with this item. No digital user manual or software is available.
