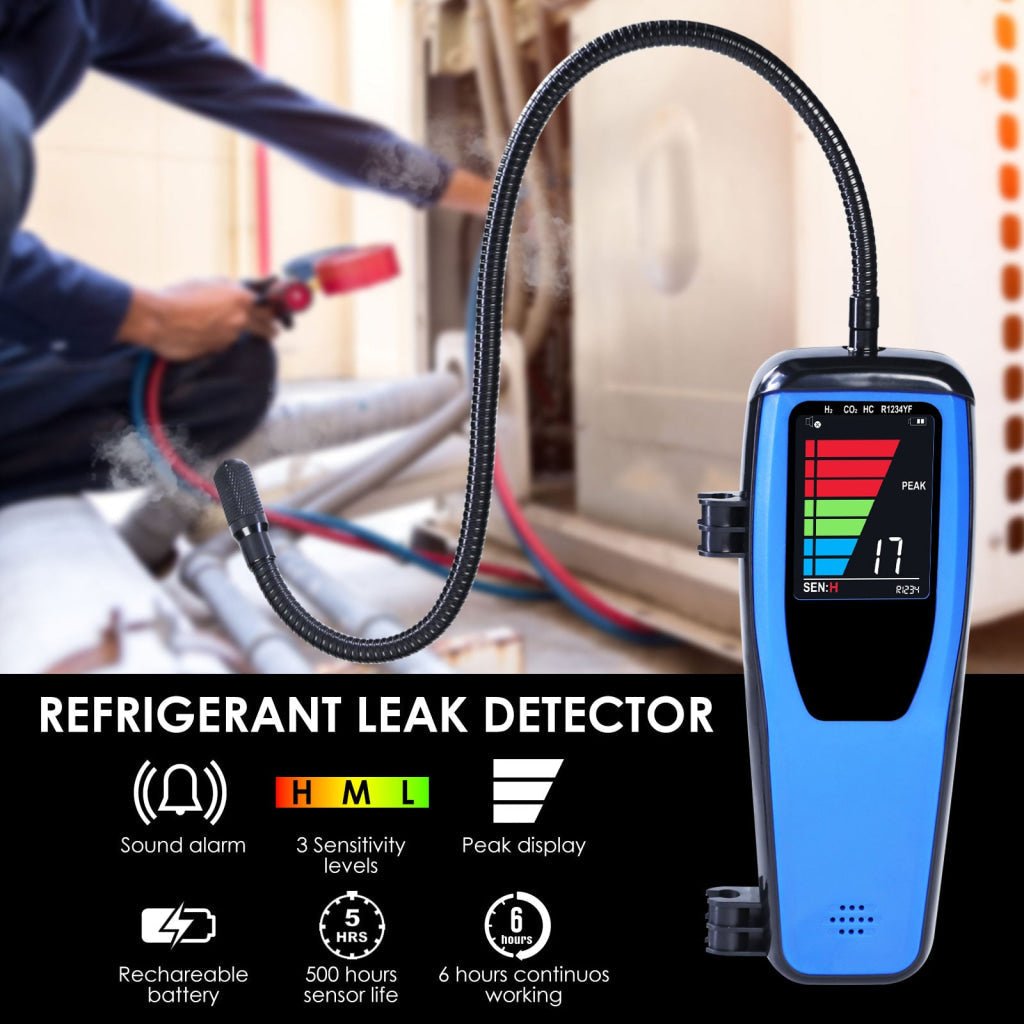

ILLD-432 Refrigerant Leak Detector Handheld 17-inch Gooseneck Probe Sensor Heating Diode Leak Tester for Air Conditioning and Refrigeration System with Buzzer, Visual Alarm and LCD Bar Graph

Sku: ILLD-432
$143.90 USD
Translation missing: en.products.product.shipping_policy_html
Quantity:
Visa Mastercard PayPal American Express Google Pay Apple Pay Shop Pay

The hand-held leak detector redefines precision standards with its advanced heated diode detection principle. Featuring an intuitive LCD screen with a bar graph display, it provides crystal-clear visibility into test results, empowering you to work with unparalleled confidence and efficiency.

Features:

  • Maximum sensitivity is less than 3g (0.11oz) / yr
  • L- M- H, three levels of sensitivity adjustment
  • Self-test function starts once power on
  • Electricity indication
  • Built-in rechargeable battery

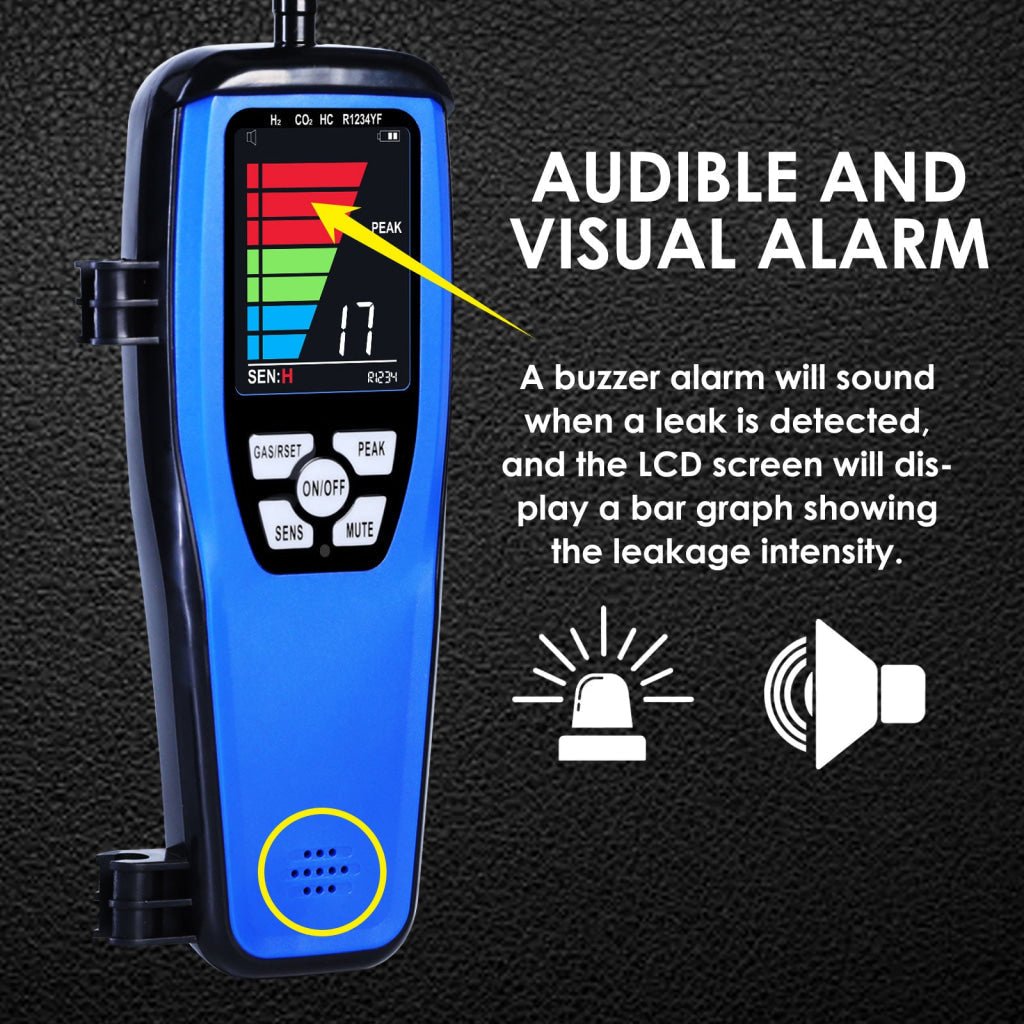

  • Buzzer alarm for leakage detection

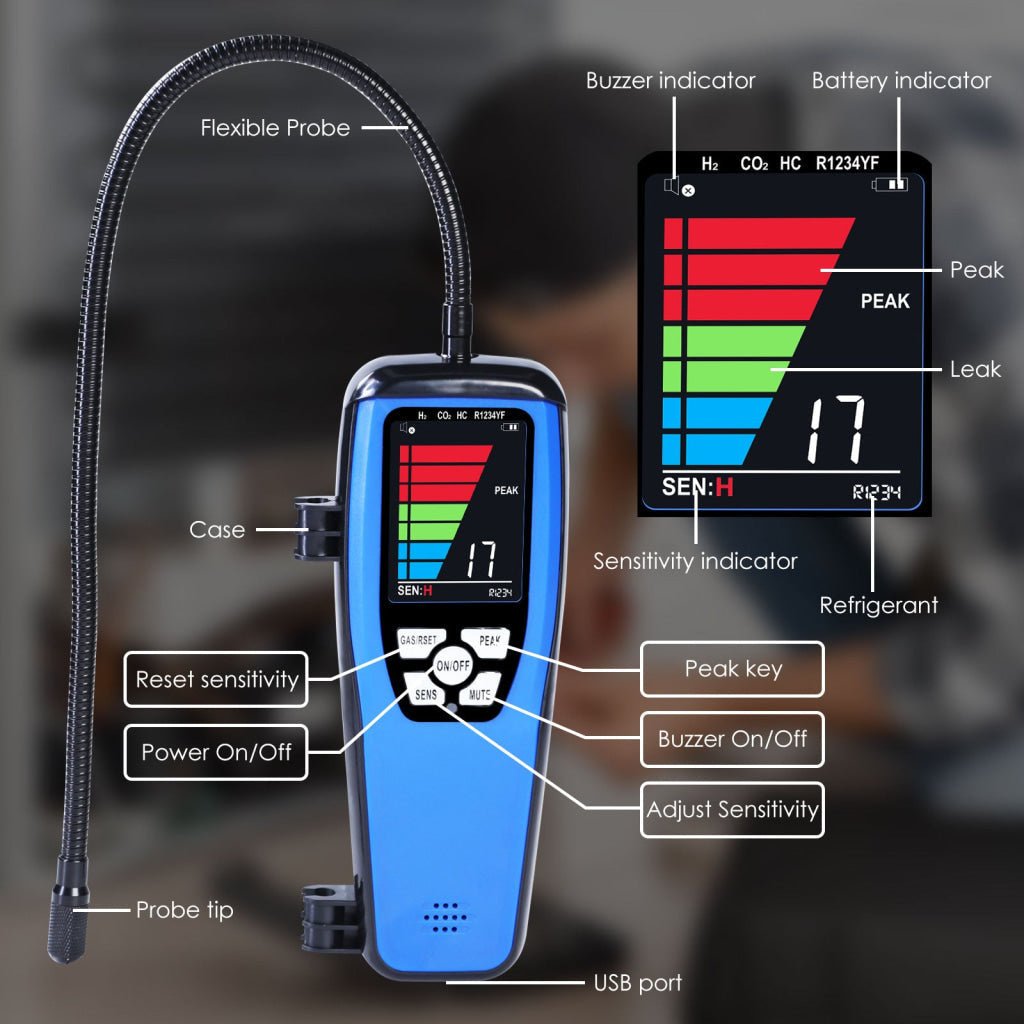

  • Bar graph screen display showing the intensity of the leakage

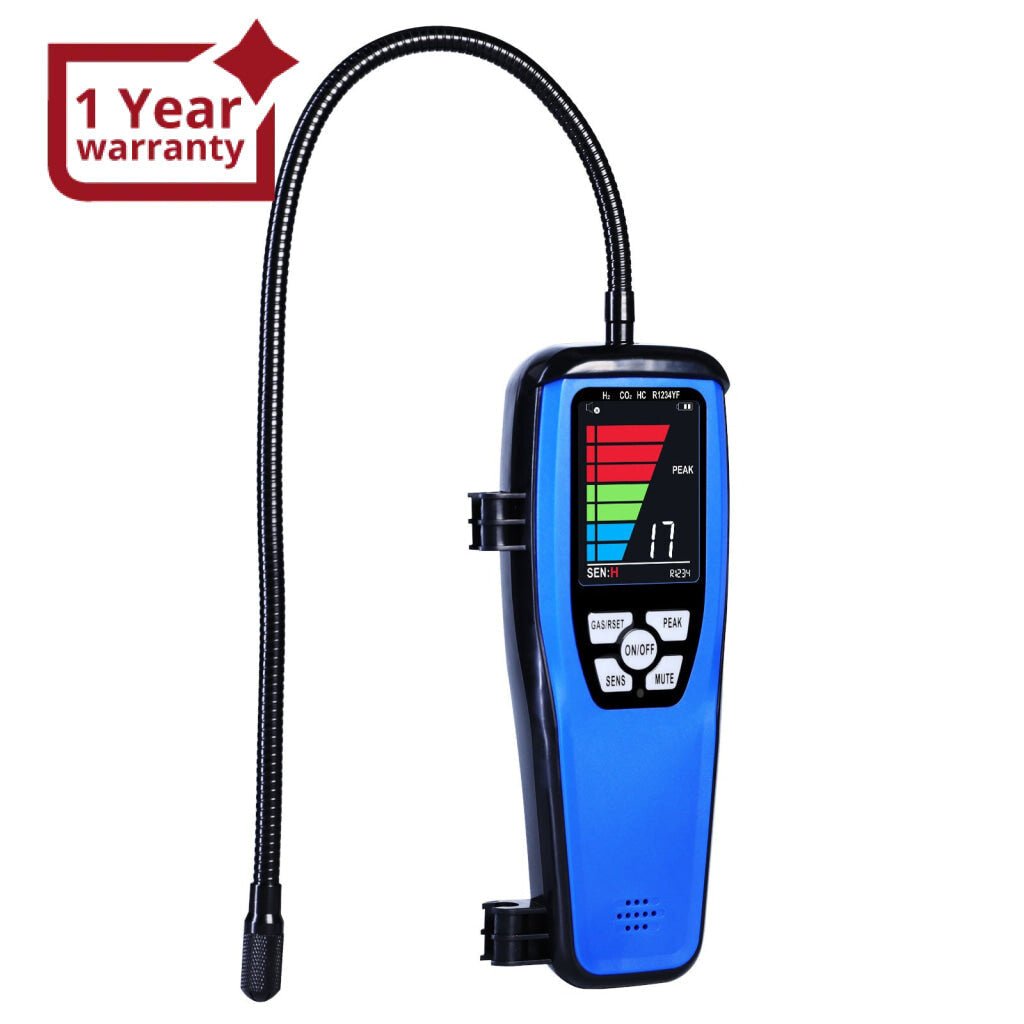

  • Flexible 17-inch gooseneck probe
  • Battery strength indicator
  • Buzzer mute indicator
  • Certifications: SAE_27, SAE_J2791, SAE_J2913; EN14624: 2012; CE certification


Specifications:

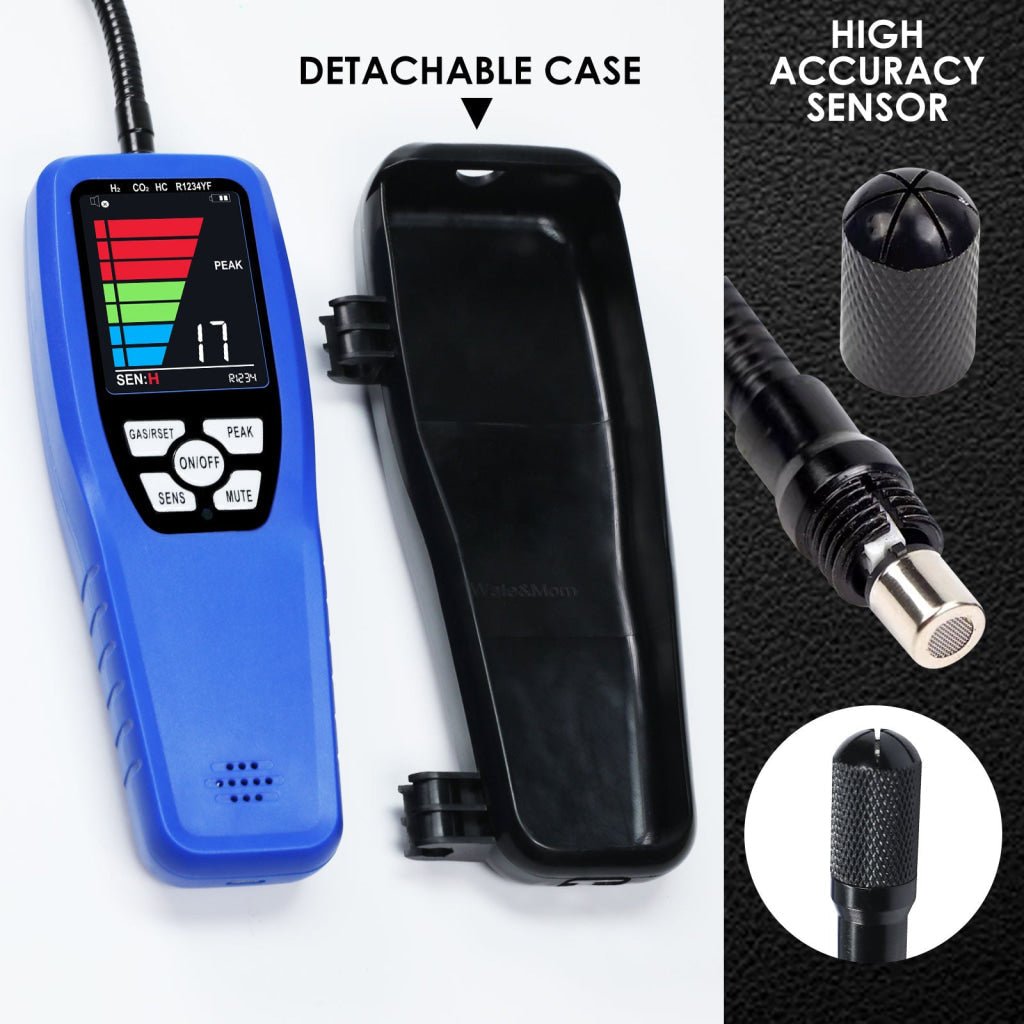

  • Sensor Principle: Heated Diode
  • Sensor Life: 500hours
  • Sensitivity: 3g (0.11oz)/yr (max 1g/yr)
  • Alarm Mode: Sound / Light / LCD Display
  • Battery: 3.7V 3000mAh built-in  rechargeable  battery
  • Working Time: 6H (continuous usage)
  • Charging Time: 4hours

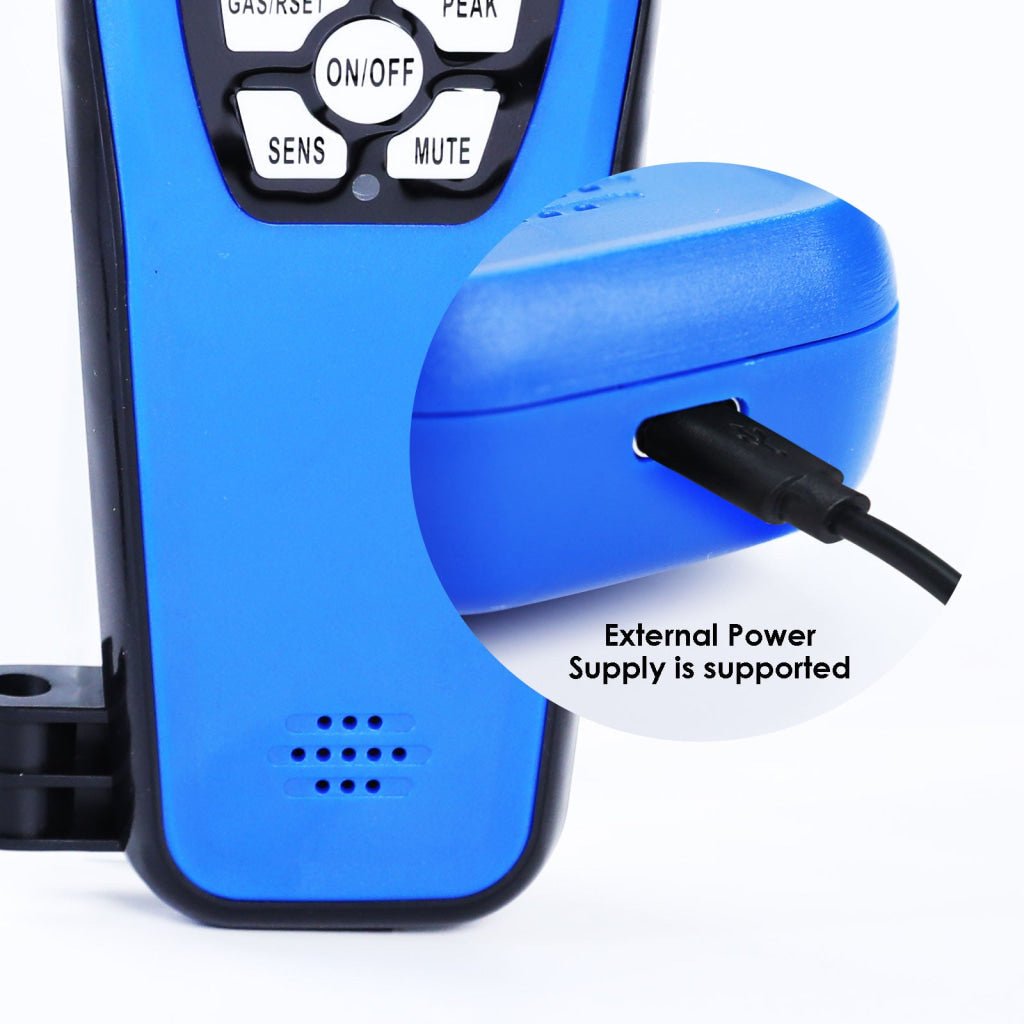

  • Charging Current: 5VDC 1A
  • LED Power Indicator:
    • Red Light: Charging
    • Light off: Charging is complete
  • Probe length: 17 inches
  • Warm up time: 30sec
  • Operating Environment: -10~52°C; 50~85%RH
  • Storage Temperature: -20~60°C (-4~140°F)
  • Weight: approx. 415gms (14.6oz)

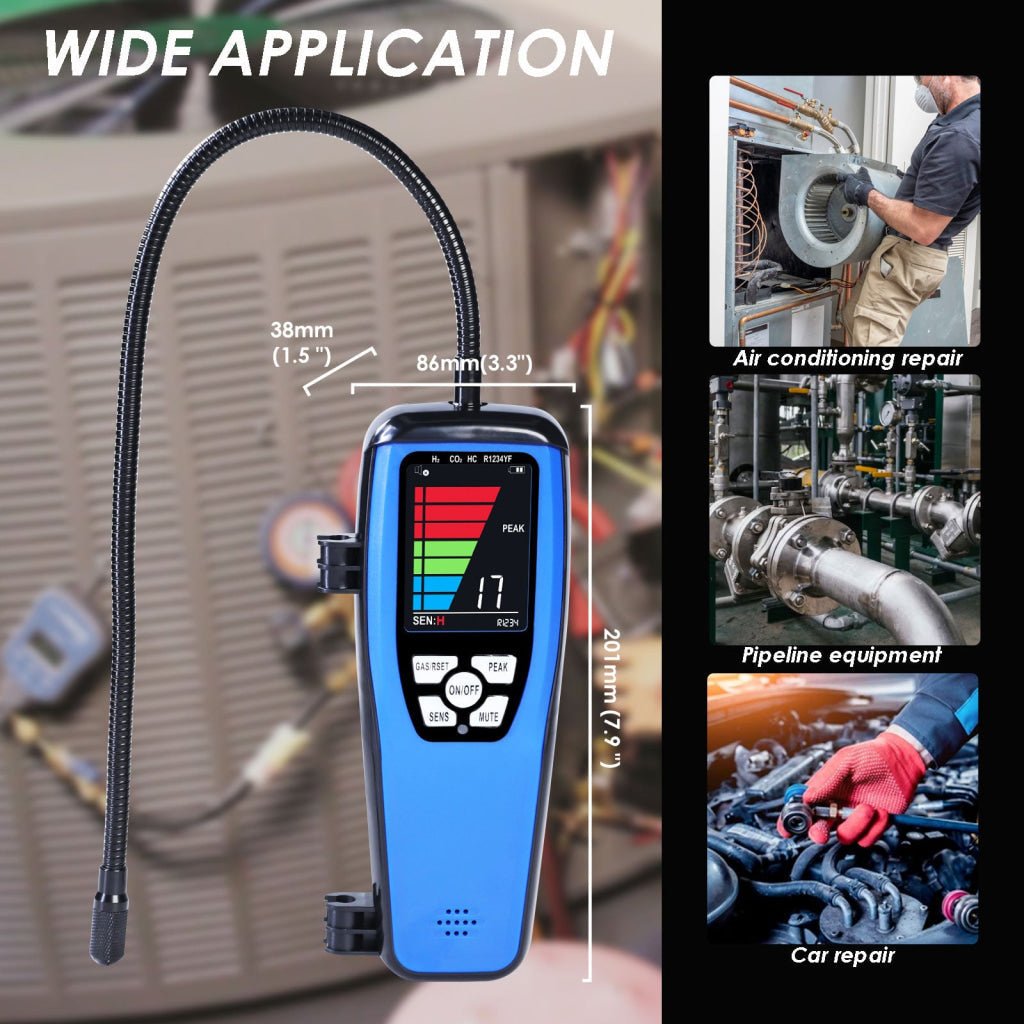

  • Dimension: 201 x 86 x 38mm (7.9 x  3.3 x 1.5in)

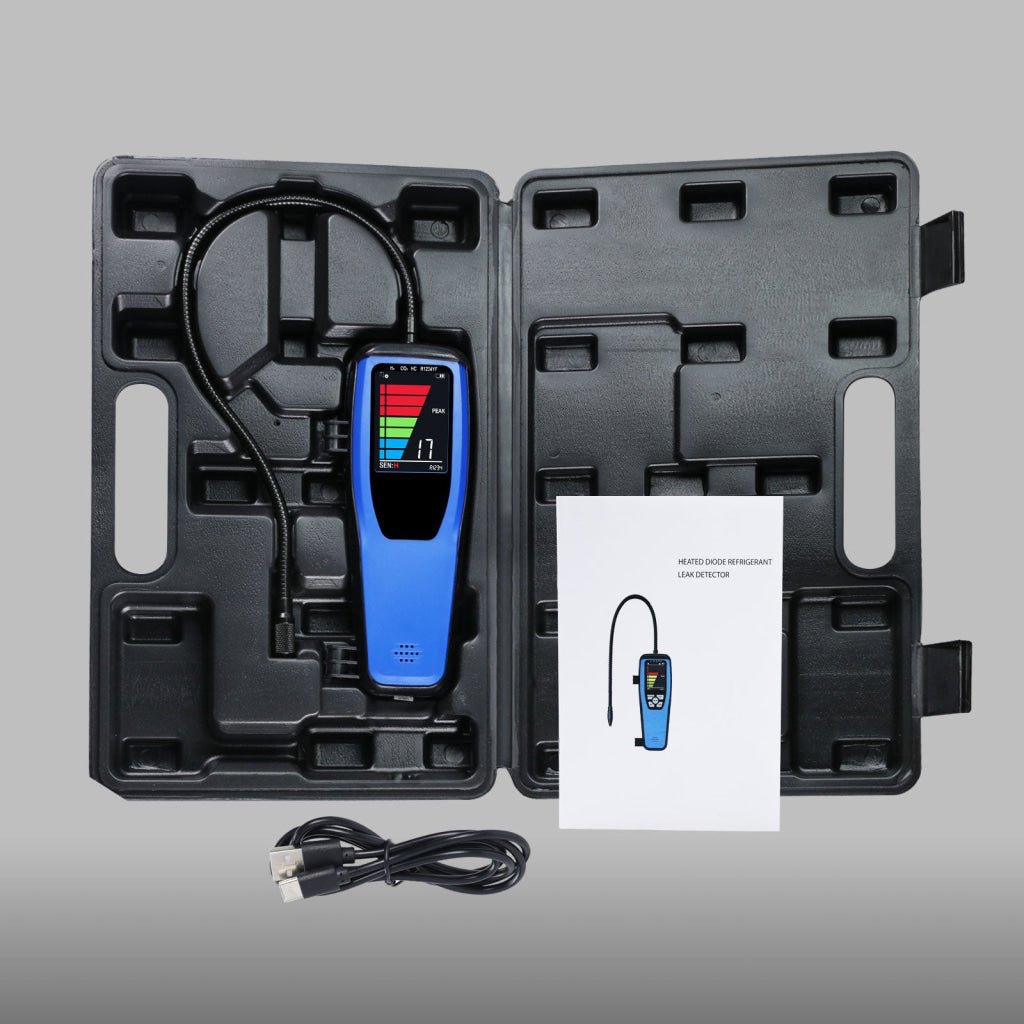

Set Includes:

  • 1 x Refrigerant Leak Detector
  • 1 x USB Type-C Cable
  • 1 x Protective Case
  • English Instruction Manual
  • Carrying Case
  • Standard Factory Packaging

A printed user manual is already included with this item. No digital user manual or software is available.
