ILIC-864 Industrial 2.31" TFT LCD 8mm Camera Borescope Endoscope 4 LED Lights

Sku: ILIC-864
$91.90 USD
Translation missing: en.products.product.shipping_policy_html
Quantity:
Add to Wishlist Remove From Wishlist
Visa Mastercard PayPal American Express Google Pay Apple Pay Shop Pay

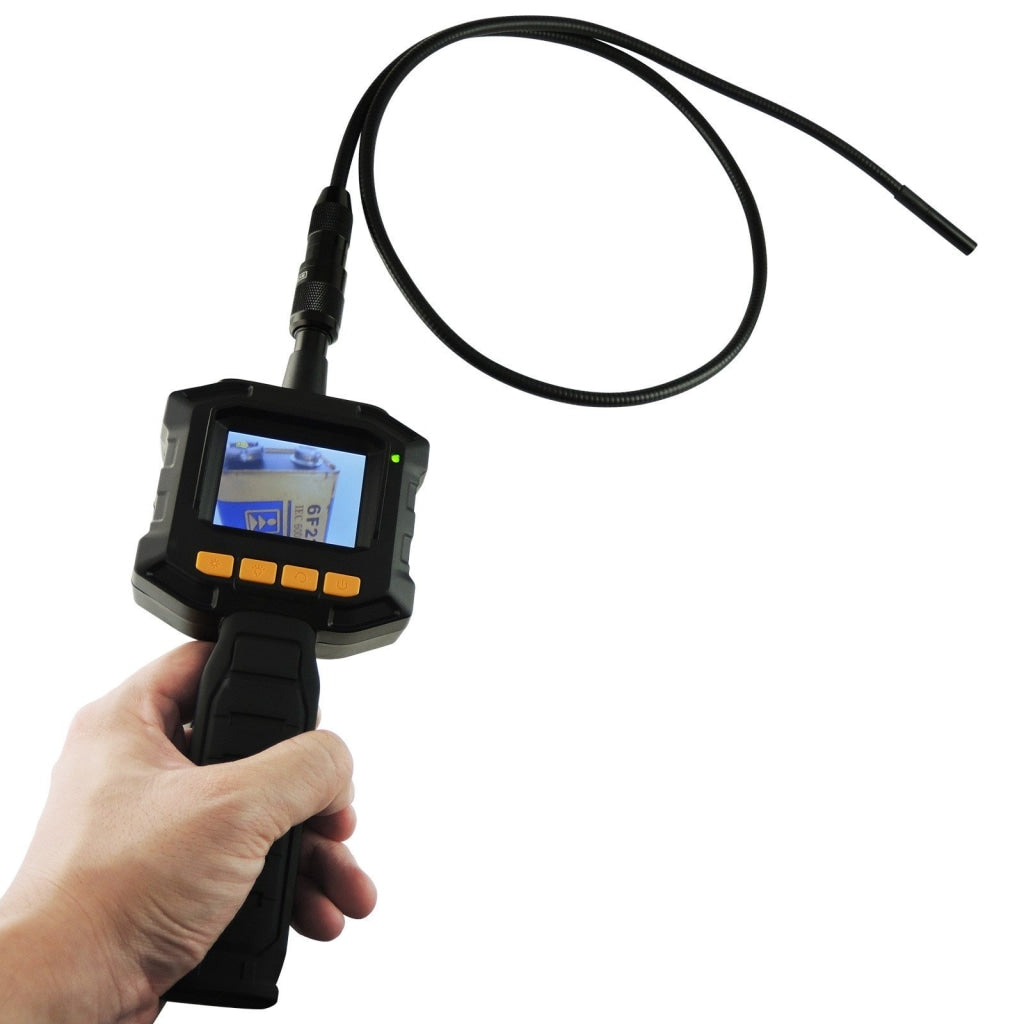

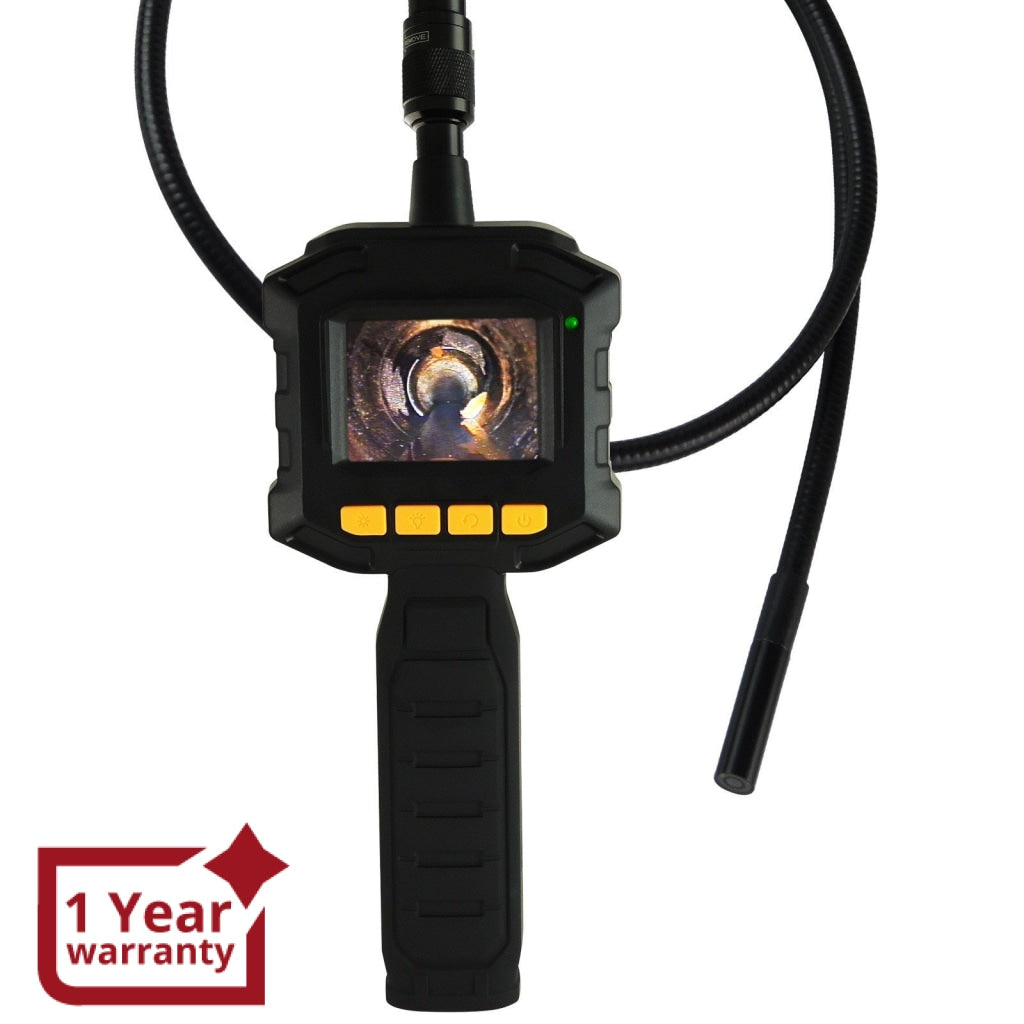

2.31" TFT LCD Industrial Borescope with 8mm camera tube diameter and adjustable 4 LED lights for viewing hard to reach area.  It has water resistant camera head (IP67) and colored monitor with 640 x 480 pixel resolution. Image can be rotated by 180° and flip for a more detailed inspection.

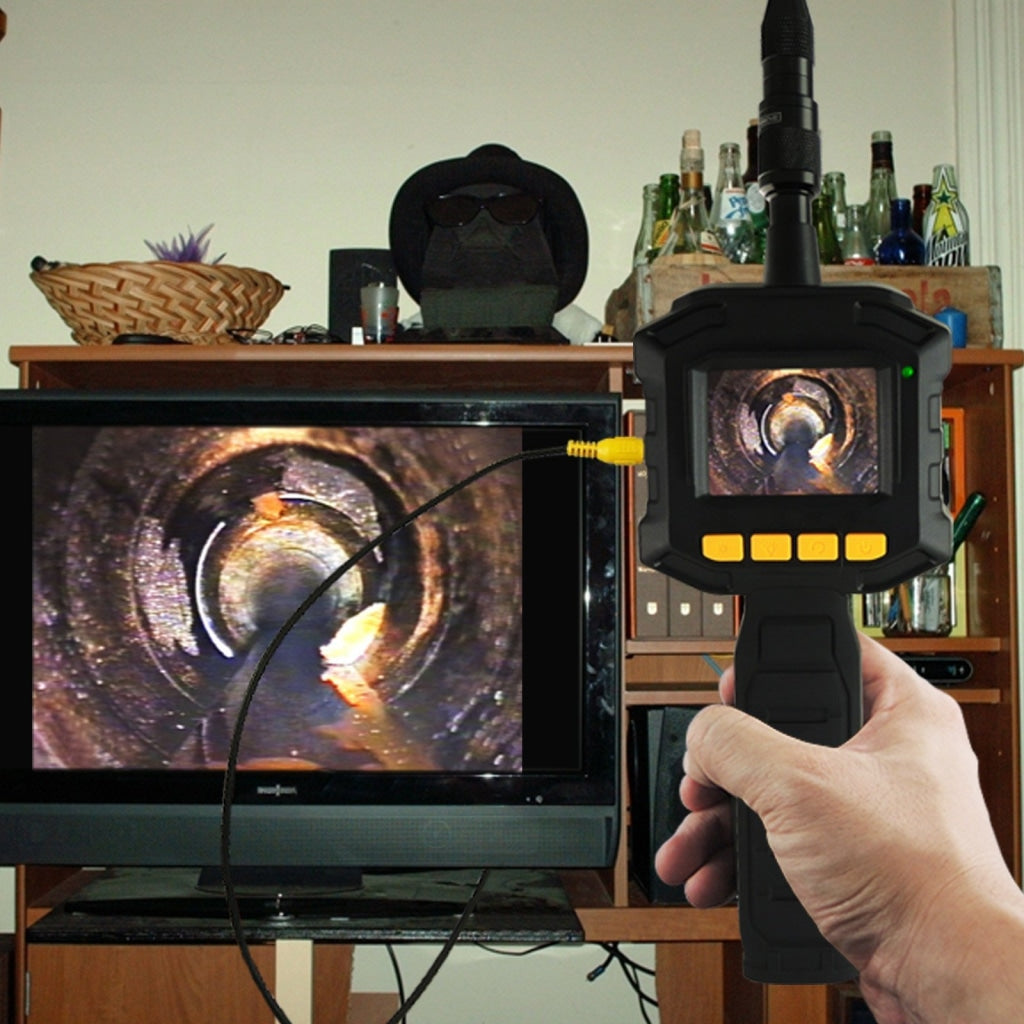

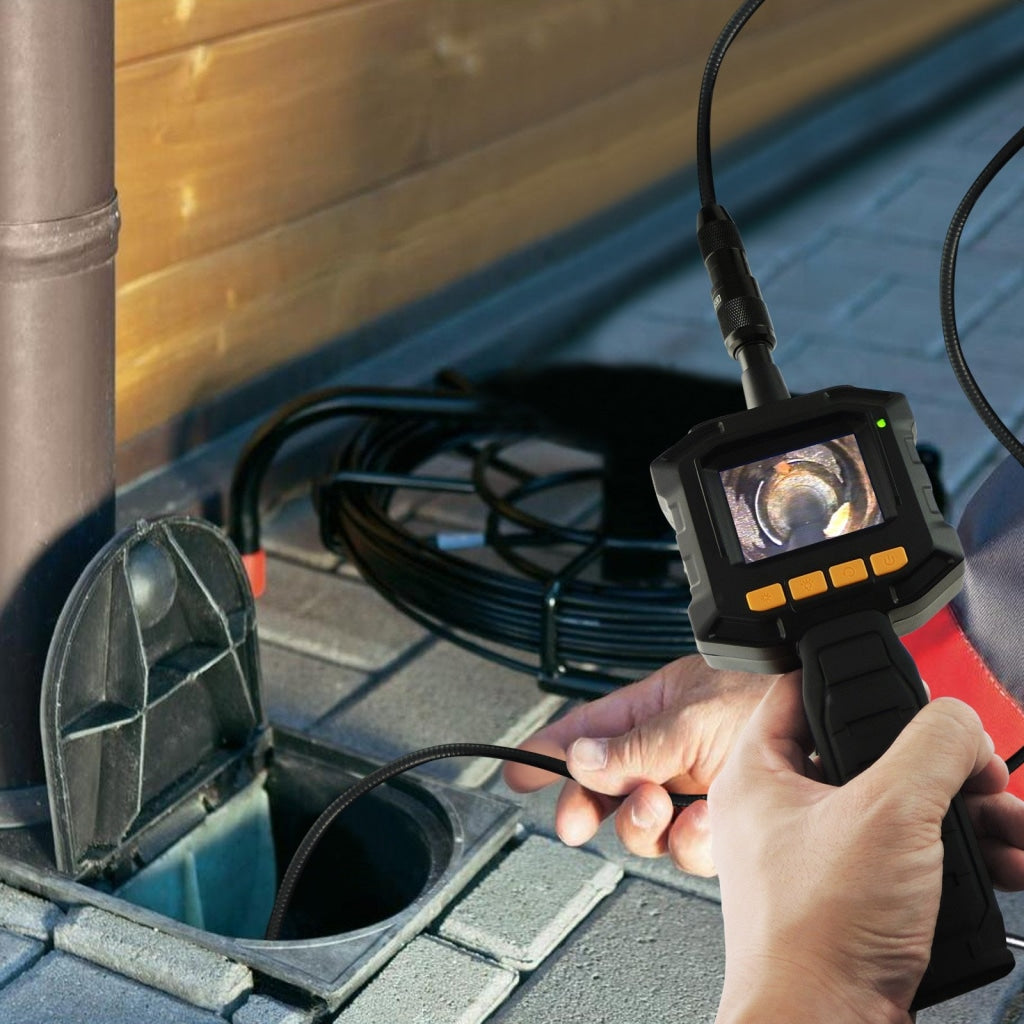

This product is designed as a remote inspection device, live time video streaming. Appropriated for use in surveying pipes or other hard to reach places, equipment or furnishing installation, car repair, etc.



Features:

  • Allows for easy surveying of small, hard to reach places
  • Mini waterproof camera with 980mm (3ft) flexible extended tube
  • Manufactured and tested to IP67 waterproof standard
  • 2.31" TFT LCD monitor

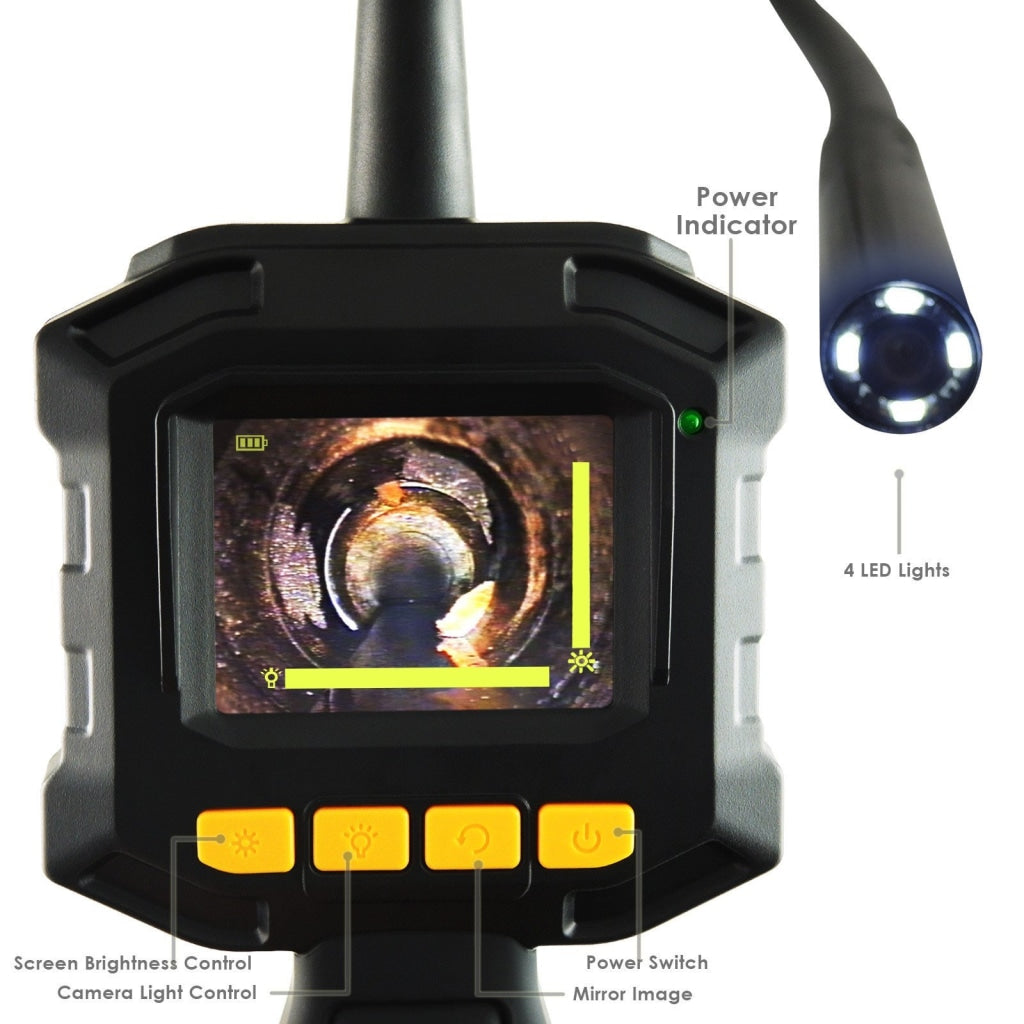

  • Allows 180° image rotation and flip
  • Adjustable brightness on lens-mounted LED light
  • 4 useful accessories inluded: hook, mirror, and magnet
  • Lightweight, hanheld design, flexible and convenient to use

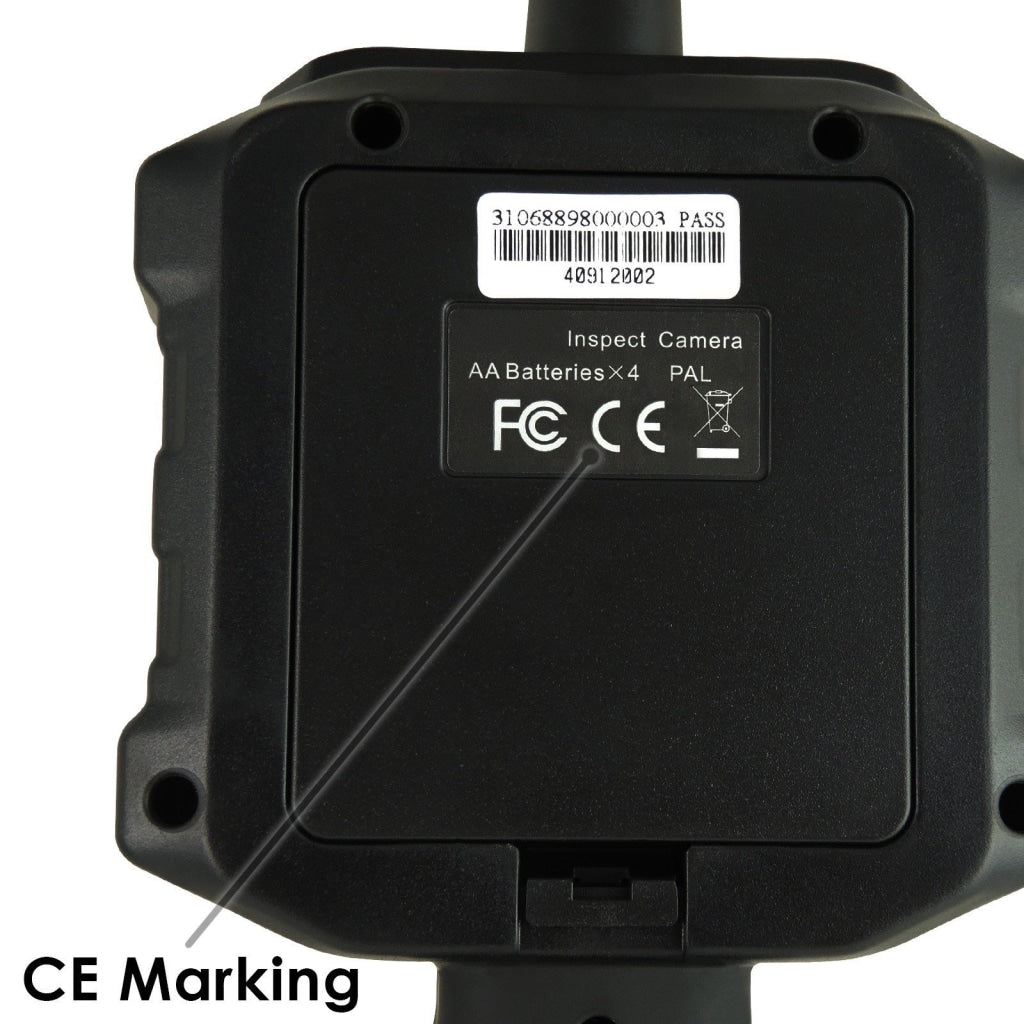

  • With CE marking, meets EU safety, health and environmental requirements

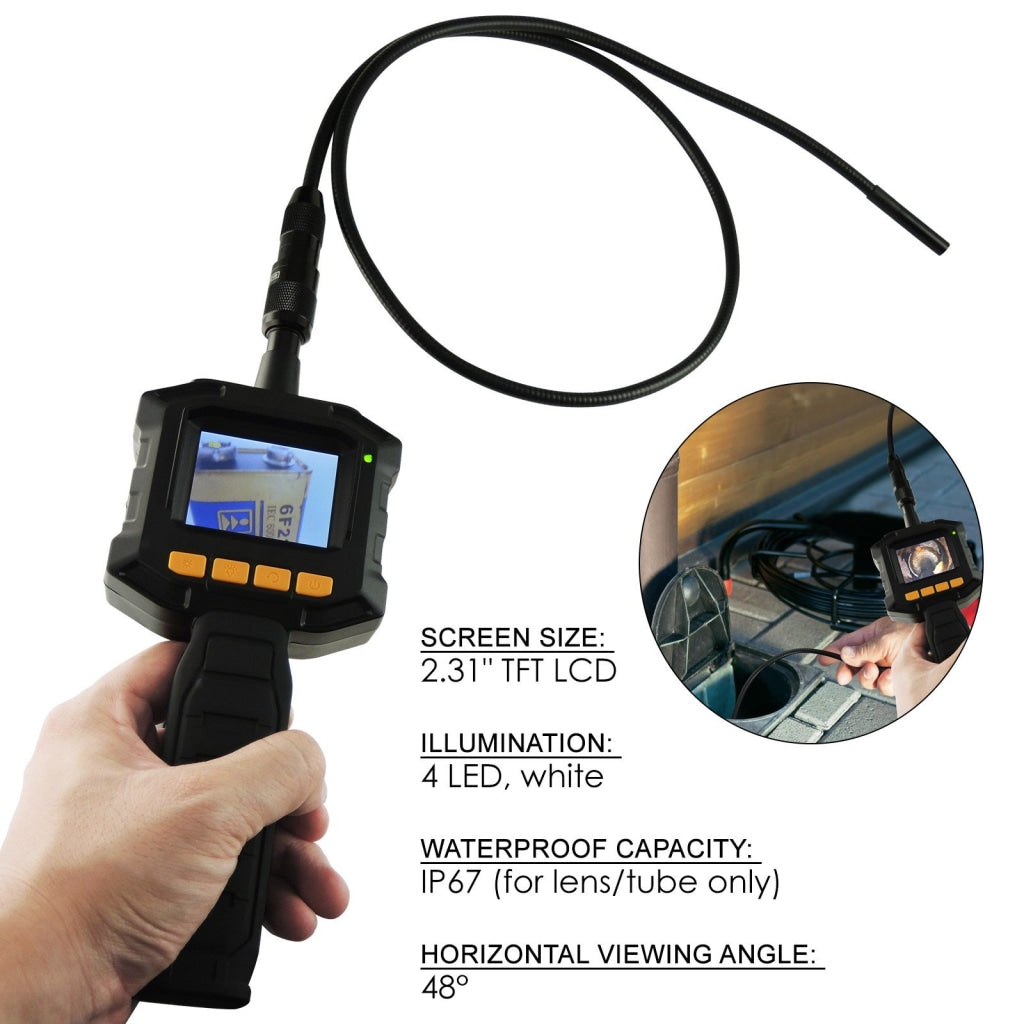

Specifications:

  • Screen Size: 2.31" TFT LCD
  • Contrast: 300
  • Brightness: 220CO/M2 (TYP)
  • Effective Pixels: 640 x 480
  • Video System: PAL / NTSC
  • Horizontal Viewing Angle: 48°
  • Illumination: 4 LED, white
  • Minimum Illumination: 0 Lux (LED on)
  • Work Time: 6 Hour Max.
  • Consumption Current: 238mA
  • Output Signal Impedance: 75 ohm
  • Output Signal Level: 0.9-- 1.3Vp-p
  • Imaging Sensor: 1/9-inch CMOS
  • Waterproof Capacity: IP67 (for lens/tube only)

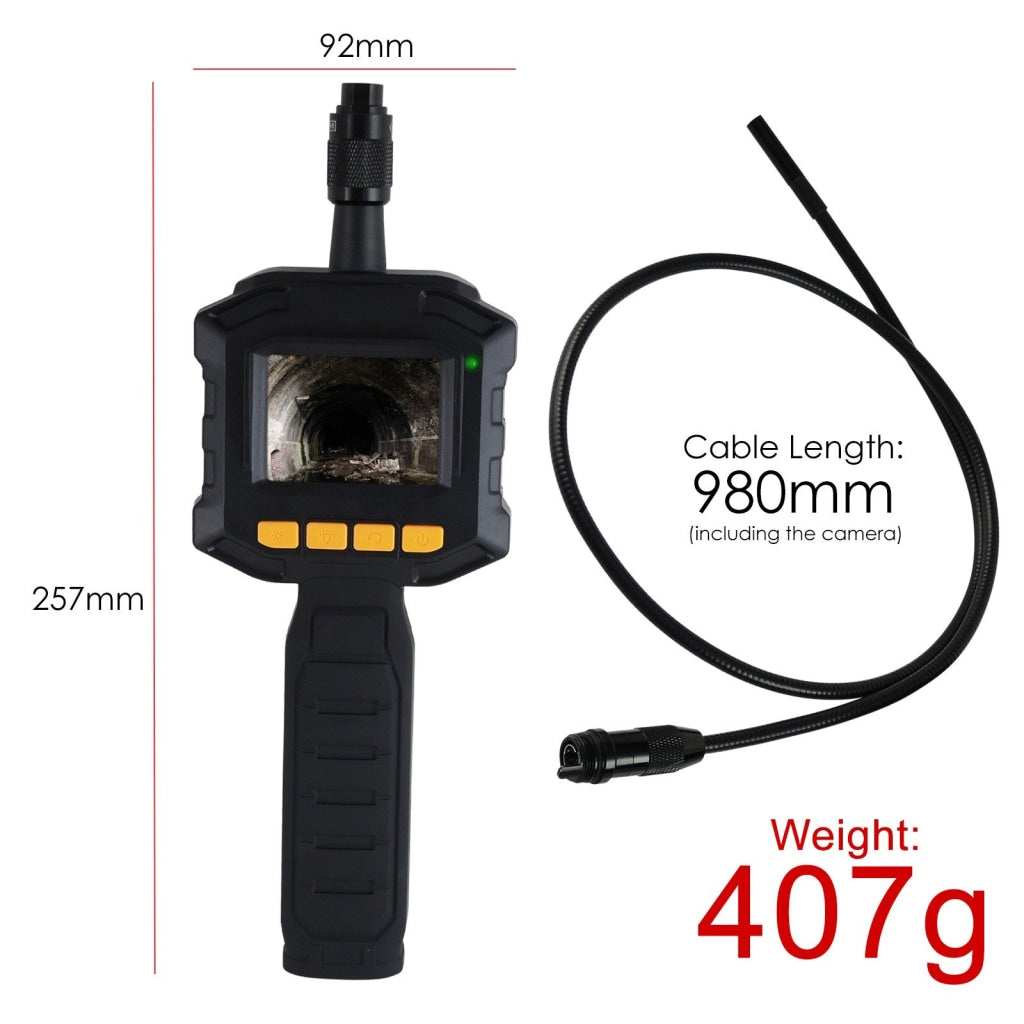

  • Dimension

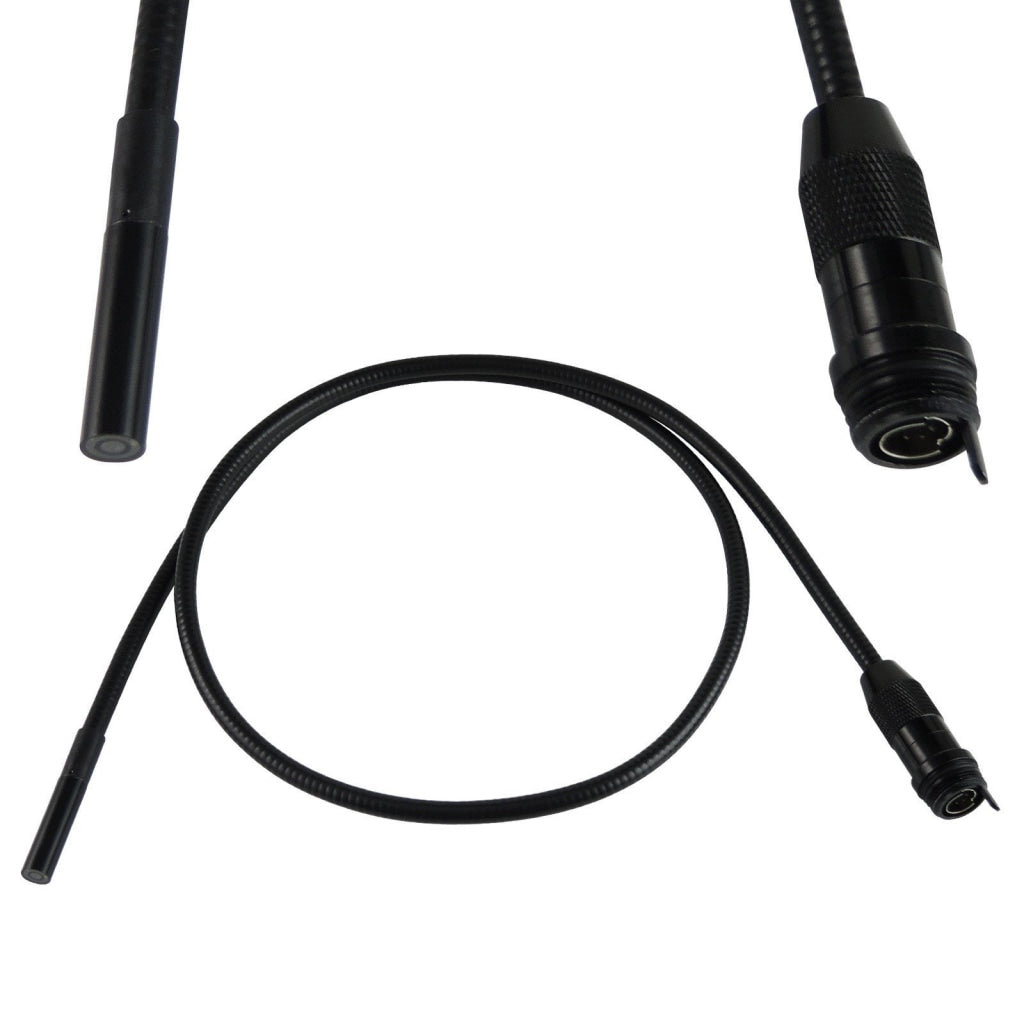

    • Tube: Φ8mm x 980mm (Including camera)
    • Handle: 257 x 92 x 44(mm)Excluding Flexible Tube)
  • Operating Environment
    • Temperature: -10°C~50°C / 14°F~122°F
    • Humidity: 15~85%RH

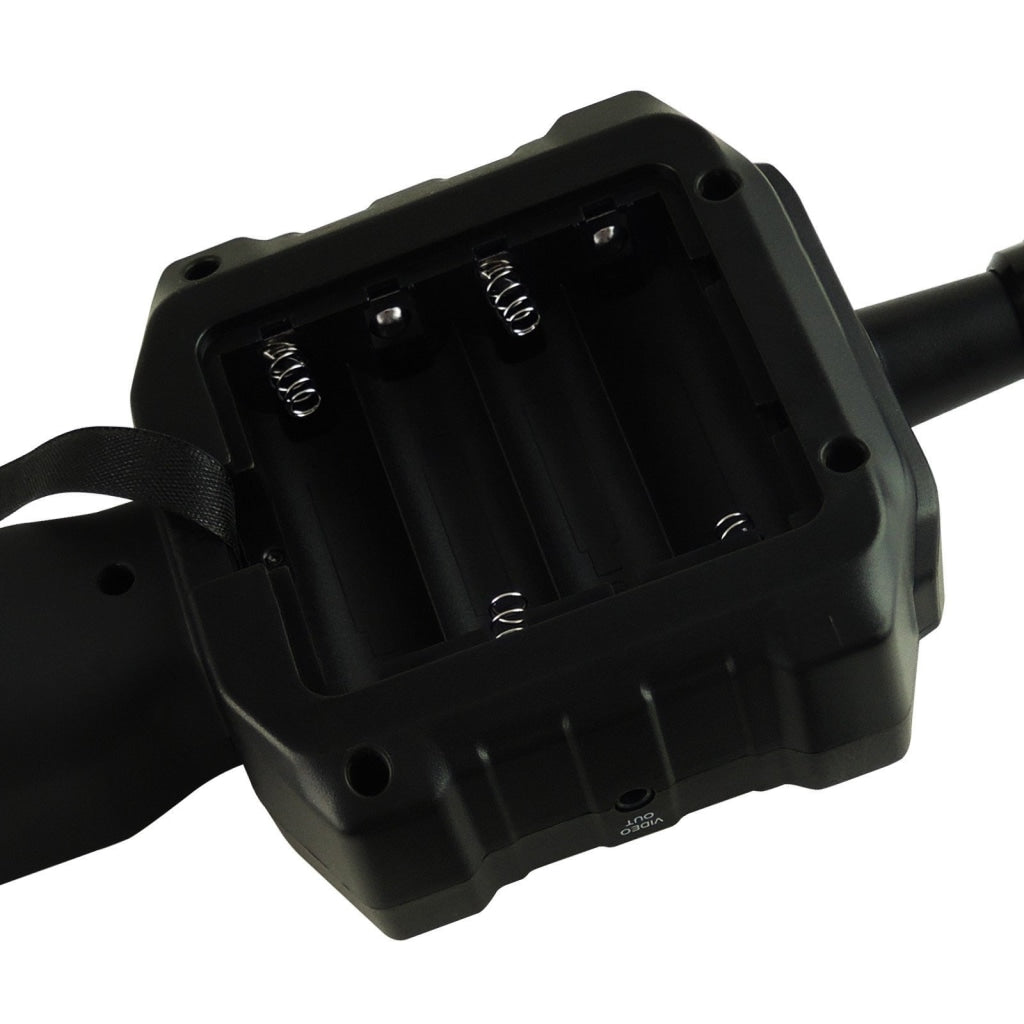

  • Power Supply: 4 x AA batteries (1.5V x 4)
  • Weight: approx. 407g (including batteries)

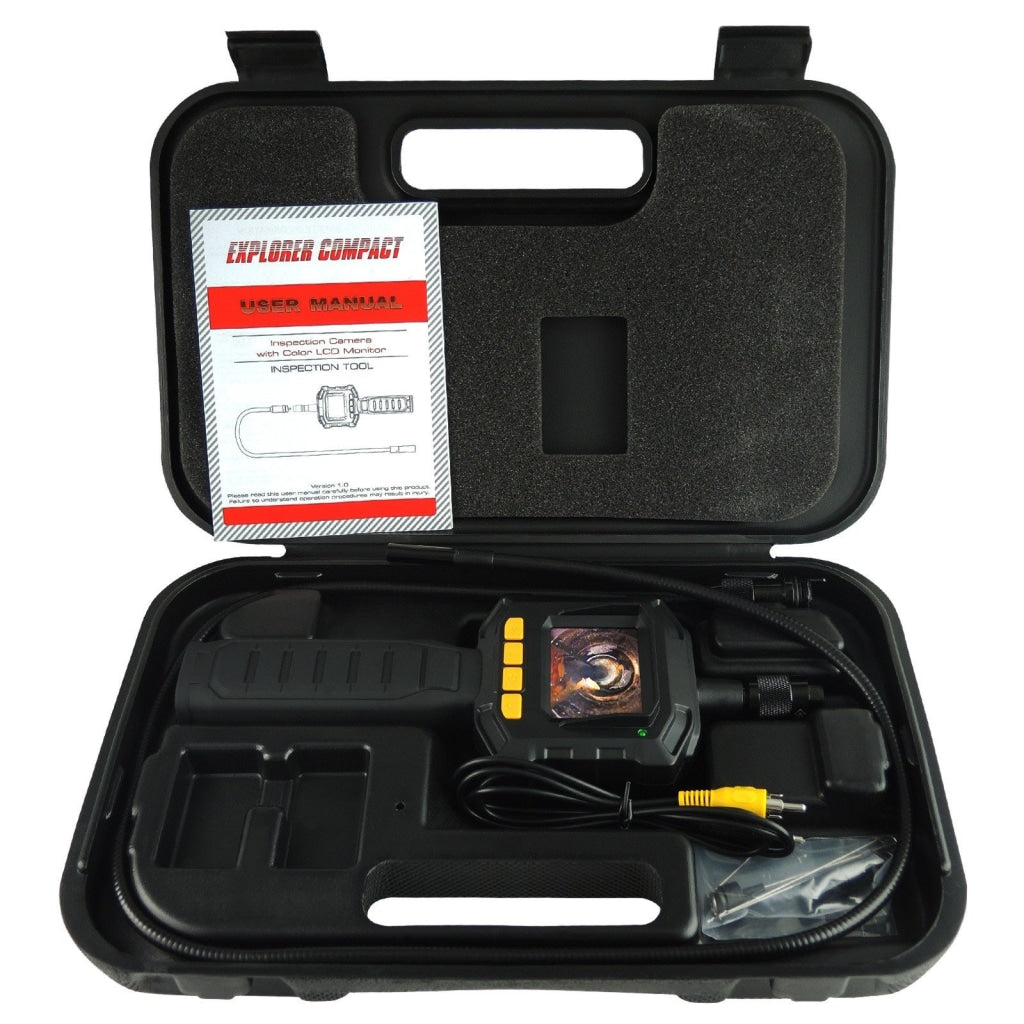

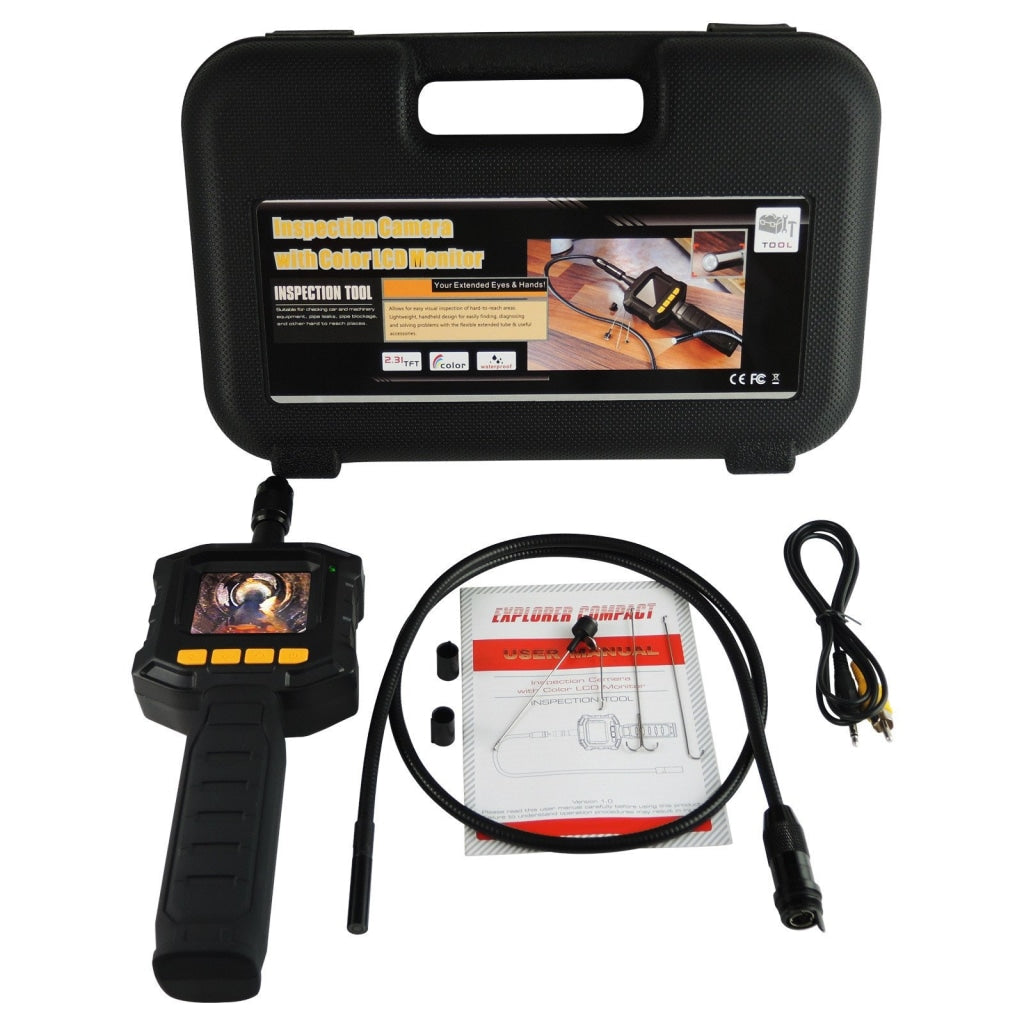

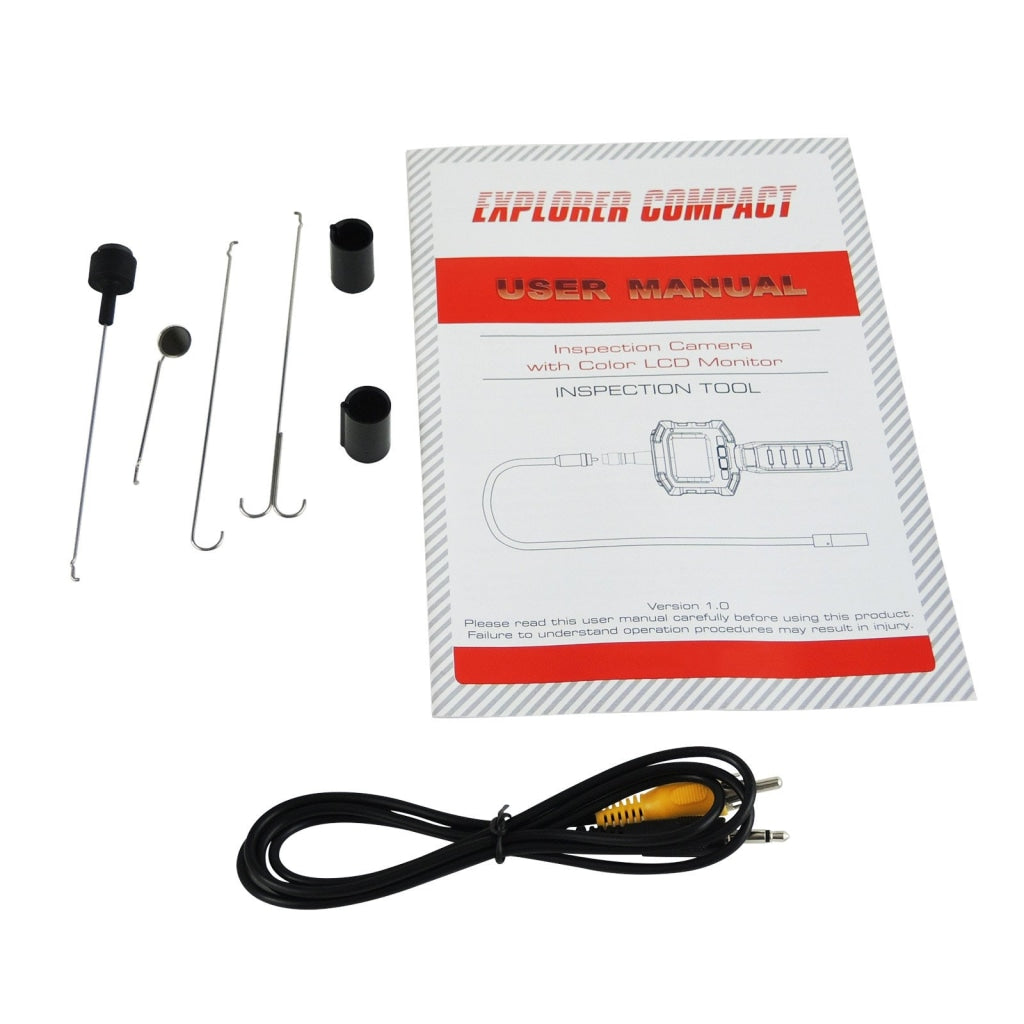

Set Includes:

  • 1 x Inspection Camera w/ Color LCD Monitor
  • 1 x 3ft Flexible Tube

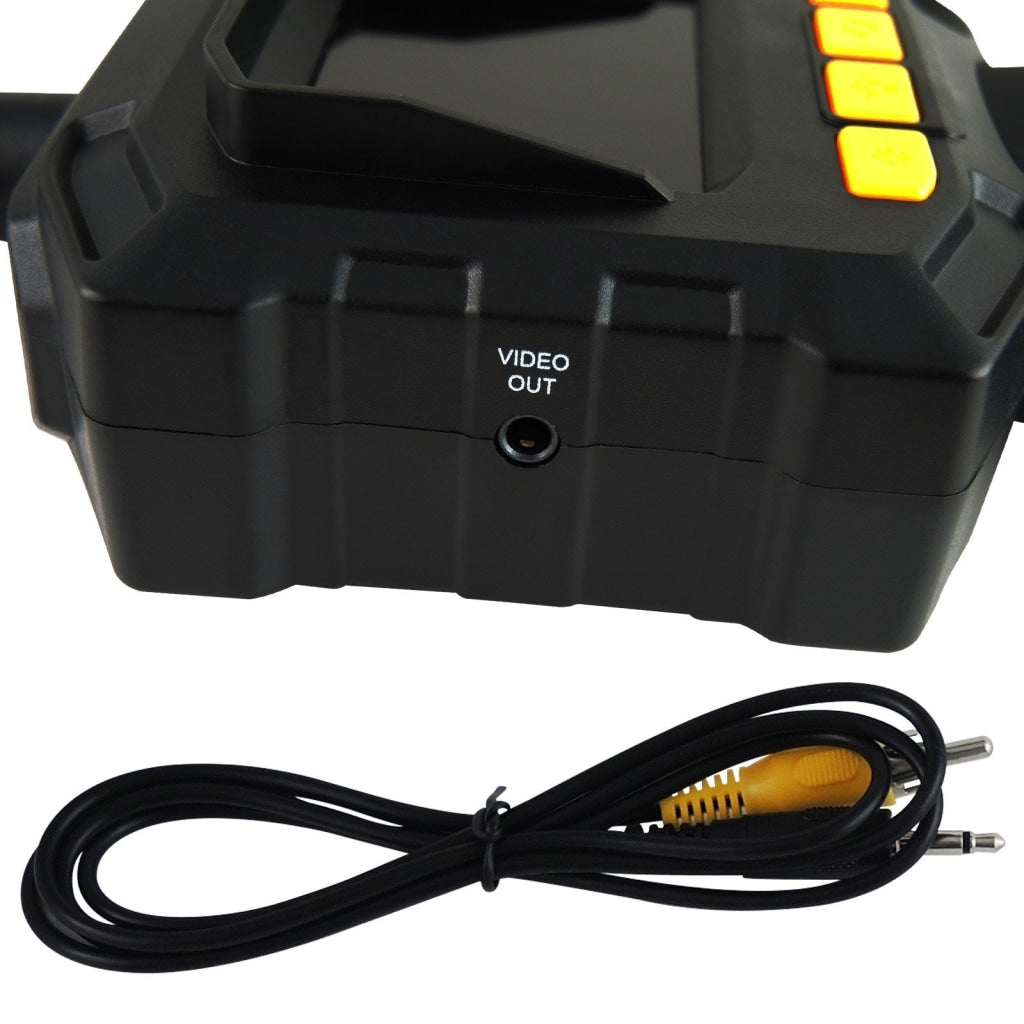

  • 1 x Video cable

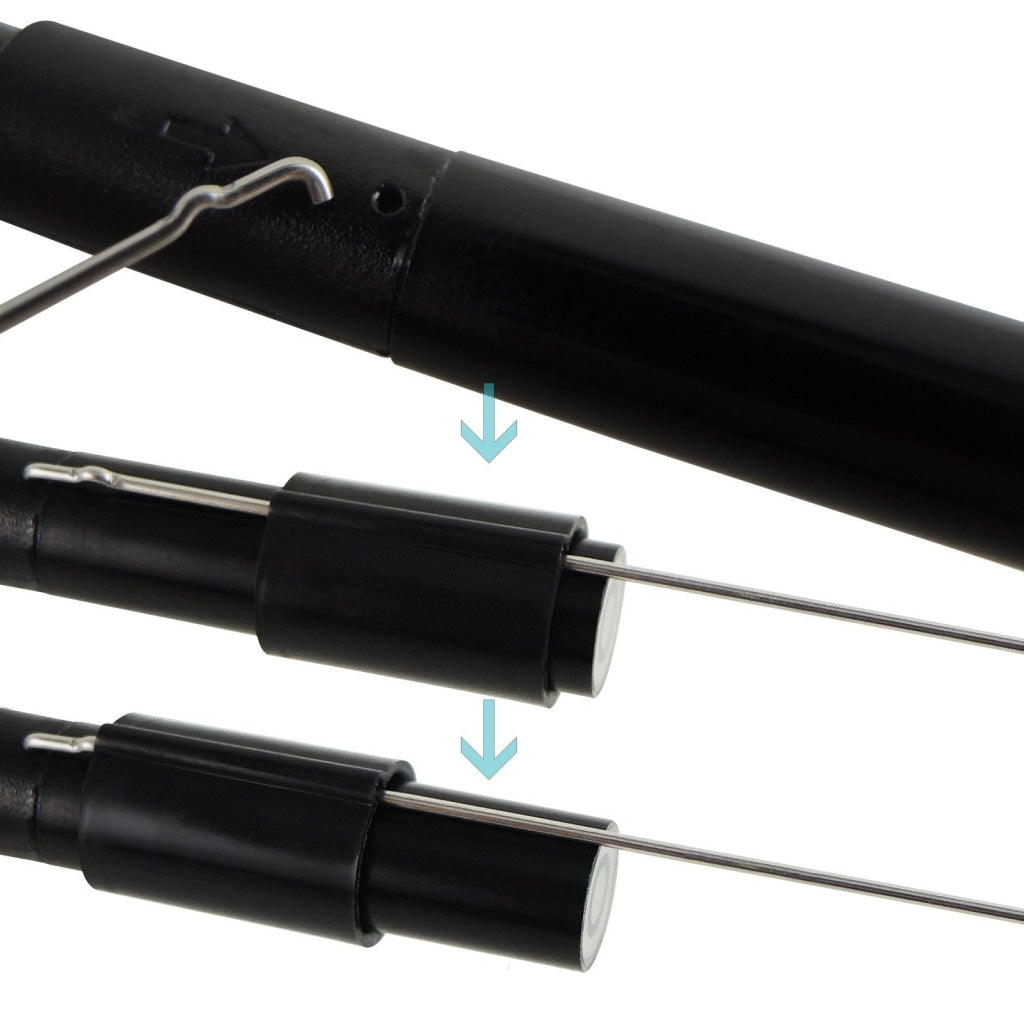

  • 1 x Double Hook Tip
  • 1 x Single Hook Tip
  • 1 x Magnet Tip
  • 1 x Mirror Tip
  • 1 x Rubber Ring
  • English Quick Start Guide
  • Carrying Case
  • Standard Factory Package



A printed user manual is already included with this item. No digital user manual or software is available.
