ILIC-863 Industrial 2.4 inch TFT LCD Video Borescope Car Pipe Inspection 10mm Camera

Sku: ILIC-863
$86.90 USD $90.90 USD
4
Translation missing: en.products.product.shipping_policy_html
Quantity:
Add to Wishlist Remove From Wishlist
Visa Mastercard PayPal American Express Google Pay Apple Pay Shop Pay

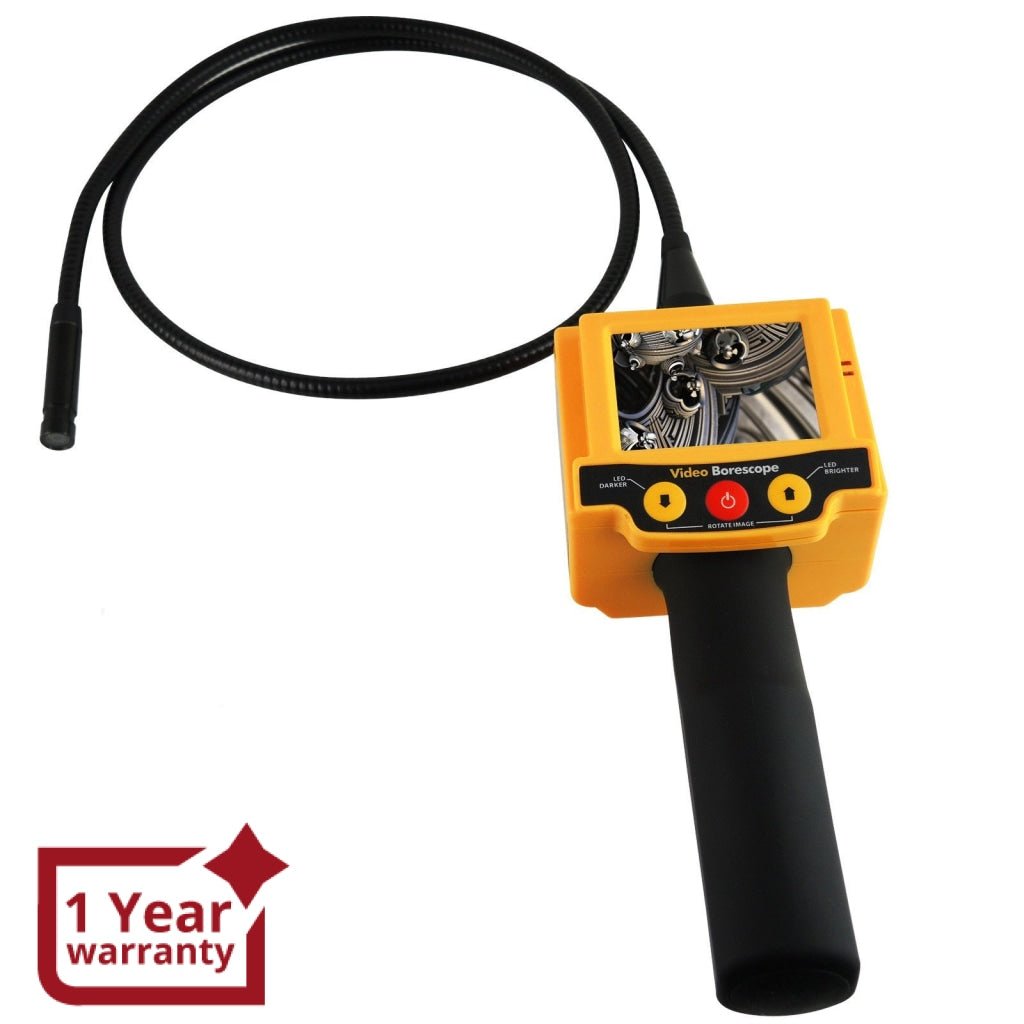

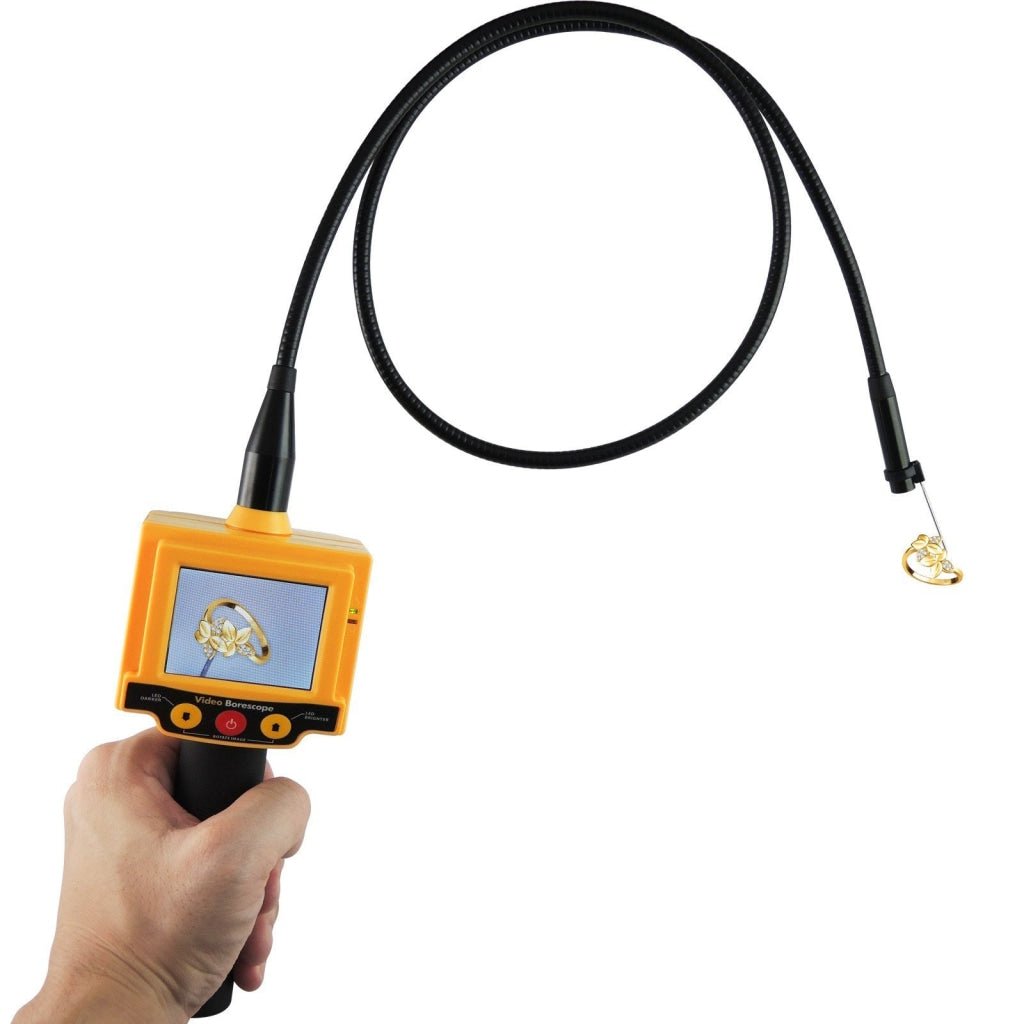

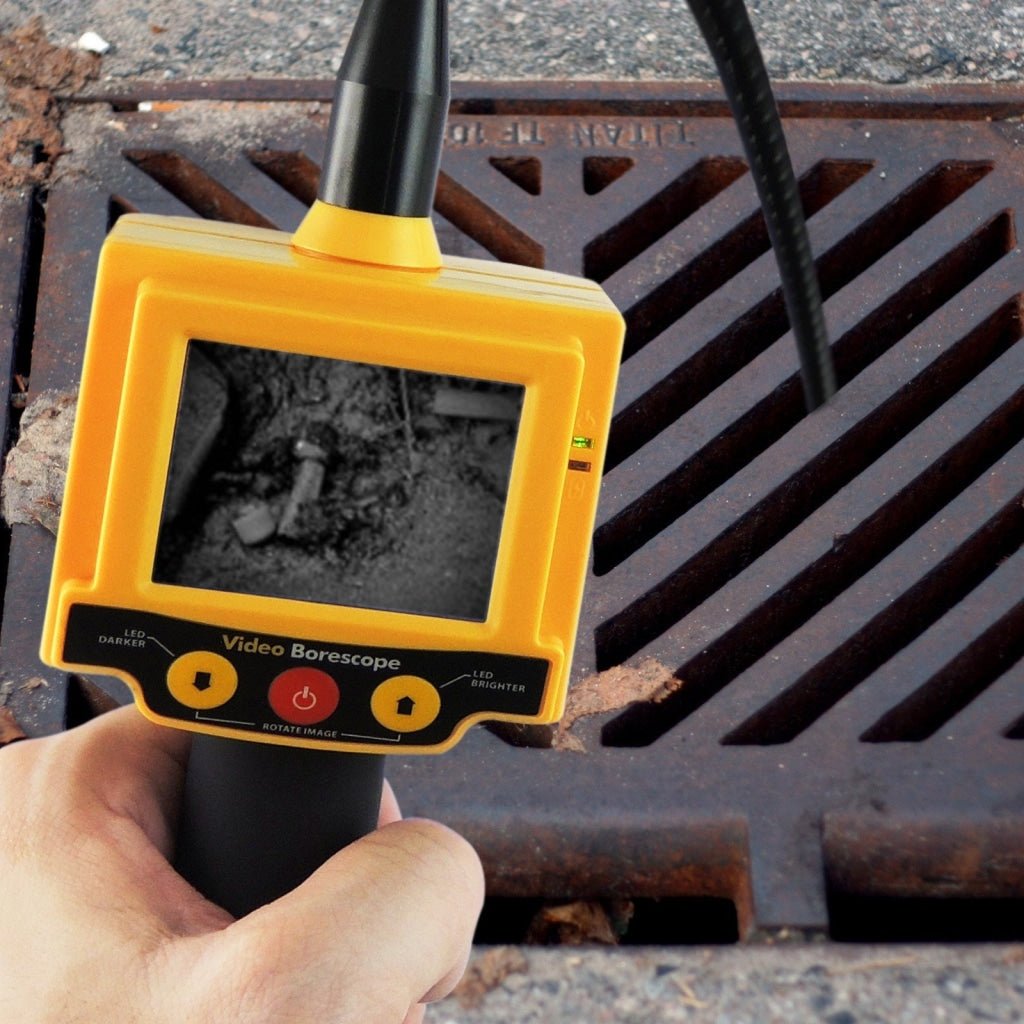

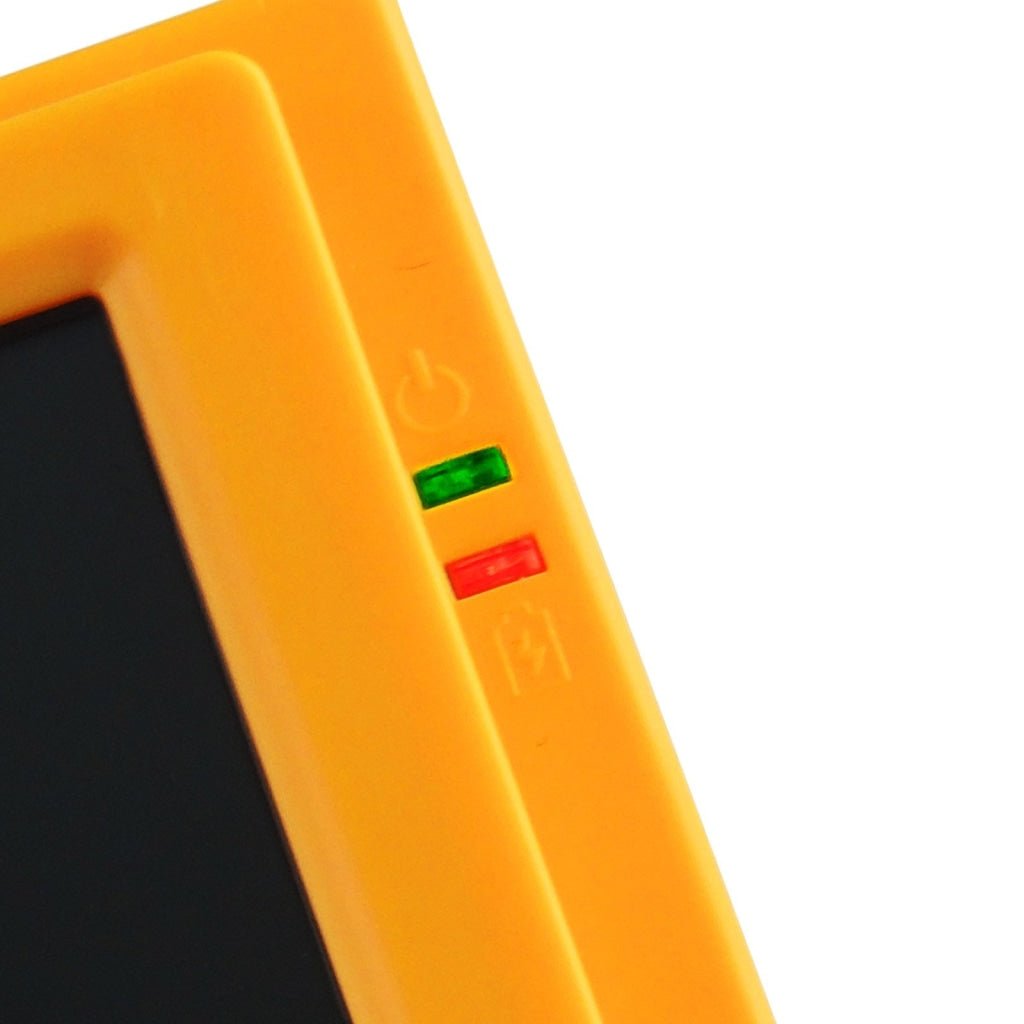

2.4" TFT LCD Video Borescope with 10mm camera tube diameter and adjustable 2 LED lights for viewing hard to reach area. It has water resistant camera head (IP67) and colored monitor with 320 x 234 pixel resolution. Image can be rotated by 180° for a more detailed inspection. It has LED power and battery indicator.

Wide range of application includes: Check car engine, Industrial field, Petrochemical Machinery, Gas pipe, Pest control, HVAC inspection, Aircraft inspection and etc.

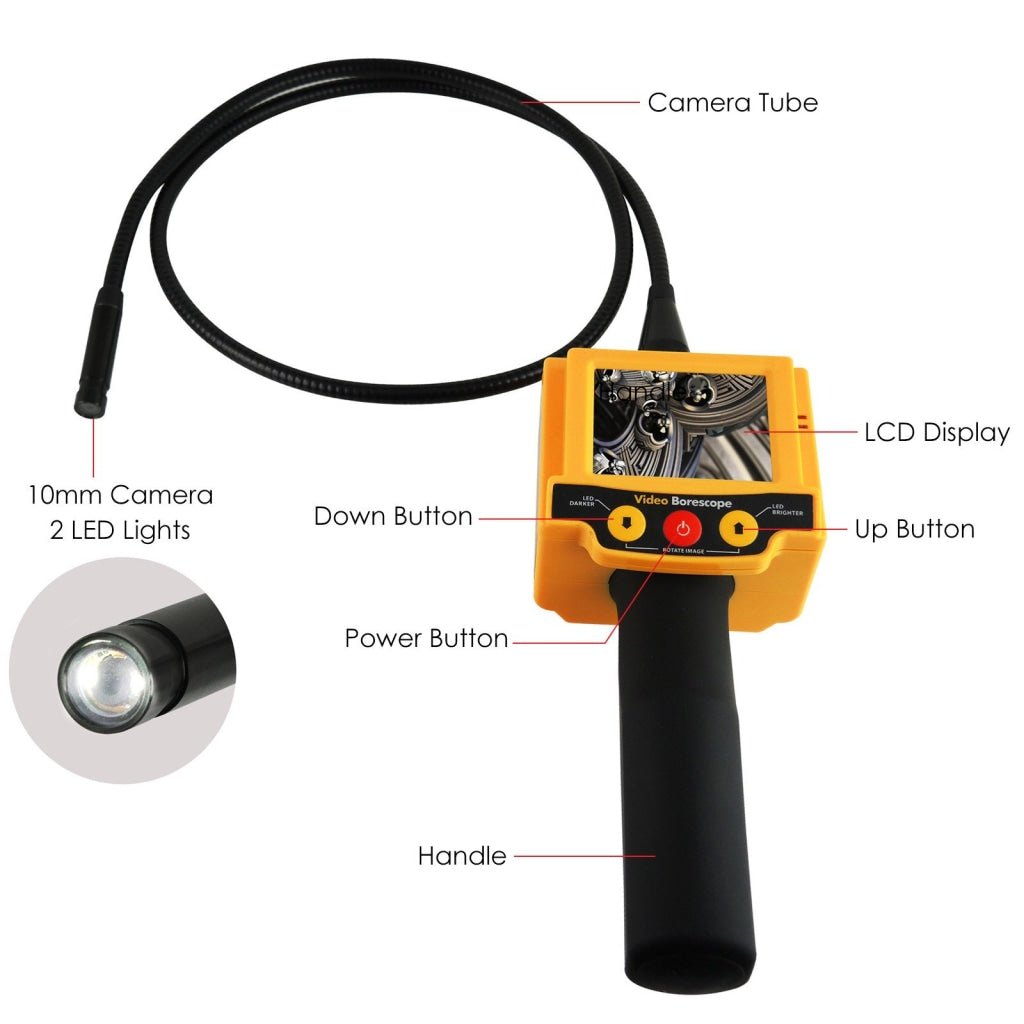

Features:

  • Glare-free close-ups and wide range field of view
  • 6.8mm PE covered metal probe with ABS handle
  • Water resistant Camera Head

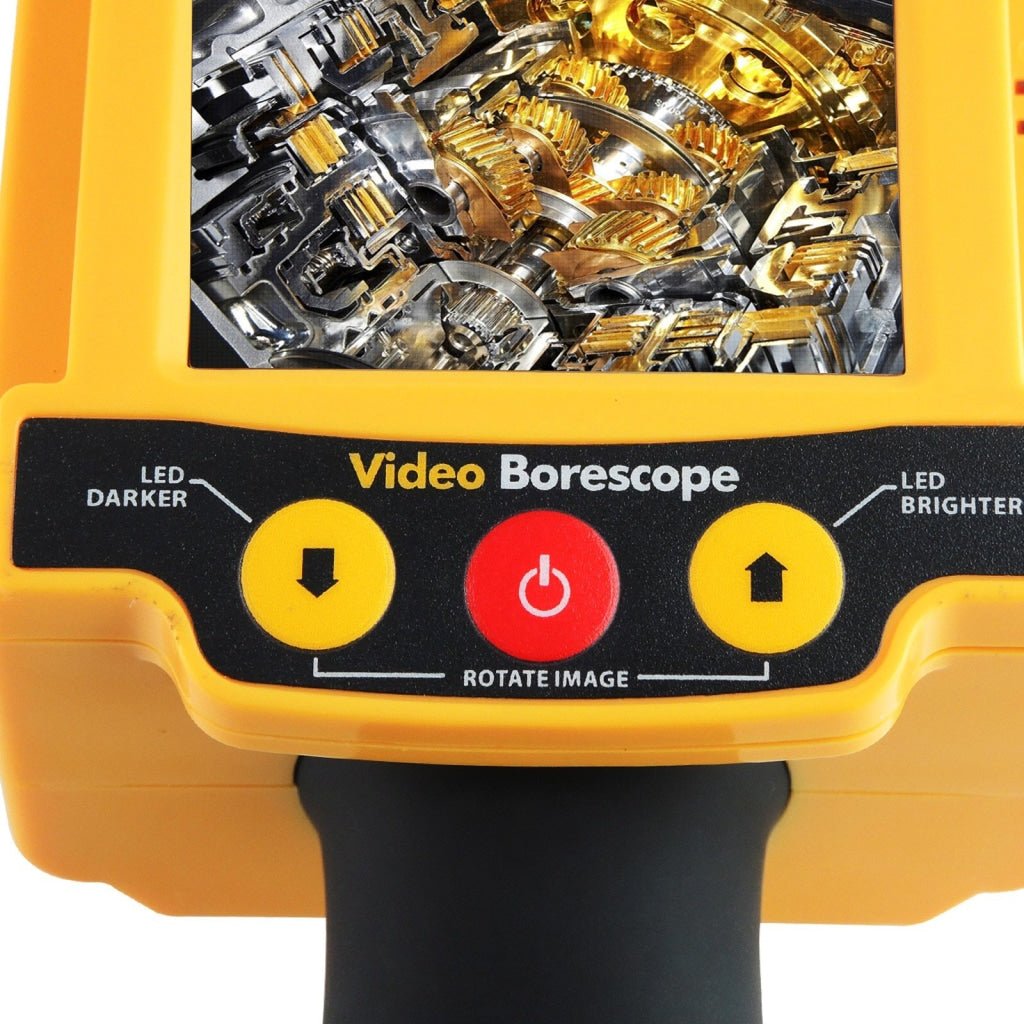

  • 2 white LED lights with brightness control
  • F# 2.8 Lens with 54° Viewable Angle and 3~6cm focal distance

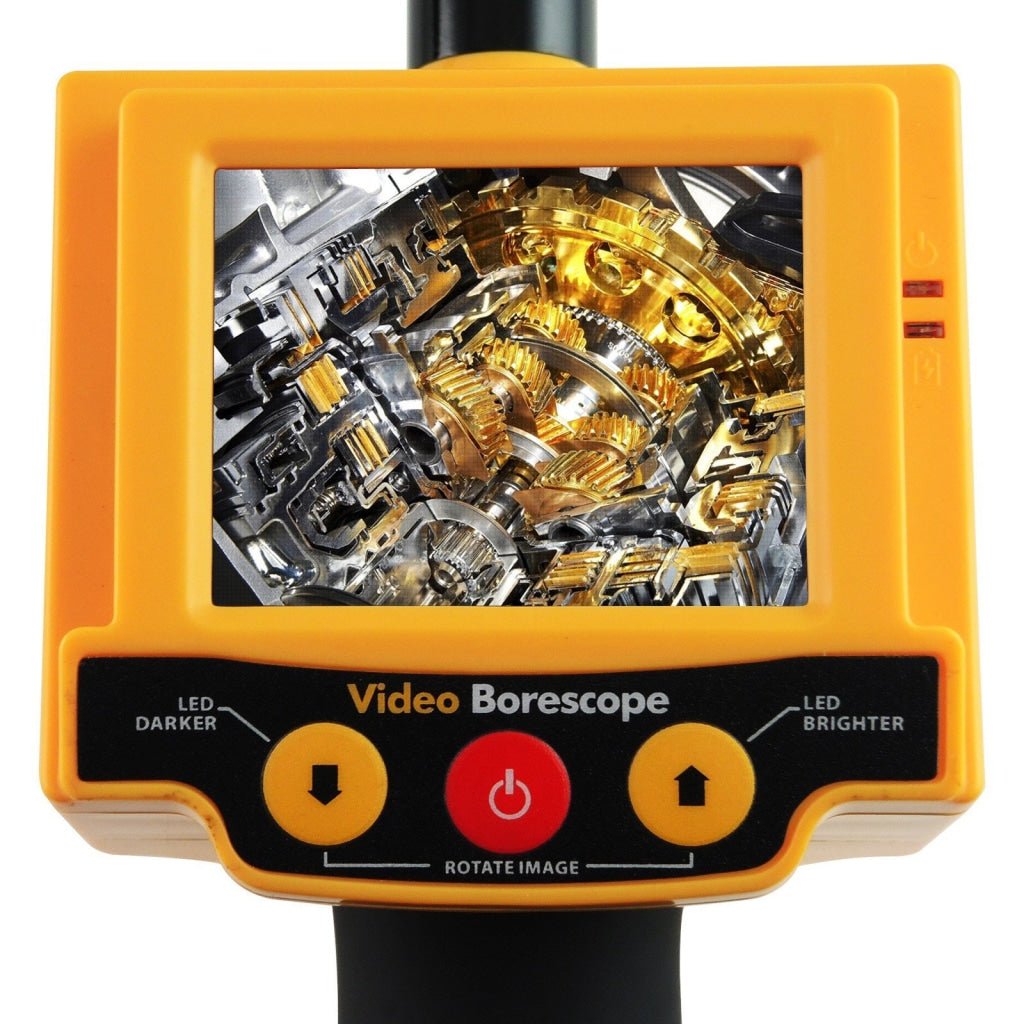

  • 2.4" TFT LCD Color Monitor with 320x234 pixels resolution
  • High resolution image, optical system, stable performance and easy to operate
  • Allows 180° image rotation
  • With Protective Rubber Housing, serves as shock absorber when accidentally dropped
  • High visibility color LCD display
  • Built-in high power adjustable LED's light
  • Lightweight ergonomic design
  • Fit for hard-to-reach distant inspection
  • Shaft can be exposed to water, IP67 water level
  • With CE marking, meets EU safety, health and environmental requirements





Specifications:

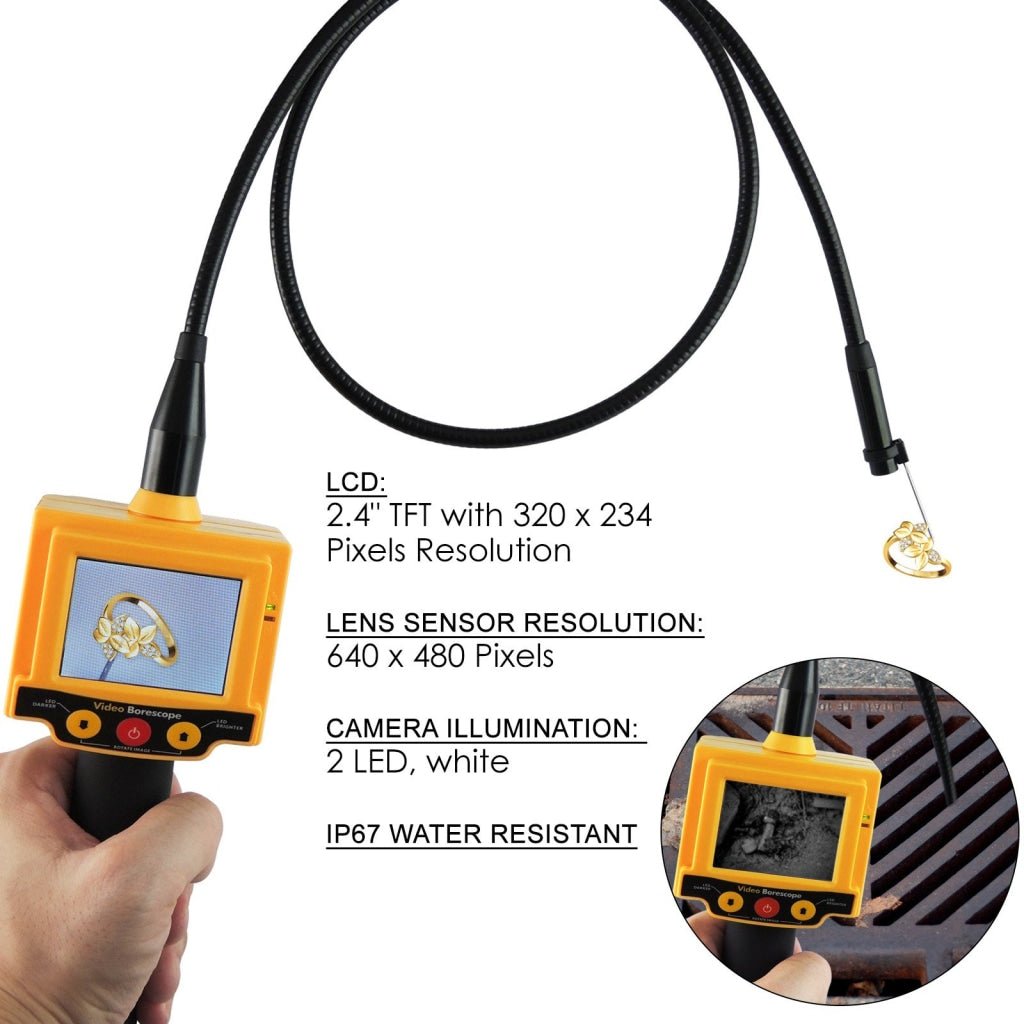

  • LCD: 2.4" TFT with 320 x 234 Pixels Resolution
  • Lens sensor resolution: 640 x 480 Pixels
  • Sensitivity: 1.8V (Lux.sec)
  • Color Mosaic: RGB Bayer pattern
  • White Comparison: Automatic
  • Exposure to light: Automatic
  • Camera Illumination: 2 LED, white
  • Lens: F# 2.8
  • Viewable angle: 54°
  • Focal distance: 3~6cm
  • Outer diameter: 10.0mm
  • IP67 water resistant

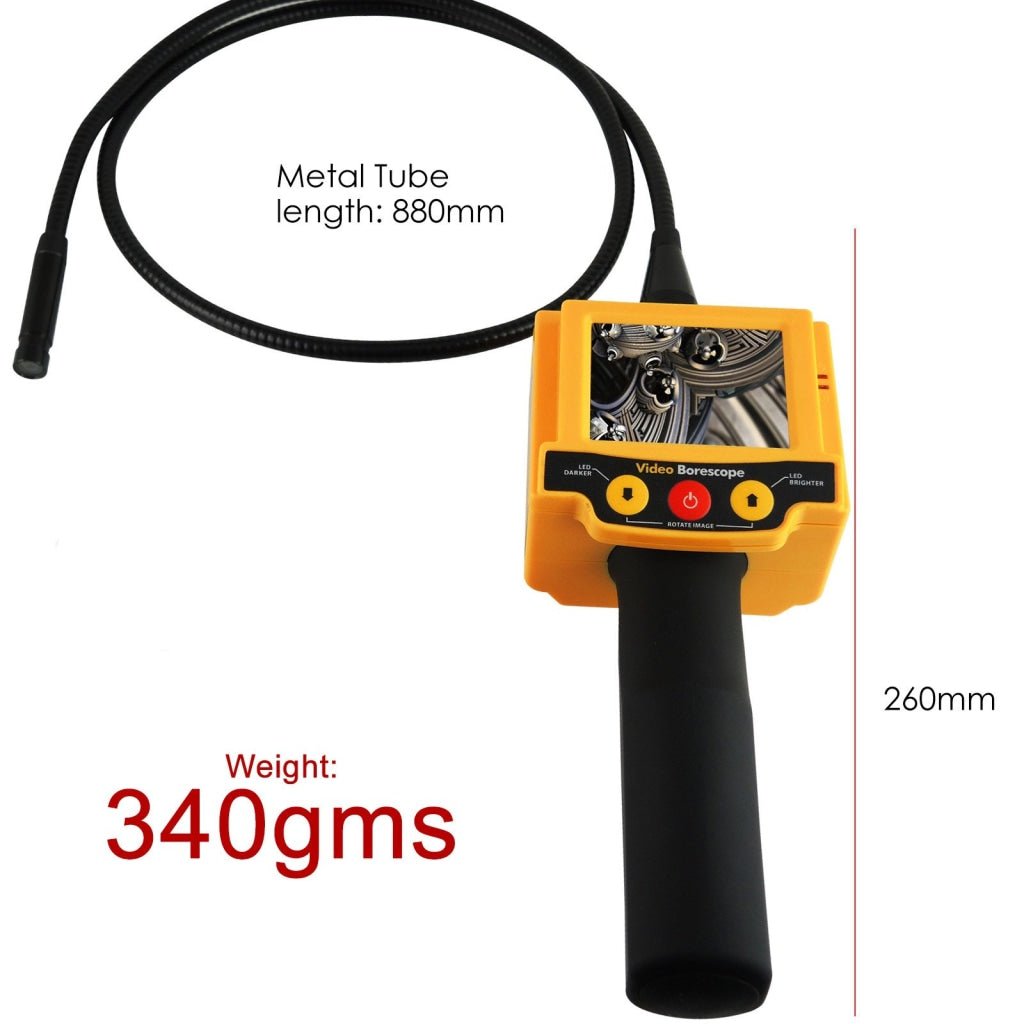

  • Probe Metal Tube Length: 88.0 ±2.0cm
  • Metal Tube diameter: 6.8mm
  • Minimum Bending radius: 4.5cm
  • Ambient/Operation Temperature: 0 ~ 45°C

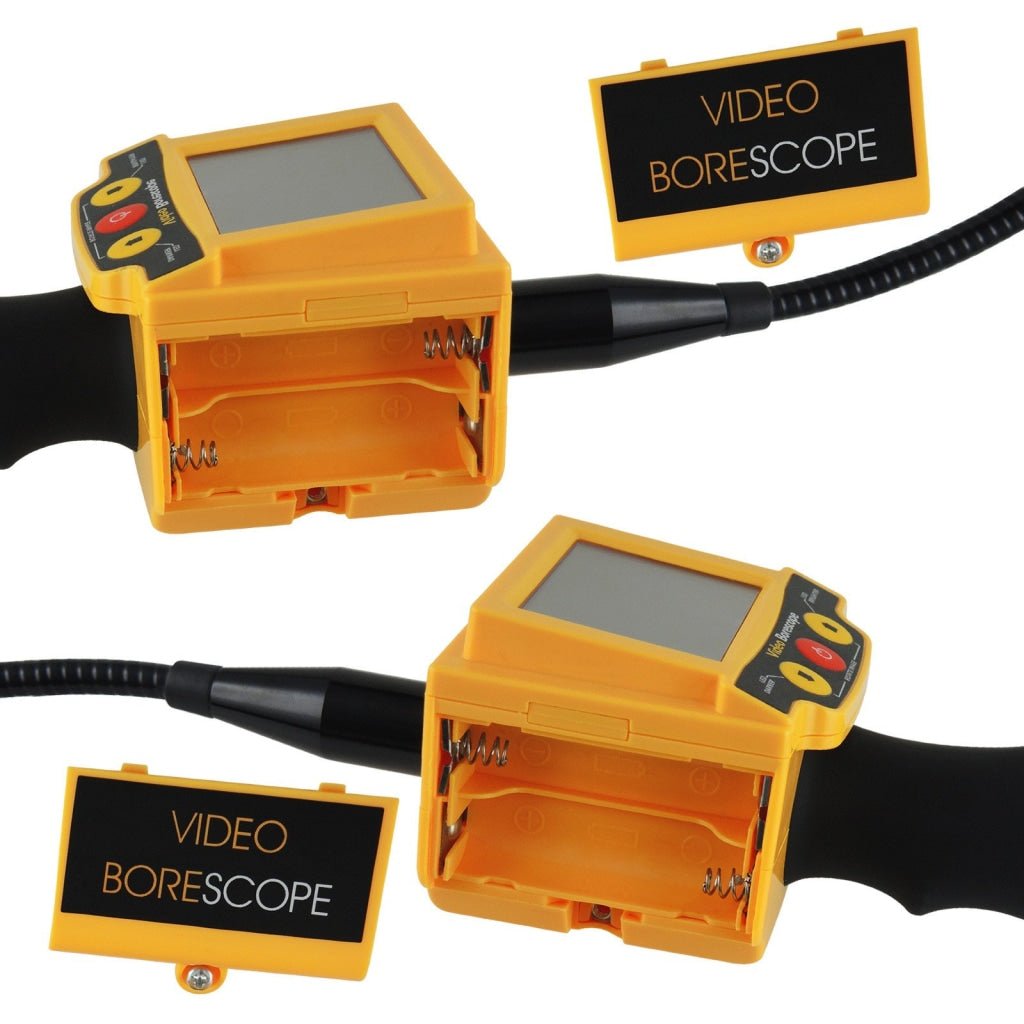

  • Power: 4 x 1.5V AA batteries
  • Power Consumption: Max 350 mA
  • Total Lenght of the device: 114.0 ±2.0cm
  • Weight (excluding accessories): approx. 340gms

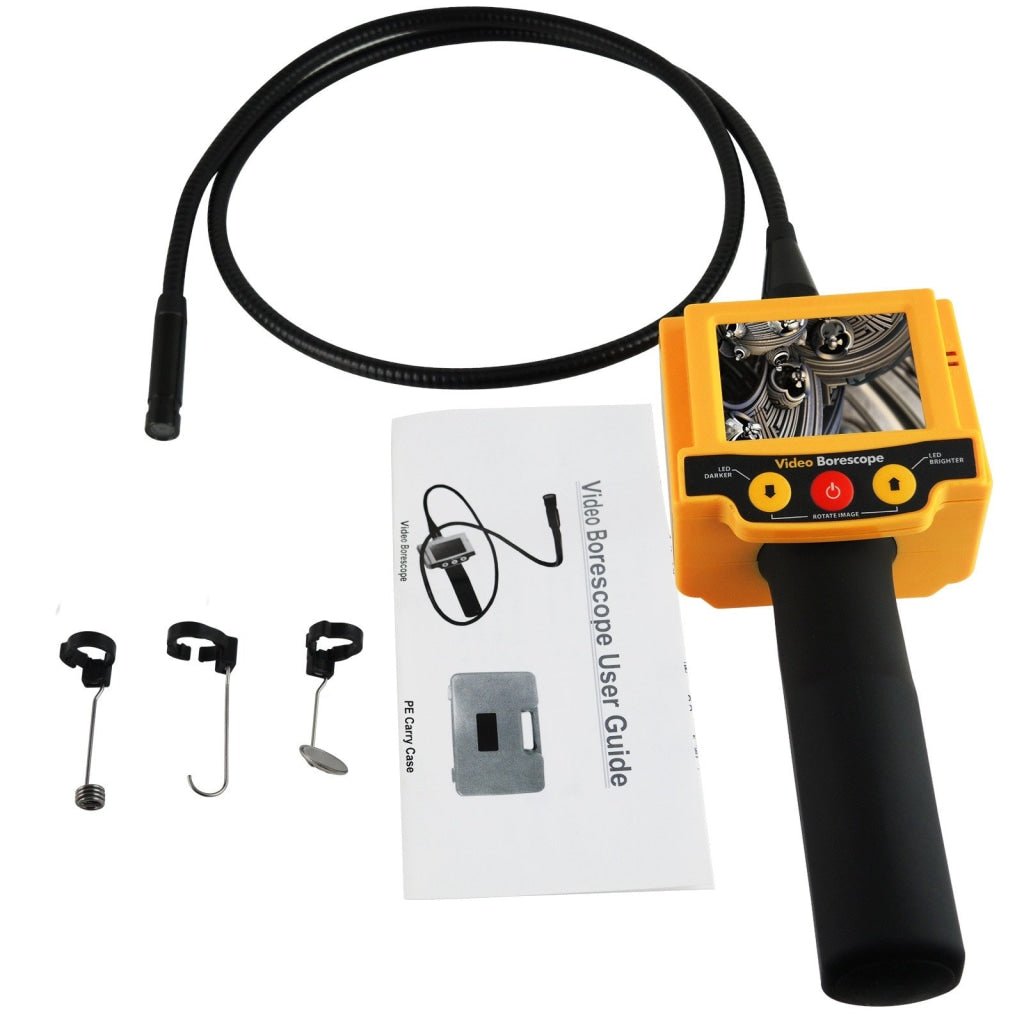

Set Includes:

  • 1 x Video Borescope with built-in probe

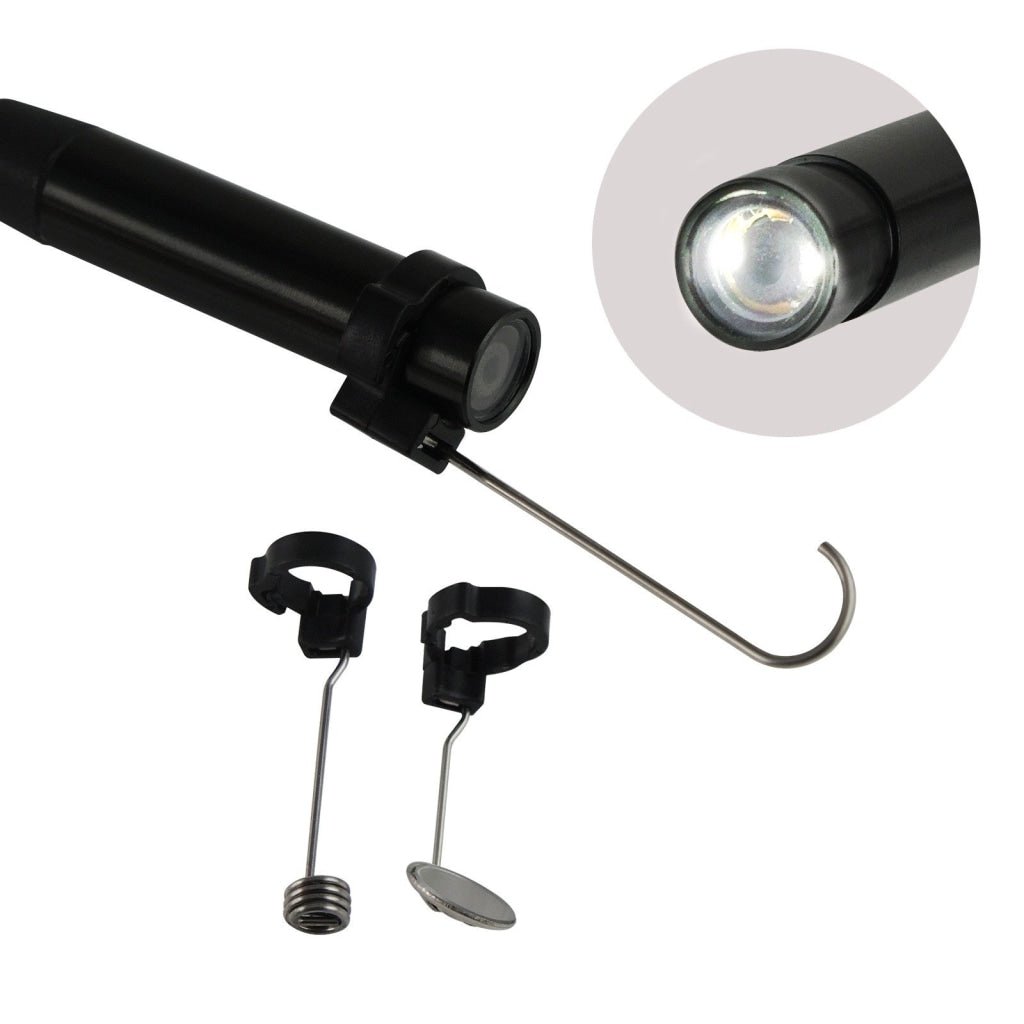

  • 1 x Hook tip
  • 1 x Mirror tip
  • 1 x Magnet tip
  • 1 x English User's Manual
  • Standard factory packaging

A printed user manual is already included with this item. No digital user manual or software is available.
