ILHT-6560 Leeb Hardness Meter Tester 200-900 HLD Metals Durometer D Type Impact Measurement Gauge Test Kit (HRB HRC HV HB HS HL) for Solid Aluminum Steel Iron Bronze 9 Materials

Sku: ILHT-6560
$376.90 USD
Translation missing: en.products.product.shipping_policy_html
Quantity:
Add to Wishlist Remove From Wishlist
Visa Mastercard PayPal American Express Google Pay Apple Pay Shop Pay

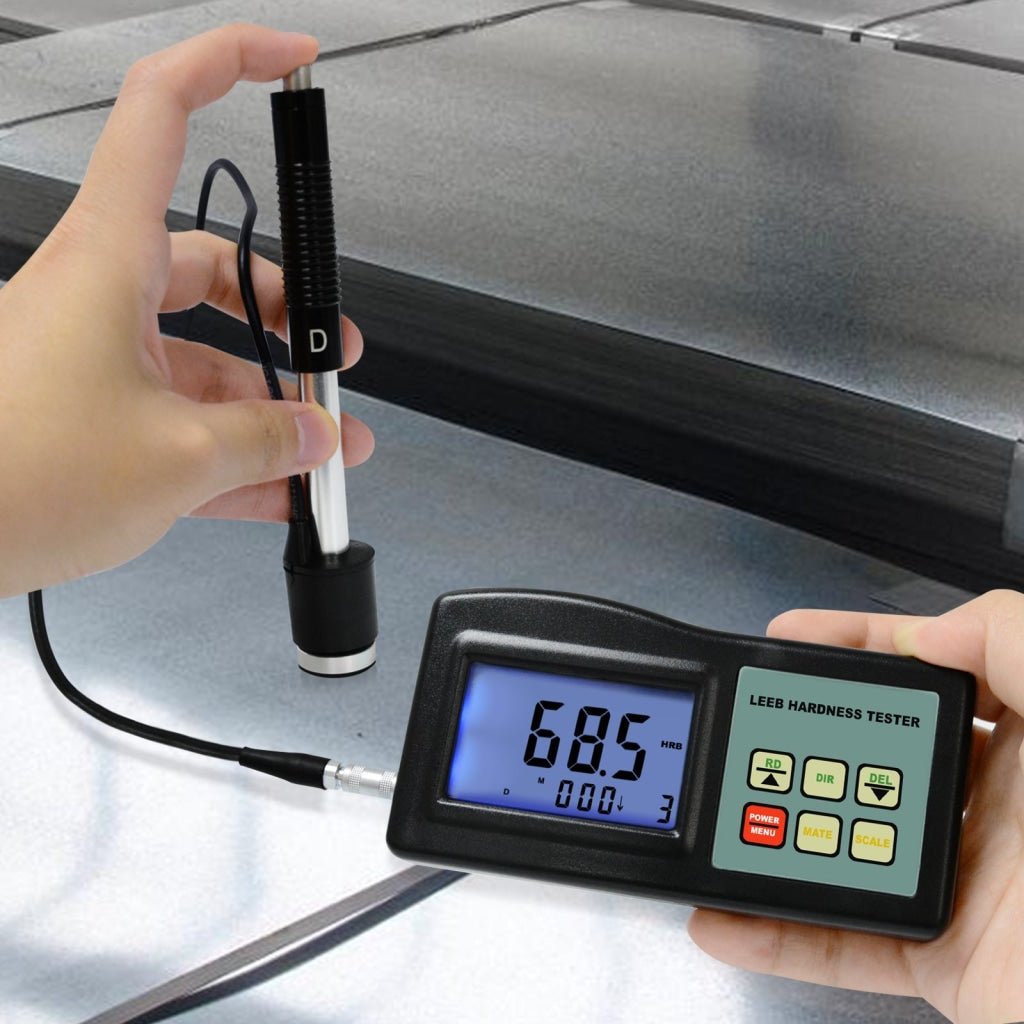

ILHT-6560 (Functional Type) Leeb’s Hardness Tester measures the hardness of sample material in terms of Hardness Leeb (HL), which can be converted into other Hardness units (Rockwell B and C, Vicker, Brinell and Shore D)

Typical Applications are:

  • Die cavity of molds
  • Inspection o f bearing and other mass produced parts on a production line
  • Failure analysis of pressure vessel, steam generator and other equipment
  • Inspection of installed machinery, permanent parts of assembled systems and heavy work pieces
  • Testing surface of a small hollow space
  • Material identification in the warehouse of metallic materials
  • Rapid testing in large range and multi-measuring areas for large-scale work piece

Features:

  • Applies light weight ABS-plastic housing
  • Palm size for narrow space
  • Test at any angle, even upside down
  • Direct display of hardness scales HRB, HRC, HV, HB, HS, HL
  • Able to store 50 groups including single measured value, impact direction, material and hardness scale etc
  • User re-calibration function allowed
  • Manual or automatic power off
  • Low battery indication
  • Average times setting
  • Use USB data output to connect with PC (cable and software not included in the set)
  • Provide Bluetooth data output choice (adapter and software not included in the set)


Specifications:

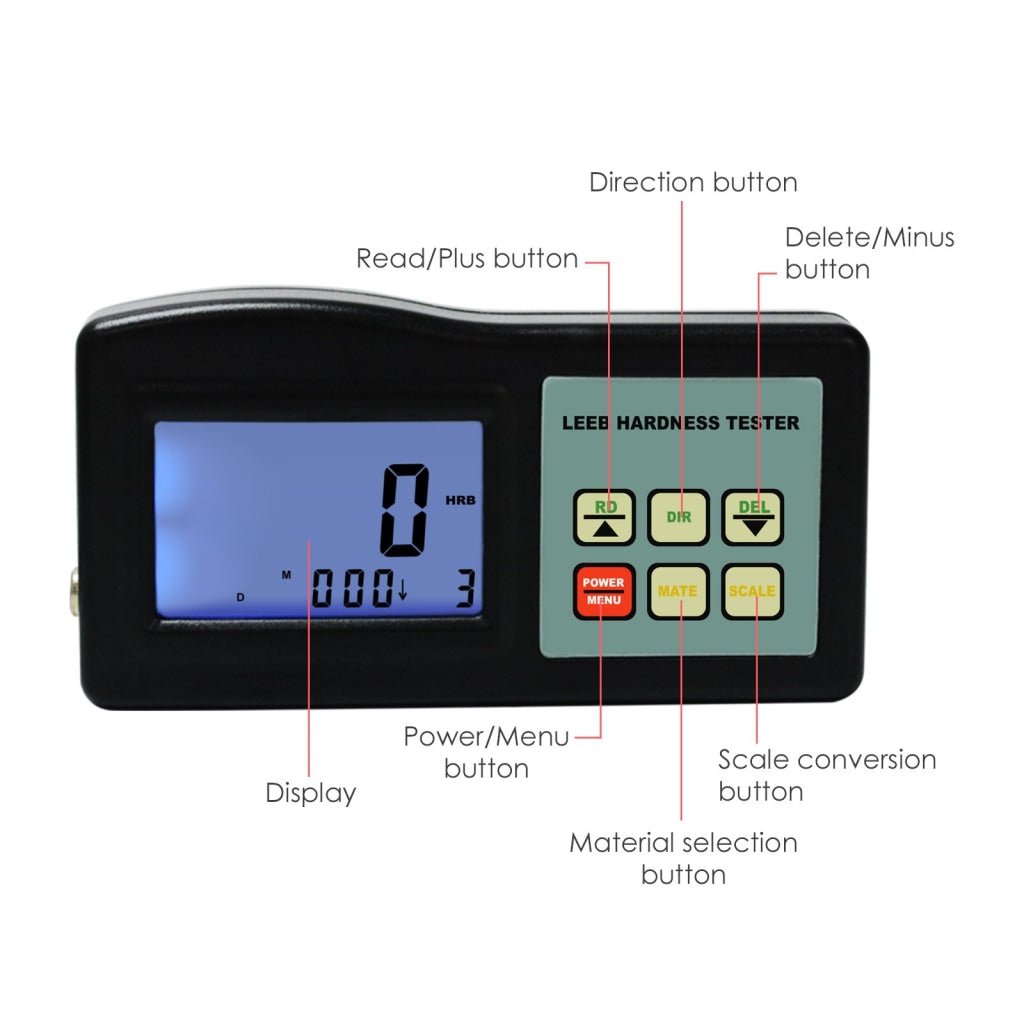

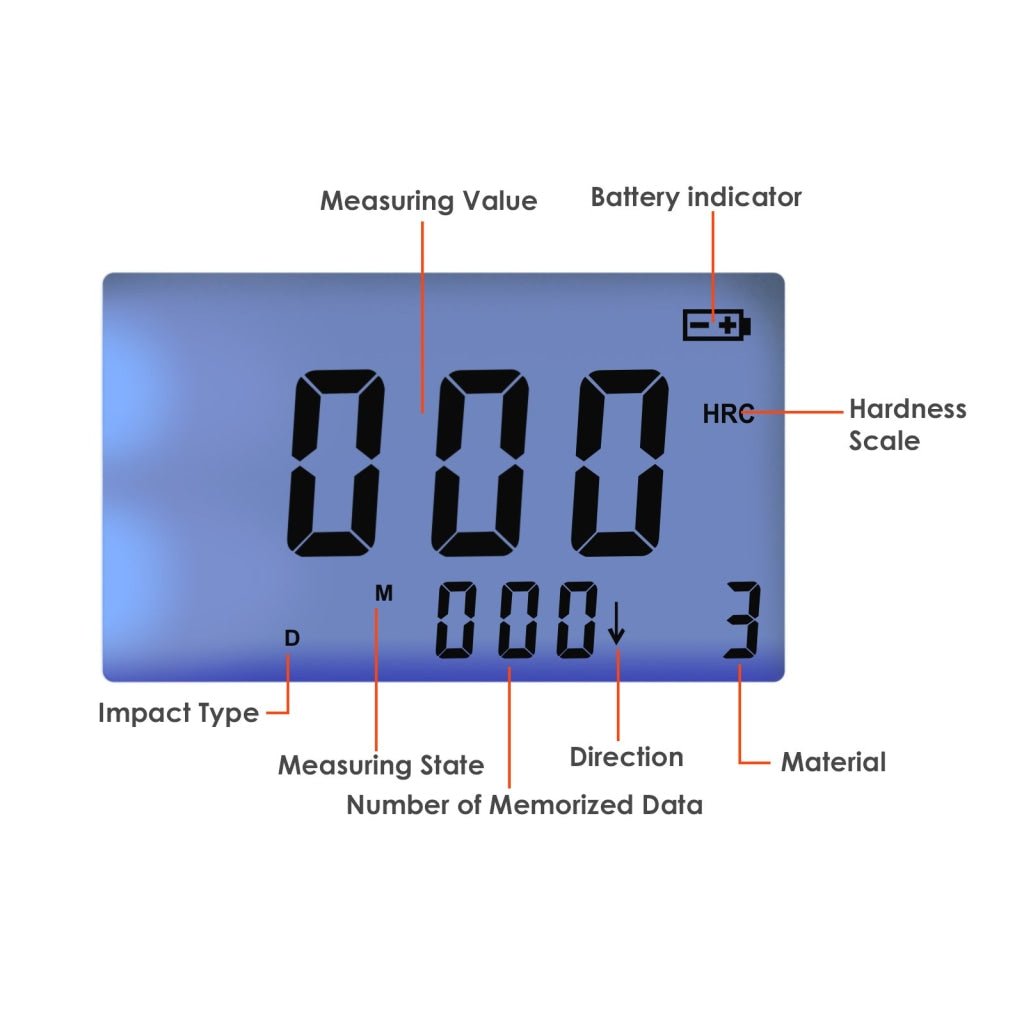

  • Display: 12.5mm LCD with backlight
  • Materials: 9 different common materials ( Steel & Cast Steel, C. W. Tool Steel, Stainless Steel,
  • Gray Cast Iron, Nodular Cast Iron, Cast Aluminum, Brass, Bronze, Copper )
  • Measuring Range: 200~900 (HL)
  • Accuracy: Display Error ±0.8% at LD=900
  • Repeatability: ±0.8 %
  • Conversion: HL-HRC-HRB-HB-HV-HSD
  • Memory: 50 Data Can Be Stored And Re-readable

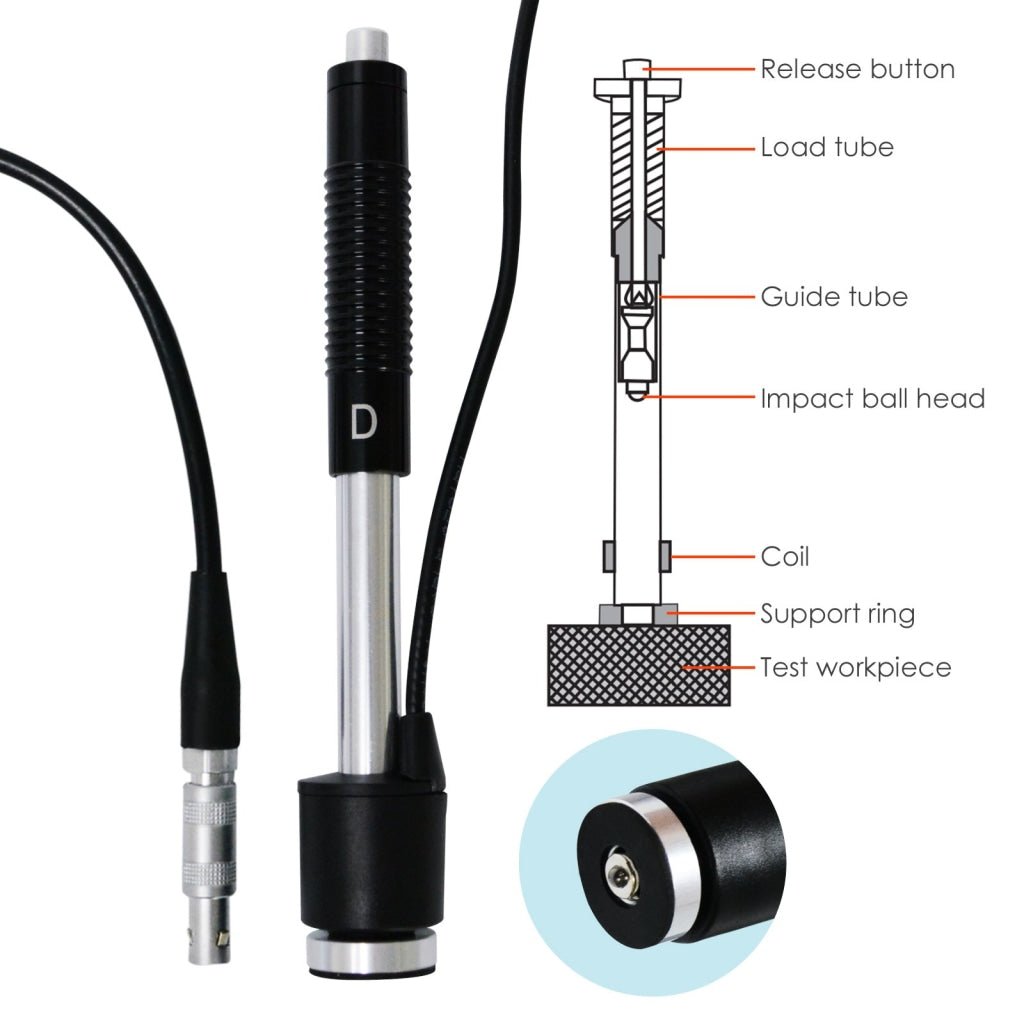

  • Impact device: Probe D Will handle the majority of hardness testing applications, Weight: 75 g
  • Storage Temperature: -30 ~ 60 °C
  • Operating Conditions
    • Temperature: -10 ~ 50 °C
    • Humidity: ≤90% RH

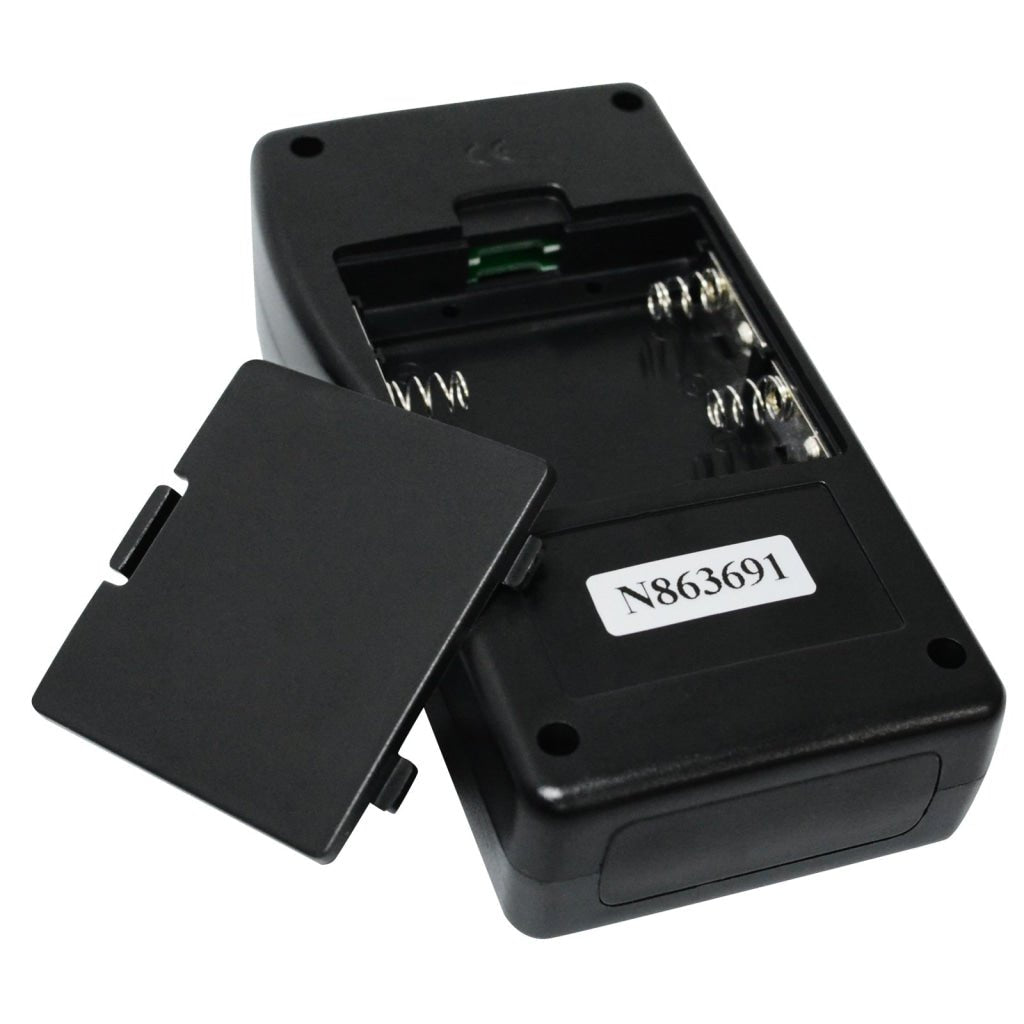

  • Power Supply: 4 x 1.5V AAA (UM-4) Battery
  • Dimensions: 120 x 62 x 30mm
  • Weight: 164 g (Not Including Batteries)

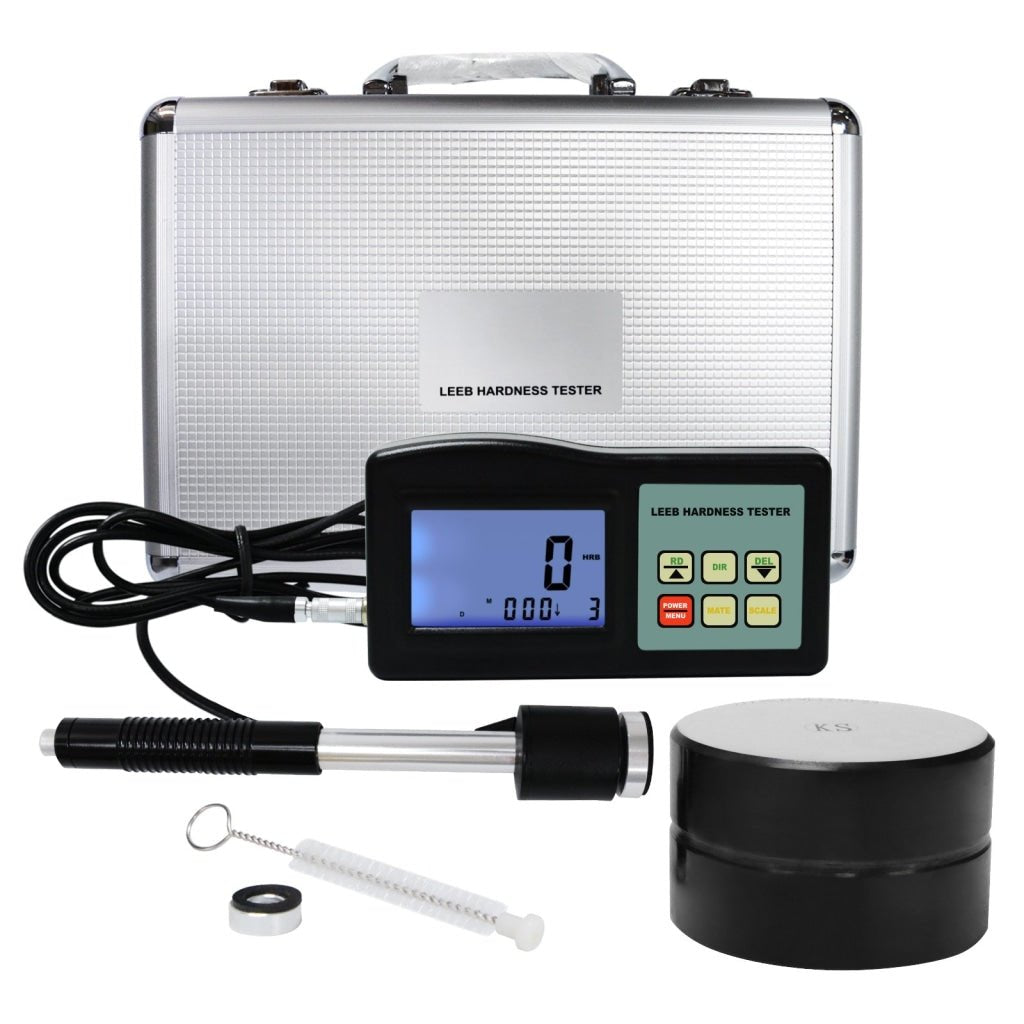

Set Includes:

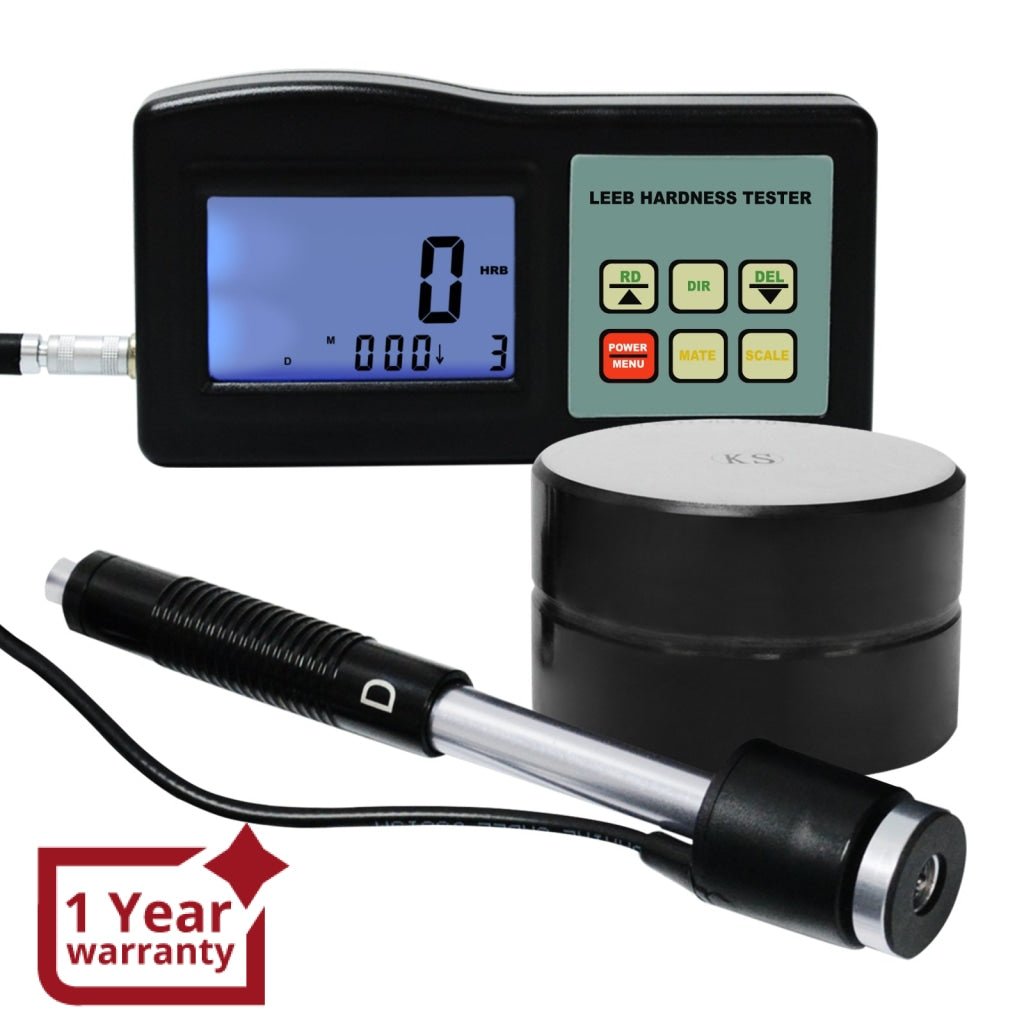

  • 1 x Leeb Hardness Tester (main unit)

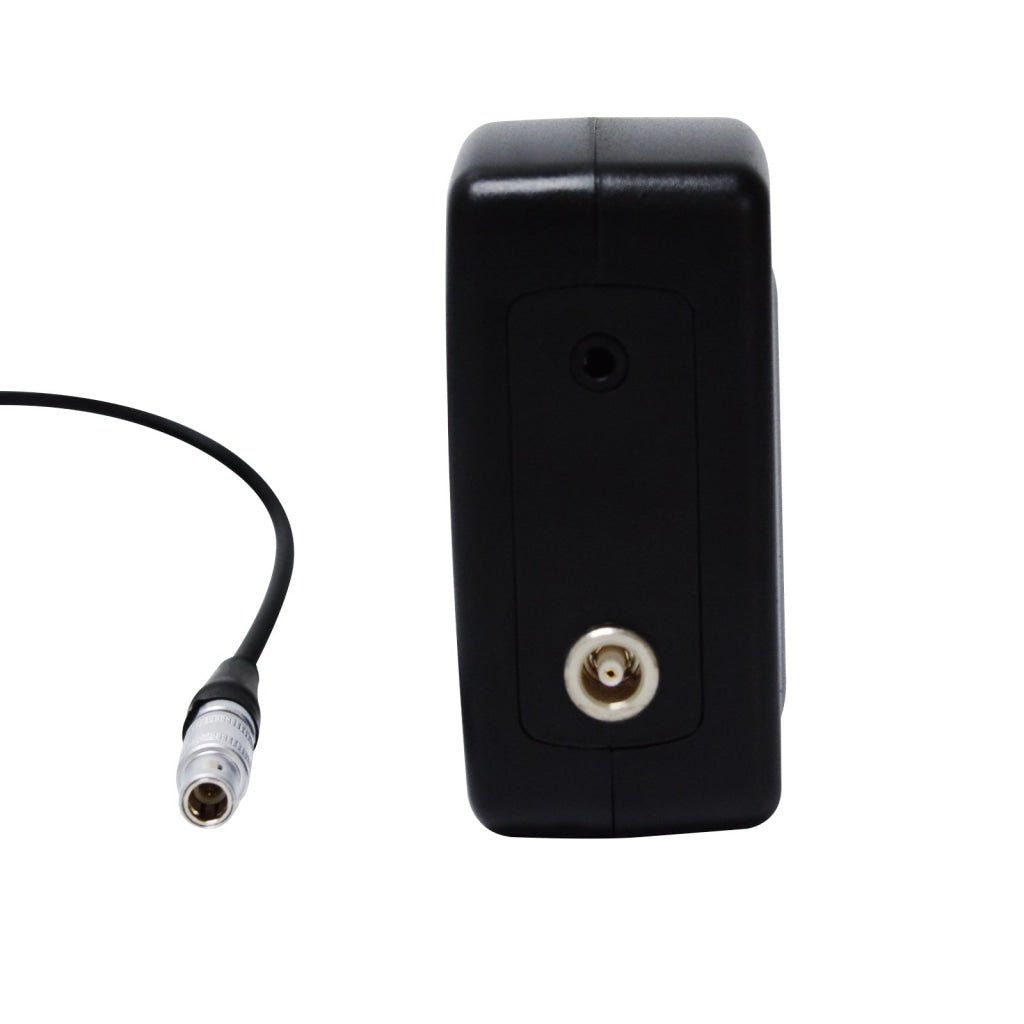

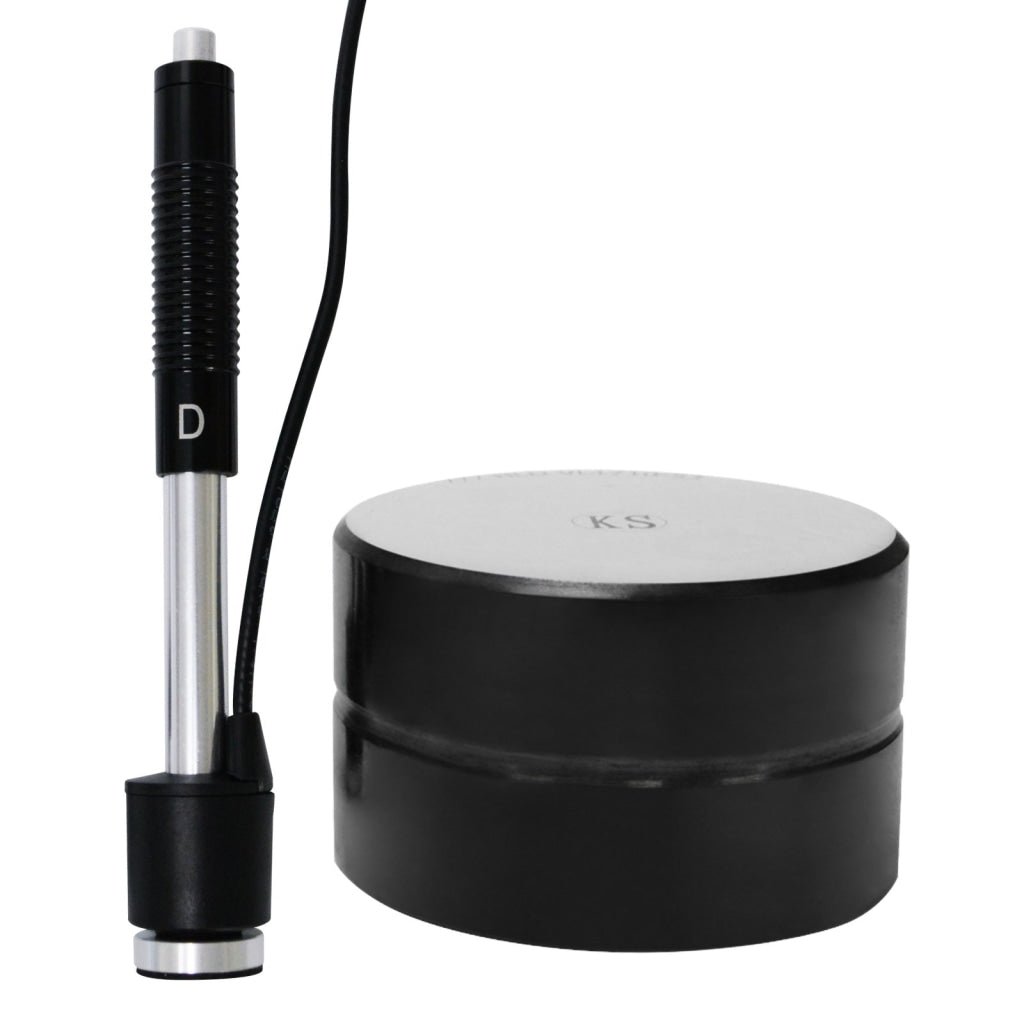

  • 1 x Probe With Cable
  • 1 x Standard Test Block
  • 1 x Small Support Ring
  • 1 x Cleaning Brush
  • 1 x English Instruction Manual

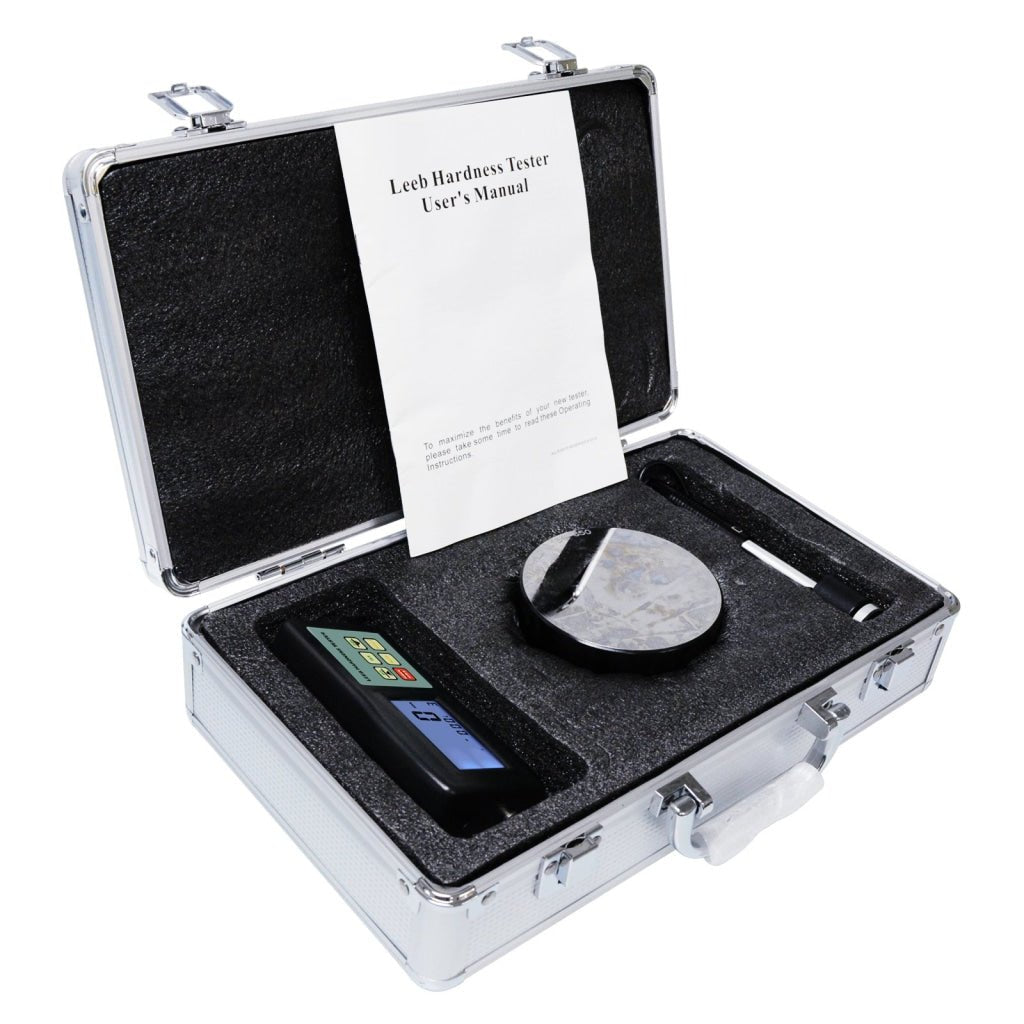

  • Carrying Case
