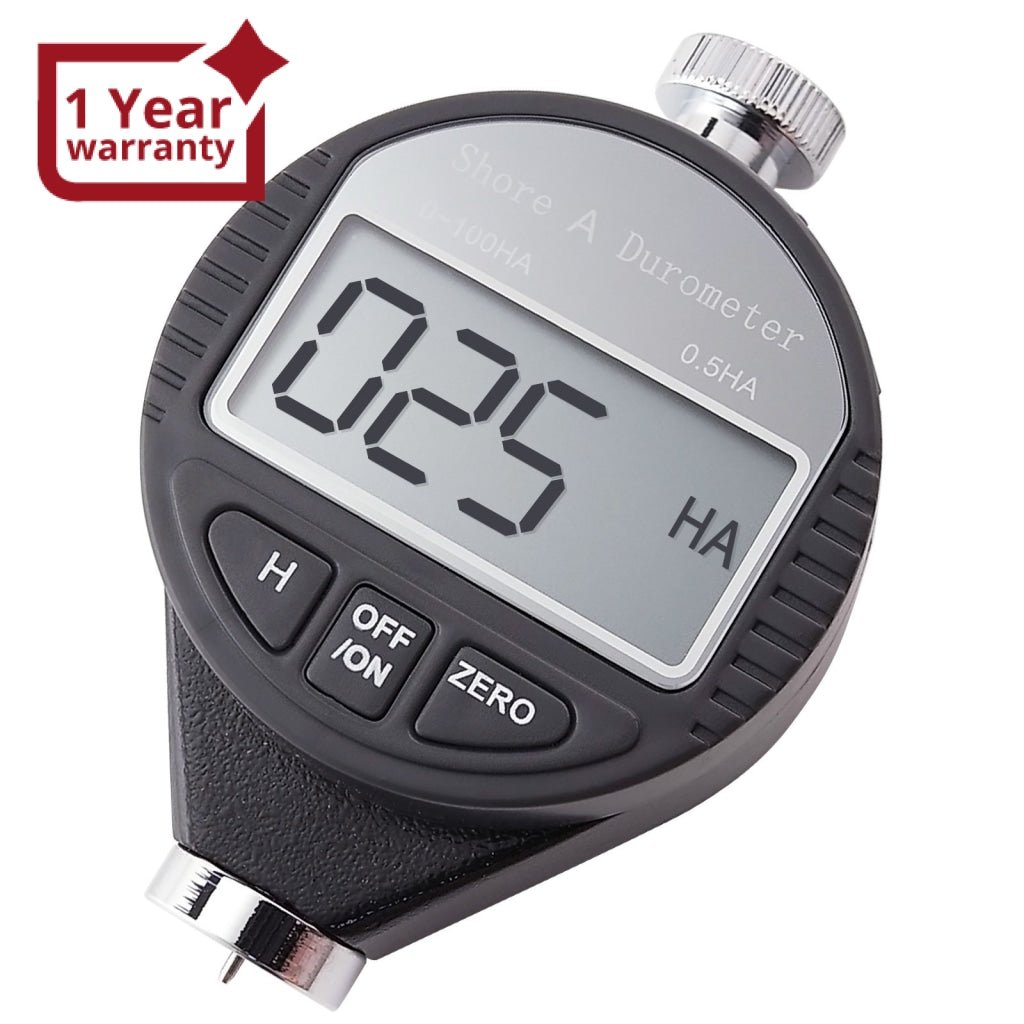

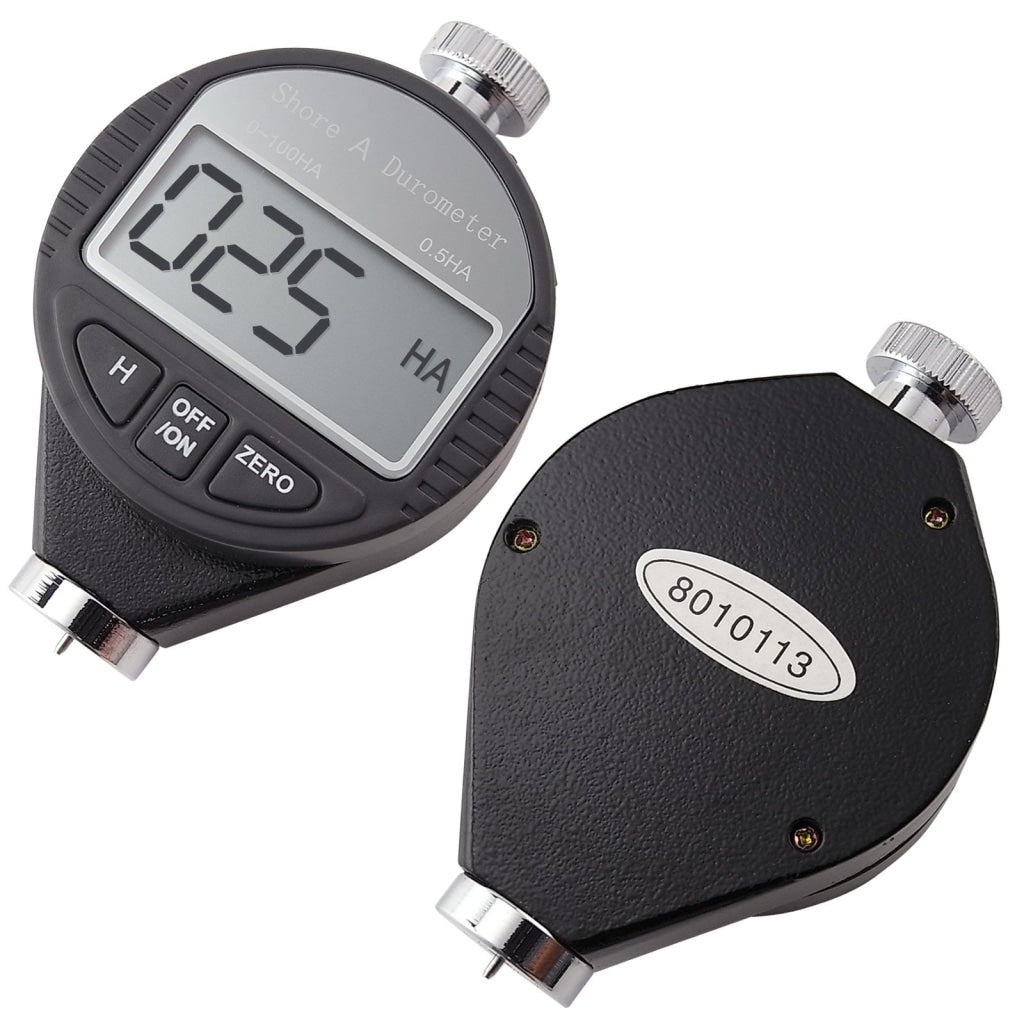

ILHT-36 Shore A Digital Hardness Meter Durometer 0~100HA, Rubber Tire with LCD Display Pocket Size Tester

Sku: ILHT-36
$44.90 USD
Translation missing: en.products.product.shipping_policy_html
Quantity:
Add to Wishlist Remove From Wishlist
Visa Mastercard PayPal American Express Google Pay Apple Pay Shop Pay

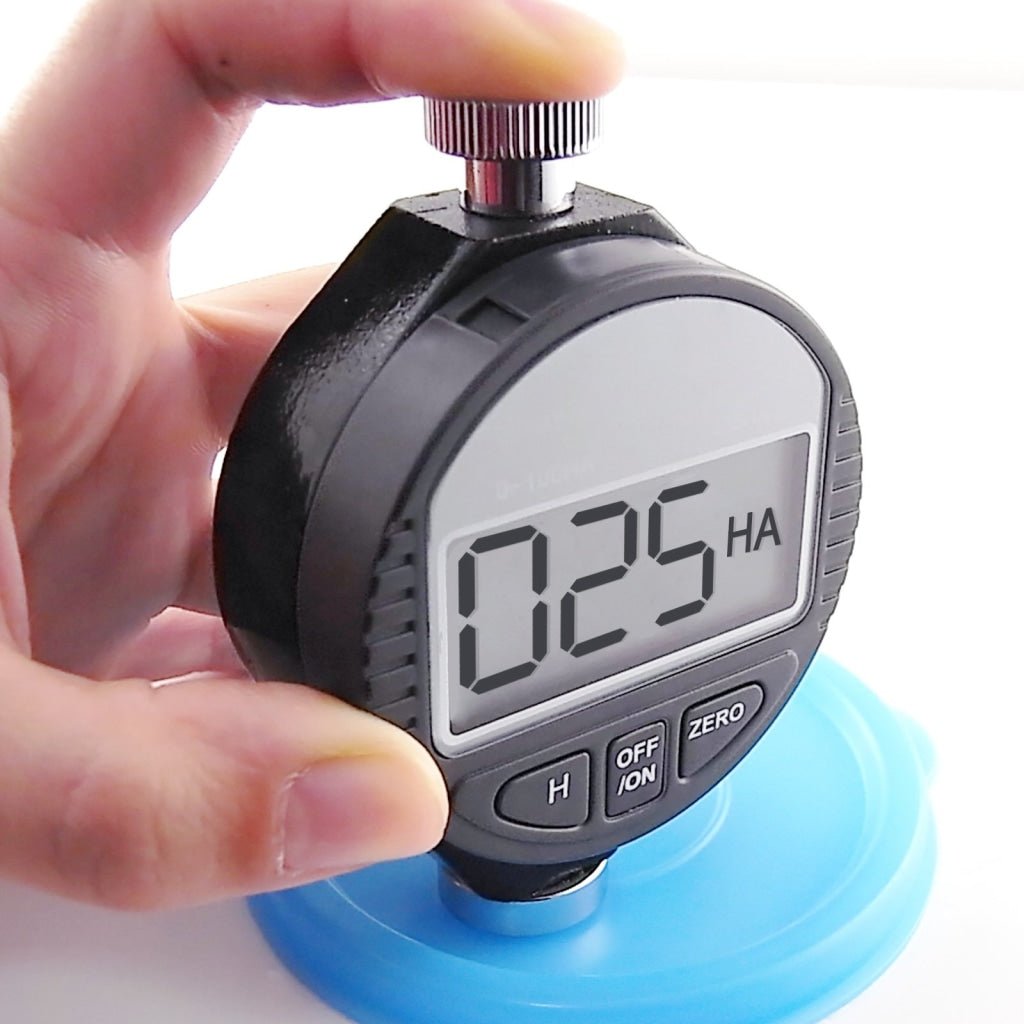

This Shore A Digital Hardness Tester measures the hardness of rubber and plastics.

Type A durometers are applicable to test the medium penetration hardness of rubber, plastic, leather, multi-grease, wax, etc.


Notes:

  • A minimum thickness of 6mm as sample test probes is recommended for measurement's optimal results (if it's less you may add more layers but should not be more than 3 layers) and a measuring point of at least 18mm distance from the outside edges
  • It is recommended that measurements be made with the type D durometer when the value is above 90 HA

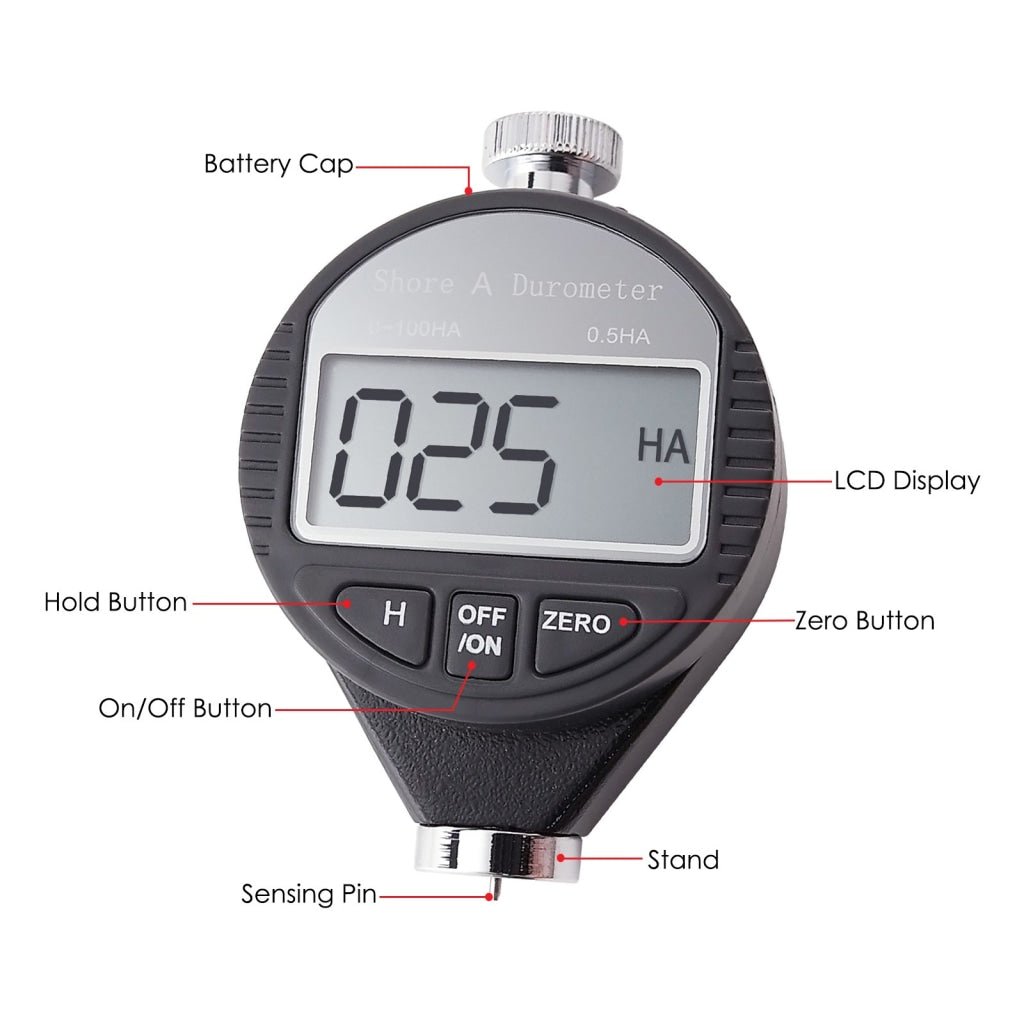

Features:

  • Wide measuring range with high resolution and ease of operation
  • Hold Function, holds measured value in test
  • With Zero setting
  • Dial Scale is 1-100HA
  • High-grade probe with 0-2.5mm Pointer journey

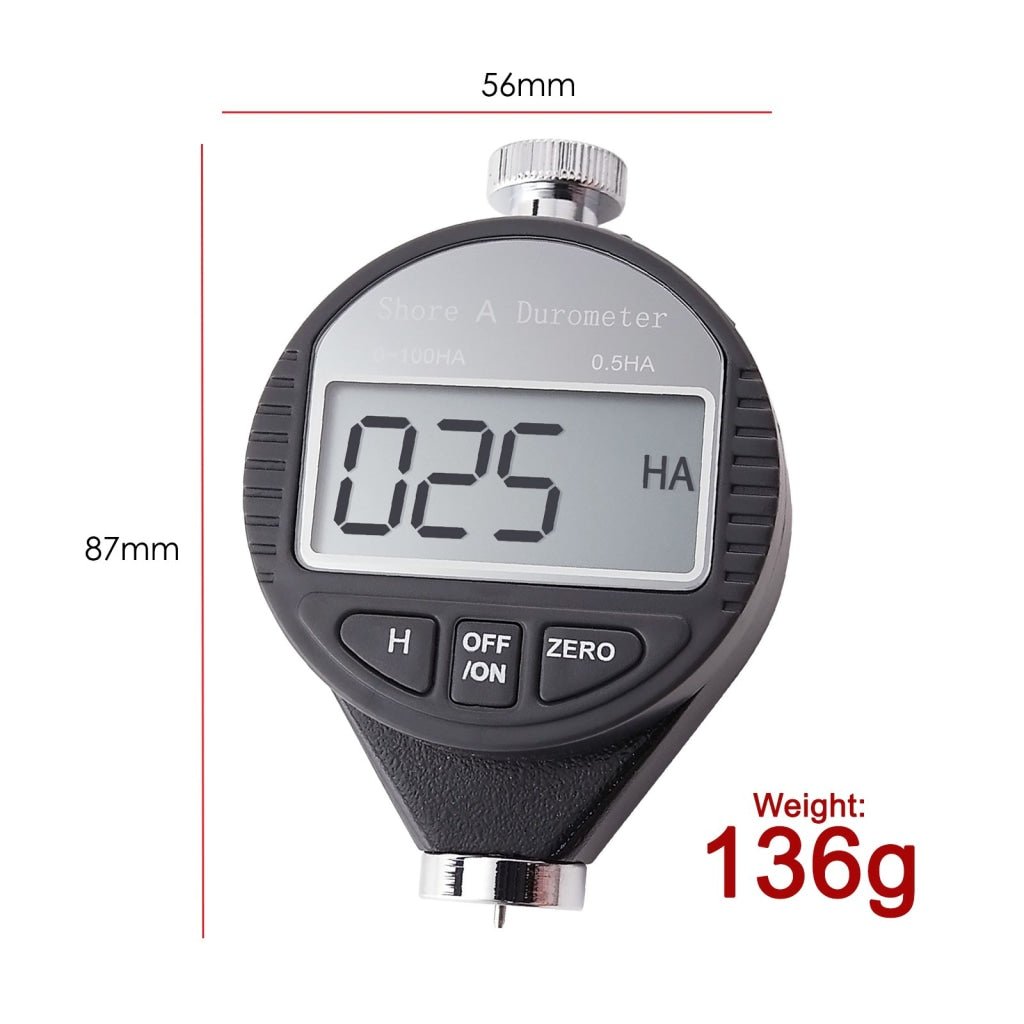

  • Small in dimension, lightweight, and can easily be transported
  • 35º included angle with 0.5HA resolution
  • Delivers ultra-accurate reading with no guessing error

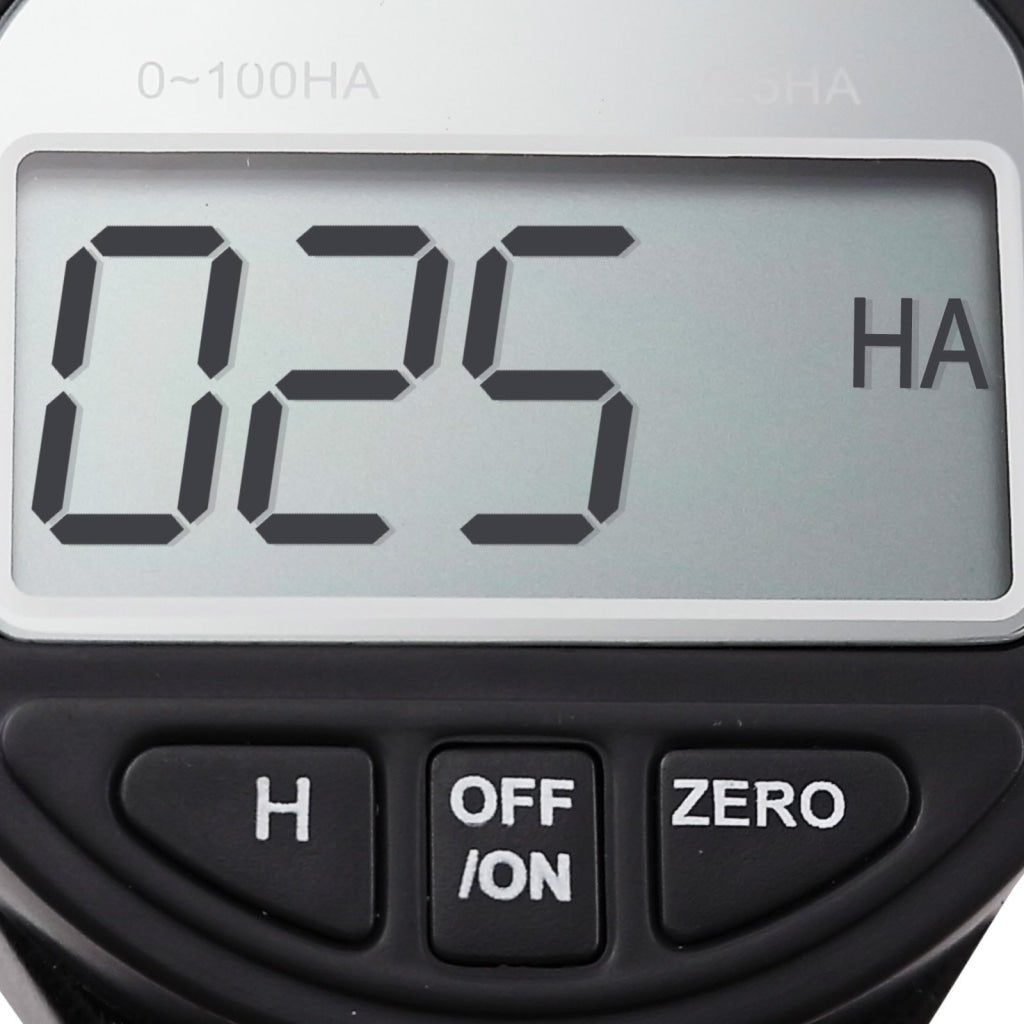

  • Easy-to-read large LCD display

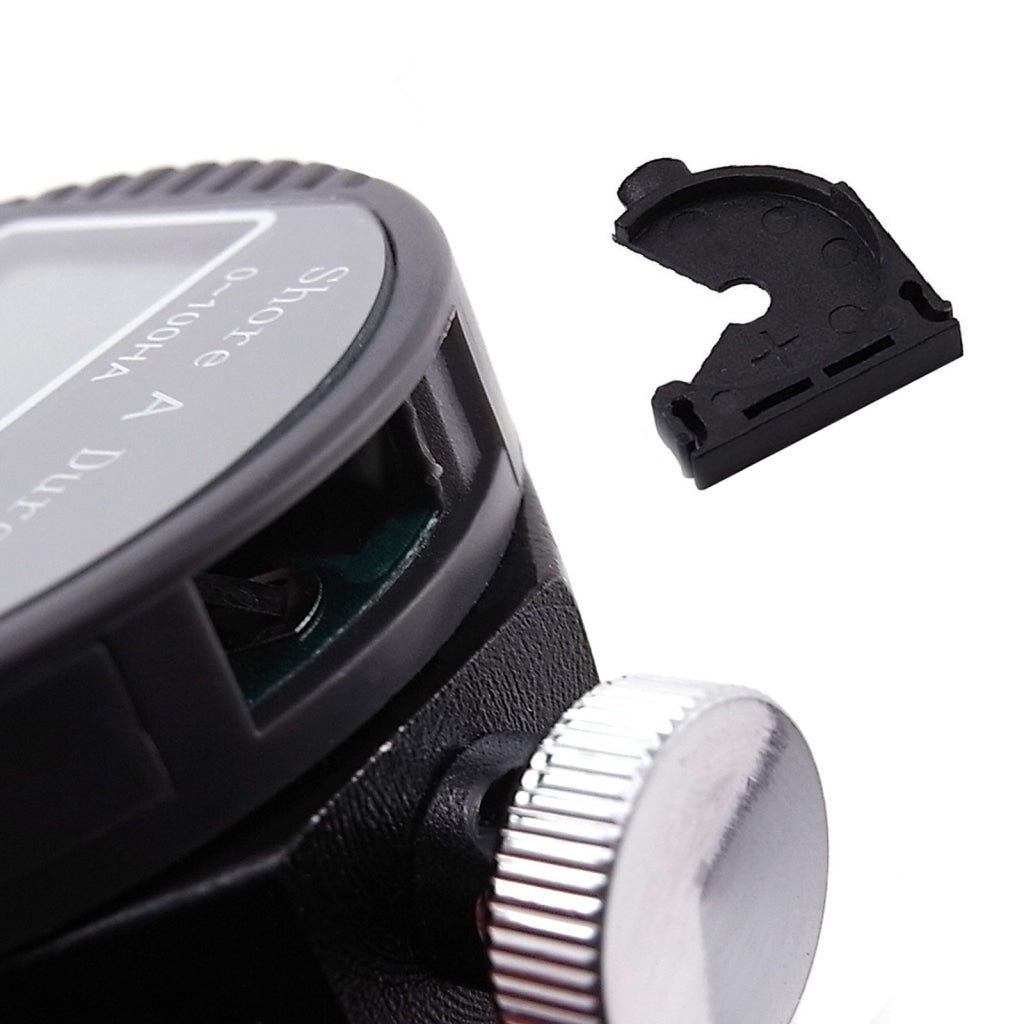

  • Battery operated
  • Passed and conforms with ISO 868-1986 & ISO 7619 international standards
  • Complies with GB/T 531.1-2008 standard
  • Maintenance-free digital display
  • With CE Marking, it conforms with European health & safety requirement
  • Type A durometer is applicable to test the medium penetration hardness of rubber, plastic, leather, multi-grease, wax, etc.

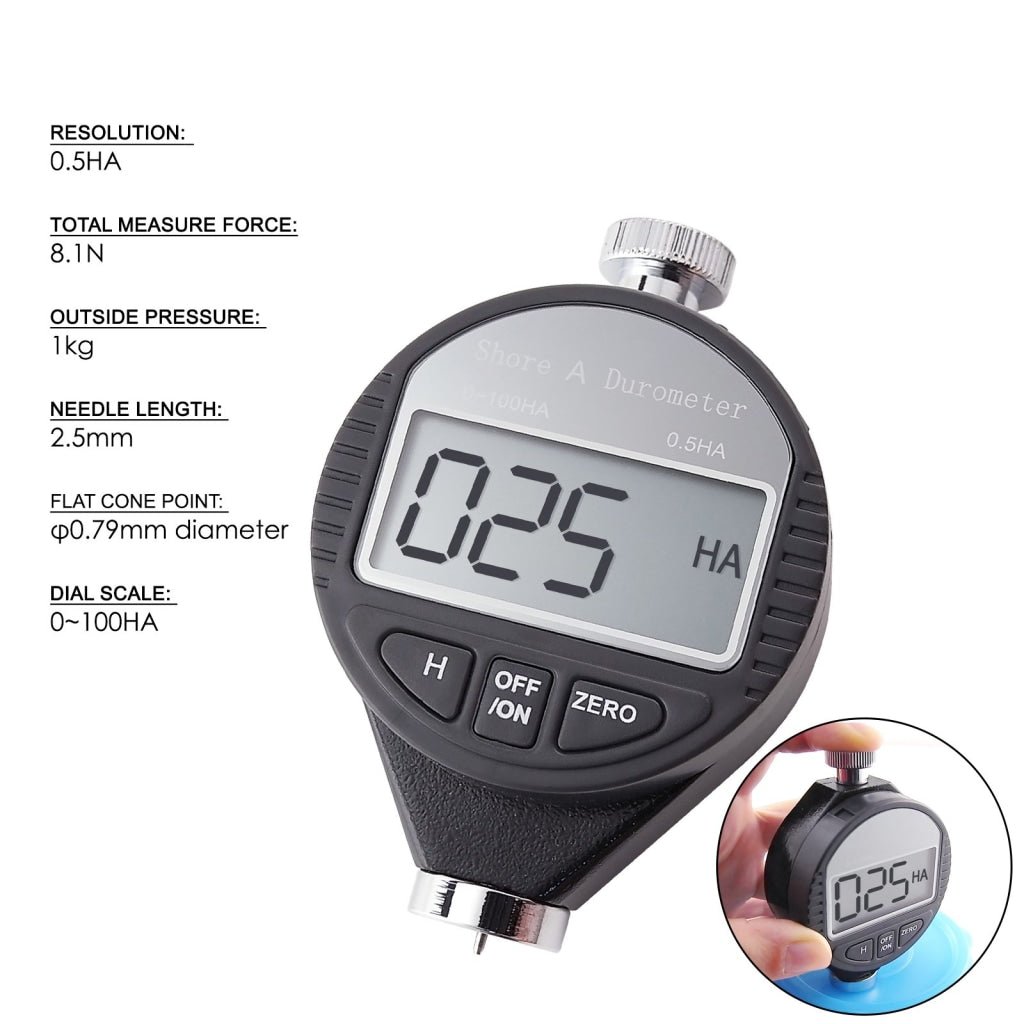

Specifications:

  • Resolution: 0.5HA
  • Total measure force: 8.1N
  • Outside pressure: 1kg

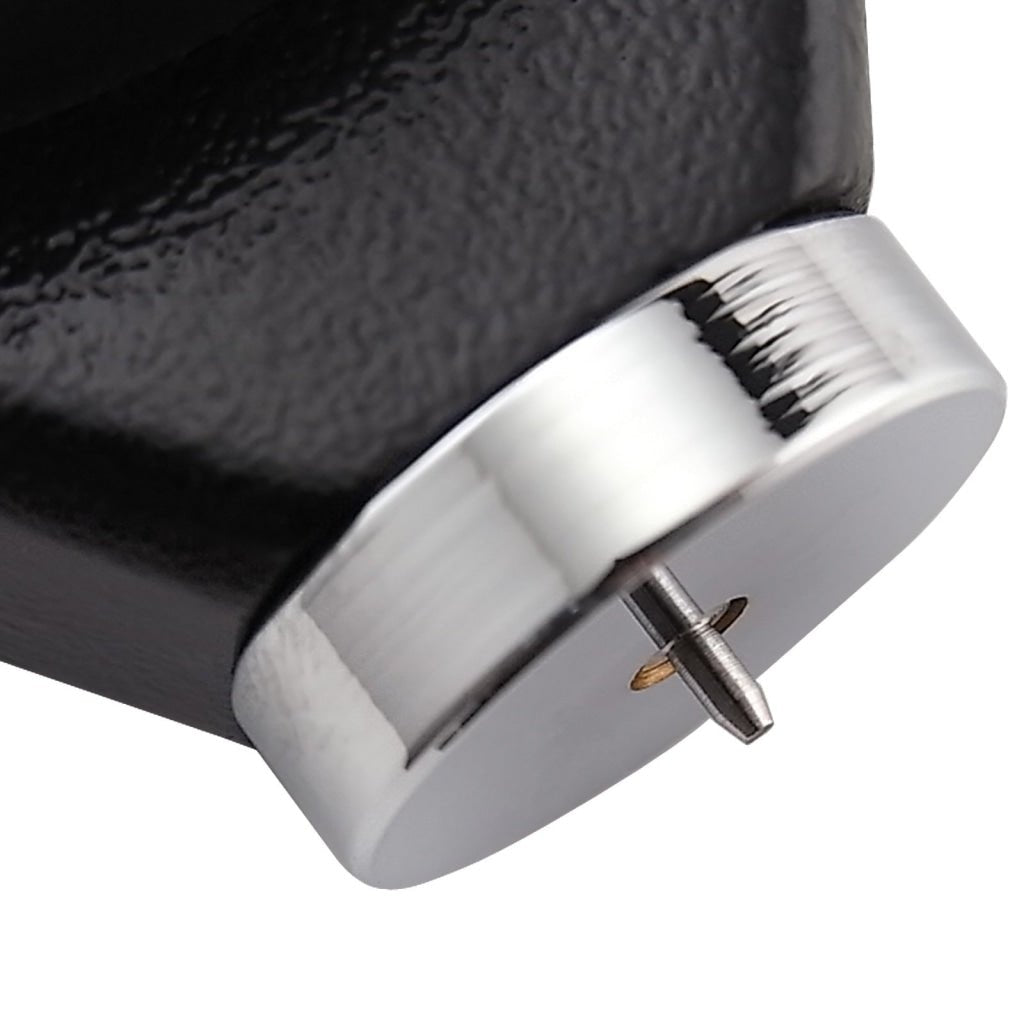

  • Pressure needle top cone angle of 35°
  • Needle length: 2.5mm
  • Flat cone point: φ0.79mm diameter
  • Dial Scale: 0~100HA
  • On/Off Switch

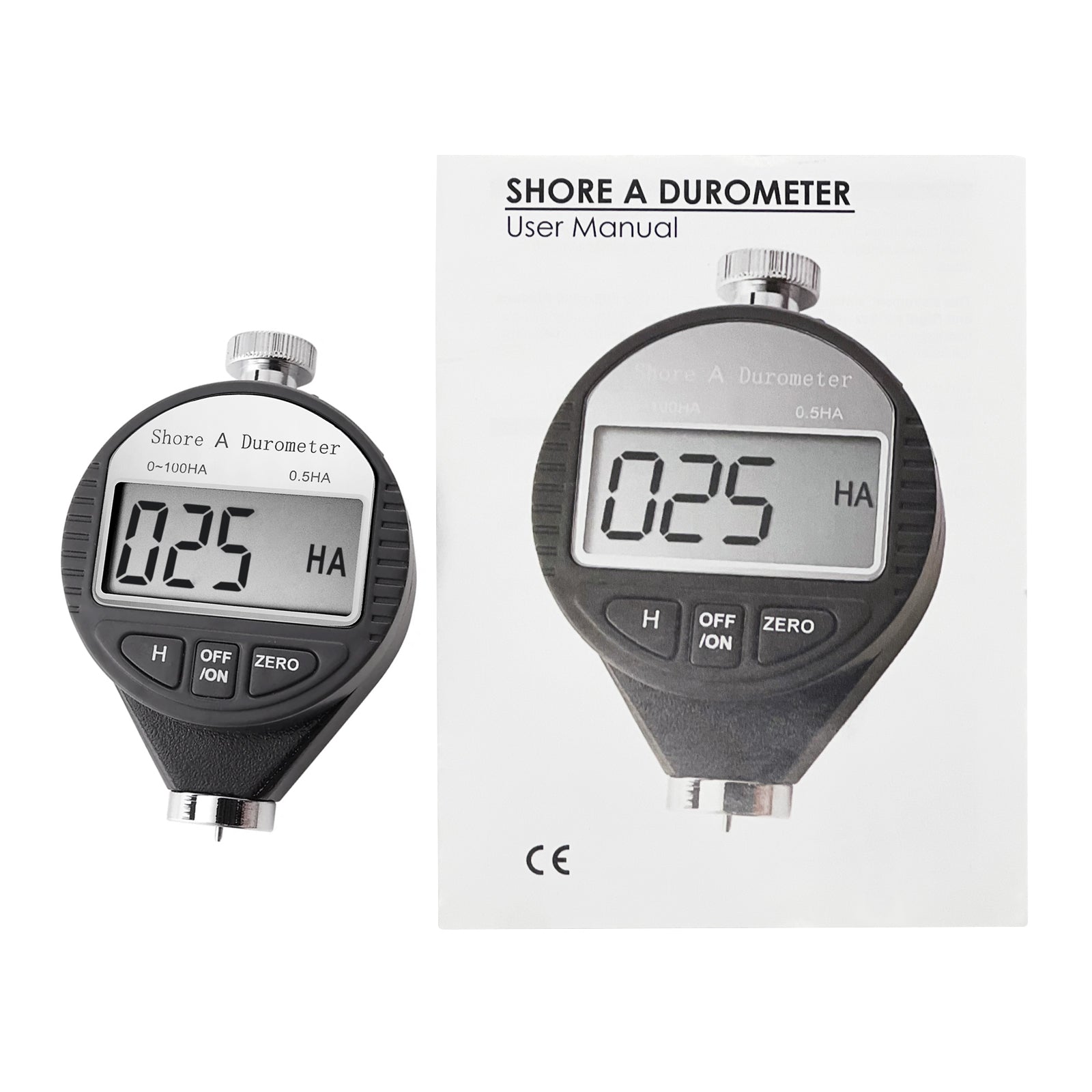

Set Includes:

  • 1x Shore A Durometer
  • 1x English Instruction Manual
  • Standard Factory Packaging

A printed user manual is already included with this item. No digital user manual or software is available.
