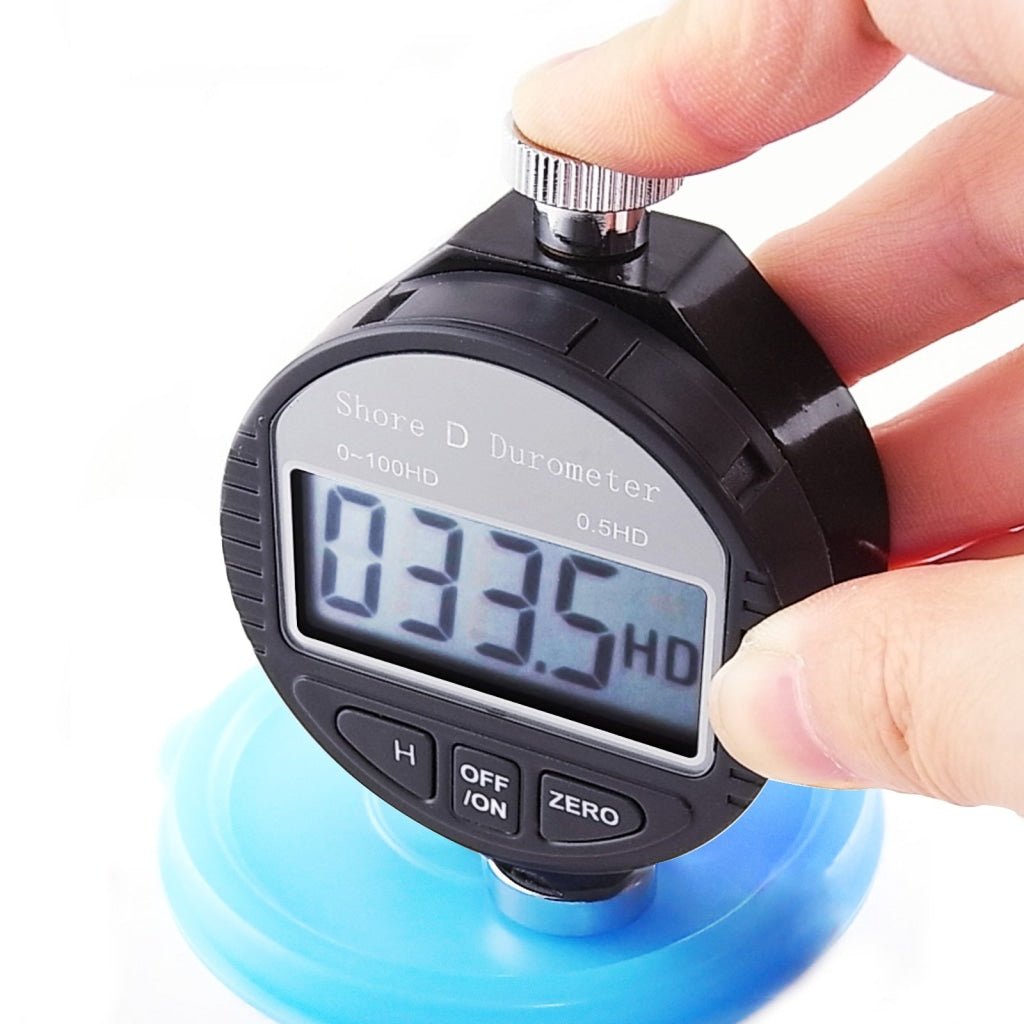

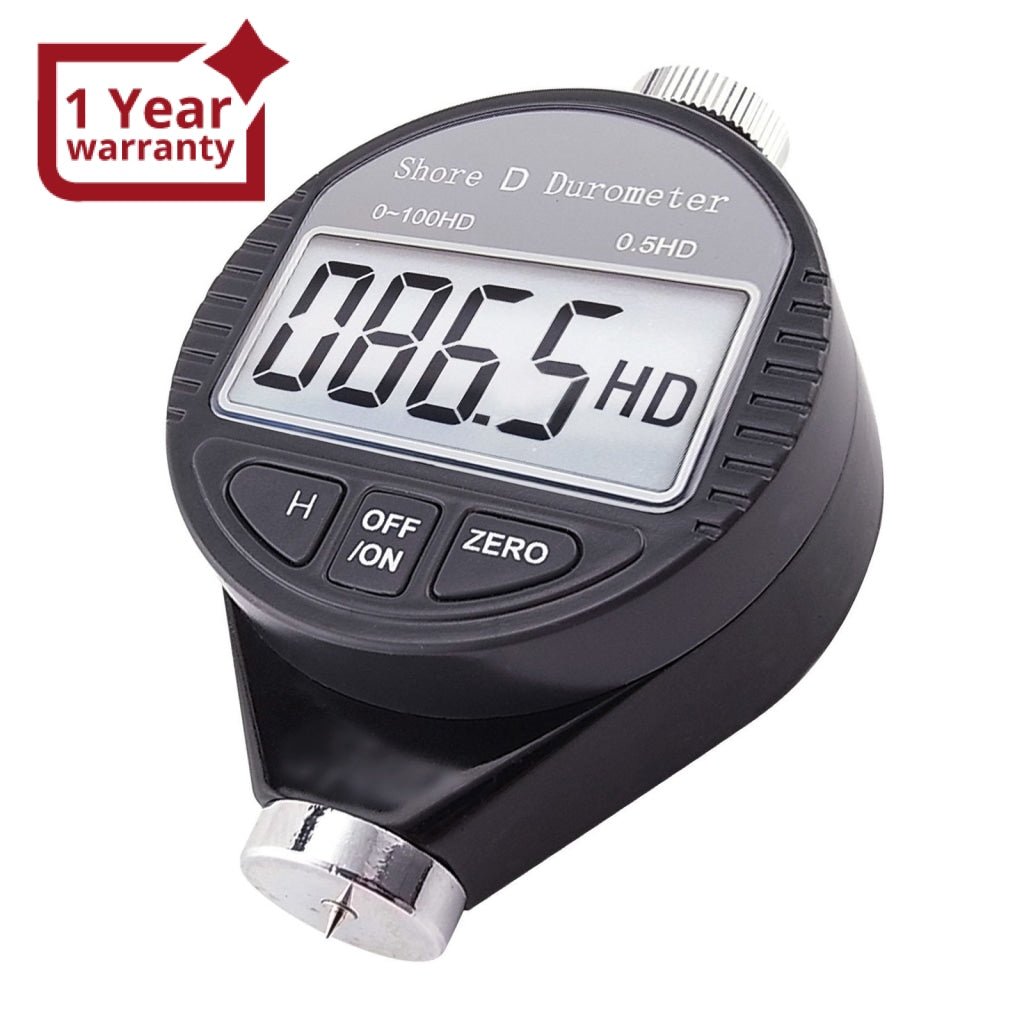

ILHT-112 Shore D Digital Hardness Meter Durometer 0~100HD Pocket Size Tester with LCD Display

Sku: ILHT-112
$44.90 USD
Translation missing: en.products.product.shipping_policy_html
Quantity:
Add to Wishlist Remove From Wishlist
Visa Mastercard PayPal American Express Google Pay Apple Pay Shop Pay

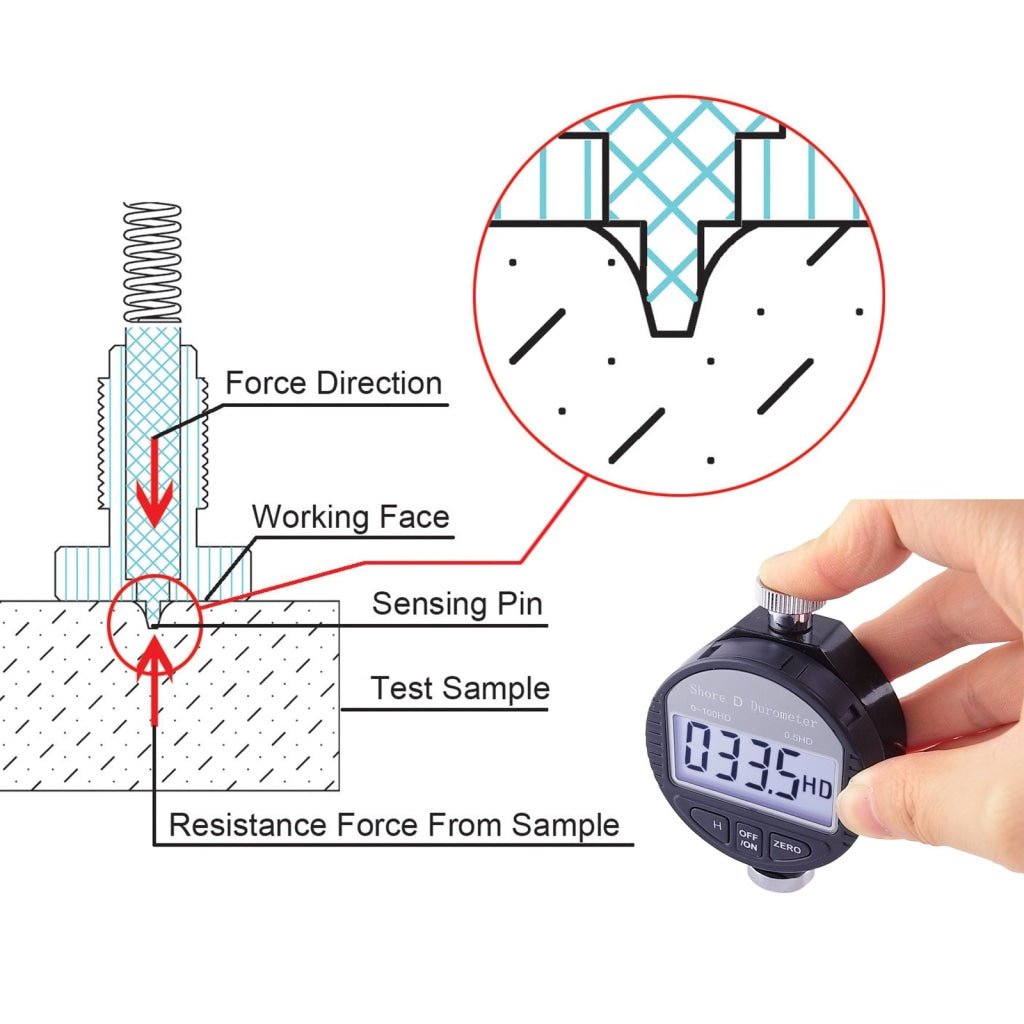

The hardness of rubber and plastics is their comprehensive performance reaction. The Digital Shore D Durometer is a sophisticated measurement tool for measuring the hardness of Rubber and Plastics.

This Shore D Hardness Meter is ideal for measuring the hardness of Hard Hardness Rubber and Plastics such as Thermo Plastics, Flooring, and Bowling balls. It has a wide measuring range from 0 ~ 100 HD, a Data Hold function, and zero buttons for self-calibration.

The Digital Shore D Durometer provides GB/T531-99, GB2411-80, HGT 2489-93, and JJG304-2003.

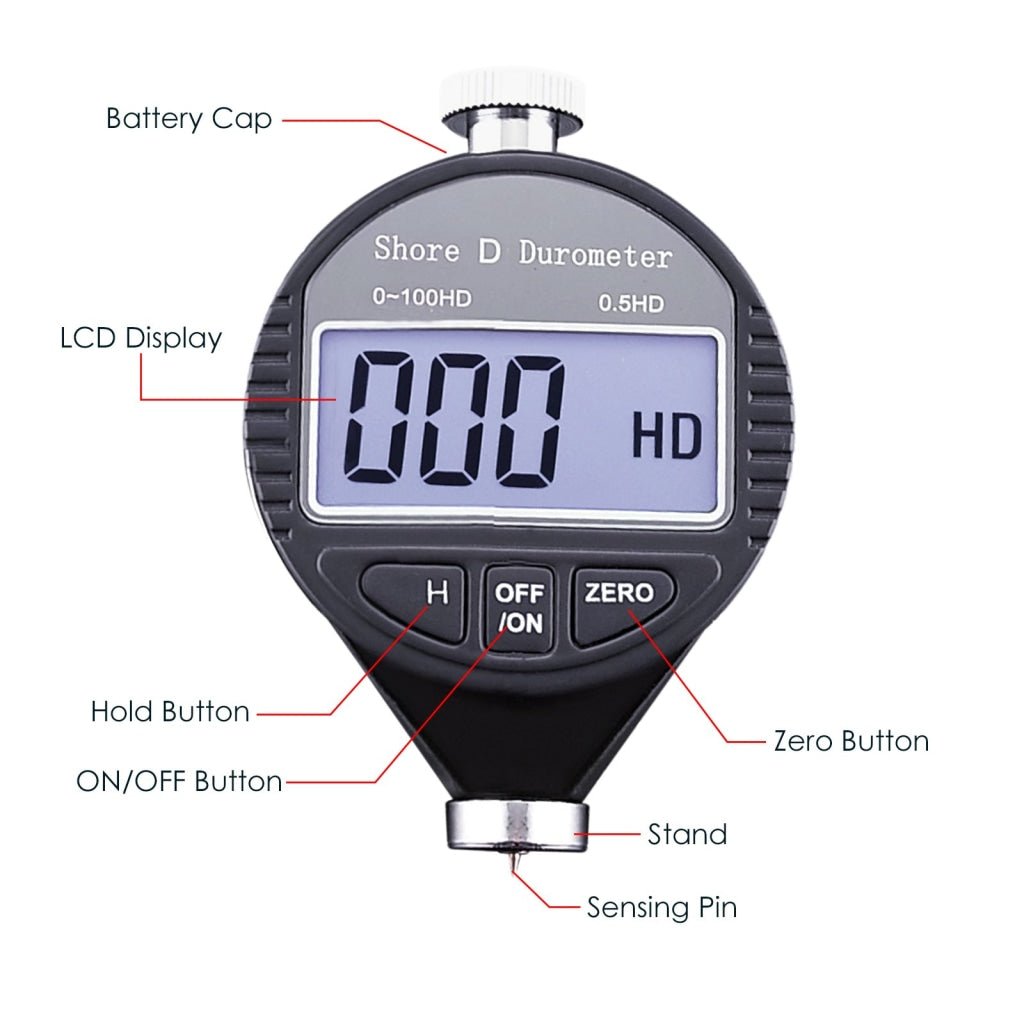

Features:

  • Suitable for Hard Hardness Rubber and Plastics such as Thermo Plastics, Flooring, and Bowling balls
  • Wide measuring range
  • Data Hold function
  • Zero button for self-calibration
  • Battery included
  • With CE Marking, it conforms with European health & safety requirement
  • The Digital Shore D Durometer carries out the provision of GB/T531-99, GB2411-80, HGT 2489-93, and JJG304-2003


Specifications:

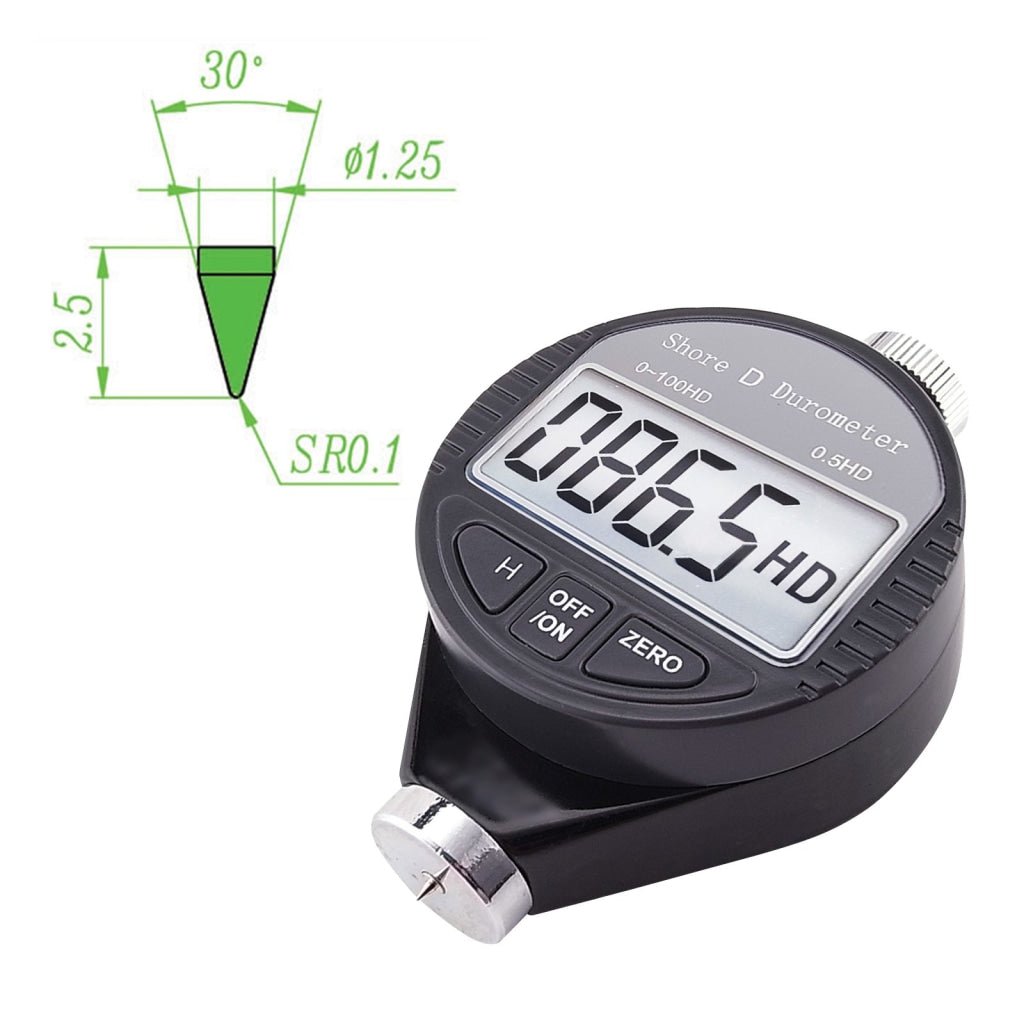

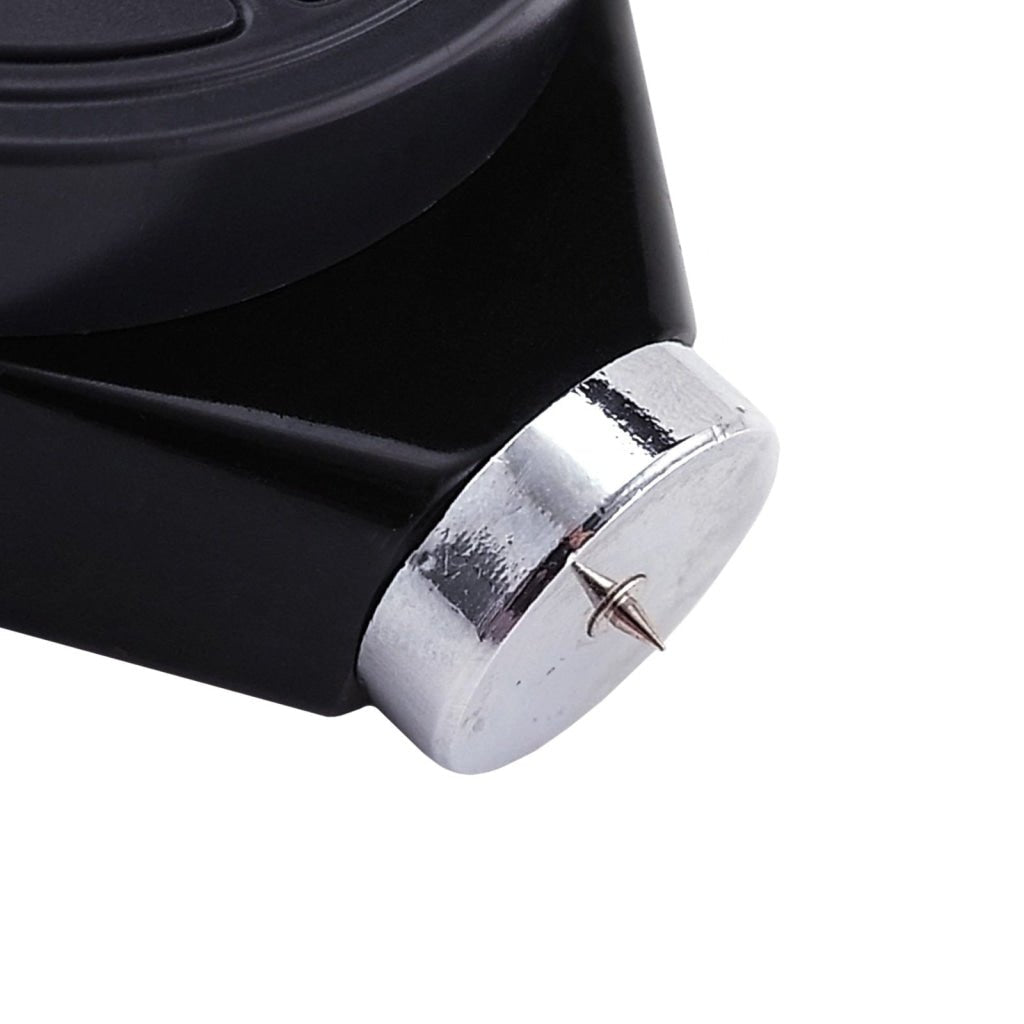

  • Sharp cone point (SR 0.1mm), 30° Included Angle
  • The thickness of the measured sample: > 6mm (no more than 3 layers)
  • The measured Area cannot be less than the pressure edge of 15mm
  • LCD Display : 4 digits, 40 x 18 mm (1.57 x 0.71 inch)

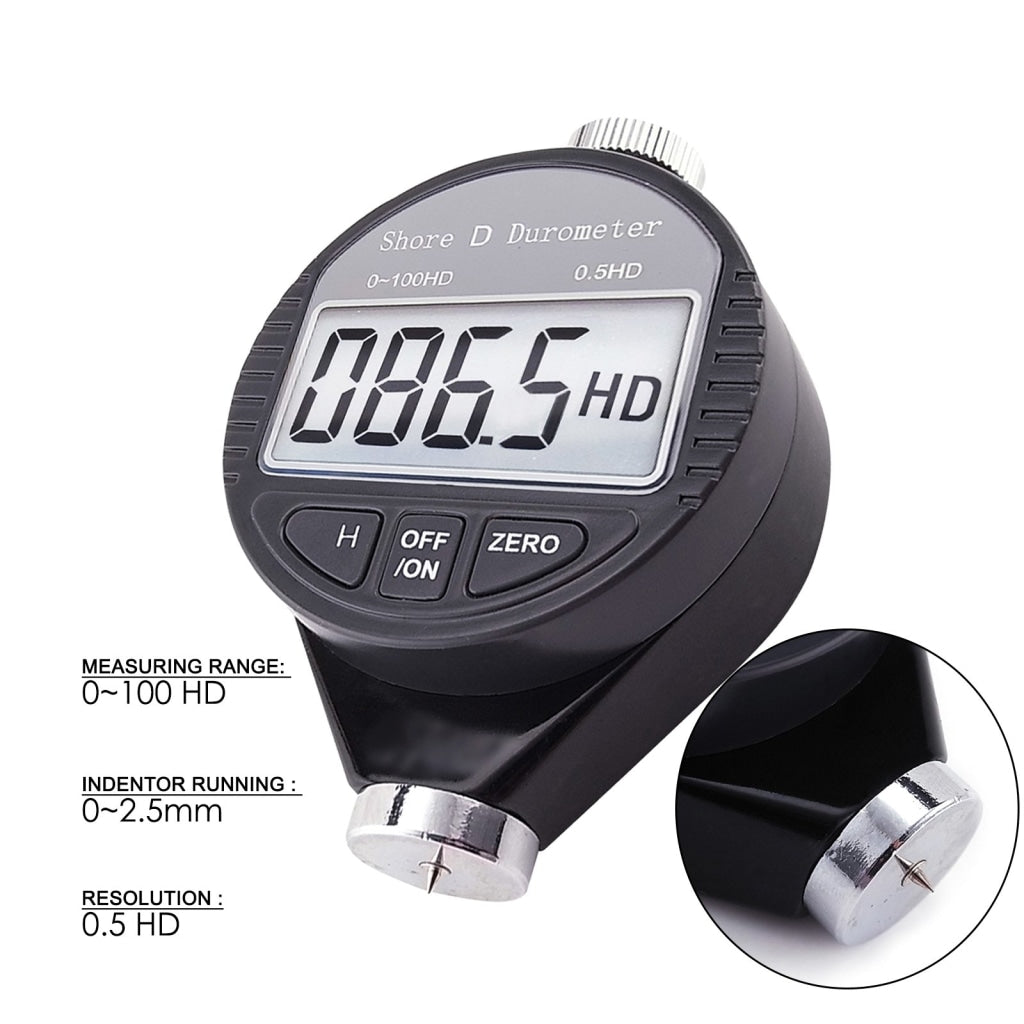

  • Measuring Range / Graduation: 0~100 HD
  • Indentor Running : 0-2.5mm
  • Indentor press on telos: A, C type 0.55-8.06N, D type 0-44.5N
  • Resolution: 0.5 HD
  • Power Supply: 1 x SR44 button cell battery (included)

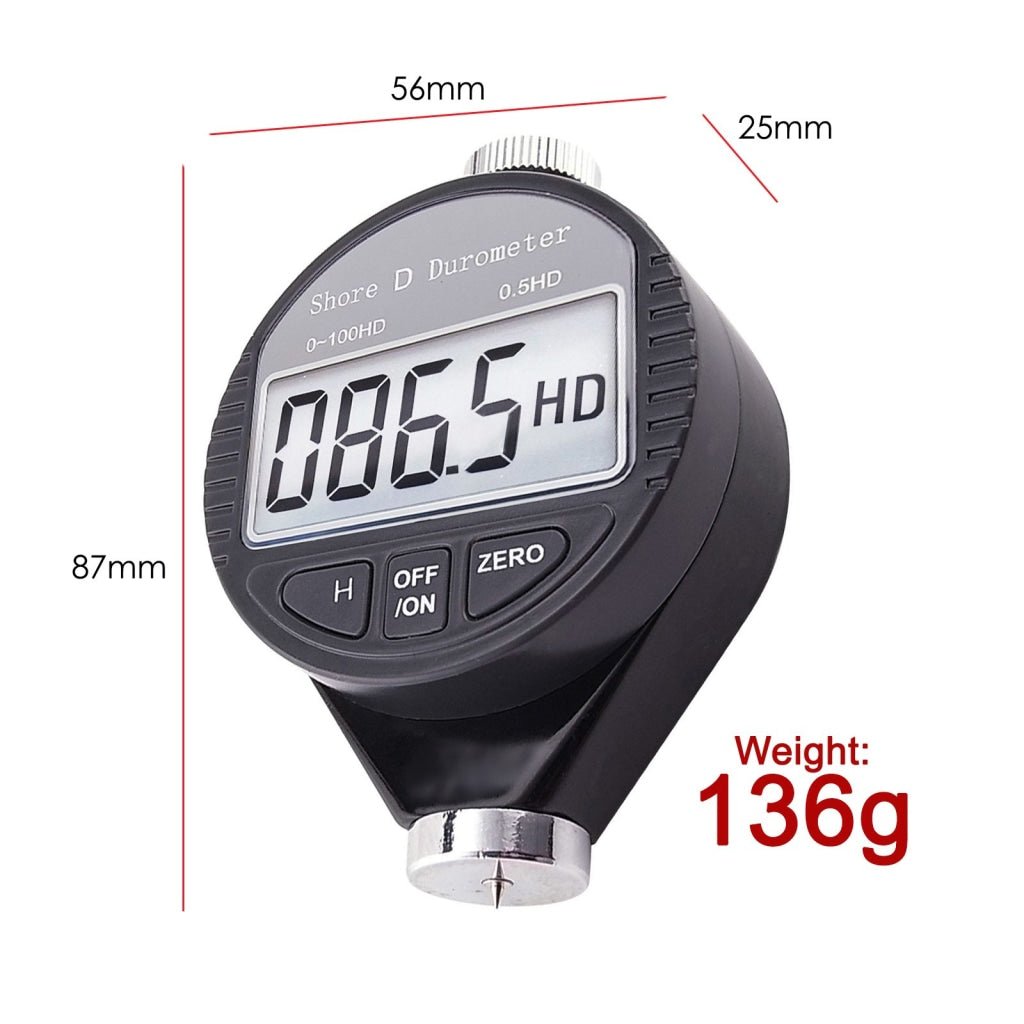

  • Item Size : 87mm x 56mm x 25mm (LxWxD) (3.43" x 2.2" x 0.98")
  • Item Weight: 136g (4.79oz)


Set Includes:

  • 1x Shore D Hardness Meter
  • 1x SR44 Button Cell Battery (Installed)

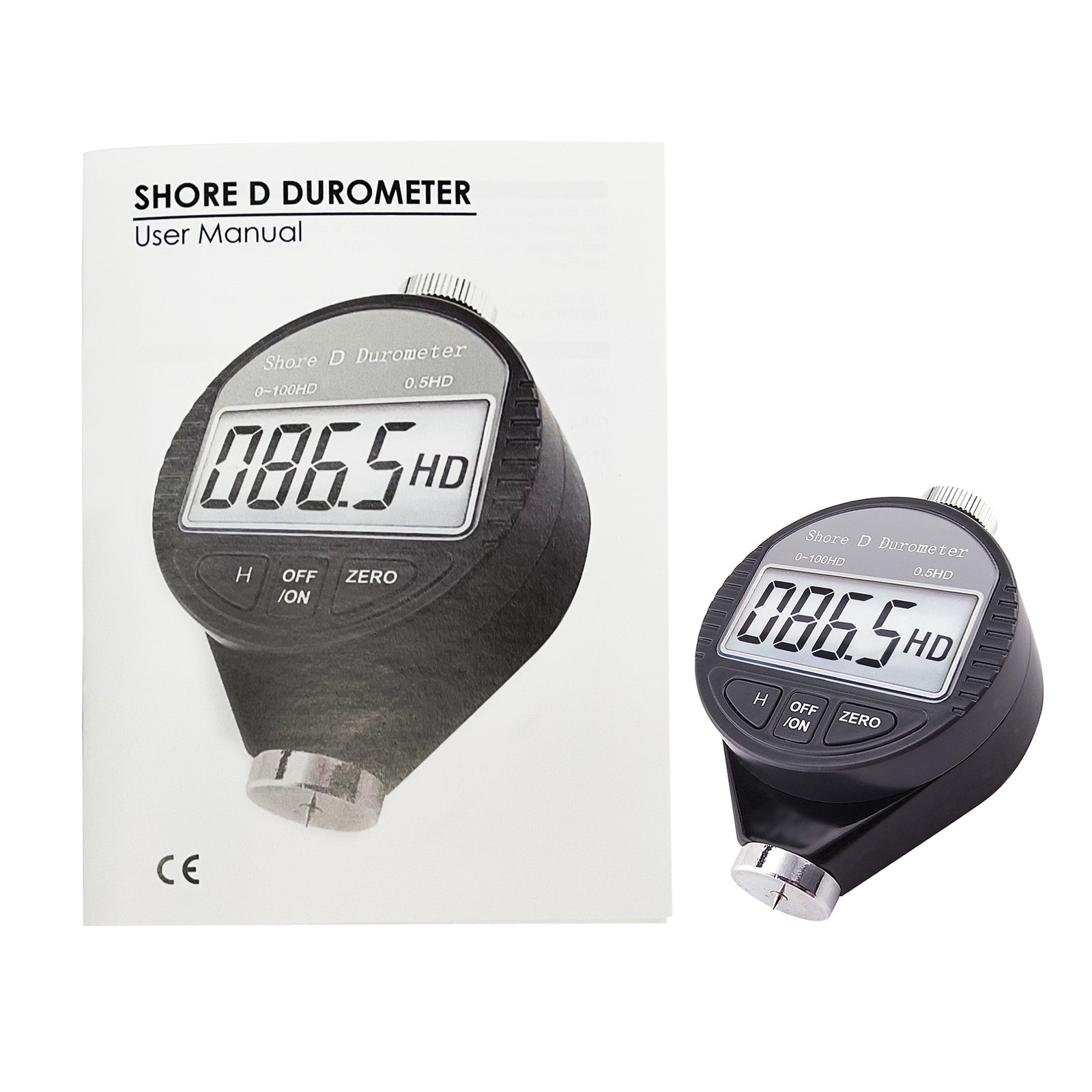

  • 1x English Instruction Manual
  • Standard Factory Package

A printed user manual is already included with this item. No digital user manual or software is available.
