ILGM-247 Gloss Surface Reflection 0.1-200 GU Tester Meter 20° 45° 75° Rehargeable Reflectometer Triple Angles Degree Glossmeter for Ceramics Films Textiles Anodised Aluminium Paper Printed Material

Sku: ILGM-247
$372.90 USD
Translation missing: en.products.product.shipping_policy_html
Quantity:
Add to Wishlist Remove From Wishlist
Visa Mastercard PayPal American Express Google Pay Apple Pay Shop Pay

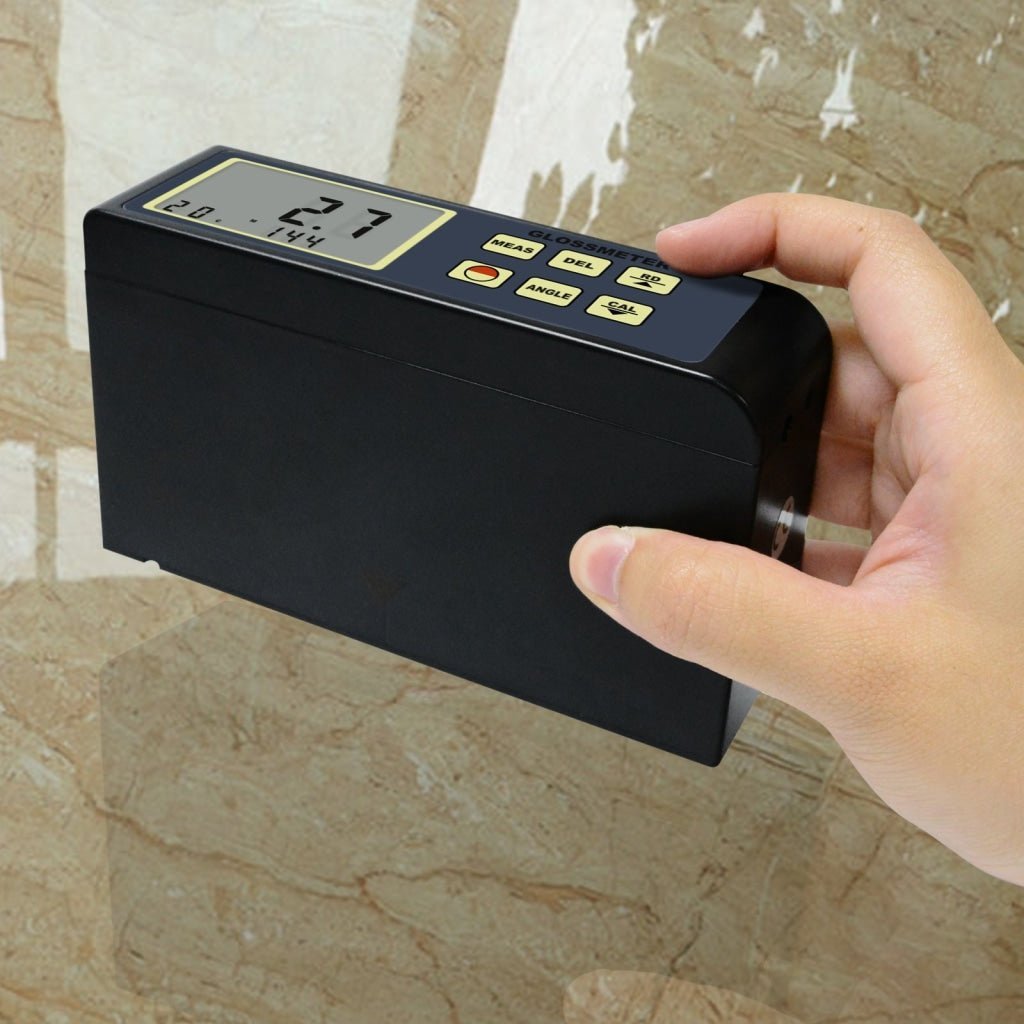

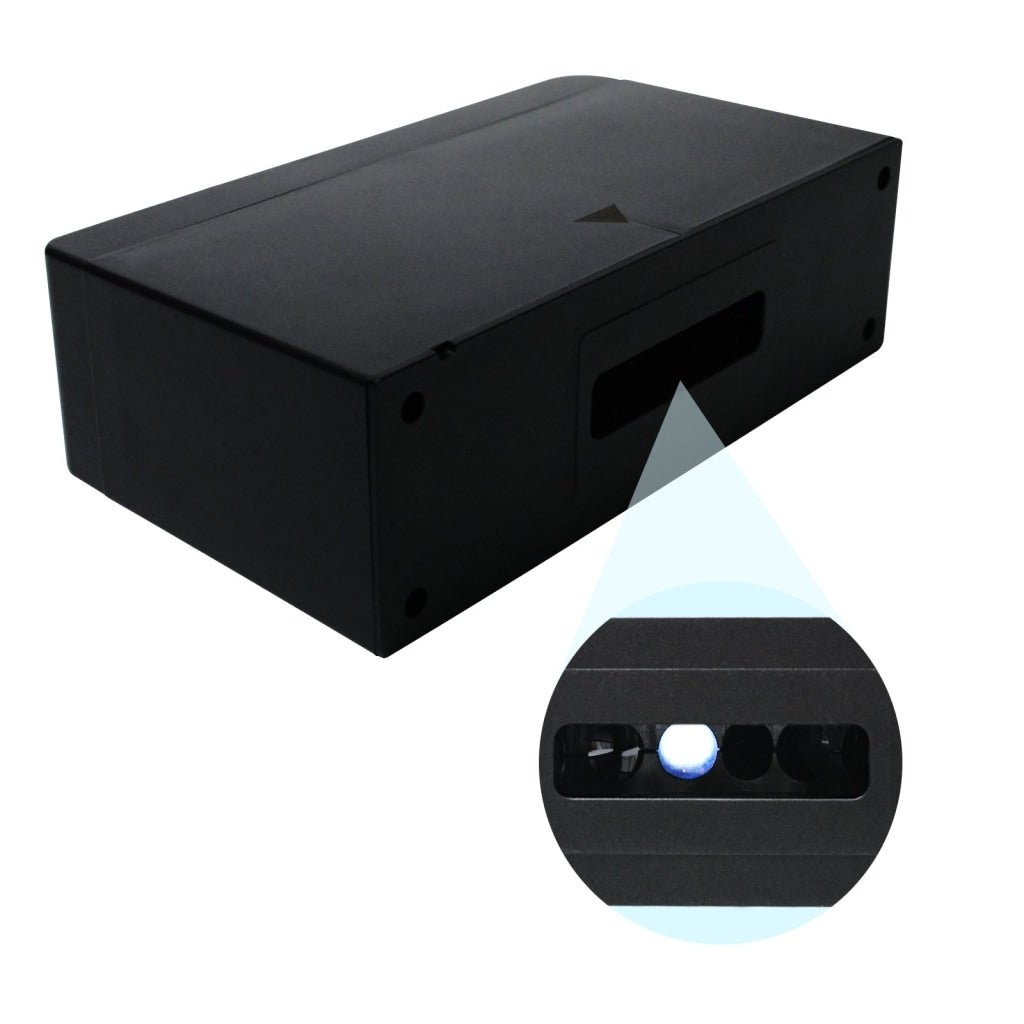

This Gloss Meter measures gloss units of painted, coated and shiny surfaces from 20°/45°/75° reflective angles.
Widely applicable in Automotive Industry, Paper & Printing Industry, Furniture Production, Food packages, High, medium to low gloss materials, ceramics, films, textiles, anodised aluminum and in any other field that requires measurement of how glossy or shiny the surface is.

Features:

  • In accordance with international standard ASTMD523, ASTMD1455, ASTMC346, ASTMC584, ASTMD2457, DIN ENISO2813, DIN67530, ENISO7668, JISZ8741, MFT30064, TAPPIT480, GB9754, GB/T13891, GB7706 and GB8807
  • Its technical parameters conforms with JJG696-2002
  • Automatic calibration
  • User-friendly, lightweight and easy to carry
  • Intelligent design with rapid measurement
  • Store up to 254 groups of measurements (recall and delete data functions)
  • USB and Bluetooth data output (Cable & Software, USB adaptor and Bluetooth interface will be ordered separately)
  • Built-in lithium-ion rechargeable battery
  • With backlight display
  • Display coupling and battery indicator
  • Auto / Manual power off (10min single mode & 1-hour continuous mode)


Specifications

  • Measuring Geometry: 20°, 45° & 75°
  • Range: 0.1 ~ 200 gloss units
  • Accuracy: ±1.0 gloss unit (against reference standard)
  • Resolution: 0.1 gloss unit
  • Repeatability: ±0.5 GU (0...99.9)
  • Measuring Area: 7 x 14mm ellipse
  • Data memorized: 254 groups
  • Data output: USB interface, RS 232C serial interface
  • Working condition:
    • Temperature: 0~40°C
    • Humidity: up to 85%
  • Power Supply: Li Rechargeable Battery

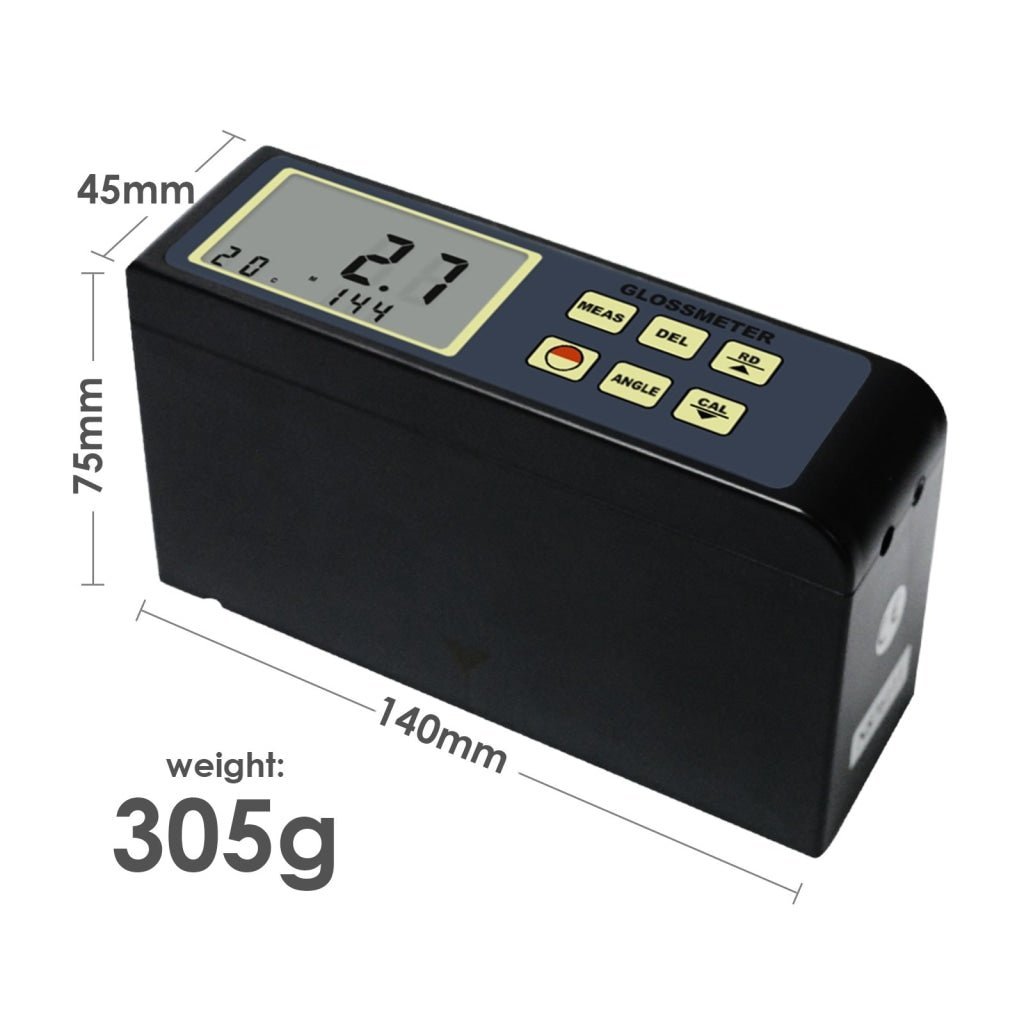

  • Size: 140 x 45 x 75mm
  • Weight: 305gms

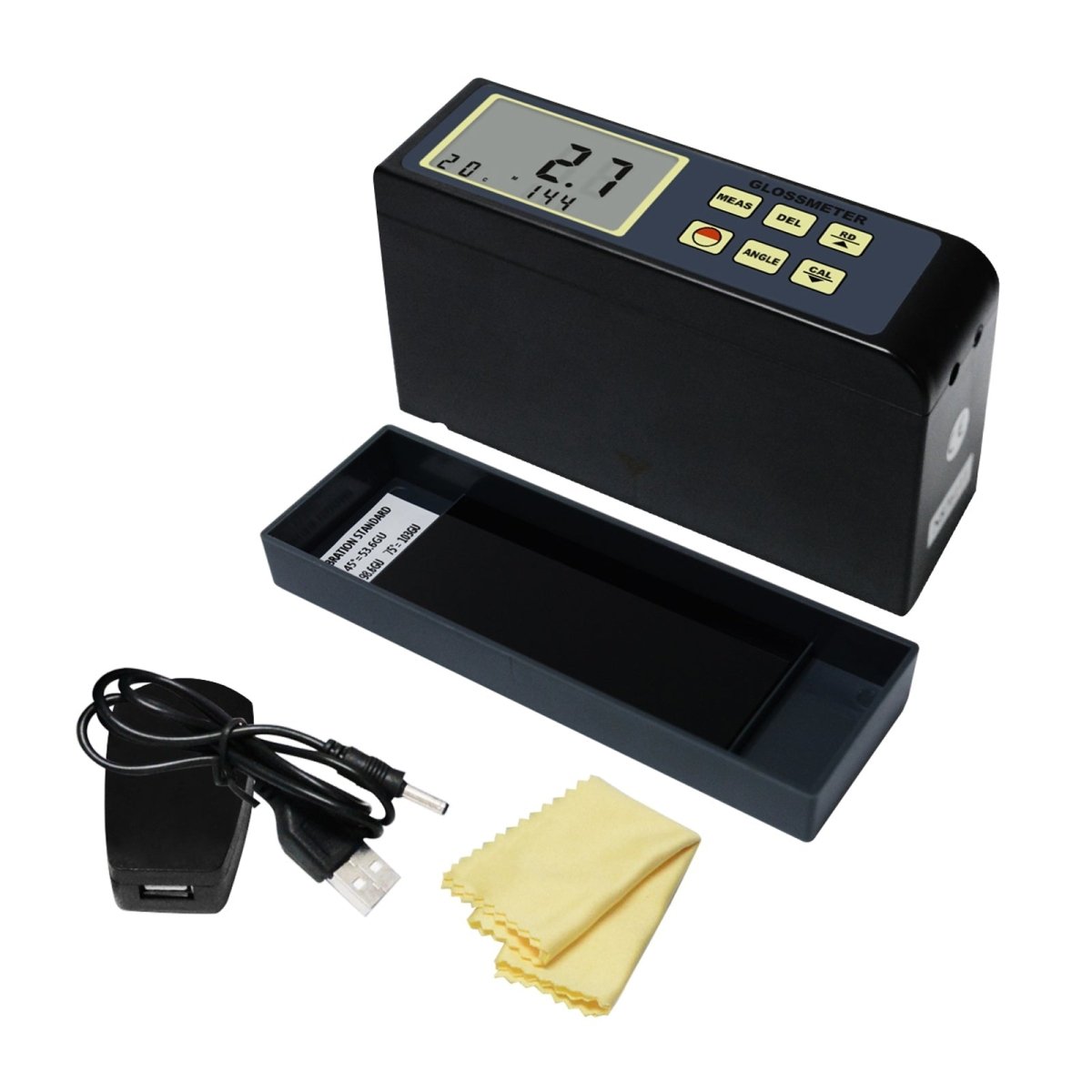

Set Includes:

  • 1 x Gloss Meter (main unit)

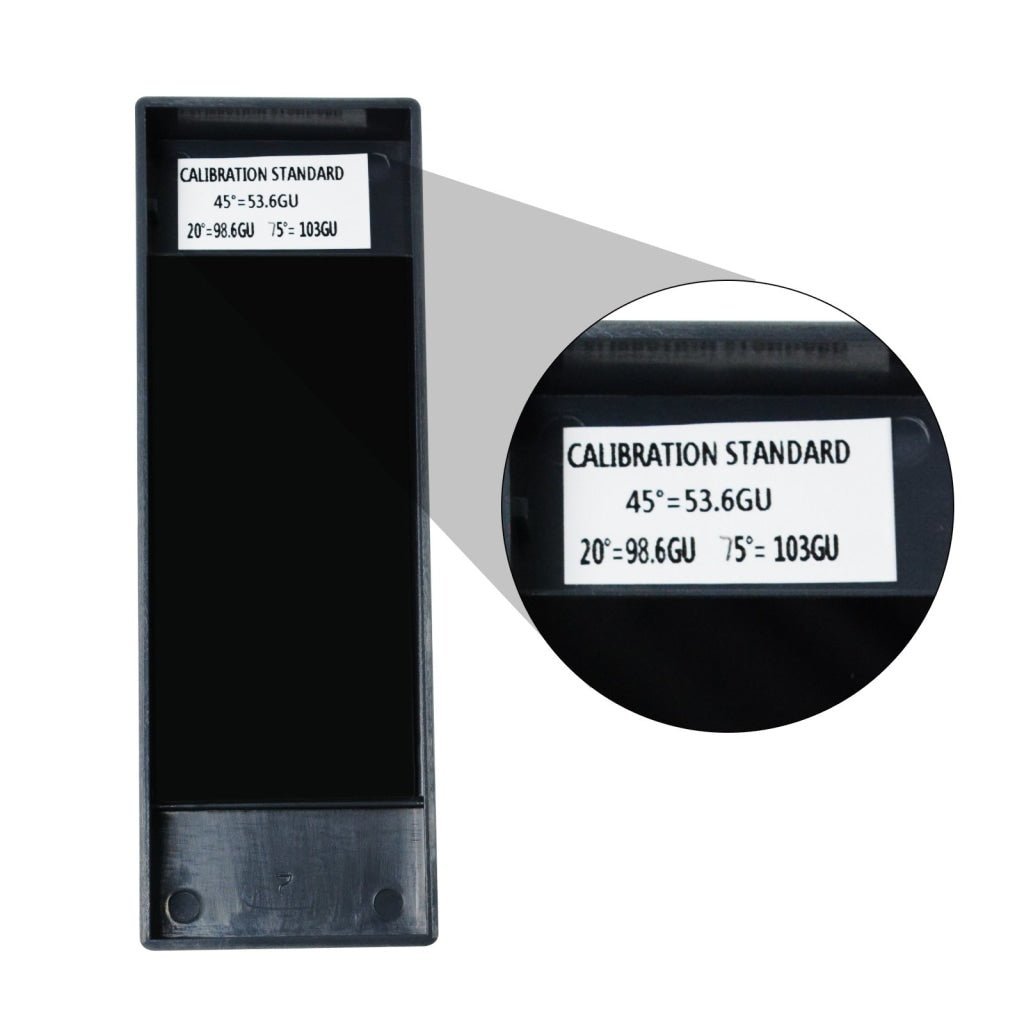

  • 1 x Calibration box
  • 1 x Optic Cleaning Cloth
  • 1 x USB Type Power Adaptor with Cable
  • English Operation Manual
  • Carrying Case
Download Software
RETURN AND REFUND

Most new, unopened items can be returned within thirty (30) days of delivery for a full refund. If the return is due to our error—such as receiving an incorrect or defective item—we will also cover the return shipping costs.

If you request a refund, it will be issued using the original payment method within four (4) weeks after you hand the package over to the return carrier. This timeframe includes shipping transit to our facility, processing upon receipt, and the time required for the refund to be posted to your account.

WARRANTY POLICY

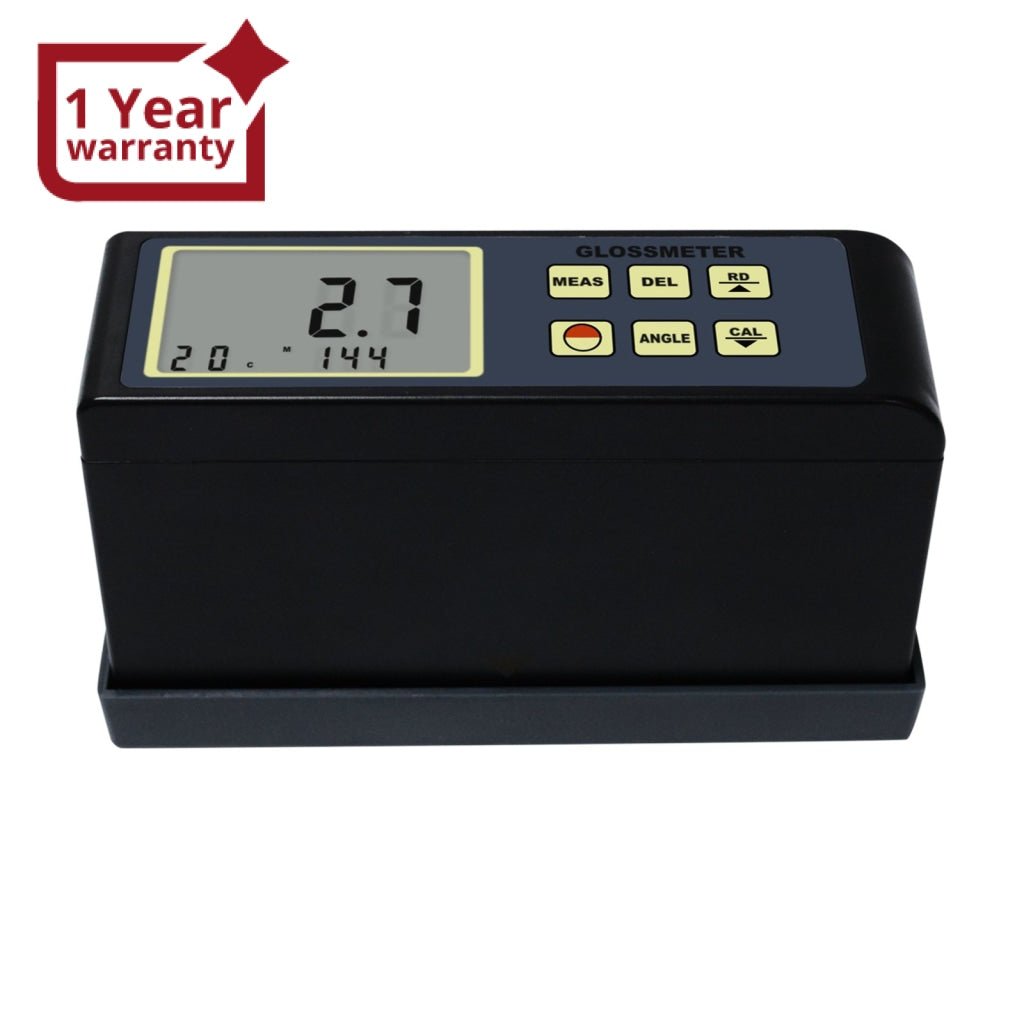

Most of our items come with one (1) year warranty for manufacturer defects. It does not include damage caused by misuse, accidents, abuse, alterations, neglect or other external causes.
