ILFM-207 Digital Force Meter Gauge Pull & Push Magnitude Test Tester Newtonmeter Newton N / kg / lb / g Measurement, for Manufacturing, Electronics, Building Hardware, Textile, Auto Parts

Sku: ILFM-207_1K
$228.90 USD
Translation missing: en.products.product.shipping_policy_html
Range: 1K
Quantity:
Visa Mastercard PayPal American Express Google Pay Apple Pay Shop Pay

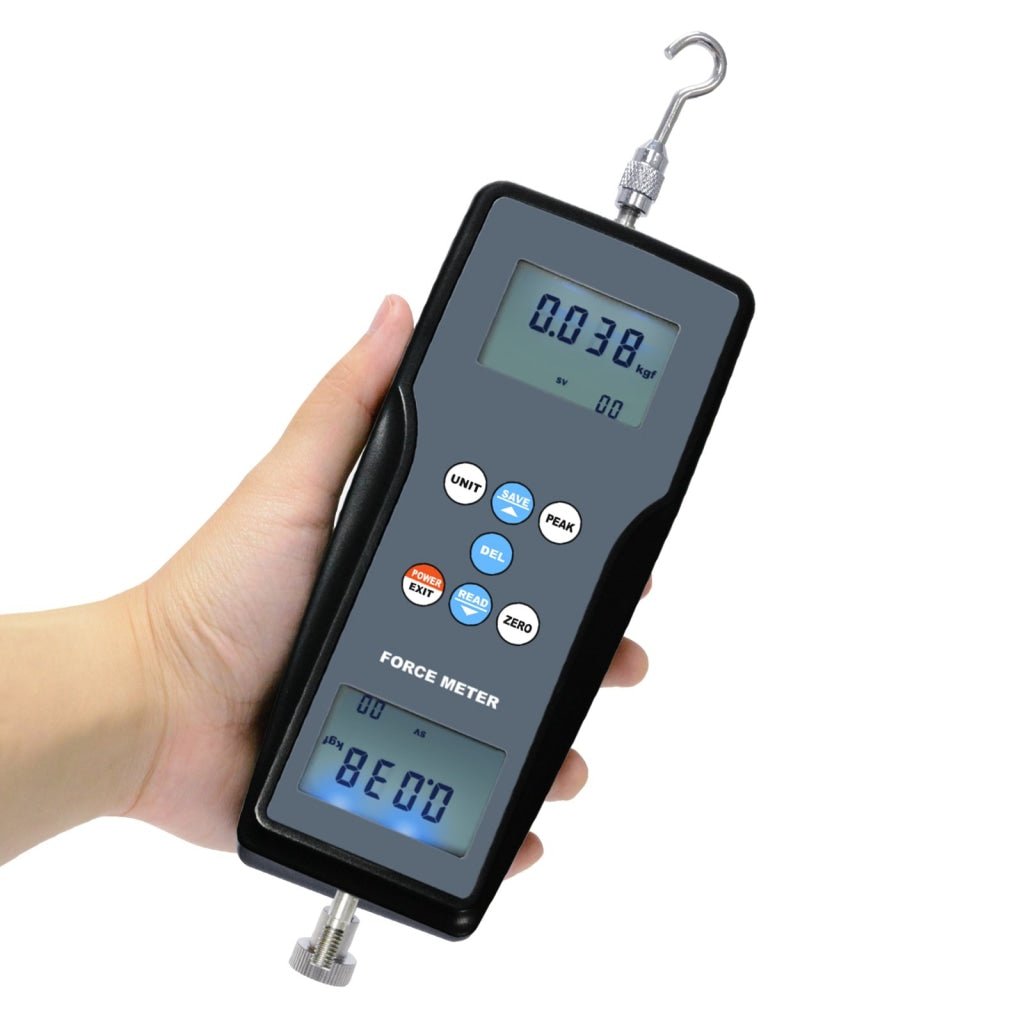

ILFM-207 Series is a digital force gauge simple and convenient functional instrument for high-accuracy push force and pull force test. It is widely used in electronics, building hardware, textile, auto parts, ignition device such as lighter, fire fighting equipment, pen manufacturing, lock manufacturing, fishing gear, chemical, power machinery, scientific research institutions and other industries.

Features:

  • High accuracy and high resolution
  • High sampling speed
  • Efficient instrument for push force and pull force test
  • Digital display with no guessing or errors
  • Four (4) measurement units for selection, N, kg, lb, g (for 1k, 2k, 5k versions)
  • Three (3) measurement units for selection, N, kg, lb  (for 10k, 20k, 100k versions)
  • Peak value hold function
  • Can memorize up to 99 groups of data
  • With Blue Backlight
  • 10 minutes auto power off and manual power off
  • Low battery indicator

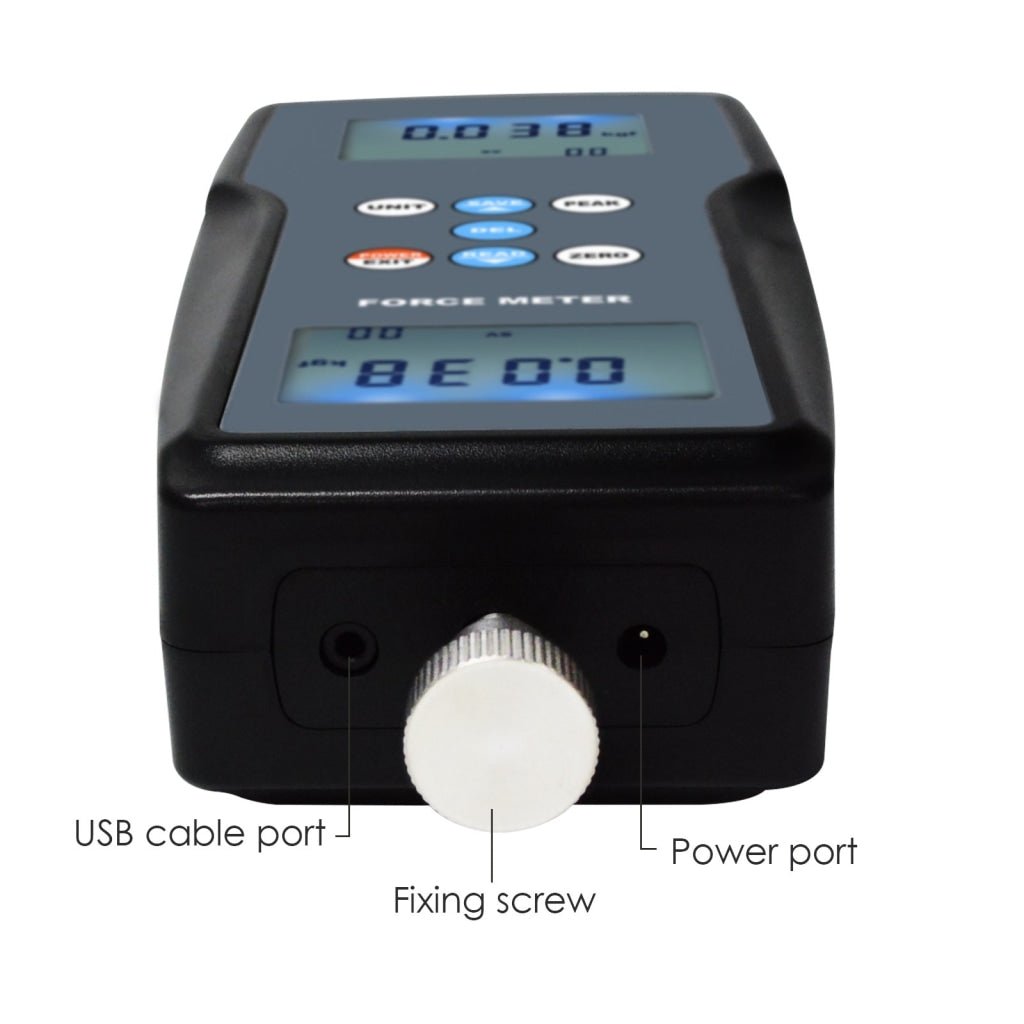

  • Use USB data output to connect with PC (cable and software not included in the set)
  • Provide Bluetooth data output choice (adapter and software not included in the set)
  • Available in 10 models with different force range for you to choose

Specifications:

  • For Model ILFM-207_1K:
    • Force Range: ±1kgf / ±1000gf / ±9.8N / ±2.2Lbf
    • Resolution: 0.001kgf / 1gf / 0.01N / 0.001Lbf
  • For Model ILFM-207_2K:
    • Force Range: ±2kgf / ±2000gf / ±19.6N / ±4.4Lbf
    • Resolution: 0.001kgf / 1gf / 0.01N / 0.001Lbf
  • For Model ILFM-207_5K:
    • Force Range: ±5kgf / ±5000gf / ±49N / ±11Lbf
    • Resolution: 0.001kgf / 1gf / 0.01N / 0.01Lbf
  • For Model ILFM-207_10K:
    • Force Range: ±10kgf / ±98N / ±22Lbf
    • Resolution: 0.001kgf / 0.01N / 0.01Lbf
  • For Model ILFM-207_20K:
    • Force Range: ±20kgf / ±196N / ±44Lbf
    • Resolution: 0.01kgf / 0.1N / 0.01Lbf
  • For Model ILFM-207_50K:
    • Force Range: ±50kgf / ±490N / ±110Lbf
    • Resolution: 0.01kgf / 0.1N / 0.1Lbf
  • For Model ILFM-207_100K:
    • Force Range: ±100kgf / ±980N / ±220Lbf
    • Resolution: 0.01kgf / 0.1N / 0.1Lbf
  • Accuracy: ±0.2%FS ± 1 Digit
  • Unit: kgf, gf, N, Lbf
  • Measurement State: Peak Value Measurement, Real-Time Measurement

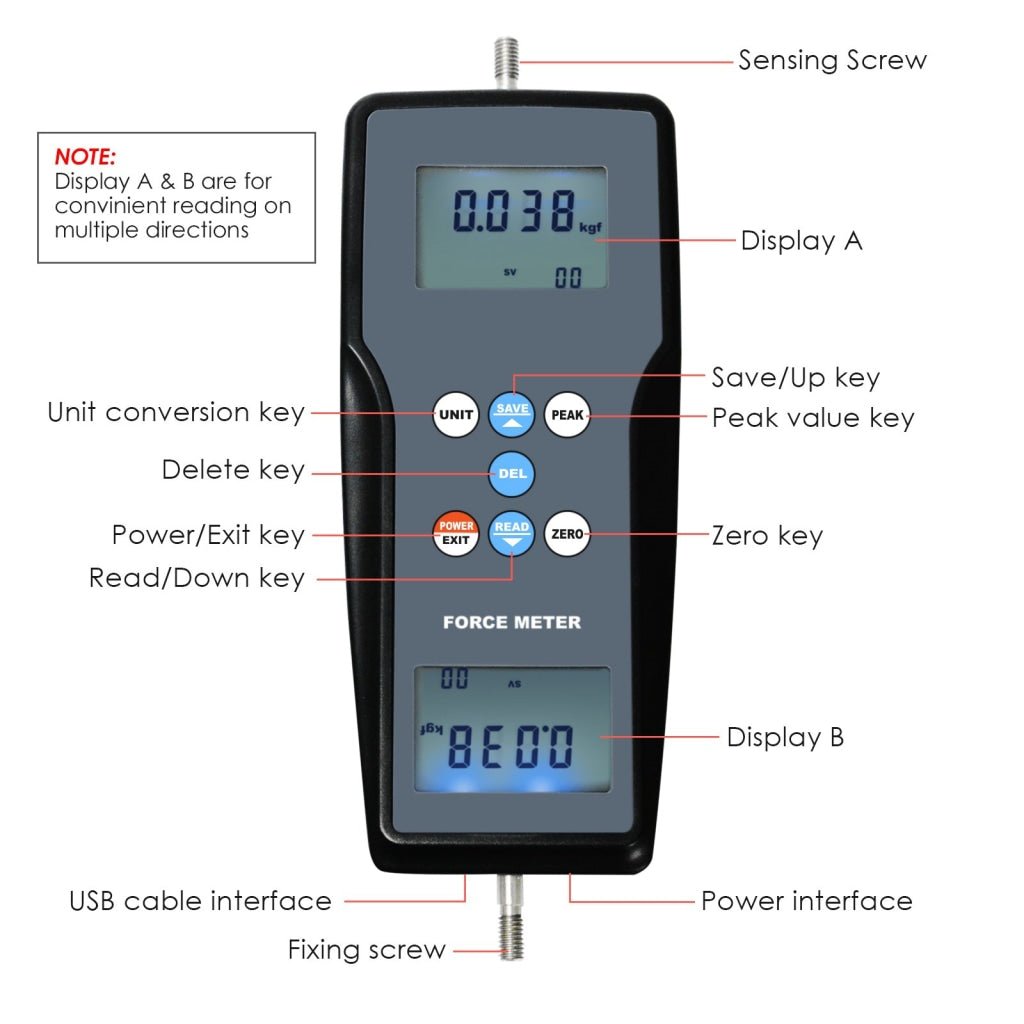

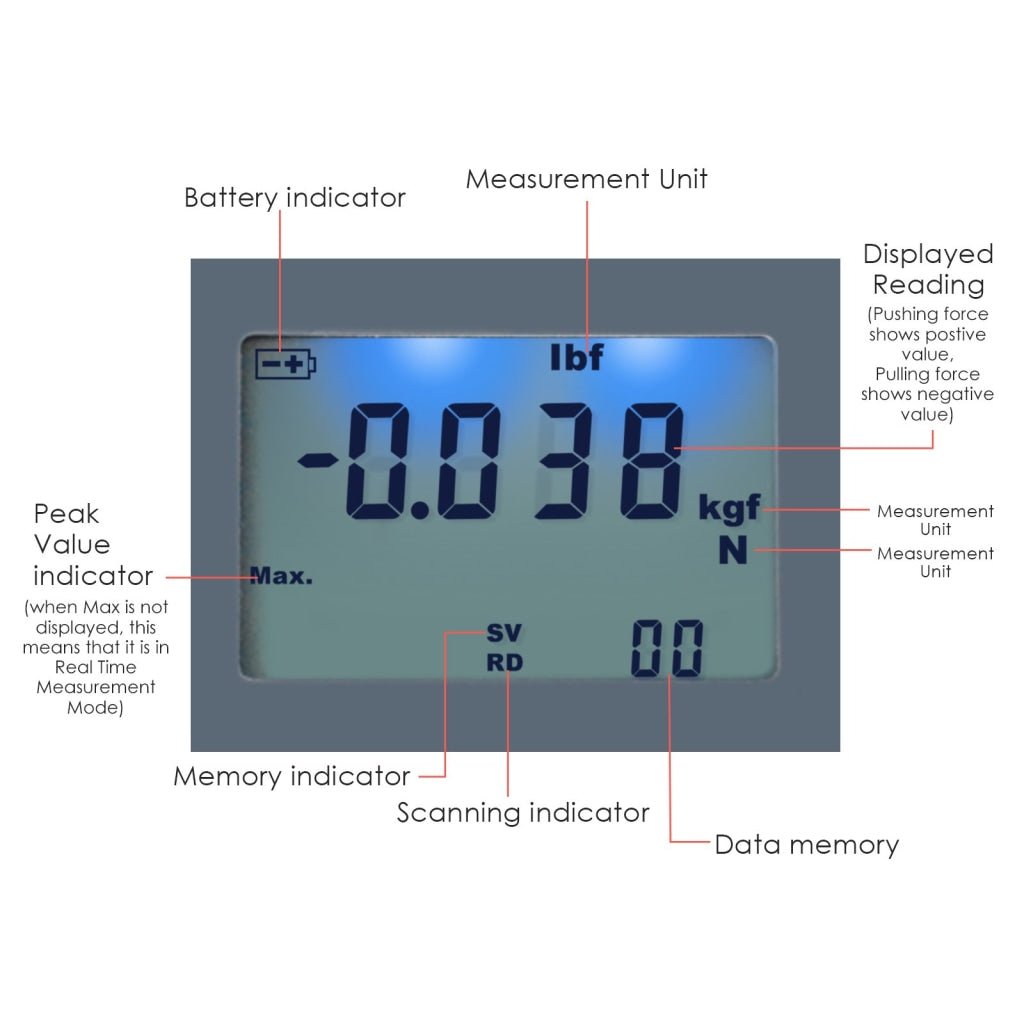

  • Display: 2 Reversed 4 Digit LCD
  • Safe Load: 150%FS (Buzzer Alarm Over 110%FS)
  • Data Output: USB & Bluetooth (Cable, adaptor and software are not included in the set)
  • Operating Environment: 0~40°C, 80% RH
  • Surrounding: No Vibration Source or Corrosive Medium Around

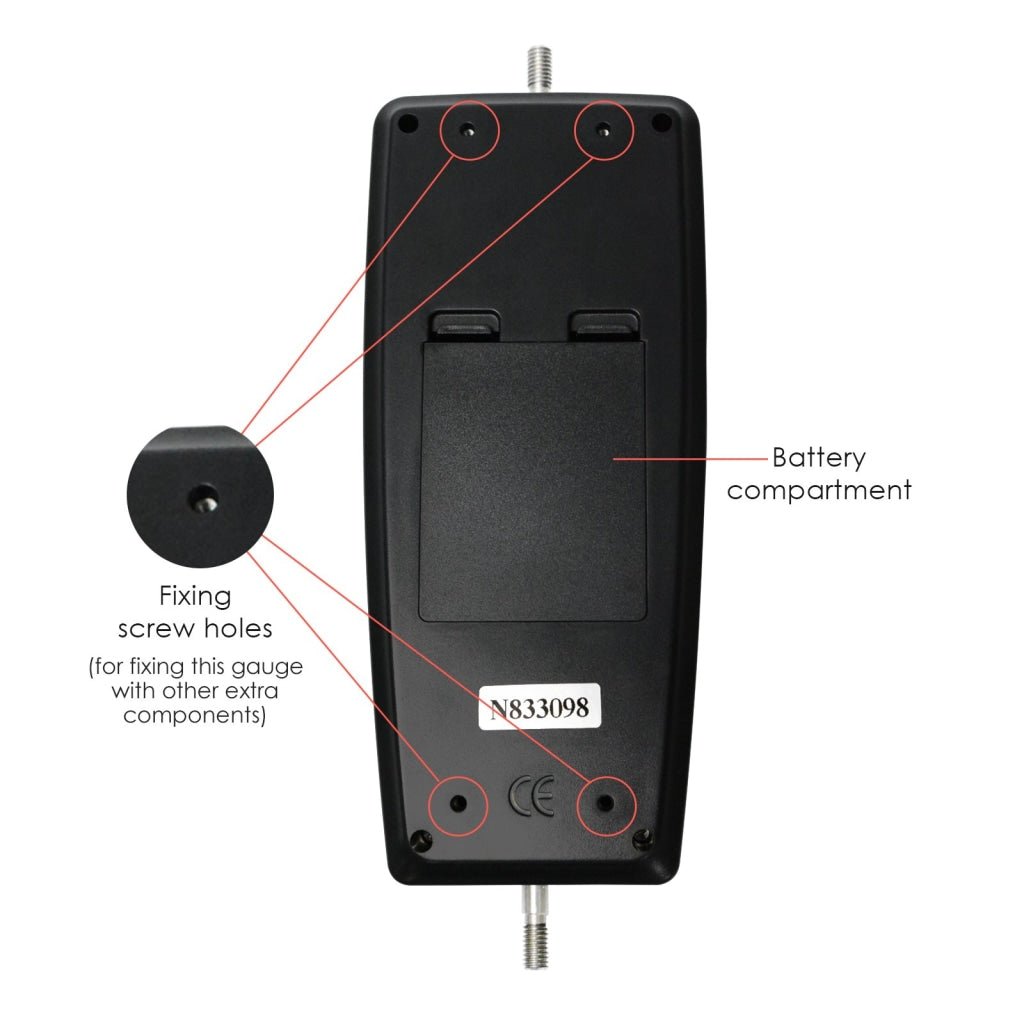

  • Power Supply: 2 x 1.5 AA Battery or 6V DC Power Supply

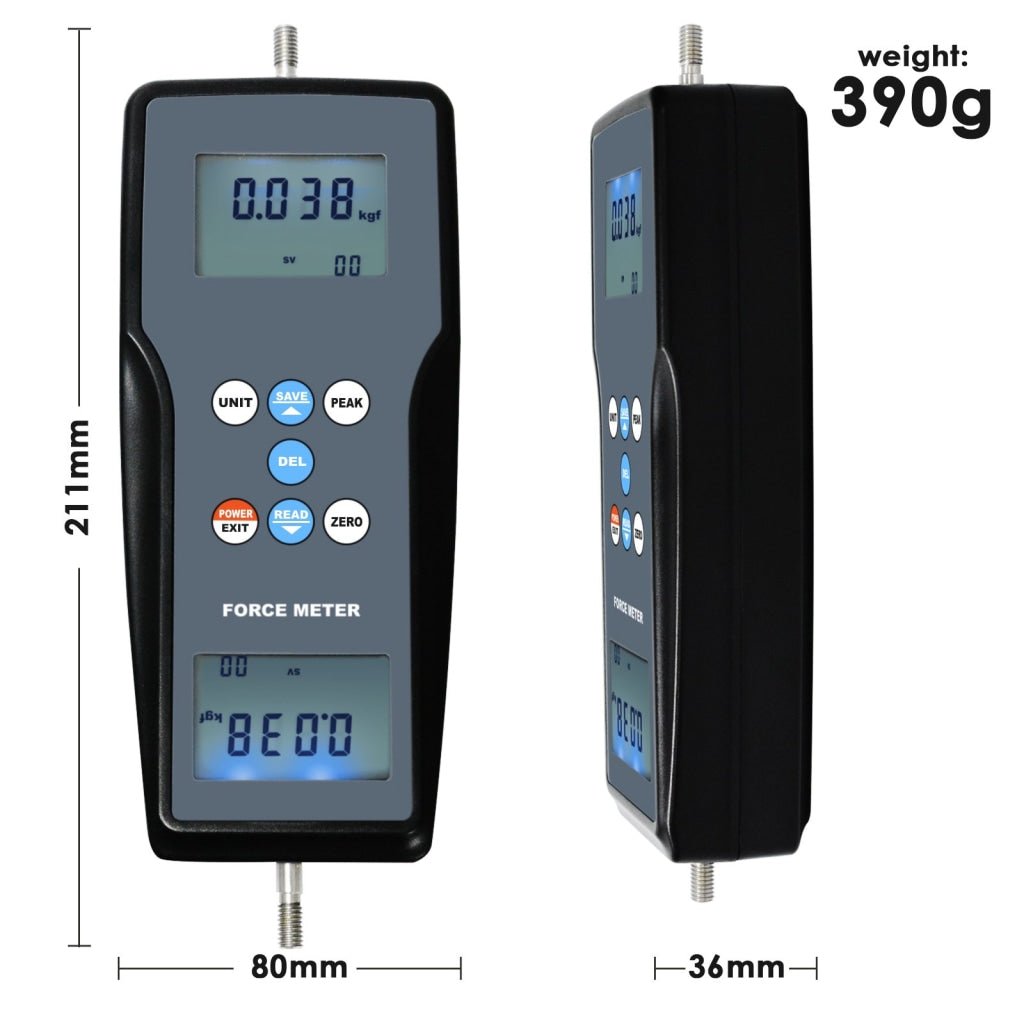

  • Dimensions: 211 x 80 x 36mm
  • Weight: 390g

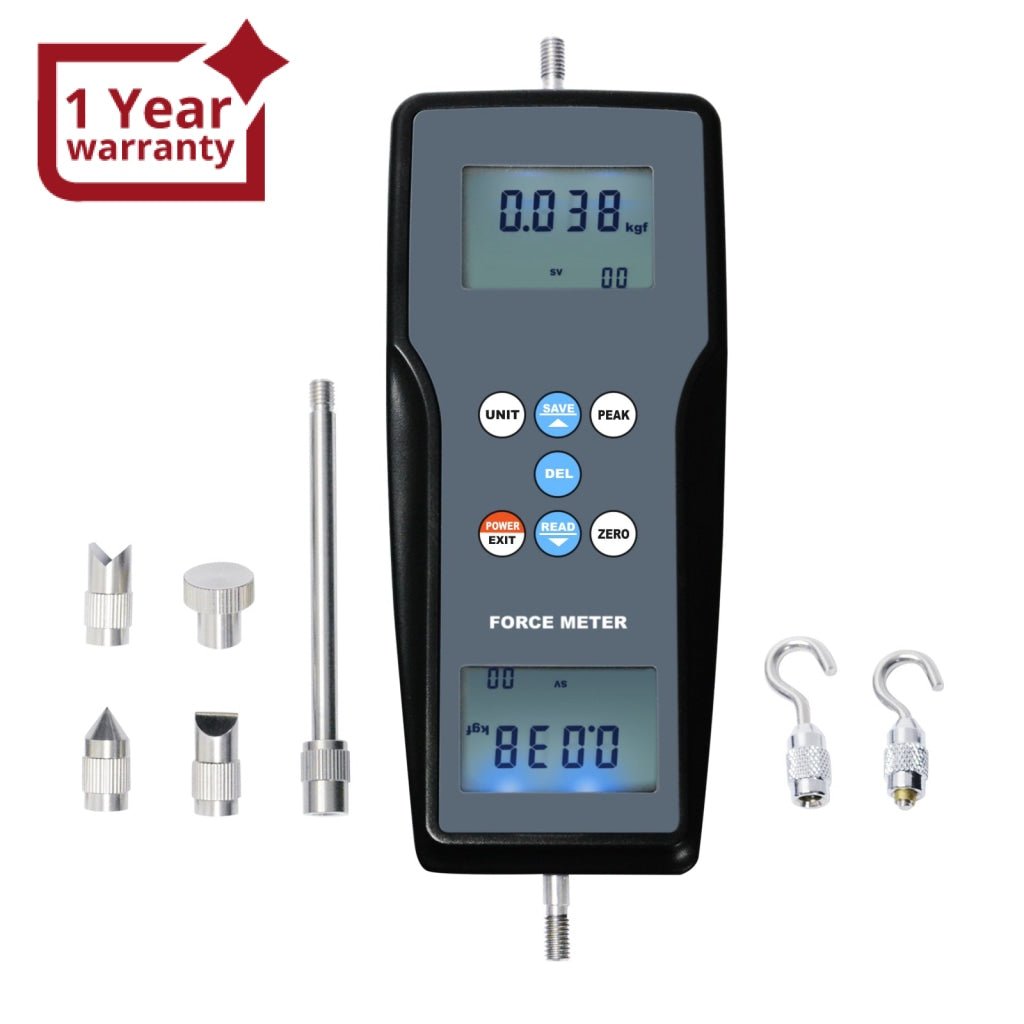

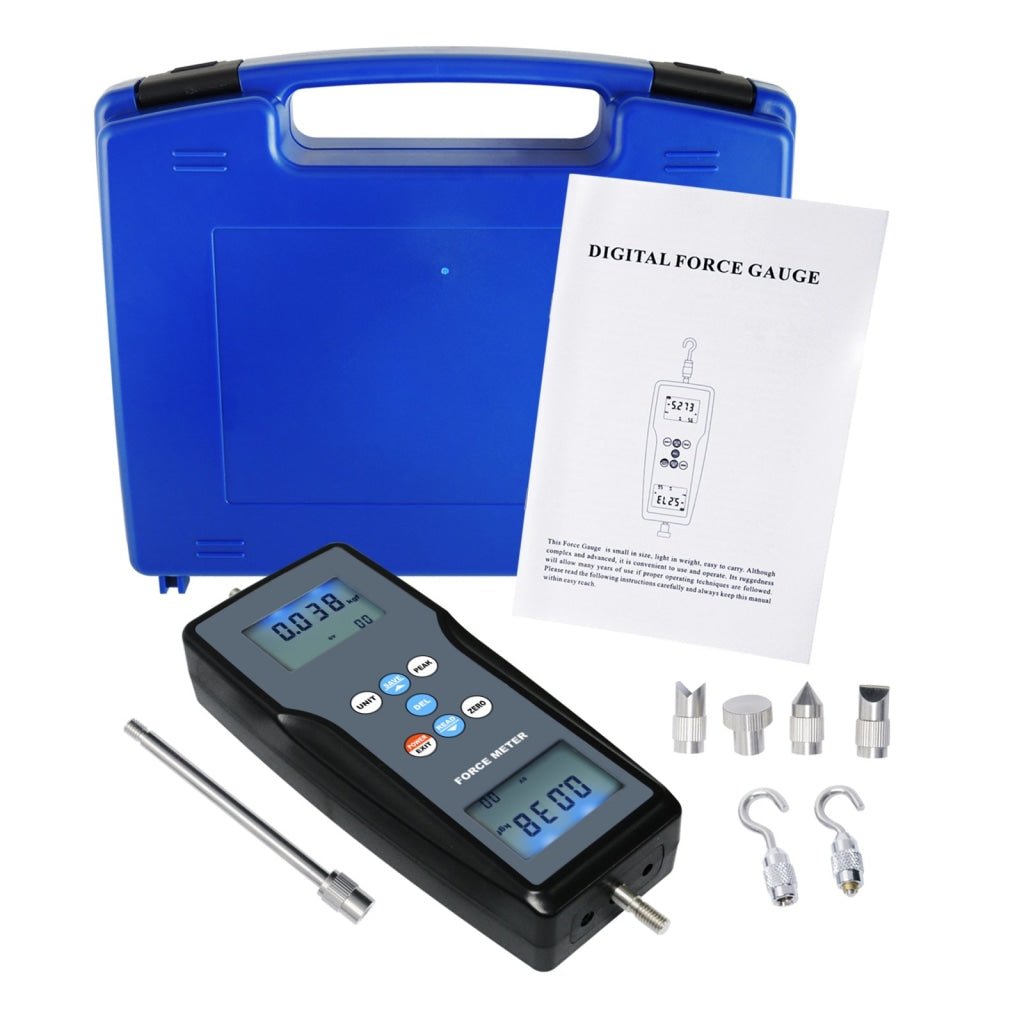

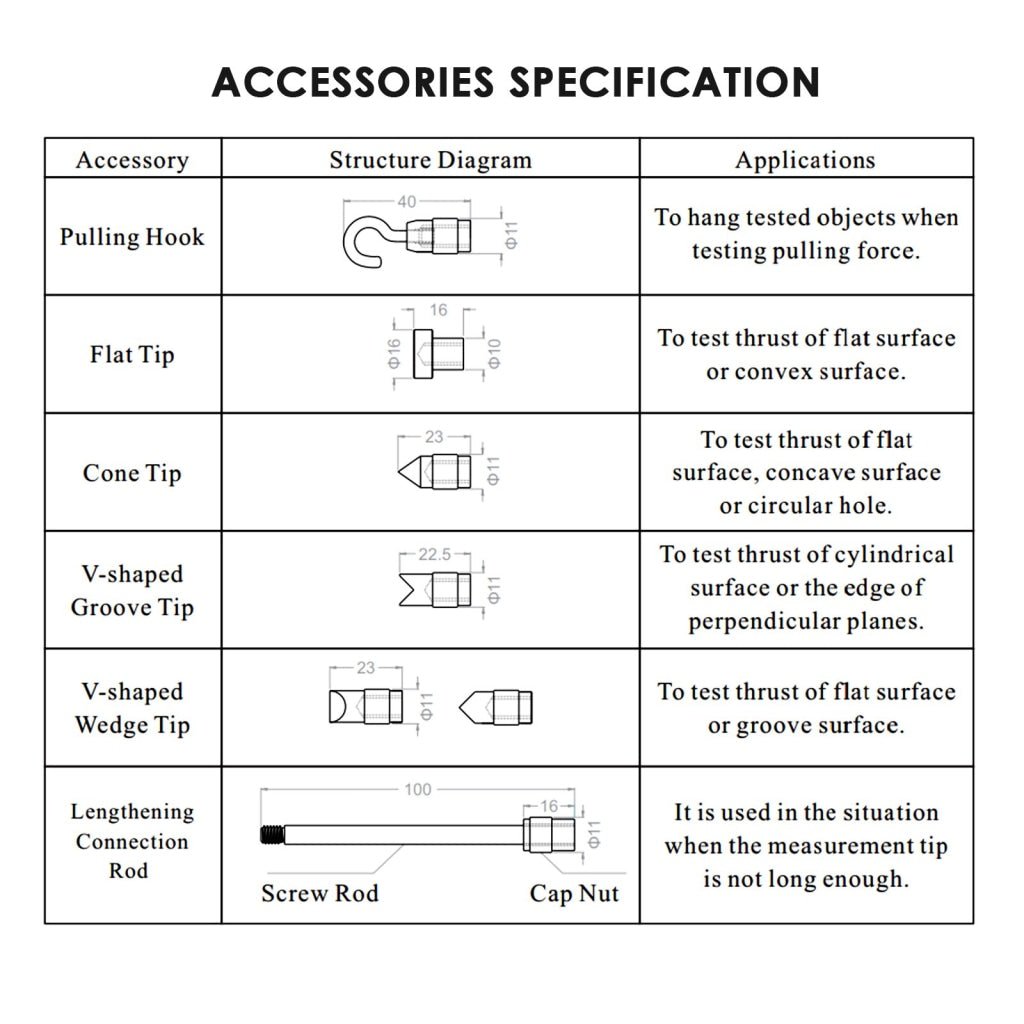

Set Includes:

  • 1 x Digital Force Gauge (main unit)

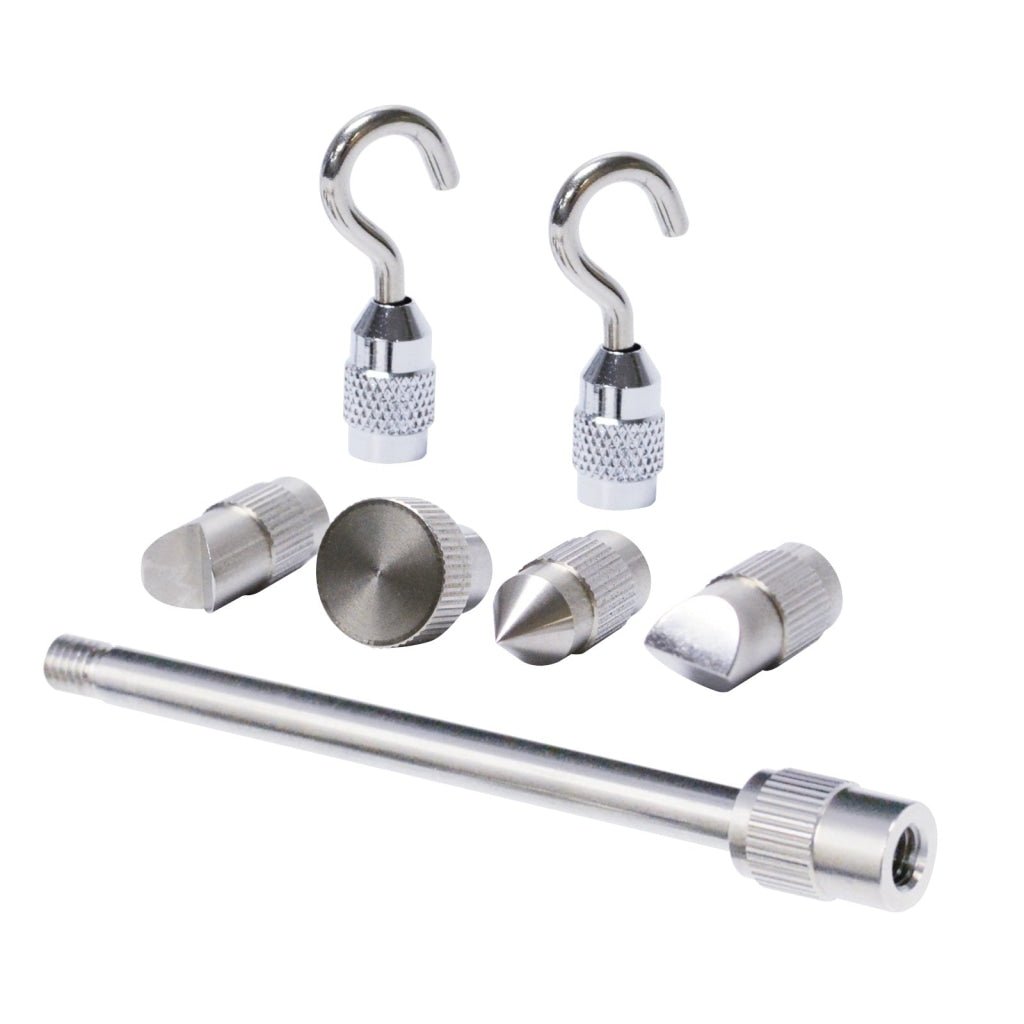

  • 2 x Pulling Hook
  • 1 x Flat Tip
  • 1 x Cone Tip
  • 1 x V-shaped Groove Tip
  • 1 x V-shaped Wedge Tip
  • 1 x Lengthening Connection Rod (Screw Rod & Cap Nut)
  • 1 x English Instruction Manual

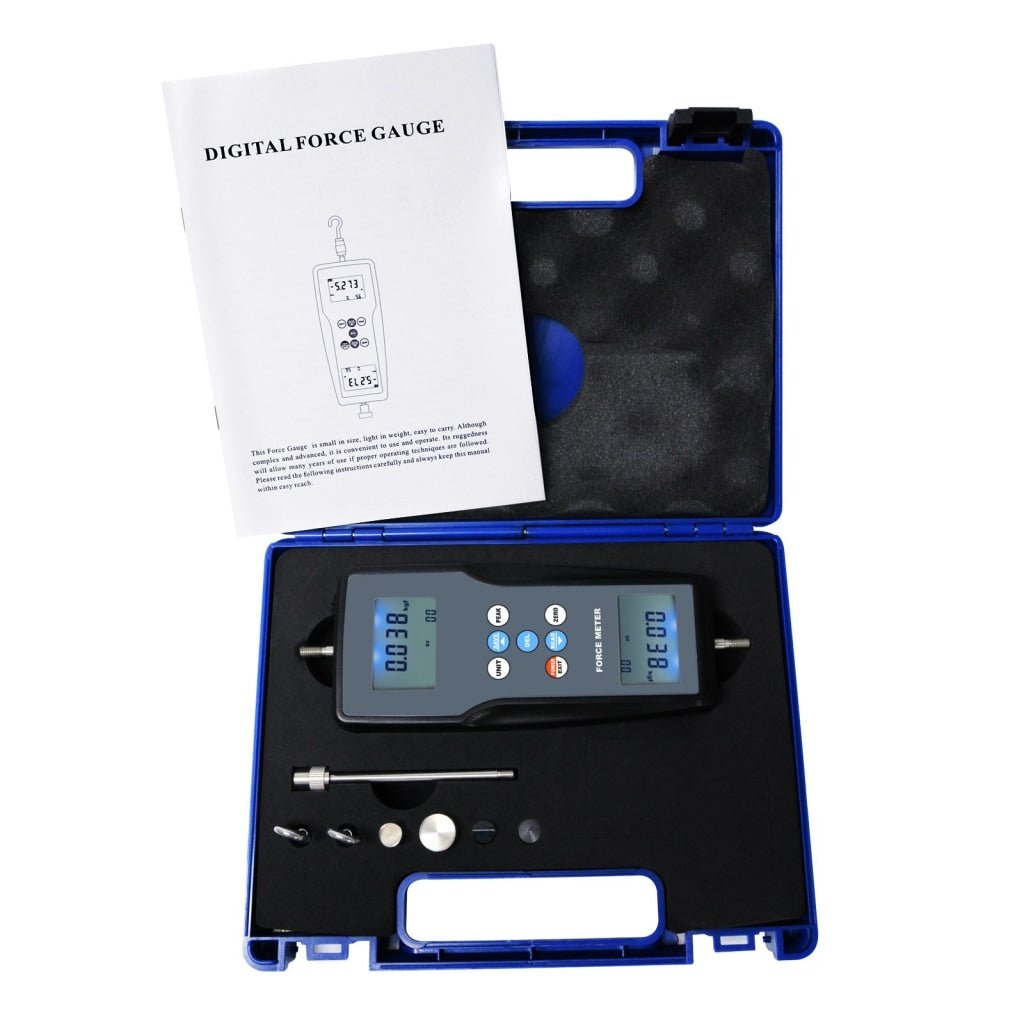

  • Carrying Case

A printed user manual is already included with this item. No digital user manual or software is available.
