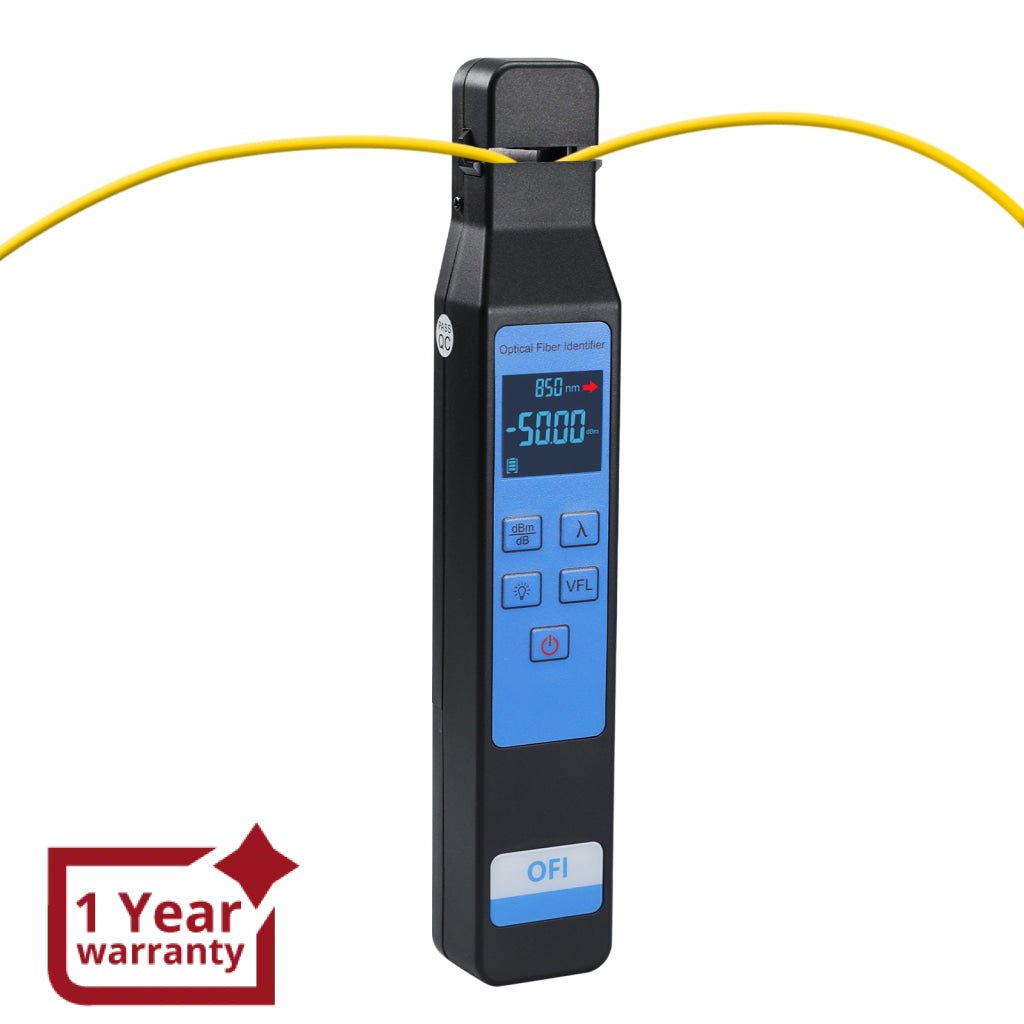

ILFI-449 Optical Fiber Identifier 800～1700nm Wavelength with Visual Fault Locator (VFL) and Optical Power Module Function Active Live Optical Network Testing Colored Screen Display Power Meter Tool

Sku: ILFI-449
$119.90 USD
Translation missing: en.products.product.shipping_policy_html
Quantity:
Add to Wishlist Remove From Wishlist
Visa Mastercard PayPal American Express Google Pay Apple Pay Shop Pay

The fiber optic identification instrument is a versatile, advanced tool used for non-destructive testing on both single-mode and multimode fibers. It features a built-in optical power module and a red light visual fault locator, essential for identifying faults and breaks in fiber links during construction and maintenance. This makes it a high-performance device that ensures efficient and reliable detection in modern fiber optic networks.

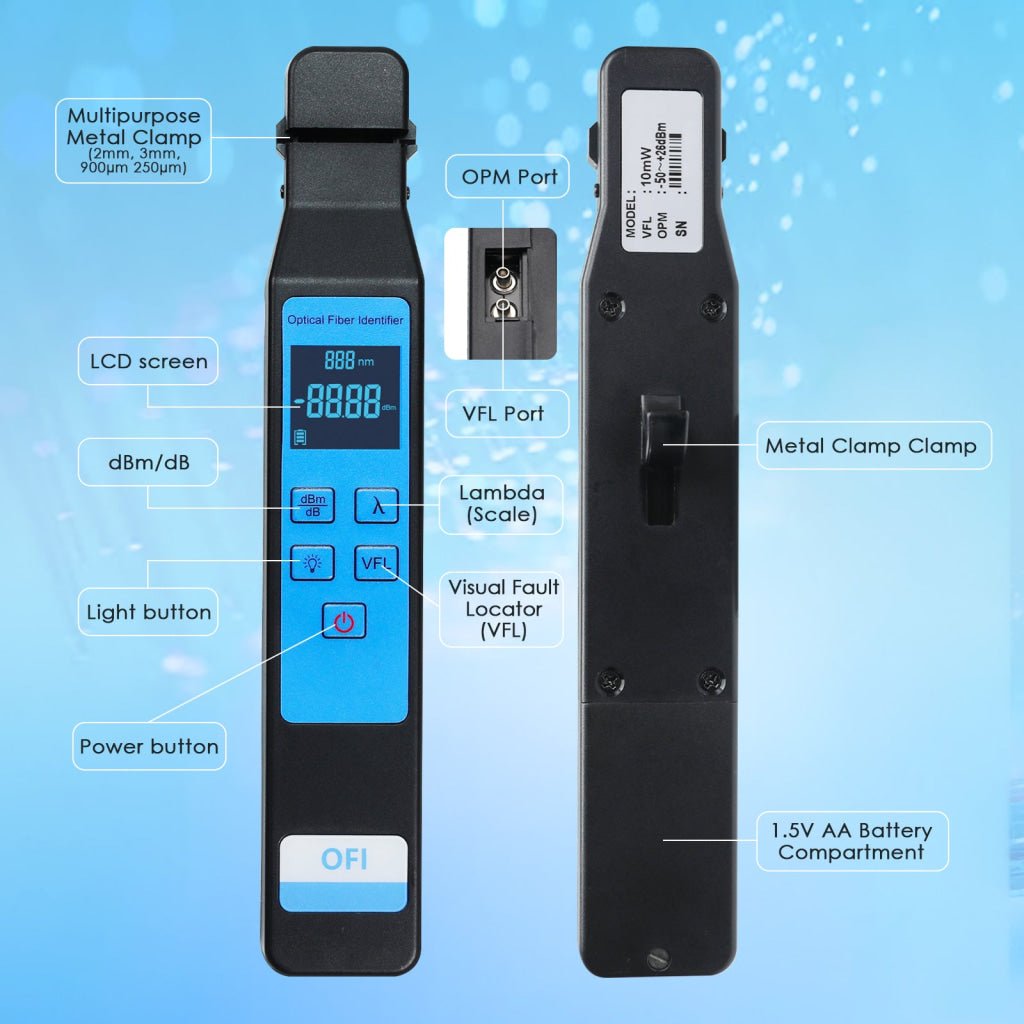

Features:

  • Color screen display

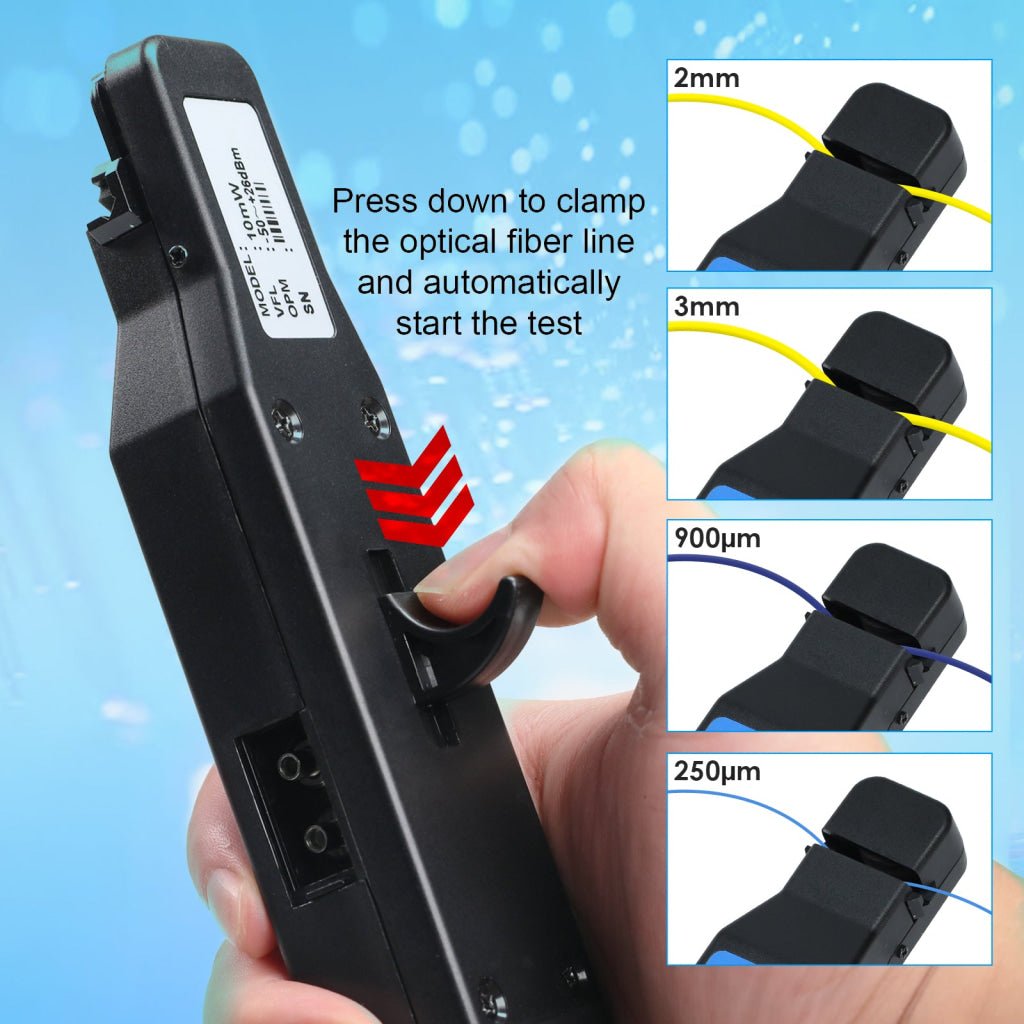

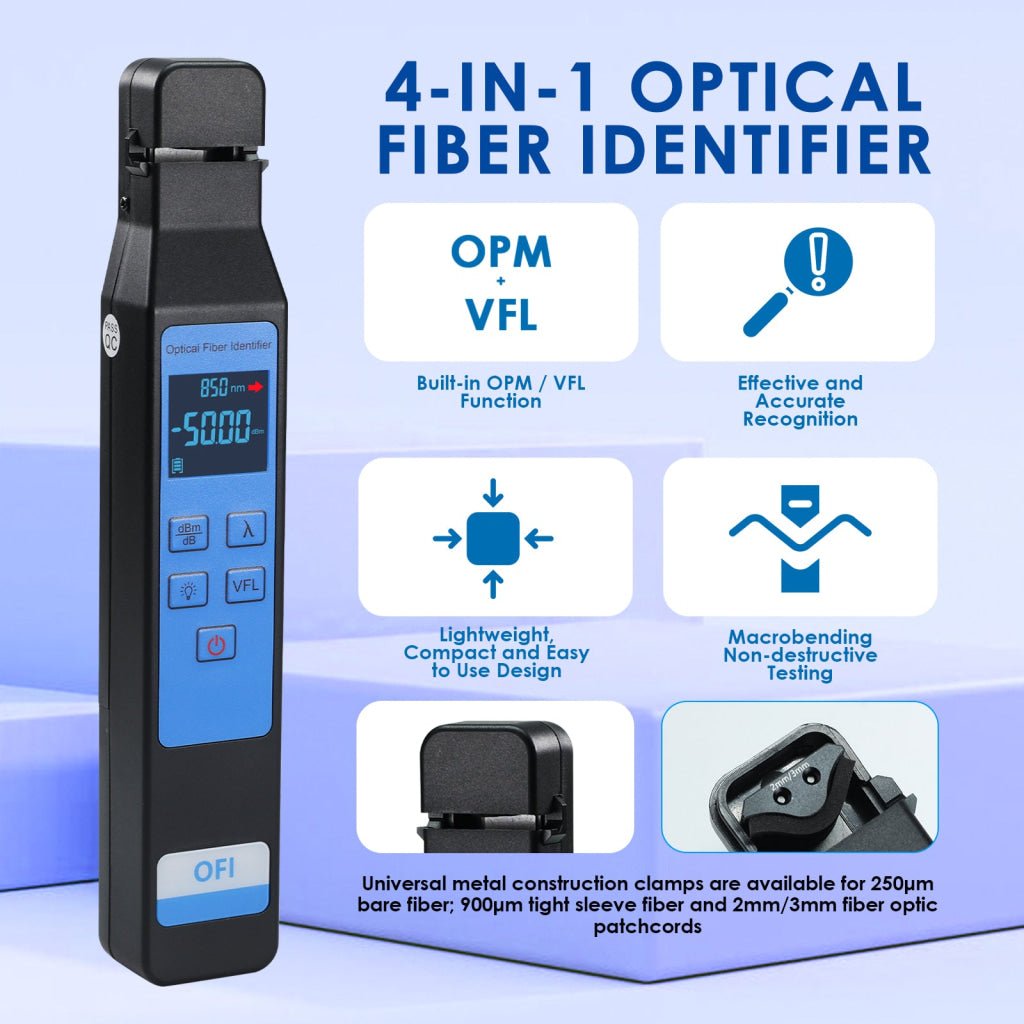

  • Metal structure 4-in-1 test fixture (can detect 250/900um and 2 to 3mm of various optical fibers)

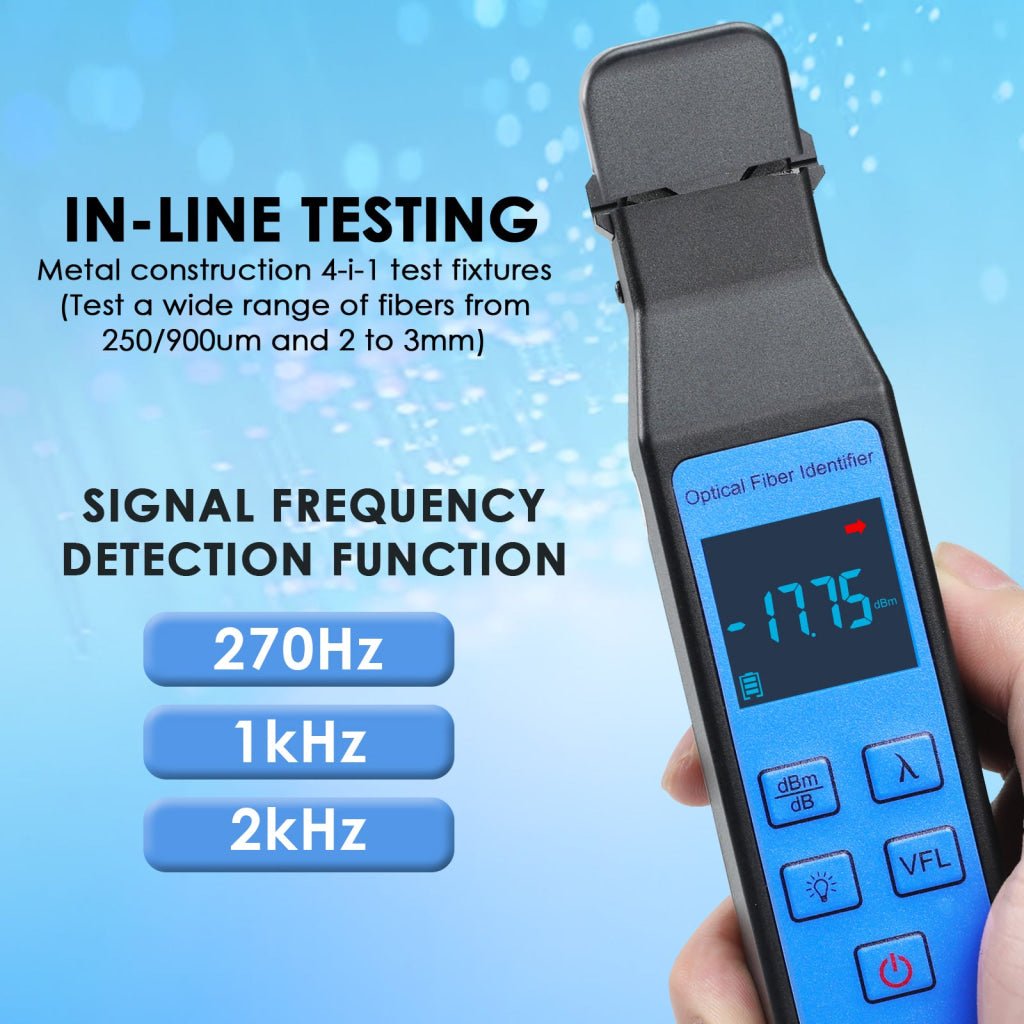

  • With online test to identify power direction, frequency detection function
  • Low insertion loss, test dynamic range
  • With ordinary power meter function (including frequency detection)
  • With VFL function
  • Low battery prompt

Specifications:

‒ Identifier module

  • Wavelength range(nm): 800～1700
  • Probe type: InGaAs
  • Adapter type(mm): 250um, 900um, 2mm, 3mm
  • Modulation frequency (Hz):  CW, 270, 1K, 2K
  • Optical fiber signal display detection range(dBm): 13～-50
  • Signal direction detection range (dBm) Typical Value: 13～-35
  • Signal frequency indication (Hz):  270, 1K, 2K
  • Signal frequency detection range (dBm) Typical Value: 13～-30

‒ Standard OPM module

  • Test wavelength (nm): 850, 1300, 1310, 1490, 1550, 1625
  • Power test range (dBm):  +26～-50
  • Unit: dBm / dB / xW
  • Resolution ratio (dB): 0.01
  • Uncertainty (dB): ≤0.5
  • Test interface: Φ2.5mm universal interface

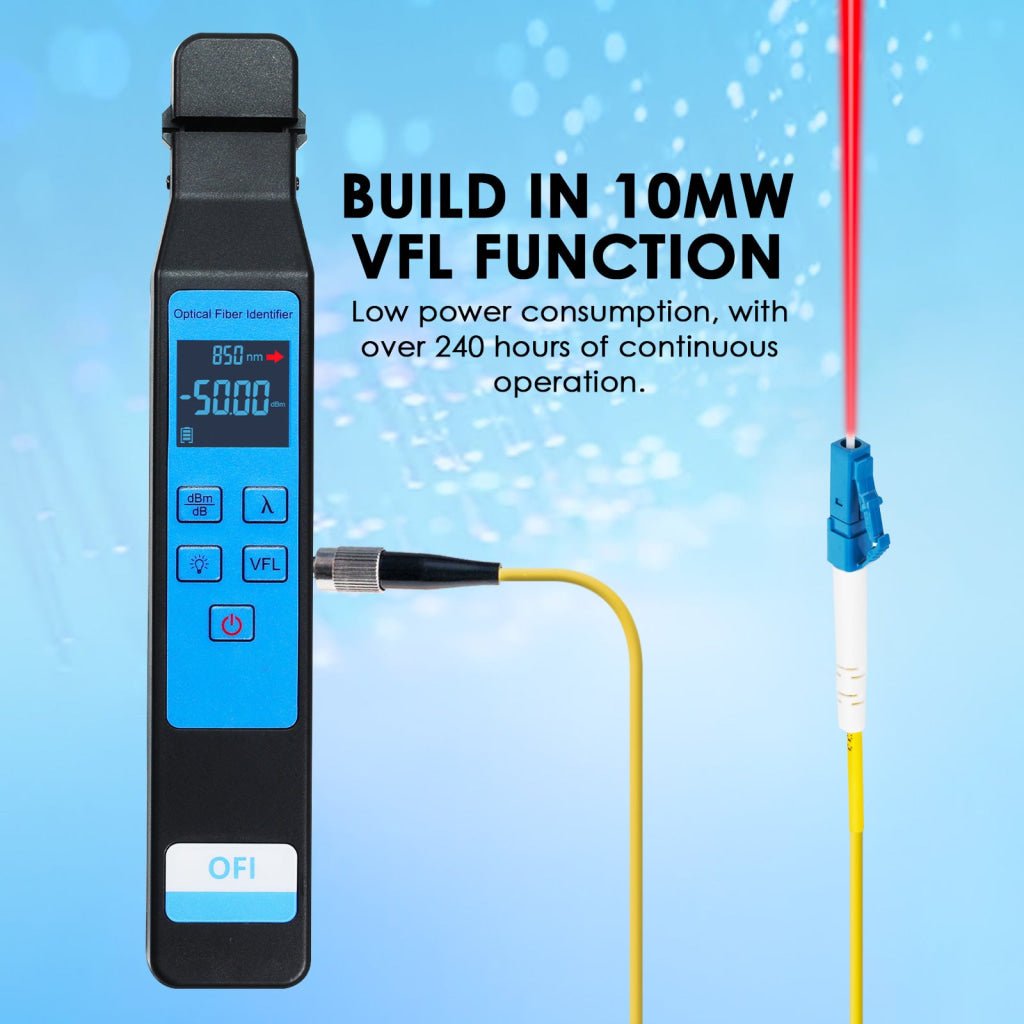

‒ VFL module

  • Wavelength (nm): 650±10
  • Output power (mW): ≥10
  • Test interface: Φ2.5mm universal interface

‒ Others

  • Display screen: Color-LCD

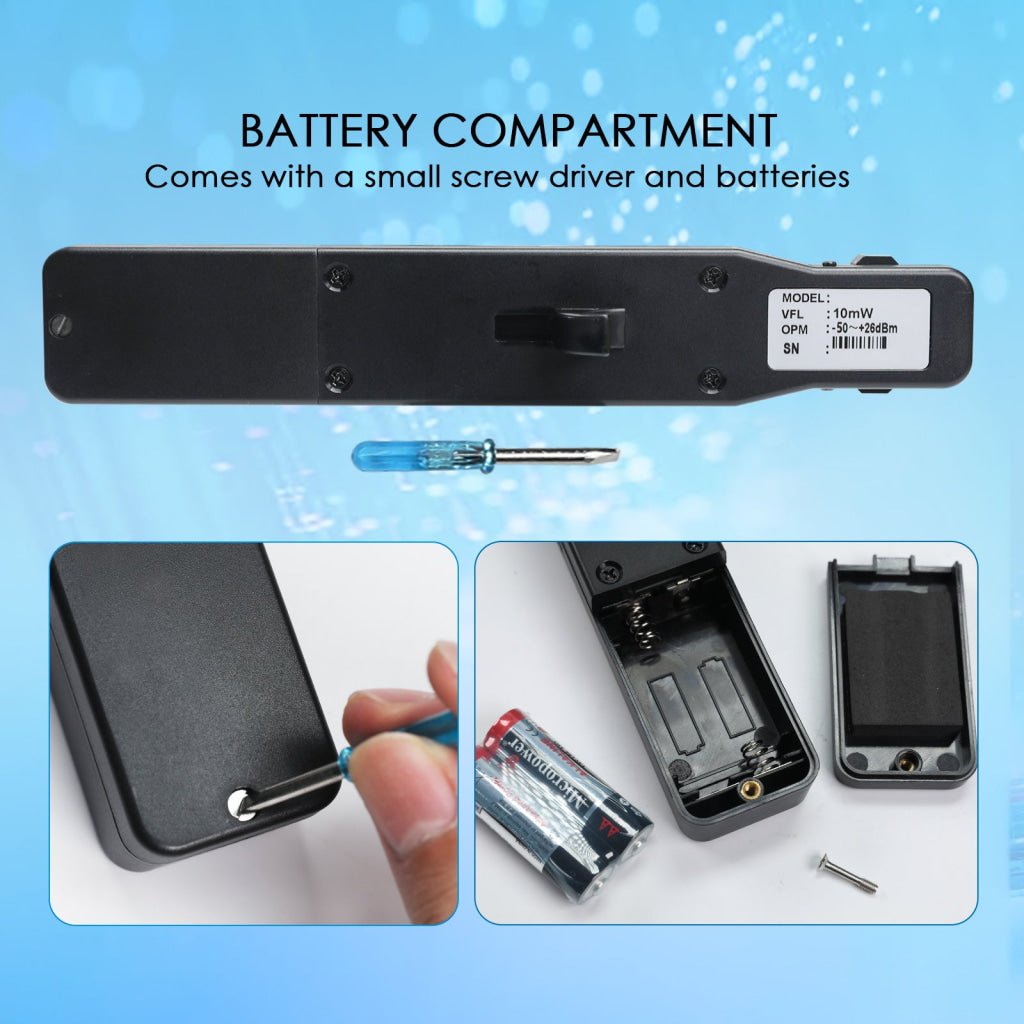

  • Power supply: 2 x 1.5V AA battery
  • Operating temperature: -20～60℃
  • Storage temperature: -30～70℃

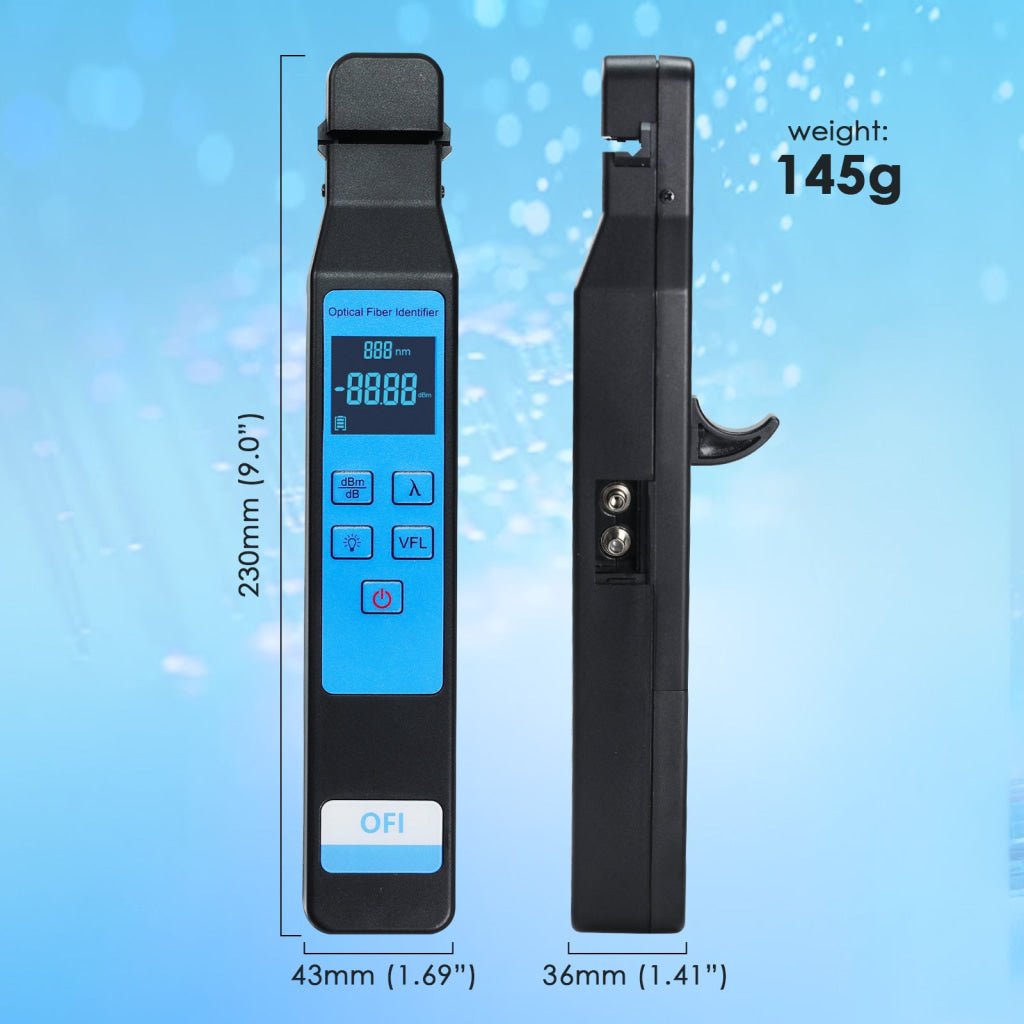

  • Dimension without switch pull button: 220 x 38 x 28 mm
  • Weight: approx. 145gms

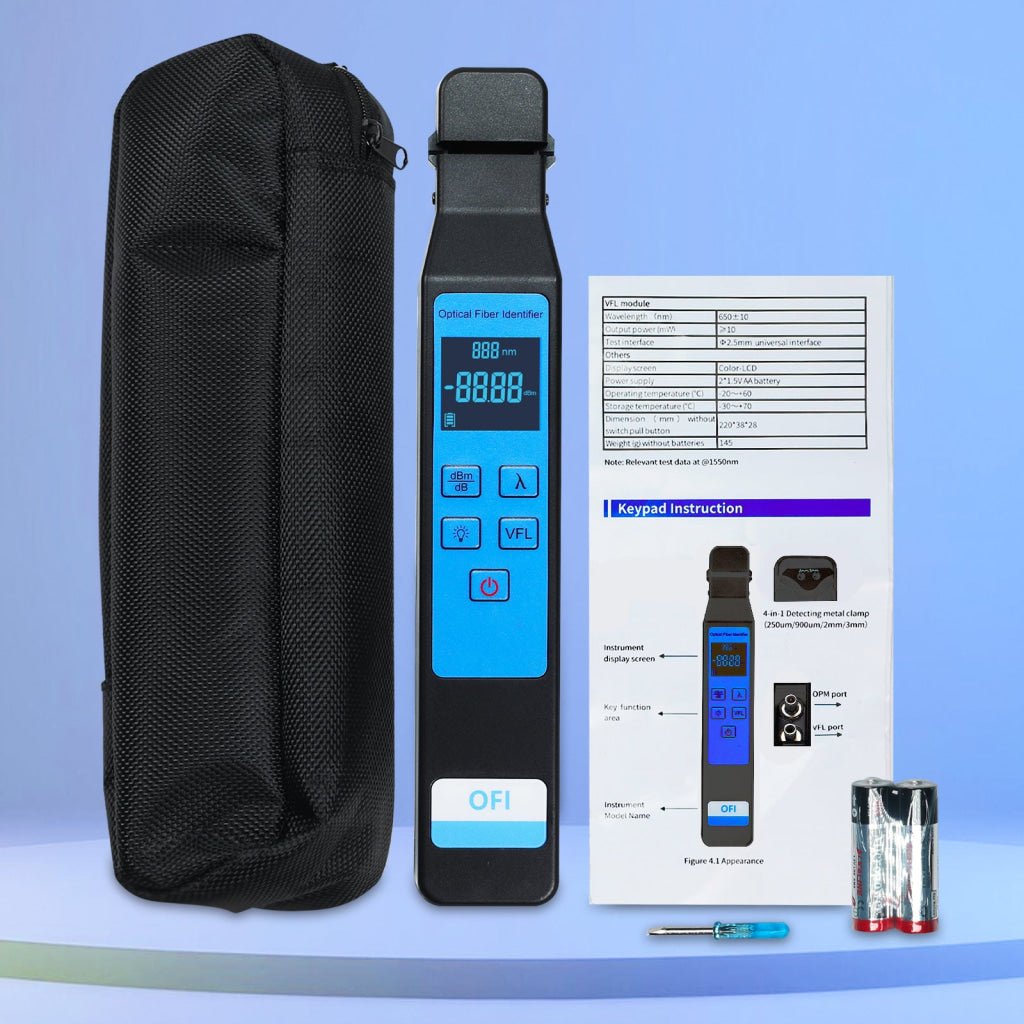

Set Includes:

  • 1 x Optical Fiber Identifier
  • 1 x Mini Screwdriver
  • 1 x English Instruction Manual
  • 2 x AA 1.5V Battery
  • 1 x Carrying Bag
  • Standard Factory Packaging

A printed user manual is already included with this item. No digital user manual or software is available.
