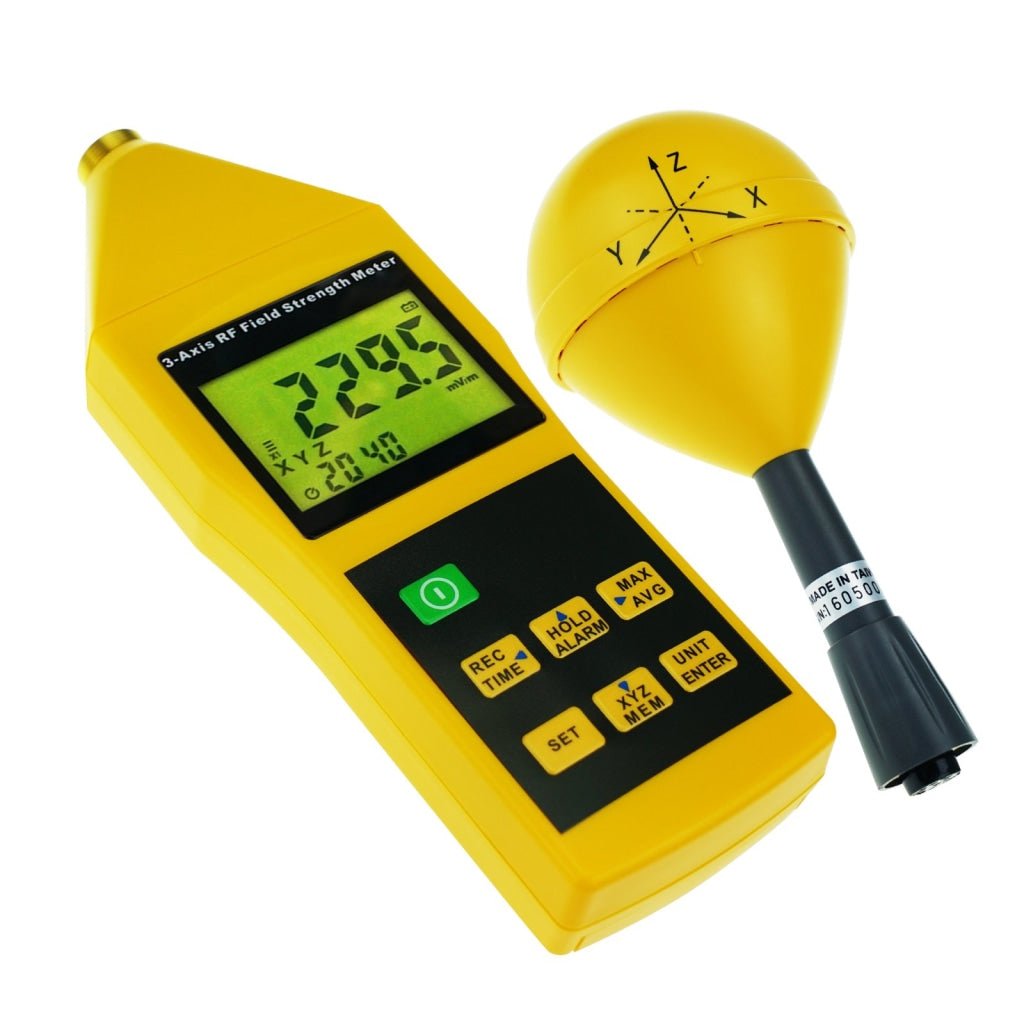

ILEM-196 Triaxial Tri-Axis RF Field Strength Meter Electromagnetic Radiation Tester Detector 10MHz to 8GHz with Alarm and Tripod Mounting, Compact, MIni

Sku: ILEM-196
$369.90 USD
Translation missing: en.products.product.shipping_policy_html
Quantity:
Add to Wishlist Remove From Wishlist
Visa Mastercard PayPal American Express Google Pay Apple Pay Shop Pay

ILEM-196 is designed for measuring and monitoring Radio Frequency(RF) electromagnetic field strength of 38mV to 11V/m and capable of measuring the frequency range of 10Mz~8GHz.

Best for:

  • High frequency(RF) electromagnetic wave field strength measurement
  • RF power measurement for transmitters
  • Wireless communication(CW, TDMA, GSM, DECT) application

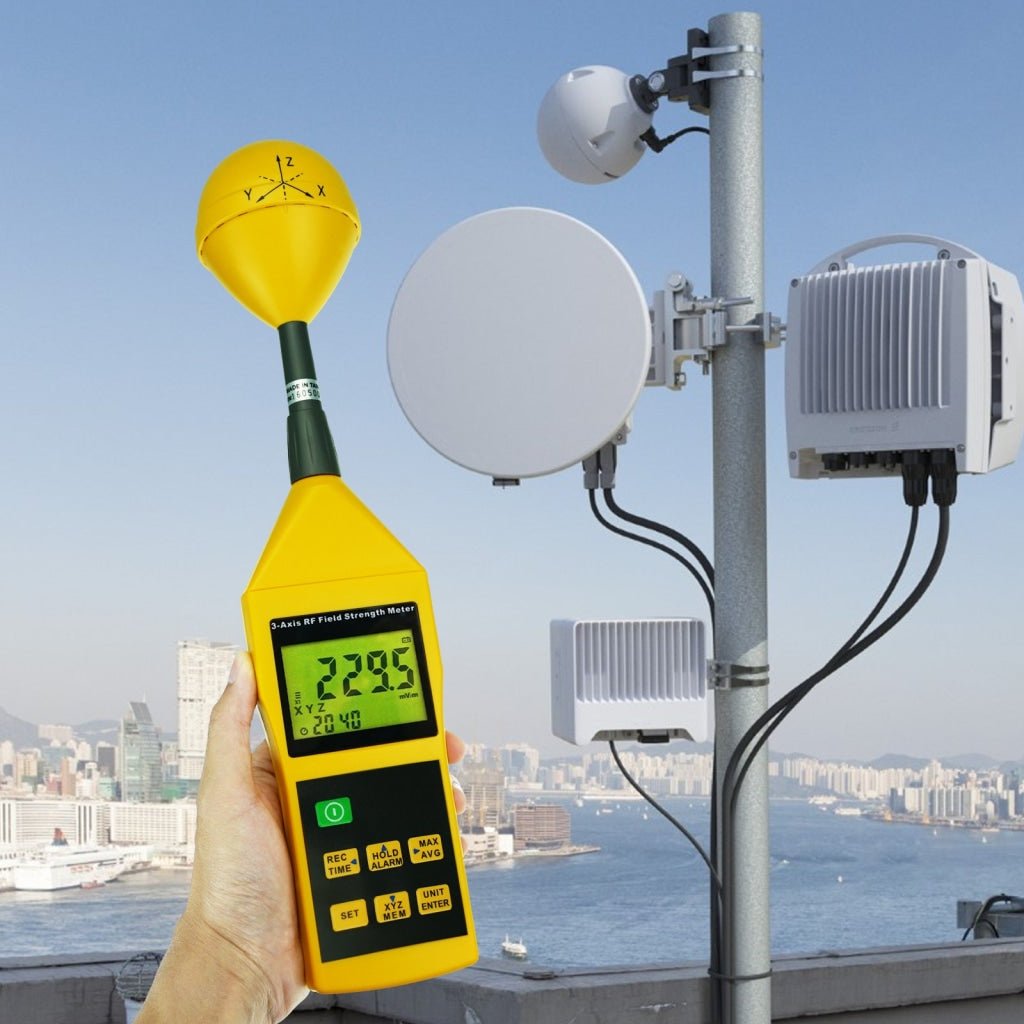

  • Mobile phone base station antenna radiation power density measurement
  • Wireless LAN(Wi-Fi) detection, installation
  • Spy camera, wireless bug finder
  • Cellular/Cordless phone radiation safety level
  • Microwave oven leakage detection
  • Personal living environment EMF safety



Specifications:

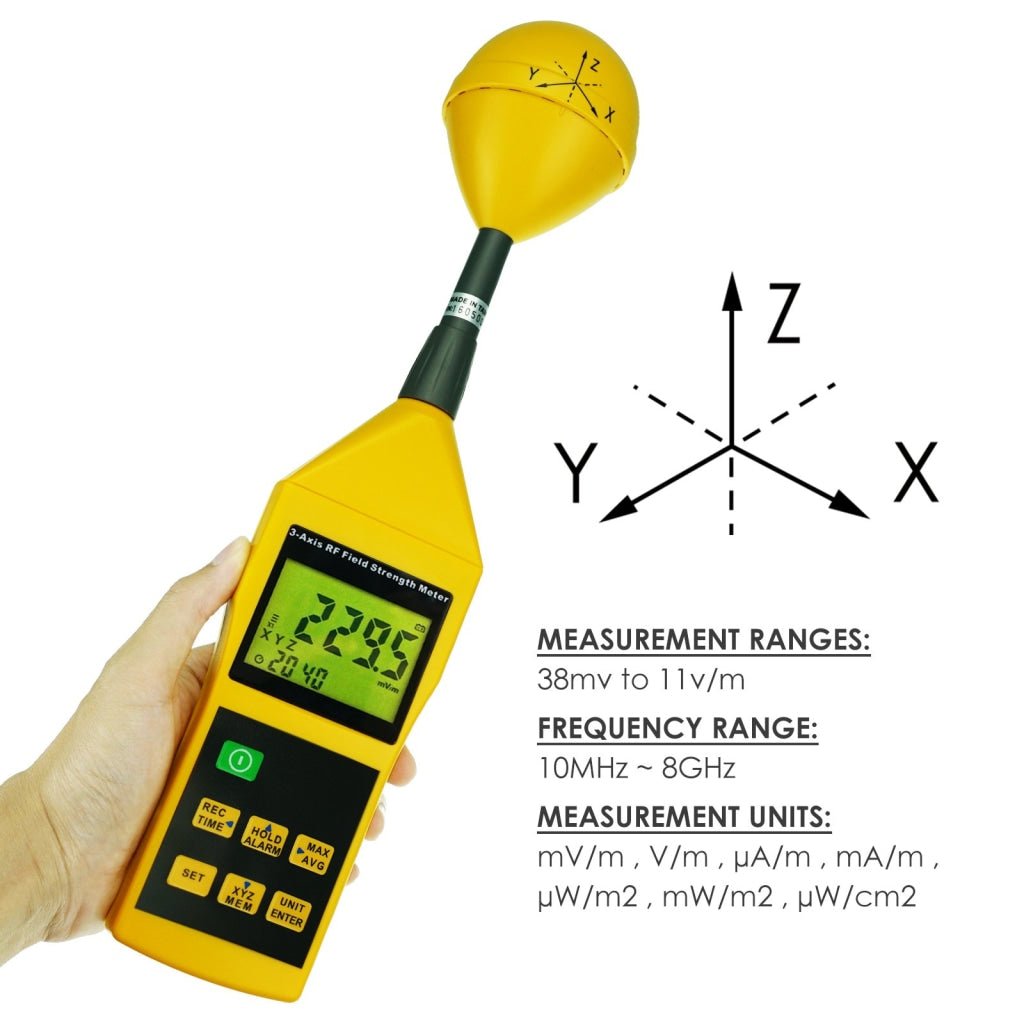

  • Measurement range: 50mV/m ~ 11V/m
  • Frequency range: 10MHz ~ 8GHz

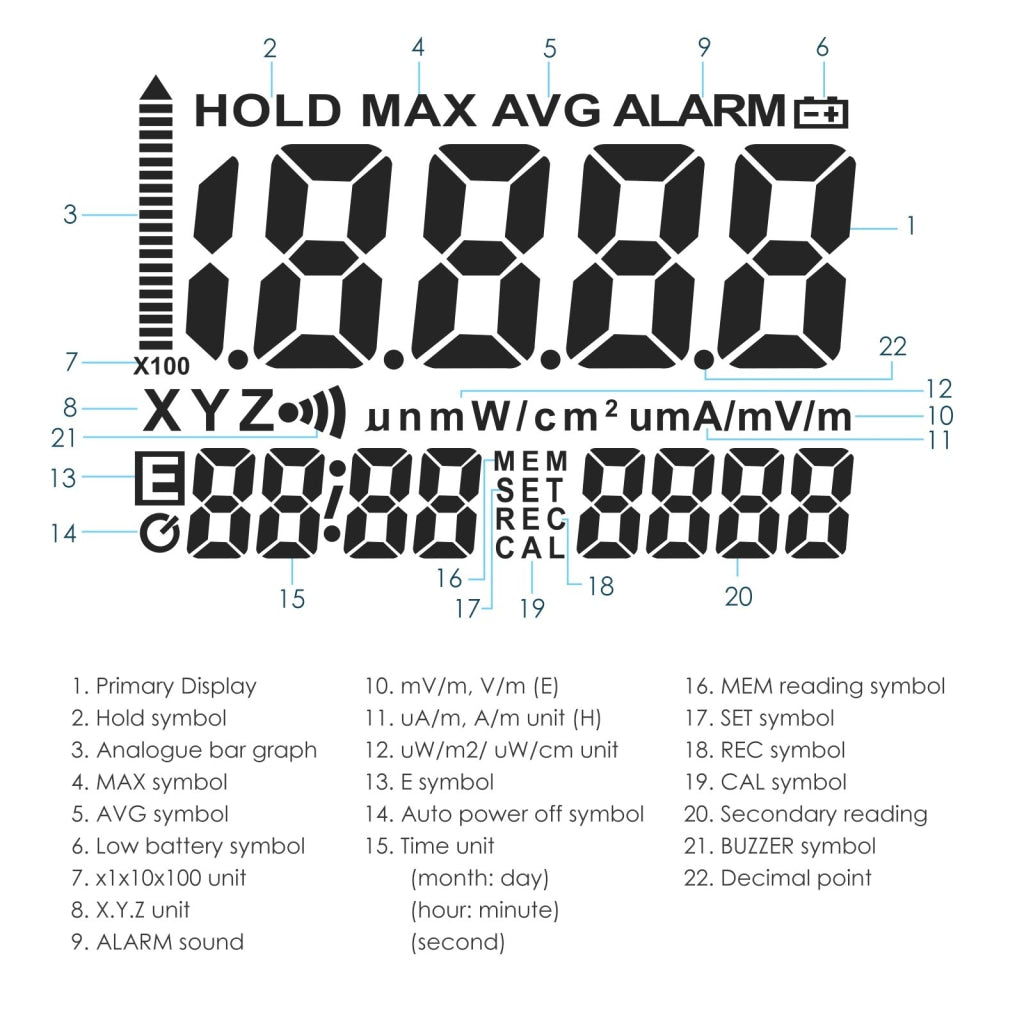

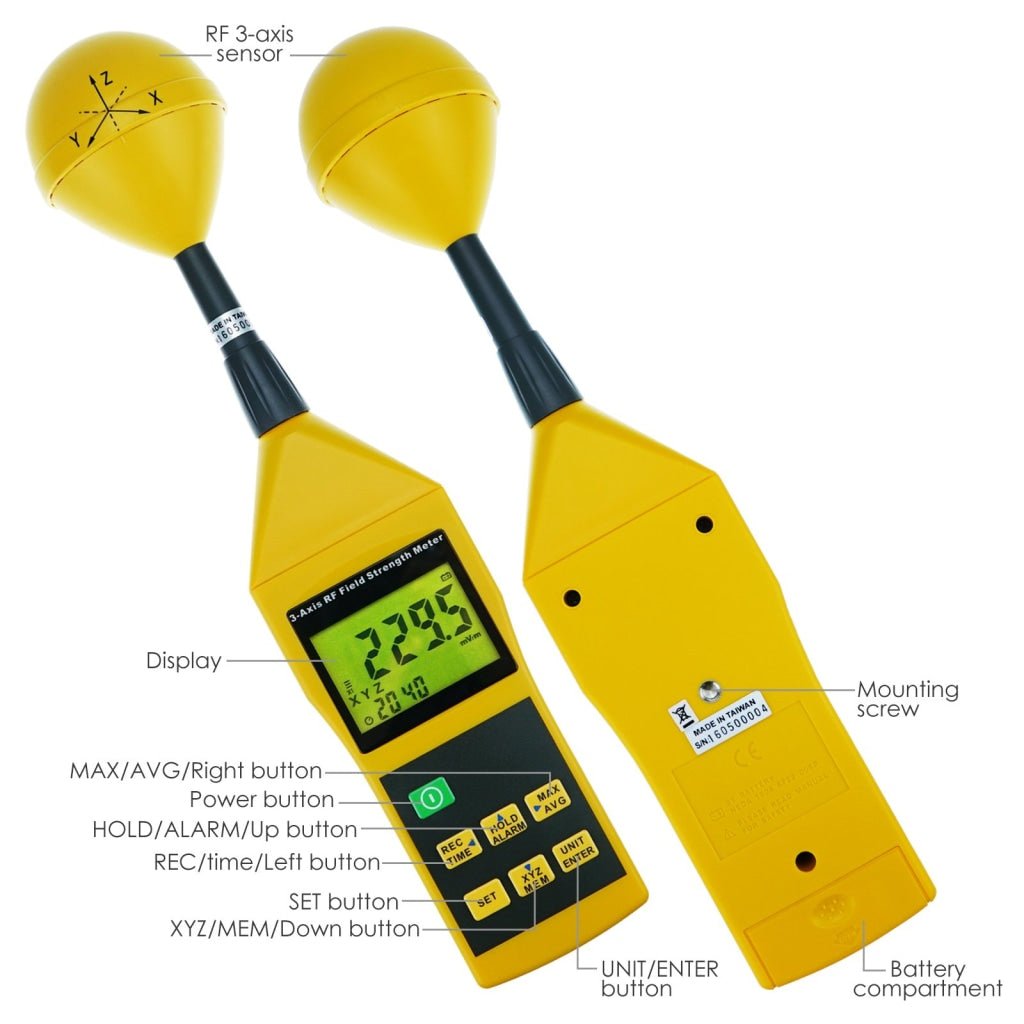

  • Sensor axis display selection: All axis, X axis, Y axis, Z axis

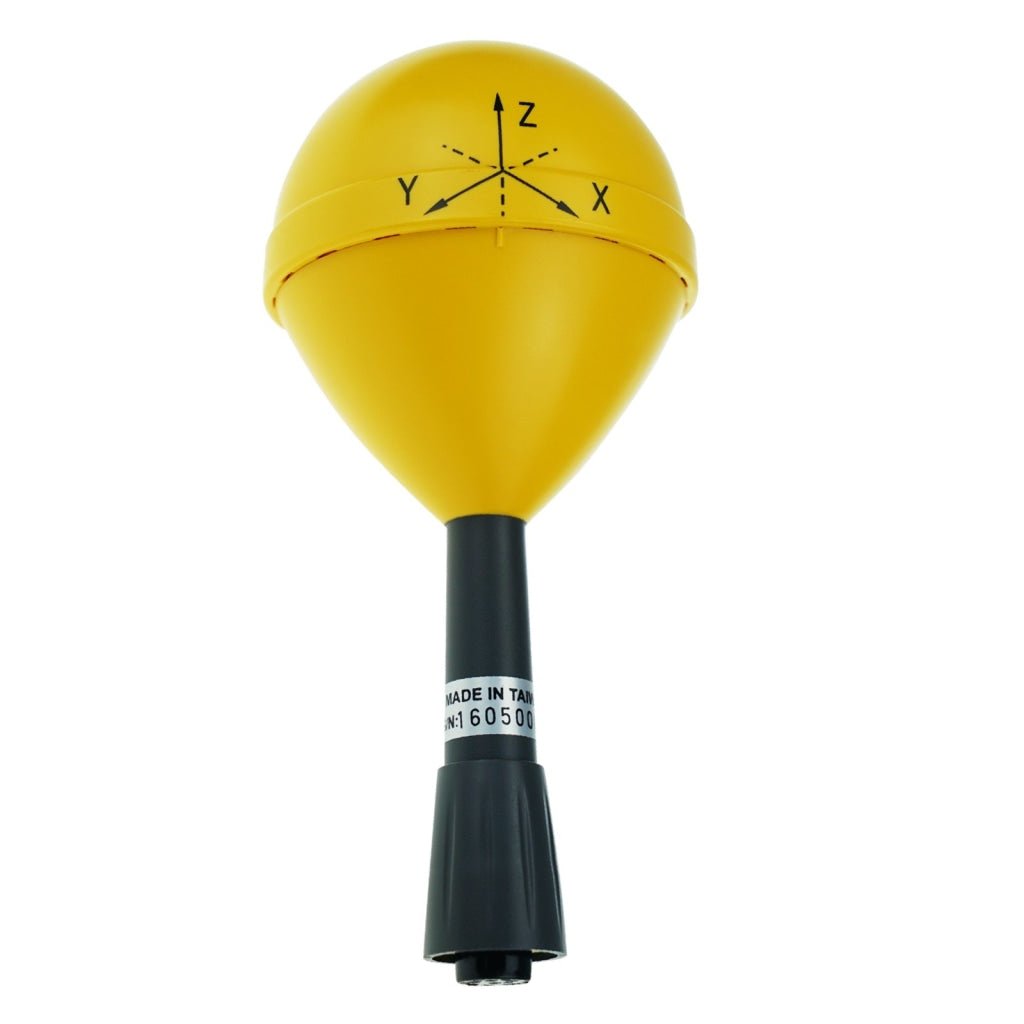

  • Directional characteristic: Isotropic, Tri axis
  • Low battery indication
  • Data Hold function
  • Over Load indication
  • Analogue bar graph display
  • Clock LCD display
  • Units: mV/m , V/m , µA/m , mA/m , µW/m2 , mW/m2 , µW/cm2
  • Display resolution: 0.1mV/m, 0.01V/m, 0.1µA/m, 0.1mA/m, 0.001µW/m2, 0.01mW/m2, 0.001µW/cm2
  • Alarm function: adjustable threshold with ON/ OFF
  • Sample rate: 1.5 times per second
  • Display value: instantaneous measured value, maximum value, average value, maximum average value
  • Calibration factor CAL setting range: 0.10 to 9.99
  • Manual data memory and read storage: 200 data sets
  • Auto power off: adjustable threshold 0-99 minutes

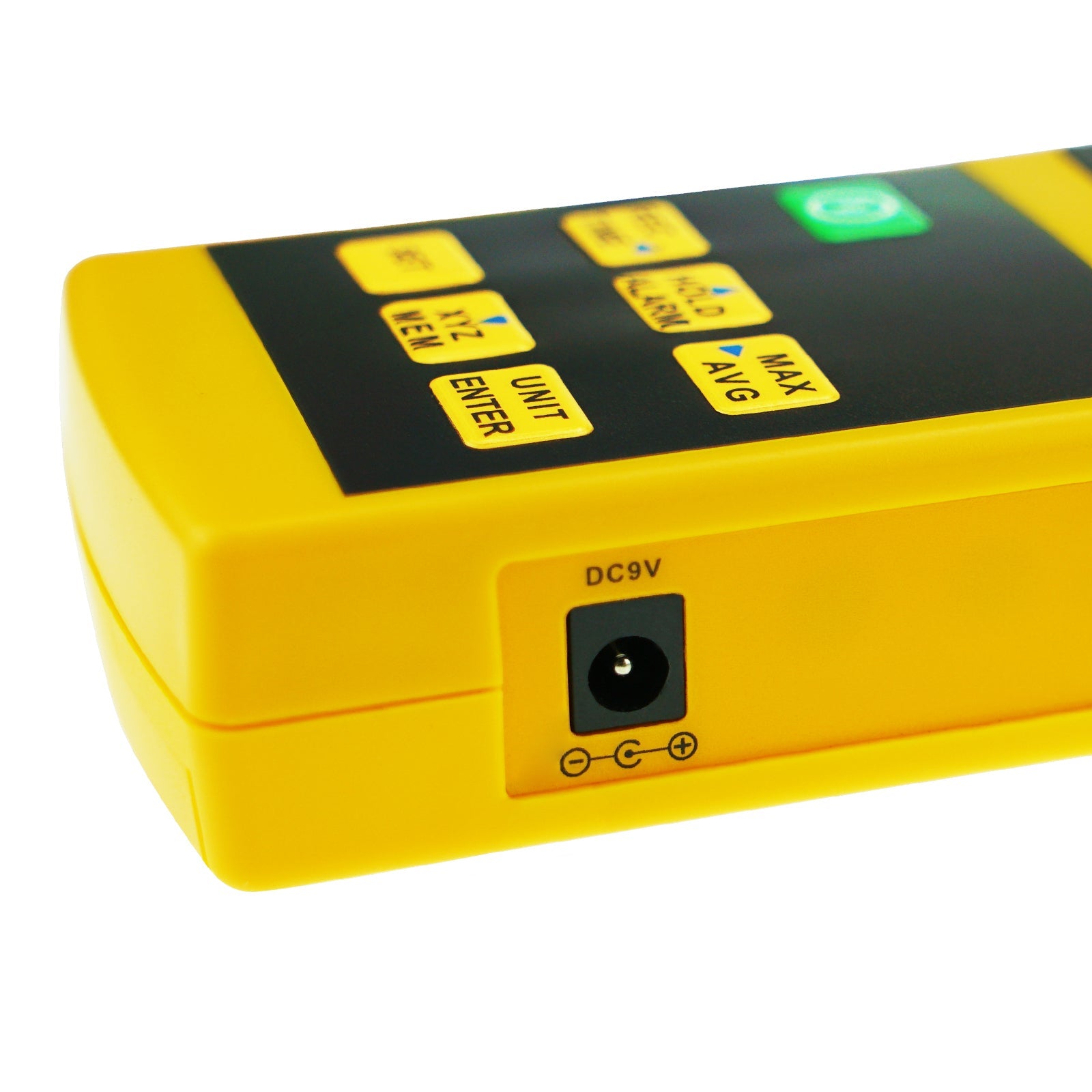

  • Power supply: 9V battery (included in the set) or external AC to DC adapter (not included in the set)

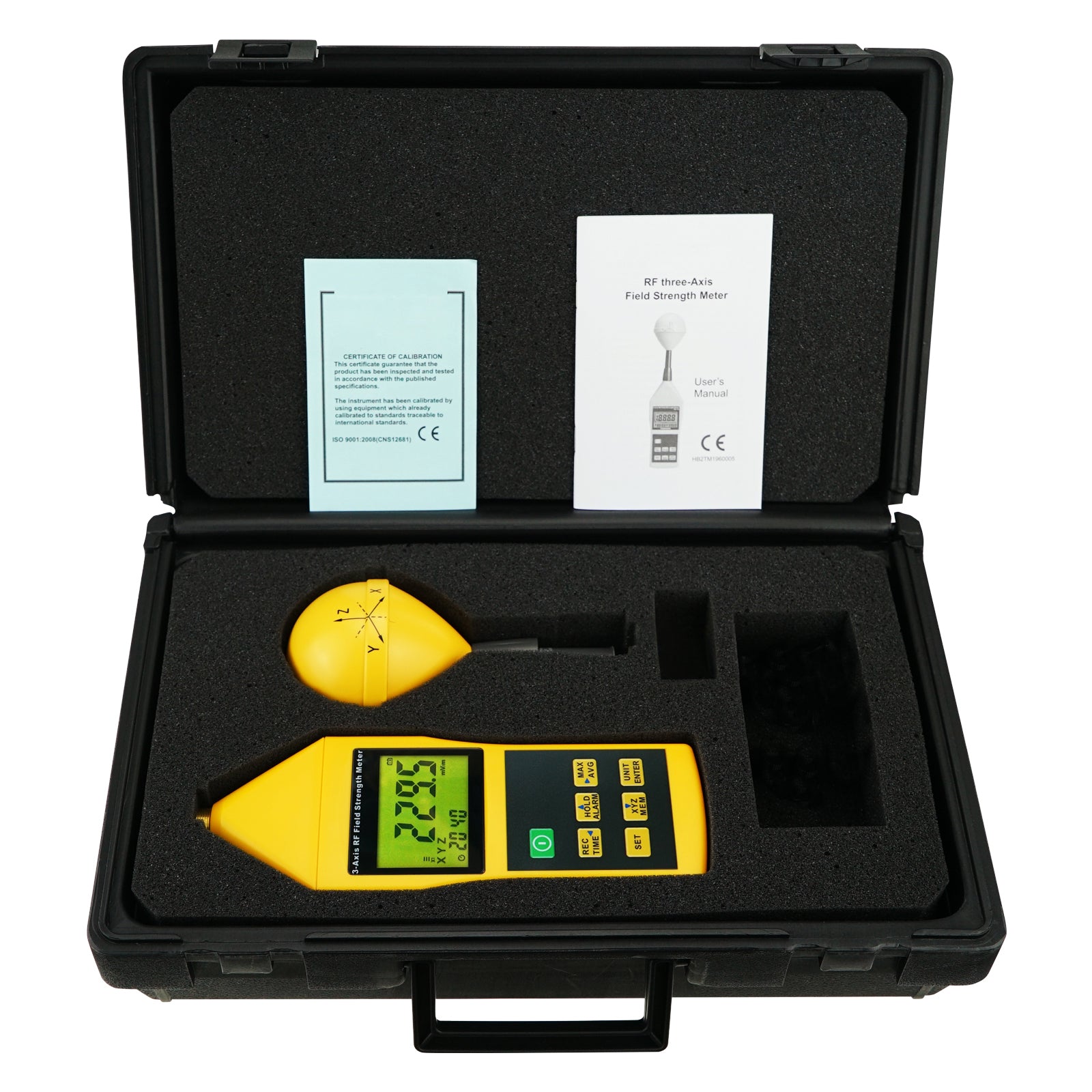

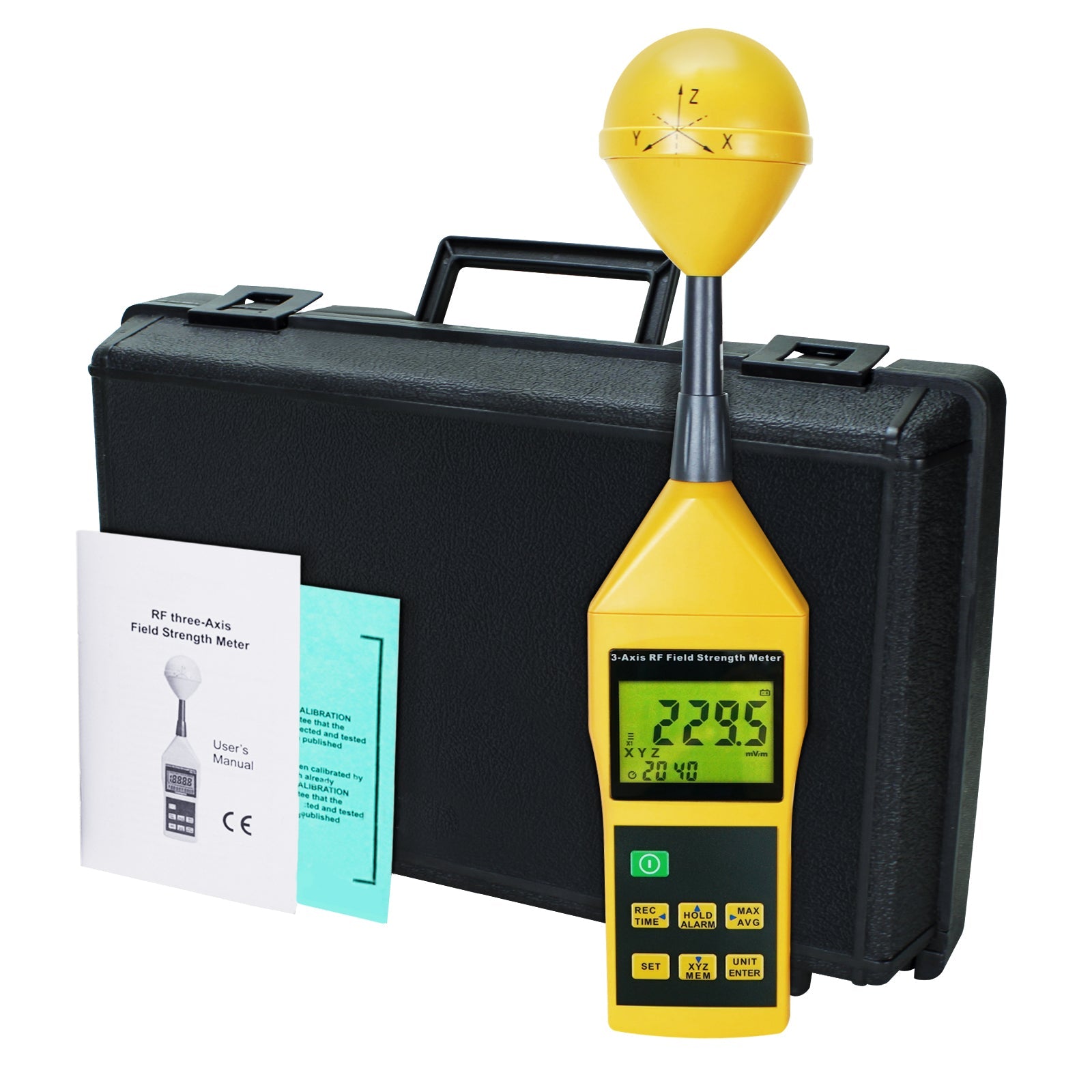

Set Includes:

  • 1 x 3-Axis RF Meter
  • 1 x English User Manual
  • 1 x 9V battery
  • 1 x Calibration certificate
  • 1 x Protective hard case with foam

A printed user manual is already included with this item. No digital user manual or software is available.

RETURN AND REFUND

Most new, unopened items can be returned within thirty (30) days of delivery for a full refund. If the return is due to our error—such as receiving an incorrect or defective item—we will also cover the return shipping costs.

If you request a refund, it will be issued using the original payment method within four (4) weeks after you hand the package over to the return carrier. This timeframe includes shipping transit to our facility, processing upon receipt, and the time required for the refund to be posted to your account.

WARRANTY POLICY

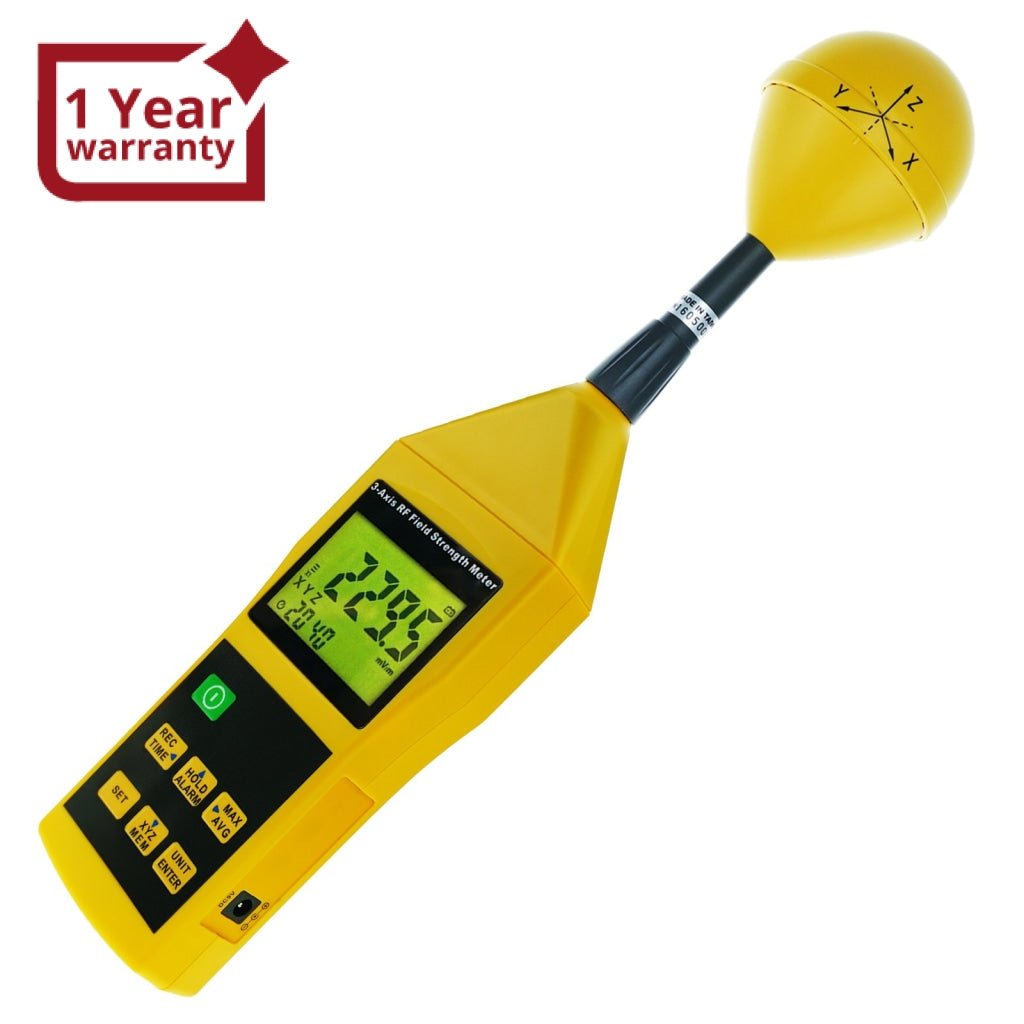

Most of our items come with one (1) year warranty for manufacturer defects. It does not include damage caused by misuse, accidents, abuse, alterations, neglect or other external causes.
