ILEM-192 3-Axis Gauss EMF ELF Meter Detector, Electromagnetic Field Radiation Intensity 20/ 200/ 2000 mG & uT, Frequency 30~2000 Hz, Handheld Portable Gauge for Microwave Computer Monitor Power Line

Sku: ILEM-192
$167.90 USD
Translation missing: en.products.product.shipping_policy_html
Quantity:
Add to Wishlist Remove From Wishlist
Visa Mastercard PayPal American Express Google Pay Apple Pay Shop Pay

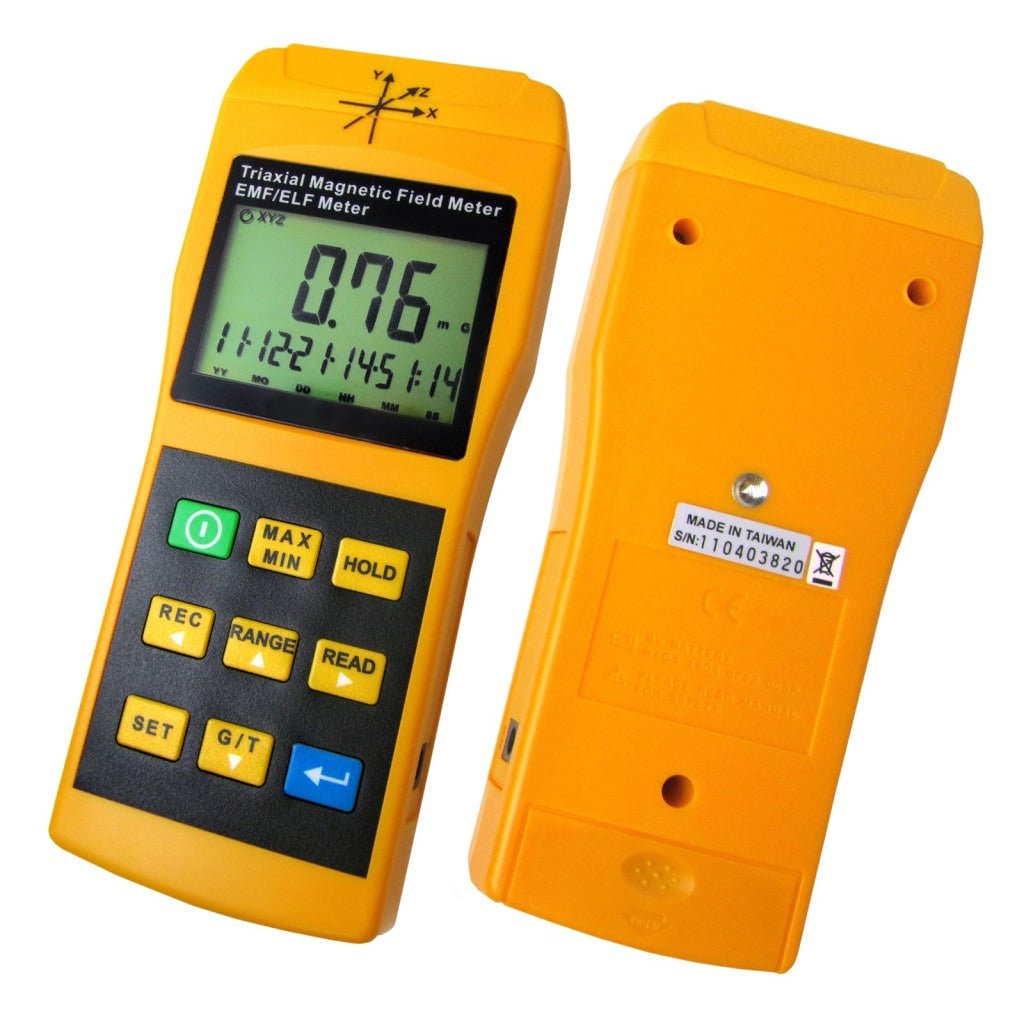

This EMF/ELF Tri-Axis Gauss Meter is a scientific instrument for measuring electromagnetic fields (EMF) with extremely low frequency (ELF) of 30 ~ 2000 Hz. The reading in milliGauss (mG) and microTesla (µT) are switchable anytime with just one press of a button.

It has a Hold function and also capable to display the maximum reading (Max). It has a tri-axis sensitive sensors and wide measurement of 2000mG / 200µT with ±(3.0% + 30 digits) accuracy at 50/60Hz.

All parts are of professional quality and Made in Taiwan, it accurately measures EMF pollution in your environment. It has given approval from European Directives for health & safety standards (CE Marking). You can be sure of its high quality, safety and accuracy.

Features

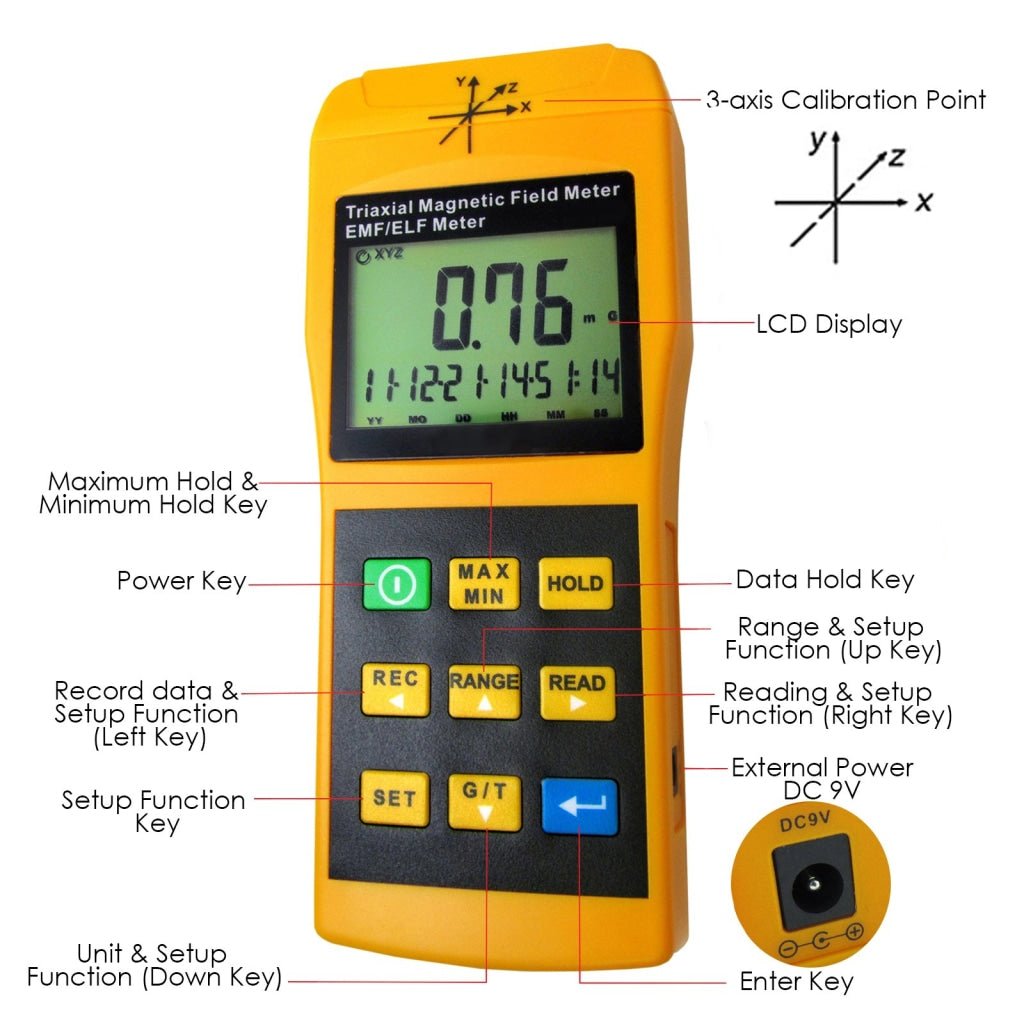

  • Uses three internal orthogonal sensors to test a wide range of ELF magnetic fields, independent of measurement angle

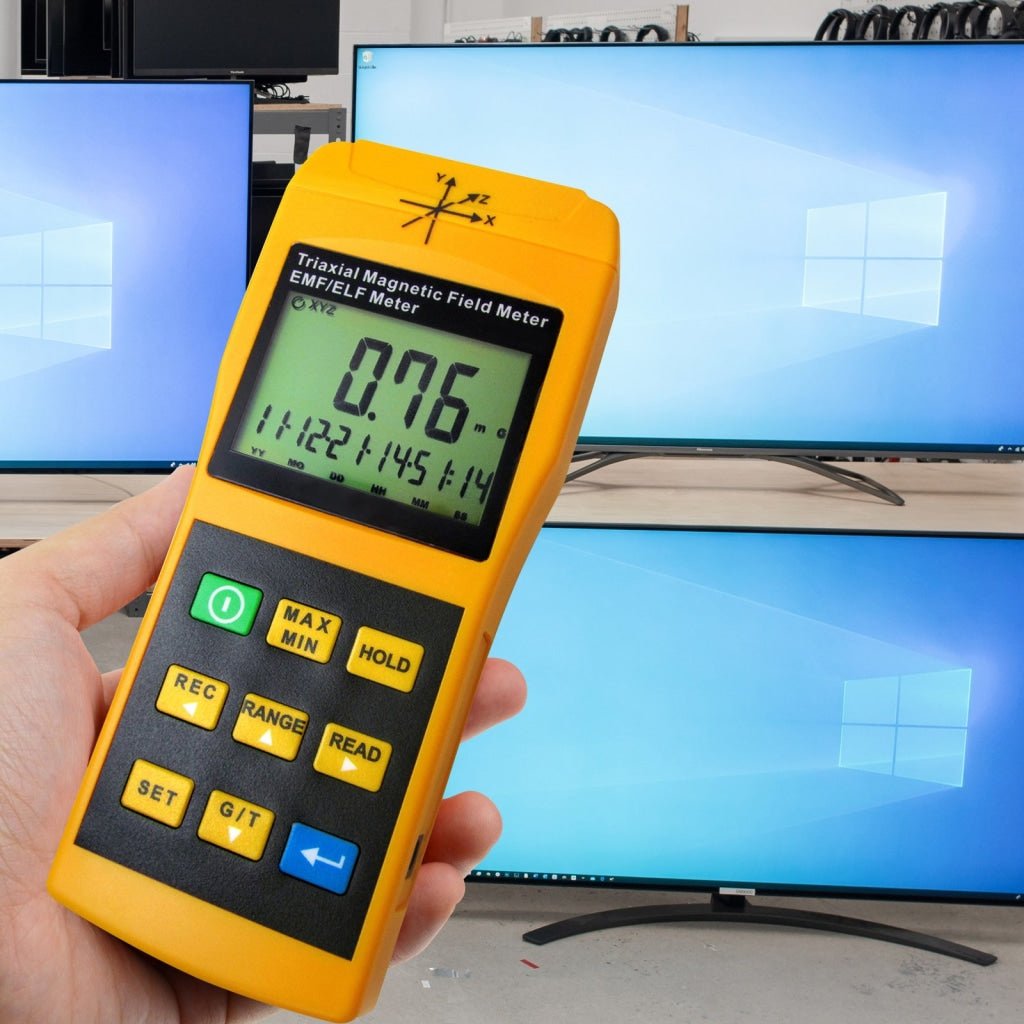

  • Designed to provide the user with a quick, reliable and easy way to measure magnetic field radiation levels around power lines, home
  • appliances and industrial devices
  • Cost-effective hand-held instrument that was designed and calibrated to measure magnetic field radiation at different bandwidths from 30Hz to 2000Hz
  • Display micro Tesla (µT) or milli Gauss (mG) units
  • Data hold (HOLD), maximum hold (MAX) and minimum hold (MIN) functions
  • Auto range or Manual range select mode
  • 500 data sets data logging capacity with memory size
  • Real Time and Calendar function
  • Low battery indication
  • Overload display ("OL")
  • Auto power off function

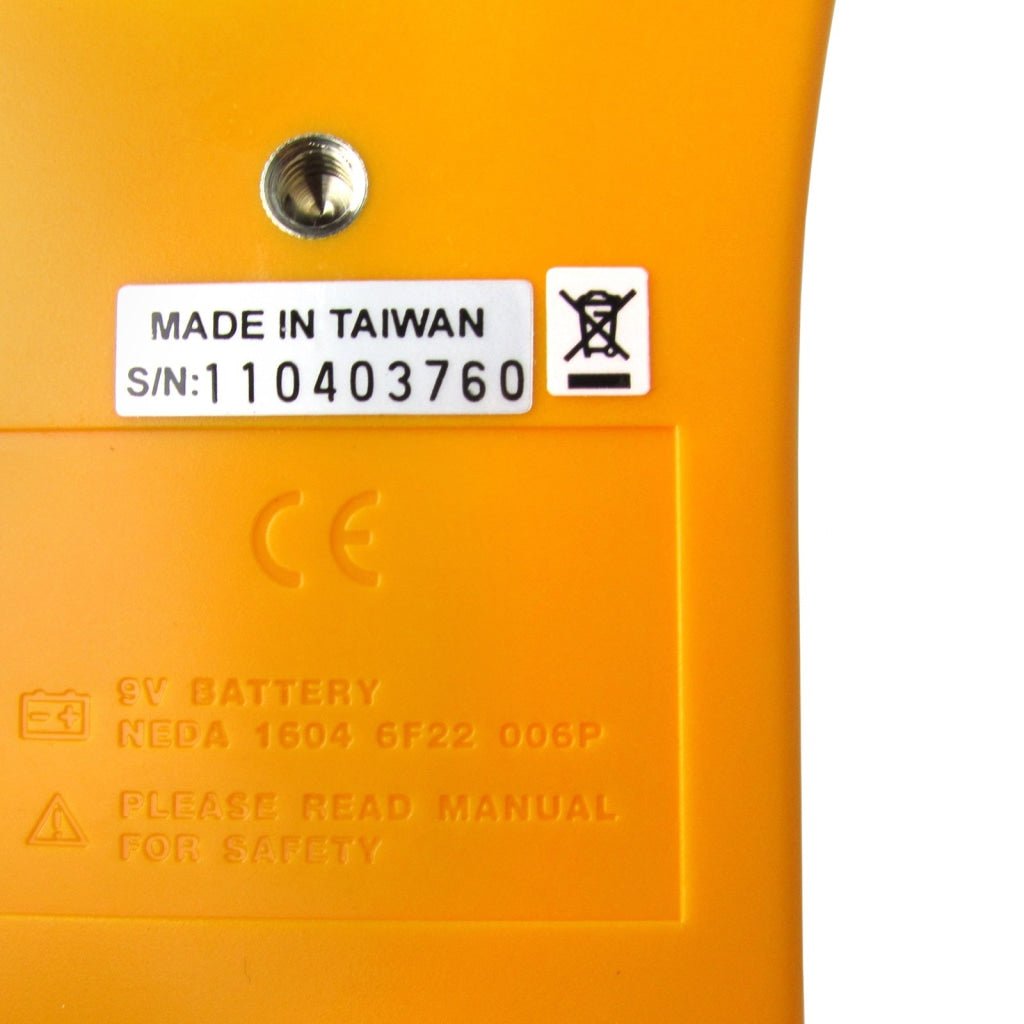

  • Made in Taiwan


Specifications

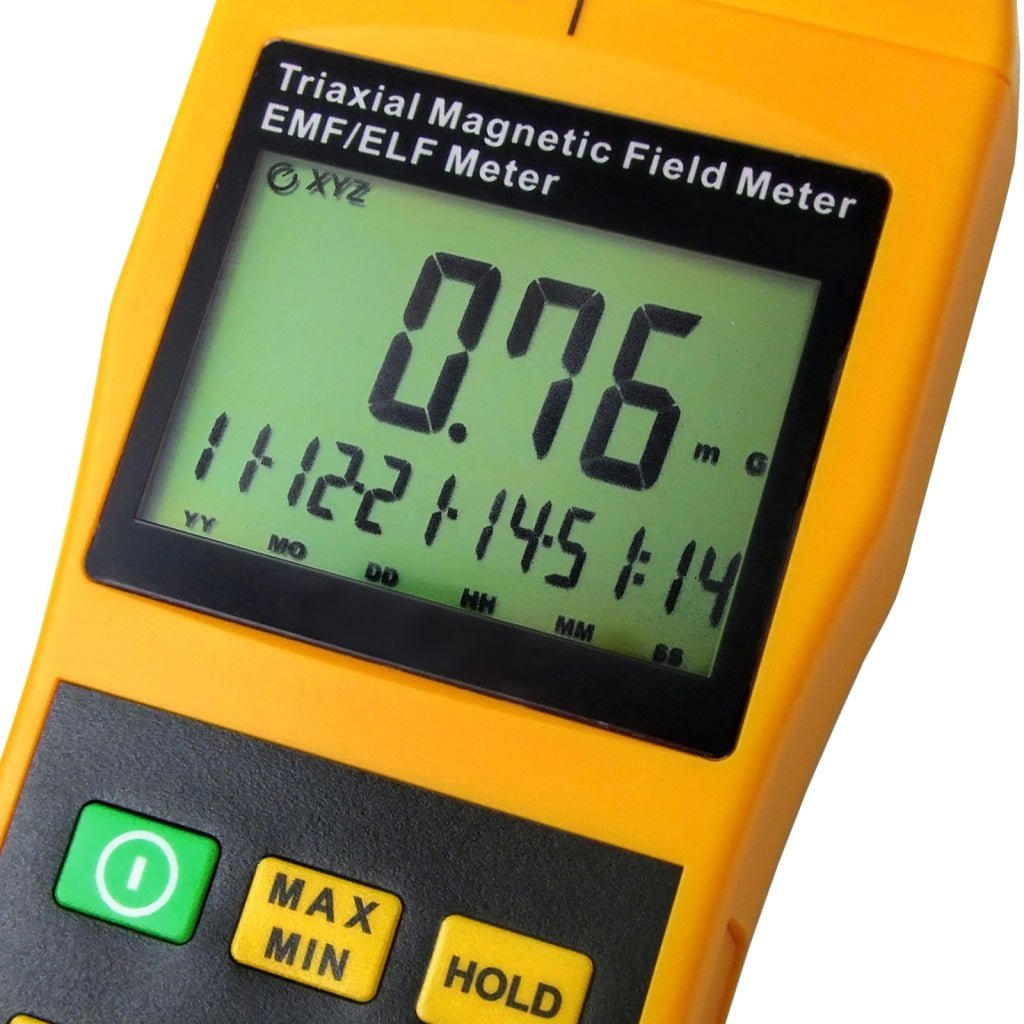

  • Display: 4 digits Triple LCD Display maximum reading 9999

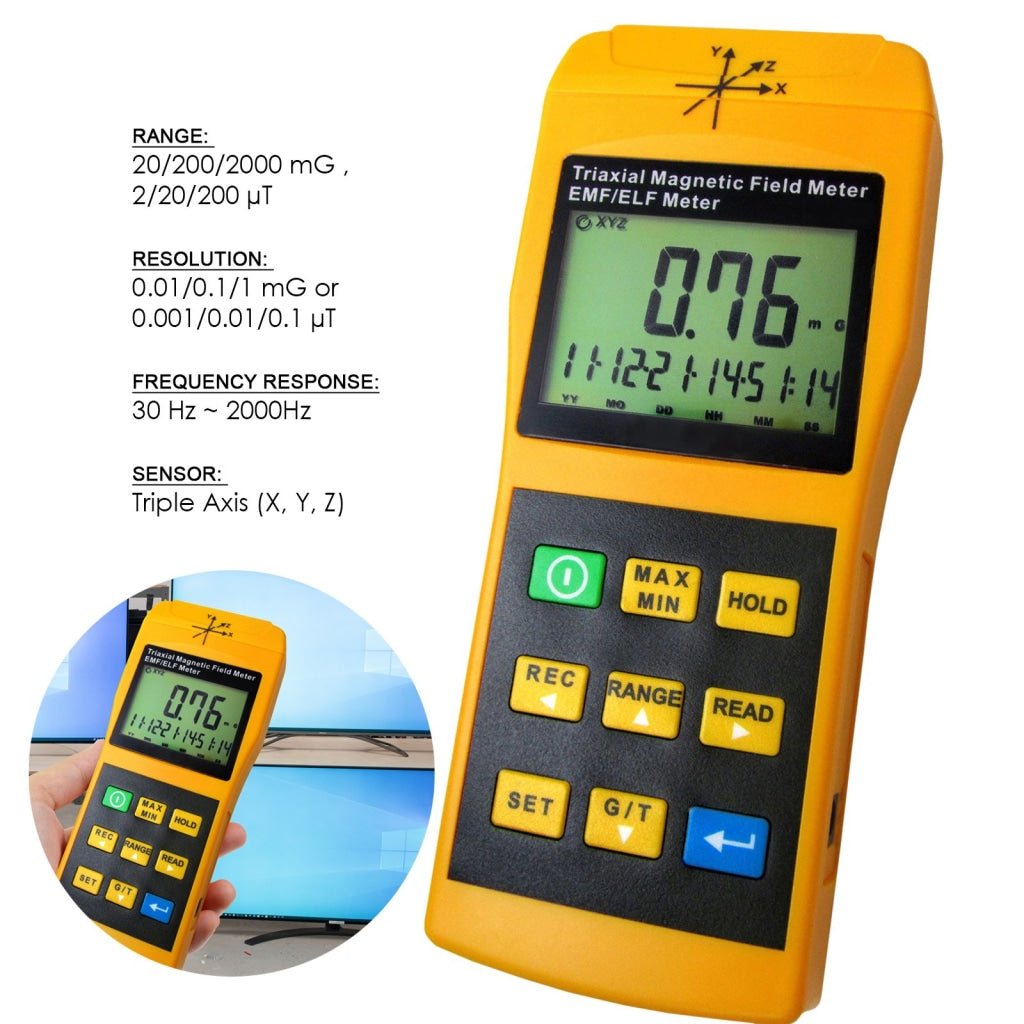

  • Range: 20/200/2000 mG , 2/20/200 µT
  • Resolution: 0.01/0.1/1 mG or 0.001/0.01/0.1 µT
  • Frequency response: 30 Hz ~ 2000Hz
  • Sensor: Triple Axis (X, Y, Z)
  • Accuracy: 20mG ±(3.0% + 30 digits) at 50Hz/60Hz or 3.0µT ±(3.0% + 30 digits) at 50Hz/60Hz
  • Overload: LCD display "OL"
  • Sample rate: 2.5 times per second

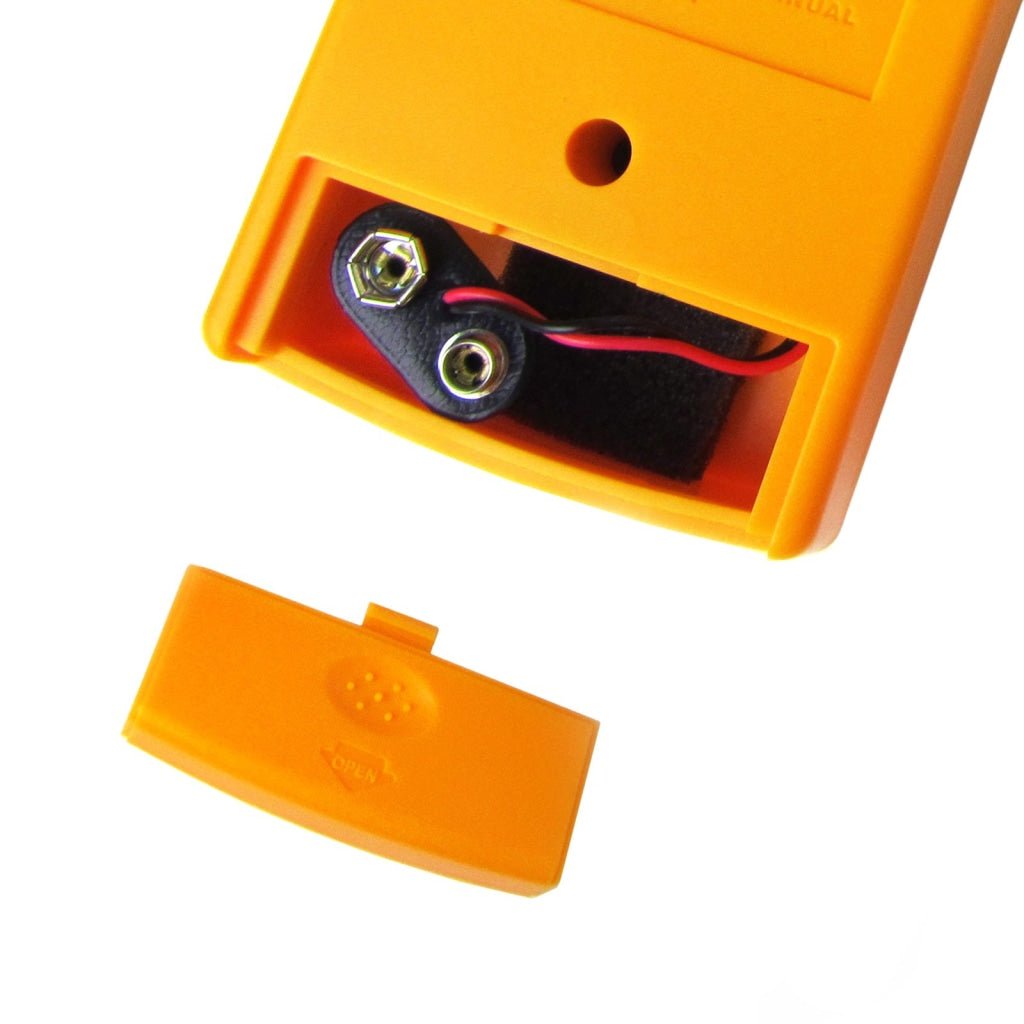

  • Battery: 1 x 9V Battery (included)
  • Battery Life: approx. 100 hours
  • Operating Temperature: 5~40°C (41~104°F)
  • Operating Humidity: < 80% R.H.
  • Storage Temperature: -10~60°C (14~140°F)
  • Storage Humidity: < 70% R.H.

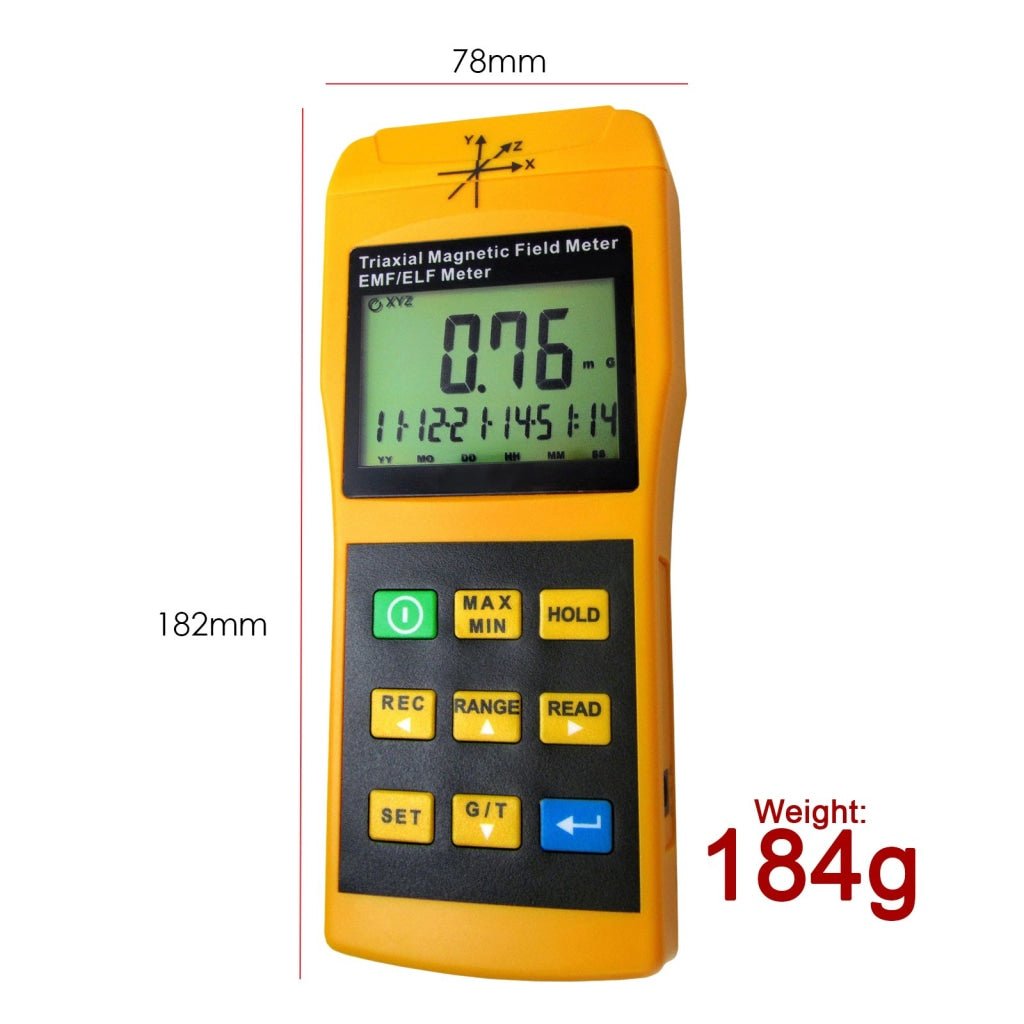

  • Dimension (Meter) L x W x Thickness: 182 x 78 x 30mm
  • Weight:
    • Meter: 184g (without battery)
    • Whole Set: 447g

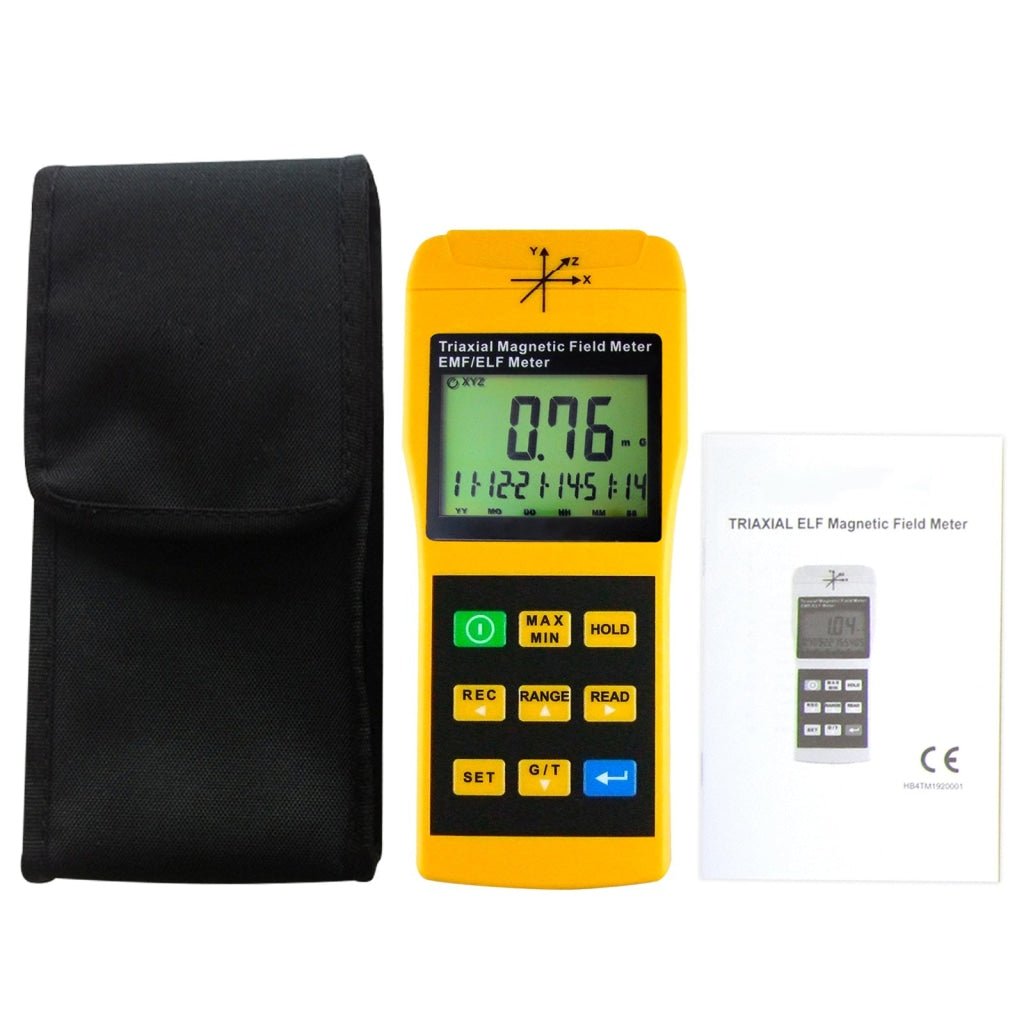

Set Includes

  • 1 x Tri-Axial EML/ELF Meter
  • 1 x 9V battery
  • 1 x Carrying bag
  • 1 x English Instruction Manual
  • Standard Factory Package

A printed user manual is already included with this item. No digital user manual or software is available.

RETURN AND REFUND

Most new, unopened items can be returned within thirty (30) days of delivery for a full refund. If the return is due to our error—such as receiving an incorrect or defective item—we will also cover the return shipping costs.

If you request a refund, it will be issued using the original payment method within four (4) weeks after you hand the package over to the return carrier. This timeframe includes shipping transit to our facility, processing upon receipt, and the time required for the refund to be posted to your account.

WARRANTY POLICY

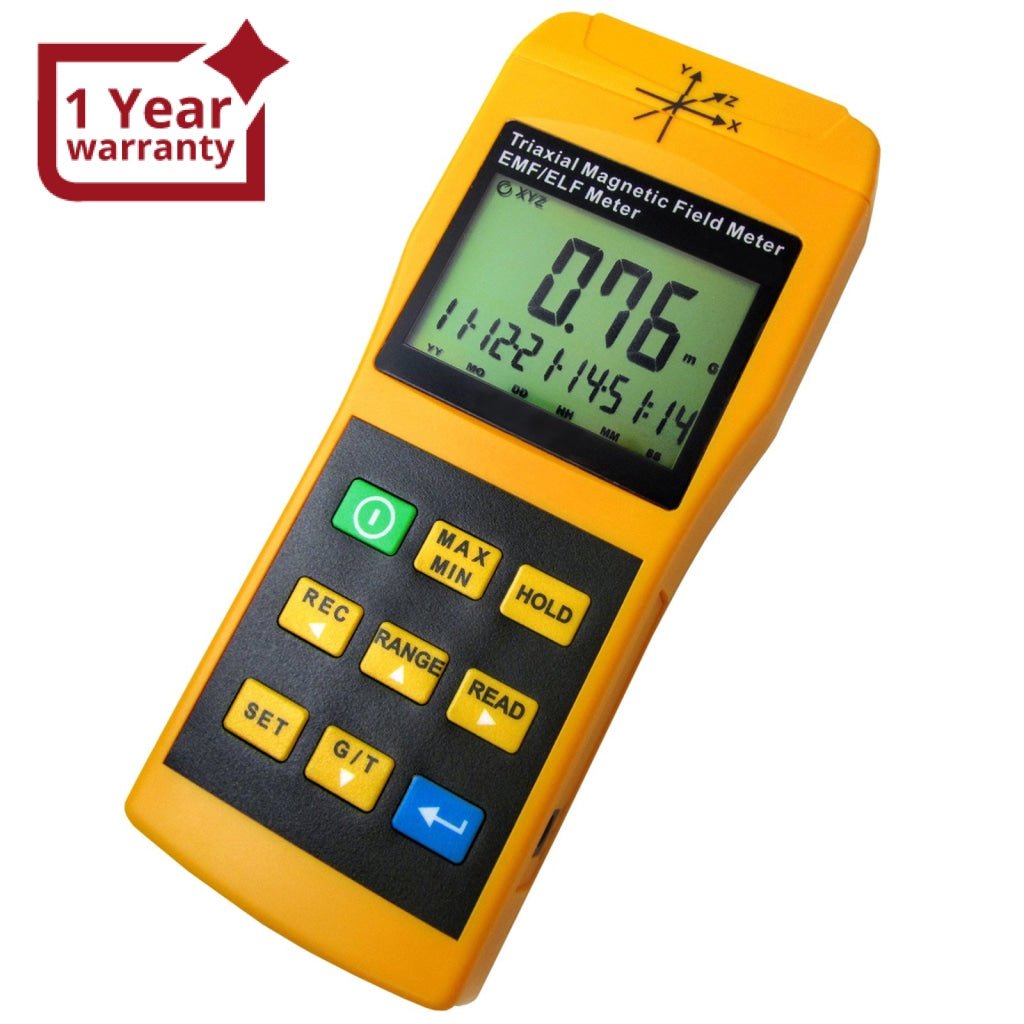

Most of our items come with one (1) year warranty for manufacturer defects. It does not include damage caused by misuse, accidents, abuse, alterations, neglect or other external causes.
