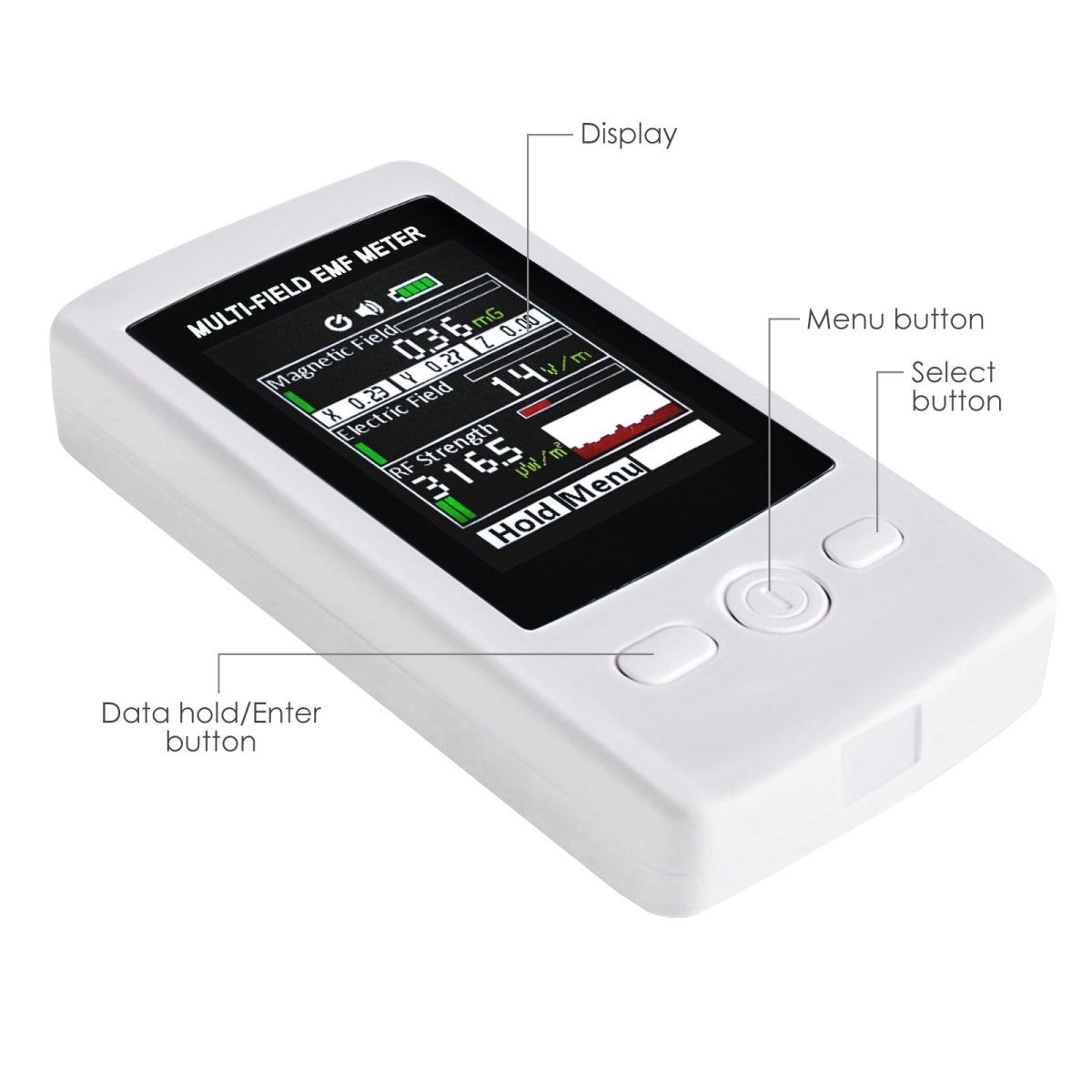

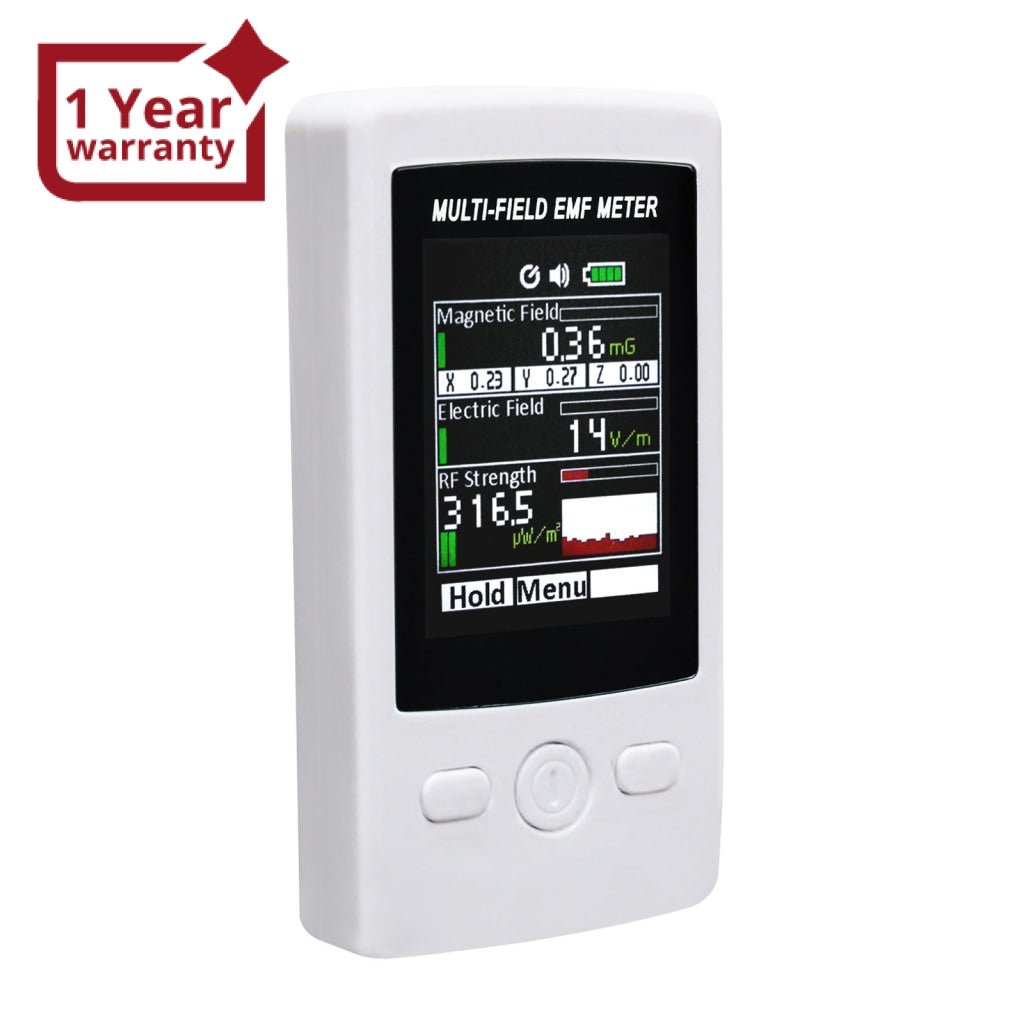

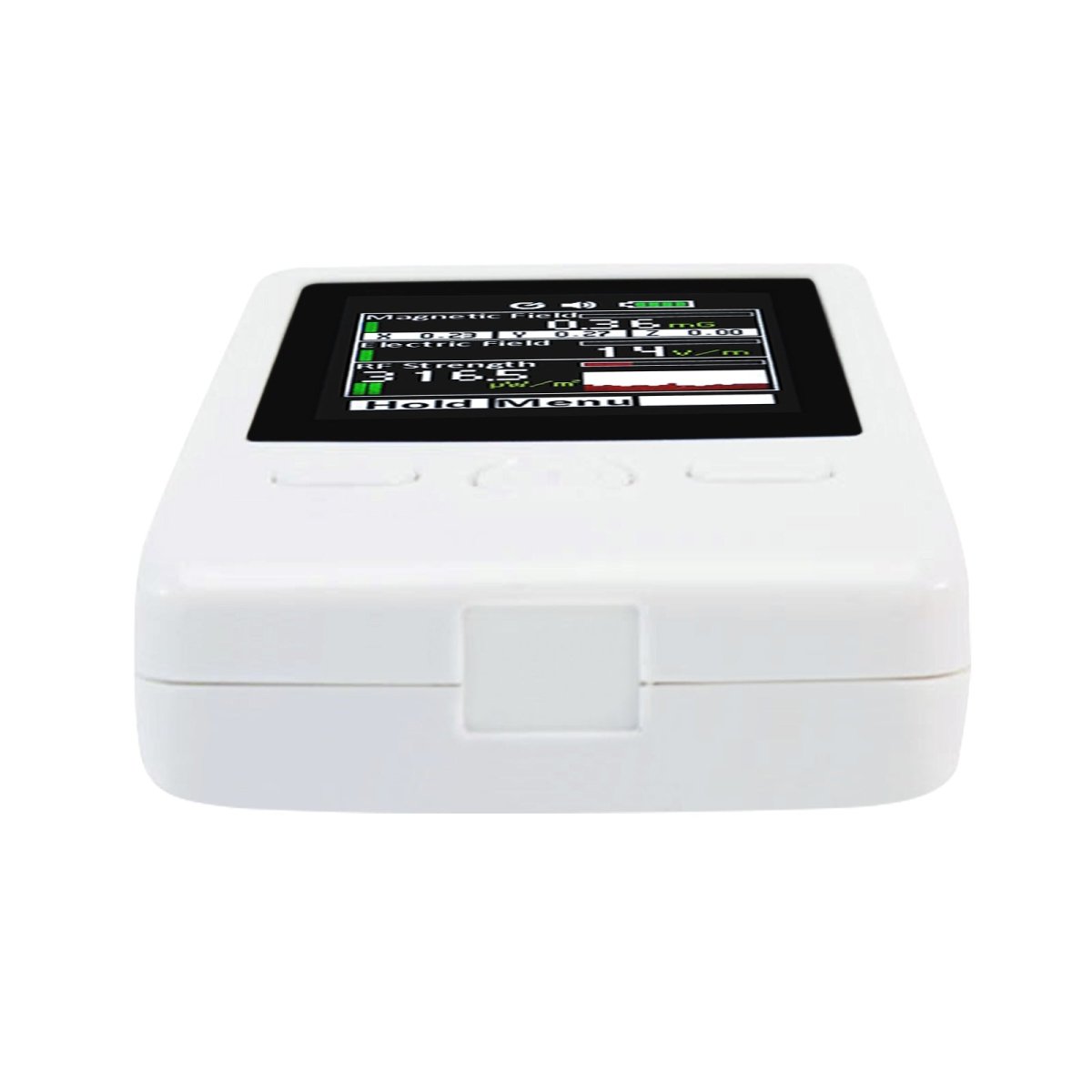

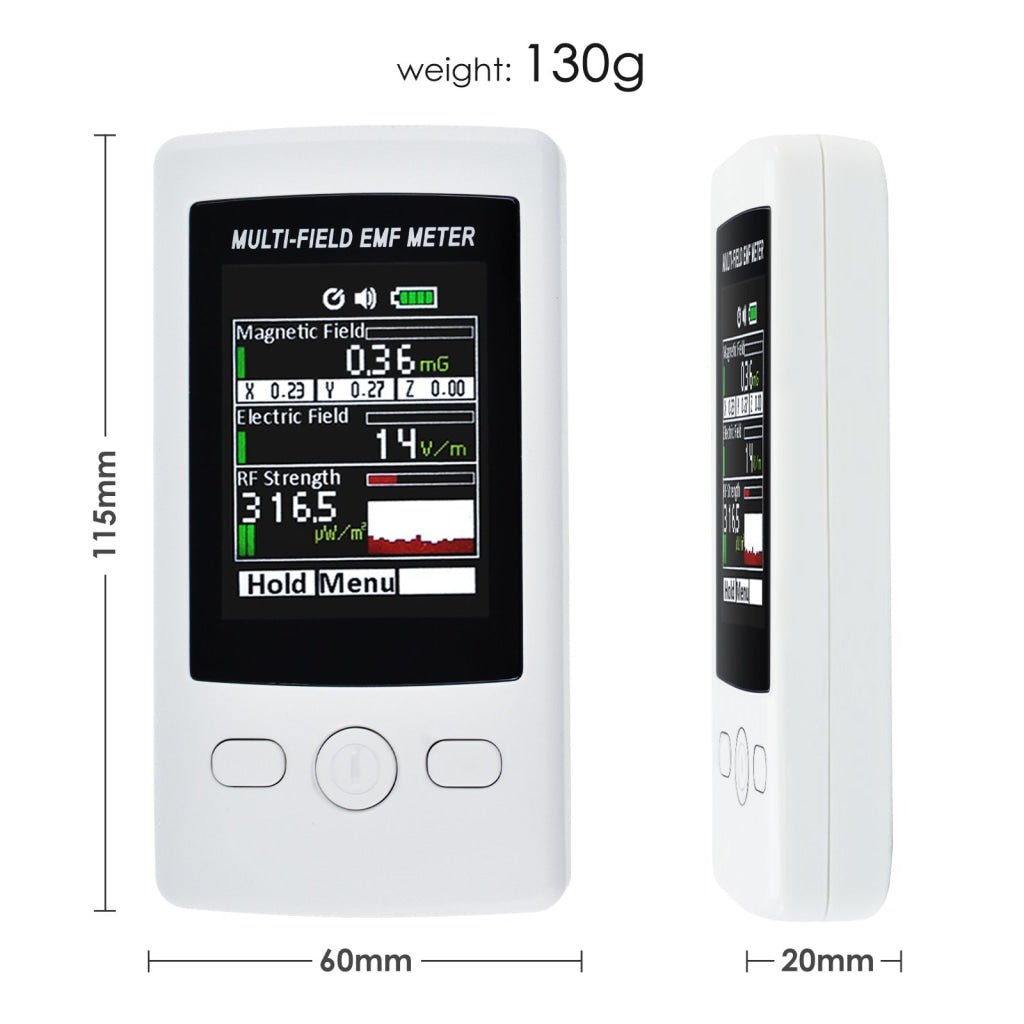

ILEM-190 Multi-Field EMF Meter RF Gauss Meter Electromagnetic Electric RF Field Strength Tester with Warning Indicator

Sku: ILEM-190
$181.90 USD
Translation missing: en.products.product.shipping_policy_html
Quantity:
Add to Wishlist Remove From Wishlist
Visa Mastercard PayPal American Express Google Pay Apple Pay Shop Pay

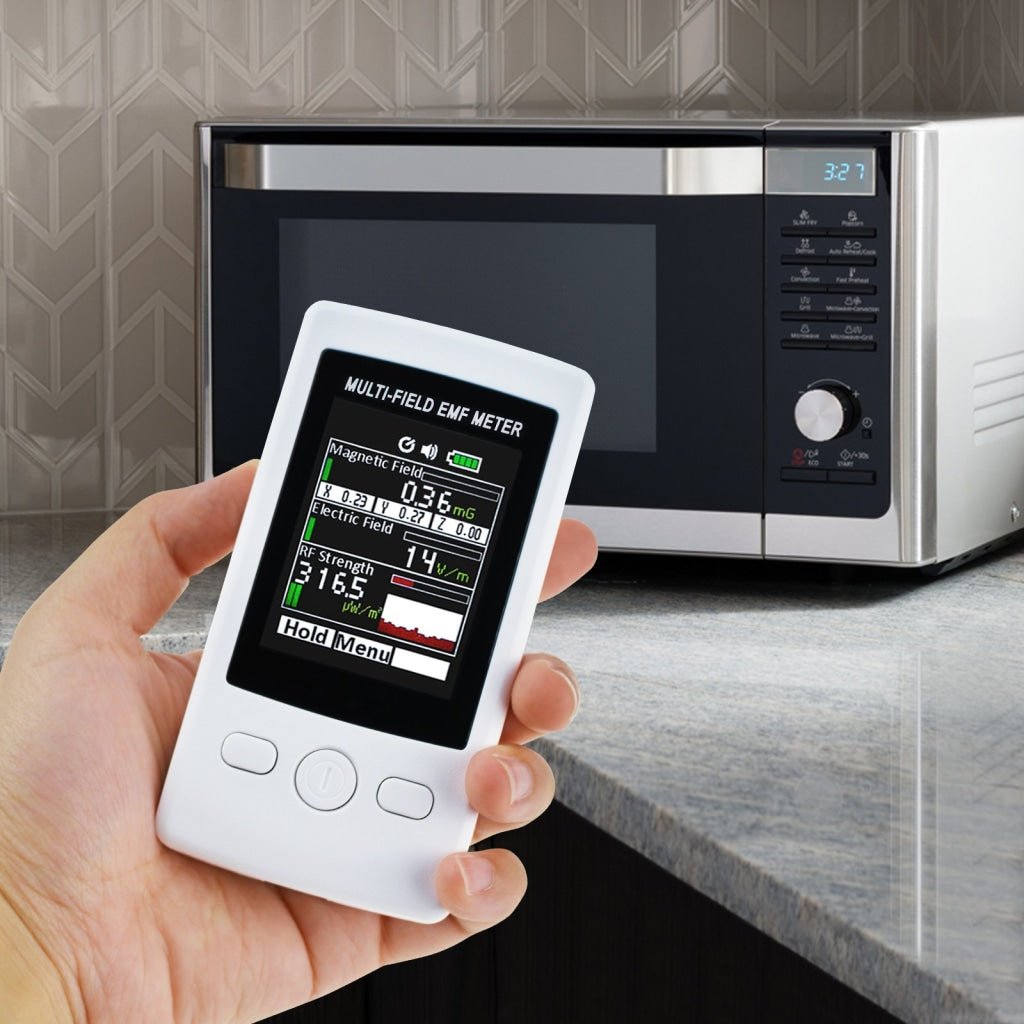

This Multi-Field EMF Meter is easy to operate and reliable in measurements. With multiple sensors inside, it can be used to test the strength of Electromagnetic field(low frequency), Electric field(low frequency), and the RF Electric field(high frequency).

Features :

  • 3 measurements:  Electromagnetic field, Electric field, RF Strength field
  • 4-inch Color TFT LCD with 4 digits
  • High Quality with CE Marking and Calibration Certificate
  • Electromagnetic field, Electric field, RF Strength Warning Indicator: Good(in GREEN)/Normal(in YELLOW)/Warning(in RED) ·

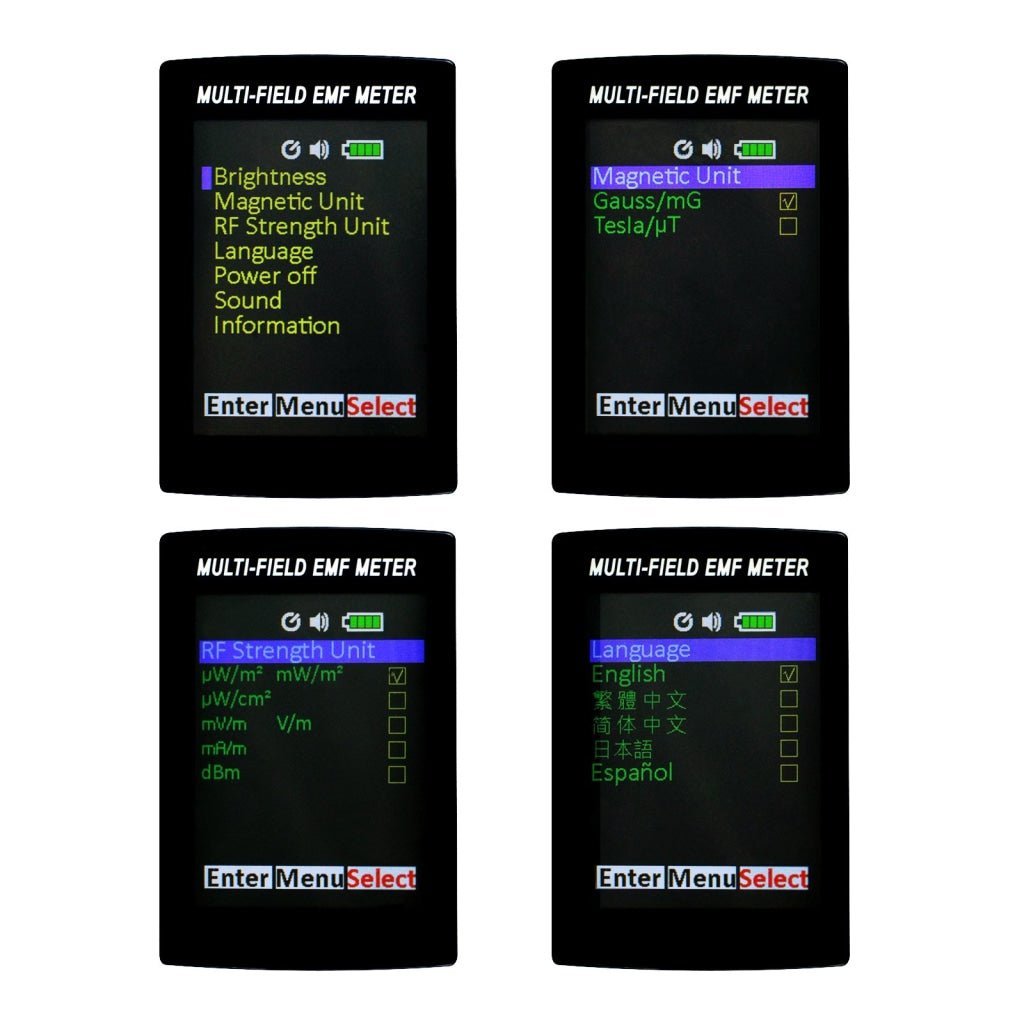

  • Language: English, Traditional/Simplified Chinese, Japanese, Spanish

Specifications:

  • Data Hold Indication
  • Battery Status Indication
  • Auto Power Off Time Setting: No; 1; 3; 5; 10; 15; 30
  • Overload display
  • Keys/Alarm Sounds options: Enable(Sound Level setting:1/2/3); Disable
  • Audible Key tone alarm: Buzzer
  • LCD display Brightness options: Low, Middle, High
  • Magnetic unit: Gauss(mG) or. Tesla(uT)
  • RF Strength Unit: (uW/m² ~mW/m²) (μW/cm²) (m V/m ~V/m) (mA/m) (dBm)
  • RF Historical Records: Up to 20 groups

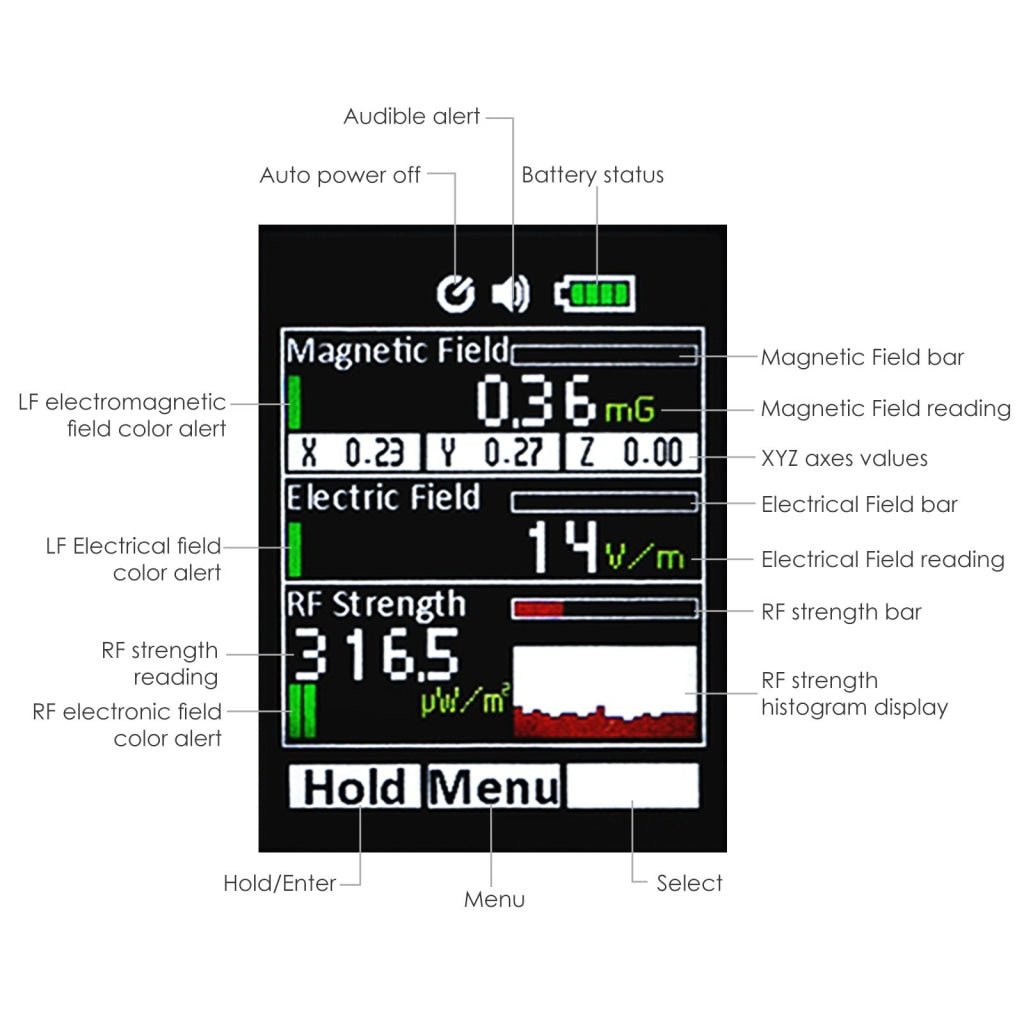

  • Simultaneously display the Electromagnetic Field Readings of individual and aggregated XYZ axes
  • Sample Rate: 6 seconds per time

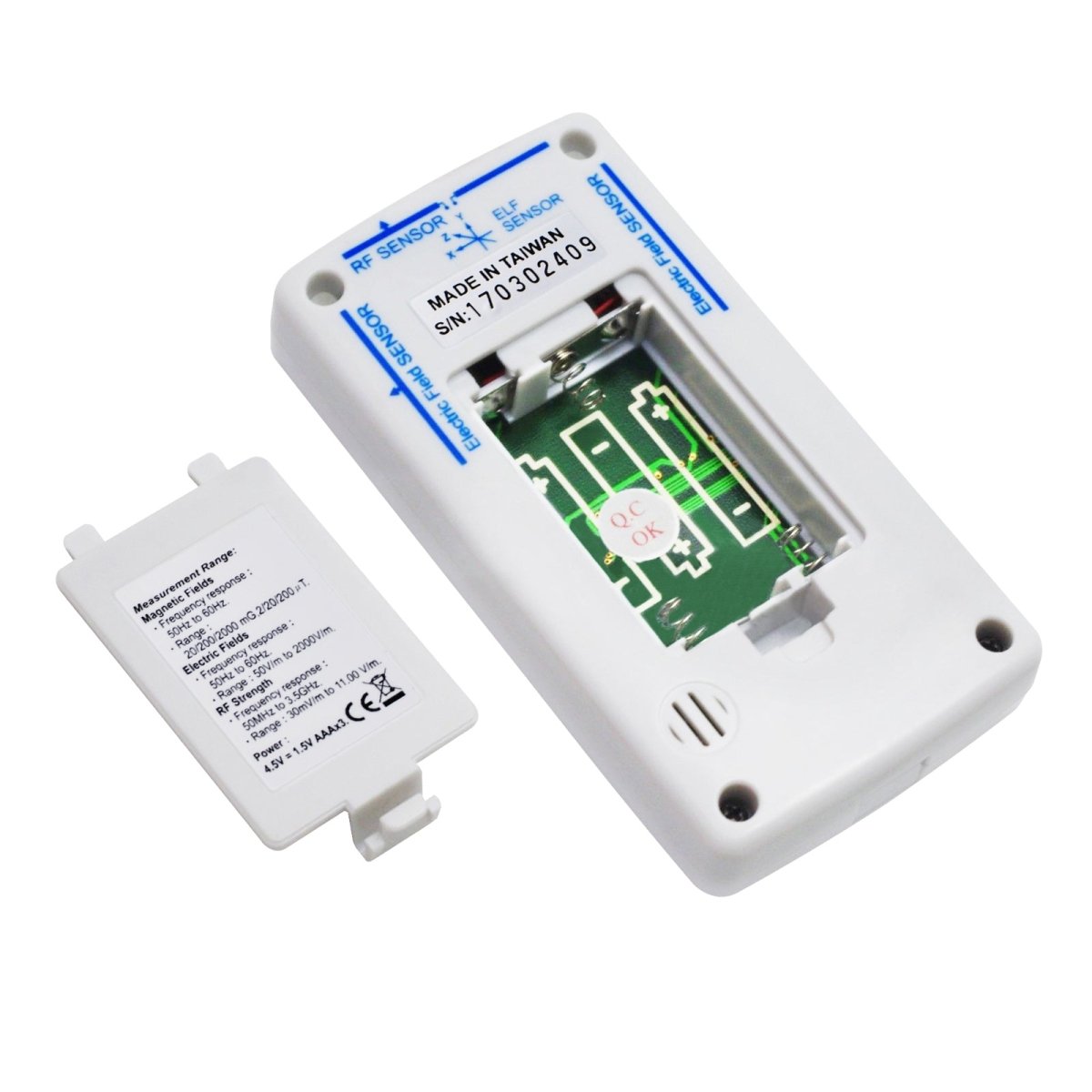

  • Power Supply: 1.5V AAA Alkaline Battery x 3 pieces

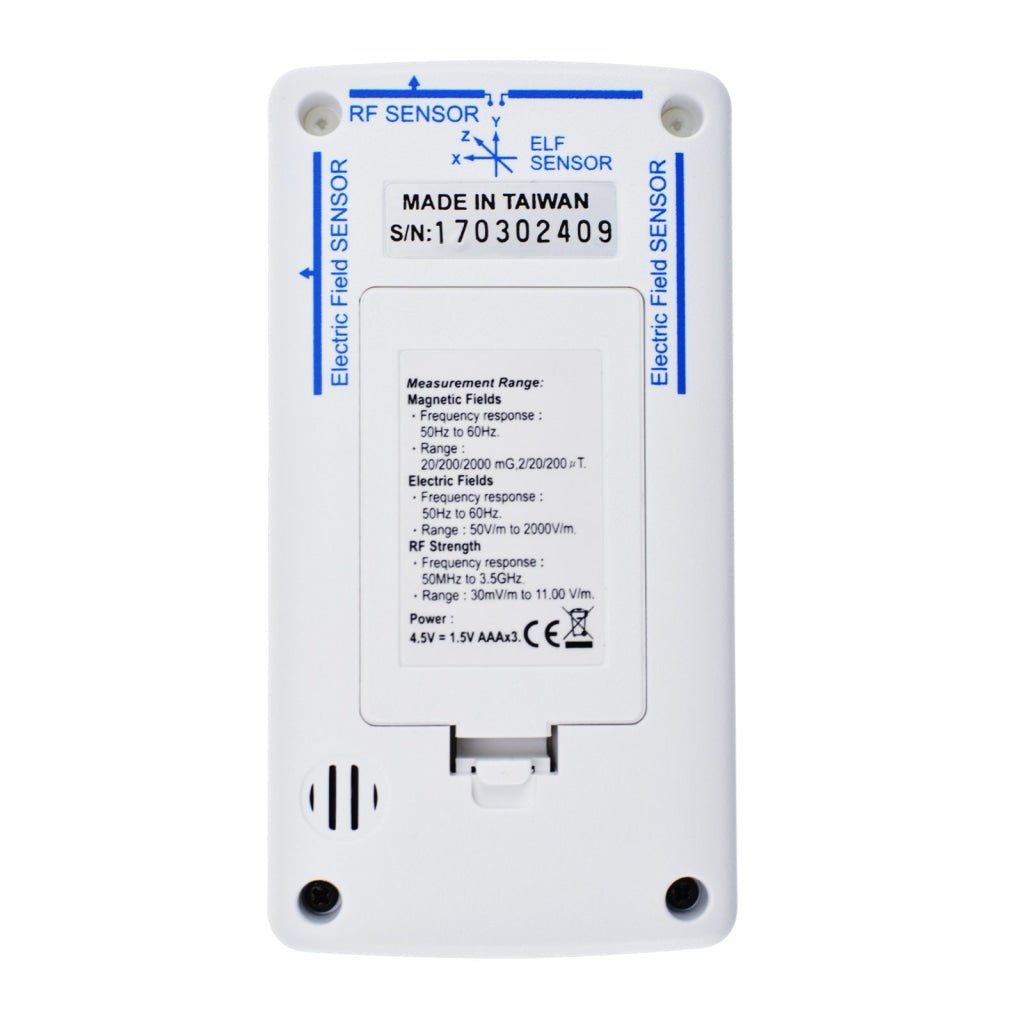

  • Magnetic Field:
    • Sensor Type: LF Magnetic Fields Triple axis(X,Y,Z)
    • Range: 20~2000mG, 2~200µT.
    • Resolution: 0.02/0.1/1 mG or 0.02/0.1/1 µT.
    • Frequency response: 50Hz/60Hz
    • Accuracy: ±(15%+100dgt)
  • Electric Fields
    • Sensor Type: LF Electric Fields
    • Range: 50V/m to 2000V/m
    • Resolution: 1 V/m
    • Frequency response: 50Hz/60Hz
    • Accuracy: ± (7% + 50dgt).
  • RF Electric Strength:
    • Sensor Type: RF Strength
    • Range: 0.2μW/m²~554.6mW/m²
    • Resolution: 0.2μW/m², 0.02μA/m, 0.2mV/m, 0.02μW/cm²
    • Frequency range：50MHz to 3.5GHz.
    • Accuracy: ± 2dB at 2.45GHz

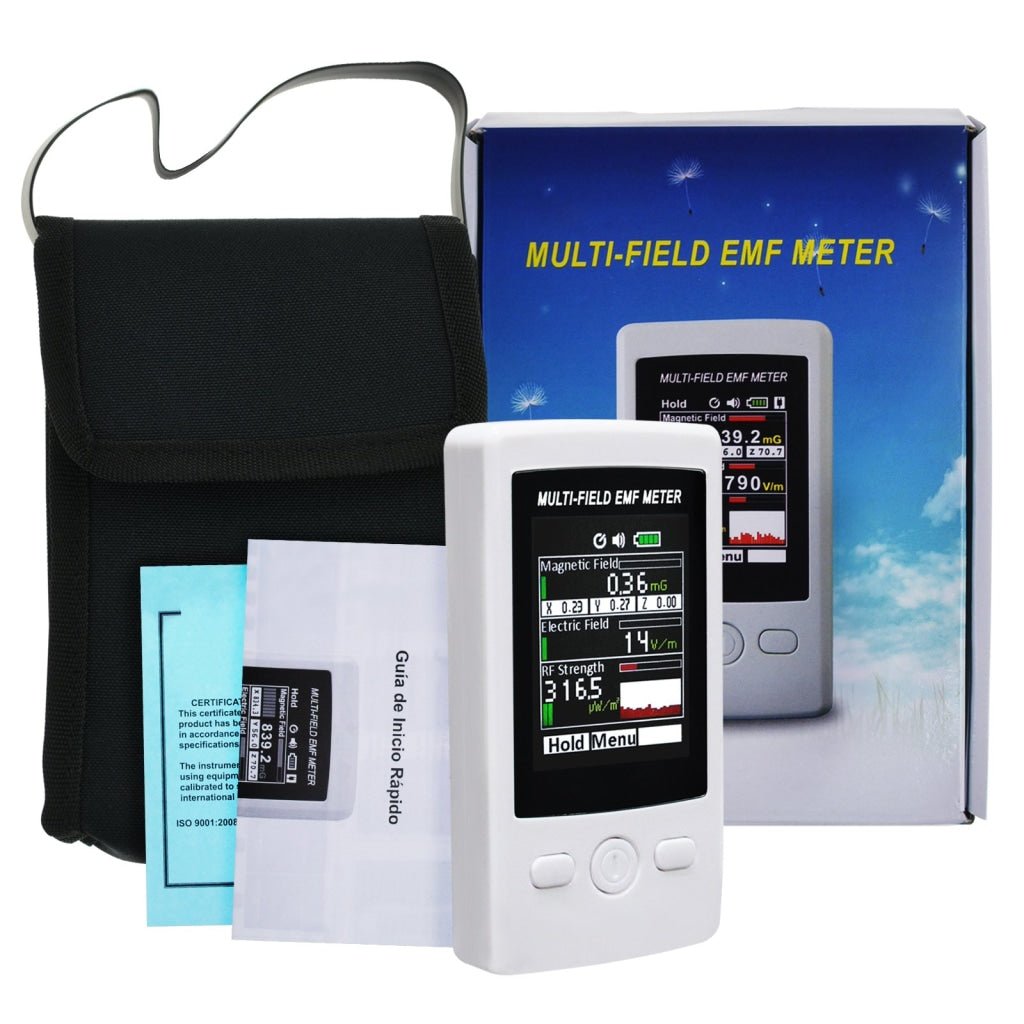

Set Includes:

  • 1 x Multi-field Meter
  • 1 x Quick Start Guide
  • 1 x Certificate of Calibration

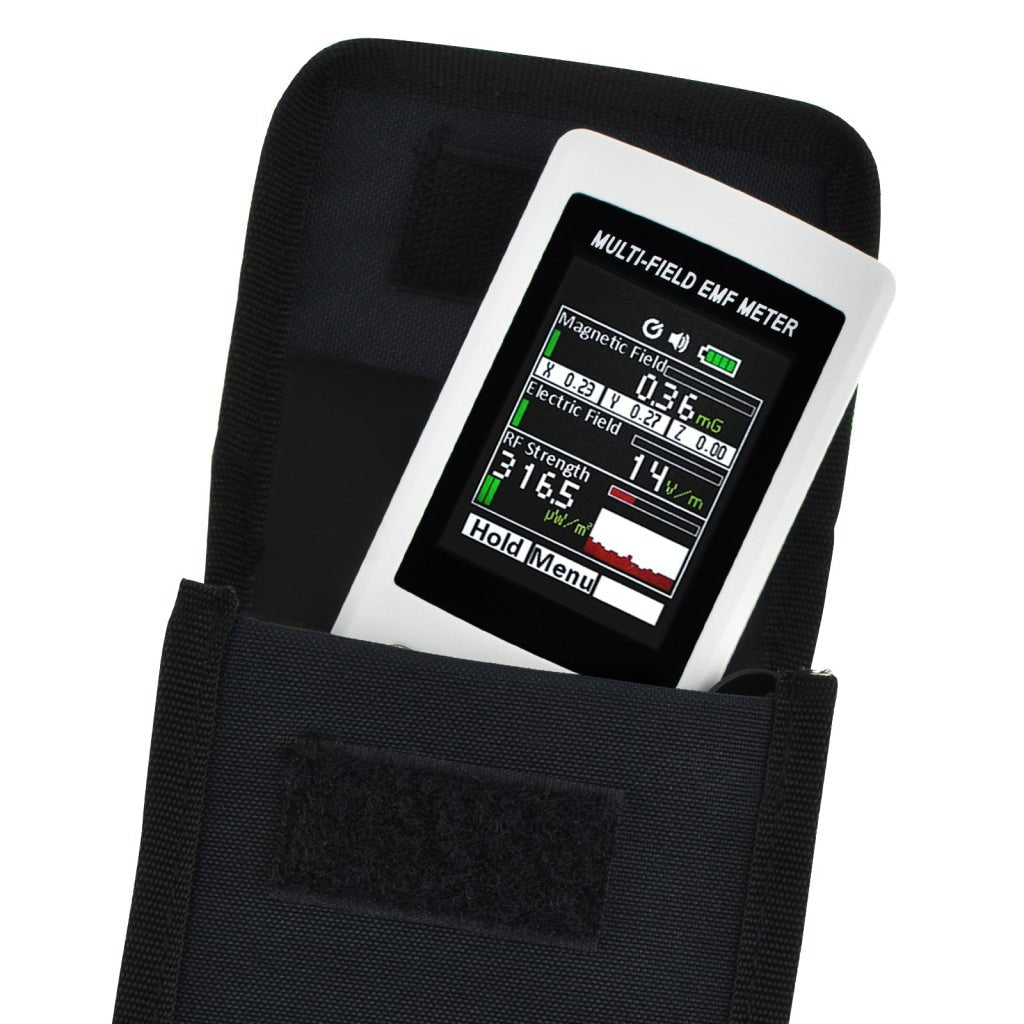

  • 1 x Carrying Pouch
  • 3 x 1.5V AAA Alkaline Battery
  • 1 x Standard Factory Paper Box

A printed user manual is already included with this item. No digital user manual or software is available.
