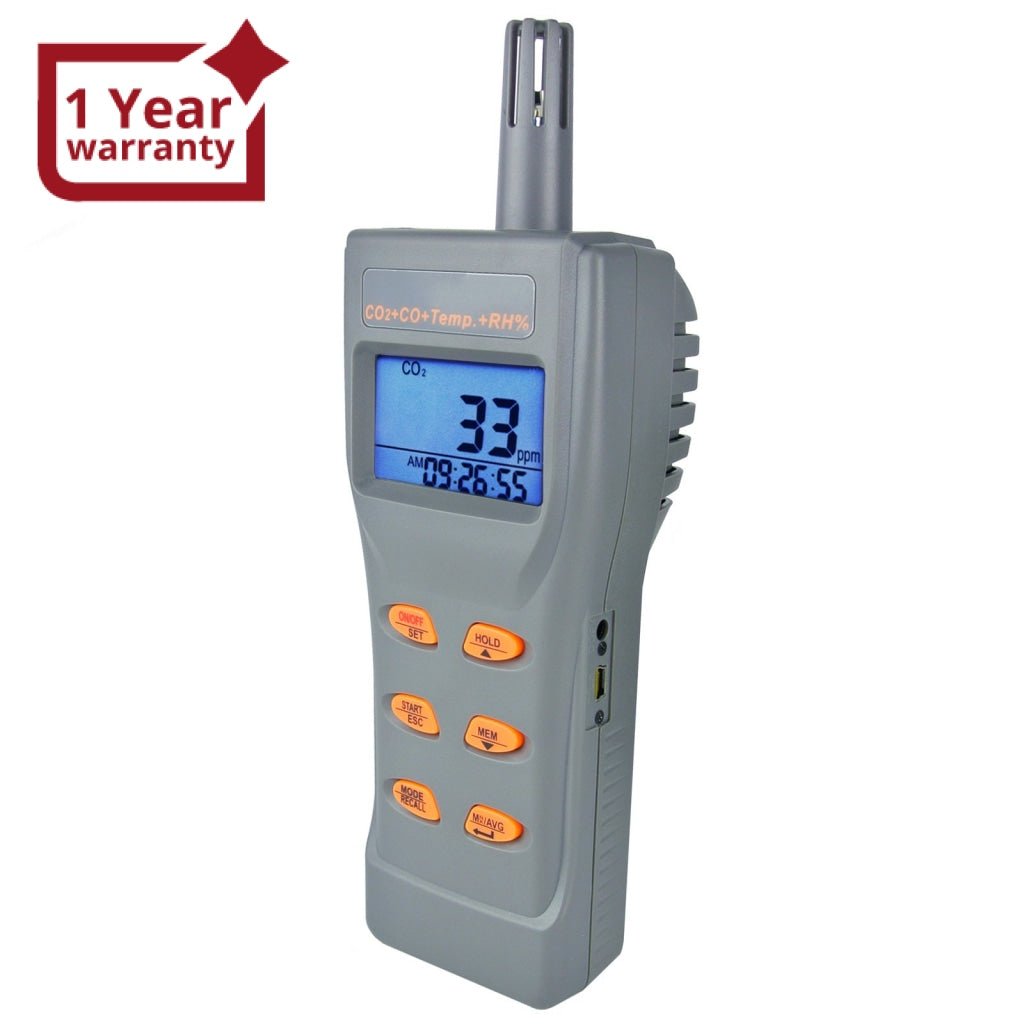

ILDA-767 6 in 1 Combo Multi-function CO2 & CO & Temperature, Humidity RH %, DP, WB, USB Data Logger with Software, Meter IAQ Tester

Sku: ILDA-767
$418.90 USD
Translation missing: en.products.product.shipping_policy_html
Quantity:
Add to Wishlist Remove From Wishlist
Visa Mastercard PayPal American Express Google Pay Apple Pay Shop Pay

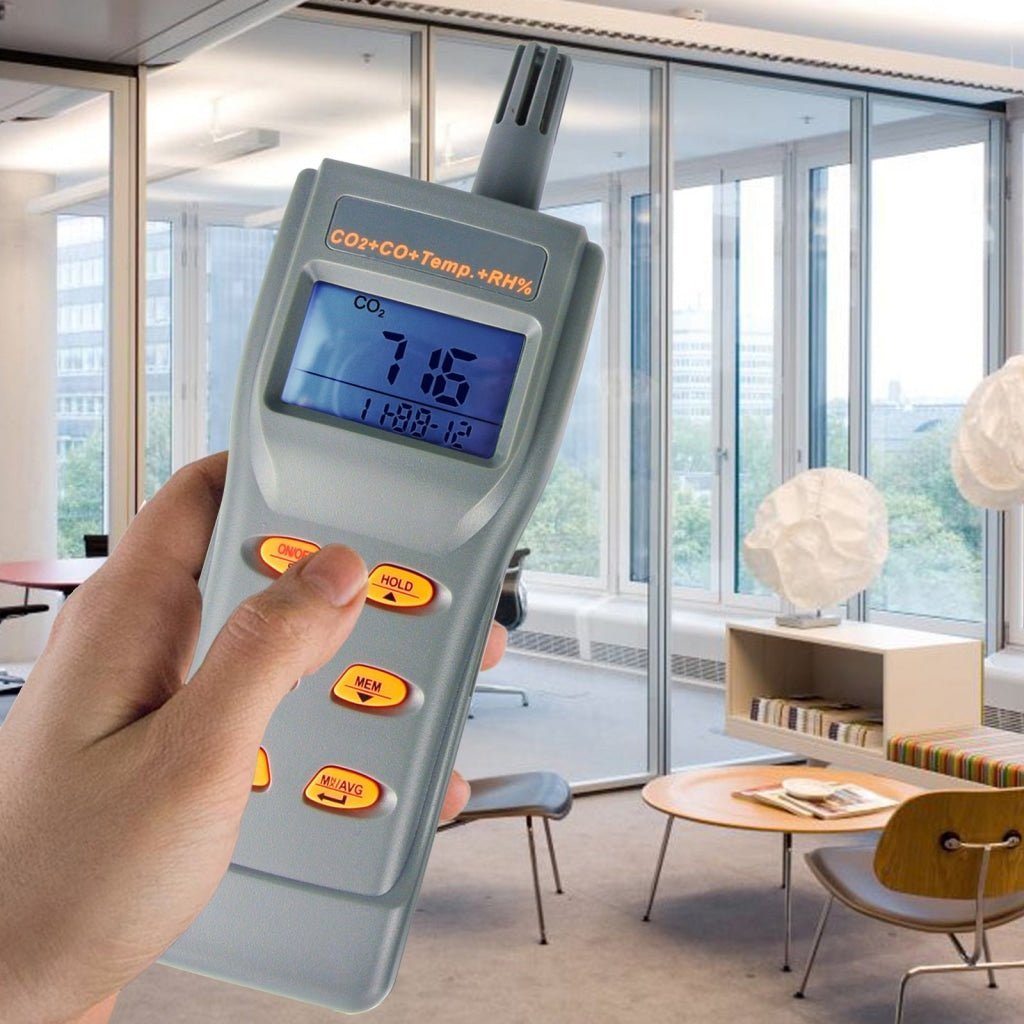

The portable CO2 meter uses NDIR (non-dispersive infrared) technology to ensure reliability and long term stability. It's useful in verifying HVAC system performance and air ventilation control.

Poor indoor air quality is considered unhealthy because it causes tiredness, loss of ability to concentrate, and even illness (ex. Sick Building Syndrome). IAQ monitoring and survey, especially on CO2 level and air ventilation become widely applied in public areas such as offices, classrooms, factories hospitals, and hotels. It also suggested regulations of industrial in some countries.

Carbon monoxide is a colorless, odorless, and tasteless gas which is slightly lighter than air. It is highly toxic to humans and animals.

Features:

  • Big LCD display with blue backlight to use in dark area

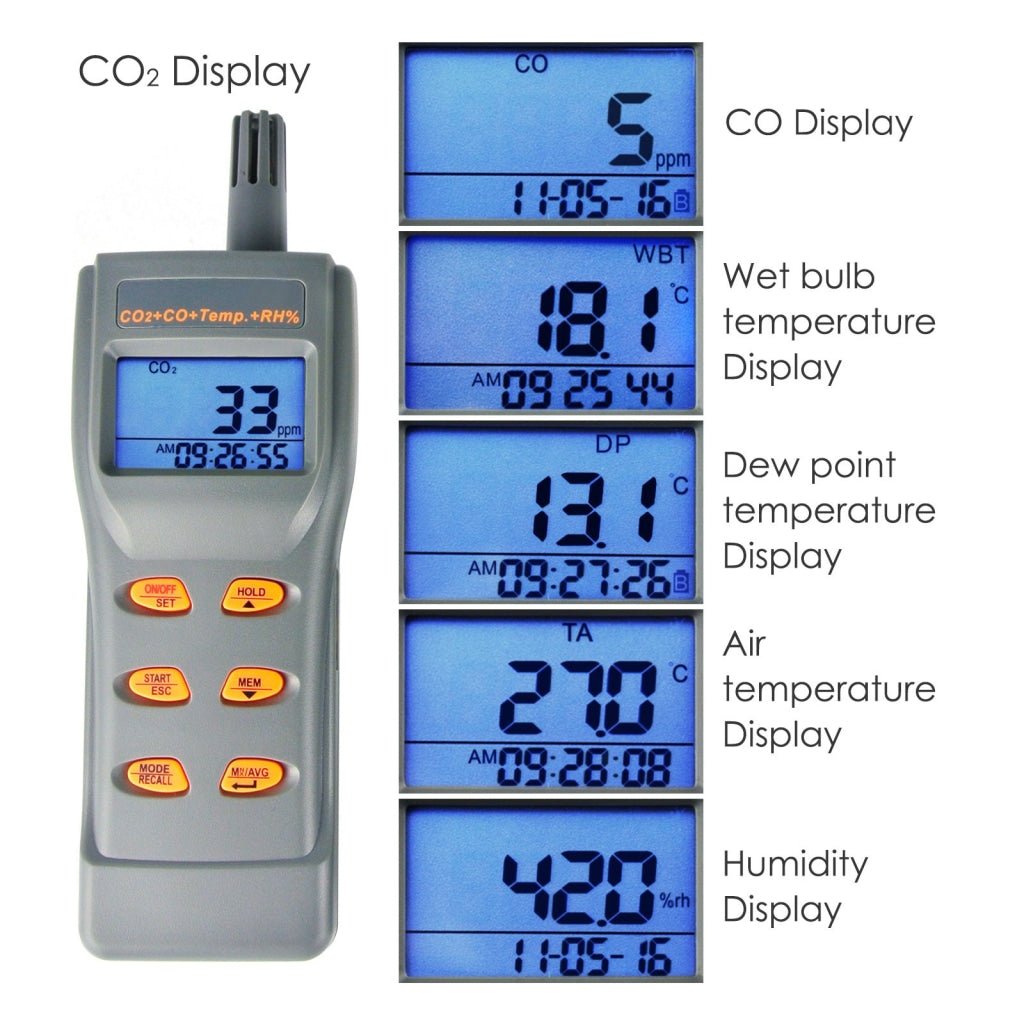

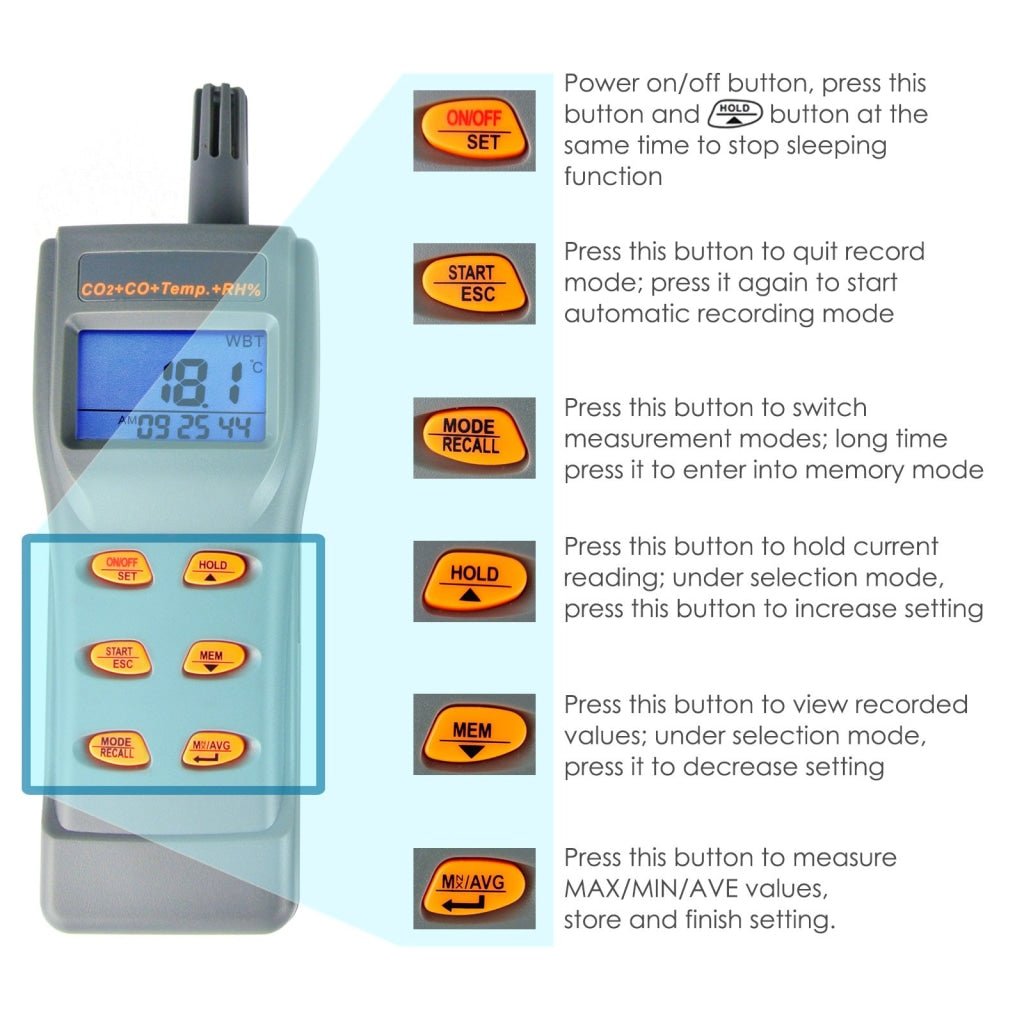

  • One-touch to display CO2 / Dew point temperature / Wet bulb temperature / Air temperature / Humidity / CO in turns.
  • Designed with NDIR ( non-dispersive infrared ) Waveguide technology CO2 sensor
  • Programmable warning CO level
  • Long time drift compensation on CO2 sensor
  • Audible alarm (~80db) threshold setting
  • Max, Min, TWA, STEL functions included

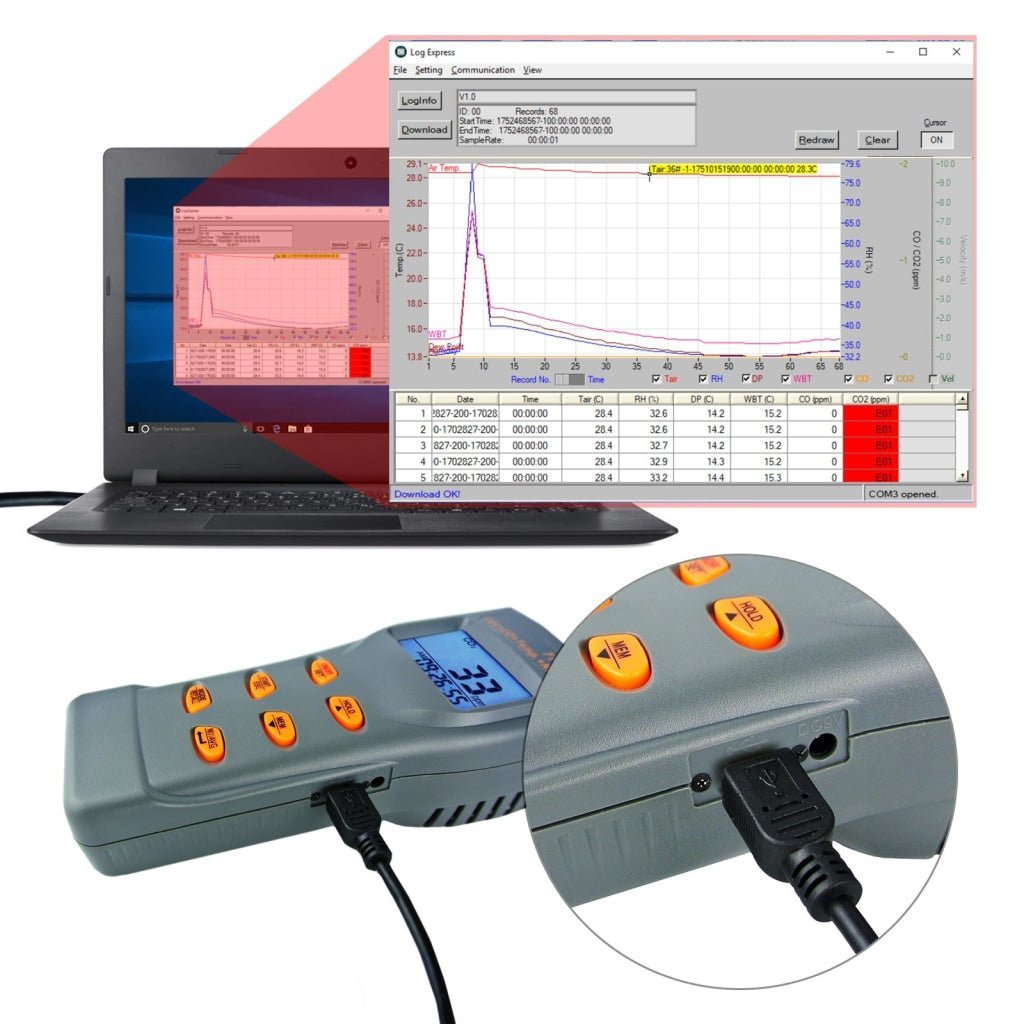

  • Mini USB for PC download function for analysis
  • 99 points manually recording
  • 32000/24000 points auto recording
  • Review 99 points manual record
  • Hold function freezes current readings

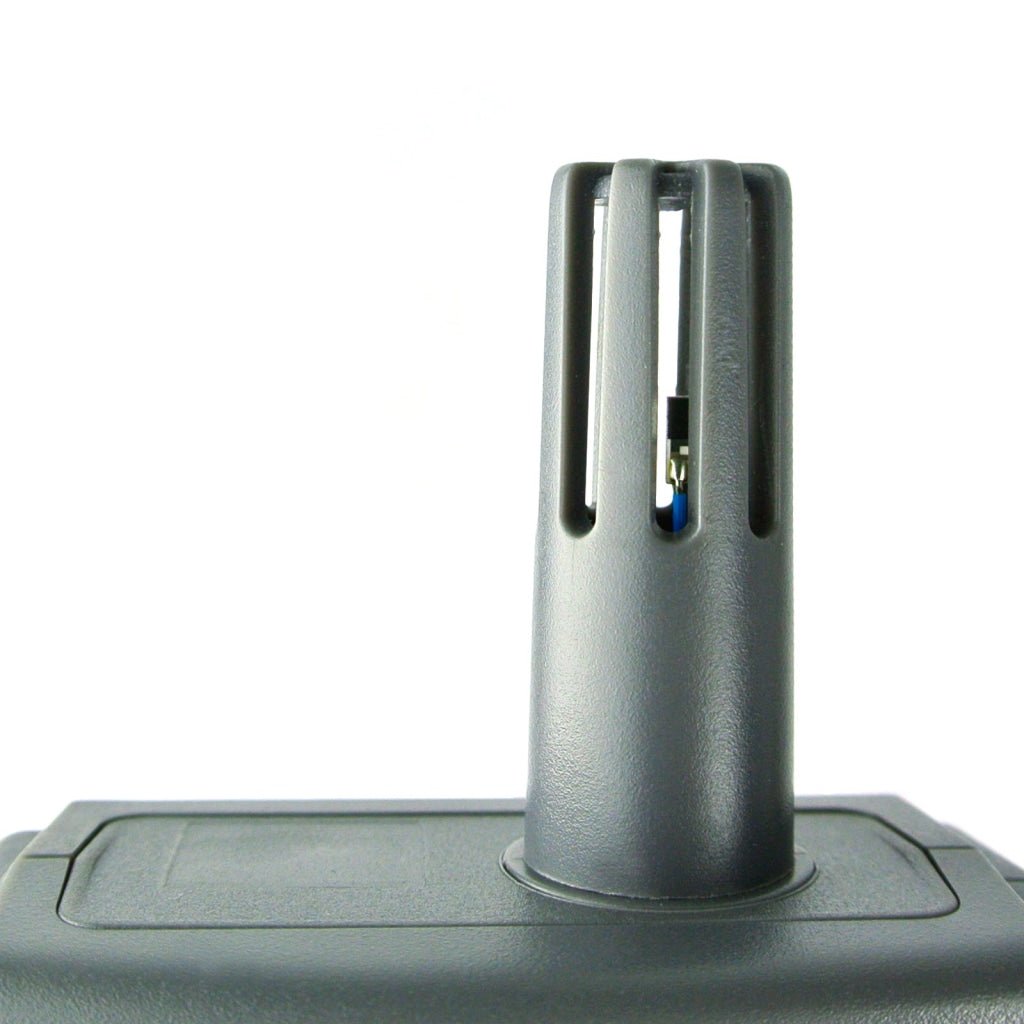

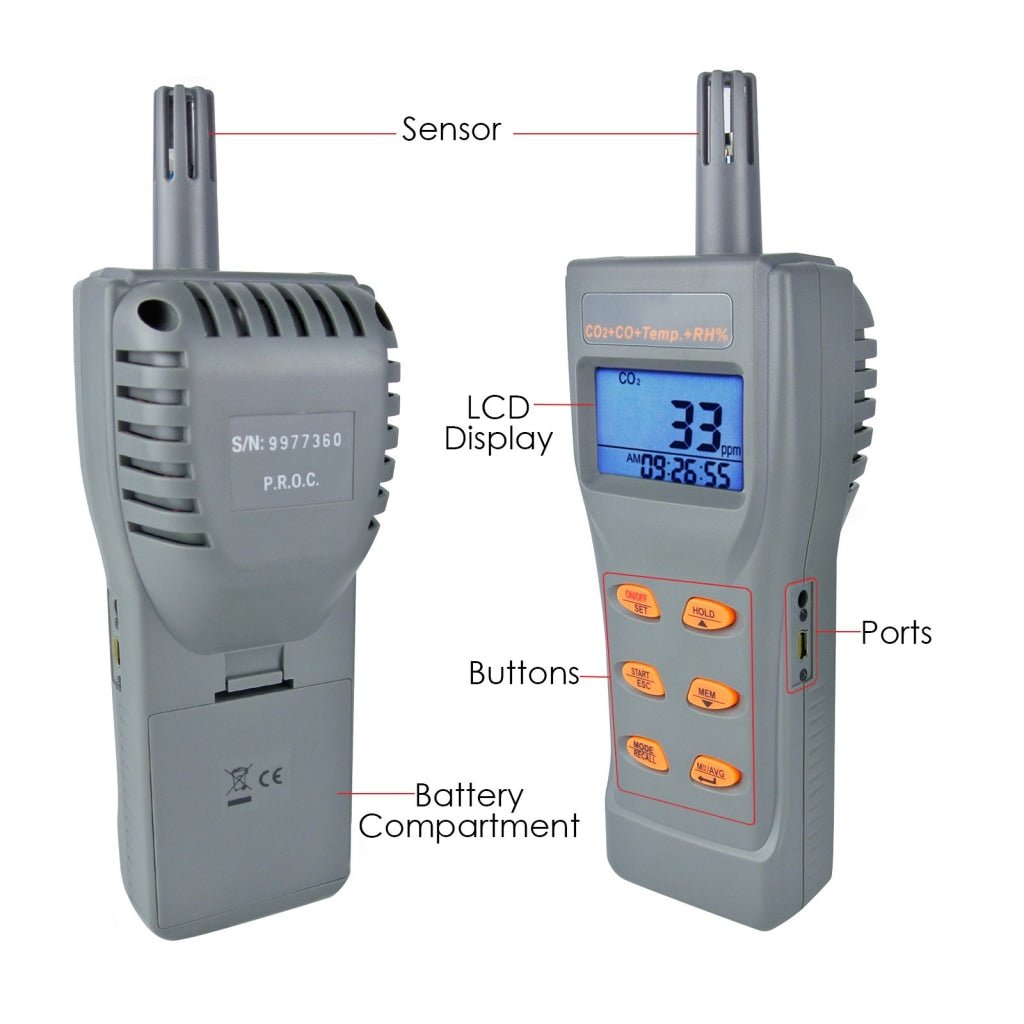

  • Housing design surrounds with rails to help Air ventilation for quick & accurate response
  • Easy to manually calibrate C02 at fresh air around 380-420ppm


Specifications:

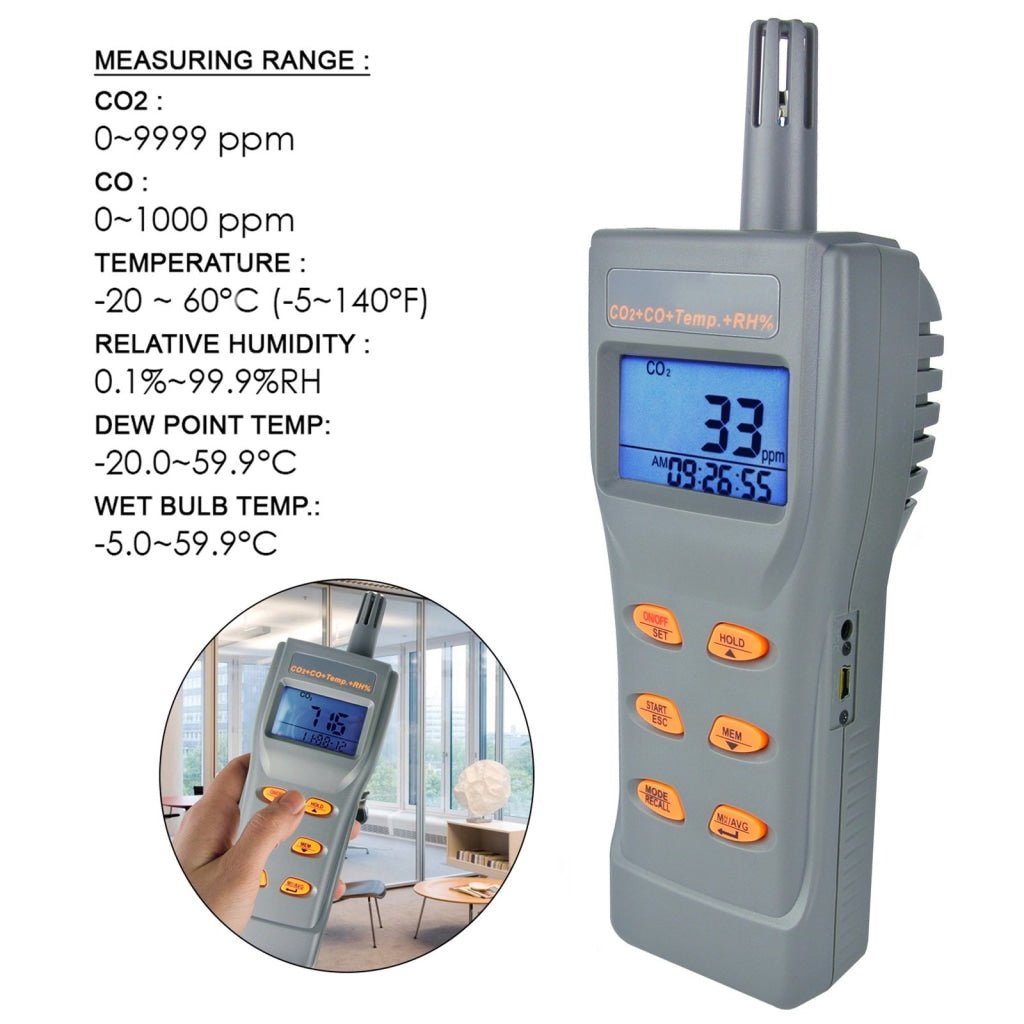

  • Measuring Range:
    • CO2: 0~9999ppm
      • (5001~9999 out of scale)
    • CO: 0~1000 ppm
    • Temperature : -20 ~ 60°C (-5~140°F)
    • Relative Humidity : 0.1%~99.9%RH
    • DP (Dew Point temp.) : -20.0~59.9°C
    • WB (Wet bulb temp.) : -5.0~59.9°C
  • Resolution: 1ppm, 0.1°C/°F, 0.1%RH
  • Accuracy:
    • CO2: ±30ppm ±5% of reading ( 0~5000ppm), other ranges are not specified
    • CO: +/-10ppm for les than 100ppm
      • +/-10% or reading for 101~500ppm
      • +/-20% of reading for 501ppm and above
    • Temperature: ±0.6°C / ±0.9°F
    • Relative Humidity: ±3%RH (at 25°C, 10-90%RH); ±5%RH (at 25°C, other range)
  • CO2 warm-up time : 30 seconds
  • Response time
    • CO2: <30 seconds (90% step change)
    • CO: <60 seconds (90% step change)
    • Temp.: <2 mins (90% step change)
    • RH: <10 mins (90% step change)

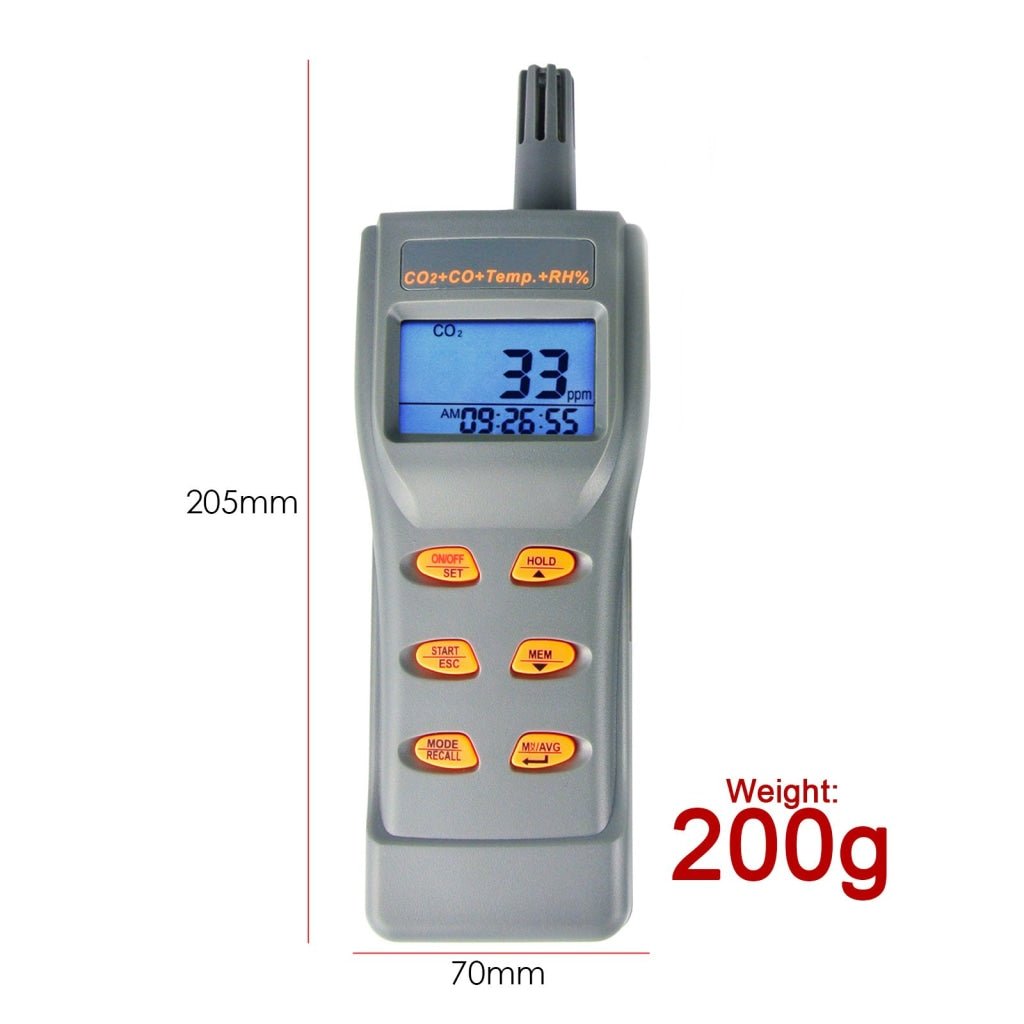

  • LCD size: 26mm(H) x 44mm(L), 205mm(L) x 70(W) x 56(H)
  • Operating condition : -20 to 50°C (C02 sensor), 0 to 50°C (CO sensor)
    • (Avoid condensation) -20 to 60°C (for the rest parameters)
  • Storage condition: -20~60°C , 10~90%RH (avoid condensation)

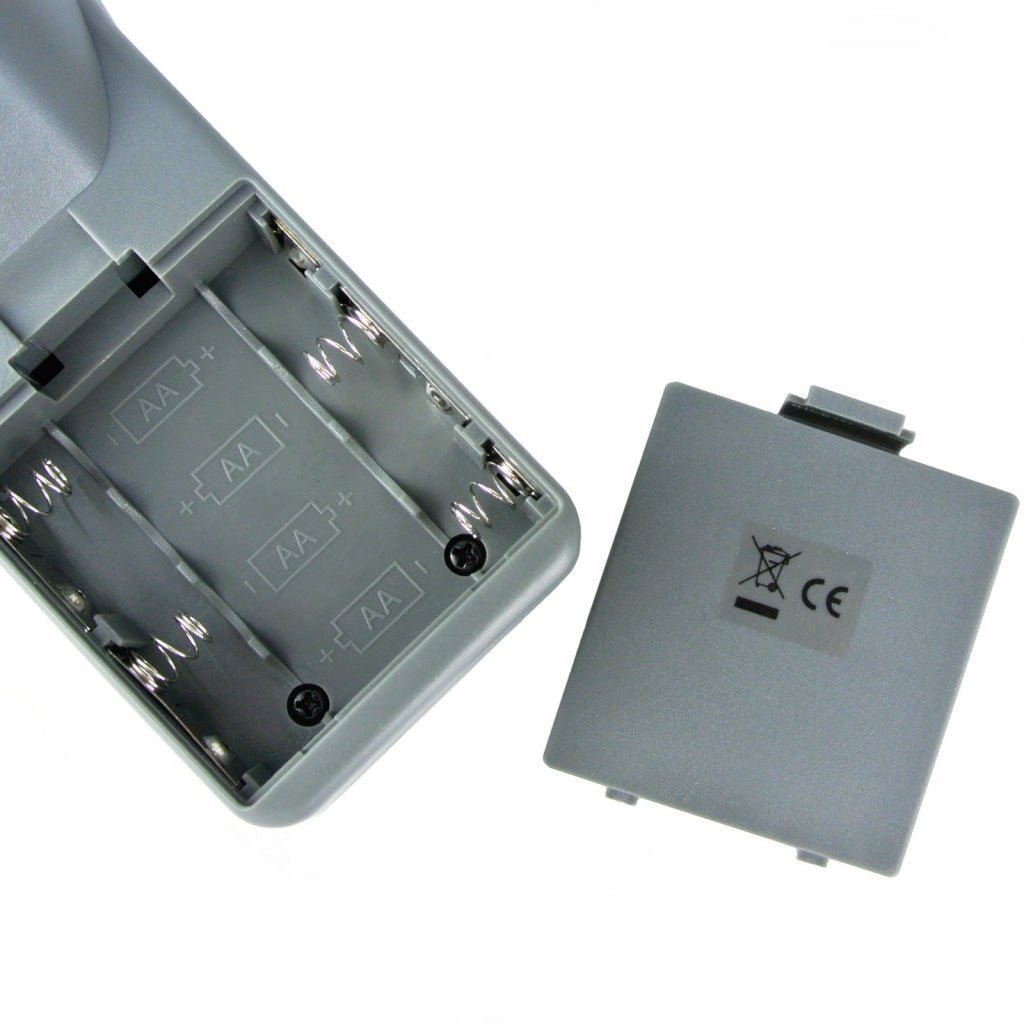

  • Power supply: AA x 4pcs (included) or 9V adaptor (not included)
  • Battery life: >24 hours (alkaline battery)
  • Weight: 200g

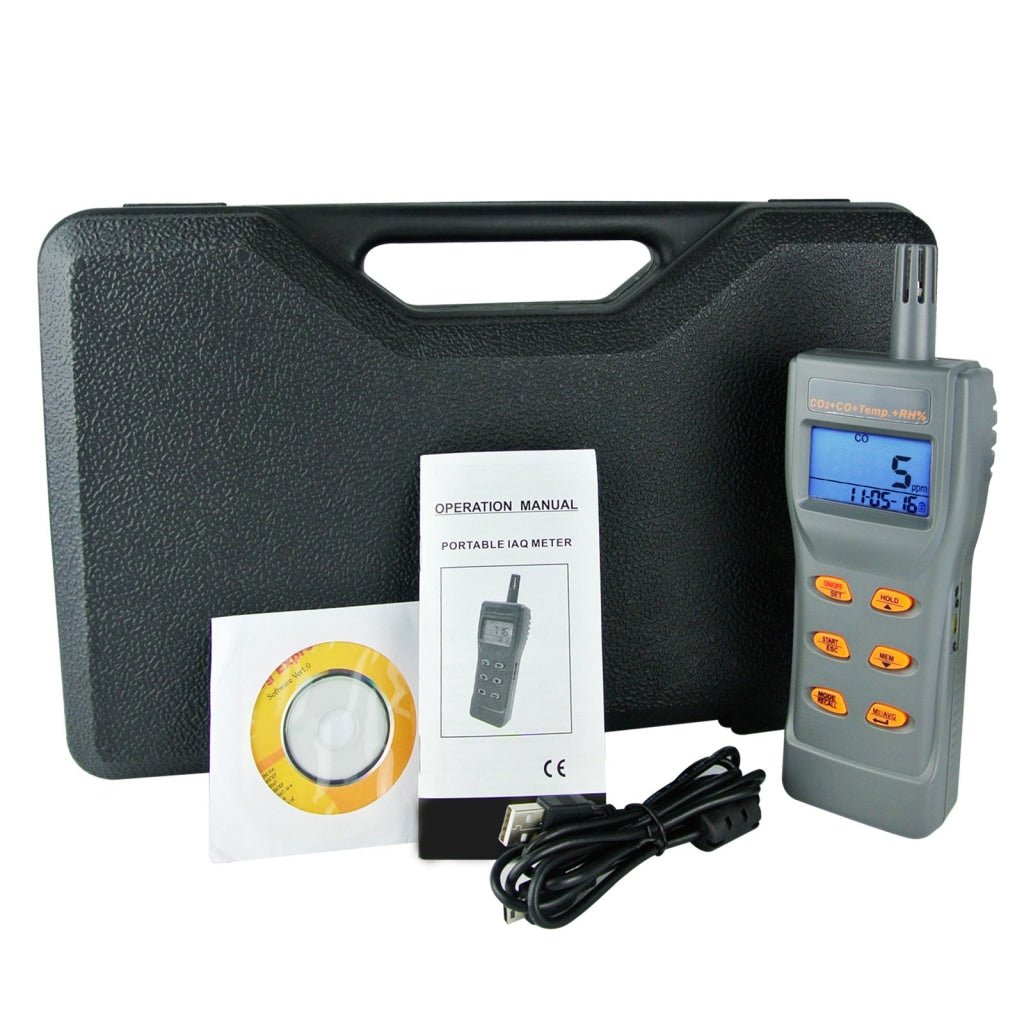

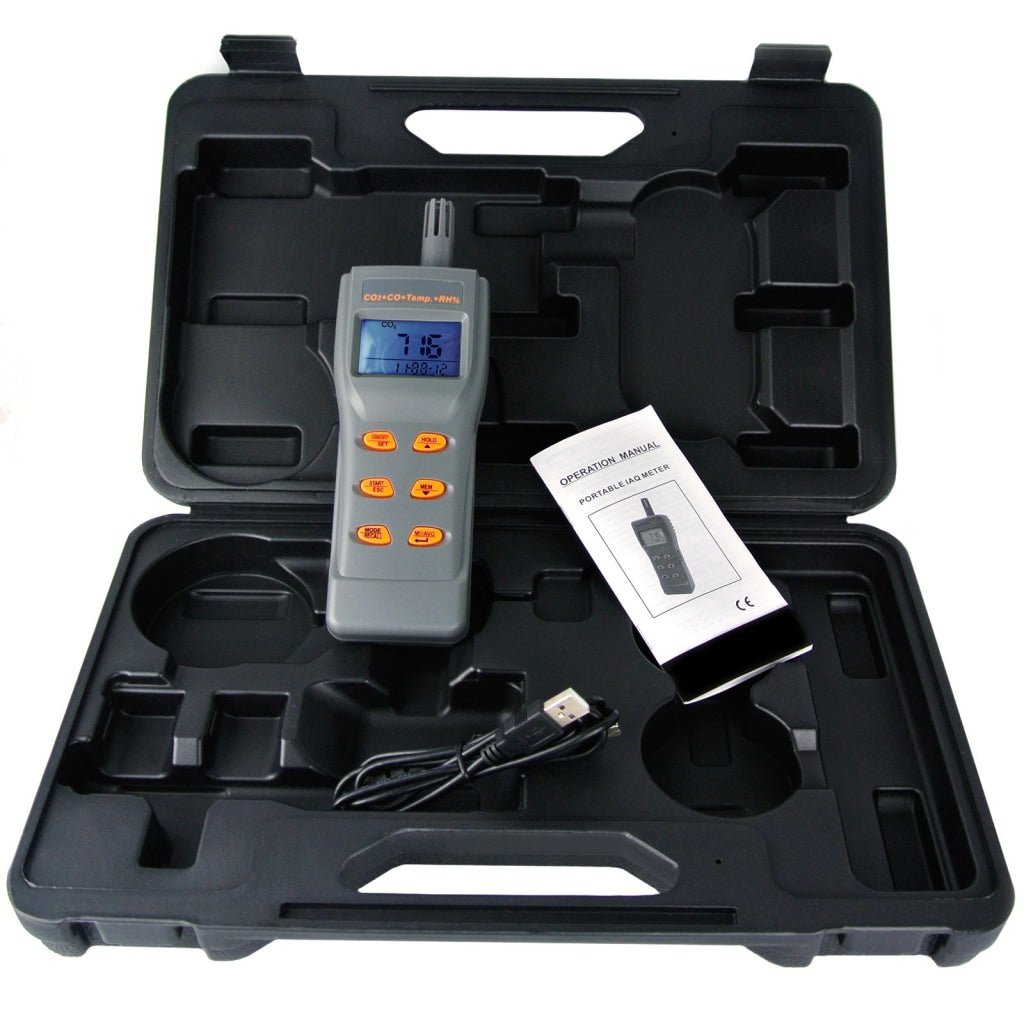

Set Includes:

  • 1x 6-in-1 IAQ Meter
  • 4x AA battery
  • 1x English Manual

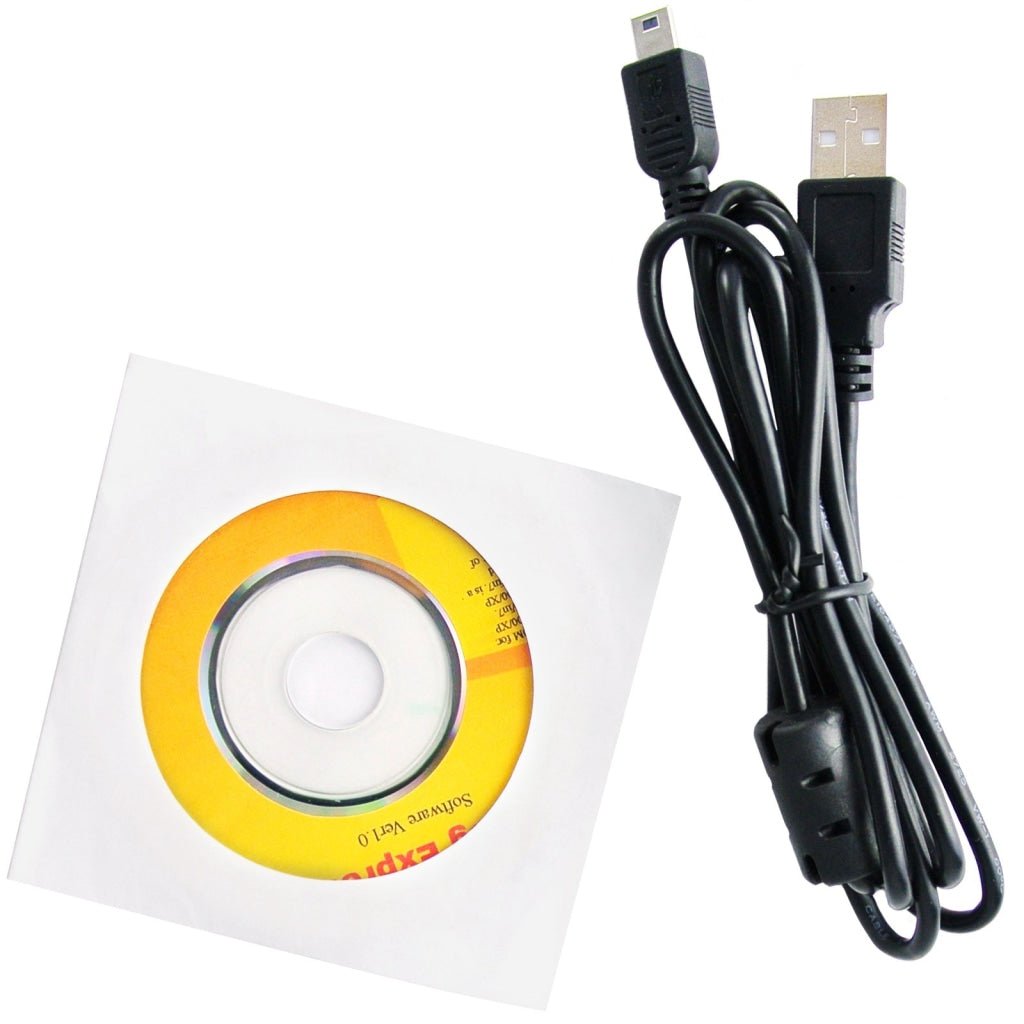

  • 1x USB cable
  • 1x CD software
  • 1x Carrying case
