ILCT-712 RJ45 RJ11 BNC Wire Tracker Locator - Wire Sorting Hunting Circuit Status Checking Tracing STP UTP Network Telephone Coax Cable Tester Finder with Complete AC interference Rejection Error Locator Cable Mapping

Sku: ILCT-712
$56.90 USD
Translation missing: en.products.product.shipping_policy_html
Quantity:
Add to Wishlist Remove From Wishlist
Visa Mastercard PayPal American Express Google Pay Apple Pay Shop Pay

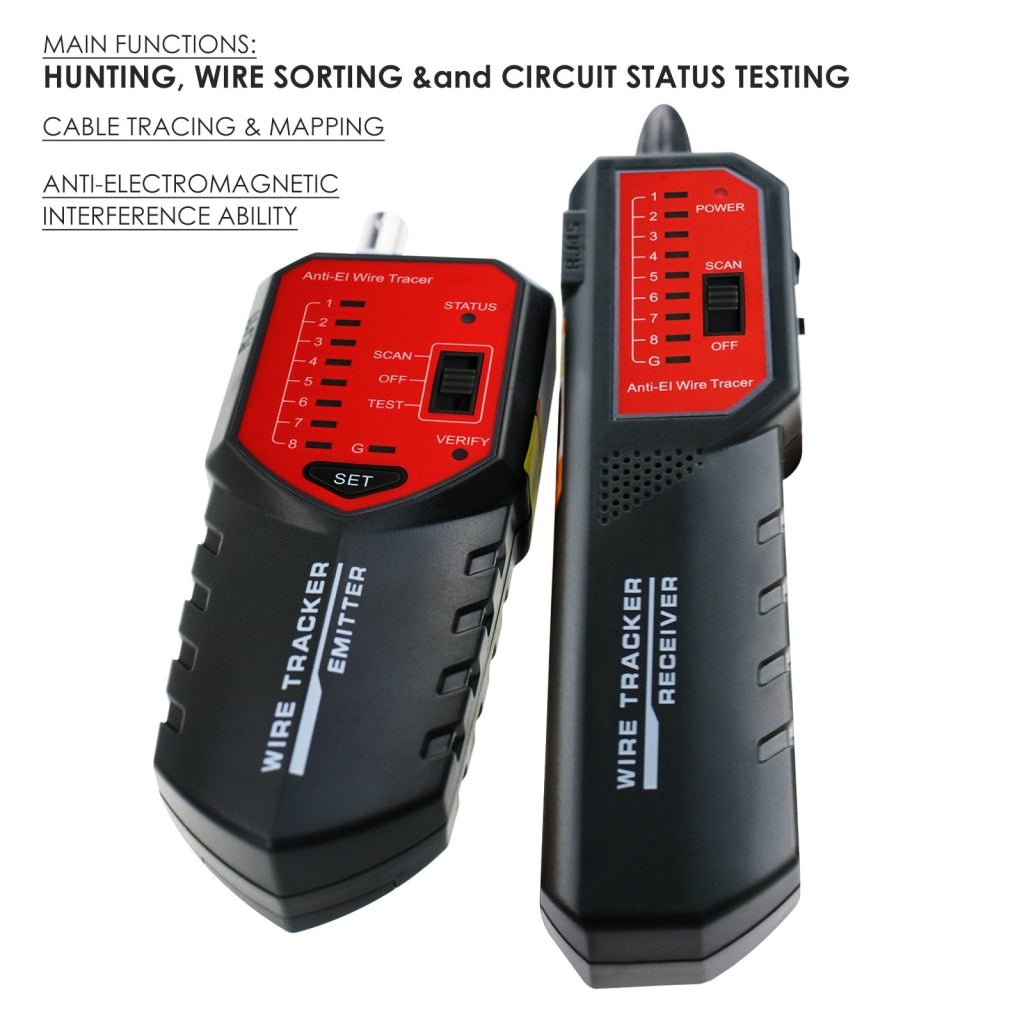

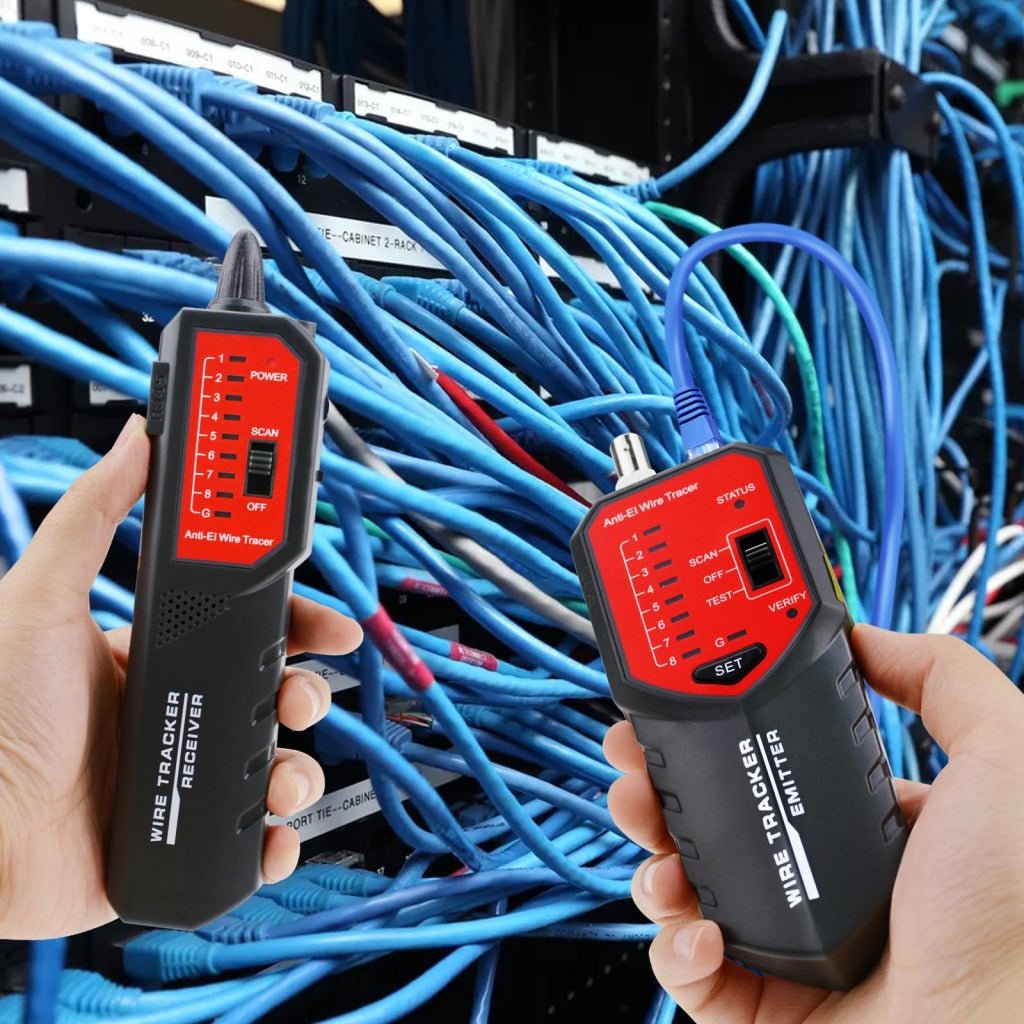

The wire tracker has three main functions of hunting, wire sorting and circuit status testing. The tracker highlights its strong anti-electromagnetic interference ability, and locating the short point accurately, which allows the user to find and verify cable more smoothly. It comes with earphone for users to wear in a noisy environment. The product is also CE approved

FEATURES:

  • Trace and find STP/UTP network cable, telephone/coax cable that connects to switch or router
  • Complete with AC interference rejection for easy tracking
  • Able to inspect wiremap of network cable directly after it is targeted
  • Can check the breakage/short point of non energized wires
  • Has two scan modes: ordinary switch / PoE switch

  • Main Functions:
    • Trace STP/UTP network cable
    • Trace energized telephone cable
    • Trace monitoring cable connected to monitor
    • Check short location of wires
    • Check breakage location of wires
    • Network cable mapping


SPECIFICATIONS

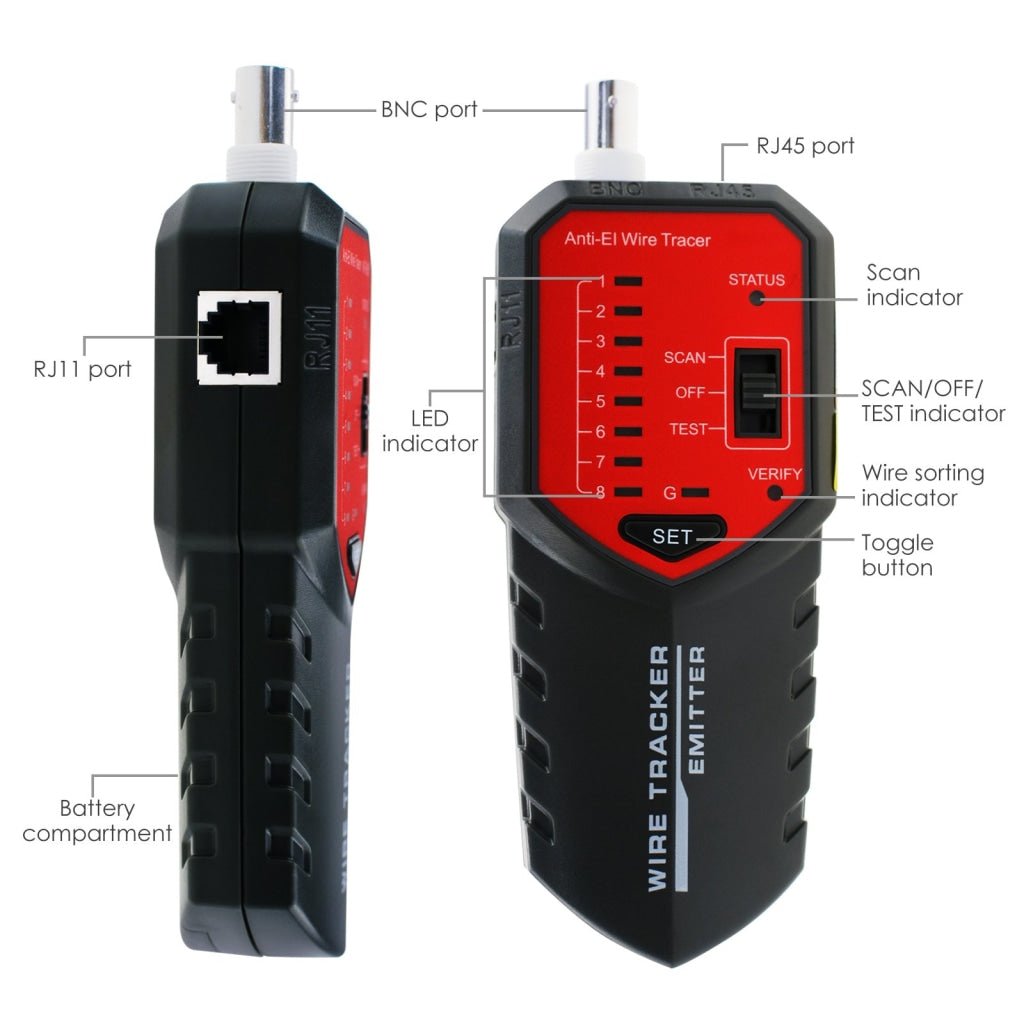

  • Emitter:
    • Tone frequency: 130KHz
    • Max. Distance of transmission: 3000m
    • Max working current: 20mA
    • Tone mode: 2 tones adjustable
    • Compatible connectors: RJ45, RJ11, BNC
    • Max. Signal voltage: 8Vp-p
    • Function and faults light display: light display (wiremap, tone, tracing)
    • Signal transmission format: Multi-frequency impulse
    • Power supply: 9V battery

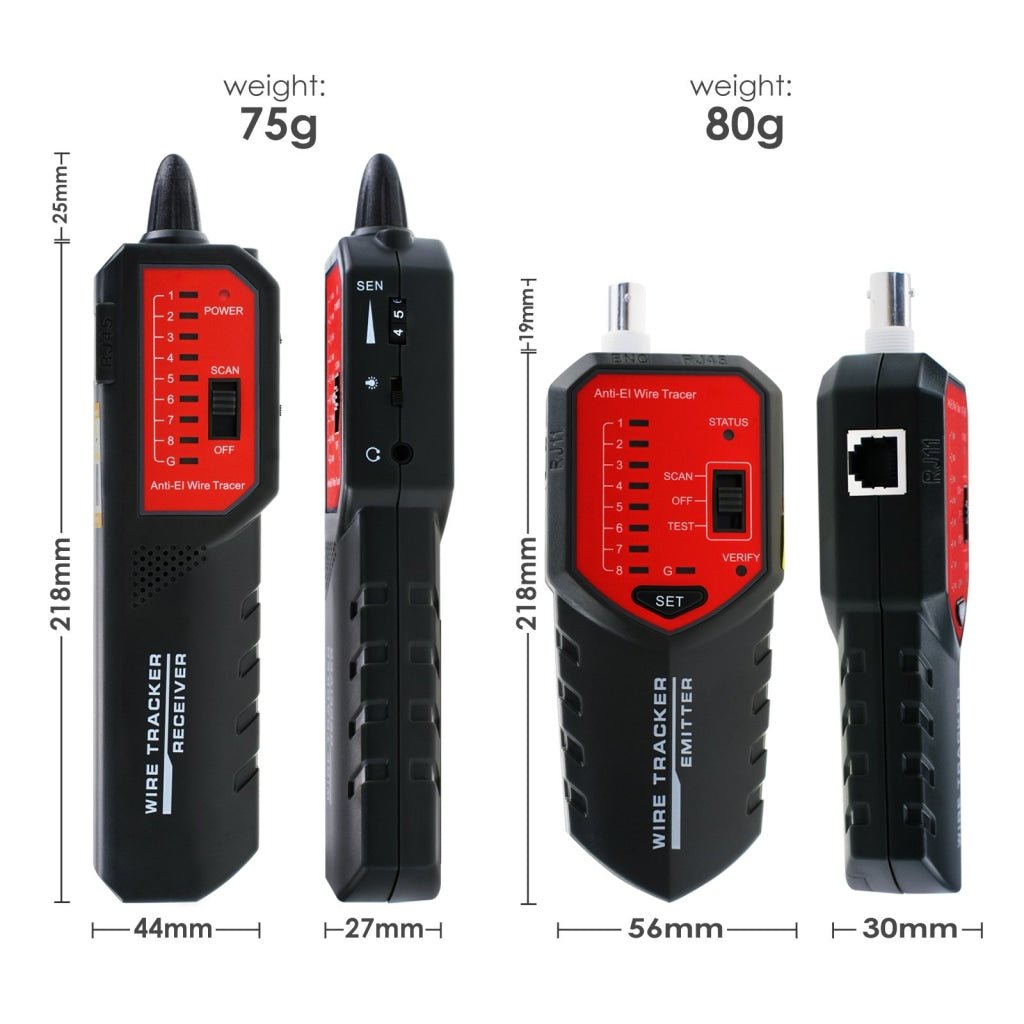

    • Weight: 80g
    • Size: 145(L) x 56(W) x 30(H) mm

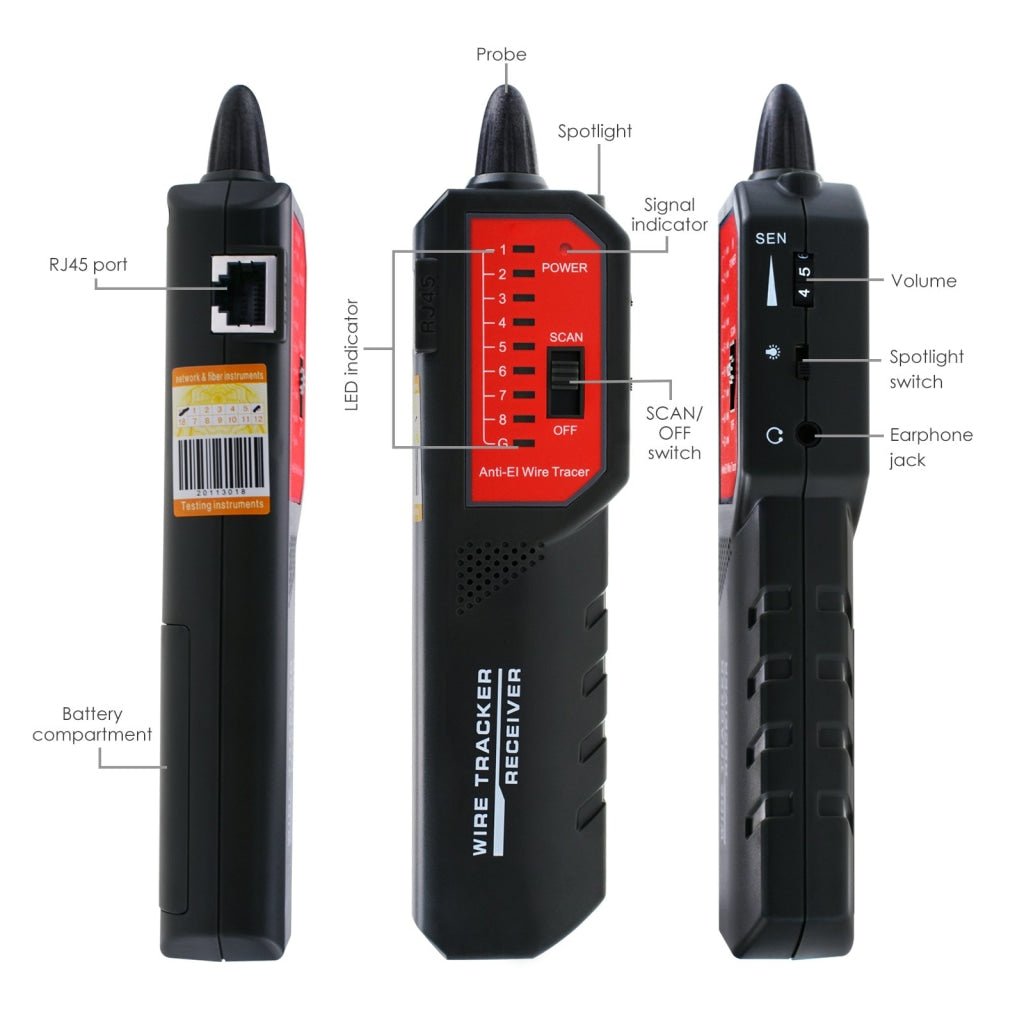

  • Receiver:
    • Frequency: 130KHz
    • Max working current: 30mA
    • Ear jack: 1
    • Power supply: 9V battery
    • Weight: 75g
    • Size: 183(L) x 44(W) x27(H) mm

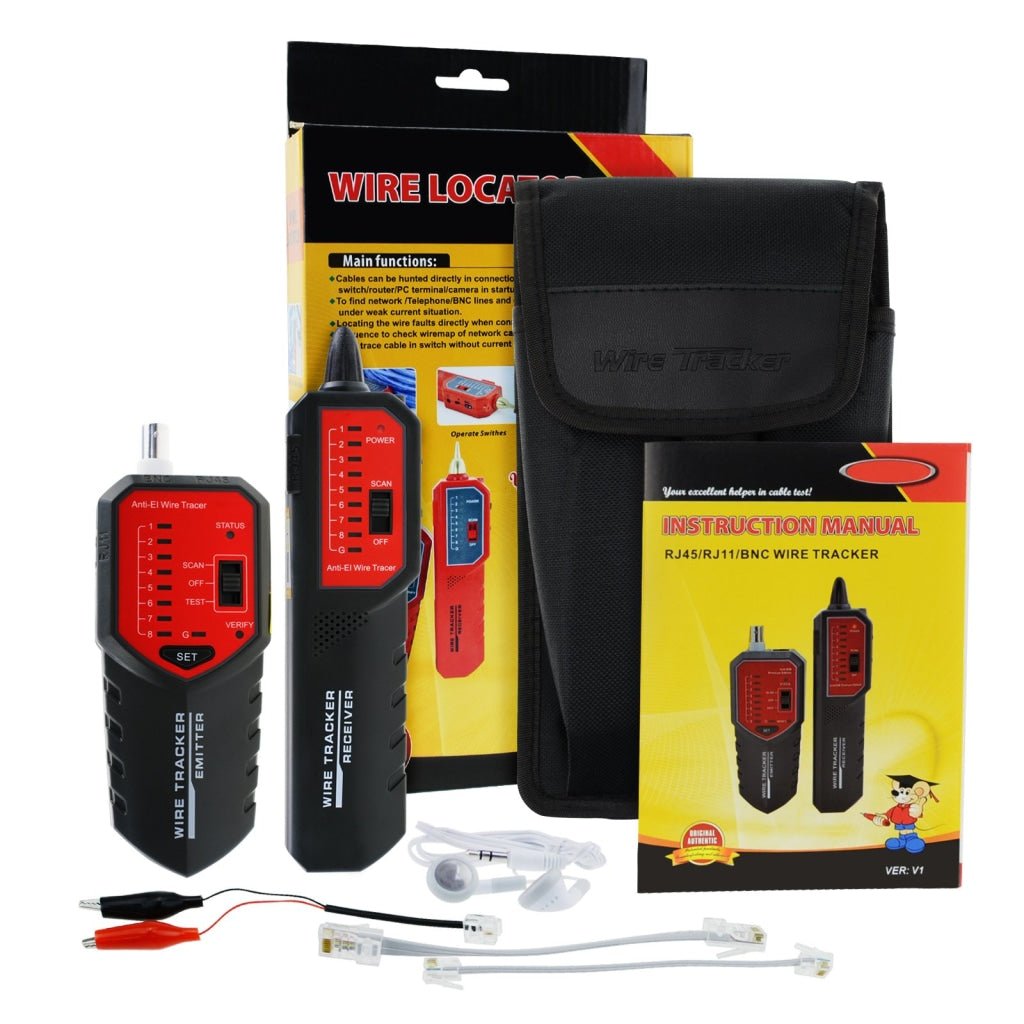

SET INCLUDES:

  • 1 x Emitter
  • 1 x Receiver
  • 1 x English Manual
  • 2 x 9V battery
  • 1 x Earphone
  • 1 x RJ11 adaptor cable
  • 1 x RJ45 adaptor cable
  • 1 x Alligator clip

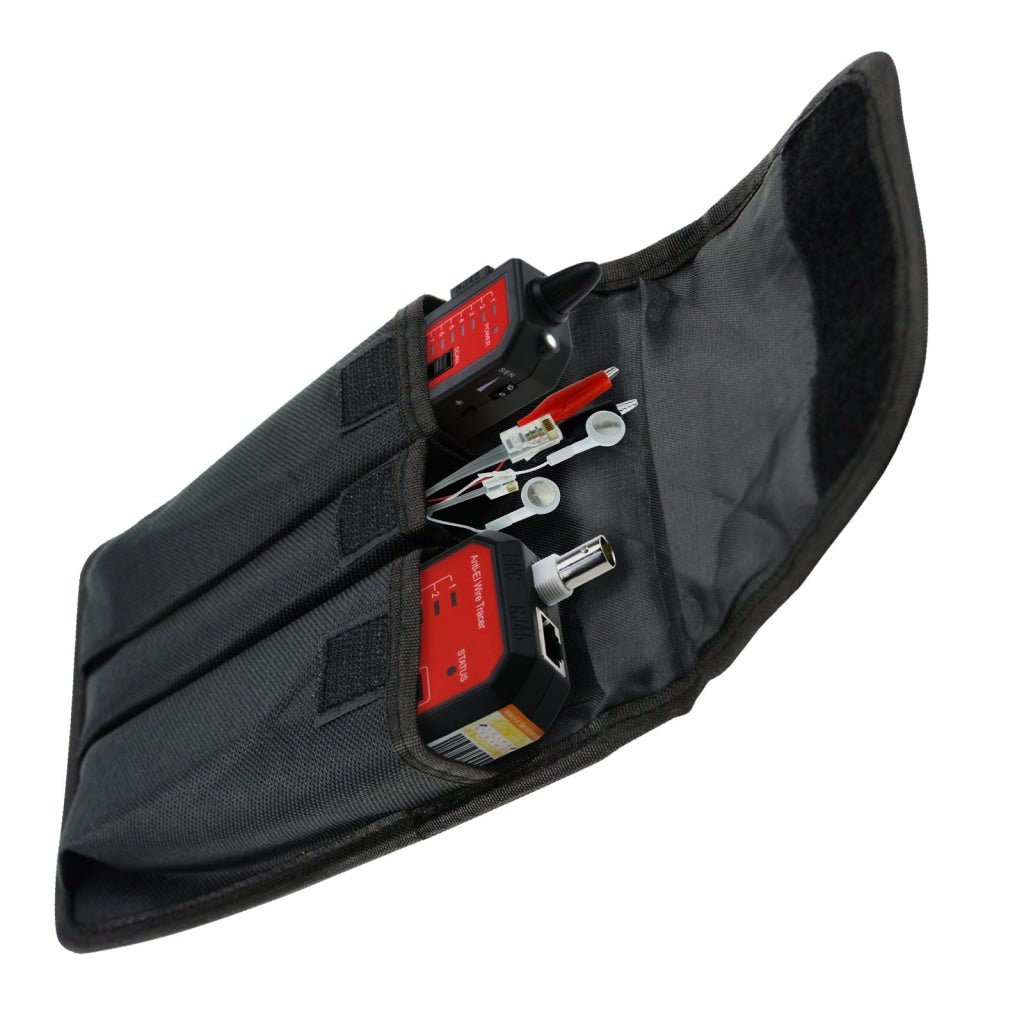

  • 1 x Carry pouch

A printed user manual is already included with this item. No digital user manual or software is available.
